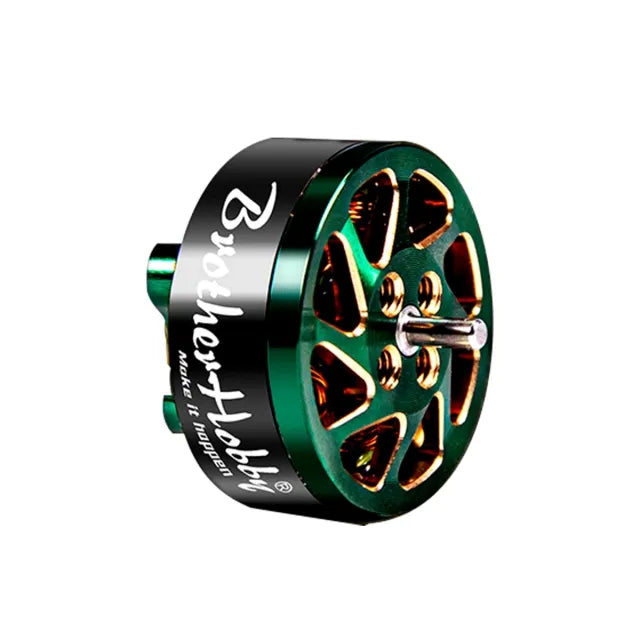

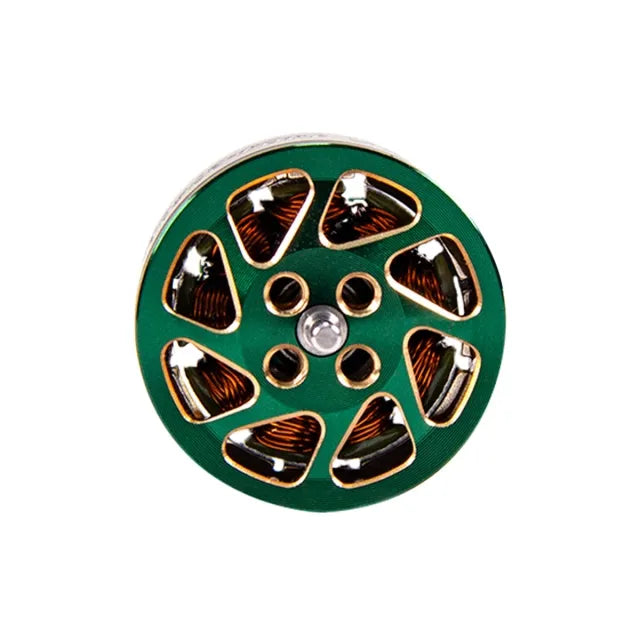

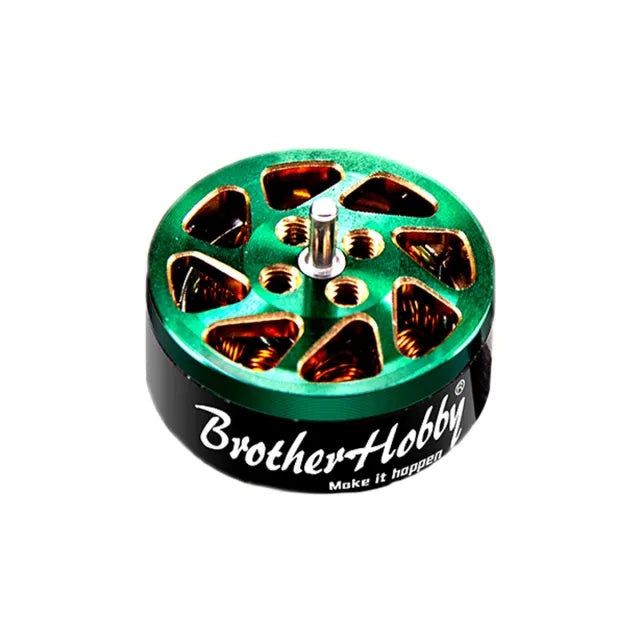

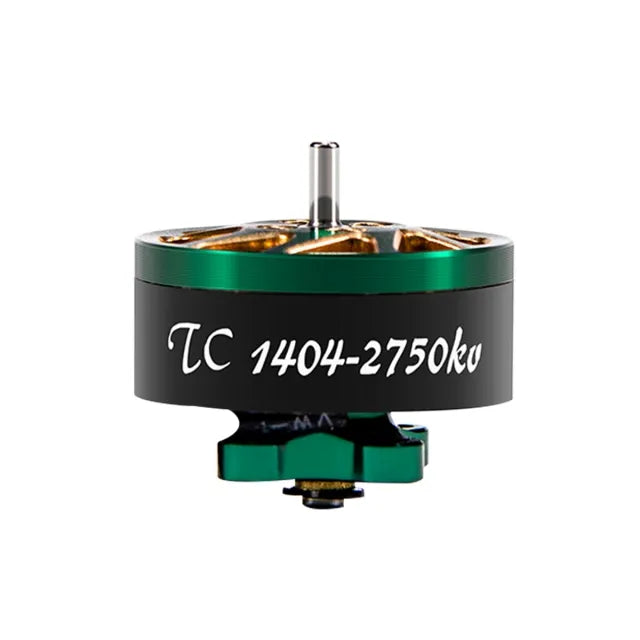

BrotherHobby TC 1404 Ultralight Motor 2750KV/3800KV/4600KV FPV Drone Motor

BrotherHobby TC 1404 Ultralight Motor 2750KV/3800KV/4600KV FPV Drone Motor

Brotherhobby

$27.00 USD
$27.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

107 orders in last 90 days

KV
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Specifications
KV: 2750, 3800, 4600
Configuration: 9N12P
No.of Cells(Lipo): 4-6S
Rotor: N52H arc magnets
Stator: 0.15mm Nippon silicon steel
Shaft: SUS 420
Bearings: NSK 5x2x2.5
Wire AWG: 30 AWG wire 10cm length
Bell cap: 7075 Al
Base casing: 7075 Al
Prop Adapter Shaft Thread: M 1.5
Bolt Pattern: M2 9X9
Weight: 8.6g with 100mm length SR Wires
Specifications KV: 2750, 3800, 4600 Configuration: 9N12Bvothev-Hobbii Muke it hoppen Specification TC

Brother Hobby TC-1404 Ultralight Motor: Specification - 4600KV. Configuration: KV3800. Dimensions (mm): Stator Length = 14, Height = unknown. Weight including cable (g) = 8.6 (100mm). Motor dimensions (mm): Ø18.2 x 16. Number of cells (Lipo) = 4S. Magnet type: N52H. Propeller size: 3 inches. ESC type: 4S, Output (A) = 1.0A. Internal resistance (mΩ) unknown.

Specifications KV: 2750, 3800, 4600 Configuration: 9N12Specifications KV: 2750, 3800, 4600 Configuration: 9N12Specifications KV: 2750, 3800, 4600 Configuration: 9N12Aerospace-grade 7075 AL, hardanodizing cover; scraping slightly without

Product Highlights: 04 Key Advantages: 01. Solid construction featuring aerospace-grade 7075 aluminum (hard anodizing cover); resistant to scratching without leaving a trace. 02. Heat-treated steel alloy shaft; wear-resistant and capable of tolerating crashes.

free and quiet flying: 02 Smooth inside Japanese NMB bearings, silky smoothrunning

Features: Free and quiet flight experience: Our motor boasts 02 smooth internal Japanese NMB bearings, providing a silky-smooth running performance.

0.1Smm ultrathin N52H high-performance rare silver wire non oriented

Design: 0.1mm ultra-thin N52H high-performance rare silver wire non-oriented silicon steel, earth arc magnet design. This ensures: * Low risk of overheating even when flying at high throttle for an extended period (100% throttle). * Strong power output that remains consistent throughout the flight, even at high throttle settings. * Silky-smooth performance with strong power delivery.

Bvother Hobbv Muke it hoppen Packing list M Motor X1 M

Packaging List: Motor x 1 M2 x 5 (base screw) M2 x 4 (prop screw)
