CUAV NEW X7+ PRO Flight Controller SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Flight controller
Tool Supplies: Assembly Category
Technical parameters: KV1100
Size: 77*45.5*39mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Origin: Mainland China
Model Number: X7+ PRO
Material: Metal
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
For Vehicle Type: Airplanes
Color: Gray
Certification: CE,FCC
Brand Name: CUAV

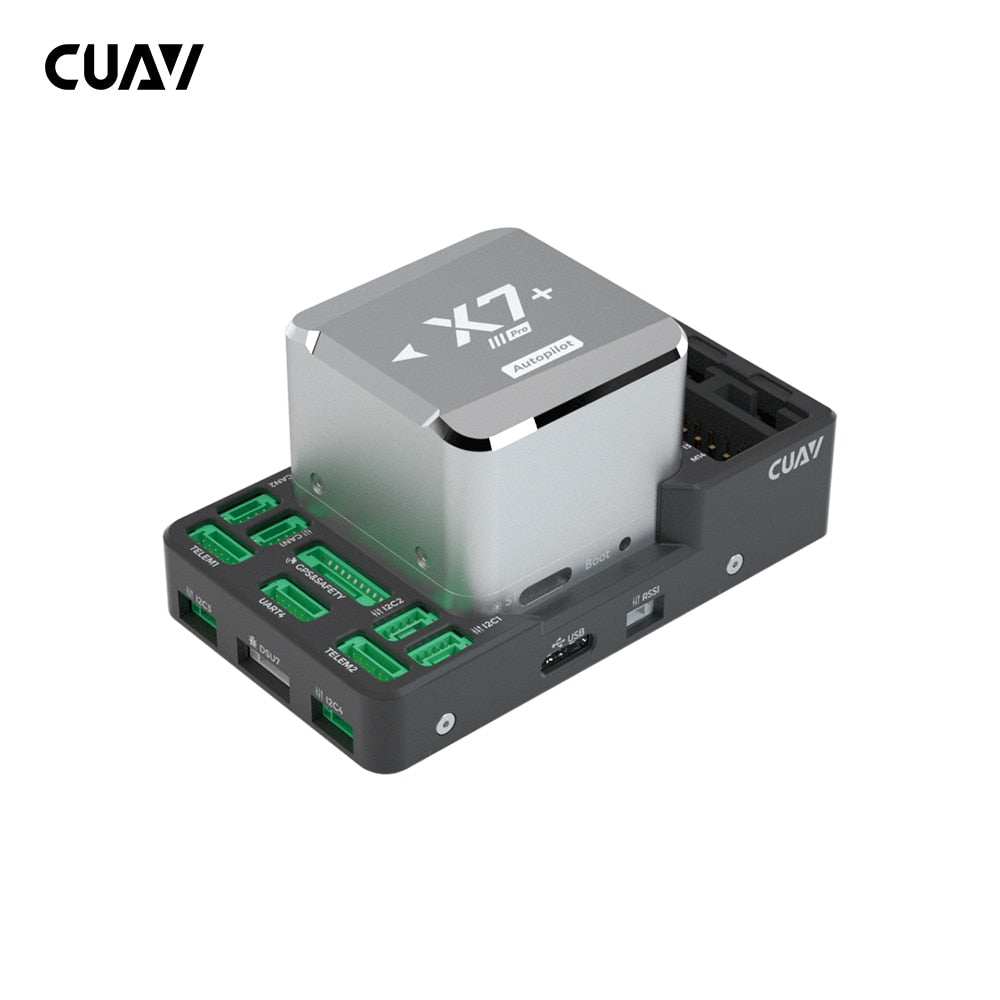

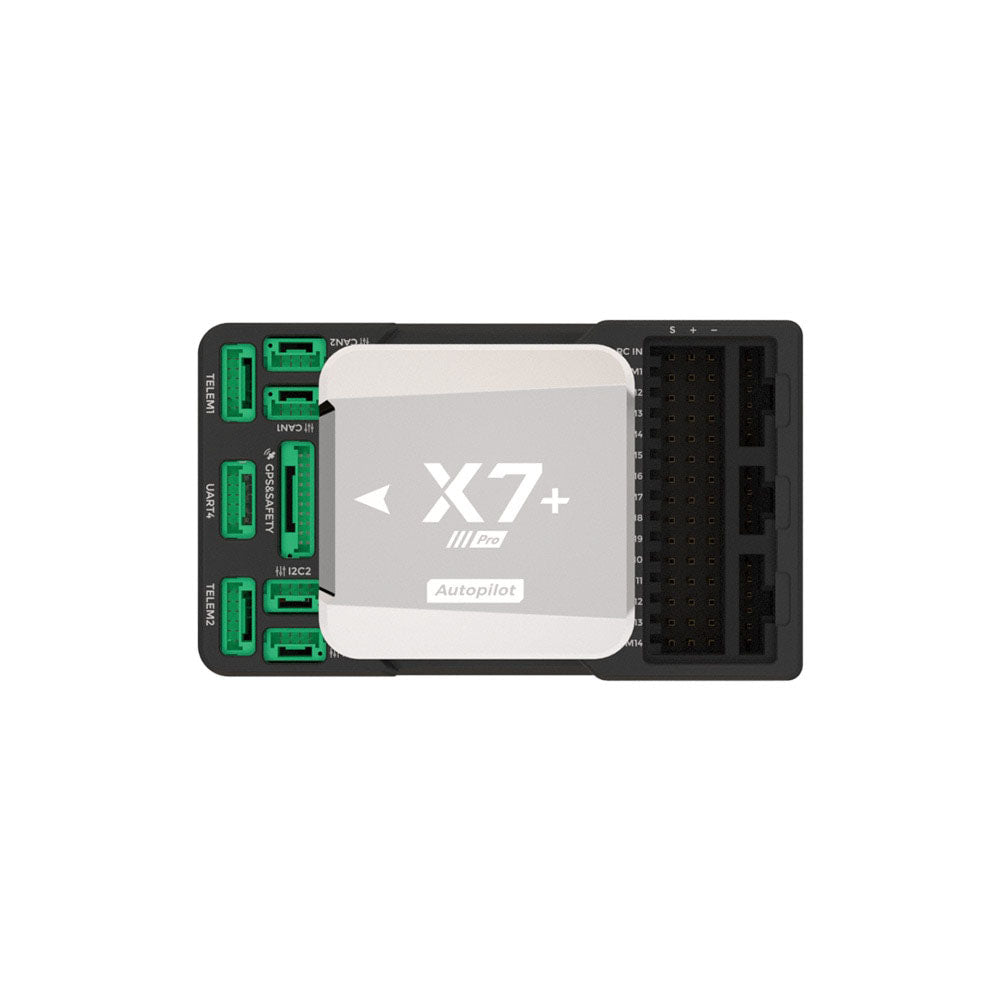

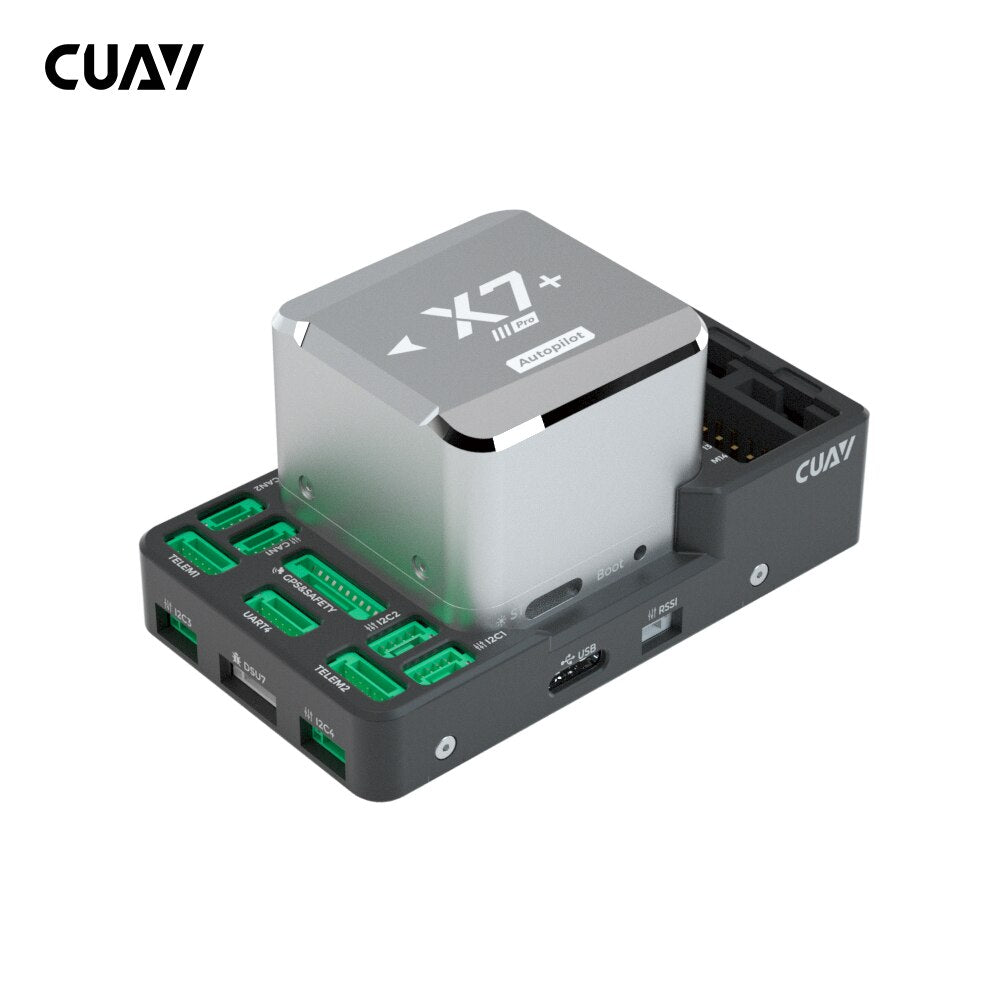

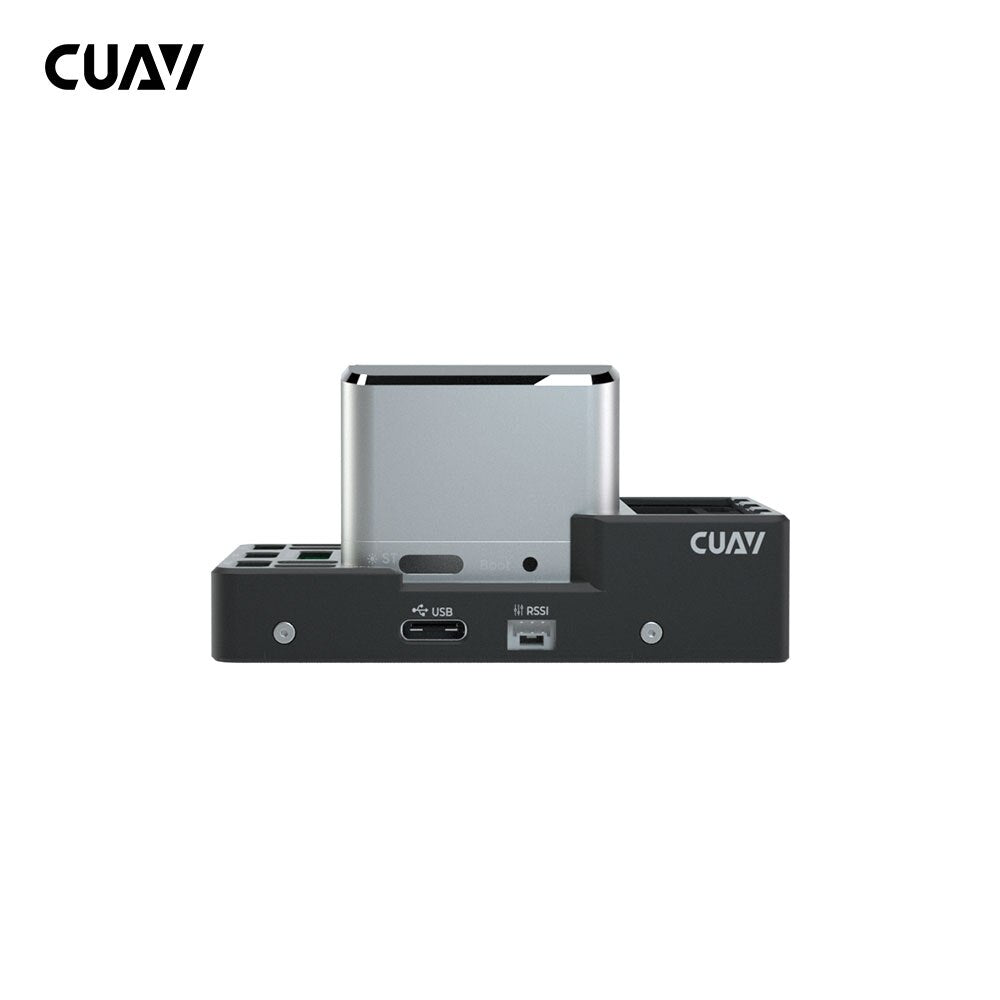

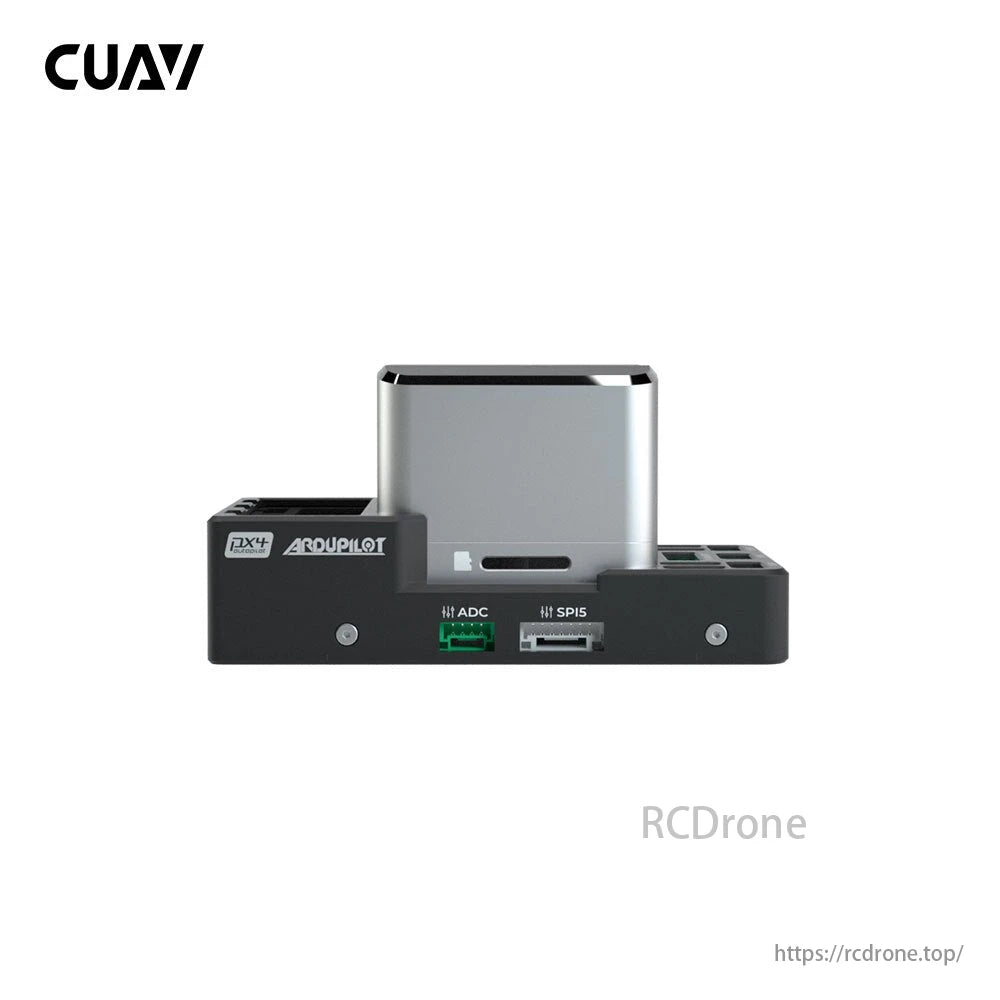

CUAV X7+ Pro Autopilot
CUAV NEW X7+ pro Pixhawk Open Source Flight Controller for PX4 ArduPilot FPV RC Drone Quadcopter
X7+ Pro Introduction:
X7+ Pro flight controllers are for professional-grade users. The X7+ series features high-end processors, sensors, and industrial-grade compasses, built-in CAV's patented shock absorption design and temperature compensation system, with processing speeds up to 480MHz, 1M memory, and 2M flash memory. X7+ Pro uses a vehicle-grade ADIS16470 sensor to further improve stability
X7+ Pro Features:
1 --Aero-Grade ADIS16470 Sensor
2 --Built-in shock absorption
3 --3 sets of Imus support intelligent failover
4 --Support temperature compensation
5 --Support CAN ammeter
6 --Modular design, support custom baseboard

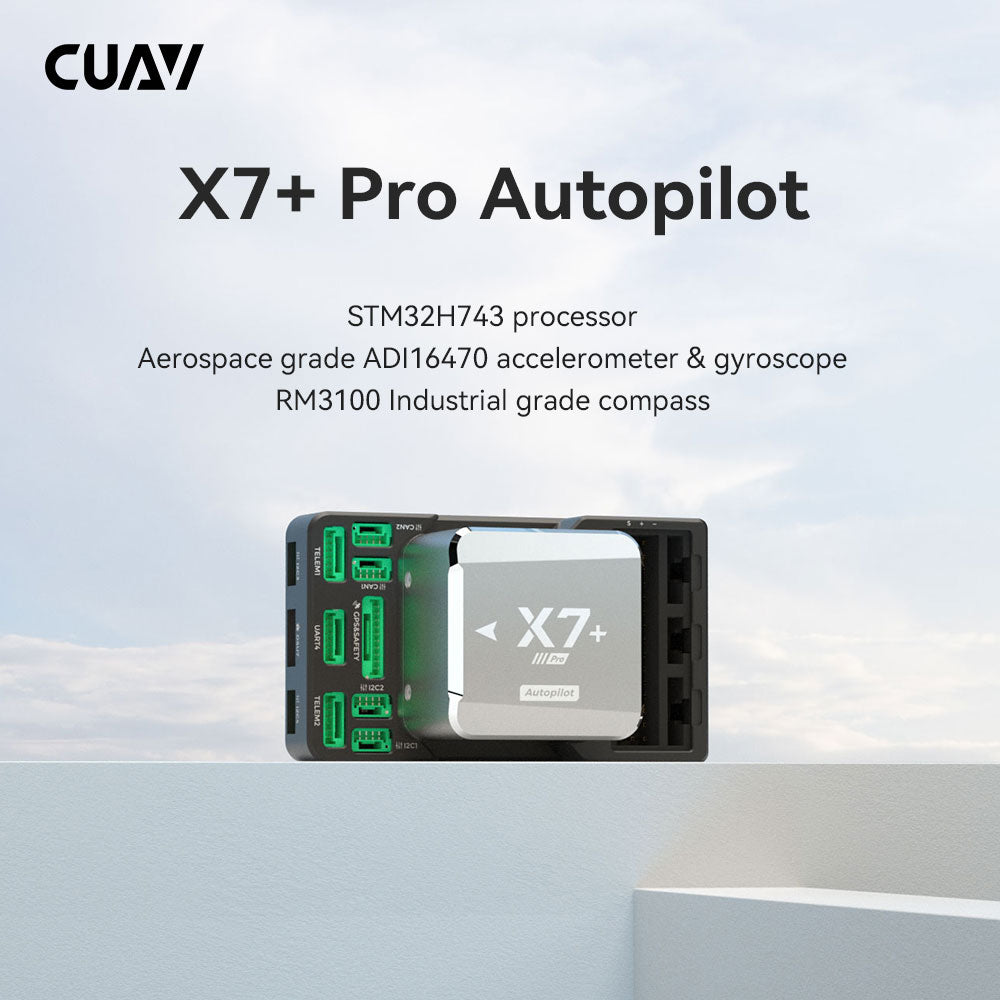

The CUAV NEW X7+ Pro flight controller features an aerospace-grade ADI16470 accelerometer and gyroscope, as well as a RM3100 industrial-grade compass, making it suitable for autopilot applications.
The CUAV NEW X7+ Pro flight controller utilizes an STM32H743 series processor with a Cortex-M7 core, allowing for increased operating frequency up to 48MHz. This provides sufficient computing power to meet the higher demands of modern flight controllers.
The ICM-42688-P IC features a significantly reduced noise figure, with a 40% improvement. Additionally, its temperature stability has been enhanced two-fold.
The CUAV NEW X7+ Pro flight controller features a built-in high-precision sensor temperature compensation system, ensuring that the sensor operates at a consistent temperature. This allows the sensor to maintain stable performance with high precision and sensitivity across a wide range of temperatures.
The CUAV NEW X7+ Pro flight controller continuously monitors data from multiple sensors in real-time. In the event of sensor failure, it immediately switches to redundant systems, enhancing overall flight safety and reliability.
The CUAV NEW X7+ Pro flight controller features a modular design, integrating the main MCU and IMU into the CORE module, which can be sold as a standalone unit. This allows users to customize their baseboard according to their individual needs and preferences.
The CUAV NEW X7+ Pro flight controller utilizes an aerospace-grade ADIS16470 sensor, which features the high-end ADI16470 chip for exceptional performance. This results in outstanding gyroscopic and acceleration drift characteristics.
The CUAV NEW X7+ Pro flight controller features a patented Better Shock Absorption System, which has undergone rigorous testing and verification. This system was developed through hundreds of material tests, dozens of iterations, and a thorough analysis using computer models, as well as thousands of flight tests to ensure optimal performance.
The standard pack for the CUAV NEW X7+ Pro flight controller includes a Digital Power Module, which features the UAVCAN protocol for digital power detection. This module utilizes CUAV's independent R&D ITT algorithm to provide accurate real-time measurement of voltage and current, enabling precise monitoring and control of your drone's power usage.
The specifications for the CUAV NEW X7+ Pro flight controller are as follows: Processor - STM32H743, Frequency - 48MHz, Flash Memory - 2MB, RAM - 1MB. The unit features an accelerometer and gyroscope combination using the ADIS16470 chip, along with the ICM-42688-P and ICM-20689 components. Additionally, it includes a compass module based on the RM3100 sensor and a barometer module utilizing the MS5611 chip. The controller also provides multiple interfaces, including 2 UARTs, 1 CAN bus, 6 analog-to-digital converter (ADC) inputs that support both 6.6V and 3.3V, as well as SPI and PWM output capabilities through 14 available channels.
The CUAV NEW X7+ Pro flight controller supports a wide range of firmware and model types, including PX4 ArduPilot for copter, plane, and helicotper models, as well as non-ArduPilot platforms such as manned vehicles and rovers. Additionally, it can accommodate all other copter models with adaptability.
The CUAV NEW X7+ Pro flight controller packing list includes: * X7# main board * CAN PMU Lite Power Module * Dupont cable for connecting accessories * CAN extension board * Pw-Link module for power and data transmission * USB-Type-C cable for connectivity * SanDisk 16GB microSD card ( Ultra Class) * MGR @A1 FAA manual
