CUAV P9 P900 Radio Telemetry SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Hydraulic Transmission Box
Tool Supplies: Tools
Technical parameters: KV1100
Size: 51*39*16mm
Remote Control Peripherals/Devices: Receivers
Recommend Age: 12+y
RC Parts & Accs: Radio Systems
Quantity: 1 pcs
Origin: Mainland China
Model Number: CUAV P900
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
Certification: CE,FCC
Brand Name: CUAV

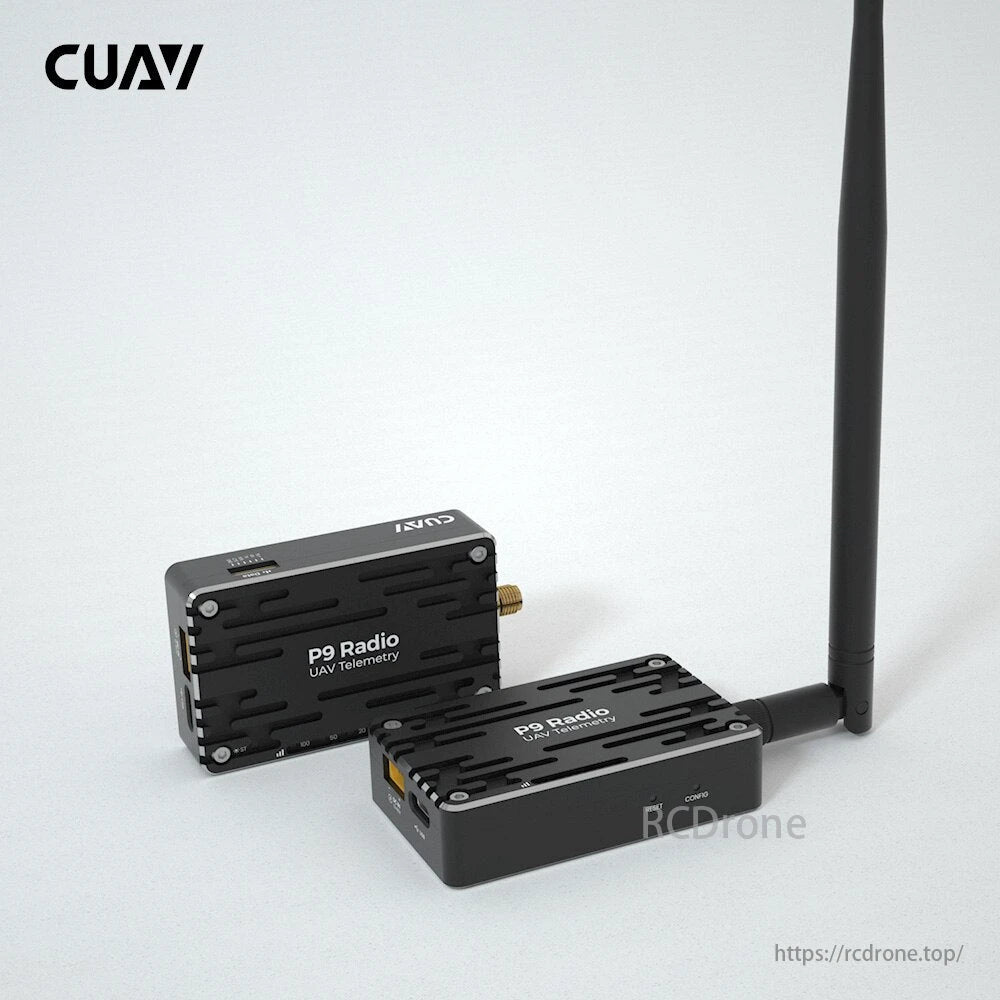

CUAV P9 radio telemetry:
CUAV P9 Radio RC Telemetry Sky Ground Station Data Transmission for Flight Controller Long rang Module

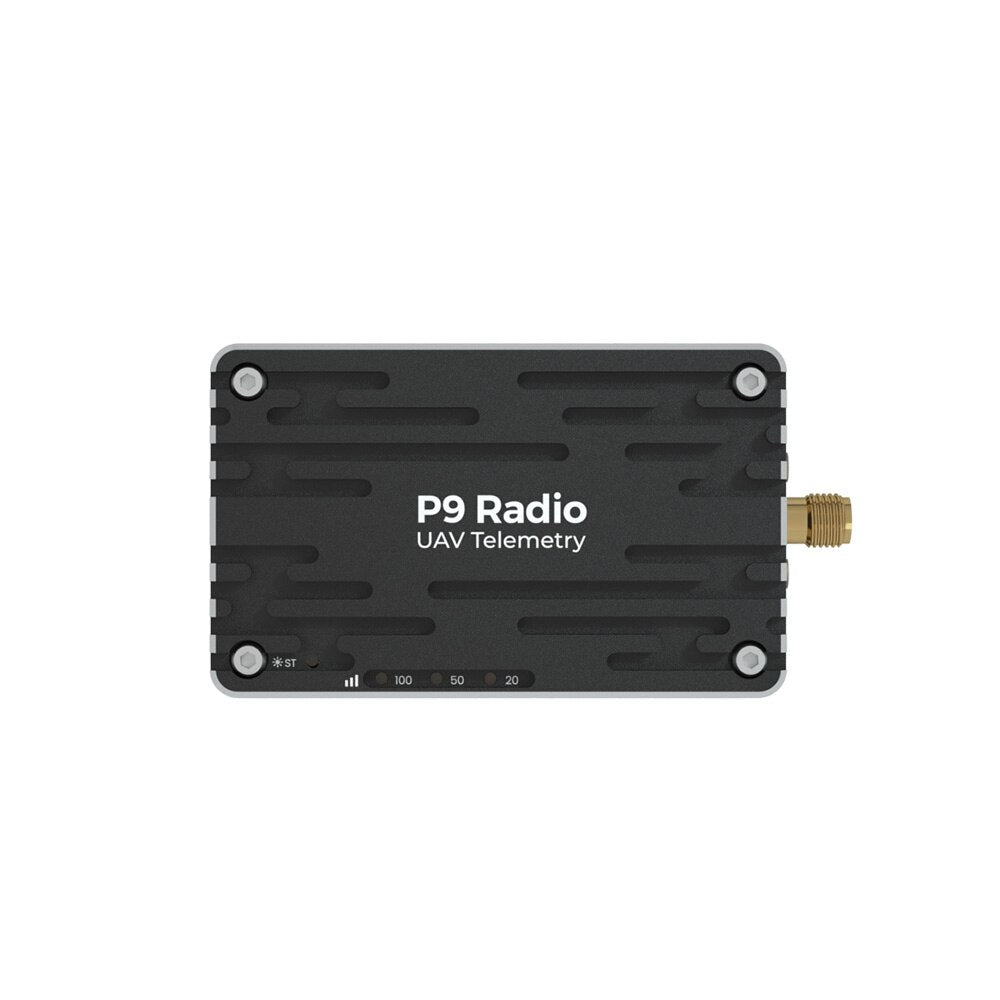

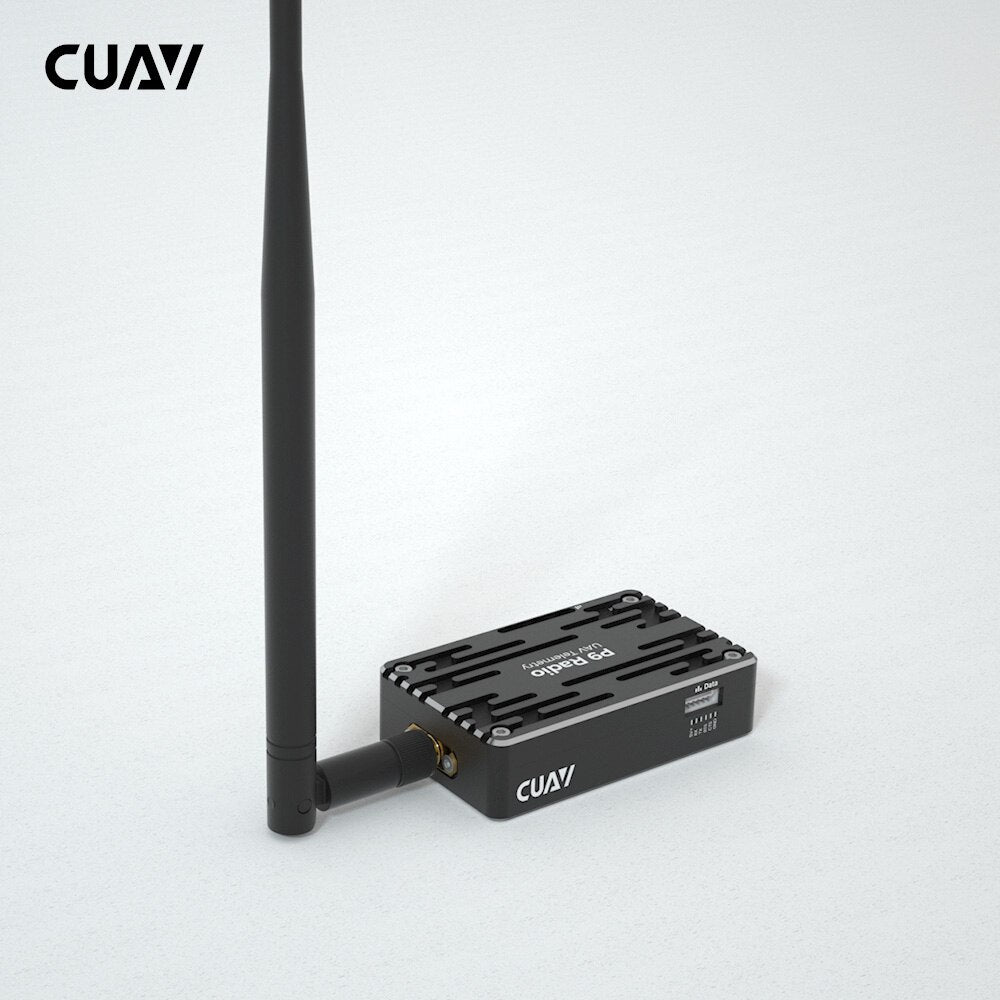

P9 radio telemetry introduction:
P9 Radio is an ultra-long data telemetry module of UAV. It adopts the communication frequency band of 902-928MHz. It has a transmission distance of 60km and a link rate of 276kbps.P9 Radio supports 3-12s wide voltage input. It supports opoint-to-multiple, and relay communication, meet communication requirements in multiple application scenarios.

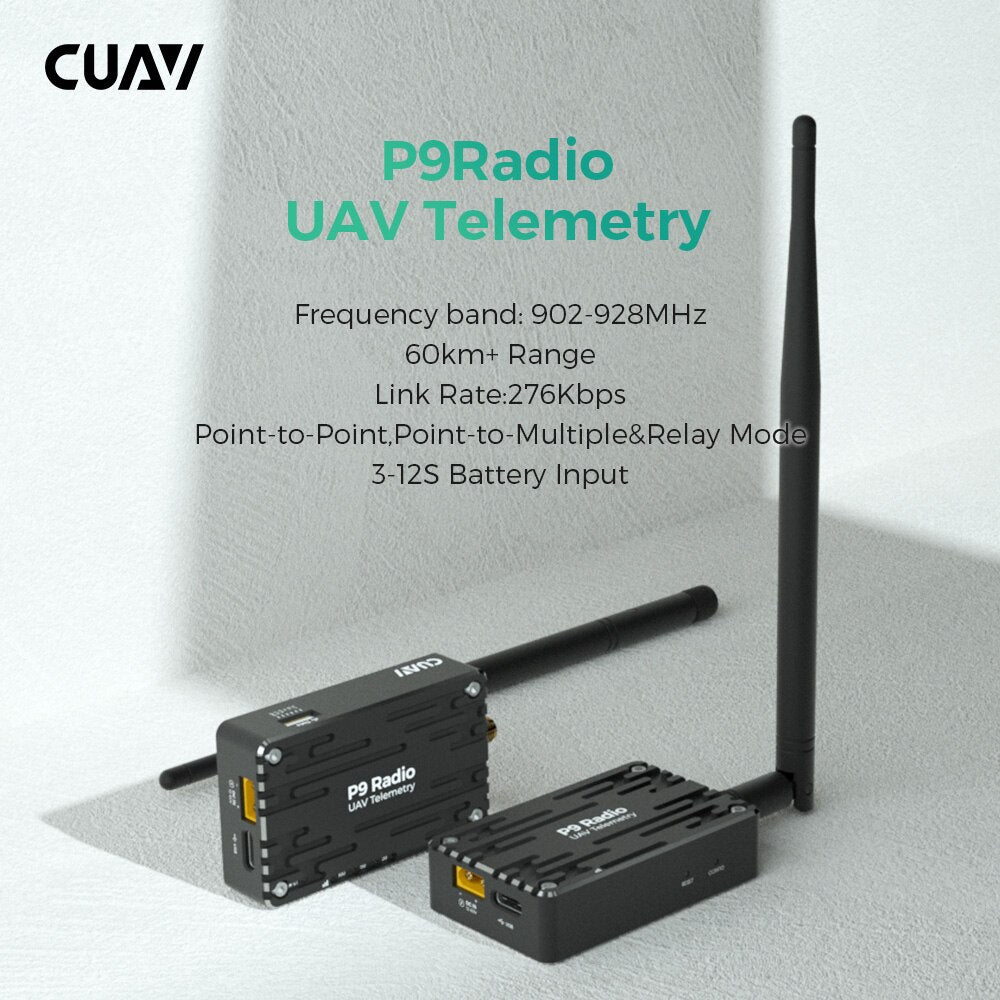

P9 radio telemetry features:
1 --902-928MHz frequency band
2 --276kbps Link Rate
3 --60km Range.
4 --Support 3S-12S Battary Input.
5 --Dual-end Switchover design reduced costs
P9 Radio is an ultra-long data telemetry module of UAV . it has a transmission distance of 6Okm and a link rate of 276kbps .
Dual-end Switchover P9 has built-in TTL and USB ports, and the air terminal and ground terminal can be switched at will.
the wide voltage input of the 3S-12S battery supported by p9 covers the working voltage of most of the current UAVs. No additional BEC is required for voltage conversion: 3-12S Lipo Input 12-60v.
276kbps Link Rate GOkm Range Using Adaptive bandwidth, automatic interference-avoidance frequency hopping . the transmission distance reaches 6Okm and the link rate reaches 276Kbps .
928MHz frequency Spreading Frequency Hopping Method Transport transparent transmission protocols Forward Error Hamming; BCH; Golay; Reed-Solomon; Viterbi Correction Encryption 32 bits of CRC ARQ Range Optional AES encryption (custom) 60km+ (high-gain fiberglass antenna unobstructed seaside)
P9 module; 55g antenna total Size 65mmxlOmmx16.Smm 65mm 4Omm P9 Radio UAV Telemetry 16.Smm CUN ueebb Cin Oed (Oz0 31g; 86g)
Ground Unit Packing List P9 Radio Wavicicmcan P9 module XI 915MHz Antenna x1 Length: 25cm Type-C Cable X1 XT3O-XT6O Power Cable x
Sky Unit Packing List P9 Radio VAVucicmciny P9 module x1 915MHz Antenna x 1 Length: 25cm XTZO Single-End Power x1.
x2 VS/X7 series data cable x1 Cable Length: 25cm XT3O-XT6O Power Cable x 1 LengTH: 25 cm Type-C Cable X1 x3O x6O Type-A Cable 1 X2 X7-X7 X5 X3O Single-End Power x4 Cable Leength: 26cm Pixhack single-end power x5 x8 x9
