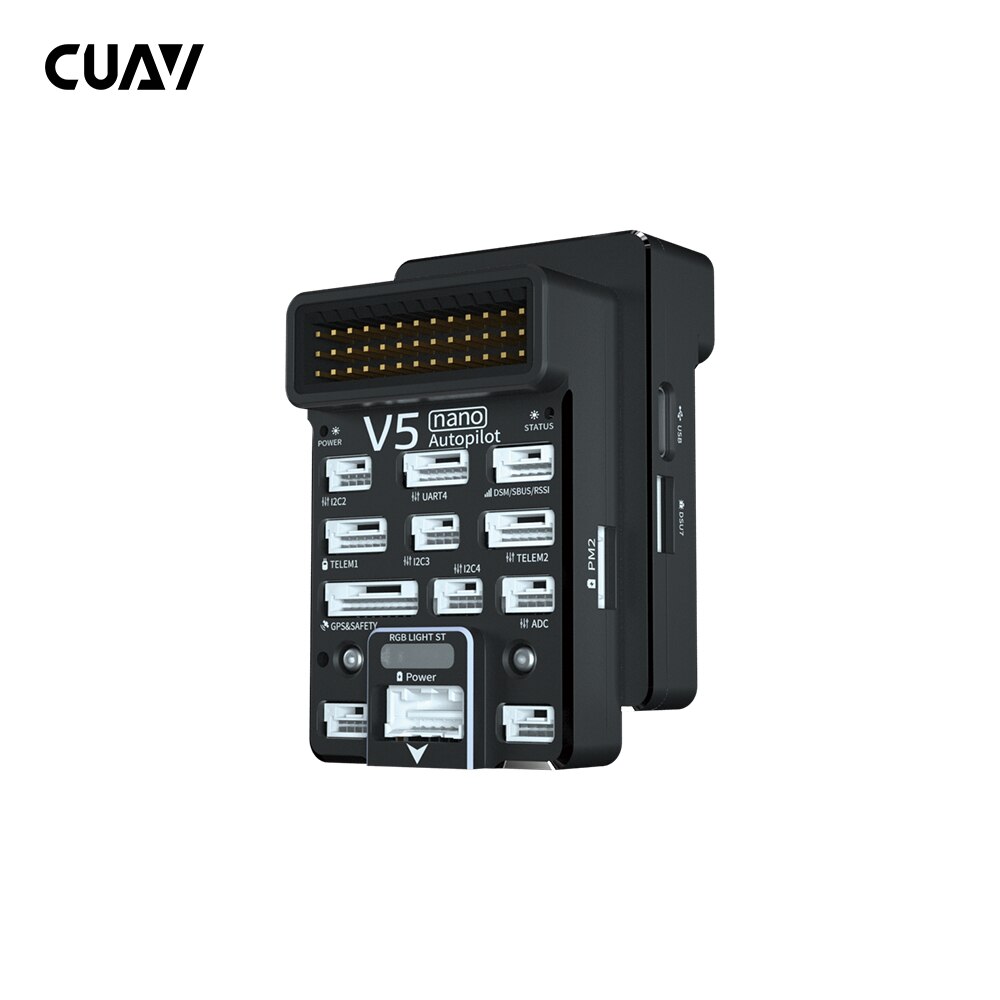

CUAV V5 Nano Autopilot Drone Parts - Supports ArduPilot, PX4, and Pixhawk Flight Controllers with features including GPS navigation, ADC (Analog-to-Digital Converter), RGB (Red-Green-Blue) sensors, and telemetry capabilities via UART and JOystick Bus.

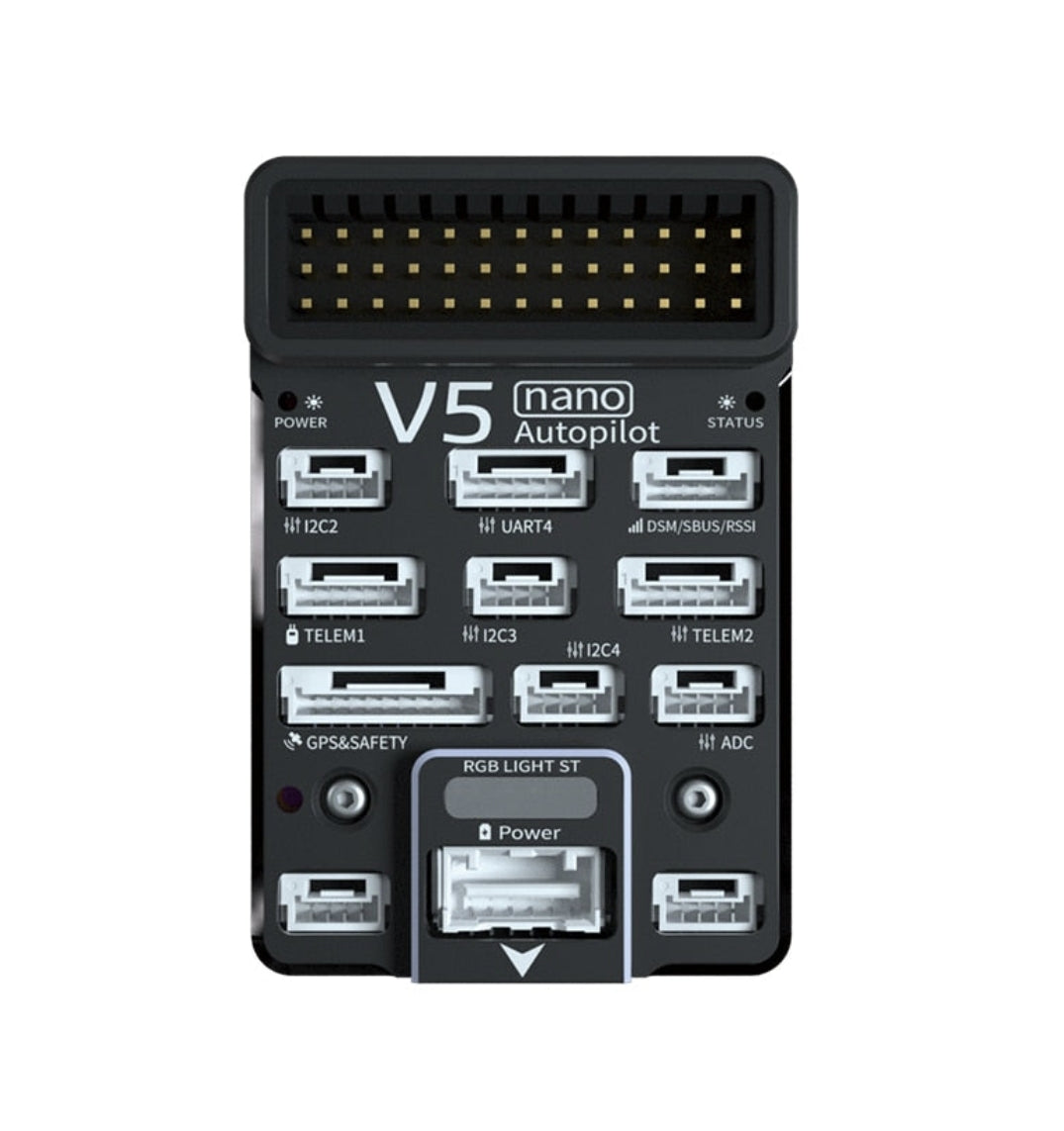

CUAV V5 Nano Autopilot Drone Parts - Supports Power: 5V, Qano Status, Autopilot with 12C2 UART protocol, DSMI/RS-485 Bus, Telemetry modes (4T12C3 and TELEM2), 1Ti2C4 GPS, Safety features, ADC (Analog-to-Digital Converter) and RGB Light System with a power level of 0V.

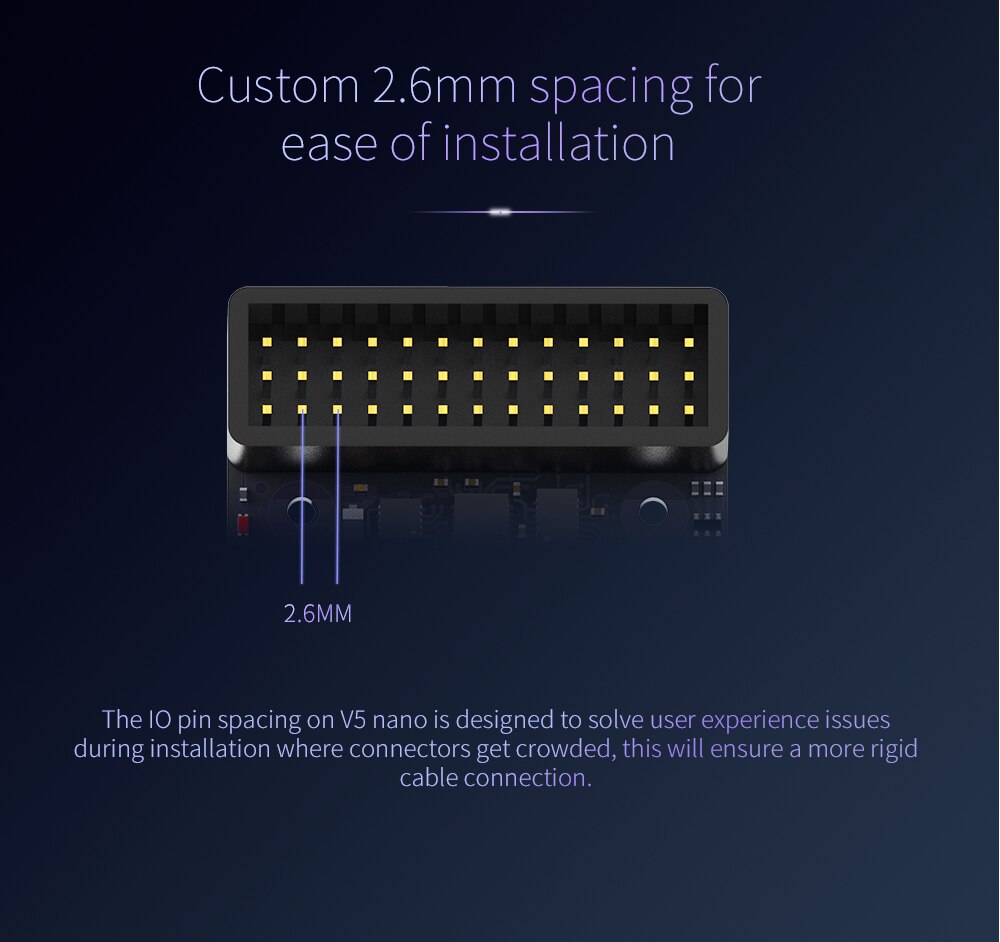

Our custom-designed 2.6mm pin spacing ensures easy installation, addressing common user experience issues that can arise when connectors become crowded during assembly.

The V5 Nano boasts a compact design without sacrificing performance. Its processor, combined with four sets of full-interface isolation protection chips, ensures effective avoidance of issues related to static discharge and input/output level compatibility problems.

The V5 Nano features a built-in multi-sensor redundancy system, which significantly enhances flight safety and reliability by automatically switching to a redundant sensor in the event of a fault. This system includes a BMI055 accelerometer and gyroscope combination.

The V5 Nano supports both PX4 and ArduPilot, catering to diverse user needs by offering two prominent open-source flight control stacks.

The V5 Nano supports various unmanned vehicle types, including fixed-wing aircraft, helicopters, multi-copters, VTOL (Vertical Takeoff and Landing) vehicles, boats, and rovers, making it suitable for the development of autonomous systems across different platforms.

The V5 Nano supports various communication protocols, including I2C2, UART4, and SBUS/IRSSI, as well as HM-PTM/PM bit telemetry modes (4i2c3 and TELEM2) with 1Ti12C4 and XT6O connectors for seamless integration with LTE link series or radio systems.

The V5 Nano has a compact size of 81x47x16mm, and its larger counterpart measures 97.5x44x31mm. It features a range of sensors, including LZGD20, L3GD20, ICM-20602, LSM303D, LSOZD, ICM20689, MPU6000, and MPU9250. Additionally, it comes equipped with BMI055, IST8310, and various interfaces such as PWM (8+6, 8+5, and 8+3), CAN, and power interfaces, as well as two I2C interfaces.

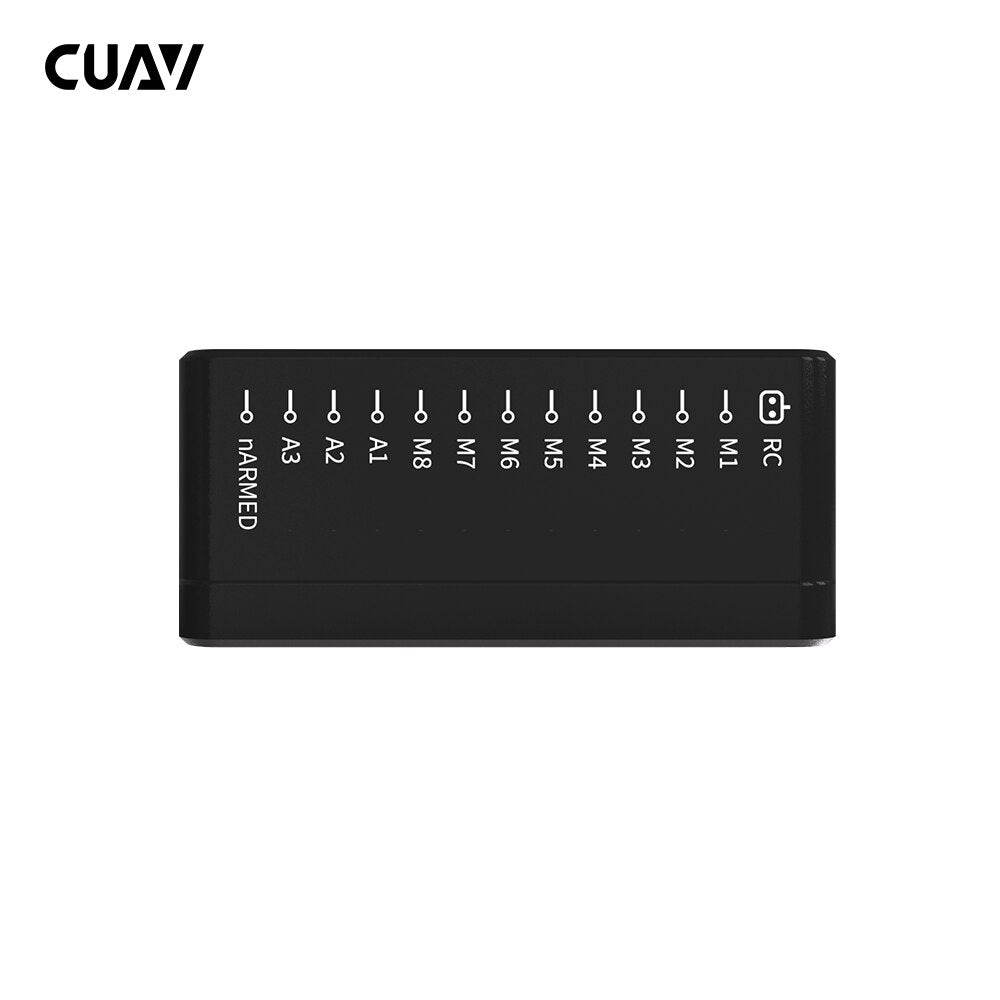

The V5 Nano's specifications include a main processor based on the STM32F765, which features a 32-bit ARM Cortex-M7 core running at 216MHz with 2MB flash memory and 512KB RAM. The device is equipped with various sensors such as accelerometers (ICM-20602, ICM-20689, or BMI055), gyroscopes, barometers (MS5611), and features multiple interfaces including UART, I2C, CAN, two ADC channels, and 11 PWM output pins. Additionally, it has one ARMED input and PPM IN/PPM OUT for DSMX/SBUS/RSSI protocols.

The V5 Nano comes with a variety of cables and modules, including I2C/CAN, ADC3.3V, RSSI, SBUS, HV PM Power, Dupont, and PWM Link modules. Additionally, it includes a USB-C cable, as well as an optional 16GB memory card. The package also includes DSMX, CAN extension board, and other accessories.
