CUAV X7 Plus Specifications

  • Interfaces:
    • 2 Power ports(Power A is common adc interface, Power C is uavcan battery interface)
    • Support multiple RC inputs (SBUs / CPPM / DSM)
    • 14 PWM outputs (12 supports Dshot)
    • 4 i2c buses(Two i2c dedicated ports)
    • 2 GPS ports(GPS and UART4 ports)
    • Analogue / PWM RSSI input
    • 2 CAN bus ports
    • 2 ADC input
    • 1 USB ports
  • On-board sensors:
    • Accelerometer/Gyroscope: ICM-20689
    • Accelerometer/Gyroscope: ICM-20649
    • Accelerometer/Gyroscope: BMI088
    • Magnetometer: RM3100
    • Barometer: MS5611*2
  • Operating temperature: -20 ~ 80°c
  • Main FMU Processor: STM32H743
  • Power System:
    • Servo Rail Input: 0~36V
    • USB Input: 4.75~5.25V
    • Power: 4.3~5.4V
  • Weight: 101 g

Includes

  • 1x CUAV X7+ Standard Autopilot Flight Controller (for PX4/APM)
  • 1x CAN PMU Lite Power Module
  • 1z CAN Extension Board
  • 1x 16G Memory Card
  • 1x 12C / CAN Cable
  • 1x Pw-Link Module
  • 1x ADC3.23 Cable
  • 1x USB-C Cable
  • 1x RSSI Cable

CUAV X7 Plus Flight Controller SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Wheel Hub

Tool Supplies: Cutting

Technical parameters: Value 3

Size: 77x45x39

Remote Control Peripherals/Devices: Motor

Recommend Age: 18+

RC Parts & Accs: AXLE

Quantity: 1 pcs

Origin: Mainland China

Model Number: X7 Plus Flight Controller

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

CUAV Flight Controller Open Source For APM PX4 Pixhawk FPV RC Drone Quadcopter X7 Version

Main Difference of X7 AND X7PLUS:
1.The outlook is difference,

2.the sensor is different

Here is X7 description:



CUAV X7 + Flight Controller Description

The X7+ Flight Controller is enhanced with a new sensor lineup, featuring the powerful STM32H743 Processor, ICM-42688-P accelerometer and gyroscope, and RM3100 industrial compass for superior navigation and stability in flight control systems.

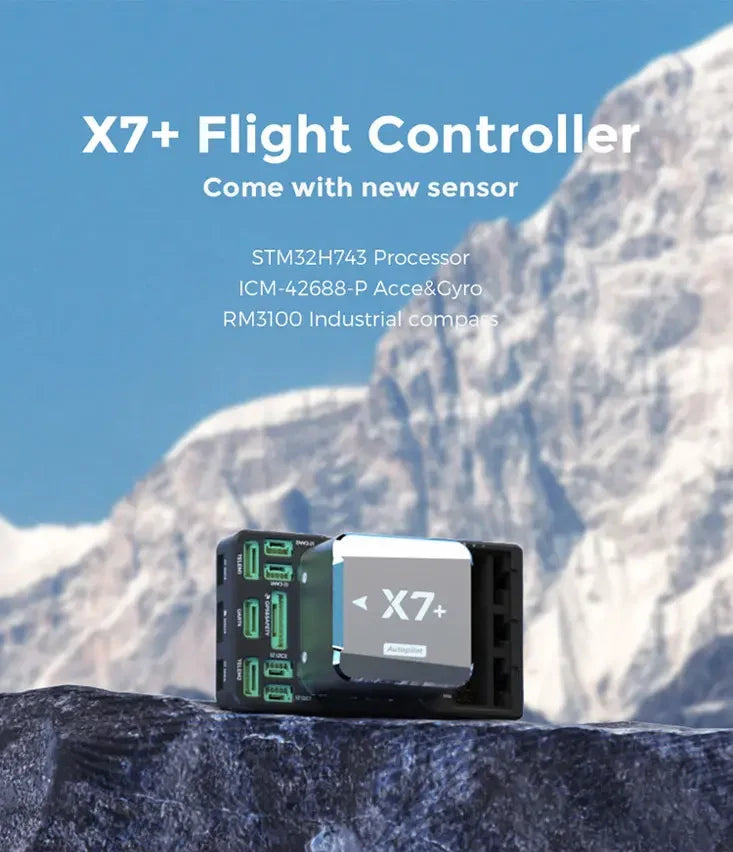

CUAV X7 Plus Flight Controller, X7+ Flight Controller Come with new sensor STM32H743 Processor I

H7 Processor Powerfull Performance

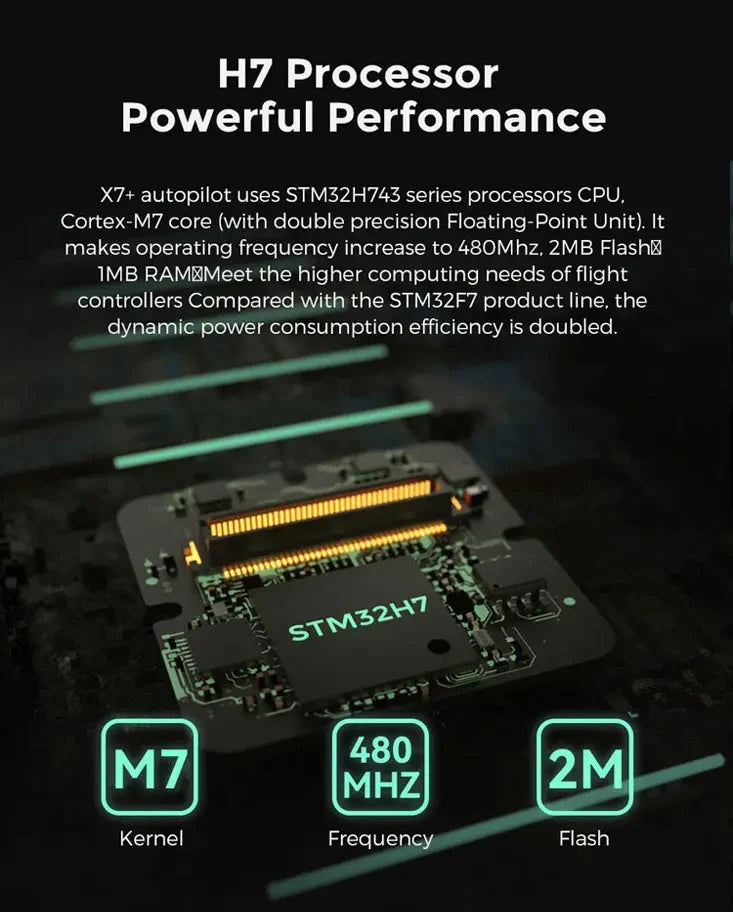

The X7+ autopilot harnesses the STM32H743 series processor, featuring a Cortex-M7 core equipped with a double precision Floating-Point Unit (FPU), propelling its operating frequency to an impressive 480MHz. With 2MB Flash and 1MB RAM, it meets the demanding computational needs of advanced flight controllers. Compared to the STM32F7 line, the STM32H7 offers double the dynamic power consumption efficiency, ensuring powerful performance for complex flight operations.

CUAV X7 Plus Flight Controller, X7+ autopilot uses STM32H743 series processors CPU, Cor

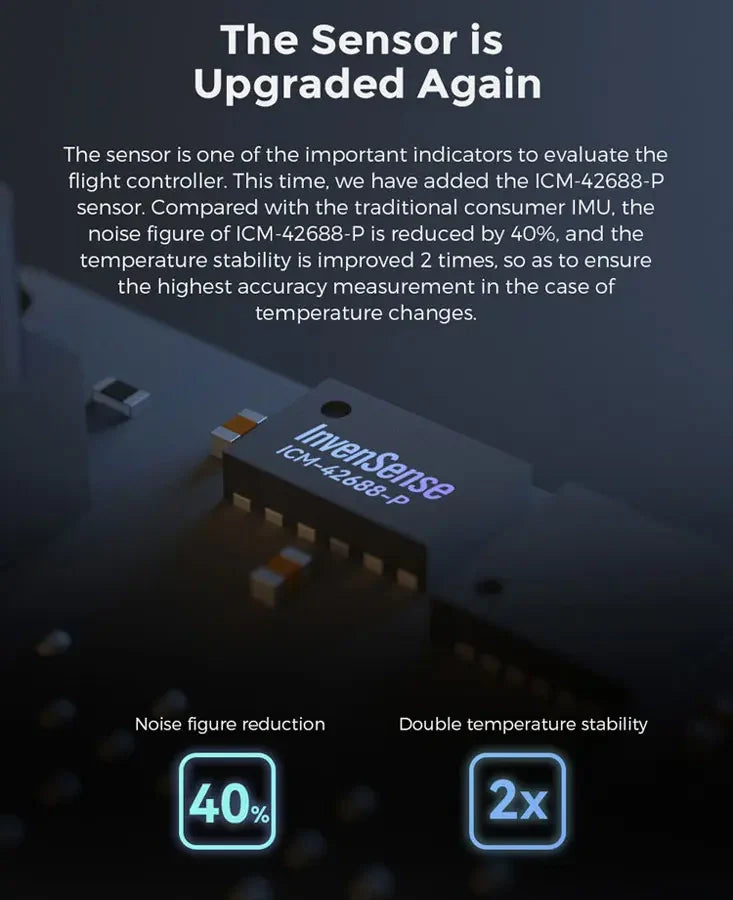

The sensor suite of the flight controller has received a significant upgrade with the addition of the ICM-42688-P sensor. This upgrade marks a substantial improvement over traditional consumer IMUs, with a 40% reduction in noise figure and a doubling of temperature stability. Such enhancements ensure that the flight controller maintains the highest measurement accuracy, even amidst temperature fluctuations, emphasizing the commitment to reliability and performance in varying environmental conditions.

CUAV X7 Plus Flight Controller, the noise figure of ICM-42688-P is reduced by 40%, and the temperature

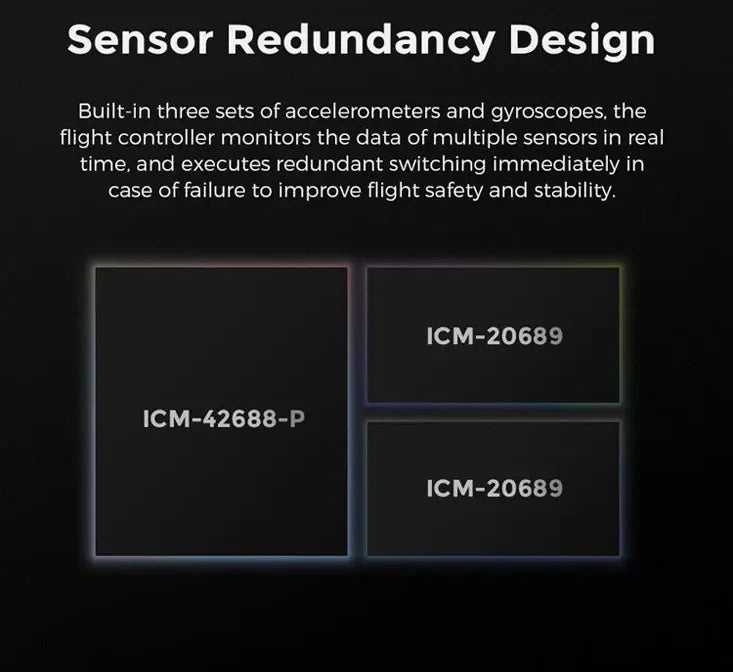

The flight controller features a sensor redundancy design with three sets of accelerometers and gyroscopes, including the ICM-20689 and ICM-42688-P models. This design allows for real-time monitoring of multiple sensor data, enabling the system to instantly switch to a backup sensor in the event of a failure. This redundancy enhances flight safety and stability, ensuring continuous, reliable operation even in challenging conditions.

CUAV X7 Plus Flight Controller, the flight controller monitors the data of multiple sensors in real time . it executes redundant

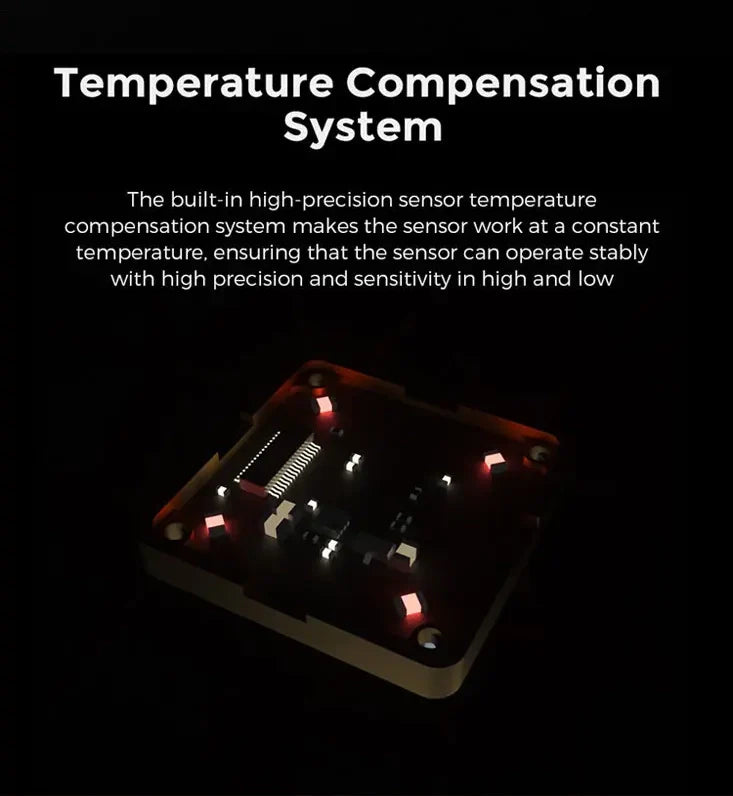

Temperature Compensation System

The built-in high-precision sensor temperature compensation system makes the sensor work at a constant temperature, ensuring that the sensor can operate stably with high precision and sensitivity in high and lowCUAV X7 Plus Flight Controller, built-in high-precision sensor temperature compensation system makes the sensor work at a constant

CORE Separate Design

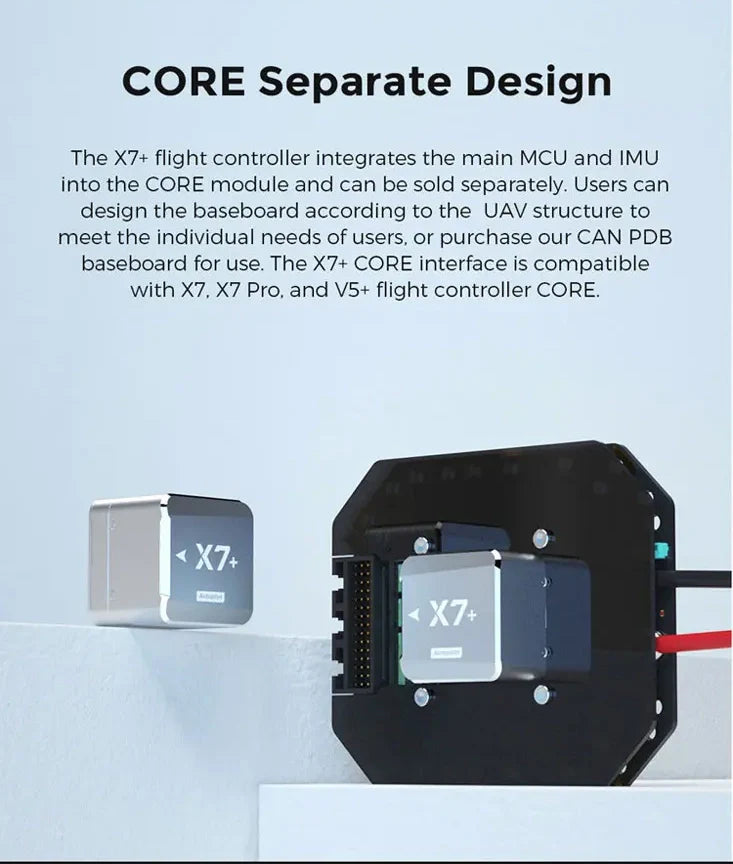

The X7+ flight controller integrates the main MCU and IMU into the CORE module and can be sold separately. Users can design the baseboard according to the UAV structure to meet the individual needs of users, or purchase our CAN PDB baseboard for use. The X7+ CORE interface is compatible with X7, X7 Pro, and V5+ flight controller CORE. • X7+ < X7+

CUAV X7 Plus Flight Controller, the X7+ flight controller integrates the main MCU and IMU into the C

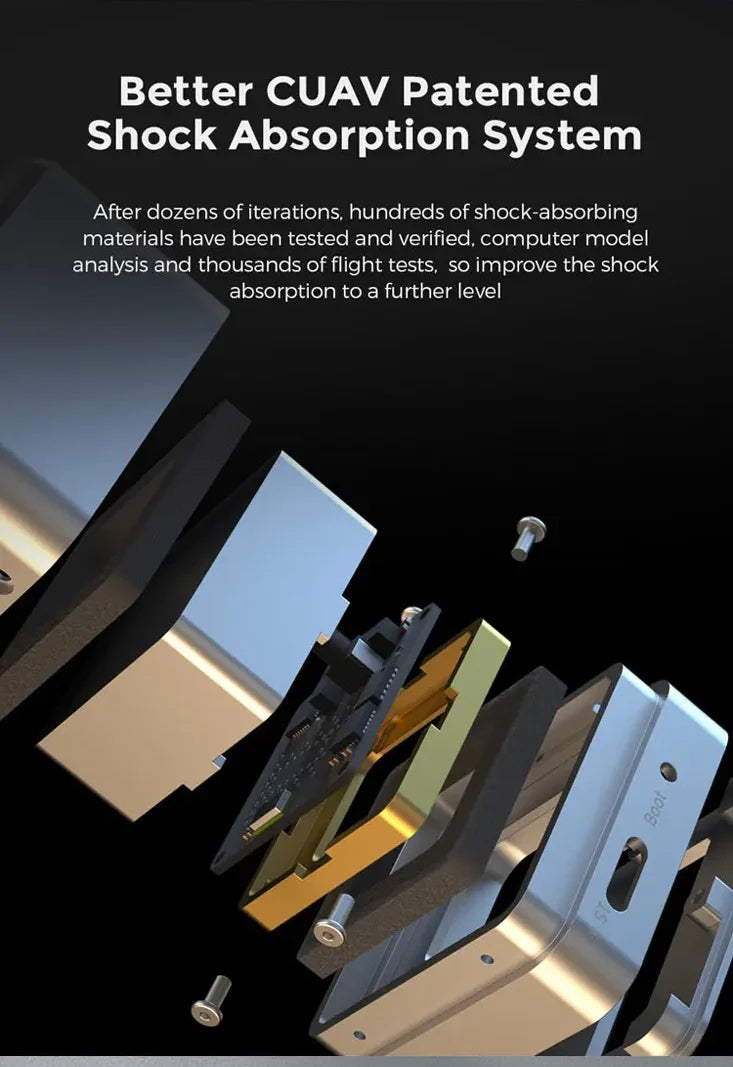

Better CUAV Patented Shock Absorption System

After dozens of iterations, hundreds of shock-absorbing materials have been tested and verified, computer model analysis and thousands of flight tests, so improve the shock absorption to a further level Boot

CUAV X7 Plus Flight Controller, better CUAV Patented Shock Absorption System . hundreds of iterations

better CUAV Patented Shock Absorption System . hundreds of iterations, hundreds of shock-absorbing materials tested and verified . dozens of tests, computer model analysis and thousands of flight tests .

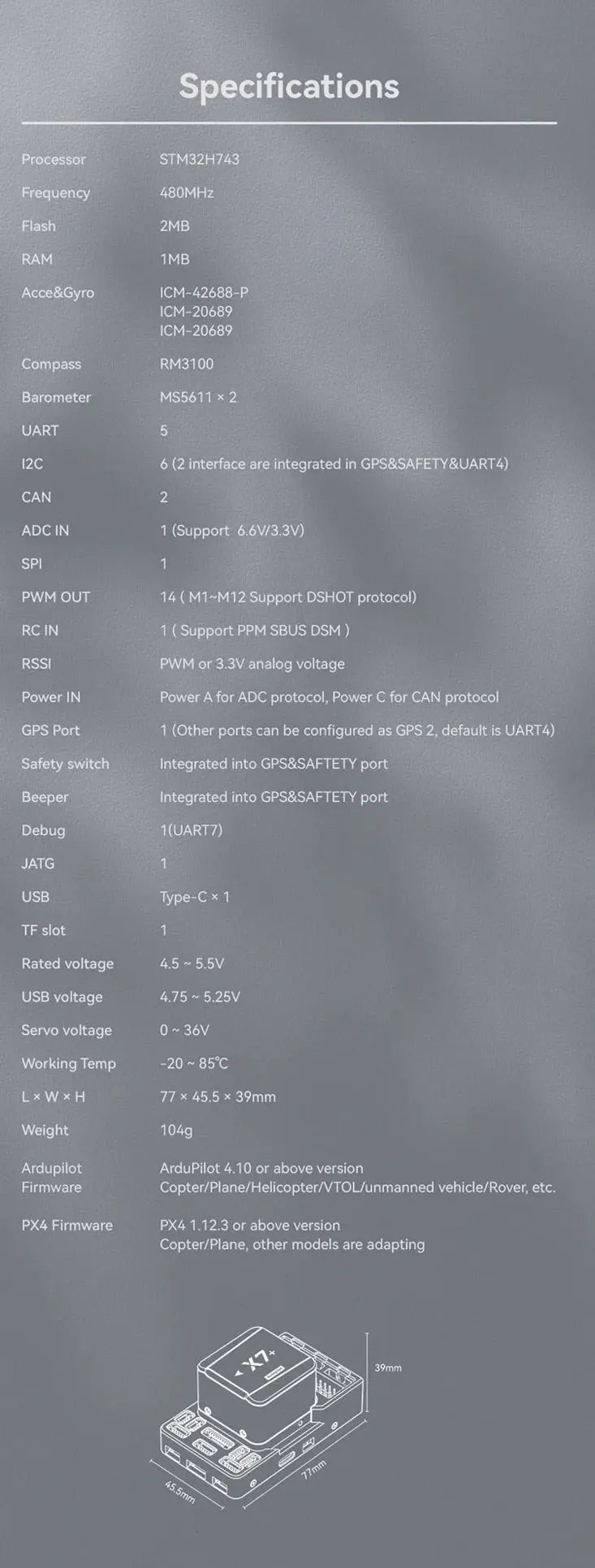

CUAV X7 Plus Flight Controller, Specifications Prosessor STM32H743 Frequency 480MHZ Flash

The X7+ AutoPilot is equipped with robust safety and development features, including over-current protection for its 5 Volt outputs, limiting the current to 2.5A while also incorporating short circuit protection. For firmware building, it utilizes the DSU7 port for serial console and SWD interface connections, compatible with the CUAV FTDI cable for straightforward debugging through a computer's USB port. Moreover, the X7+ supports triple redundancy in its power supply when connected to three sources, ensuring operational reliability. This design prioritizes flight safety, stability, and ease of development, marking the X7+ as a versatile and secure option for advanced drone operations.

CUAV X7 Plus Flight Controller

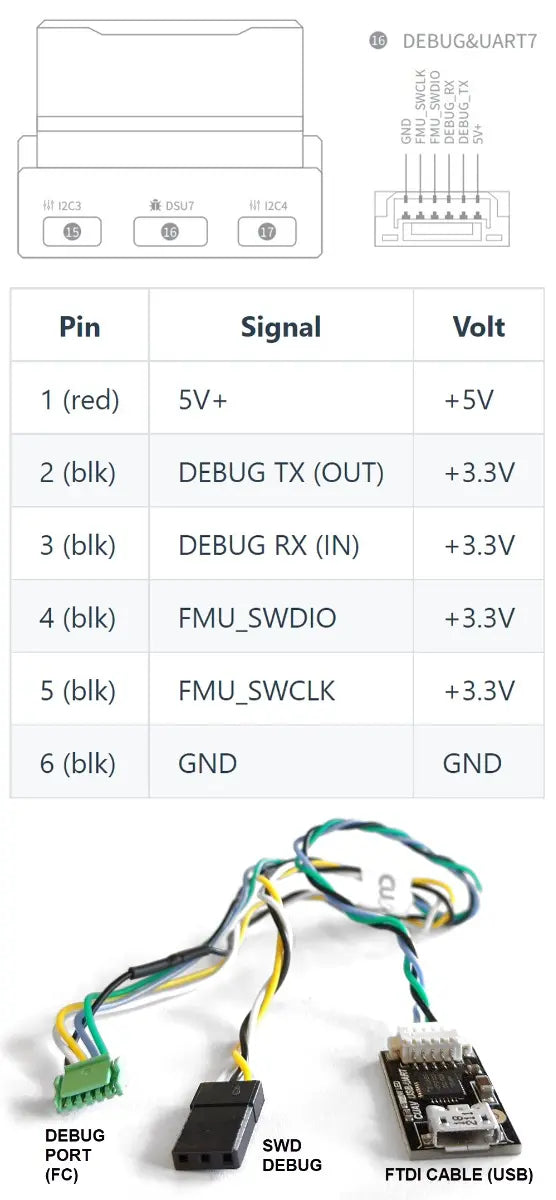

DEBUG&UART7 18 E A 822834 W6 I2C3 DSUT 42C4 Pin Signal Volt (red) 5V+ +5V 2 (blk)




CUAV X7 Plus Flight Controller Review

cuav x7+ unboxing video



 cuav x7+ flight controller installation of ardupilot firmware



 CUAV X7+ Flight Controller Connected to SIYI MK15 Remote Controller
