18650 / 26650 DIY Portable 12V Battery Storage Spot Welding Machine PCB Circuit Board Welding Equipment Spot Welders Pen

18650 / 26650 DIY Portable 12V Battery Storage Spot Welding Machine PCB Circuit Board Welding Equipment Spot Welders Pen

RCDrone

$12.52 USD
$25.04 USD $12.52 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

153 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Storage Spot Welding Machine

Tool Supplies: Cutting

Technical parameters: Value 3

Remote Control Peripherals/Devices: Battery

Recommend Age: 12+y,14+y

RC Parts & Accs: Storage Spot Welding Machine

Quantity: 1 pcs

Origin: Mainland China

Model Number: Spot Welders Pen

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Readytosky

readytosky is a professional FPV RC Module accessories company . we will

ReadyToSky is a professional company specializing in FPV RC module accessories. For inquiries regarding wholesale or bulk purchases, please feel free to contact us.

can be welding 18650/26650/32650 lipo battery, it is portable,
version 1:
- Can be welding 18650/26650/32650 lipo battery, it is portable, stable and reliable
- System voltage: 12V
- Working current: 90-150A
Suggested battery:
- 20-45ah Lead-acid battery with good performance and small internal resistance
- 3.5-5.5ah 45C 3S aeromodel lithium battery pack
- 30-35ah capacity 18650 battery pack
-This circuit with a 12V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries. According to different configurations, the thickness can be about 0.1MM-0.15mm
Notice：The 18650 battery and DC power cannot be used as a power supply. It must have a high rate RC battery or a car battery!



Please start from the lowest gear when you use it, do not start from the highest gear, easy to burn off.

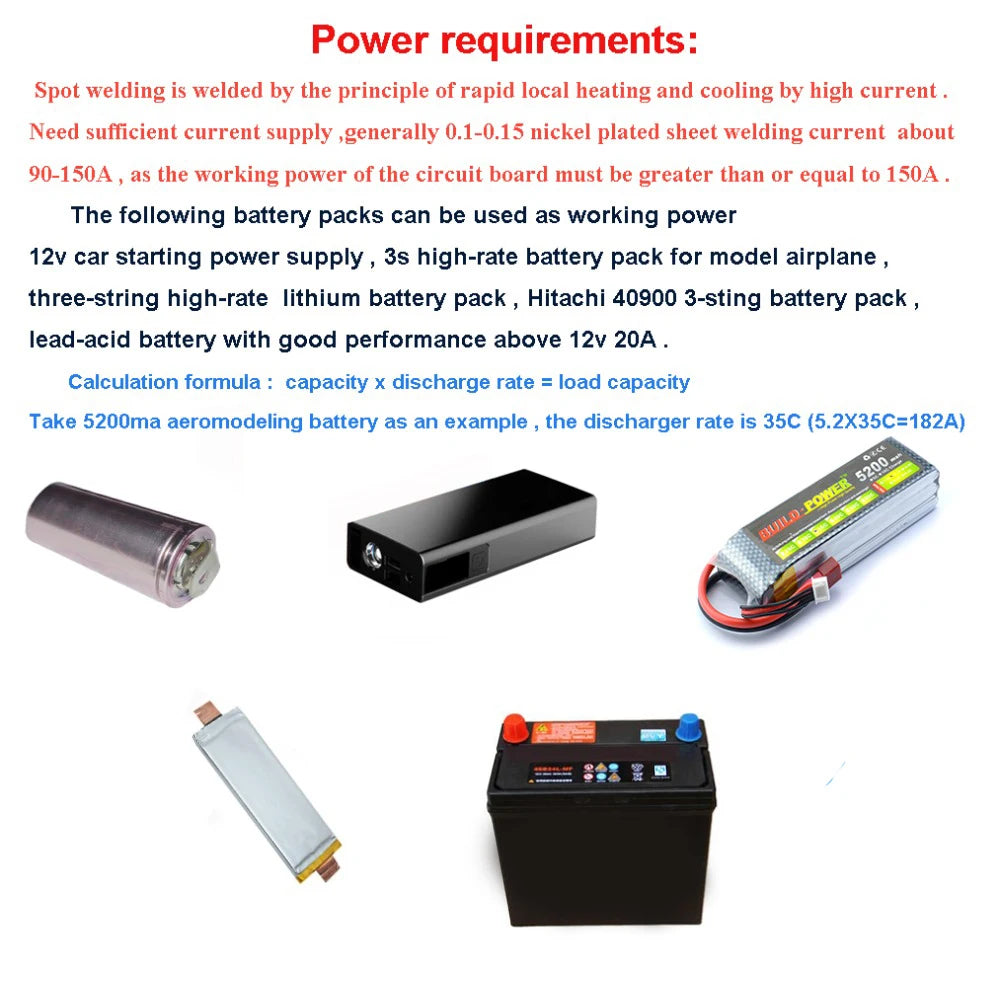

the circuit board must be welded by the principle of rapid local heating and cooling by high current

The PCB must be welded using the principle of rapid local heating and cooling through high-current pulses. A sufficient current supply is required, typically in the range of 0.1-0.15 amps for nickel-plated sheets, with a recommended welding current of approximately 90-150 amps.

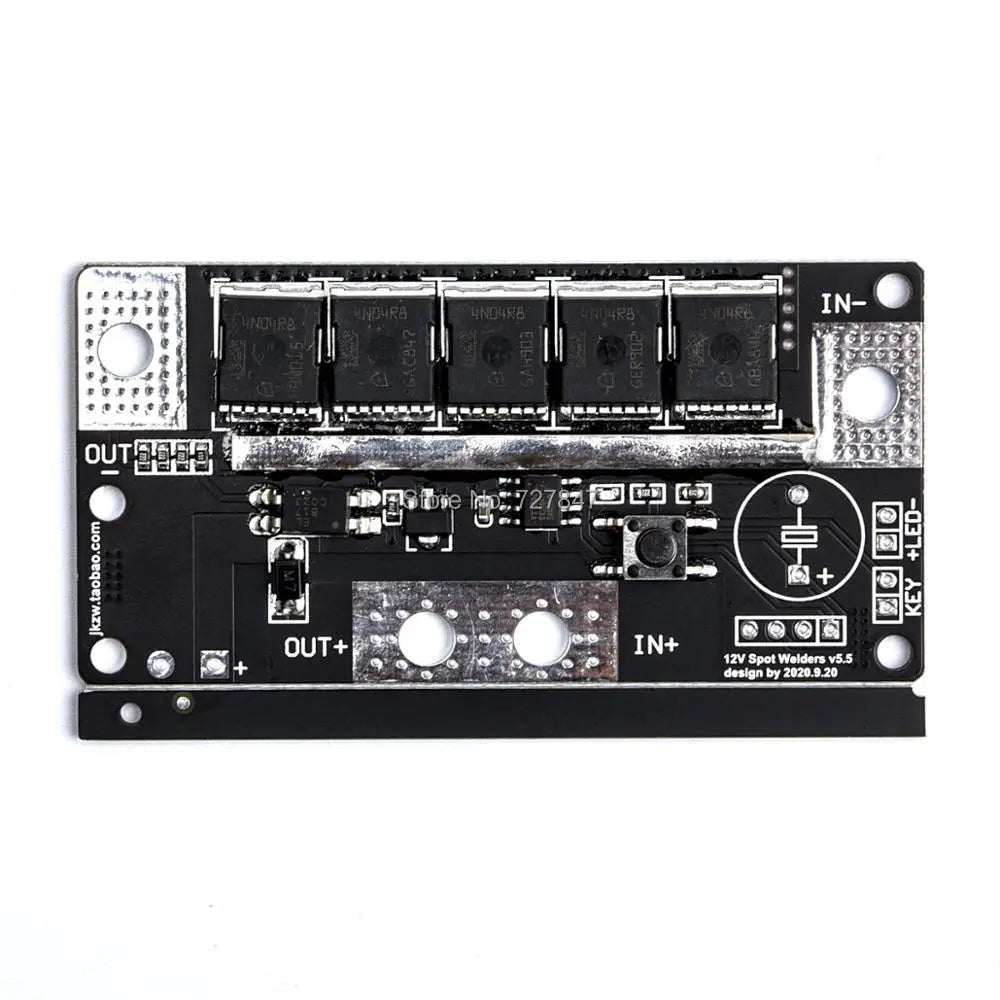

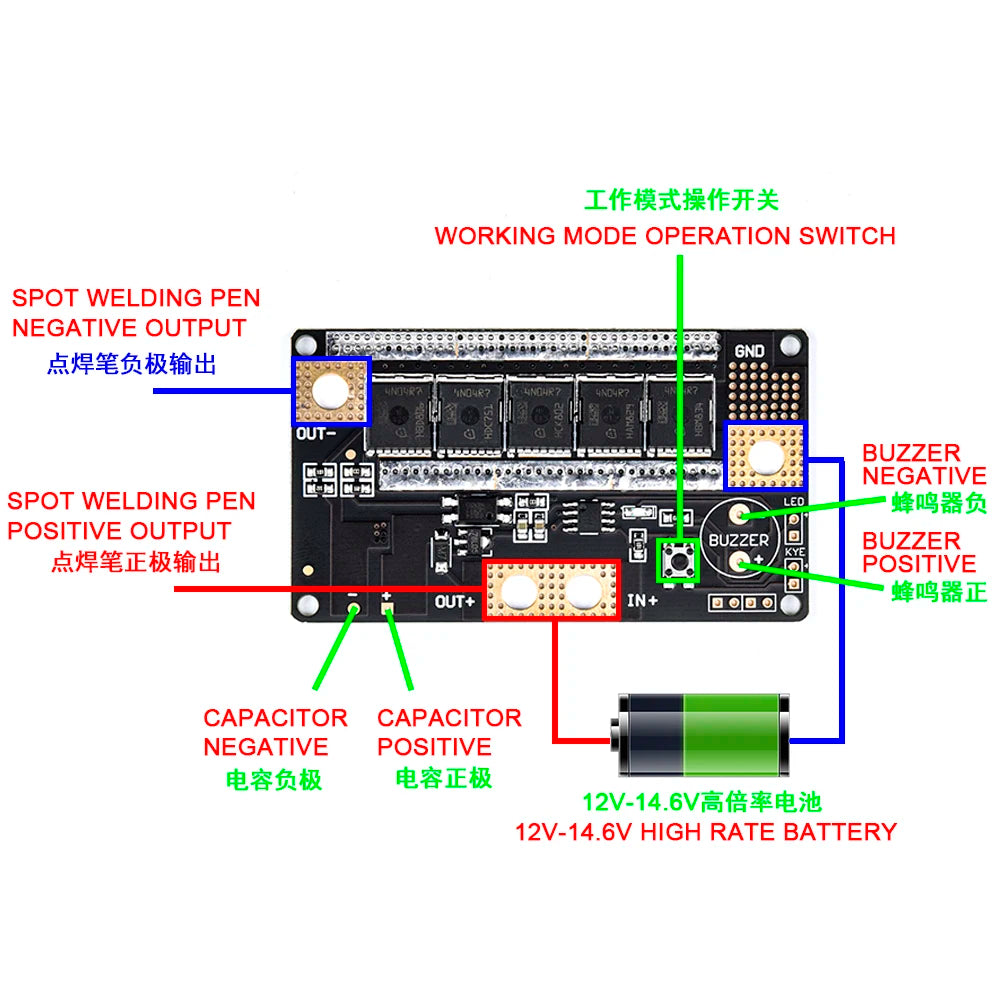

OUt- 2 BUZZER NEGATIVE SPOT WELDING

Output: 2-pin buzzer, negative spot welding pen, positive output (GND) 440g325 (output voltage), 5495118 tx (temperature), Tnnt Lee (model or manufacturer), 4AC4R (part number or code).


start from the lowest gear when you use it, do not start from high gear .1pcs x Main Circuit Board (unsoldered) 2 pcstart from the lowest gear when you use it, do not start from high gear .

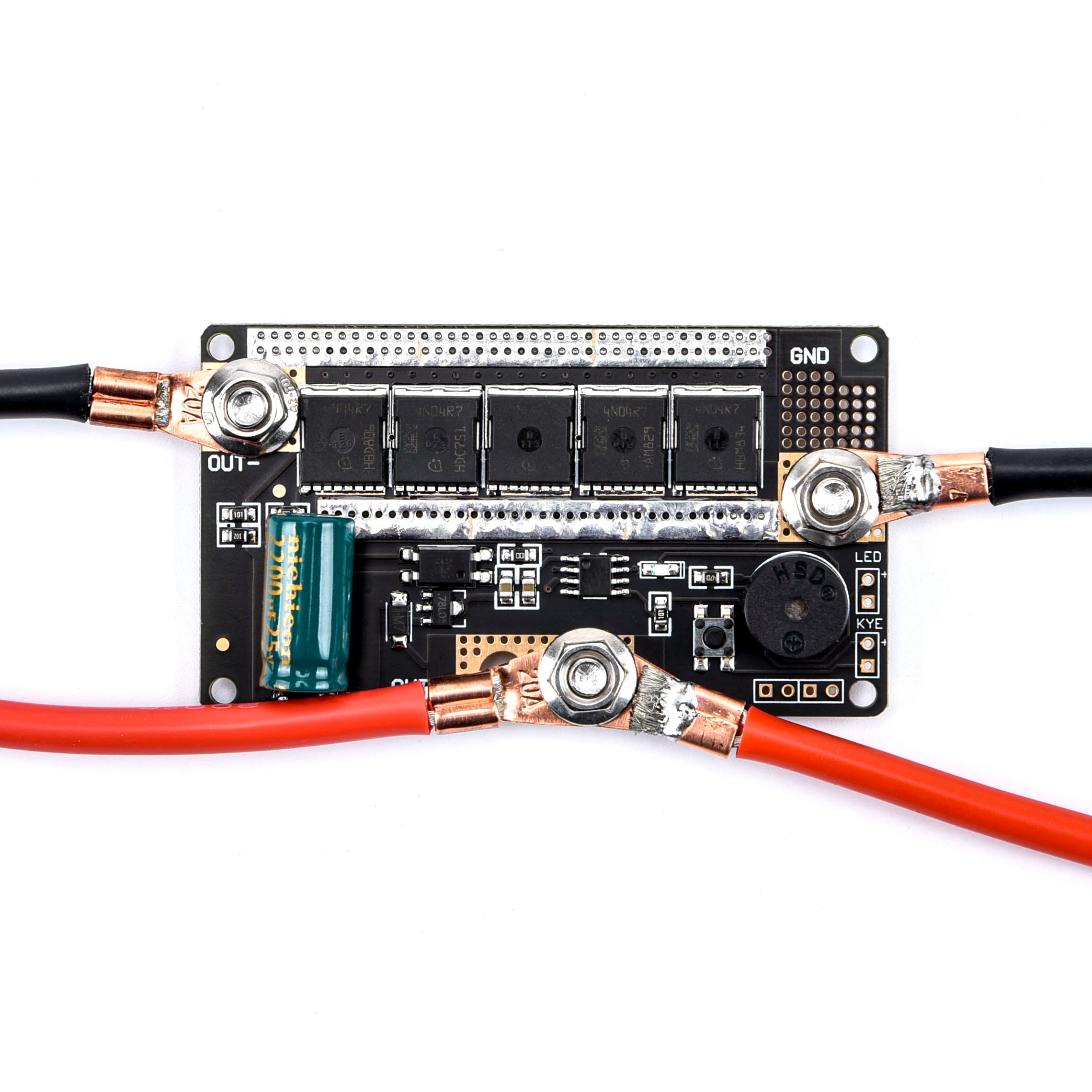

version 2:
- Can be welding 18650/26650/32650 lipo battery, it is portable, stable and reliable
- System voltage: 11.5V-14.8V
- Working current: 100-200A
Suggested battery:
-36-45ah Lead-acid battery with good performance and small internal resistance(The internal resistance is less than 10 milliohms, and the discharge current is greater than 100A), such as a new car starting battery!)
-4000mah 35C-8000mah 30C 3S model airplane lithium battery
- 30-35ah capacity 18650 battery pack
Instructions for use:

Function buttons: 1, used to switch the machine, 2 used to switch gears!
When the power is turned on, the default is the first gear. Press the button for 2 seconds to release
The gear is increased by one gear, and the buzzer sounds and the LED flashes corresponding to the number of gears.
For example: the 3rd gear, the buzzer sounds three times, the LED flashes 3 times, a total of 5 gears. The spot welding intensity is gradually strengthened from the 1st gear to the 5th gear
5 is the strongest!
After the 5th gear, press and hold the button again. It will power off. In the off state, press and hold the button to power on, and the gear will return to the first gear
-This circuit with a 12V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries. According to different configurations, the thickness can be about 0.1MM-0.15mm
Notice：The 18650 battery and DC power cannot be used as a power supply. It must have a high rate RC battery or a car battery!
the circuit board must be welded by the principle of rapid local heating and cooling by high current

The PCB must be welded using the principle of rapid local heating and cooling through high-current pulses. A sufficient current supply is required, typically in the range of 0.1-0.15 amps for nickel-plated sheets, with a recommended welding current of approximately 90-150 amps.

30C 3S model airplane lithium battery - 30-35ah capacity 18650 battery pack
the 18650 battery and DC power cannot be used as a power supply . it must

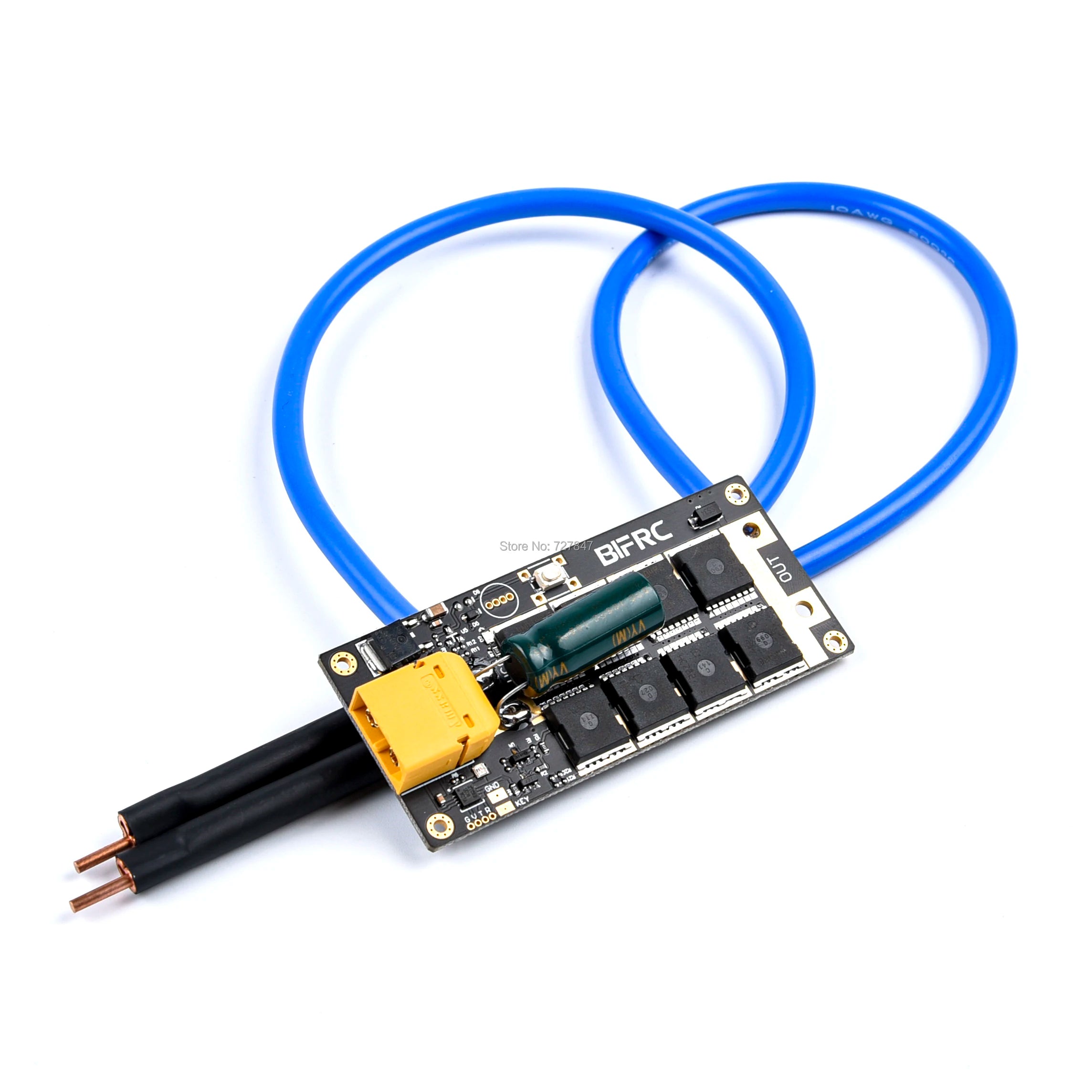

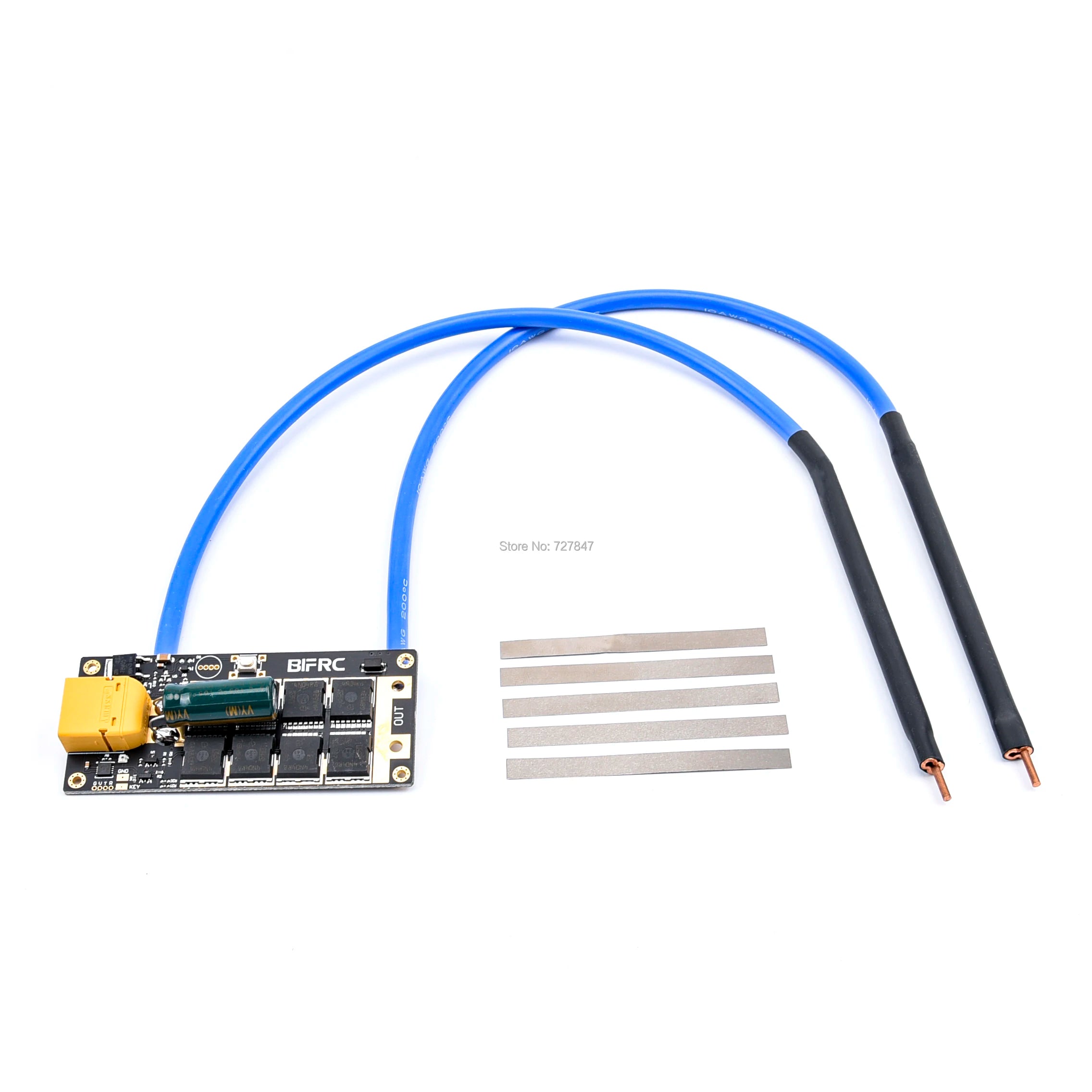

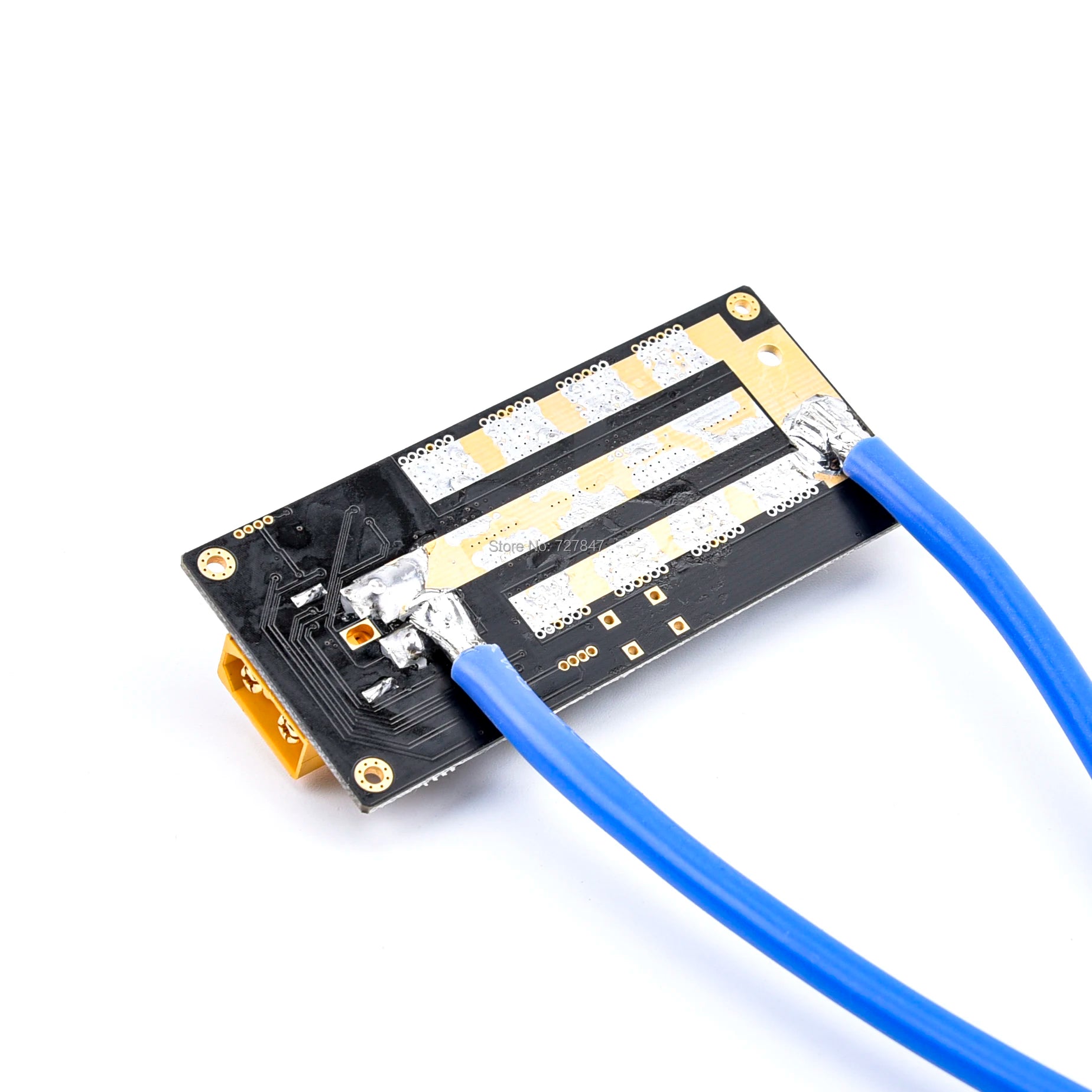

DIY Portable 12V Battery Energy Storage Spot Welding PCB Circuit Board 18650 Lipo Batteries Spare Parts for RC Aircraft Car

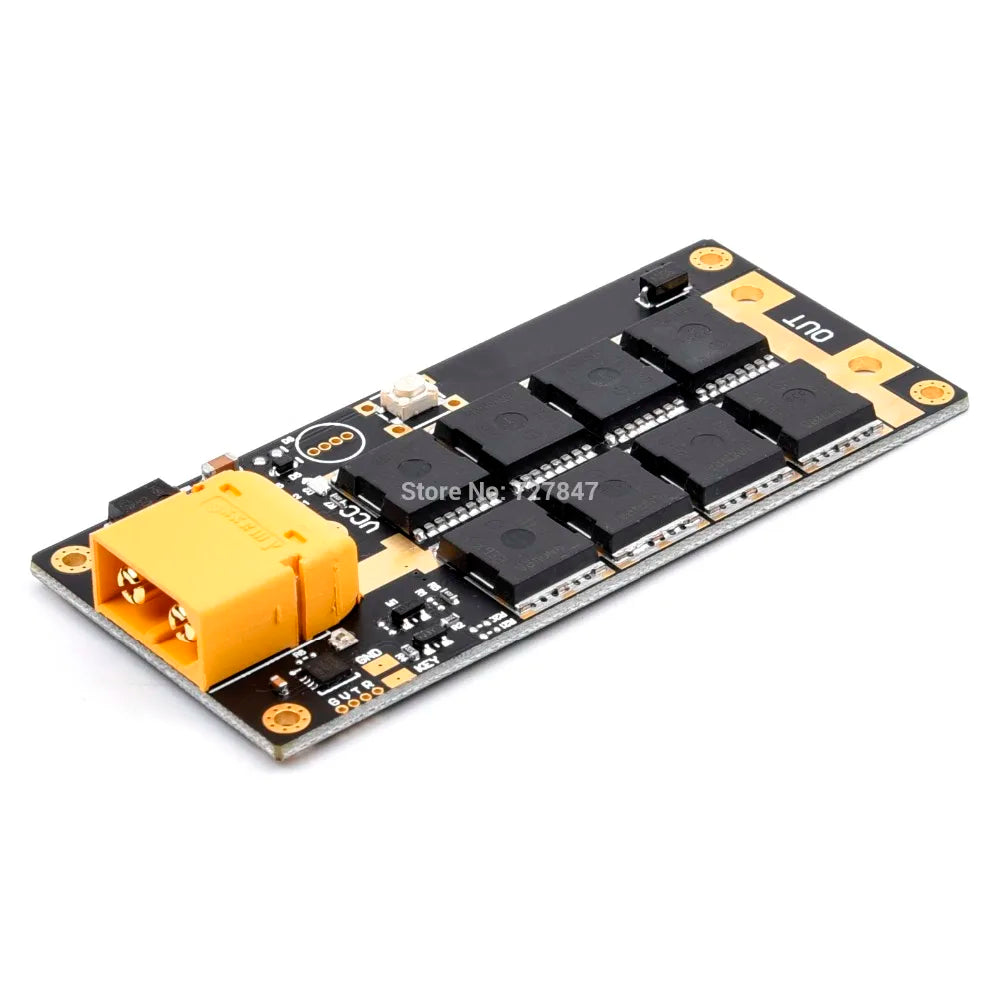

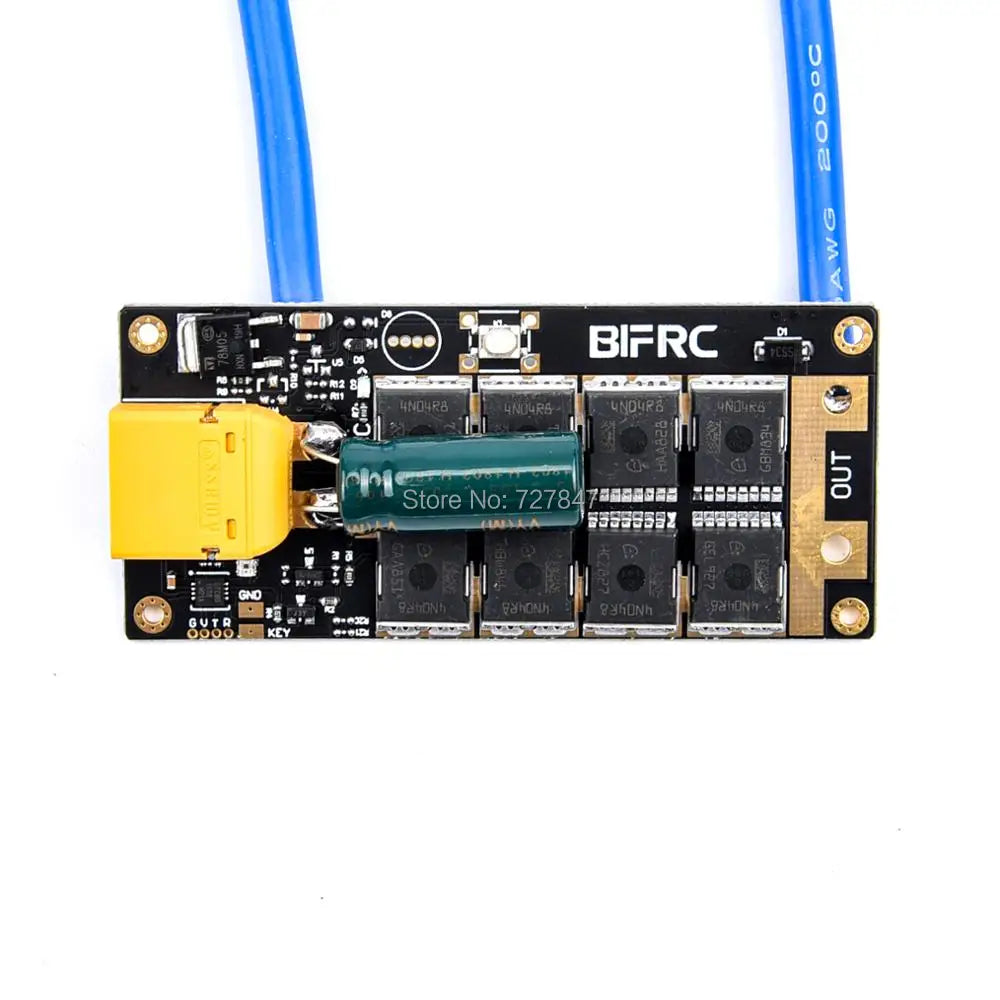

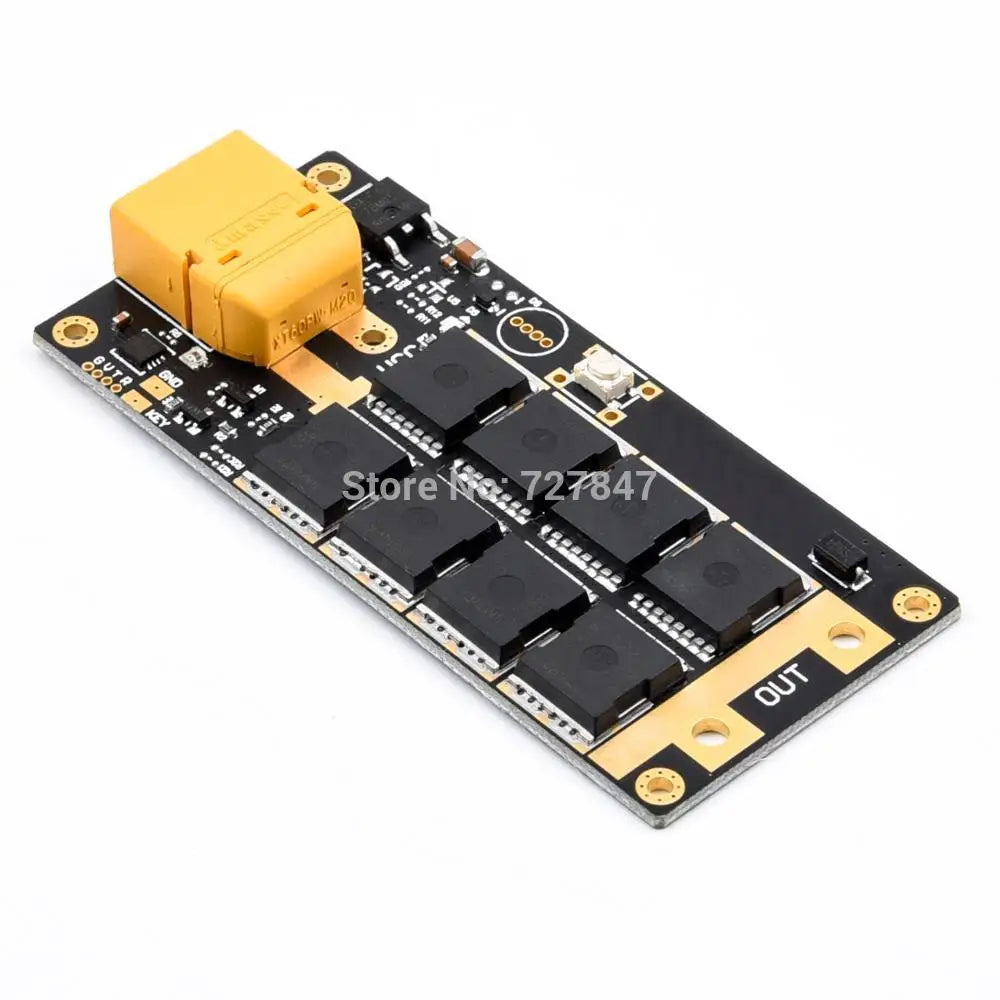

Battery energy storage high current spot welding machine main board
7-12V power supply
Support auto mode
Multiple gear selection
Light instructions

Working current: 150A-200A

Support: Farad capacitor
Aircraft model high rate battery
Function introduction:
This circuit with 12V battery will become a storage spot welding machine for lithium battery, nickel-chromium battery and other nickel sheet welding, according to different configurations can be welded thickness of 0.1MM-0.15mm or so, we have customers A 0.2 mm thickness can be welded by replacing a thicker wire (10 square feet). After all, this device is for electronic enthusiasts, the frequency of use is not very high, so you can also use 0.1-0.15 solder 2 to replace thicker nickel.

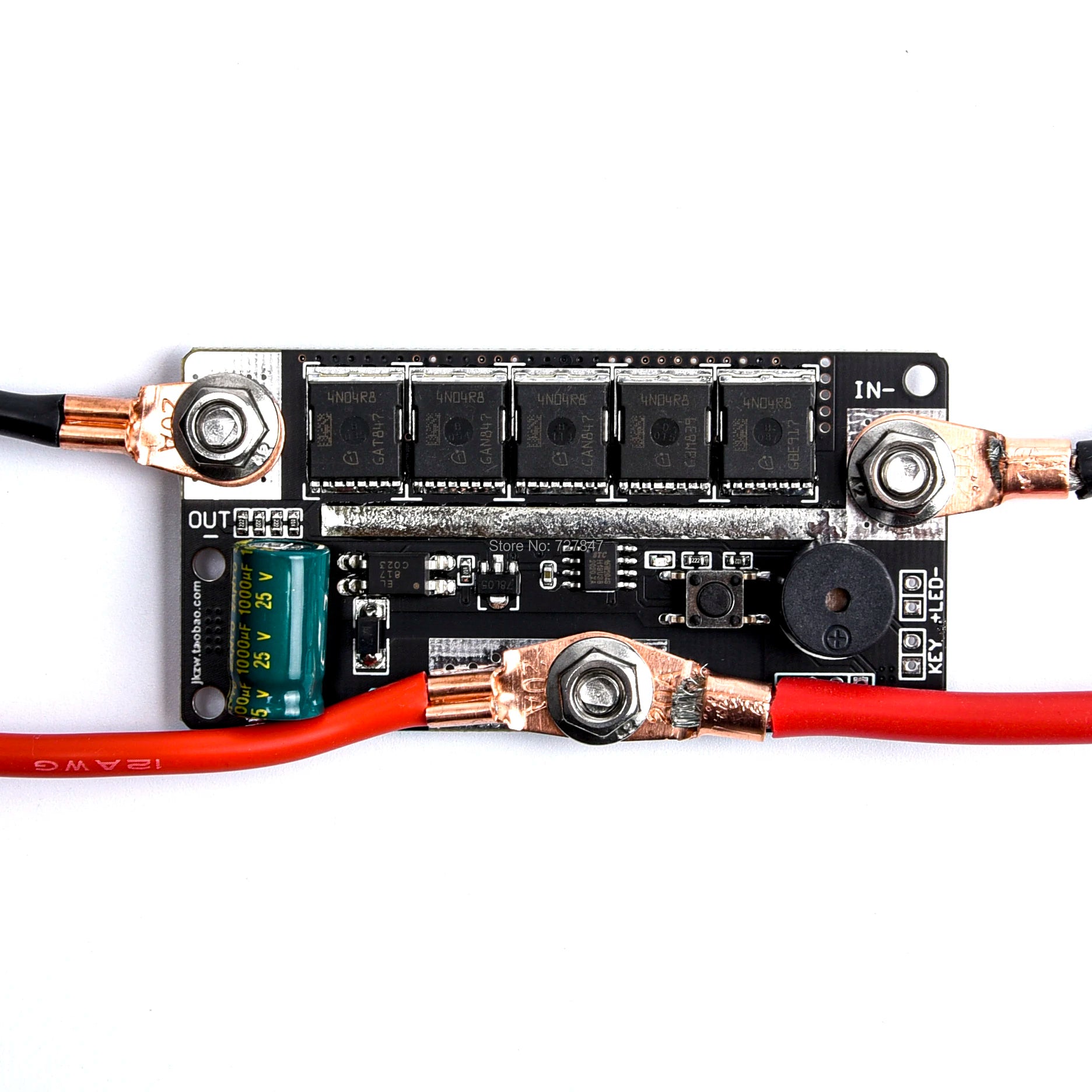

Button function:
The button can switch modes. Each mode corresponds to different welding time. The LED corresponds to red/green/blue/white/yellow/powder/purple, 7 modes, the shortest red time and the largest purple welding time. Long press to set the waiting time, the default is 3 seconds, the maximum can be set to 10 seconds
Basic parameters :
- Supply voltage: 7V-12V (capacity X rate = must be greater than 150A~200A)
- Current requirements: 150A or more instantaneous output (such as car starter power supply, 3S RC high-power battery pack, 20A lead-acid battery with good performance above 20A)
The 18650 battery and DC power cannot be used as a power supply. It must have a high rate RC battery or a car battery! ! !
Note:
Requires certain welding technology and circuit knowledge.
The parts received are parts, which need to be assembled by welding
Notice:
Capacitors must be welded or instant restart will cause MOS break down!!!
Suggested battery:
- 20-45ah Lead-acid battery with good performance and small internal resistance
- 3.5-5.5ah 45C 3S aeromodel lithium battery pack
- 30-35ah capacity 18650 battery pack
default is the first gear when the power is turned on.

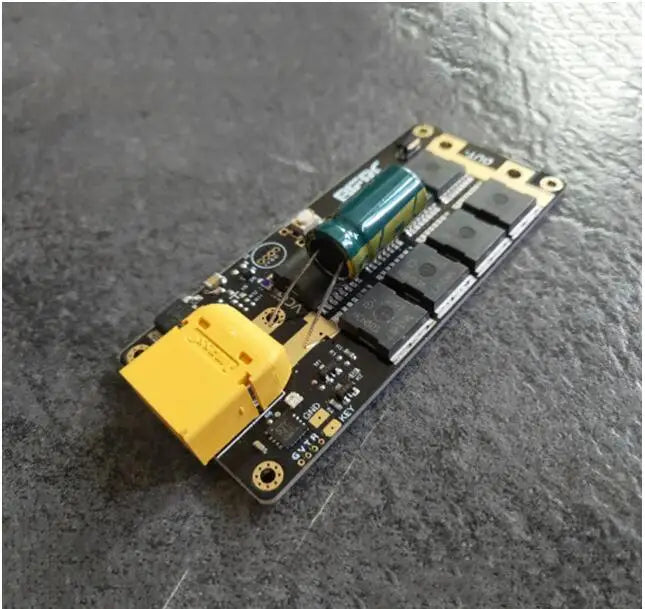

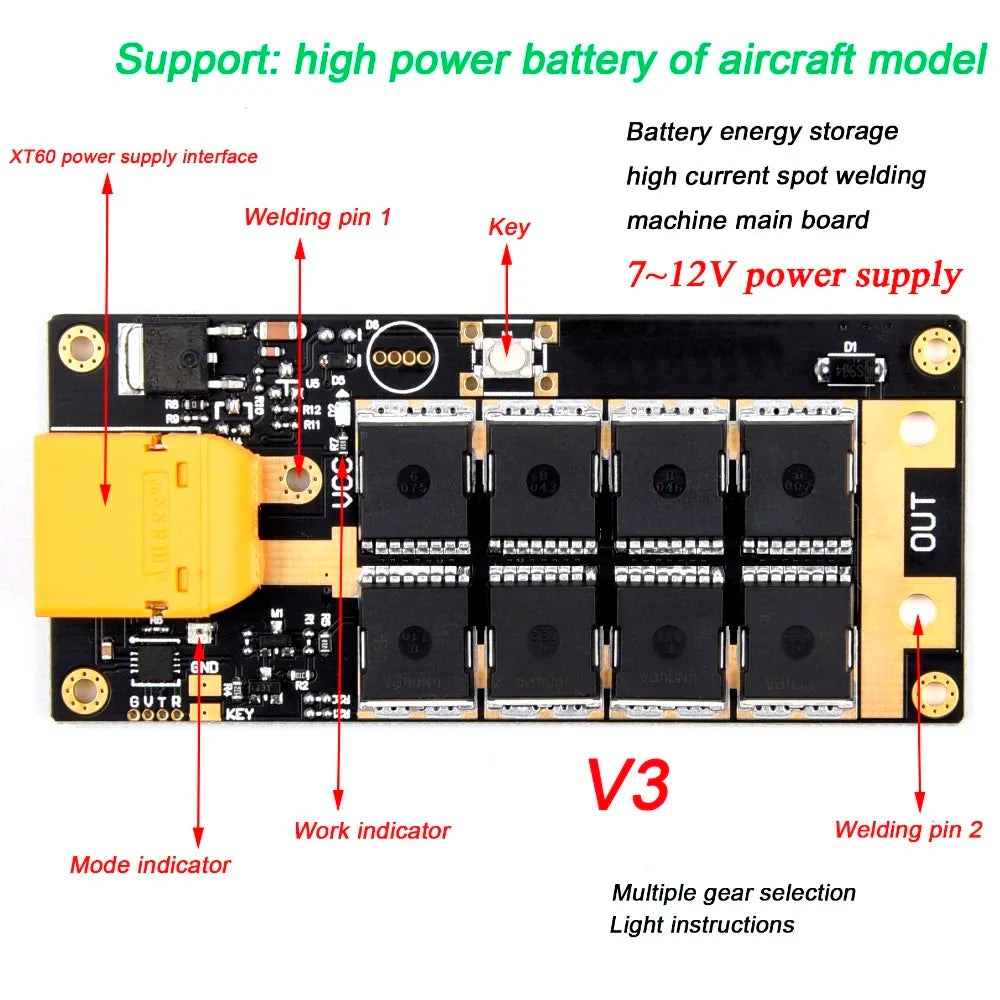

XT6O power supply interface high current spot welding Welding pin Key machine

high power battery of aircraft model Battery energy storage XT6O power supply interface high current spot welding Welding pin Key machine main board 712V power supply 0478 82 E2 3 I 88380







Note:Before welding , please do power on test first to make sure the board is in good condition .

Pay attention to the positive and negative poles when wiring.

Please do not use a 2-wire soldering tool .when using the 3wire iron, note that the

soldering iron must be grounded ,or there will be a risk to break though the Mos.


Please start from the lowest gear when you use it, do not start from the highest gear, easy to burn off.

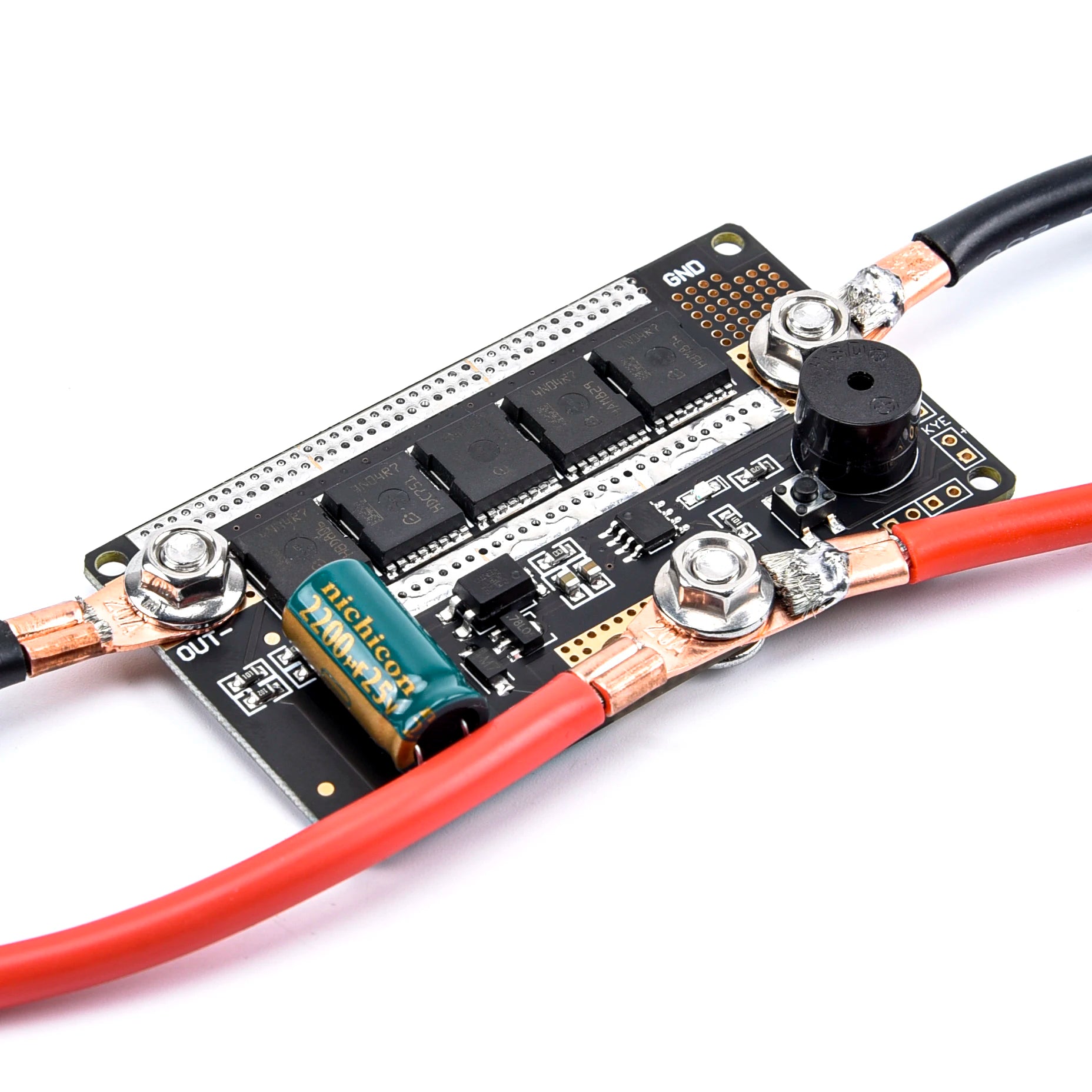

The mini capacitance should be welded on the PCB board as below picture showed.


default is the first gear when the power is turned on.

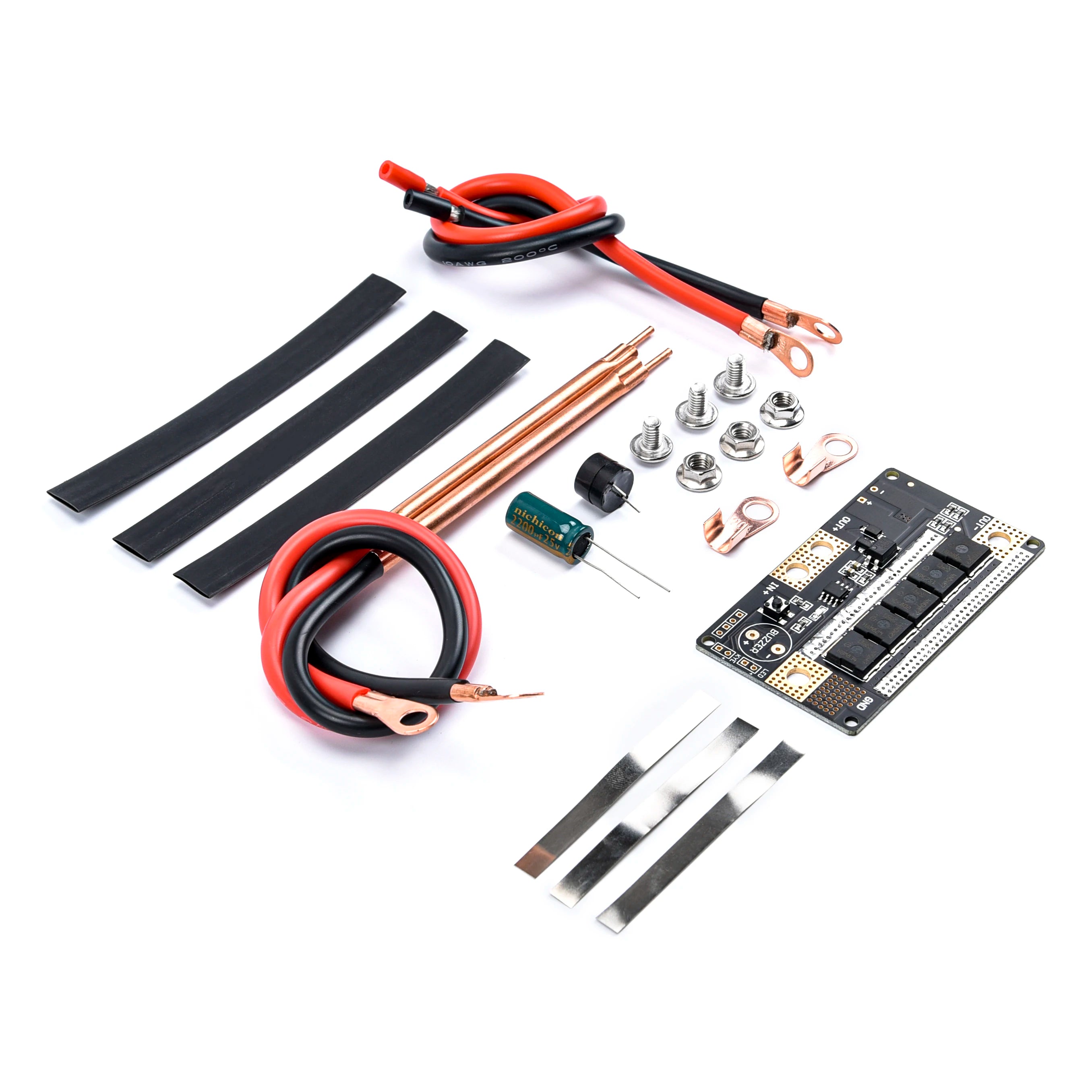

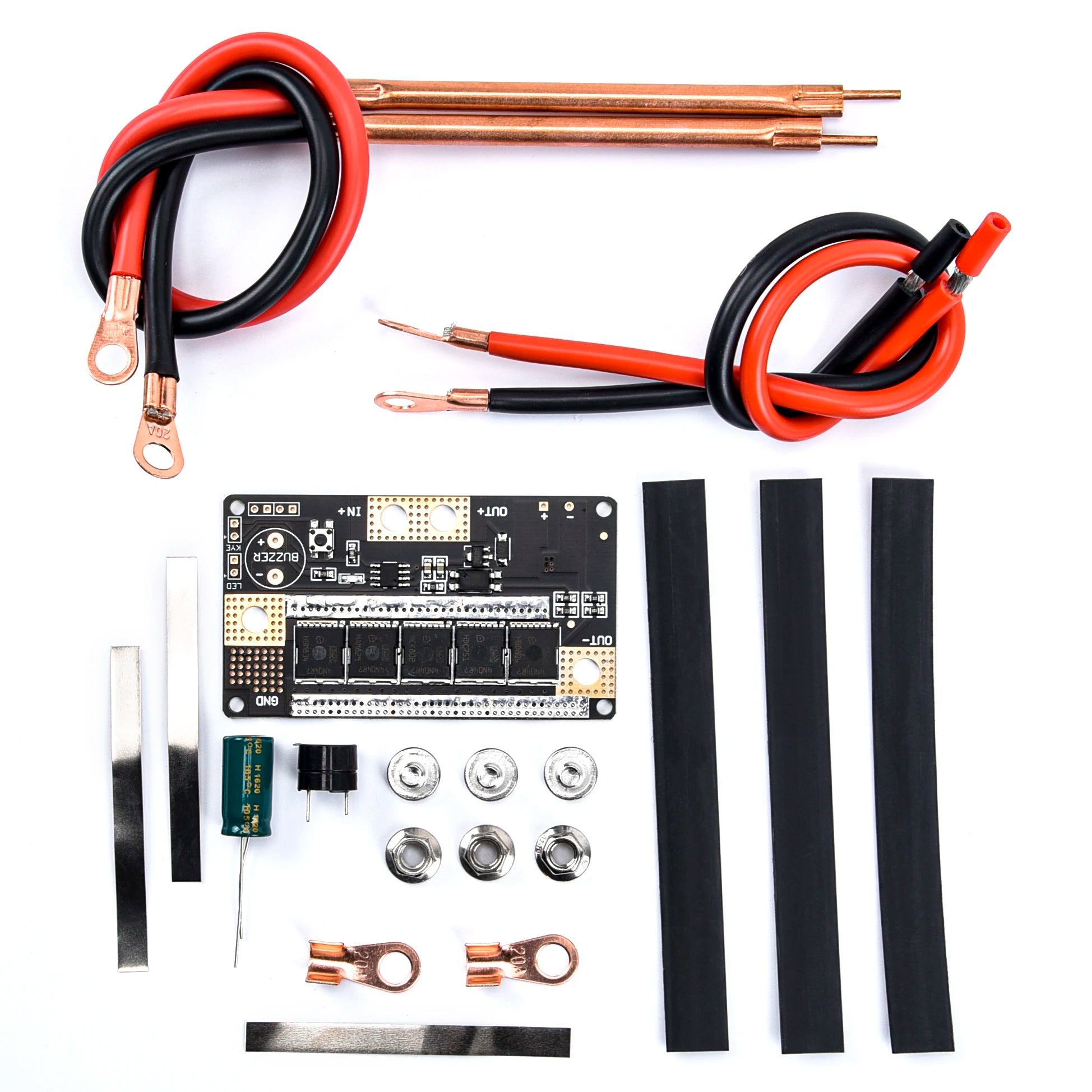

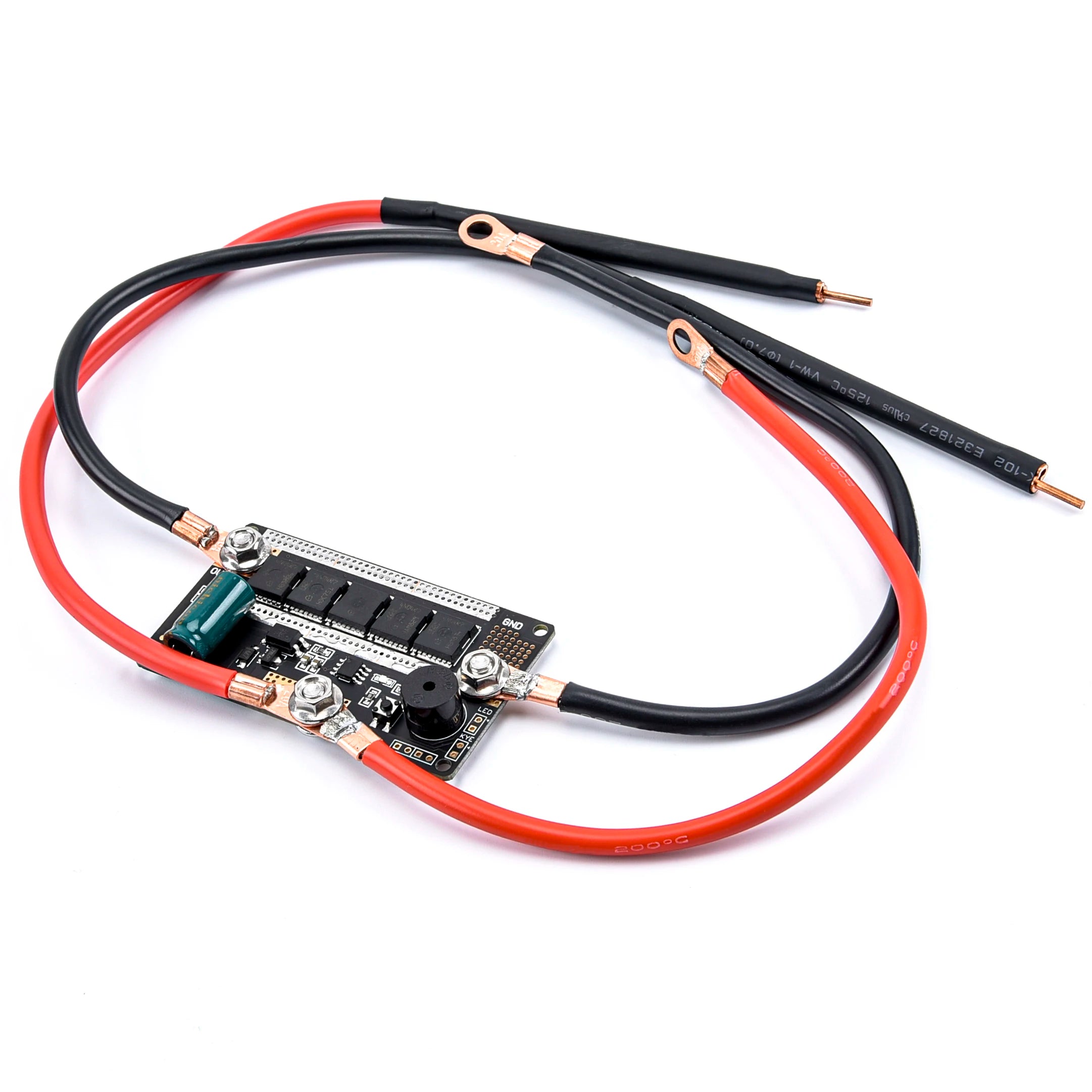

READYTSSKY |Package Included

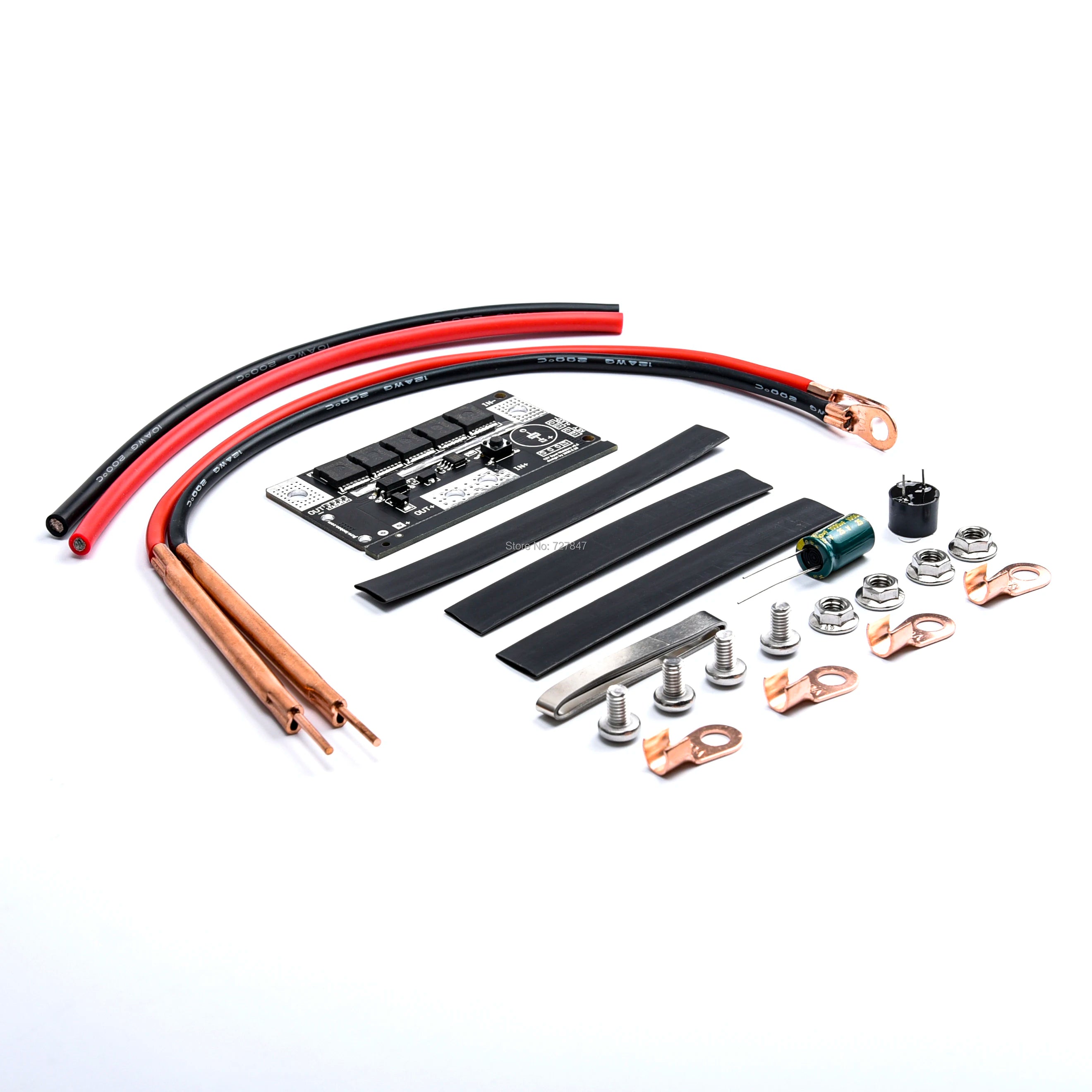

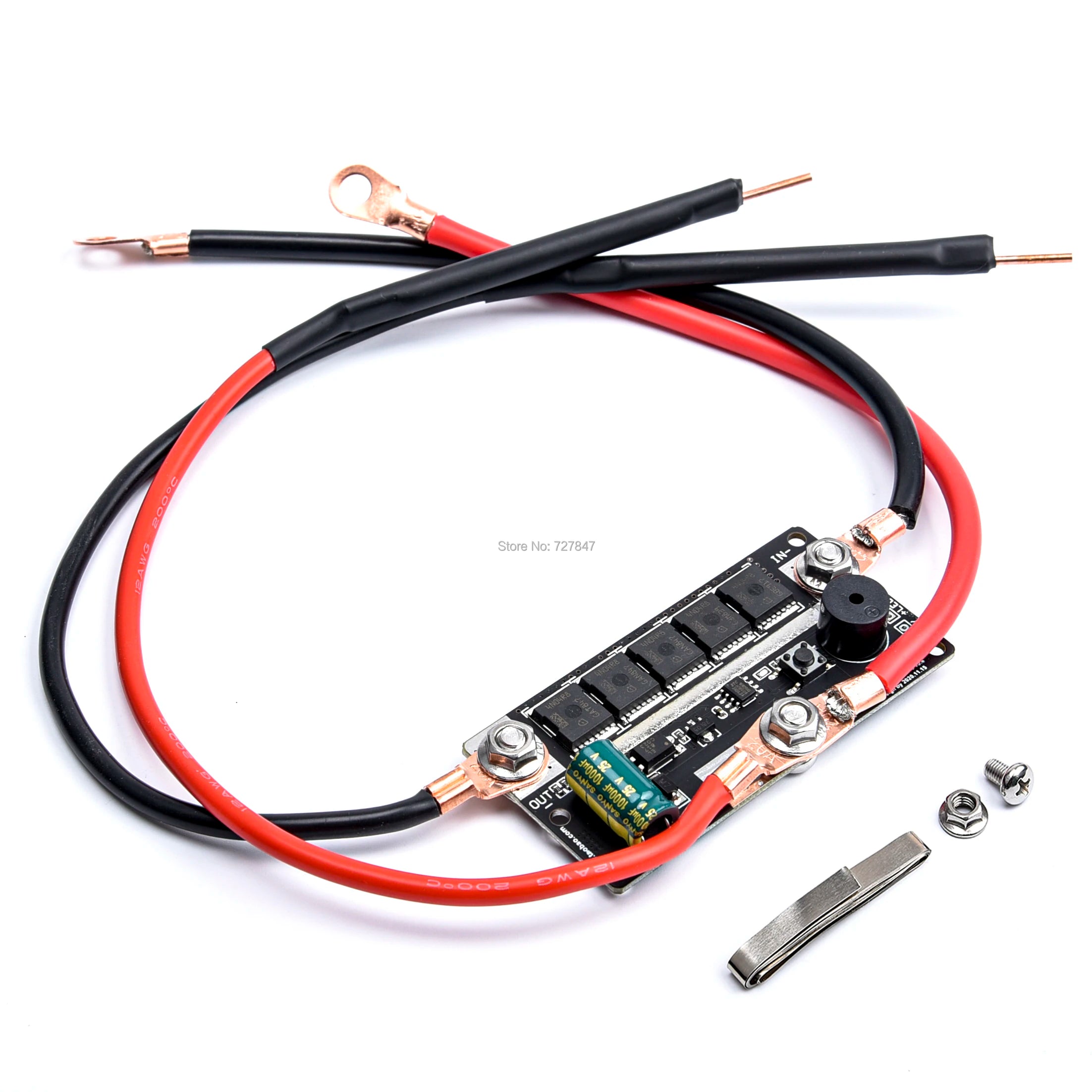

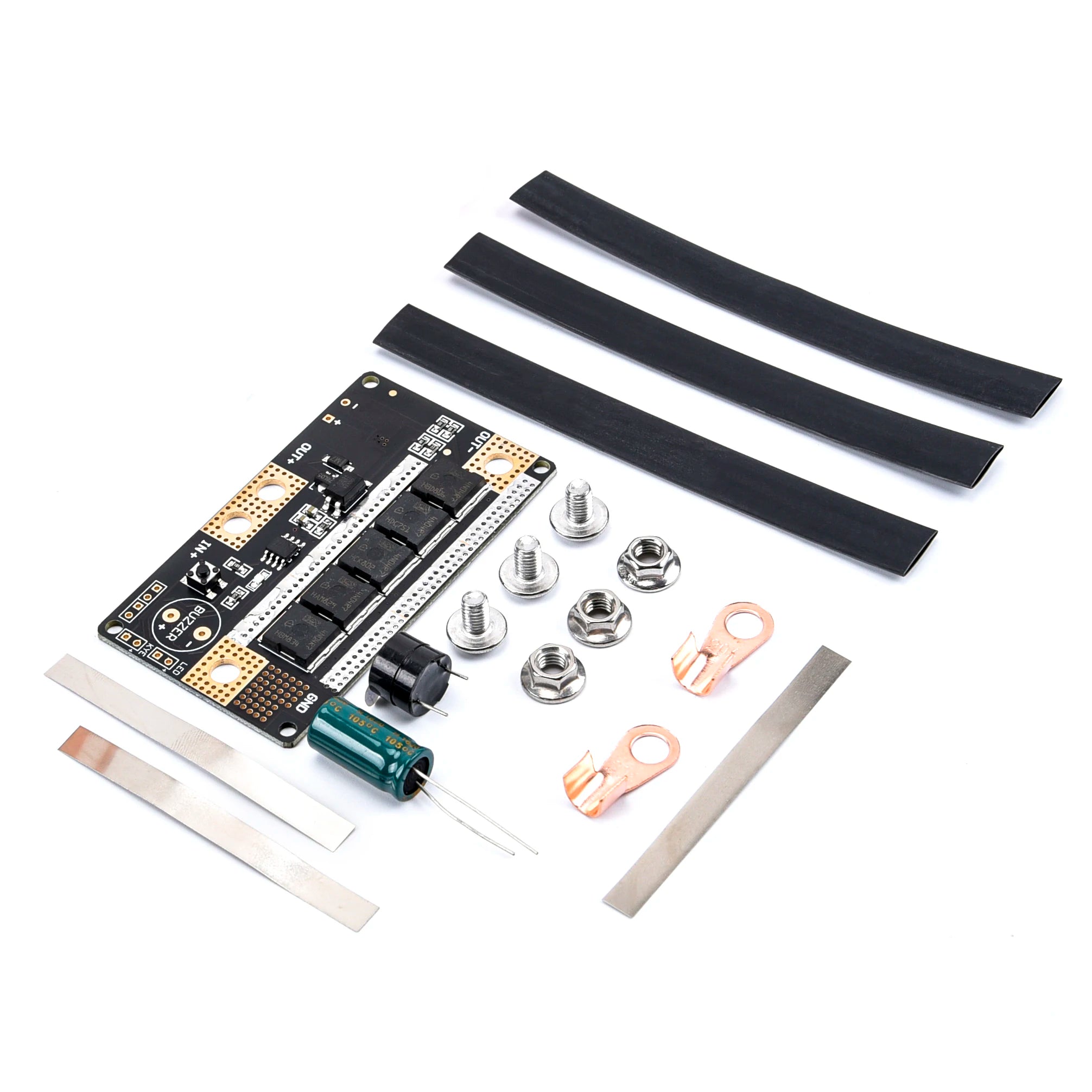

1pcs x Main Circuit Board(unsoldered)
1pcs x Buzzer
2pcs x Input Wire
2pcs x Output Line with Welder Pen
(2 version of Spot Welding Machine Board send at random)
can be welding 18650/26650/32650 lipo battery, it is portable,
DIY Portable 12V Battery Energy Storage Spot Welding PCB Circuit Board 18650DIY Portable 12V Battery Storage Spot We

Warranty: 4-year (no 4) R8, TJE ( manufacturer/brand), IN-HAVJURE OUT-EF ITUIE HO ( serial number?), 72782 (model/year?), OUT+ IN+ I2V (input/output voltage?), Spot Welders V55 designed by 2020.

button function: The button can switch modes.cnn.com: positive and negative polein the off state, press and hold the button to power on, and the gear will return
parts received are parts, which need to be assembled by welding . instant restart will cause MO1pcs x Main Circuit Board (unsoldered) 2 pcbutton function: The button can switch modes.it will power off after the 5th gear .the LED corresponds to red/green/blue/white/yellow/pdefault is the first gear when the power is turned on.


start from the lowest gear when you use it, do not start from high gear .start from the lowest gear when you use it, do not start from high gear .the buzzer sounds three times, the LED flashes 3 times, a total ofVW-1 2olM 112500 caus Mvoi 34-ia OUT

store No; 727847 Eo*96 7 04 AX (0*Zo] V-M cQU; E321827 Jose 'snns KH Zeblee3 [07.0]

in the off state, press and hold the button to power on, and the gear will returnyou can also use 0.1-0.15 solder 2 to replace thicker nickel .



it will power off after the 5th gear .it will power off after the 5th gear .
