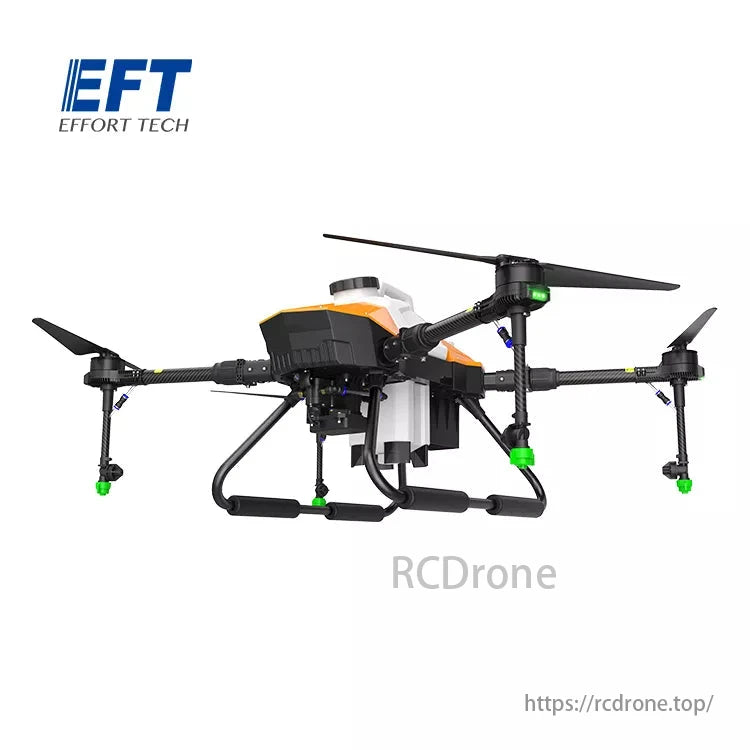

EFT G06 V2 - 4-Axis 6L Agriculture Drone For Spraying, Spreading With Hobbywing X6 Motor, JIYI K3A Pro FC, Skydroid T10, 12S Battery

EFT G06 V2 - 4-Axis 6L Agriculture Drone For Spraying, Spreading With Hobbywing X6 Motor, JIYI K3A Pro FC, Skydroid T10, 12S Battery

EFT

Regular price $598.00 USD
Regular price Sale price $598.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

7 orders in last 90 days

Package

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

EFT G06 Specifications

Item Model: G06 6L Agriculture Spraying Drone
Diagonal wheelbase: 1172mm
Size: 1580x1270x475mm
Folded Size: 605x640x475mm
Arm Diameter: 30mm
Effective Capacity: 6L
Frame Weight: 4.8kg
Frame+Spraying System Weight: 5.8kg
Frame+Power System Weight: 8.8kg
No-Load take-off weight: 11.4kg (battery weight 2.6kg is included)
Max take-off weight: 17.4kg
No-load flight Time: 17minutes (42.8V)
Full-Load flight time: 8.5 minutes (42.8V)
Spreading Width: 3.5m to 4.5m

Note: The above statistics is tested with hobbywing x6 power system, Jiyi K3a pro flight controller and Okcell 12s 8000mah battery.

Package List

Frame+water tank Package Included:


G06 Frame Kit x1

6L Water tank x1


Package 1 Included:


G06 Frame Kit x1

6L Water tank x1

Bruless Spraying system x1
Hobbywing X6 Power System x4 (2CW+2CCW)

Package 2 Included:


G06 Frame Kit x1
6L Water tank x1
Bruless Spraying system x1
Hobbywing X6 Power System x4 (2CW+2CCW)
JiYi K3A Pro flight controller with GPS x 1
Skydroid T10 x1
Mini camera x1
OKCELL 12S 8000mah Battery x 2
RE founder charger x1
Accessory bag x1
Flowmeter x1


Package 3 Included:


G06 Frame Kit x1
6L Water tank x1
Bruless Spraying system x1
Hobbywing X6 Power System x4 (2CW+2CCW)
JiYi K++ flight controller with GPS x 1
Skydroid H12 x1
Camera x1
OKCELL 12S 8000mah Battery x 2
SKYRC PC1500 12S Battery Charger x 1
Accessory bag x1
Flowmeter x1

Descriptions


EFT G06 agriculture drone is specially designed for lightweight operation needs. The effective capacity of the drone is 6L. It adopts a quick-release medicine box and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the G06.

EFT G06 V2, GO6 Agricultural Drone Frame 6L T0 6L Effective Rectangular Plug

3-Section Compact Body Design

G06 6L agriculture drone adopts 3-section compact body design: front section is flight controller, middle section is water tank and the back section is the battery. The structure is exquisite and nice looking.

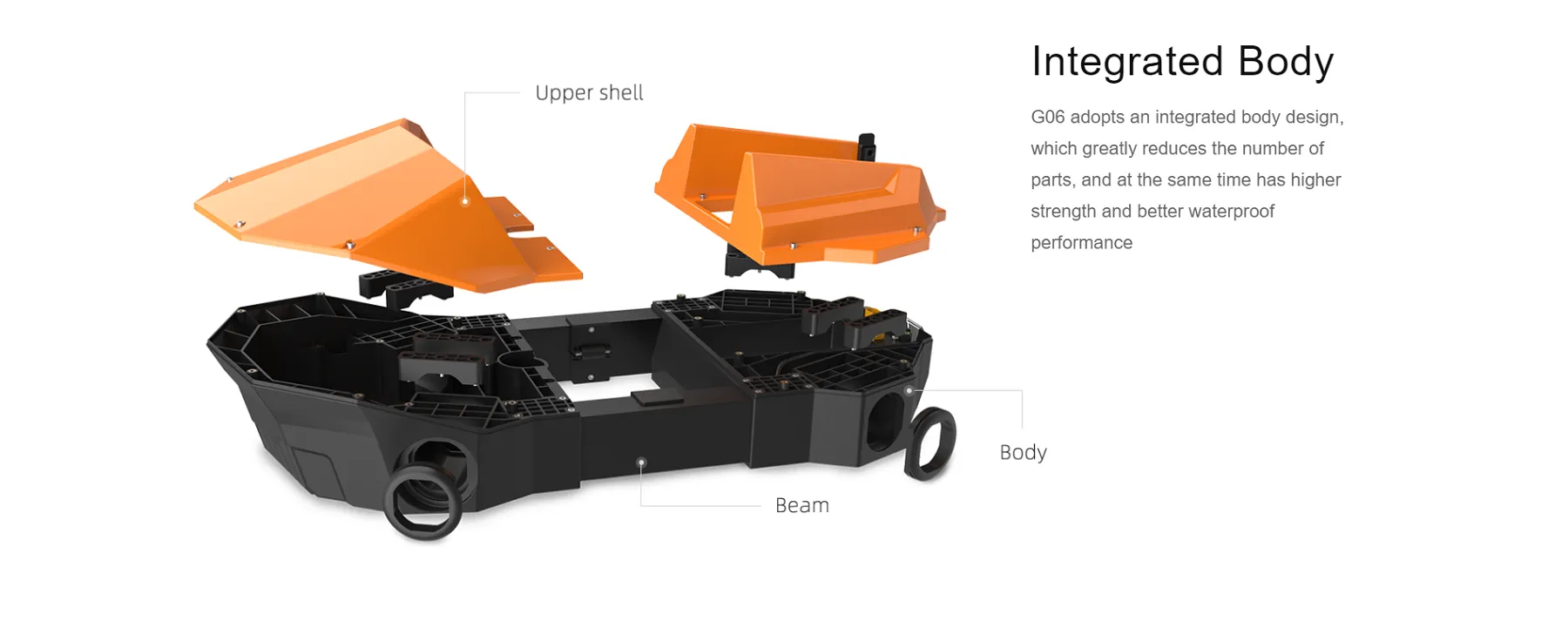

EFT G06 V2, Integrated Body Upper shell GO6 adopts an integrated body design , which greatly reduce Rectangular Layout Scheme

G06 6L agriculture drone adopts flat rectangular layout plan, the arm is extended to both sides to extend the nozzle spacing to the maximum extent, and thus extended the spray width. The diagonal wheelbase of the G06 is 1172mm, almost the same spray width as the E410.
EFT G06 V2,  Rectangular Layout Scheme 6O6 adopts a flat rectangular layout scheme

Quick Release Tank + Battery


G06 6L agriculture spraying drone adopts quick release water tank and battery design. With this design, you can realize quick medicine change, battery change, easy operation, saving time and effort.

EFT G06 V2, quick-release battery medicine box GO6 can realize quick medicine change and battery change .

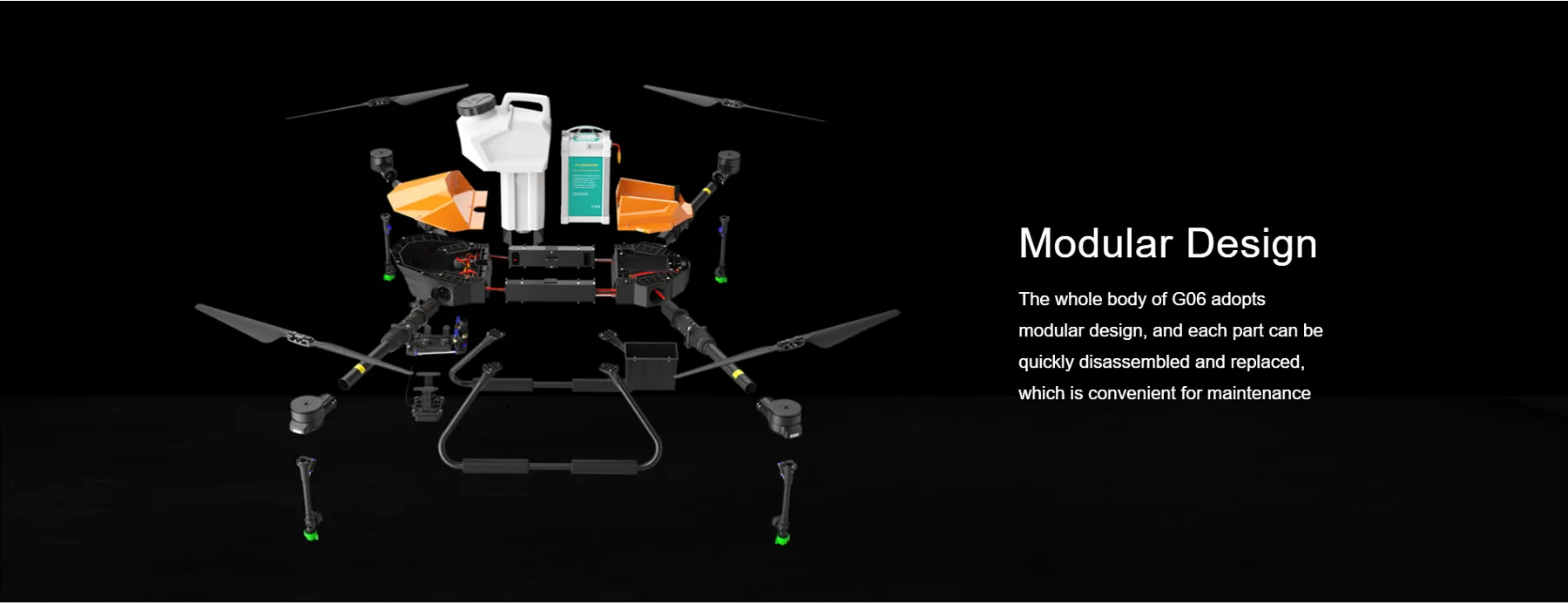

Modular Design


G06 drone frame adopts modular design, each part can quick taking apart and change, convenient to maintenance.

EFT G06 V2, GO6 adopts modular design, and each part can be quickly disassembled and replaced

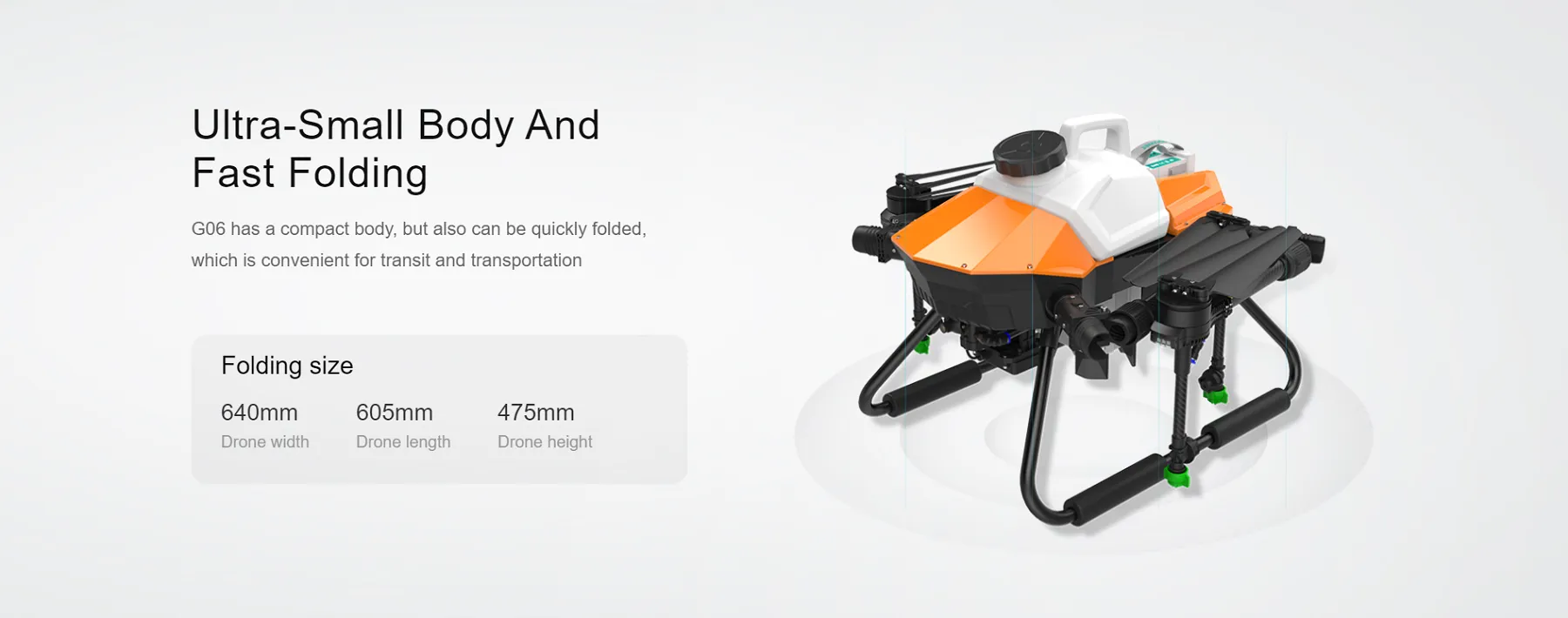

Ultra-Small Body, Fast Folding


G06 agriculture drone has ultra small body, and folding is easy. The folded size is about 640x605x475mm, super convenient to transport.

EFT G06 V2, GO6 has a compact body and can be quickly folded, which is convenient for transit

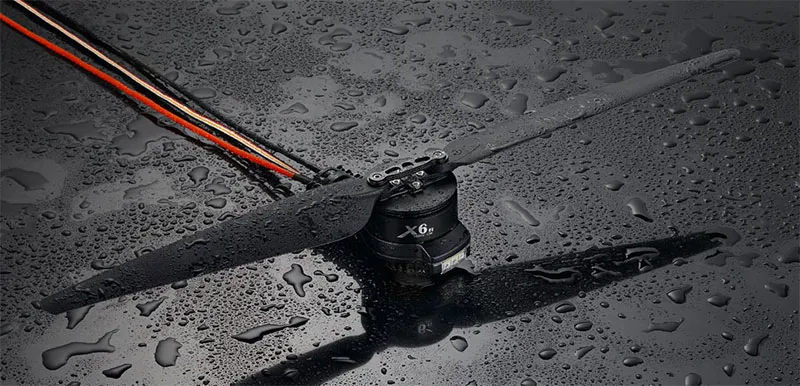

X6 Power System for Agricultural Drones

The Hobbywing X6 propulsion system, which integrates motor, ESC, propeller and motor mount together, is easy to mount and use.

Main Features:
--FOC-based PMSM Algorithm Perfect Propulsion System
--Waterproof

--High-brightness LED Indicator

--High Thrust & Efficiency Propeller

--Super Impact Resistance


EFT G06 V2, it can monitor drug flow in real time and intelligently match the spray volume to achieve precise pest

JIYI K3A Pro Flight Controller for agriculture drones


JIYI K3-A Pro flight control is specially designed for agricultural sprayer drones. It has a variety of modes and exclusive functions for agriculture sprayer drones. It supports manual, semi-autonomous and autonomous flight. It can monitor drug flow in real time and intelligently match the spray volume to achieve precise UAV pesticide spraying . Equipped with professional App ground control station, it is efficient and easy to operate.

Diverse Operating Mode for a variety of operating environments


K3-A Pro built-in fixed height mode, GPS - speed mode and other operating modes, easy to operate, flexible switching, free to change operating modes according to different operating environments, to meet the needs of agriculture spraying requirement.


Stable and Reliable Performance


K3-A Pro is a new upgraded version of K3-A, the best-selling king of flight control in the last three years. The reliability and stability of K3-A Pro have been further improved and optimized on the basis of the original K3-A flight control. The products cover the drone users in Asia, America, Europe, Oceania and other countries. In 2017 and 2018, K3A get the recognition of 70% of the agriculture sprayer drone manufacturers in China.



Equipped with exclusive agricultural App ground station, precise and convenient control


Personalized app tailored for agricultural sprayer drones, it can provide arbitrary polygon route for unregulated terrain, autonomous operation and improve work efficiency. It has a route memory function and can calculate the spray area, which helps the operator to grasp the dosage more accurately.

EFT G06 V2, RECOMMENDED CONFIGURATION HOBBYWING X6

RECOMMENDED CONFIGURATION HOBBYWING X6 MOTOR SET x4 Acbd GO6 FRAME+ SPRAY SYSTEM x1 JIYI K3A PRO FLIGHT CONTROL *1 SKYDRIOD TIO REMOTE CONTROLS OKCELL 80OOMAH (125) (INCLUDING CAMERA) x2 BATTER

EFT G06 V2, final steps include software setup, calibration, and functional tests to ensure drone operates correctly . drone

EFT G06 V2, EFT EhFukiiECH Airt#47N*+r20

EFT EhFukiiECH Airt#47N*+r20 WWw cffort-tech:com PACKAGE SIZE: 620mm*320mm 405mm SUBJECT PARTS WII 8 888 IFTAAAM Hnca

EFT G06 V2, PACKAGING STYLE THE PRODUCT HAS FOAM PROTECTION:

Shipping Information: We offer upgraded shipping options via UPS Freight + FedEx Express for our Foam Protection package, which has a capacity of 733 liters.

EFT G06 V2, COMPANY PROFILE EFT Electronic Technology Co Ltd is a professional drone system solution

About Us: EFT Electronic Technology Co., Ltd. is a leading provider of drone system solutions, holding multiple core patents and certifications to its name.

EFT G06 V2, EFT EFFORT TECH IEFT Etor Et#EA# 32
EFT G06 V2 - 4-

Certifications: We hold multiple certifications that ensure compliance with international safety standards, including the EASA (European Aviation Safety Agency) Certificate for Agricultural Drone Operations, as well as CE (Conformité Européene) and FCC (Federal Communications Commission) approvals.




FAQ

How to assemble the eft g06 agricultural drone?


Because our drones arrive in the form of components, you need to assemble them yourself; we provide a detailed installation manual and installation video. The general installation process and video are as follows:

The video provides a step-by-step guide on assembling the EFT G630 agricultural drone, detailing the components and tools required such as the drone frame, spreading system, spray system, motors, control and power systems, and various accessories. The installation process involves several steps, starting with welding and assembling the frame, inserting lines and securing components, to more intricate tasks like installing motors, adjusting radar crossbars, and ensuring all elements like the water pump and electrical connections are properly aligned and secured. The video also covers the installation of a spray and spreading system, highlighting the need for precision and careful handling of parts. Final steps include software setup, calibration, and functional tests to ensure the drone operates correctly, emphasizing the importance of meticulous assembly for optimal performance in agricultural tasks.




How to operate the eft g06 agricultural drone?


The flight operation of the EFT G06 is very simple. We have an operation manual for you. There are also many operation videos uploaded by other users on YouTube. They have given a lot of suggestions and comments. For example, this video teaches you how to fly the EFT agricultural drone. machine;



What should I do if my agricultural drone is damaged?


We do not provide warranty for accidents caused by human operation or weather that are not caused by the quality of the machine itself; this is an industry rule for agricultural drones, so you need to master the operating skills before going to actual flying spraying operations; if it is really If it is damaged, you can consult us to replace new parts, or you can purchase them yourself. I have attached the detailed parameters of the core parts, as shown in the following table:

appendix: Component Parameters

Component  Specification

Frame


EFT G06 Drone Frame

Wheelbase: 1172mm
Frame weight: 4.8KG
Expand Size: 1580*1270*475mm
Folded size: 605*640*475mm

Tank Capacity

6L Water Tank

Power System


Hobbywing X6 Power System:

Max Thrust:  12kg/Axis (48V, Sea Level )
Recommended LiPo Battery:  12S LiPo
Recommended Takeoff Weight: 3-5kg/Axis(48V,Sea Level)
Product Weight (ESC/Motor/Prop): 720g
Waterproof Rating: IPX7
Operating Temperature: -20℃~65℃

Motor
Stator Size: 70mm
KV Rating: 180kv
O.D of Carbon Fiber Tube: φ30mm/φ28mm (*Tube Adapter will be Needed)
Bearing: Imported Bearing
ESC
Recommended LiPo Battery: 6-12S LiPo
PWM Input Signal Level: 3.3V/5V (Compatible )
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1100-1940 μs (Fixed or cannot be Programmed )
Max. Input Voltage: 52.2V
Max. Input Current (Cont.): 80A(w/ Good Heat Dissipation )
Max. Peak Current (10s): 100 A (w/ Good Heat Dissipation )
BEC: No
Nozzle Mounting Holes: Φ30mm/28mm
Propeller
Diameter×Thread Pitch: 2388
Weight: 91g (w/ Propeller Adapter, Single Blade: 36g)



 Sprayer System

 brush water pump x 1

pump esc x 1

sprayer assembly x 4

6mm water pipe x 1

8mm water pipe x1

connector x 1

Spreading Width: 3.5m to 4.5m


Flight Controller



JIYI K3A Pro Flight Controoler Combo

K3A Pro main flight controller x 1
GPS Module x 2
Led Module x 1
Power Module x 1

Supported ESC Type: Below 490Hz PWM ESC
Maximum Output Channel: 8 Channels
Recommend remote controller: with SBUS receiver
Supported receiver types: PPM, S-BUS receiver
Supported accessories: Radar, RTK, Data link, Flow Sensor Module
Working Voltage: 2-12S
Power Consumption: Less than 2W
Working temperature: 0-60℃
Storage temperature: -40-60℃
Seismic pressure: <1G
Hover accuracy Horizon: ±2M
Vertical: ±0.8M
Maximum tilt angle 30 °
Maximum yaw speed: 150°/s
Maximum vertical speed: 6 m/s
Wind resistance Continuous wind: level 3
Gust: Level 4
Flight mode and function:
Attitude - stabilization mode, Attitude - fixed height mode, GPS - speed mode, GPS - angle mode, AB point mode, automatic return mode, out of control return mode, low voltage protection, Breakpoint continuous spray function, one button Traverse function, Water pump control function, Terrain following function, Emergency stop function, GPS speed switching function, support for App ground station, support remote control tuning setting by data link.

Hardware Specification
Weight Flight controller:56g
GPS:45g
LED module:13g
Power module:39g
Dimension Flight controller:53.5mm×40.0mm×21.0mm
GPS:63.0mm(diameter)*15.0mm
Led module:24mm
Power module: 53.5mm×34.5mm×14.5mm


 Remote Controller & Video Transmission

 Skydroid T10 Remote Controller


 Item model: T10
Channel: 10
Working voltage: 4.2V
Working current: 100mA
Frequency: 2.400-2.483GHZ
Frequency-Hopping: Newst FHSS frequency-hopping
Upgrading: APP online
Power Supply: 18650 x 2 (battery not included)
Working Time: about 20 hours
Charging Port: Micro-USB
Size: 130 x150x20mm
Weight: 525g
Applications: helicopter, fixed wing, multi-rotor, unmanned vehicle and etc.

Skydroid R10 Receiver
Item model: R10
Working voltage: 4.5-5.5V
Working current: 100mA
Size: 50x31x12mm
Weight: 20g

Mini Camera:
Working voltage: 5V
Working Current: 180mA
Size: 30x29x26mm
Weight: 15.6g

Battery

OKCELL 12S 44.4V 8000mAh 20C Intelligent Battery

 Nominal Voltage: 44.4V
Nominal Capacity: 8000mAh
Charging Voltage: 50.4V (4.2V/Cell)
Charging Current: Max. 20.0A
Working Temperature(Discharge):-10℃-+60℃
Working Temperature(Charge):-10℃-+45℃
Storage Temperature: -10℃-+35℃
Weight: 2.2kg
Dimension: 126x67x230mm




Battery Charger

SKYRC PC1500 25A Dual Channel 12S 14S 1500W Charger

 Item Model: SKYRC PC1500

Battery Type:Lithium Battery
LiPo Battery Cells: 12S/14S
LiHV Battery Cells:12S

Power Supply: AC Input: 100-240V
Charging Power: AC220V:1500W
AC120V:600W

Charger/Discharge:
AC 220V: Fast Charge Current: 25A
Slow Charge Current: 25A
AC 120V: Fast Charge Current: 9A
Slow Charge Current:9A
Discharge Power:60W
Charging Mode:Fast charge, Slow, Storage

Size: 294x136x212mm
Weight: 4.2Kg

Working and Storage:
Working Temperature: 0℃-40℃
Working Humidity: 0%-75%
Storage Temperature: -10℃-70℃
Storage Humidity: 0%-75%
