Flysky Paladin PL18 2.4G 18CH Transmitter With FTr10 FTr16S Receiver

Flysky Paladin PL18 2.4G 18CH Transmitter With FTr10 FTr16S Receiver


Regular price $339.00 USD
Regular price Sale price $339.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

34 orders in last 30 days

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

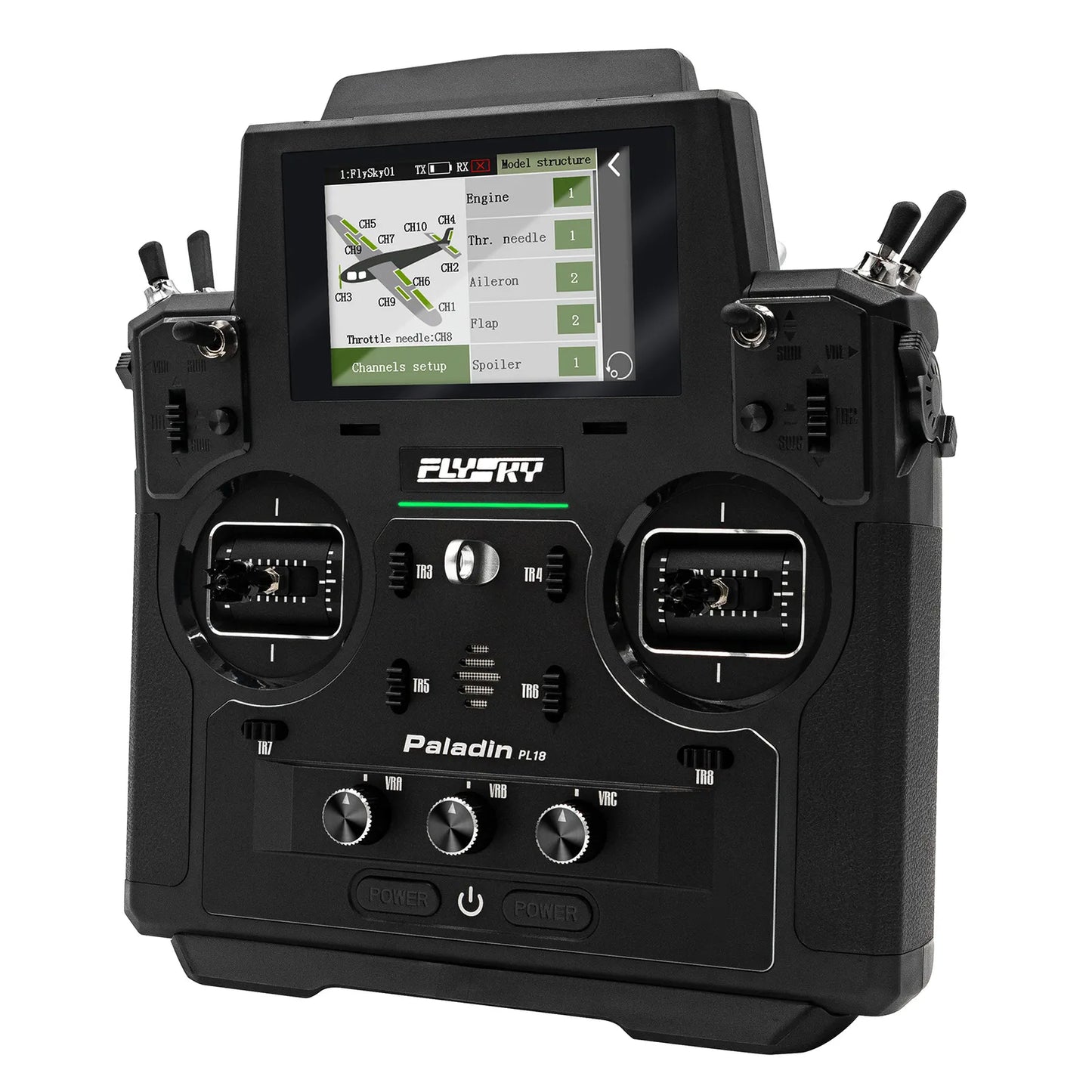

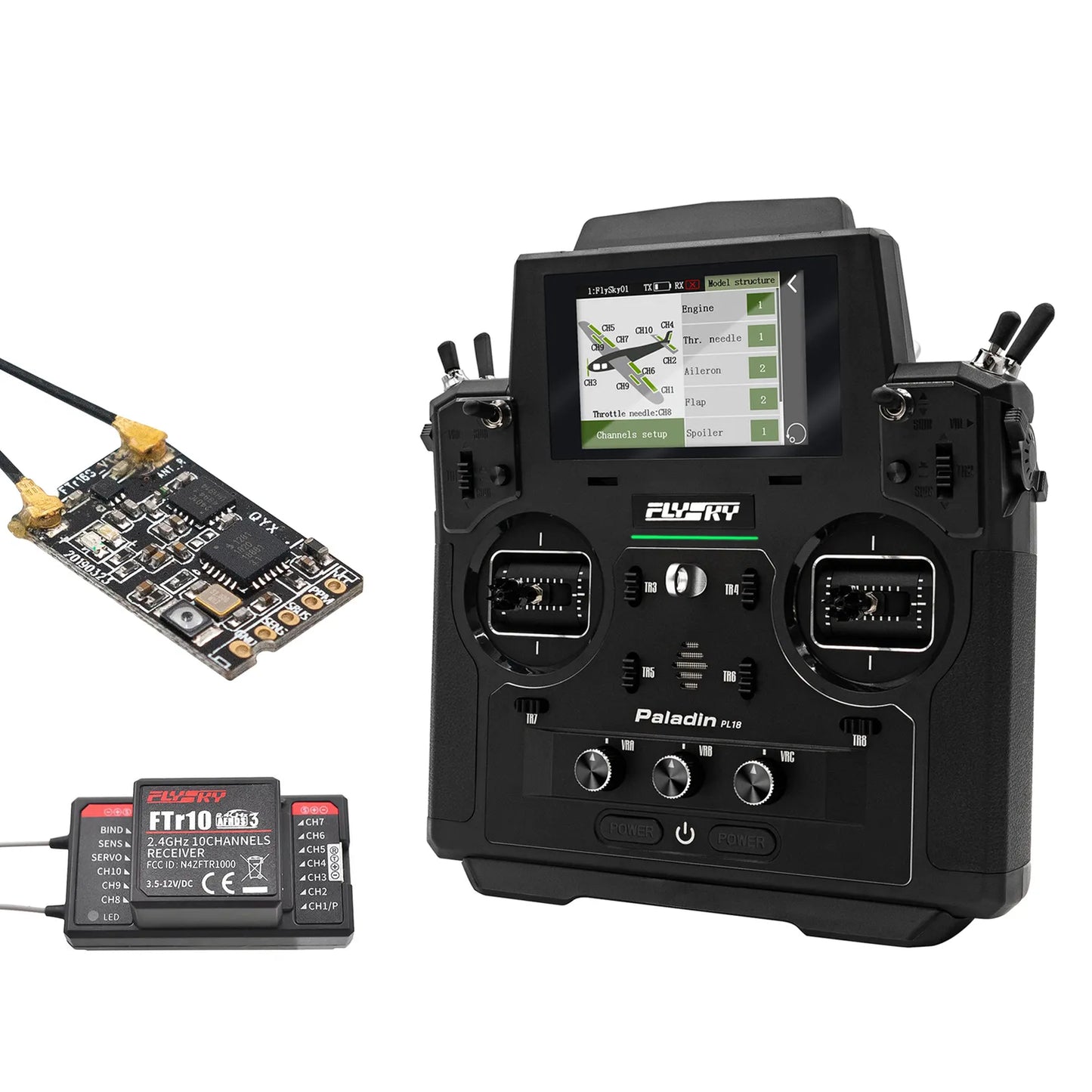

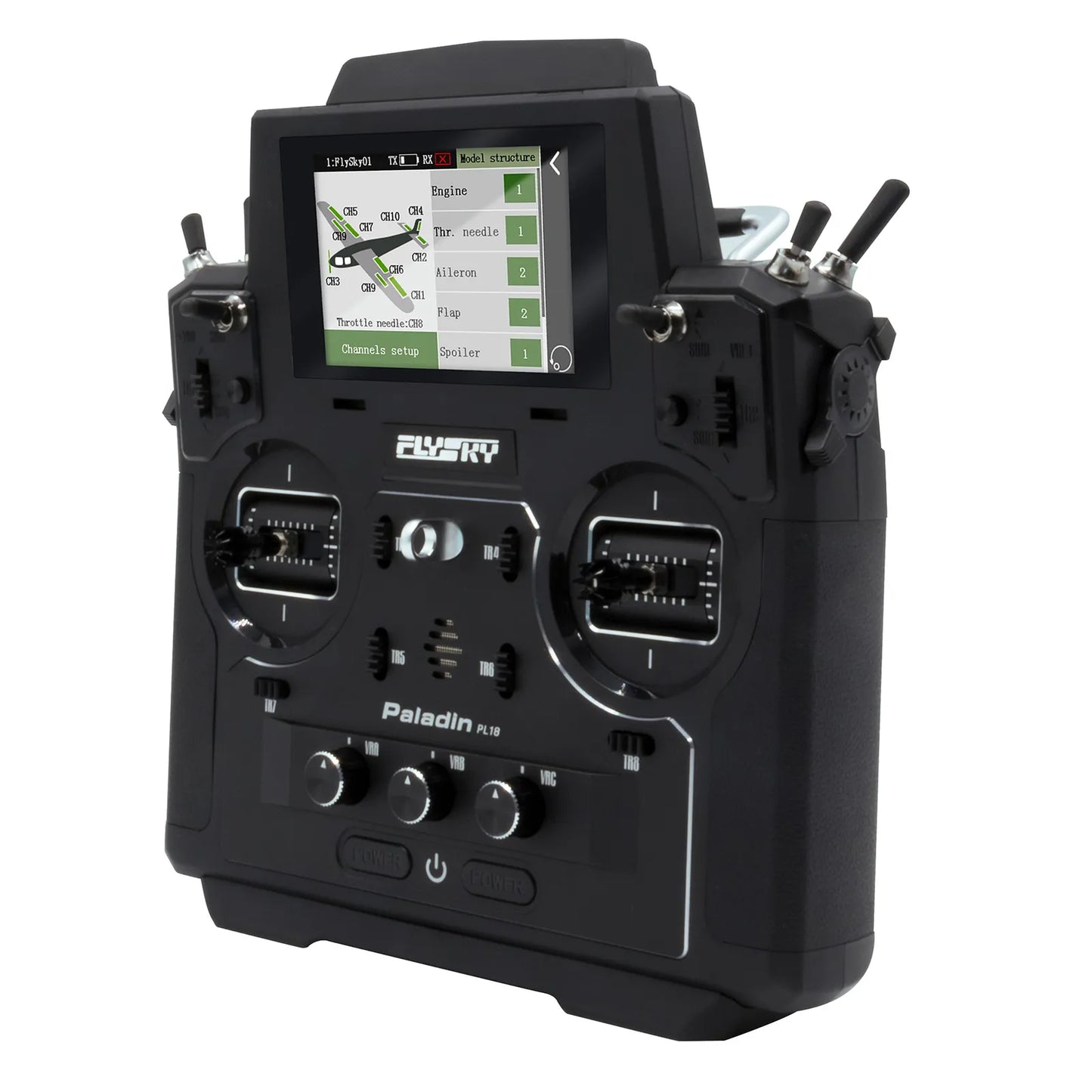

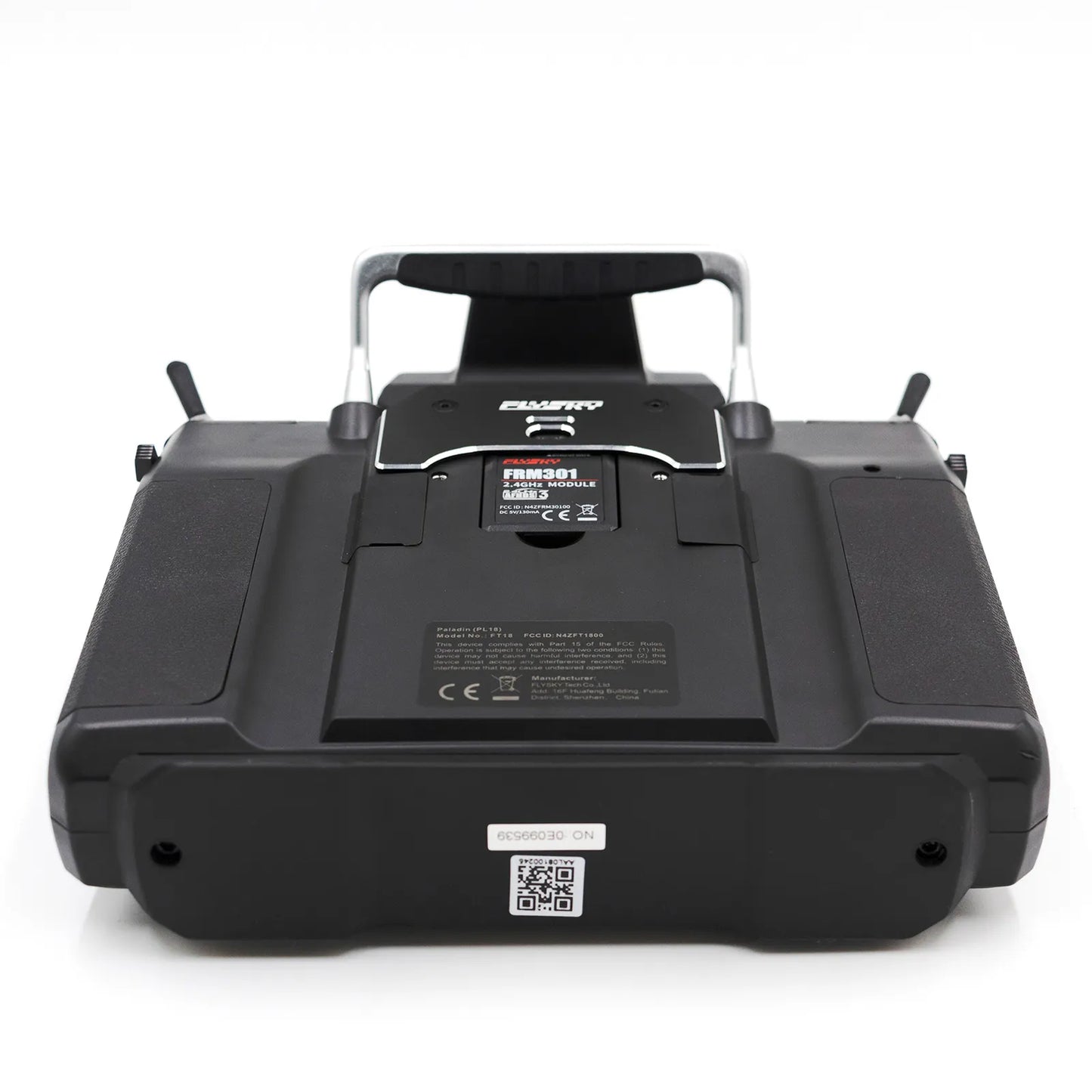

The FLYSKY Paladin PL18 Remote Controller is designed for precision flying. It was engineered to be intuitive with a powerful touch screen setup. The Paladin comes with 18 channels and AFHDS 3 protocol. There are six model types to choose from Airplane, Helicopter, Glider, Delta Wing, Multicopter, and Engineering Vehicles making for a truly versatile Radio. The package also comes with two receivers, the FTr10 and FTr16s.

Effortless Model Configuration (up to 18 channels): Free to switch types, handy with 18 channels. For the first time fixed-wing, glider, helicopter, FPV, multi-copter, and construction vehicles are all supported with one transmitter. Smash all boundaries and do things your way with the Paladin PL18.
Adjustable High Precision Hall Gimbals: Our new high-precision hall gimbals are easy to set up for or right-handed users and feature adjustable spring tension, as well as adjustments for dampening and throw.
AFHDS 3 + support for external RF modules: AFHDS 3 is our latest generation of RF technology. Developed especially for the PL18, AFHDS 3 is designed to be an all-in-one configurable, low latency (5ms), stable protocol for use at longer ranges (up to 3.6km), with stronger than ever anti-interference protections. The PL18 is also designed to be compatible with many different external RF modules making the PL18 one of our most flexible products to date.
Dual Omnidirectional Antennas: The unique design of the combination of omnidirectional and directed antennas guarantee make the signals stable, and greatly improve the control distance and antijamming capability.
8 Hours Of Non-Stop Performance: The built-in battery has a capacity of 4300mAh, meaning that the system will get over 8 hours of use between charges.
FlyskyOS: The PL18 has a 320*480 capacitive color touch screen, amazing FlySkyOS firmware available in both Chinese and English languages.

Brand name: Flysky
Product Model: PL18
Product Name: Paladin
Channels: 18
Frequency: 2.4GHz
RF: 2.4GHz
Suit for Model Type: fixed-wing, helicopter, crossing machine, multi-axis, engineering vehicle
RF Power: < 20 dBm
2.4GHz Protocol: AFHDS3
Distance: >3km
Channel Resolution: 4096
Battery : 1S (3.7V) * 4300mAh (built-in)

Charging Interface: Micro USB / wireless charging
Charging Time: 6h@5V/7h@2A (wireless charging)
Lifetime: > 8h
Low Voltage Warning: <3.7V
Antenna Type: Dual antenna
Display: HVGA 3.5" TFT, 320*480
Language: Chinese and English
Simulator: USB Simulator
Data Interface: USB, Non-standard interface (USART), PHJACK (PPM)
Temperature Range: -10 ° C - + 60 ° C
Humidity Range: 20%-95%
Online Update: support
Transmitter Color: black
Size (length x width x height): 214*86.5*192 mm
Bodyweight: 946g

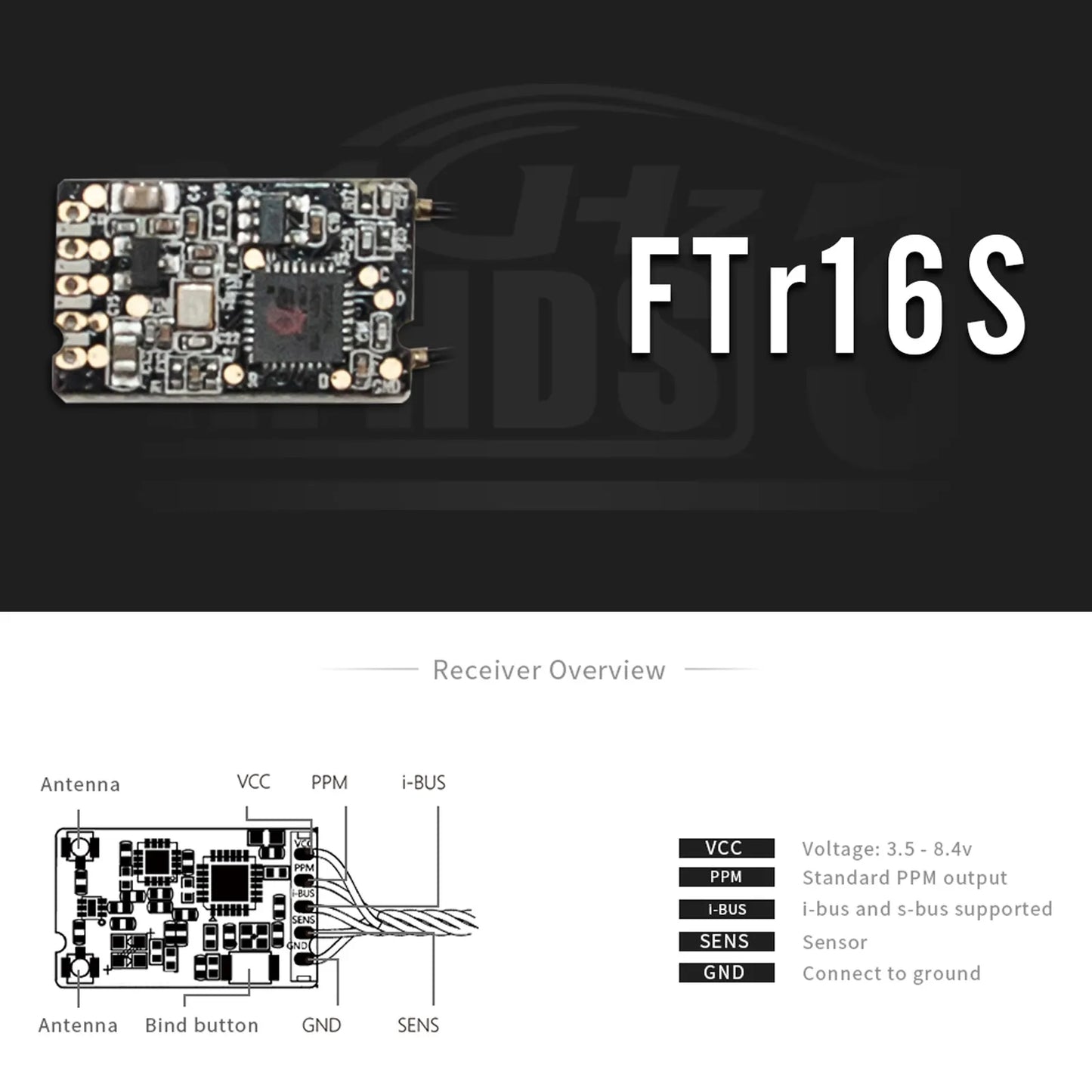

Product Model: FTr16S
PWM channel: None
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 3
Range: 3500m (air)
Antenna type: dual antenna (92.5mm * 2)
Power: 3.5-8.4V
RSSI: Supported
Data port: i.bus / s.bus / PPM
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online Update: Yes
Dimensions: 20 * 12 * 3.1mm
Weight: 2g

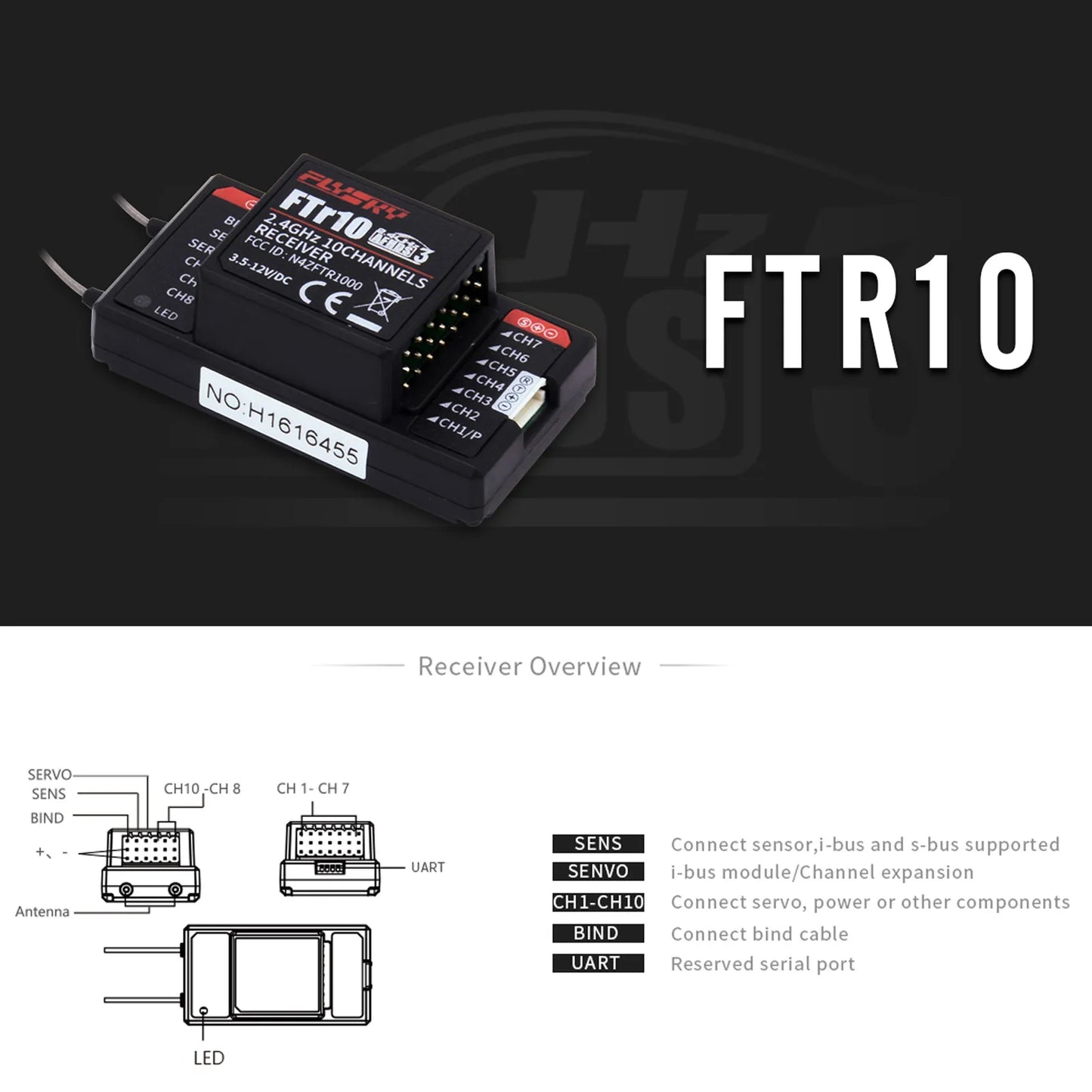

Product Model: FTr10
PWM channel: 10
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 3
Range: > 3500m (air)
Antenna type: dual antenna (103mm * 2)
Power: 3.5-12V
RSSI: Supported
Data port: PWM / PPM / i.bus / s.bus / UART
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online Update: Yes
Dimensions: 52 * 28 * 22mm
Weight: 22g

Package Information:
Package size: 36 * 27.5 * 14cm
Package Weight: 2046g

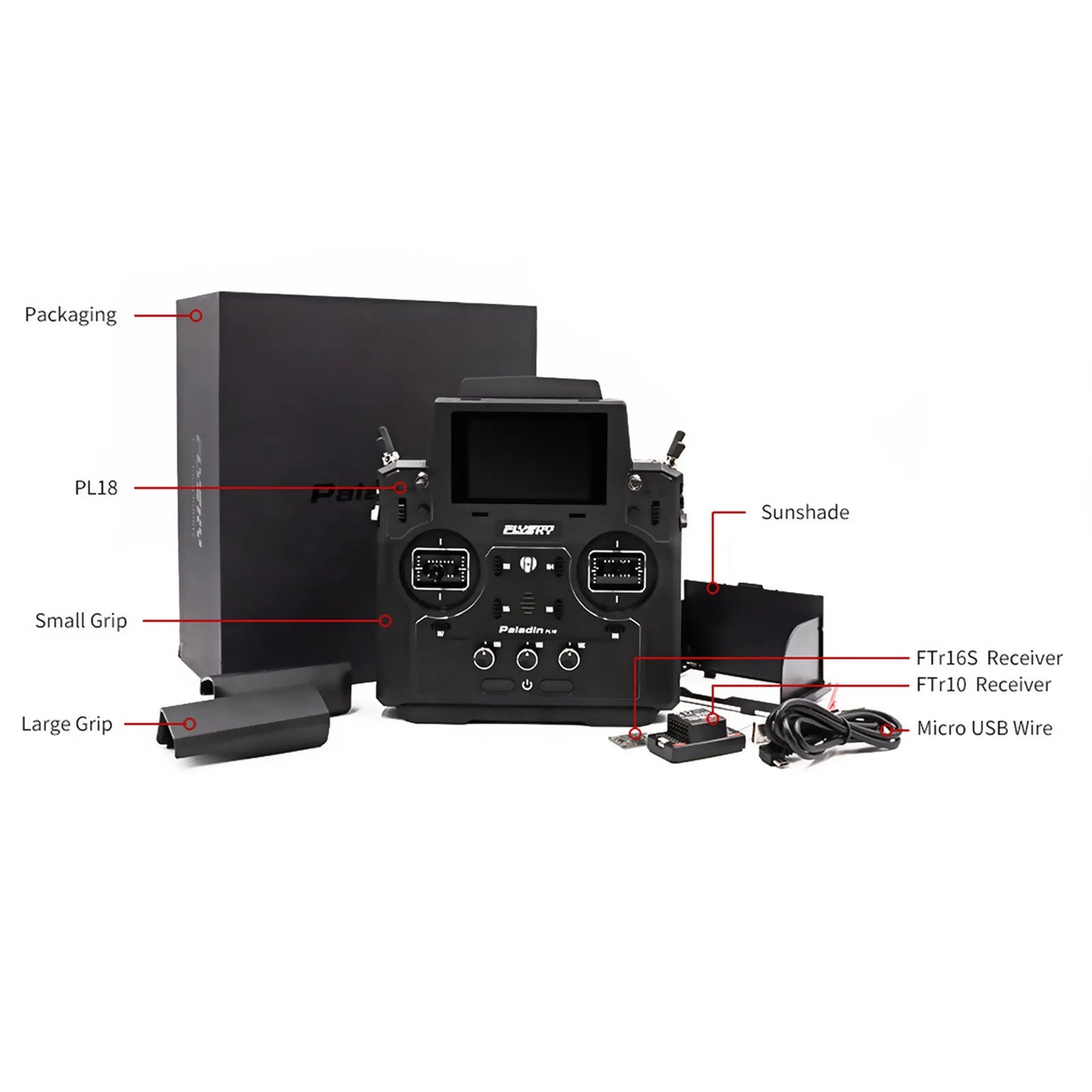

Package List:
1 * PL18 Transmitter
1 * FTR10 Receiver
1 * FTR16S Receiver
1 * Sunshade Cover
2 * Big Hand Grip
1 * USB Cable
