Foxeer Extreme V2 3W VTX Overview
The Foxeer Reaper Extreme V2 3W 80CH VTX is a powerful video transmitter designed for long-range FPV flying and competitive drone racing. With adjustable power settings ranging from 25mW to a maximum of 3W, this VTX ensures you have the flexibility to adapt to different flying environments. It supports 80 channels across multiple frequency bands, providing superior video transmission quality and minimizing interference. The built-in fan ensures the VTX remains cool, even during extended use at high power settings, while the PIT mode offers safe low-power operation for race setups.
Features:
- Adjustable Power Output: Offers flexible power settings at 25mW, 200mW, 500mW, 1.5W, and 3W, allowing pilots to optimize power consumption and signal strength based on their flying conditions.
- 80 Channels: Covers a broad range of frequencies across multiple bands, providing an interference-free video feed, even in crowded environments.
- PIT Mode: Easily enter PIT mode for safe low-power transmission during race setup by double-clicking the "KEY" button.
- Tramp Protocol Support: When connected via the Tramp cable, the VTX’s button will be disabled, and power and frequency adjustments will be controlled remotely via the flight controller.
- Built-in Fan: Equipped with an integrated fan to maintain optimal temperatures during long-range flights and high-power usage.
- Compact and Lightweight: Weighing only 15.2g with a compact size of 38x29.2x11.5mm, this VTX is designed to fit comfortably in most drone builds.
- Low Power Consumption: Consumes 1.4A at 10V, ensuring efficient energy usage while maintaining strong video transmission quality.
Foxeer Extreme V2 3W VTX Specifications
Name | Reaper Extreme 3W V2 |
Input Voltage | 9~36V |
Output Voltage | 5V |
Channels | 80CH |
Power | 25mW/200mW/500mW/1.5W/3W |
Pit | Double click to enter |
Fan | Yes |
Weight | 15.2g |
Size | 38*29.2*11.5mm |
Consumption | 1.4A/10V |
Package Includes | 1 x VTx; 1 x silicon cable; |
Band and Channel Table
Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
PIT Mode and Tramp Protocol:
- PIT On/Off: To activate or deactivate PIT mode, double-click the "KEY" button. When PIT mode is on, the Red LED (PWR) will be off. When PIT mode is off, the Red LED will be on.
- Tramp Cable: If the Tramp Rx pin cable is connected to the VTX and the flight controller (FC), the button on the VTX will be disabled, and the controller will manage frequency and power adjustments.
Additional Note:
- Betaflight Limit: Betaflight supports a maximum of 64 channels at a time, so you will need to remove two bands before inputting the channels into Betaflight.
Package Includes:
- 1x Reaper Extreme V2 3W VTX
- 1x Silicon Cable
The Foxeer Reaper Extreme V2 3W VTX offers a powerful, versatile solution for FPV pilots who need long-range video transmission with adjustable power options. Its robust design, cooling fan, and support for Tramp protocol make it ideal for both competitive drone racing and extended freestyle flights.
Foxeer 4.9-6G Reaper Extreme V2 3W 80-channel VTX transmitter

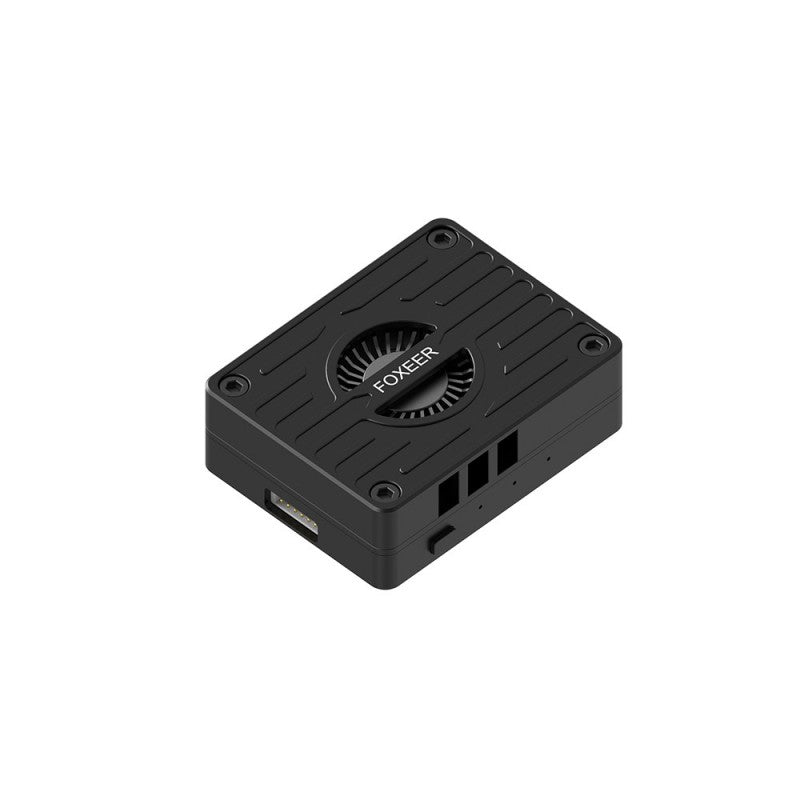

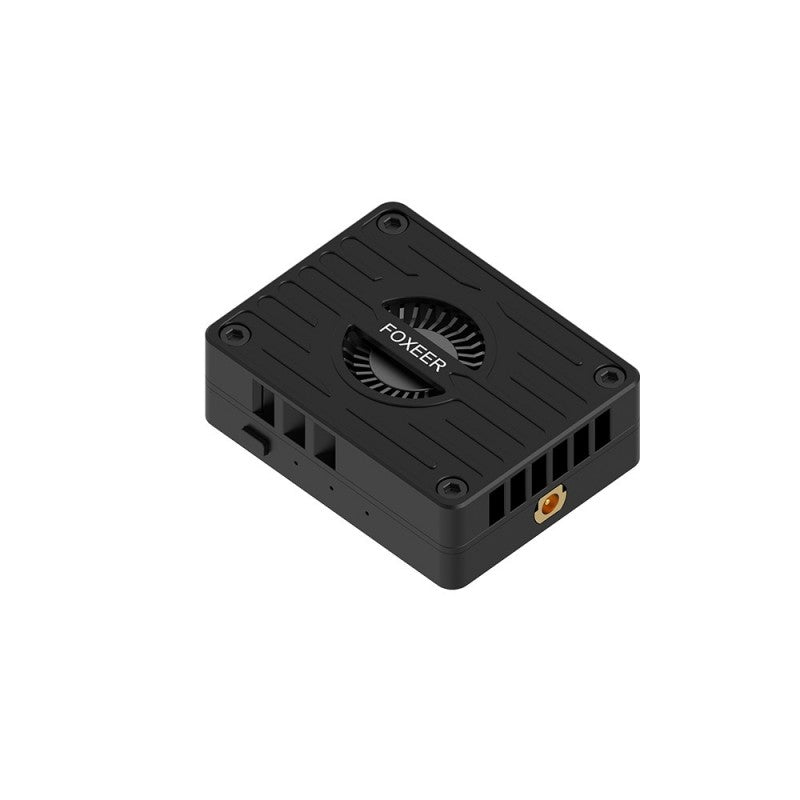

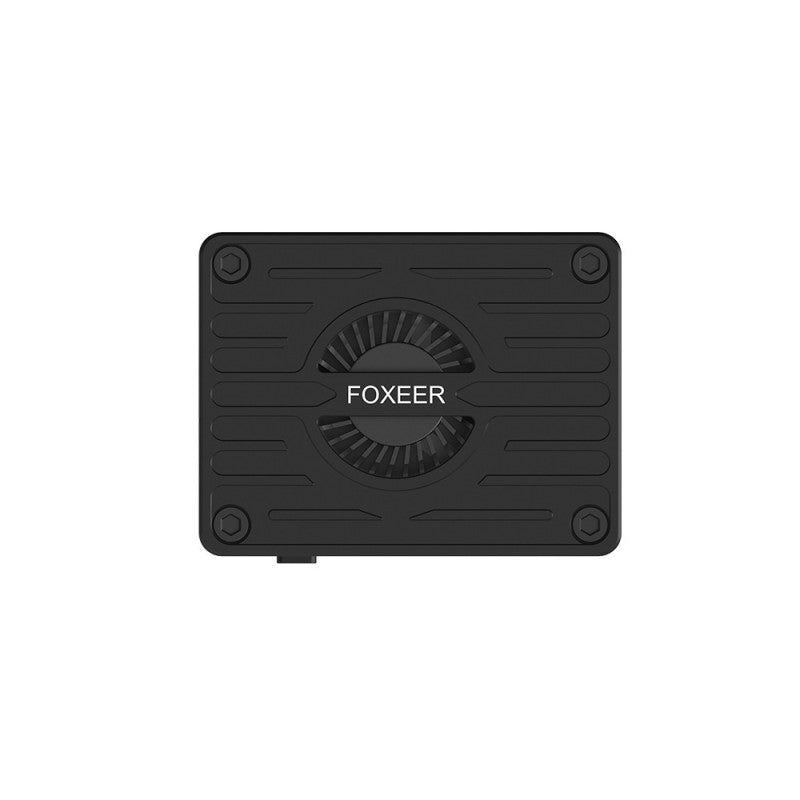

CNC heat dissipation shell provides great filtration and strong anti-interference ability from FOXEER 4.9~6G Reaper Extreme V2 3W 80CH VTX

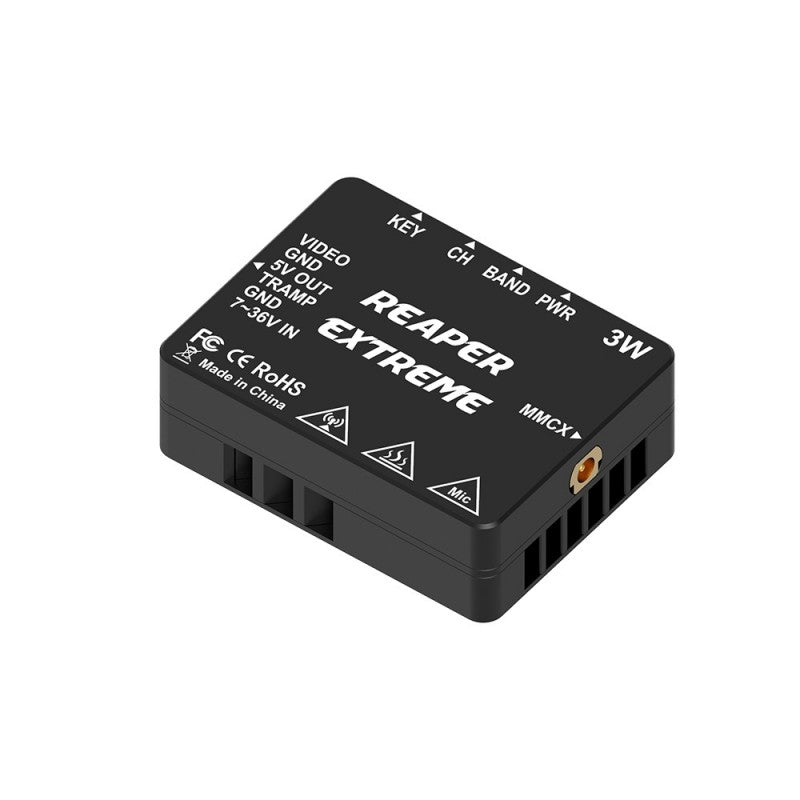

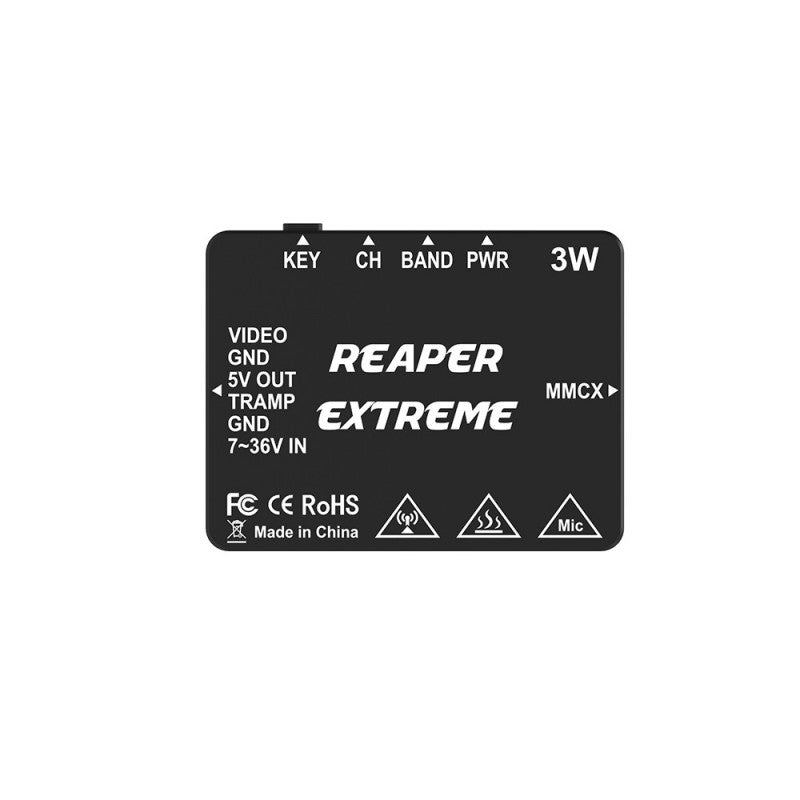

Foxeer 4.9-6G Reaper Extreme V2, a 3W 80CH VTX system with KEY CH BAND PWR functionality, featuring high power and build-in microphone capabilities.
