Foxeer 4.9G~6G Reaper Extreme V3 2.5W 80CH VTX

Foxeer 4.9G~6G Reaper Extreme V3 2.5W 80CH VTX

Foxeer

Regular price $79.00 USD
Regular price Sale price $79.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

154 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Foxeer Extreme V3 2.5W VTX Overview

The Foxeer Reaper Extreme V3 2.5W 80CH VTX is a high-performance video transmitter designed for FPV pilots who need flexible power output and reliable long-range signal transmission. With adjustable power levels ranging from 25mW to 2.5W, this VTX offers the perfect solution for both short-range indoor flying and long-range outdoor flights. Supporting 80 channels across multiple frequency bands, it ensures minimal interference and optimal performance in crowded environments. The Tramp protocol enables remote control of power and frequency adjustments, providing pilots with added convenience. The lightweight design and compact size make it ideal for any FPV setup.

Foxeer Extreme V3 2.5W VTX Features:

  • Adjustable Power Output: The VTX offers 25mW, 200mW, 500mW, 1.5W, and 2.5W power levels, allowing for optimized transmission depending on your flight scenario.
  • 80 Channels: Covers a wide frequency range with 80 channels across several bands, providing flexibility and reducing the risk of signal interference.
  • PIT Mode: Enter PIT mode by double-clicking the button for safe and low-power operation during races and setup.
  • Tramp Protocol Support: If connected to the flight controller, the Tramp protocol allows remote adjustments of frequency and power. When the Tramp cable is connected, the button is disabled, and adjustments are managed by the flight controller.
  • Compact and Lightweight: Weighing only 13g and measuring 36x27.5x8mm, this VTX is easy to mount using the 20x20mm M2 mounting holes with 2.8mm depth, perfect for tight drone builds.
  • Low Power Consumption: Consumes 1.2A at 9V, ensuring energy efficiency even during high-power transmissions.
  • Durable Design: Built to withstand extreme conditions, ensuring long-lasting reliability for any FPV activity.

Foxeer Extreme V3 2.5W Specifications

Name Reaper Extreme 2.5W V3
Input Voltage 9~36V
Output Voltage 5V
Channels 80CH
Power 25mW/200mW/500mW/1.5W/2.5W
Pit Double click to enter
Weight 13g
Mounting Hole 20*20mm M2 2.8mm depth
Size 36*27.5*8mm
Consumption 1.2A/9V
Package Includes 1 x VTx; 1 x silicon cable;



Band & Channel Table

Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917
Band H 5653 5693 5733 5773 5813 5853 5893 5933
Band L 5333 5373 5413 5453 5493 5533 5573 5613
Band U 5325 5348 5366 5384 5402 5420 5438 5456
Band O 5474 5492 5510 5528 5546 5564 5582 5600
Band X 4990 5020 5050 5080 5110 5140 5170 5200



PIT Mode and Tramp Protocol:

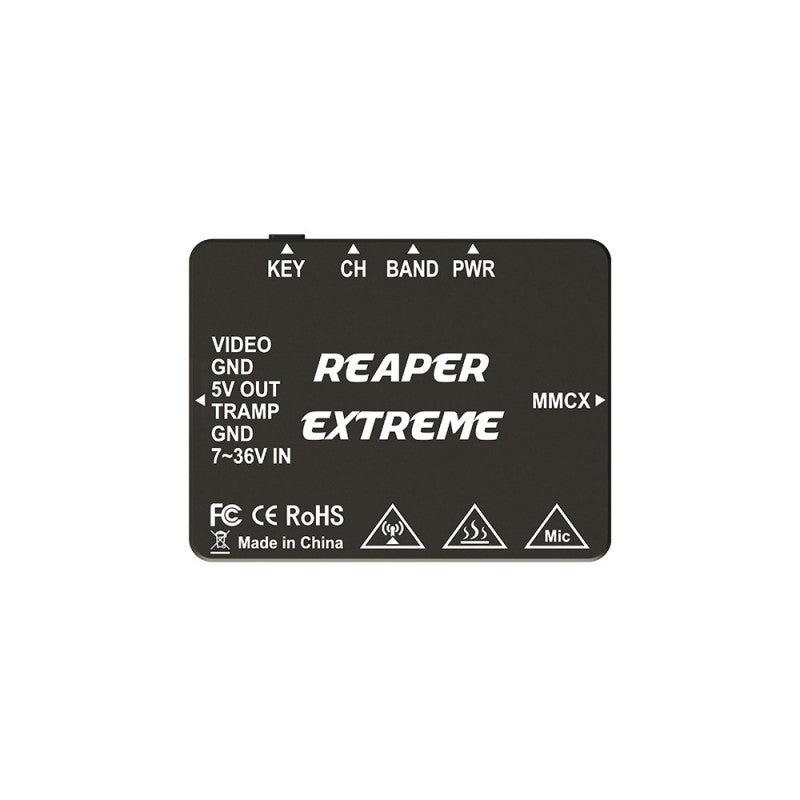

  • PIT On/Off: Double-click the "KEY" button to turn PIT mode on or off. When the red LED (PWR) is off, PIT mode is on; when the red LED (PWR) is on, PIT mode is off.
  • Tramp Cable: When connected to the flight controller via the Tramp Rx pin, the VTX button will be disabled. Frequency and power adjustments will be controlled by the flight controller.

Additional Note:

  • Betaflight Limit: Betaflight supports a maximum of 64 channels. You will need to remove 2 bands before importing the channels into Betaflight.

Package Includes:

  • 1x Reaper Extreme V3 2.5W VTX
  • 1x Silicon Cable

The Foxeer Reaper Extreme V3 2.5W VTX provides reliable, long-range video transmission with flexible power settings, perfect for both recreational and competitive FPV pilots. Its support for Tramp protocol and PIT mode ensures adaptability in any flying environment, while its compact design makes it suitable for any drone build.

Foxeer 4.9G~6G Reaper Extreme V3 2.5W 80CH VTX, A camera module with advanced features including 4.9G to 6G Reaper Extreme V3, 2.5W power and 80-channel video transmission.

Foxeer 4.9G to 6G Reaper Extreme V3, 2.5W, 80CH VTX

Foxeer 4.9G~6G Reaper Extreme V3 2.5W 80CH VTX, A high-power transmitter with 80 channels and 2.5 watts of power, suitable for FPV racing and other uses.

Foxeer Reaper Extreme V3 is a high-power transmitter with 80 channels and 2.5 watts of power, perfect for FPV racing and other applications.

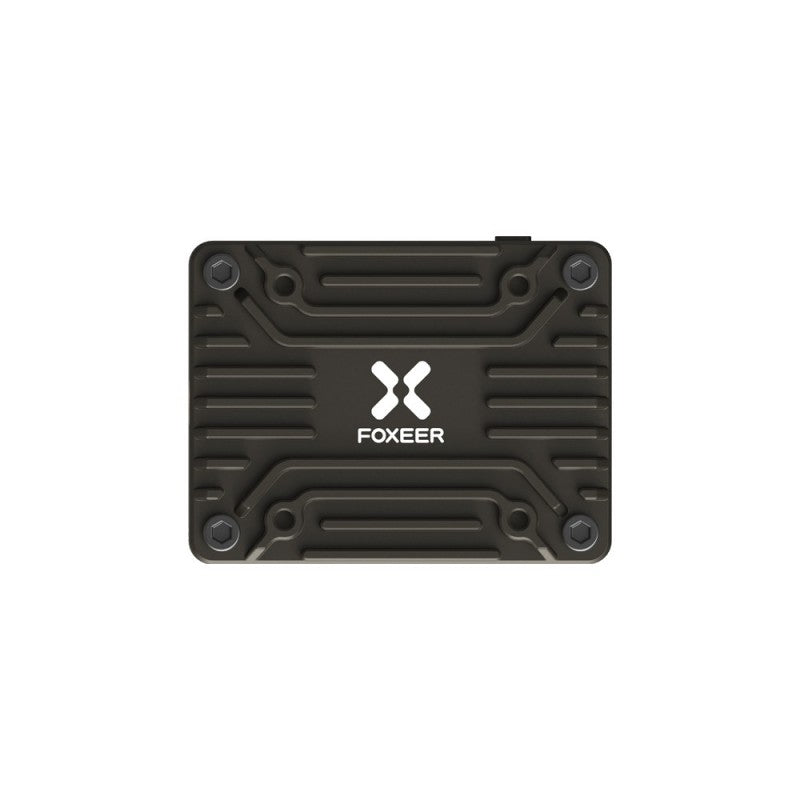

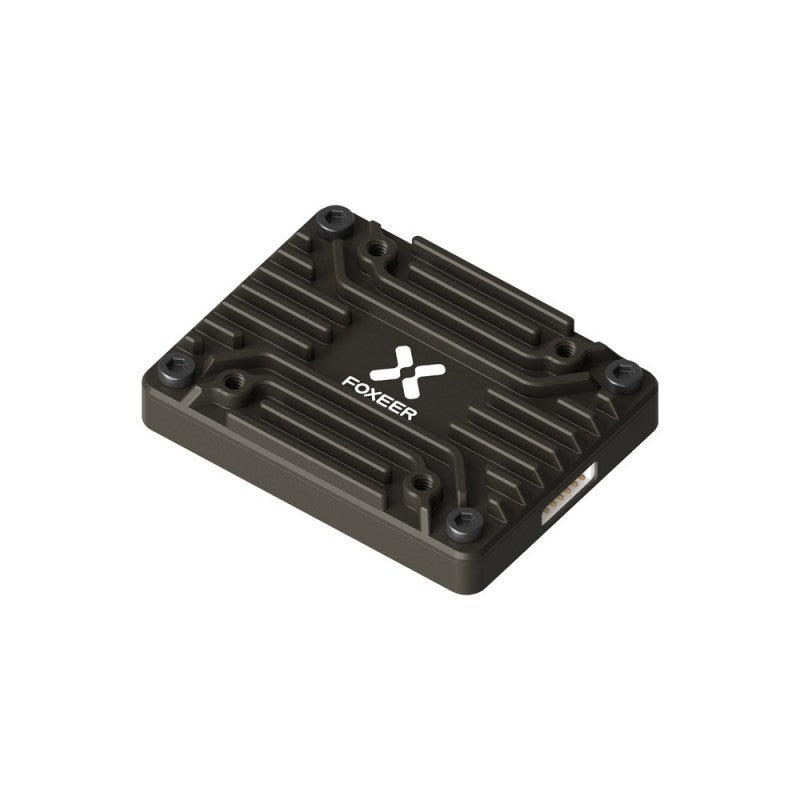

Foxeer 4.9G~6G Reaper Extreme V3 2.5W 80CH VTX, The Foxeer 4.9G to 6G Reaper Extreme V3 has a CNC heat dissipation shell and strong anti-interference ability.

Foxeer 4.9G to 6G Reaper Extreme V3 2.5W 80CH VTX features CNC heat dissipation shell and great filtering circuit, with strong anti-interference ability.

Foxeer 4.9G~6G Reaper Extreme V3 2.5W 80CH VTX, Tramp cable connects, disabling button, allowing flight controller to manage adjustments.
