Foxeer 10W VTX Overview
The Foxeer Reaper Infinity 10W 80CH VTX is a high-performance video transmitter designed for FPV enthusiasts looking for superior video signal transmission over long ranges. Supporting an input voltage range of 9-36V (4-8S), this VTX provides adjustable power output options ranging from 1W to a maximum of 10W, making it ideal for various flying scenarios. With 80 channels across multiple bands, it ensures a flexible and interference-free video feed in the 4.9G~6G frequency range. The SMA connector and GH1.25 6P cable connector ensure compatibility with different FPV setups. Compact in design, the Foxeer Reaper Infinity 10W offers an easy-to-mount solution with its 20x20mm mounting holes.
Foxeer 10W VTX Features:
- Adjustable Power Output: The VTX offers 1W, 2.5W, 5W, 7.5W, and 10W power settings, allowing pilots to optimize power consumption and video range.
- 80 Channels: Covers 80 channels across multiple bands (A, B, E, F, R, H, L, U, O, X), providing flexibility and minimizing the risk of interference during flight.
- Pit Mode: Allows pilots to enter Pit mode by double-clicking the button, ensuring low power for safe settings and adjustments during competitions.
- Compact Design: Small size of 66x37x16mm and 20x20mm M2 mounting holes with a 2.5mm depth, making it easy to install on a wide range of drones.
- Wide Input Voltage Range: Operates on 9-36V, compatible with 4-8S LiPo setups, making it suitable for a variety of drone builds.
- Low Consumption: Consumes 10V/3.3A & 20V/1.5A, ensuring energy efficiency even at higher power levels.
Foxeer 10W VTX Specifications
Name | Reaper Infinity 10W |
Input Voltage | 9~36V |
Output Voltage | 5V |
Channels | 80CH |
Power | 1W/2.5W/5W/7.5W/10W |
Pit | Double click to enter |
Weight | 48g |
Mounting Hole | 20*20mm M2 with 2.5mm depth |
Size | 66*37*16mm |
Connector | SMA |

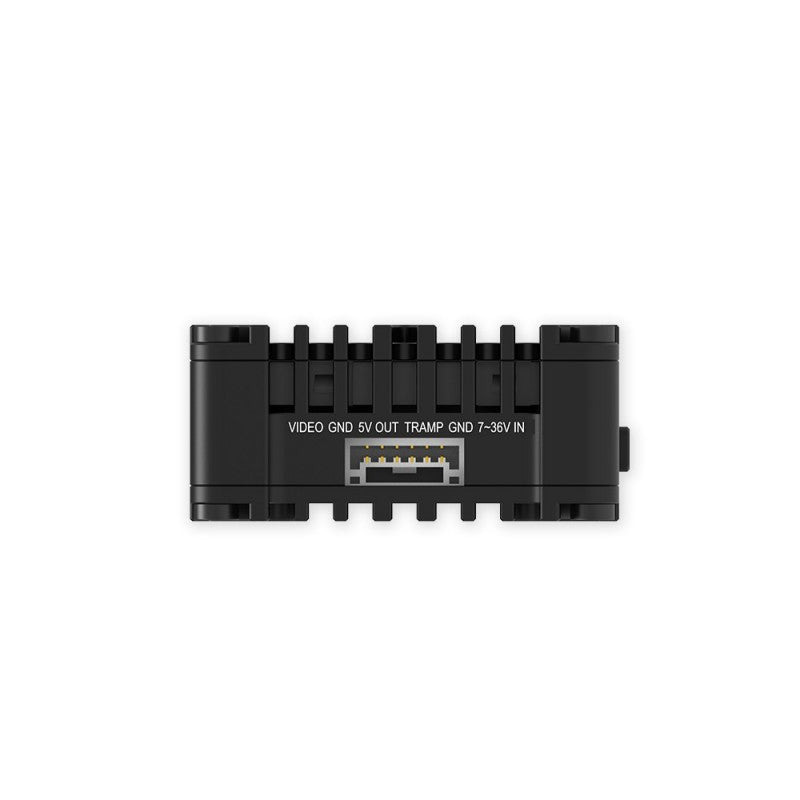

Cable Connector | GH1.25 6P |
Consumption | 10V/3.3A & 20V/1.5A; 10W |
Package Include | 1 x VTx, 1 x silicon cable |
Band and Channel Table
Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Package Includes:
- 1x VTX
- 1x Silicon Cable
The Foxeer Reaper Infinity 10W VTX is the perfect solution for FPV pilots requiring powerful, long-range video transmission. Its adjustable power levels, extensive channel range, and efficient power consumption make it ideal for professional and competitive FPV flying.

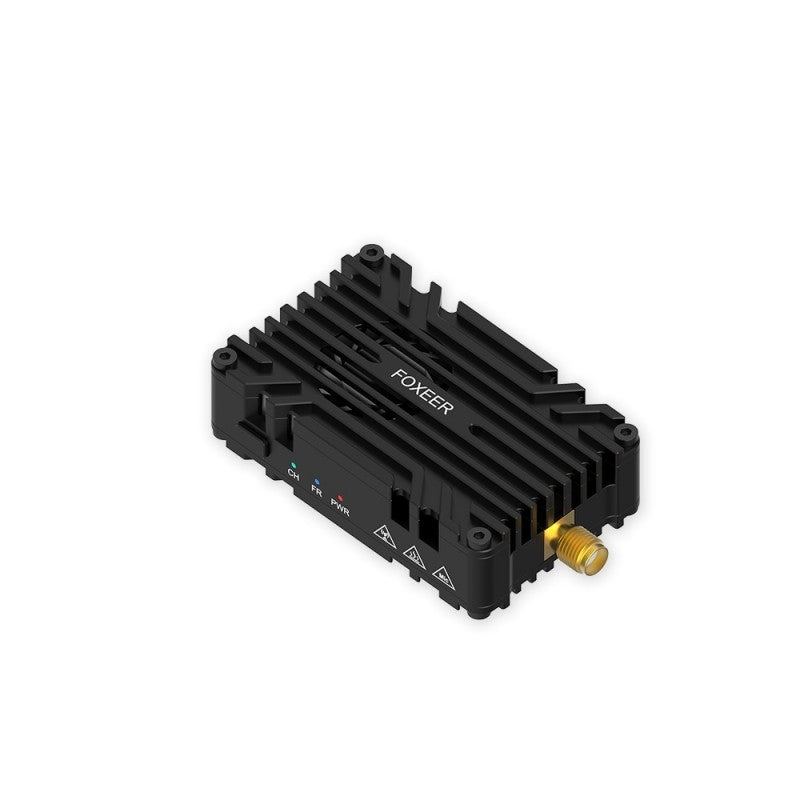

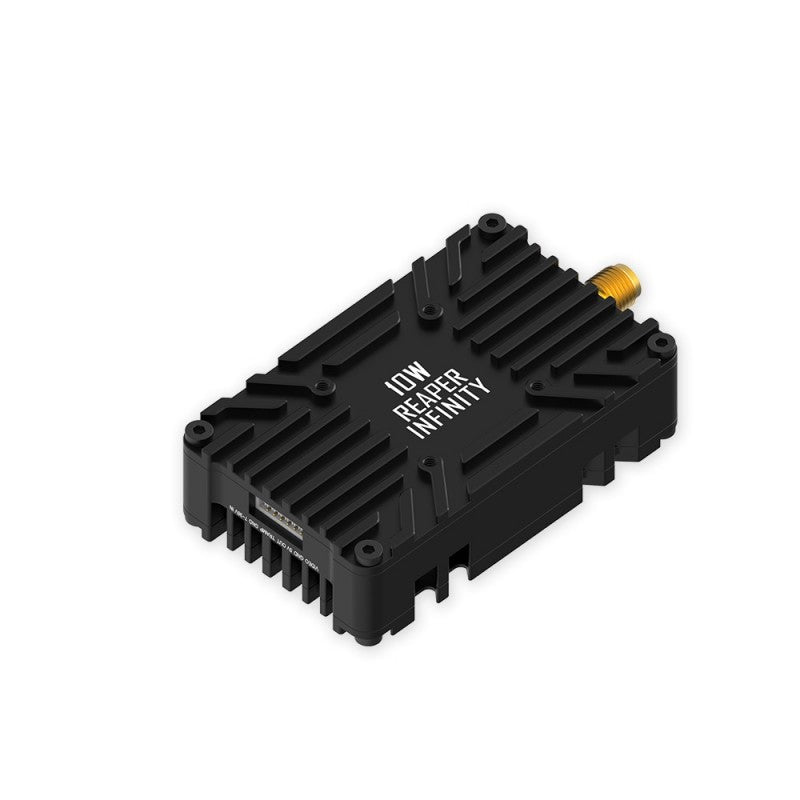

Foxeer Reaper Infinity 10W 80CH VTX module features a high-gain design for long-range video transmission, supporting 4.9-6G frequency band and 80 channels.

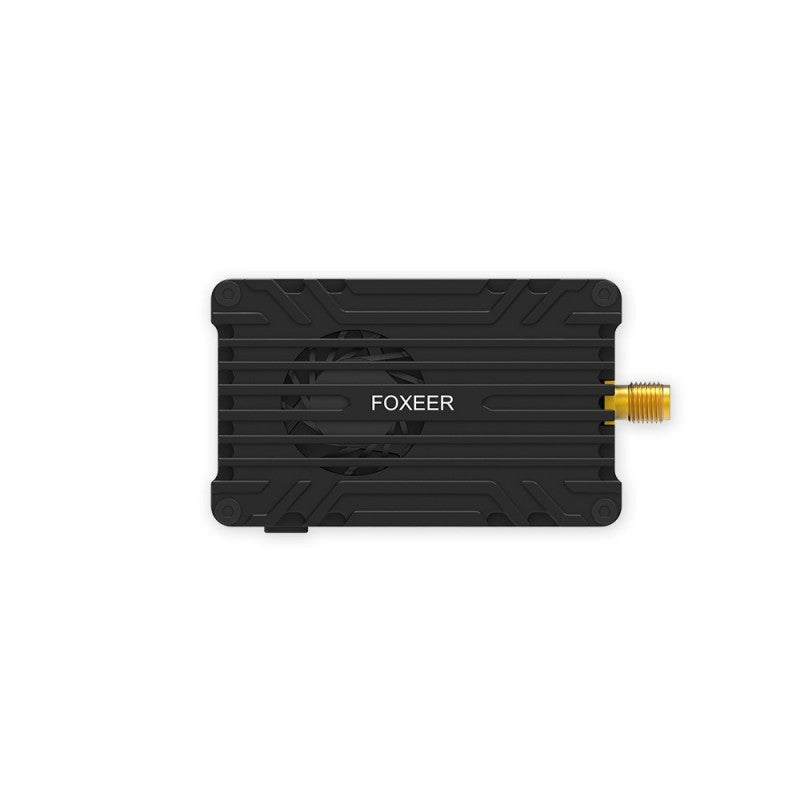

Foxeer 4.9G/6G Reaper Infinity 10W 80CH VTX FPV air system features built-in microphone and fan for immersive flying experience with clear audio and cooling.

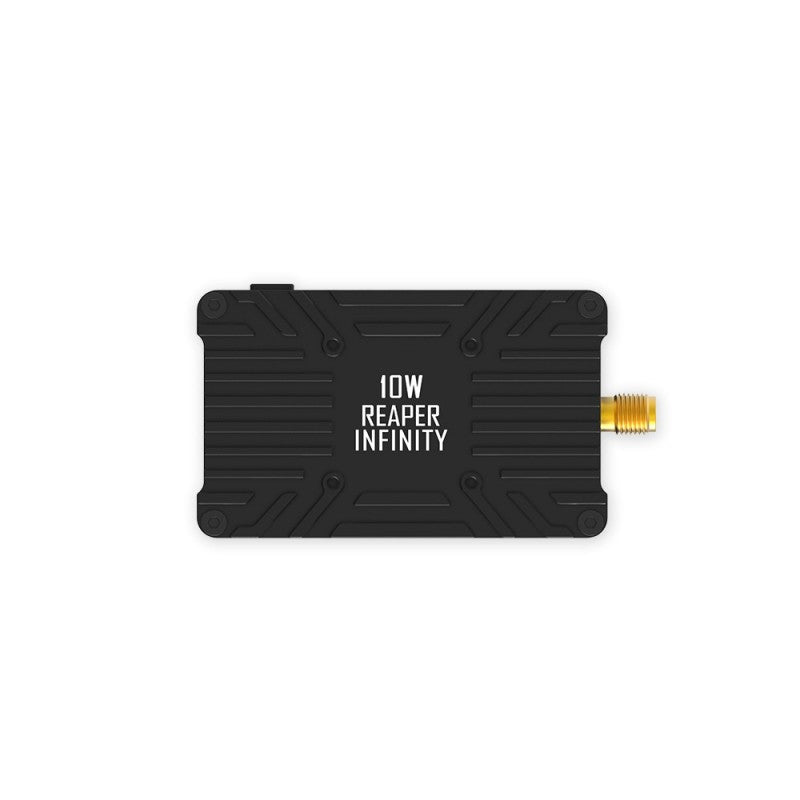

Foxeer 4.9-6 GHz Reaper Infinity 10 Watts 80 Channel VTX
