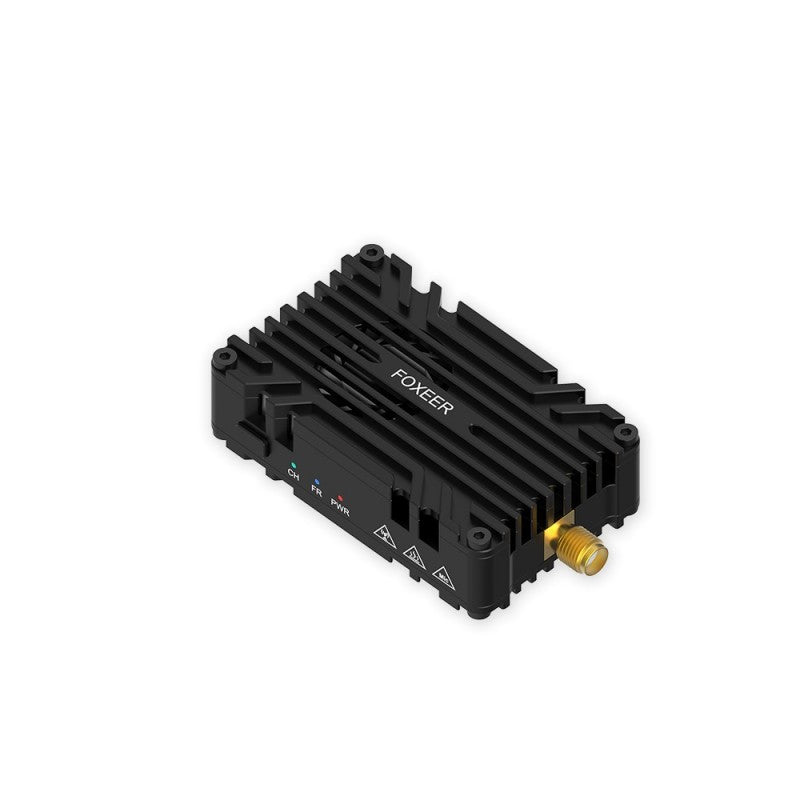

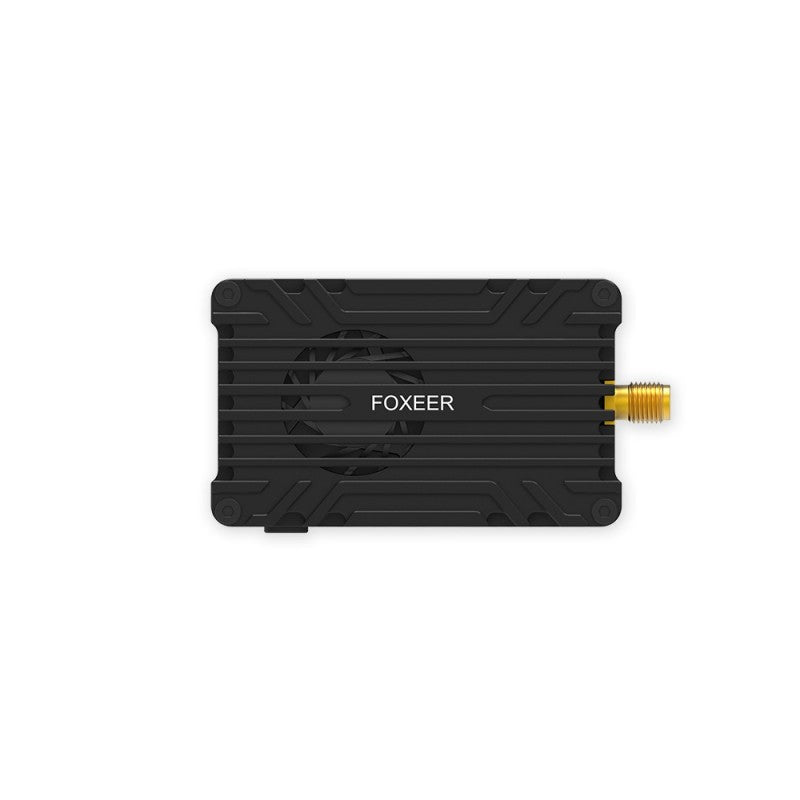

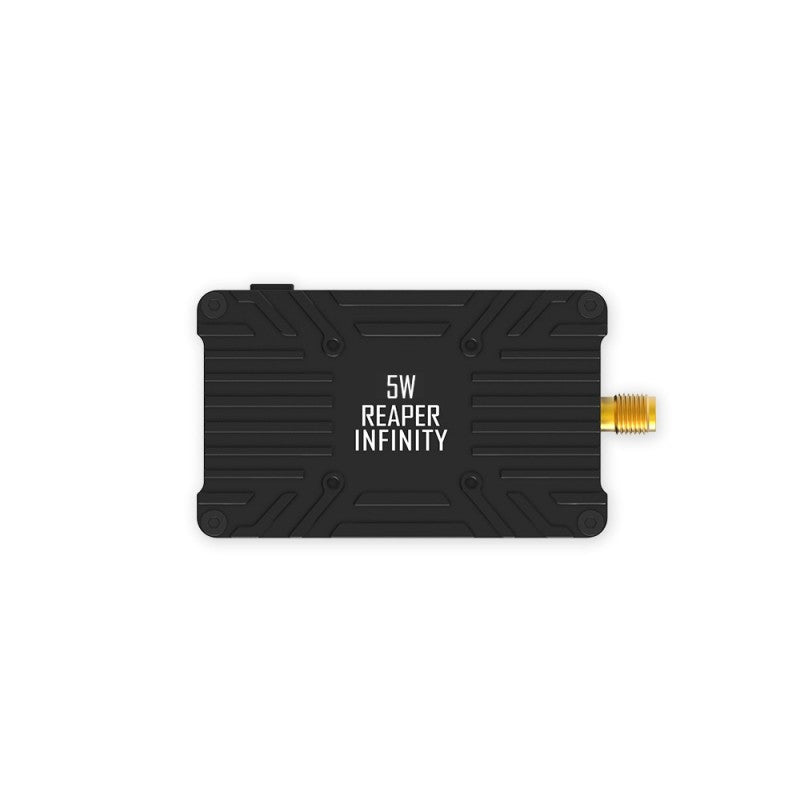

Foxeer Infinity V2 5W VTX Overview
The Foxeer 4.9G~6G Reaper Infinity V2 5W 80CH VTX is a high-powered video transmitter designed for long-range and competitive FPV flying. With an adjustable power output ranging from 1W to 5W, this VTX ensures optimal signal strength and flexibility for a variety of flying conditions. Supporting 80 channels across multiple bands, the Reaper Infinity V2 allows you to find interference-free channels with ease, providing an excellent video feed even in crowded environments. This VTX is equipped with PIT mode, allowing for low-power setup options for races. The Tramp protocol integration offers remote control over frequency and power settings, making it a versatile option for pilots.
Foxeer Infinity V2 5W VTX Features:
- Adjustable Power Levels: Offers 1W, 2W, 3W, 4W, and 5W power output options, allowing for a flexible and optimized flight experience.
- 80 Channels: Covers a wide frequency range, supporting 80 channels across multiple bands, minimizing interference and maximizing video quality.
- PIT Mode: Double-click the button to enter PIT mode, which reduces transmission power during setup and ensures safe operation in racing environments.
- Wide Voltage Range: Supports input voltage from 9V to 36V, making it compatible with 4-8S LiPo setups.
- Lightweight & Compact: Weighs only 48g, with a compact size of 66x37x16mm, and 20x20mm M2 mounting holes, making installation easy on a wide variety of drones.
- Tramp Protocol: Allows remote control over power and frequency via the flight controller, offering convenience and flexibility during flight.
- Low Power Consumption: Consumes 2.3A at 10V, ensuring efficient energy use even at the maximum 5W power setting.
- Robust Construction: Built to withstand rigorous flying conditions with a SMA connector for a strong and reliable antenna connection.
Foxeer Infinity V2 5W VTX Specifications
Name | Reaper Infinity 5W |
Input Voltage | 9~36V |
Output Voltage | 5V |
Channels | 80CH |
Power | 1W/2W/3W/4W/5W |
Pit | Double click to enter |
Weight | 48g |
Mounting Hole | 20*20mm M2 with 2.5mm depth |
Size | 66*37*16mm |
Connector | SMA |

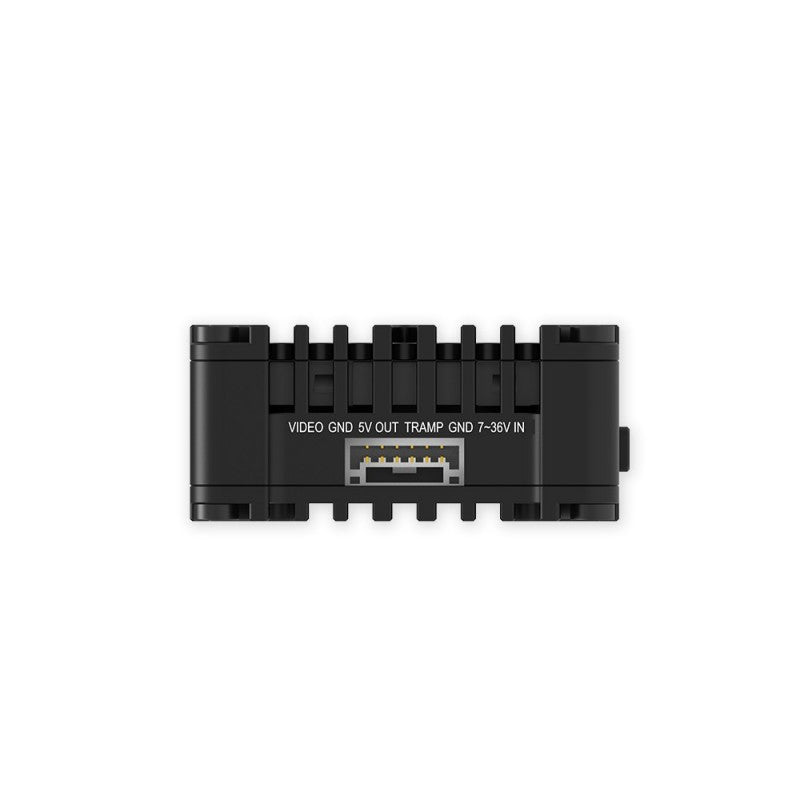

Cable Connector | GH1.25 6P |
Consumption | 10V/2.3A, 5W |
Package Include | 1 x VTx, 1 x silicon cable |
Band and Channel Table
Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
PIT Mode and Tramp Protocol:
- PIT On/Off: To activate or deactivate PIT mode, double-click the "KEY" button. Red LED (PWR) off indicates PIT mode is on, while the red LED on indicates PIT mode is off.
- Tramp Cable: If the Tramp Rx pin cable is connected to the VTX and the flight controller (FC), the button will no longer work for frequency and power adjustments; the flight controller will take over these functions.
Additional Note:
- Betaflight Limit: Betaflight can only handle 64 channels at a time, so you will need to remove 2 bands before inputting the channels into Betaflight.
Package Includes:
- 1x Reaper Infinity V2 5W VTX
- 1x Silicon Cable
