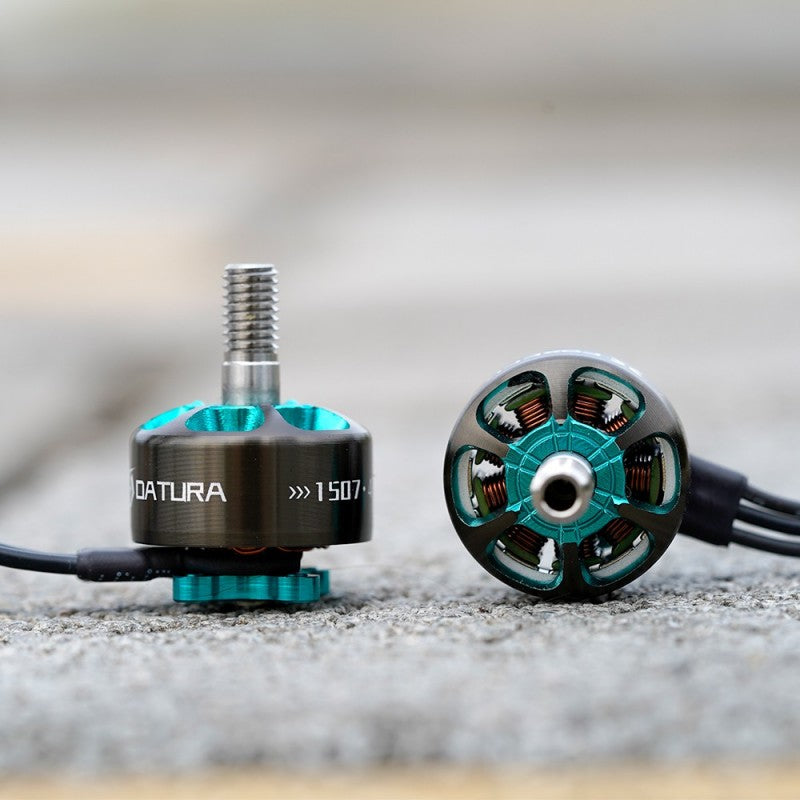

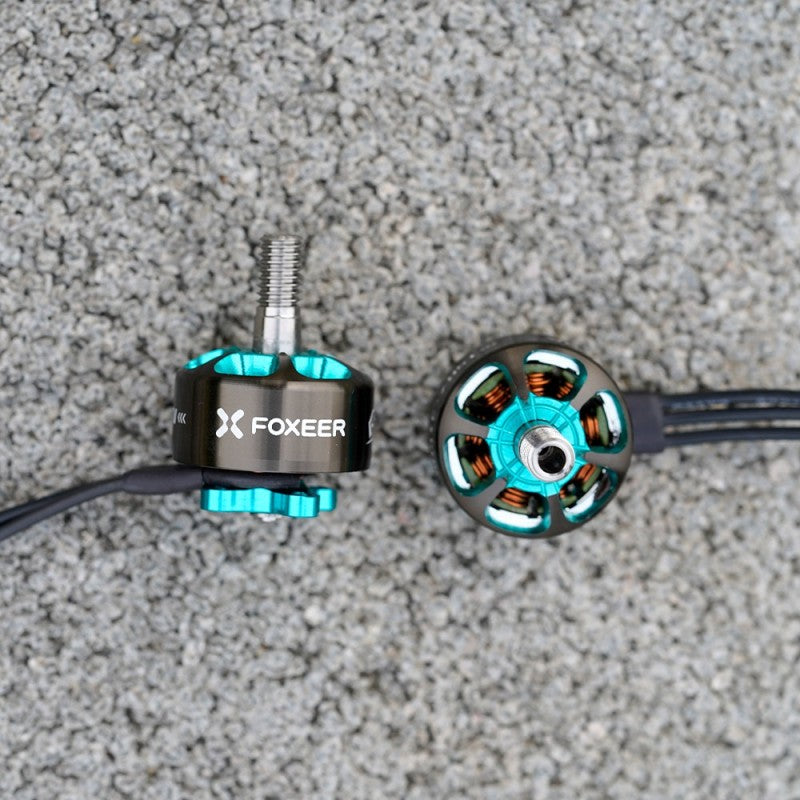

Foxeer Datura 1507 M5 2750KV 4150KV FPV Motor

Overview

The Foxeer Datura 1507 M5 FPV motor series offers two KV options (2750KV and 4150KV), allowing for tailored performance based on your flying style, whether it’s smooth and efficient freestyle or aggressive racing. These motors are lightweight, weighing only 16.5 grams, and are designed for high thrust and responsive control. With N52H high-quality magnets, you get consistent power, while the military-grade 260°C radiation-resistant winding ensures the motor operates effectively in demanding environments.

Key Features

1. Two KV Options:
   • 2750KV for smoother, more efficient flying, ideal for freestyle and longer flight times.

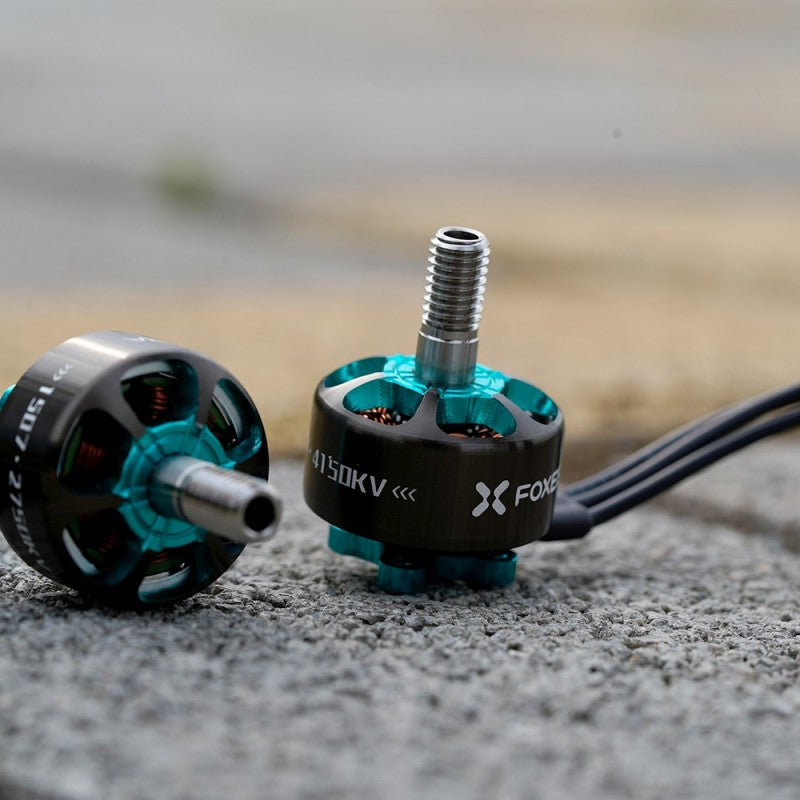

   • 4150KV for more aggressive, fast-paced flying, perfect for racing and quicker maneuvers.
2. N52H High-Quality Magnets: These ensure surging power and quick response, providing excellent thrust for FPV performance.
3. Military-Grade 260°C Radiation-Resistant Winding: The single-crystal oxygen-free copper winding ensures that the motor can handle high temperatures without sacrificing efficiency.
4. Ultra-Lightweight Design: At only 16.5g, the motor is optimized for responsive and agile flight without adding unnecessary weight to your setup.
5. Versatile Battery Compatibility: The 2750KV motor is compatible with 4-6S LiPo batteries, while the 4150KV motor supports 3-4S LiPo, offering flexibility for different FPV setups.

Specifications (2750KV)

Specifications (4150KV)

Foxeer Datura 1507 M5 2750KV 4150KV FPV Motor Enjoy surging power with high-quality magnet and single crystal oxygen-free copper winding. Technical Specifications: IN1ZP Stator Diameter: 15mm, Length: 27.4mm, Shaft Diameter: 2mm Motor Dimensions (Dia x Len): 20.7x28.4mm Weight: 16.5g Performance: Max Continuous Power: 429W (3-6S Lipo), Max Current: 3A (3s), Efficiency: >83% at full throttle Idle Current: 0.9A, Resistance: 110mΩ Operating Temperature: -40°C to 150°C
