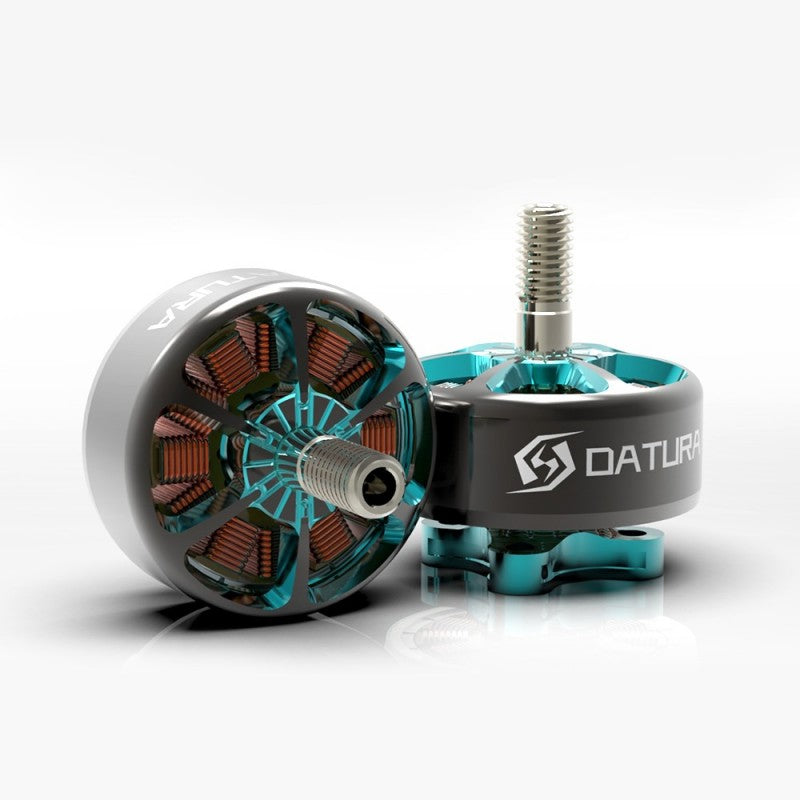

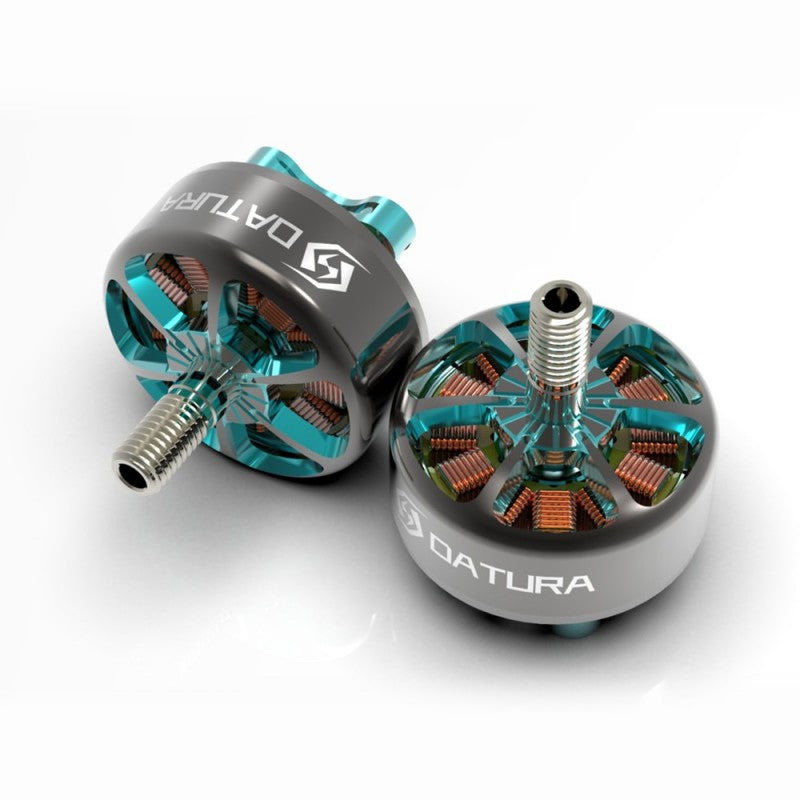

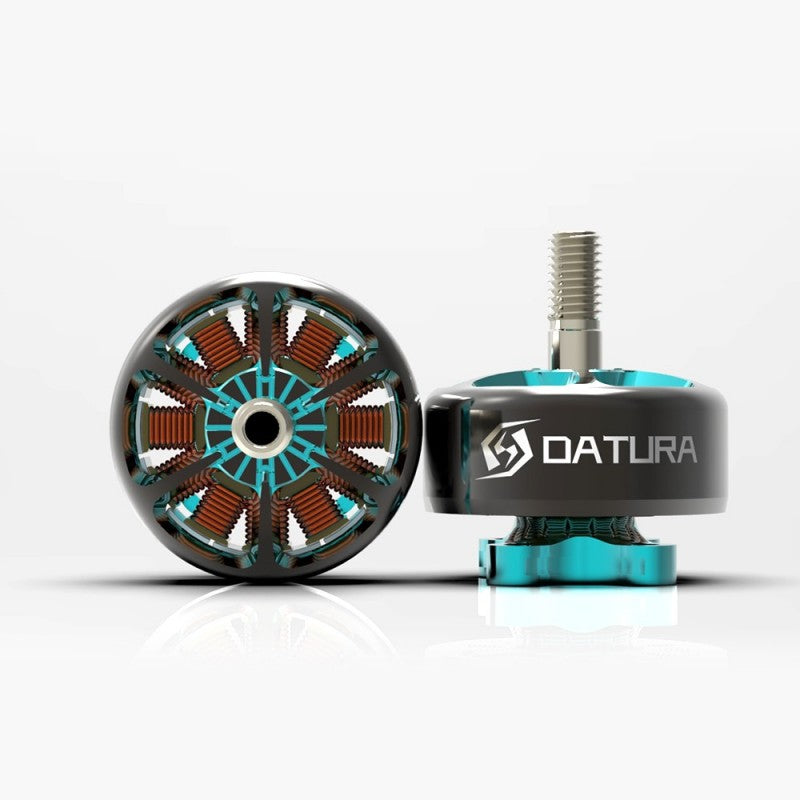

Foxeer Datura 2207.5 1960KV / 2750KV FPV Motor
The Foxeer Datura 2207.5 motors, available in both 1960KV and 2750KV, are designed to offer high performance for racing and extreme FPV flight scenarios. These motors provide powerful thrust, excellent efficiency, and durability for the most demanding pilots.
Key Features:
- Military-Grade 260°C Radiation Resistant High-Temperature Winding: The motor features high-quality stators using single crystal oxygen-free copper single wrap winding, which enhances efficiency and heat resistance.
- N52H High-Quality Magnets: Equipped with high-power magnets for better thrust and enhanced overall motor performance.
- Ultra-Light Semi-Hollow Titanium Shaft: The titanium shaft reduces the weight of the motor while maintaining high strength for durability and reliability.
- Shock Absorption Technology: With an aluminum sheet and rubber ring design, the motor provides excellent shock absorption, improving overall motor durability and impact resistance.
Technical Specifications:
Specifications | 1960KV | 2750KV |
---|---|---|
KV Rating | 1960 | 2750 |
Configuration | 12N14P | 12N14P |
Stator Diameter | 22mm | 22mm |
Stator Length | 7.5mm | 7.5mm |
Shaft Diameter | 4mm (Hollow) | 4mm (Hollow) |
Motor Dimensions (Dia. * L) | Φ27.5 * 30mm | Φ27.5 * 30mm |
Weight (With 3cm Wire) | 32g | 32g |
Idle Current (10V) | 1.1A | 2A |
No. of Cells (Lipo) | 4~6S | 4S |
Max Continuous Power (W) | 1134W (3S) | 835W (180S) |
Internal Resistance | 54mΩ | 30mΩ |
Max Current | 51.1A | 56.4A |
Max Efficiency Current | (5-9A) >84% | (3-6A) >85% |
Foxeer Datura 2207.5 motor features an ultra-light semi-hollow titanium shaft, reducing weight while maintaining strength. The motor includes aluminum sheet and rubber ring for excellent shock absorption performance. Equipped with N5ZH high-quality magnets, it delivers surging power.
High-quality motor with Military Grade 2602C radiation-resistant high temperature winding and single-crystal oxygen-free copper single-wrap winding for high efficiency.
