FPVKING MARK4 7 Inch FPV SPECIFICATIONS
Brand Name: FPVKing
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Principal Axis
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Assembled class
Model Number: MARK4 7-inch Analog FPV
Four-wheel Drive Attributes: Assemblage
FPVKING MARK4 7 inch FPV Race Drone VTX 5.8G 1.6W Speedybee F405V3 FC 2807 1300KV Motor RunCam Phoenix 2 SP Camera RX TBS Nano Frame: 7 inch Mark4
Motor: EMAX ECOII Series ECO II 2807 1300KV
FC: Speedybee F405 V3 stack
Camera:RunCam Phoenix 2 SP V3
VTX: AKK Race Ranger 5.8G 1.6W
Antenna: Lollipop 4 RHCP SMA
Propeller: HQProp 7X4X3
Receiver: PNP No Rx/ TBS Nano RX/ ELRS24 RX/ ELRS 915 RX
Specification:
Brand: FPVKING
Model: MARK4 LR7
Frame: Mark4
Wheelbase: 295mm
Top plate: 3mm
Bottom plate: 3mm
Arm plate: 5mm
Splint plate: 2mm
FC: Speedybee F405 V3
ESC: SpeedyBee BLS 50A 30x30 4-in-1 ESC
MCU:STM32F405
Gyro: BMI270
OSD: Betaflight OSD w/ AT7456E chip
VTX: AKK Race Ranger 5.8G 1.6W
Camera:RunCam Phoenix 2 SP V3
Antenna: Lollipop 4 RHCP SMA
Motor: EMAX ECOII Series ECO II 2807 1300KV
Propeller: HQProp 7X4X3
Weight: 455g
Receiver: PNP/ TBS NanoRX / ELRS24 / ELRS 915
Recommended battery: Lipo 6S 2600-4200mah / Lion 6S 6000mah
Features:

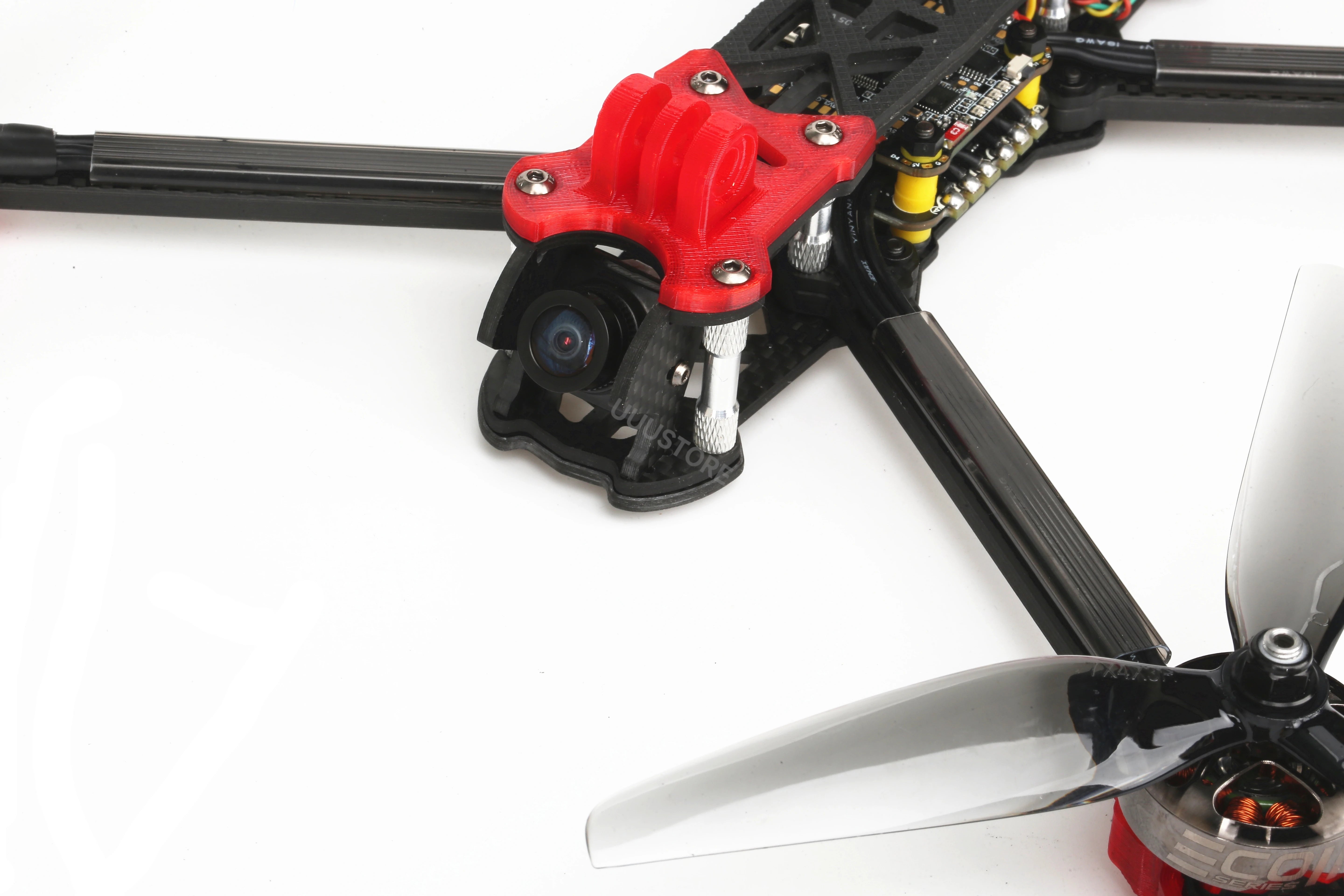

Aesthetically Pleasing Design: The FPVKING MARK4 LR7 FPV Drone boasts a classic and appealing look, turning heads wherever it goes. Not only does it perform well, but it looks great doing it.
Reliable Signal Transmission: Featuring the high-power AKK Race Ranger 5.8G 1.6W VTX, the drone ensures stable and reliable signal transmission. This means uninterrupted and lag-free flight experience every time you take off.

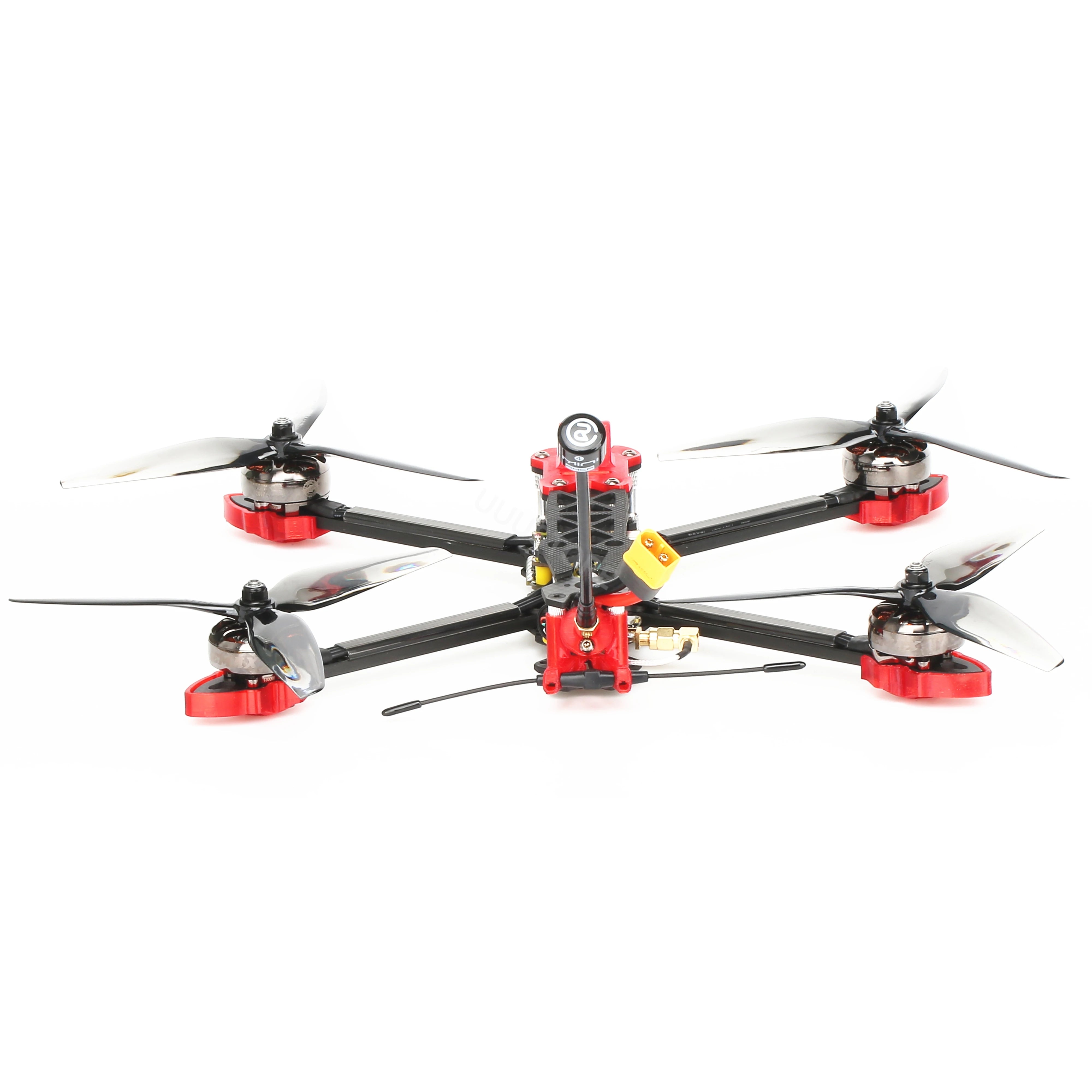

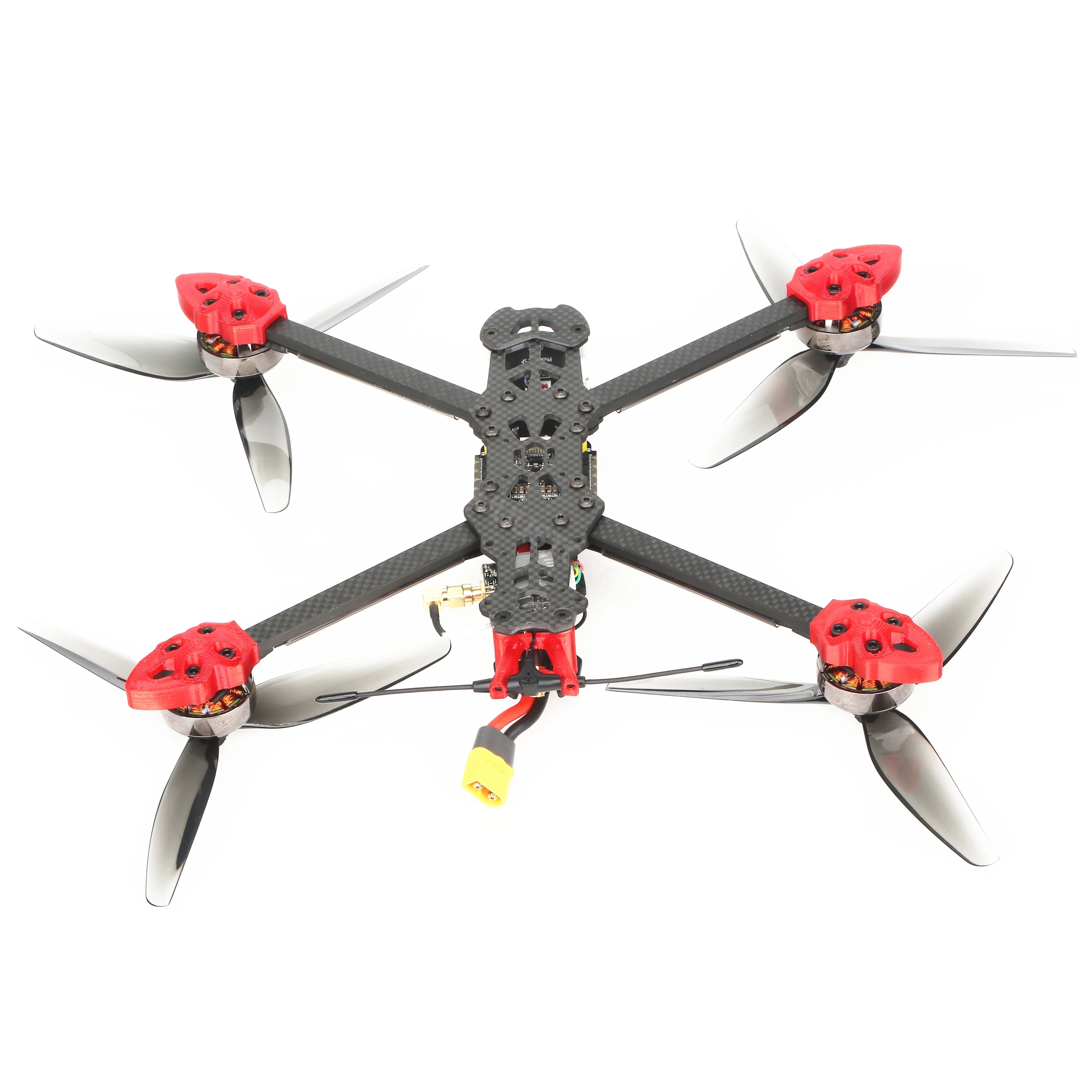

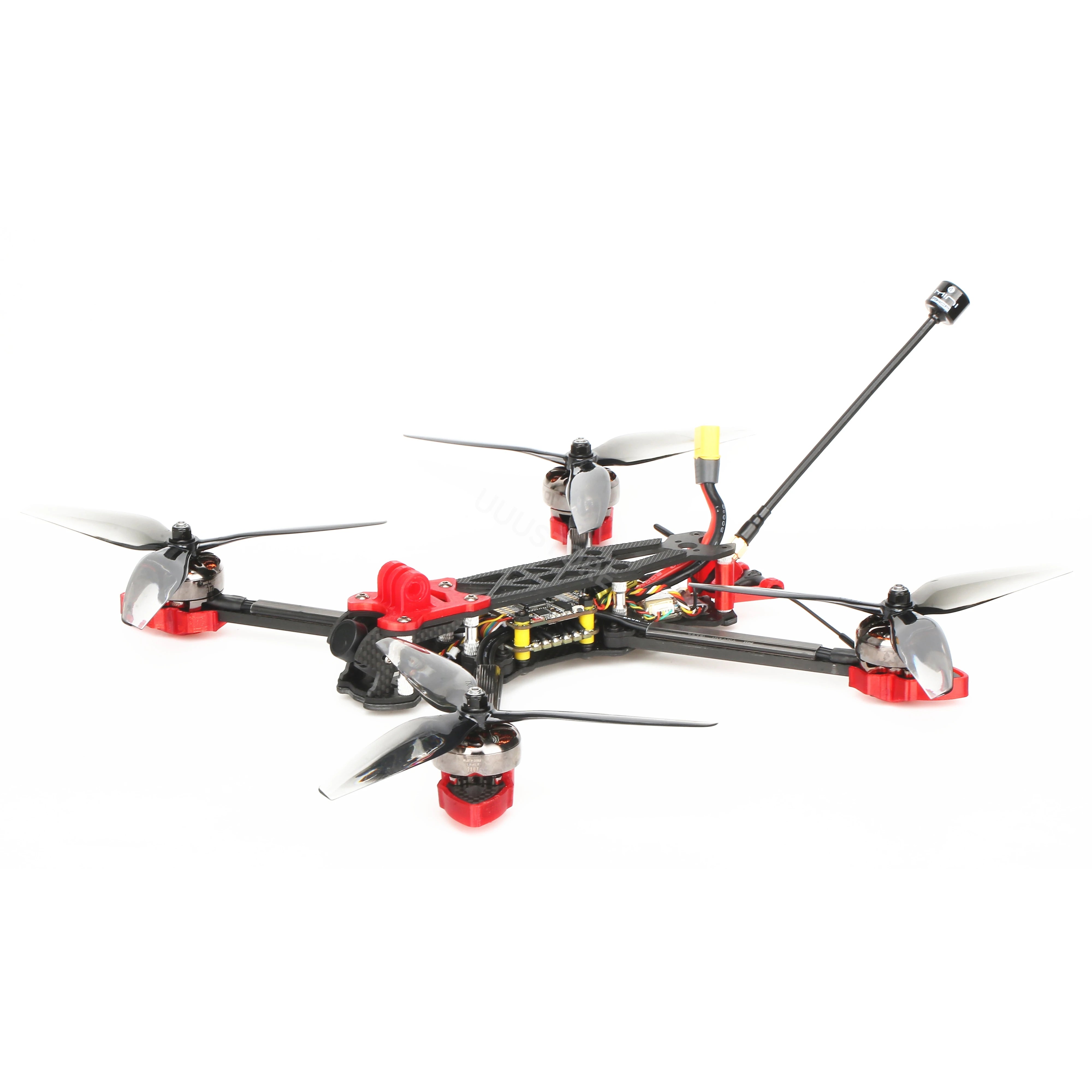

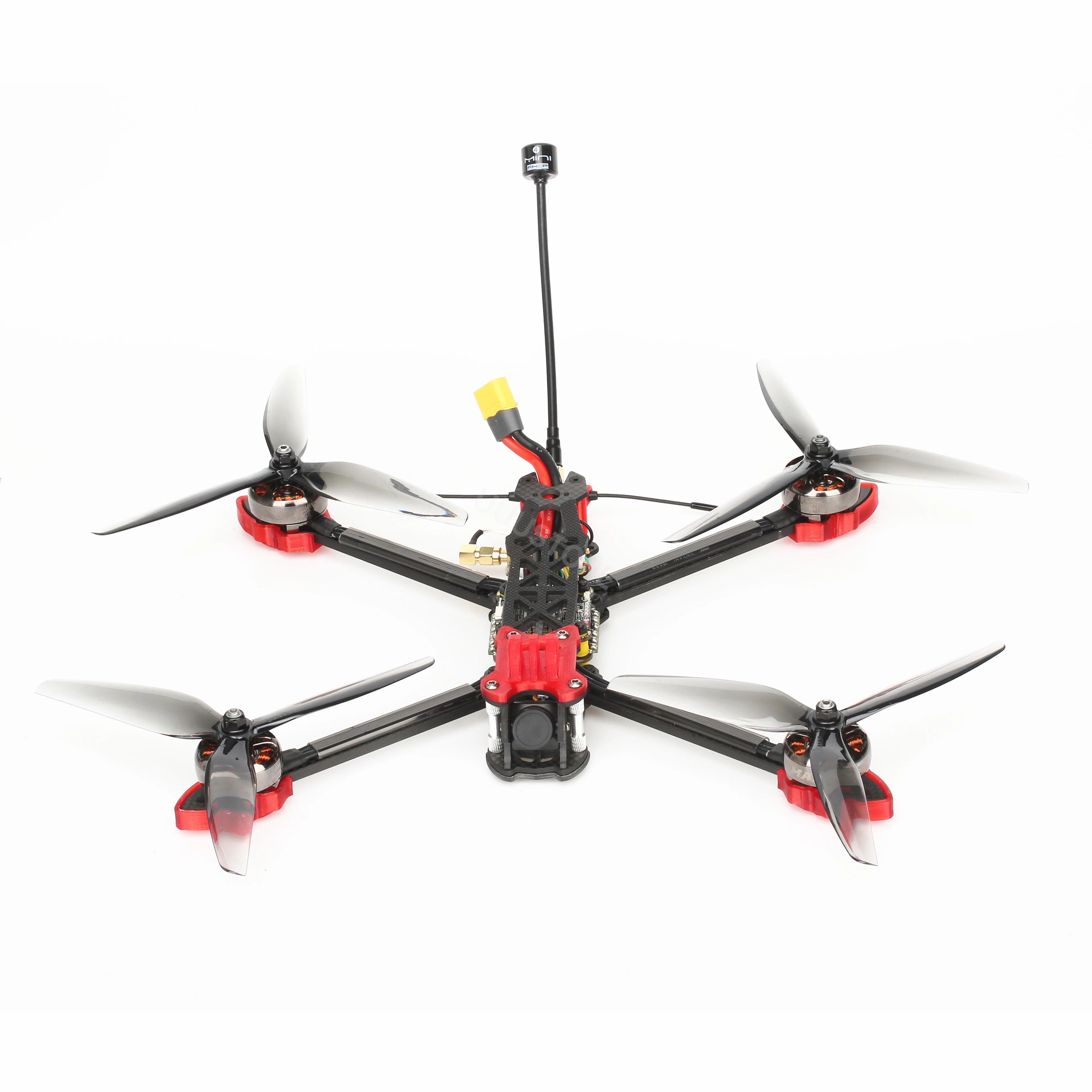

Powerful Motor: Equipped with the EMAX ECOII Series ECO II 28071300KV motor and designed for a 6S battery, the drone delivers a robust output for unmatched performance. Enjoy smooth and powerful flights consistently.
Stable Flight Controller and ESC: The drone uses the F405 flight controller and BLheli_S 50A ESC, ensuring a stable performance and comfortable handling. Expect responsive and reliable controls that make your flights a breez.

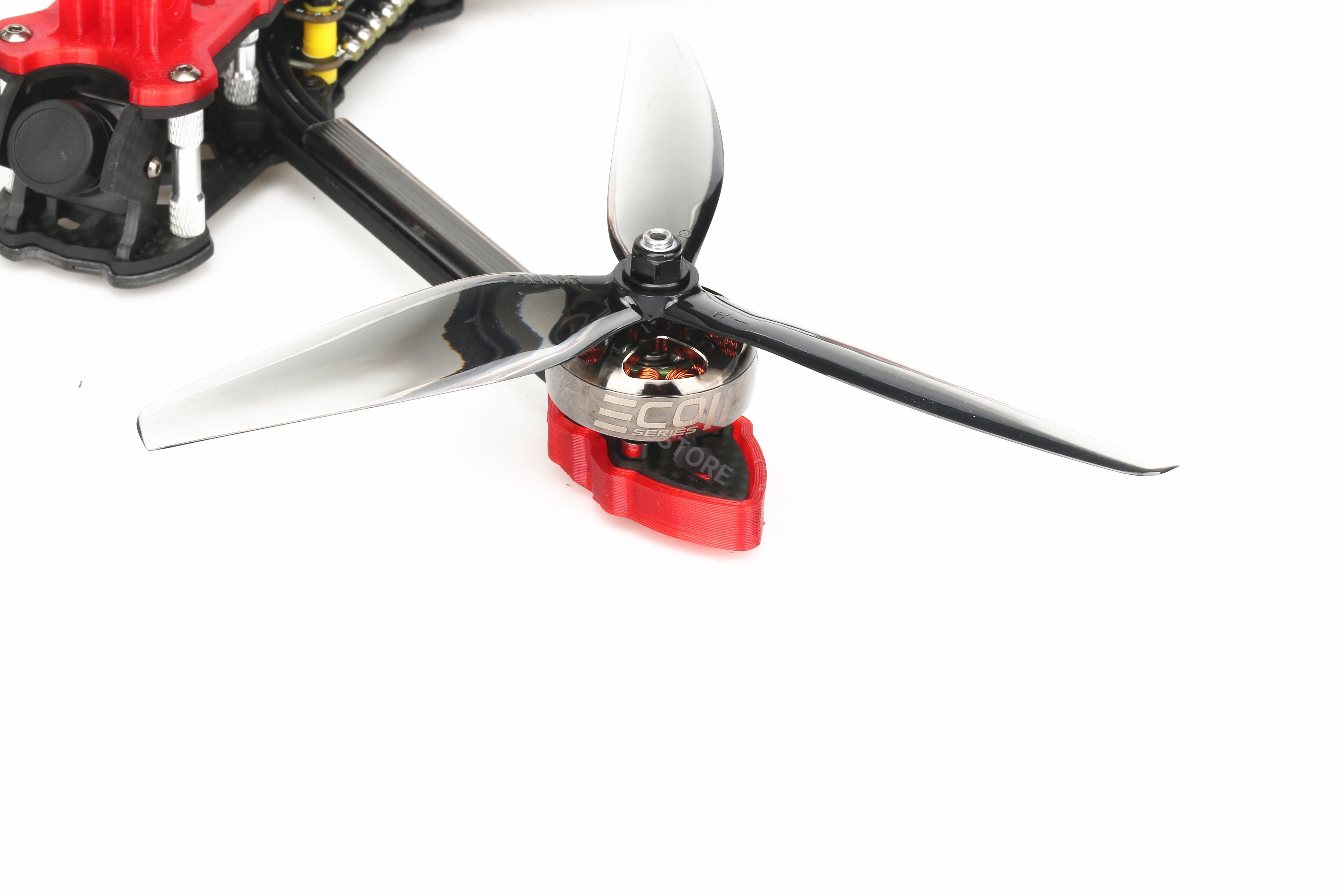

Superior Visual Experience: The FPVKING MARK4 LR7 FPV Drone incorporates the RunCam Phoenix 2 SP V3 camera, providing an exceptional visual experience. Capture stunning aerial footage and experience the thrill of flying like never before.
Package Includes:

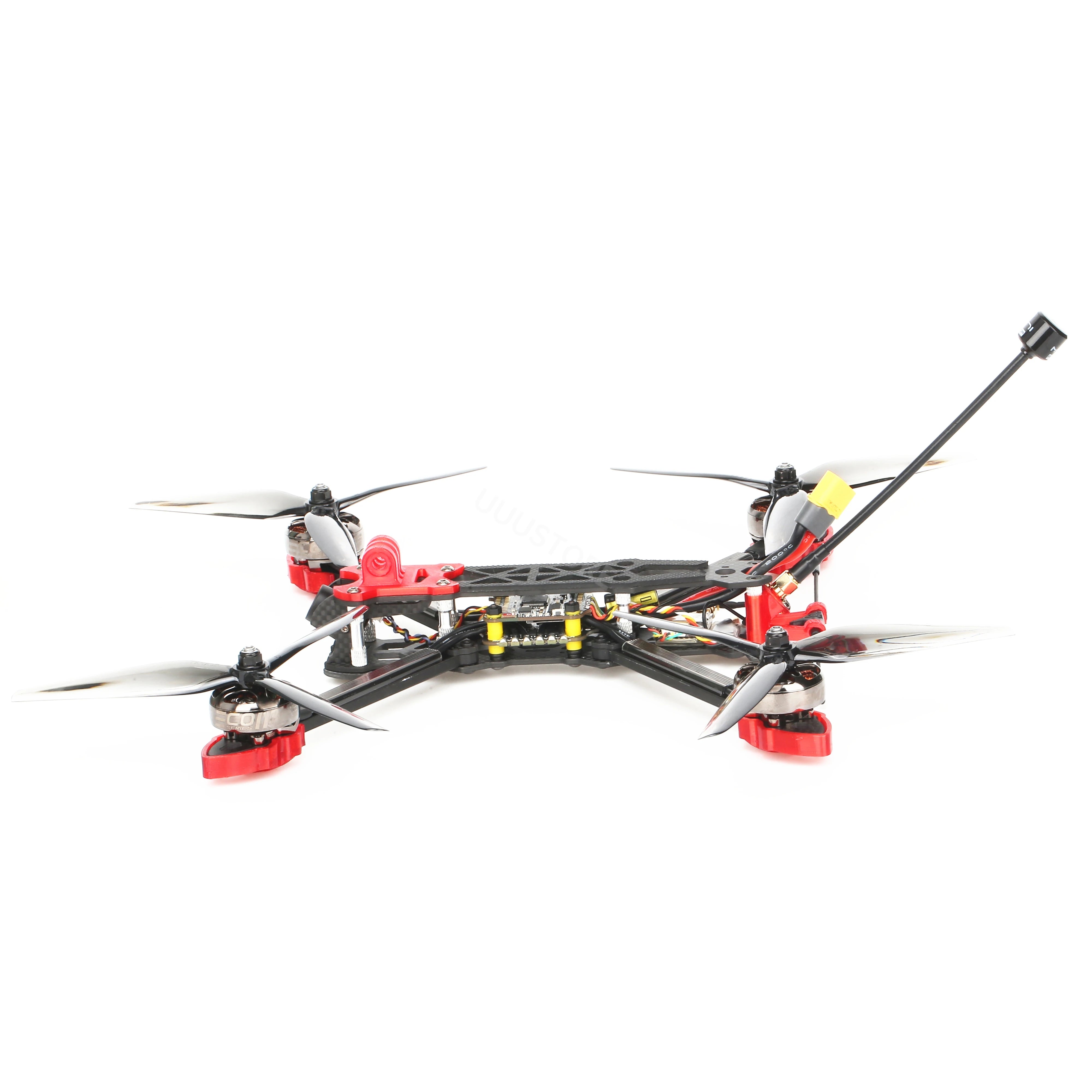

1 x FPVKING MARK4 7 inch Analog FPV Drone Receiver: PNP No Rx/ TBS Nano RX/ ELRS24 RX/ ELRS 915 RX (Option)
