GEP-DS20 Frame 2Inch Parts Propeller Accessory SPECIFICATIONS
Brand Name: GEPRC
Origin: Mainland China
Material: Plastic
Plastic Type: PC
Recommend Age: 14+y
RC Parts & Accs: Frame
Size: 2 inch
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: Frame
Tool Supplies: Assembly Category
Quantity: 1 pcs
Model Number: DarkStar20
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Summary

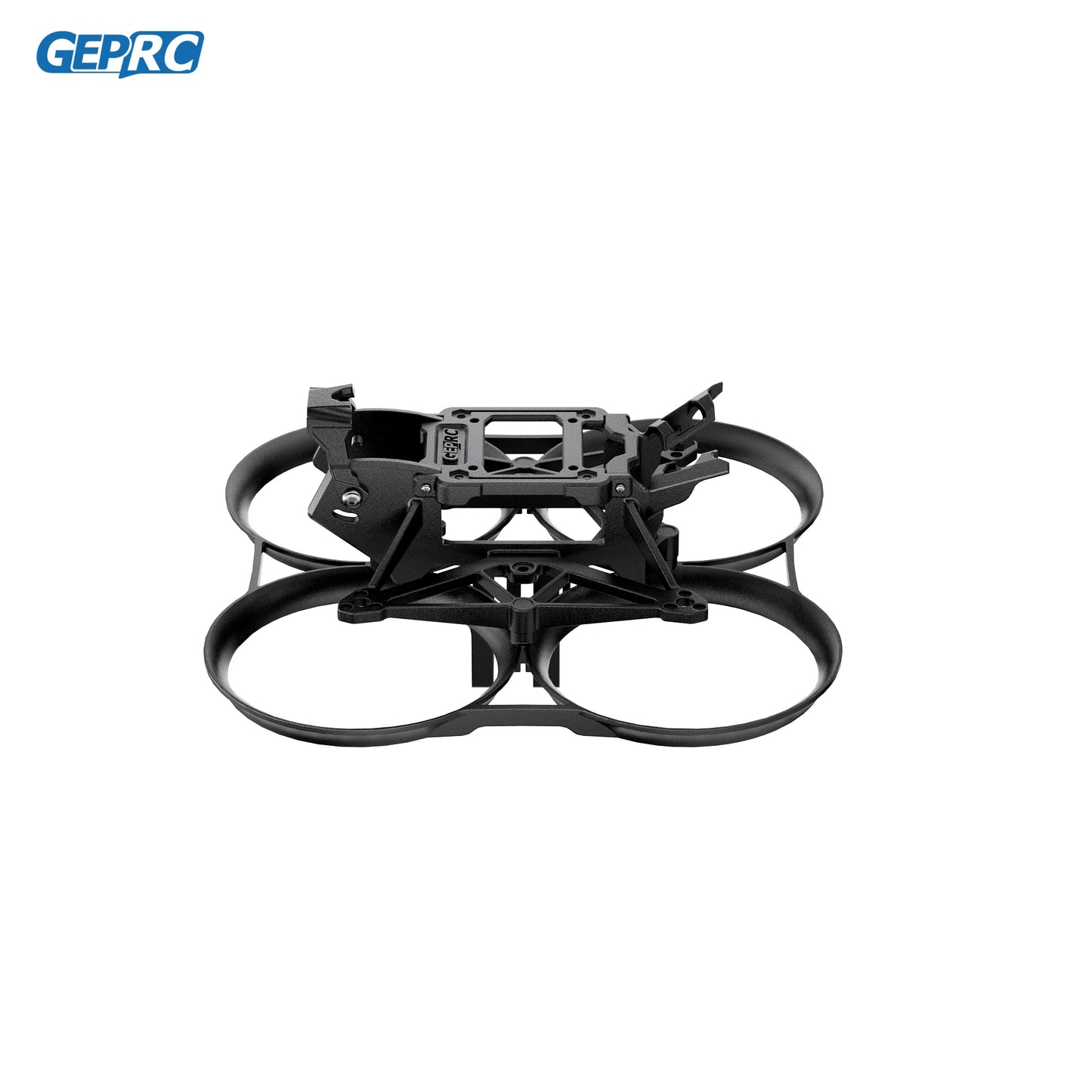

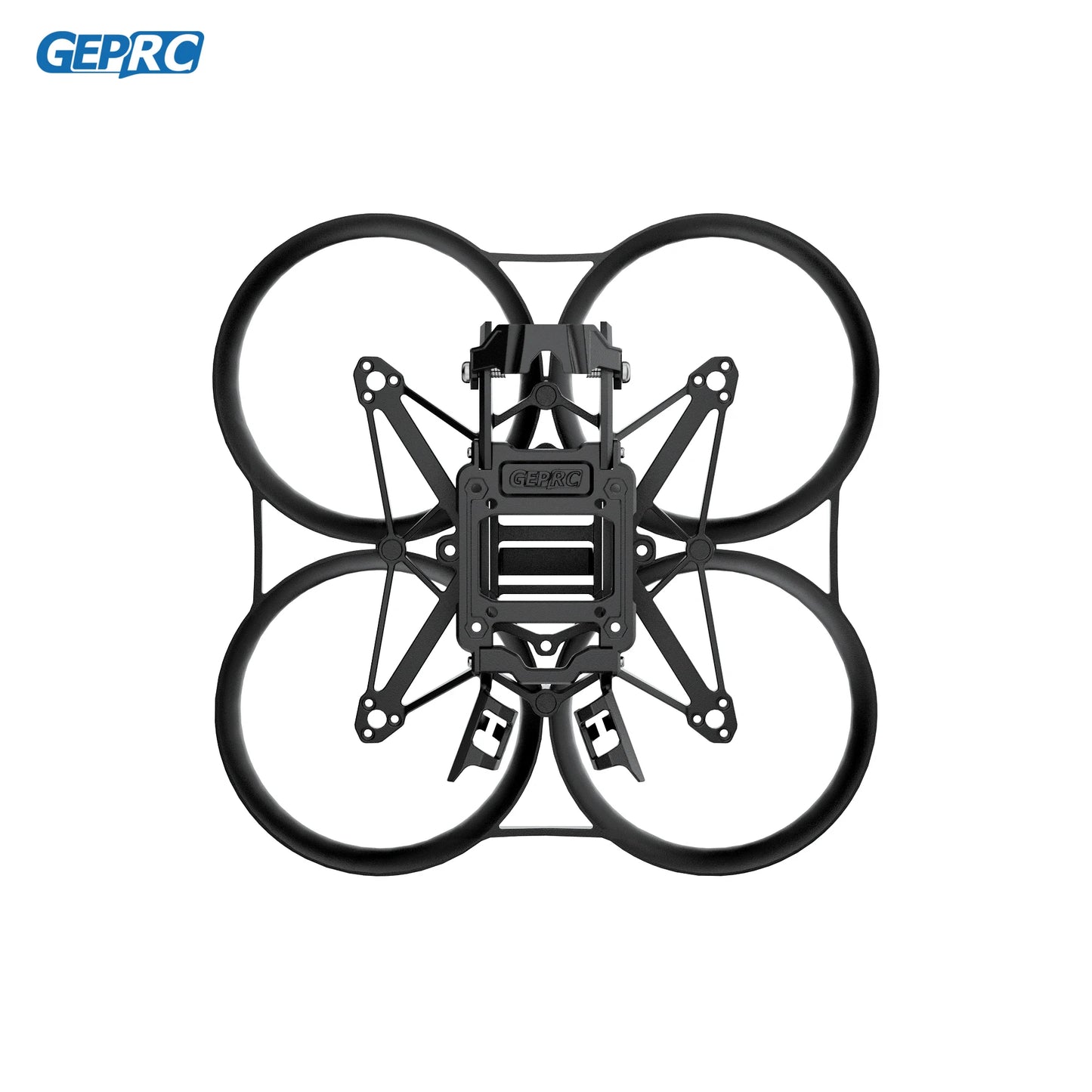

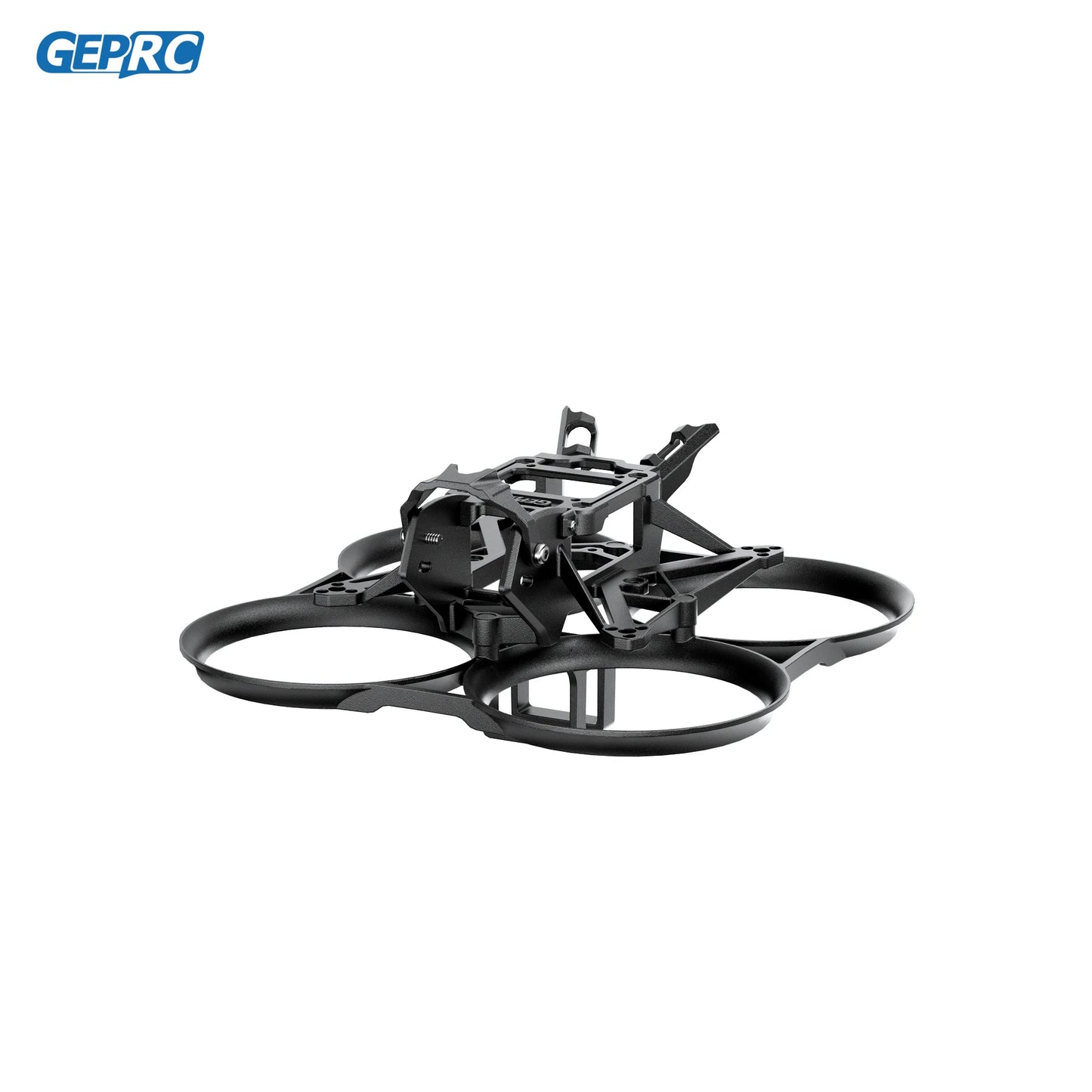

GEP-DS20 is a 2-inch lightweight frame compatible with O3 Air Unit, Link and analog video transmission. It is injection molded using high-quality materials with both toughness and strength. The GEP-DS20 is available in five colors, white ,pink, gray, black and blue.
The GEP-DS20 arm axis is combined with a multi-directional triangular support frame to ensure good frame rigidity. Frame-type battery compartment makes it easier to disassemble and install batteries. The frame wheelbase is 90mm and is suitable for 1003/1102 motors with a three-hole base.
Feature
1. New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.
2. Modular structure, easy to assemble.
3. Five colors available: white, pink, gray, black, and blue.
4. Adapted to O3 AIR Unit, Link, and analog image transmission.
5. Compatible with 1003 and 1102 motors.
6. The antenna fixed shield is carefully designed to be both practical and beautiful.
7. Frame-type battery compartment makes it easier to disassemble and install batteries.

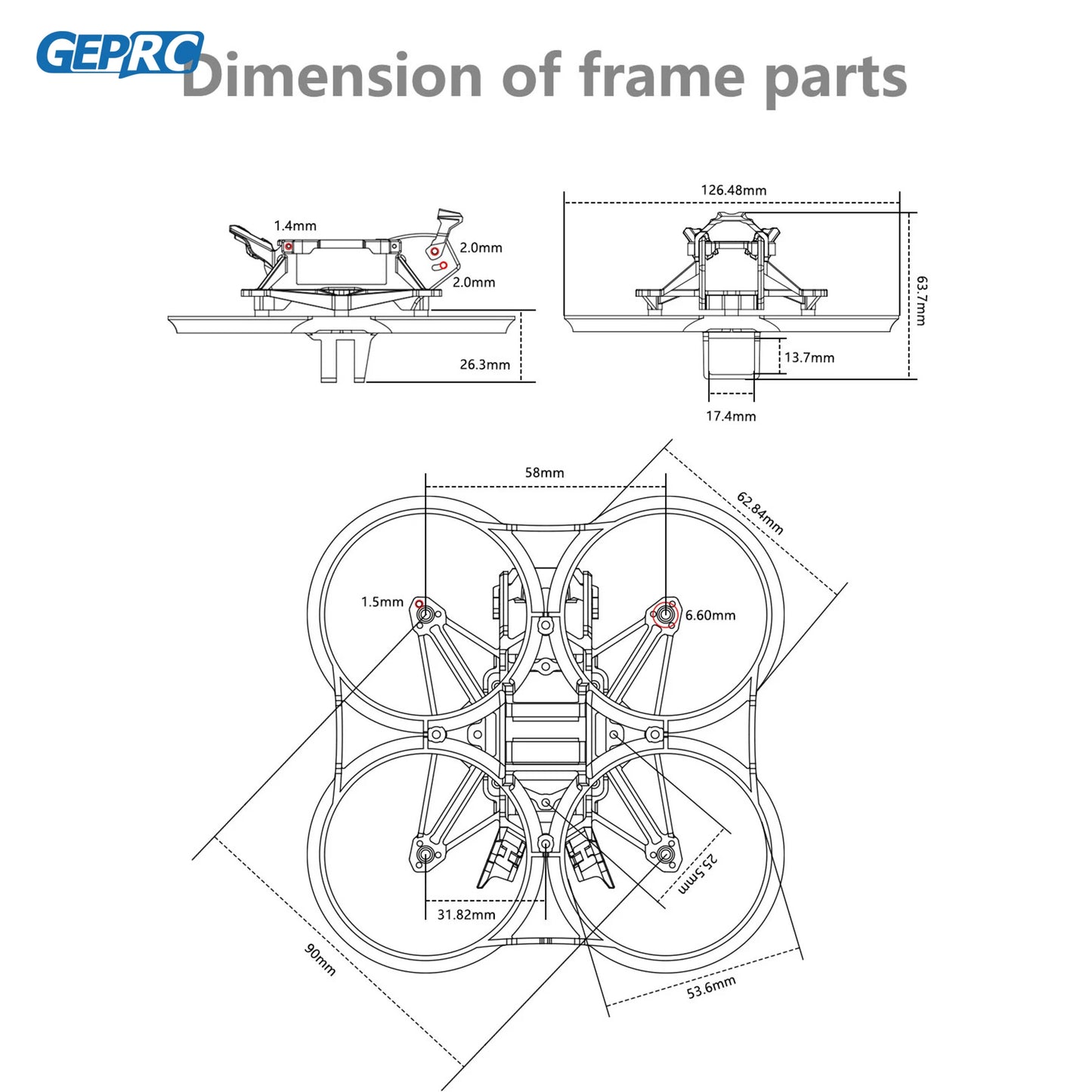

Specification
-
Model:GEP-DS20 Frame
-
Dimension:126mm*126mm*57mm
-
Wheelbase:90mm
-
FC Mount:25.5mm*25.5mm
-
VTX Mount:20mm*20mm/25.5mm*25.5mm
-
Motor Mount:3-M1.4-φ6.6mm
-
Camera size:19mm/20mm
-
Battery Slot Width:17.3mm*13.5mm
-
Colors:white/pink/gray/black/blue
-
Propellers:2 inch
-
Weight:26g
GEPRC Lightweight 2-inch GEP-DS2O Frame Mold forming; strong and hard to broken 26g DJI Weight only Integrated High toughness Frame type Compatible with Five colors are appearance protective frame compartment different VTX available 26g

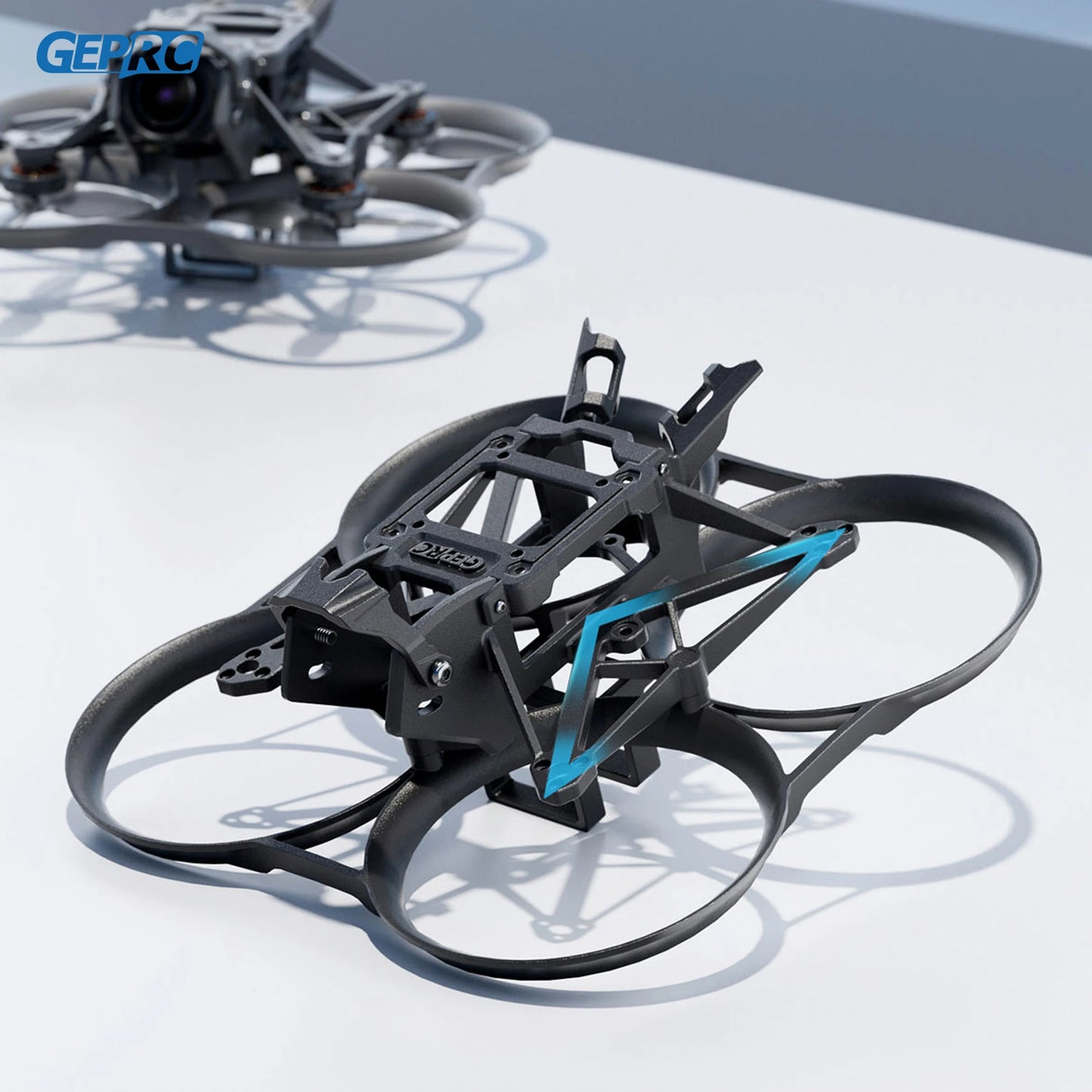

Featuring advanced materials with exceptional strength and stiffness, this design incorporates a unique multi-directional triangular support frame that distributes stresses evenly across the frame arms.
The VTX 03 AIR unit features quick and easy screw fixing for the cover camera, eliminating complex operations. Additionally, users can utilize GEPRO's analog solution to seamlessly mount various VTX 03 Air Unit cameras, including Runcam Link options.
Choose from five distinct color options, each designed to reflect its unique style. Options include classic blue and white, bold black, vibrant pink, and more.
Specifications: * Model: GEP-DS20 * Frame Dimension: 126mm x 126mm (XS-Z mm) * Wheelbase: 90mm * FC Mount: 25.5mm x 25.5mm * VTX Mount: 20mm x 20mm / 25.5mm * Motor Mount: 3-1.4@6.6mm * Camera size: 19mm x 20mm * Battery Slot Width: 17.3mm x 13.5mm * Colors: White, Pink, Gray, Black, Blue * Propellers: 2-inch * Weight: 26g ± 1g
Key Features: * Detailed design with: + Frame type: [insert frame type] + Antenna bracket for secure mounting + Battery compartment for easy access and storage + Camera protective cap to safeguard your camera
Ducted air inlet design protects propellers from debris and improves airflow, leading to increased efficiency and performance.
