Summary:

Best design and High performance in this year, After the GEPRC team’s optimization and upgrading on crocodile baby 4inch, GEPRC Crocodile Baby 5inch is launching right now. It is a brand new Long Range 5inch FPV. There are three versions: DJI Air Unit,Vista Nebula Polar and (Analog)5.8G 600mW.

Crocodile5 Baby LR is a lightweight long range FPV, Which can cruise smoothly for a long time or Freestyle. If you are looking for a drone with stable flight and best sense of speed, Crocodile5 Baby LR will be your Favourite Drone for a long time.

The preferred choice for Micro Long Range flight, Crocodile5 Baby LR can brings endless happy and fantastic experience to life.High efficiency power system: Latest GEP 2004 2550kV Motor+Gemfan 5130 propellers.

Combining with Super GEP-F722-35A AIO FC and DJI HD system. Recording 1080p 60fps video in real time.

After tons of time Testing and Data Analysis, It can be running very well with better flight efficiency. If equipped with GEPRC VTC6 18650 4S1P 3000mAh Batteries, the flight time can easily reach 27 minutes, Even though it brings GoPro Lite camera, 25 minutes flight time is available in normal circumstance.

Crocodile5 Baby LR has been independently designed 3D Print mount for GPS module. When signal losing or VTX out of control,It can be start the rescue mode of betaflight (in emergency,The FPV fly back to the approximate position of the base,If the signal is get again,Be sure to operate the FPV to landing manually.) ,The Rescue mode won’t landing automatically. Crocodile baby integrates GEPRC Finder. If the FPV lost and disconnects the battery power, the beeper of GEPRC Finder will making the sound constantly.

To summarise, this is a clever choice to purchase it. It is Light-weight, Long Range and has excellent flight performance.

Feature:

1. The Arms was reinforced to enhance the flight performance and making the flight performance more stable and smooth.

2. Combined with Caddx Nebula Polar(HD Digital VTX)

3. Latest GEP 2004 High Efficiency Motor, It has good heat dissipation effect, high efficiency and more abundant power.

4. The Lightweight design scheme is suitable for Long Range flight and Freestyle flight.


5. The latest GEP F722 AIO FC, which has fast operation speed and higher compatibility

6. Support GPS rescue mode, Long-range more safer

7. GEPRC Naked GoPro kits and Full GoPro ready (included base mounts)

8. Flight Time:25-30min(Li-ion 3000mAh Battery)

Specifications：

• Brand: GEPRC

• Model: Crocodile5 Baby LR Caddx Nebula Polar HD

• Frame:GEP-CB5

• Motor to Motor: 227mm

• The thickness of the top plate: 2.0mm

• The thickness of the bottom plate: 2.0mm

• The thickness of the arms plate: 4.0mm

Flight Controller System：GEP-F722-35A AIO

• MCU: STM32F722

• IMU: MPU6000(SPI)

• OSD: BetaFlight OSD w/ AT7456E chip

• Firmware target: GEPRCF722 AIO

• Power input: 4S LiPo/Lion

• VTX: Caddx Vista

• Camera: Caddx Nebula Nano HD

• Props: Gemfan 5130

• Antenna:Momoda 5.8G RHCP

• Motors:GR2004 2550KV

• GPS: BN-220

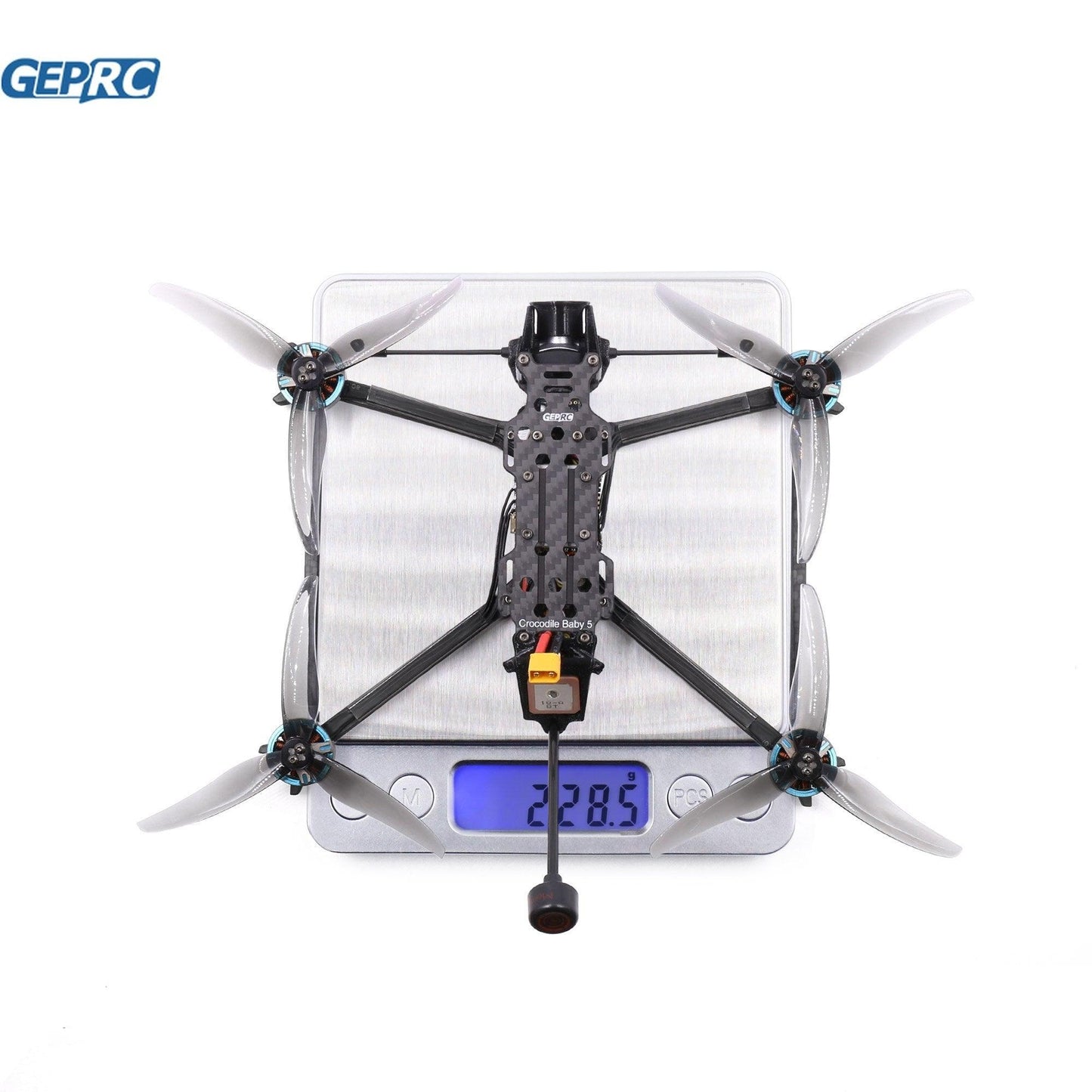

• Crocodile5 Baby LRHD Weight: 228.2g

• Receiver: PNP(With DJI Receiver) / Frsky RXSR/ TBS Nano RX

Motors & Batteries Recommend:

• Motors: GR2004 2550KV

• Battery: Lipo 4S 850mAh – 1300mAh or Lion 4S 3000mAh

Include:

• 1x Crocodile5 Baby5 LR HD Quadcopter

• 4x Gemfan 5130 Props(pairs)

• 8x foot pad

• 1x The silicone pad

• 1x L-shaped screwdriver

• 2x Antenna protection tube

• 1x 15*220mm battery strap


Related Article :

(If there is any information error in the article, the product description shall be the standard.)

Title: GEPRC Crocodile5 Baby FPV Drone: Long-Range HD Flying Adventure

Introduction:
The GEPRC Crocodile5 Baby FPV Drone is a versatile and high-performance quadcopter designed for long-range FPV flights and freestyle drone enthusiasts. Built with a carbon fiber reinforced frame and equipped with LR HD Polar LongRange FPV capabilities, this drone offers exceptional flight performance and immersive high-definition video transmission. In this review article, we will explore the composition, functions, parameters, advantages, and operation of the GEPRC Crocodile5 Baby FPV Drone.

Composition and Functions:
The GEPRC Crocodile5 Baby FPV Drone combines reliable components to deliver outstanding performance:

1. Carbon Fiber Reinforced Frame: The drone features a lightweight and durable carbon fiber reinforced frame. This construction provides enhanced structural integrity, allowing for stable flights and resilience against crashes.

2. LR HD Polar LongRange FPV System: The Crocodile5 Baby is equipped with an LR HD Polar LongRange FPV system, offering long-range transmission capabilities with high-definition video feed. This allows pilots to explore vast distances while enjoying a crystal-clear FPV experience.

3. Flight Controller: The drone utilizes a robust flight controller that ensures stable flight characteristics and precise control. It supports various flight modes, including acro, angle, and stability modes, catering to pilots of different skill levels.

4. Motor and Propeller Combination: The Crocodile5 Baby FPV Drone is equipped with high-performance motors and efficient propellers. The combination delivers excellent thrust-to-weight ratio, enabling agile maneuvers and efficient long-range flights.

Parameters and Advantages:
1. Long-Range HD Transmission: The LR HD Polar LongRange FPV system provides reliable and long-range video transmission, allowing pilots to explore vast distances while enjoying high-definition visuals. This feature is ideal for aerial exploration, scenic footage, and long-distance flights.

2. Carbon Fiber Reinforced Frame: The carbon fiber reinforced frame ensures the drone's durability and structural integrity, providing protection for internal components during flights and ensuring longevity.

3. Flight Performance: The Crocodile5 Baby FPV Drone excels in both stability and maneuverability. It offers a balance between smooth flights for cinematic footage and agile movements for freestyle maneuvers, making it suitable for various flying styles.

4. Customizability: The drone's modular design allows for easy customization and component upgrades. Pilots can adjust parameters such as motor KV and propeller size to match their preferred flight characteristics and optimize performance.

How to Choose and DIY Tutorial:
1. Motor KV Selection: Choose the appropriate motor KV based on your desired flight performance and battery configuration. Consider the weight of your drone and the flight characteristics you desire. Higher KV motors provide more speed, while lower KV motors offer better efficiency and control.

2. DIY Assembly: The Crocodile5 Baby FPV Drone may require assembly upon purchase. Follow the provided user manual and step-by-step instructions to assemble the drone correctly. Pay attention to securely fastening all connections and components.

Operation Tutorial:
1. Pre-flight Checklist: Before each flight, conduct a thorough pre-flight check. Ensure that all components are securely attached, the battery is fully charged, and the firmware is up to date. Inspect the propellers, frame, and camera for any signs of damage or wear.

2. Powering On: Insert a fully charged battery into the drone and power it on. Check the video feed from the LR HD Polar LongRange FPV system on your FPV goggles or monitor to ensure a clear and stable signal.

3. Flight Modes and Maneuvers: Familiarize yourself with the available flight modes on the Crocodile5 Baby, such as acro, angle, and stability modes. Experiment with different maneuvers, such as rolls, flips, and dives,

to explore the full capabilities of the drone.

FAQ (Frequently Asked Questions):
1. What is the flight time of the Crocodile5 Baby FPV Drone?
- The flight time may vary depending on factors such as battery capacity, flying style, and payload. On average, the Crocodile5 Baby offers a flight time of approximately 10-15 minutes.

2. Can I upgrade the LR HD Polar LongRange FPV system?
- The LR HD Polar LongRange FPV system is integrated into the Crocodile5 Baby and may not be easily upgradable. However, firmware updates and software improvements may enhance its performance over time.

3. Is the Crocodile5 Baby suitable for beginners?
- The Crocodile5 Baby is more suitable for intermediate to advanced pilots due to its long-range capabilities and advanced flight performance. Beginners are advised to start with a more beginner-friendly drone and gradually progress to the Crocodile5 Baby.

Conclusion:
The GEPRC Crocodile5 Baby FPV Drone offers an exciting and immersive long-range flying experience with its LR HD Polar LongRange FPV system and carbon fiber reinforced frame. With its impressive flight performance, durability, and customization options, this quadcopter is an excellent choice for aerial exploration, cinematic footage, and freestyle maneuvers. Whether you're an experienced pilot or a seasoned adventurer, the Crocodile5 Baby FPV Drone is sure to elevate your FPV experience to new heights.
