GEPRC GEP-M8U ( UP N 7 22mm 7.9g 3.3-5V V Rapid Positioning Stable connection Small size Light weight Dual Mode Wide power input Reception

Featuring U-blox's 8th-generation chip technology, this GPS module provides rapid and accurate positioning capabilities.

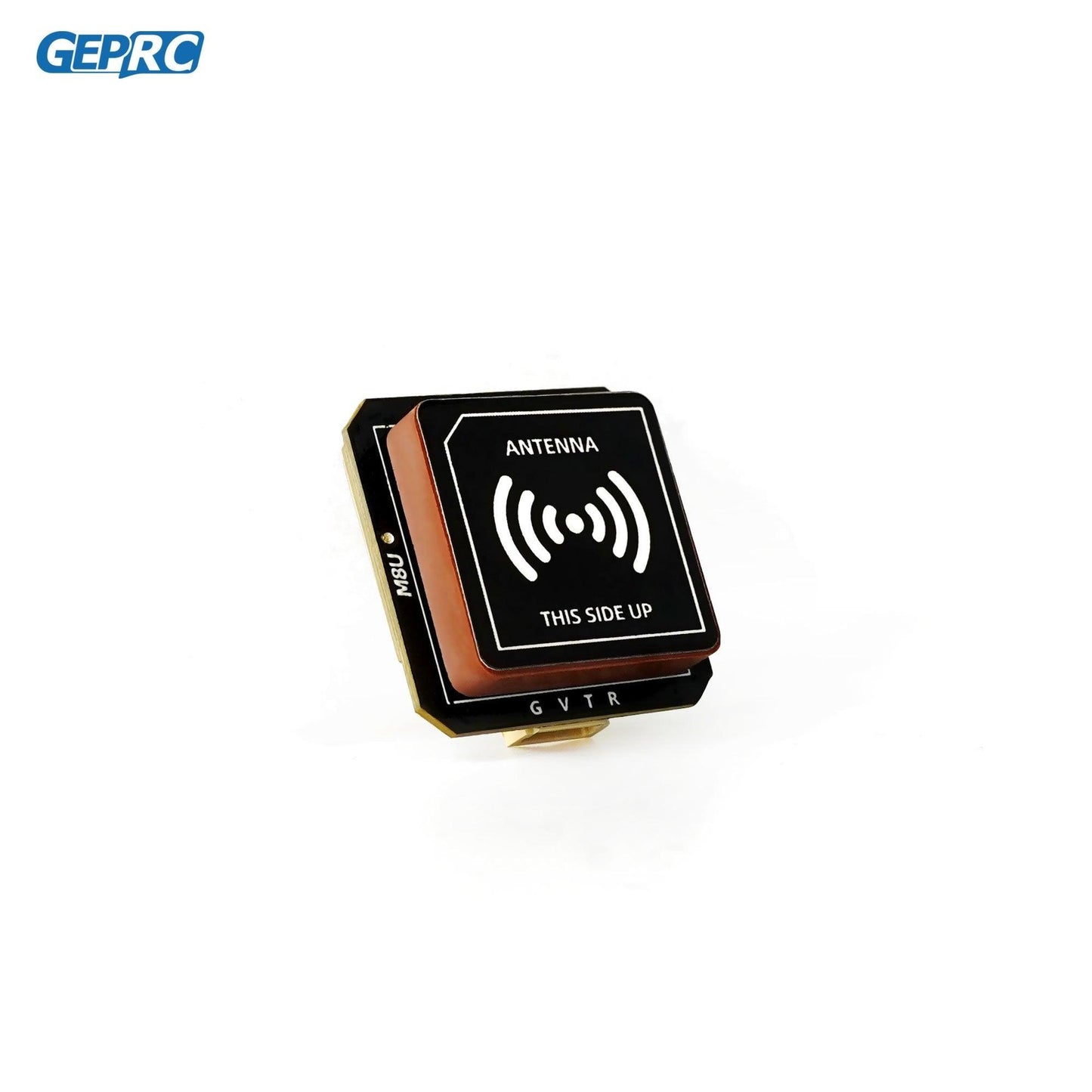

Enjoy stable connections with our right-circularly-polarized ceramic antenna, which features strong signal reception and low power consumption.

Enjoy precise location tracking with our dual-mode reception capabilities, which combine GPS+GLONASS and GPS+BDS signals to provide accurate positioning within 2.5 meters.

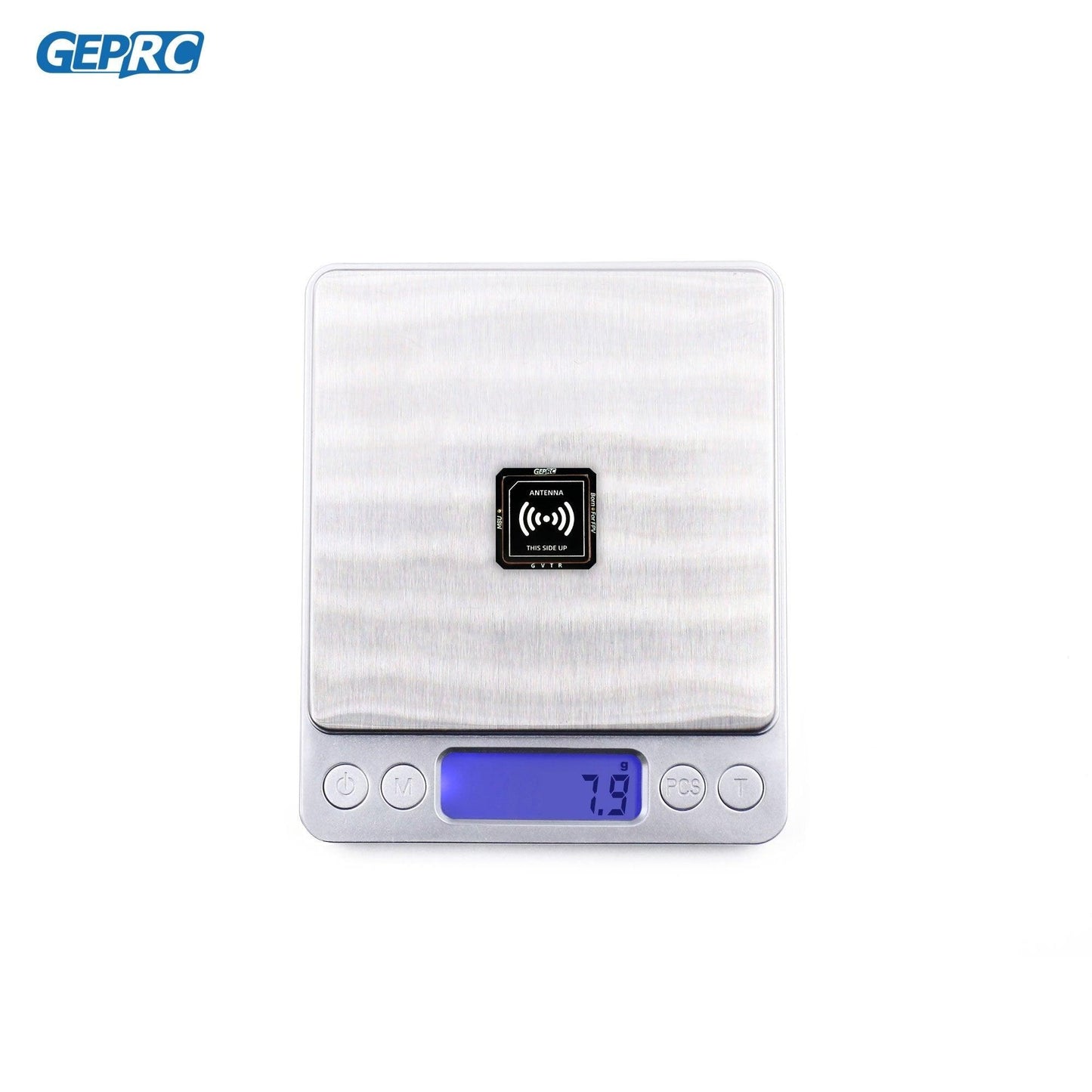

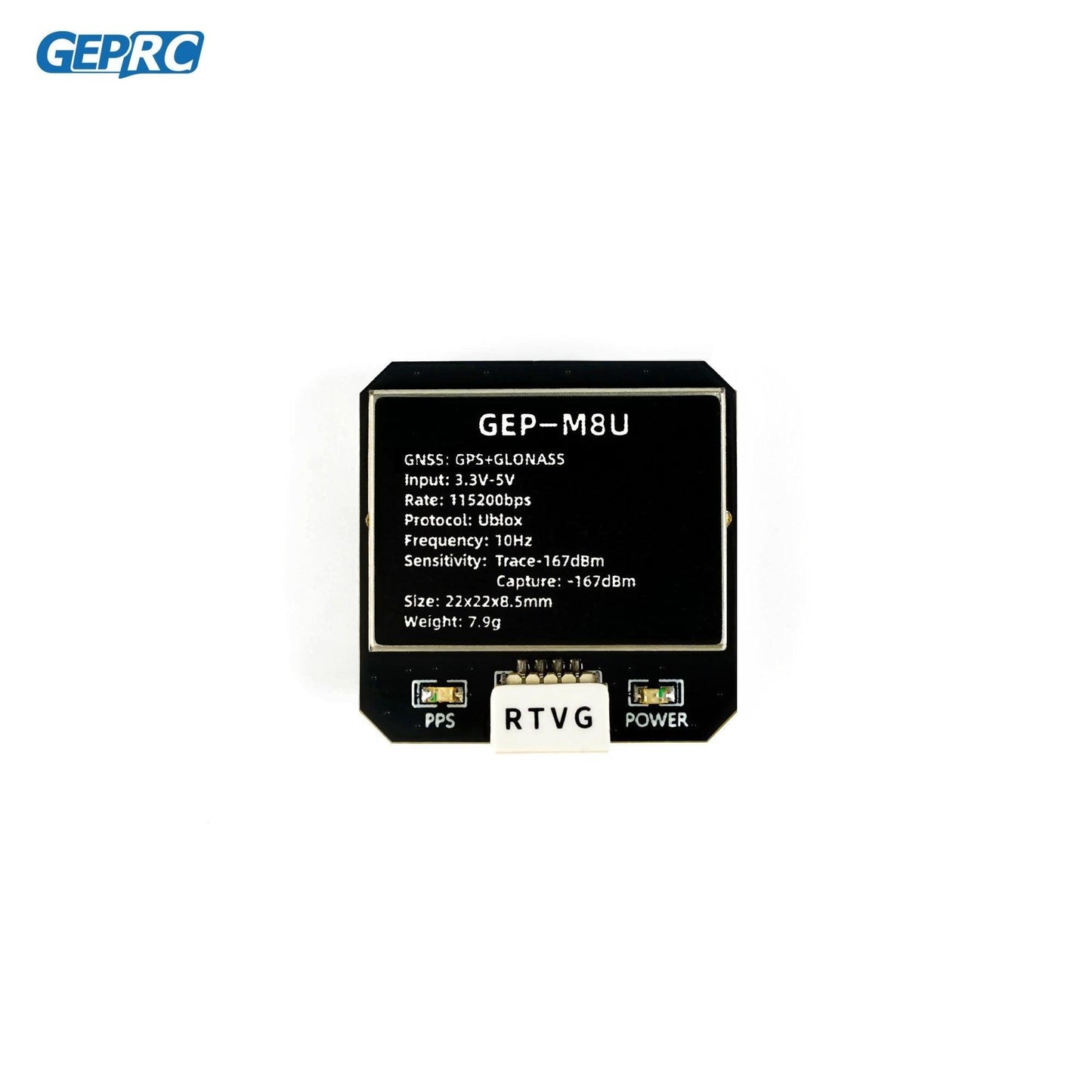

The GEPRC GEP-M8U GNSS module supports GPS+BDS inputs, with a voltage range of 3.3V, a serial rate of 115200bps, and uses the U-blox protocol at a frequency of 10Hz. The capture sensitivity is -167dBm, and the module measures 22x22x8.5mm in size, weighing approximately 7.9g. Additionally, it features an RTVG power indicator that allows for easy monitoring of GPS working status in real-time.

The GEP-M8U GPS module features a POWER indicator with three states: PPS (blue light) that indicates positioning success, flashing when the device is actively acquiring satellite signals; always-on blue light when the device is successfully tracking satellites; and normal light off or always on, depending on the device's status.

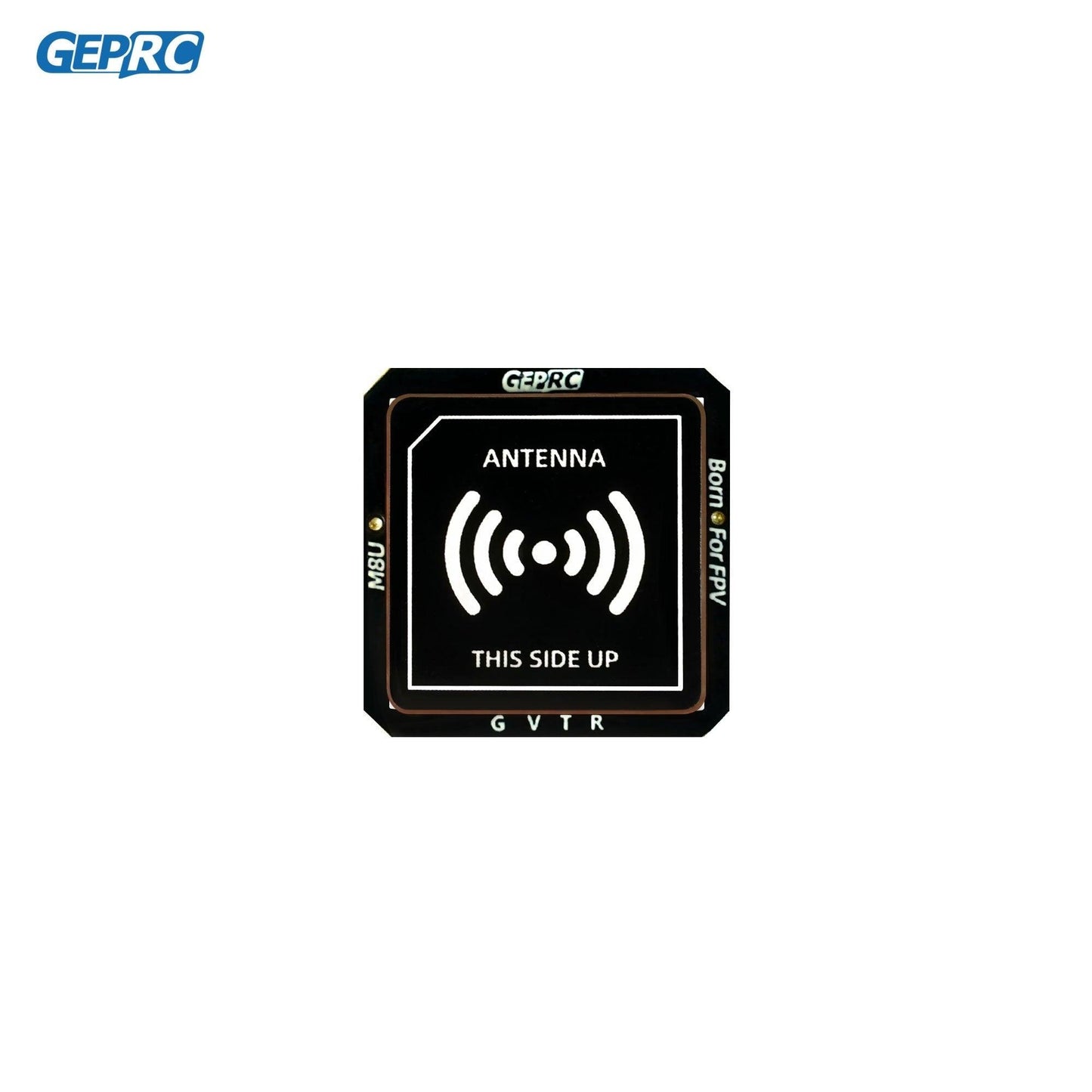

GEP-ANTENNA: This side up. Note: The GEP-M8U GNSS module supports GPS+BDS inputs, with a voltage range of 3.3V, a serial rate of 115200bps, and uses the U-blox protocol at a frequency of 10Hz. The capture sensitivity is -167dBm, and the module measures 22x22x8.5mm in size, weighing approximately 7.9g.

Note: The GEP-M8U GPS module (ANTENNA: This side up) supports GNSS signals, including GPS+GLONASS, with a voltage range of 3.3V, a serial rate of 115200bps, and uses the Ublox protocol at a frequency of 10Hz. The capture sensitivity is -167dBm, and the module measures 22x22x8mm in size.

The GEPRC GEP-M8U GPS module features rapid positioning capabilities, stable connection, and dual-mode reception for GPS+GLONASS/BDS signals. It operates with a power supply of 3.3V SV. Additionally, it comes with the GEERC antenna.
