Summary:

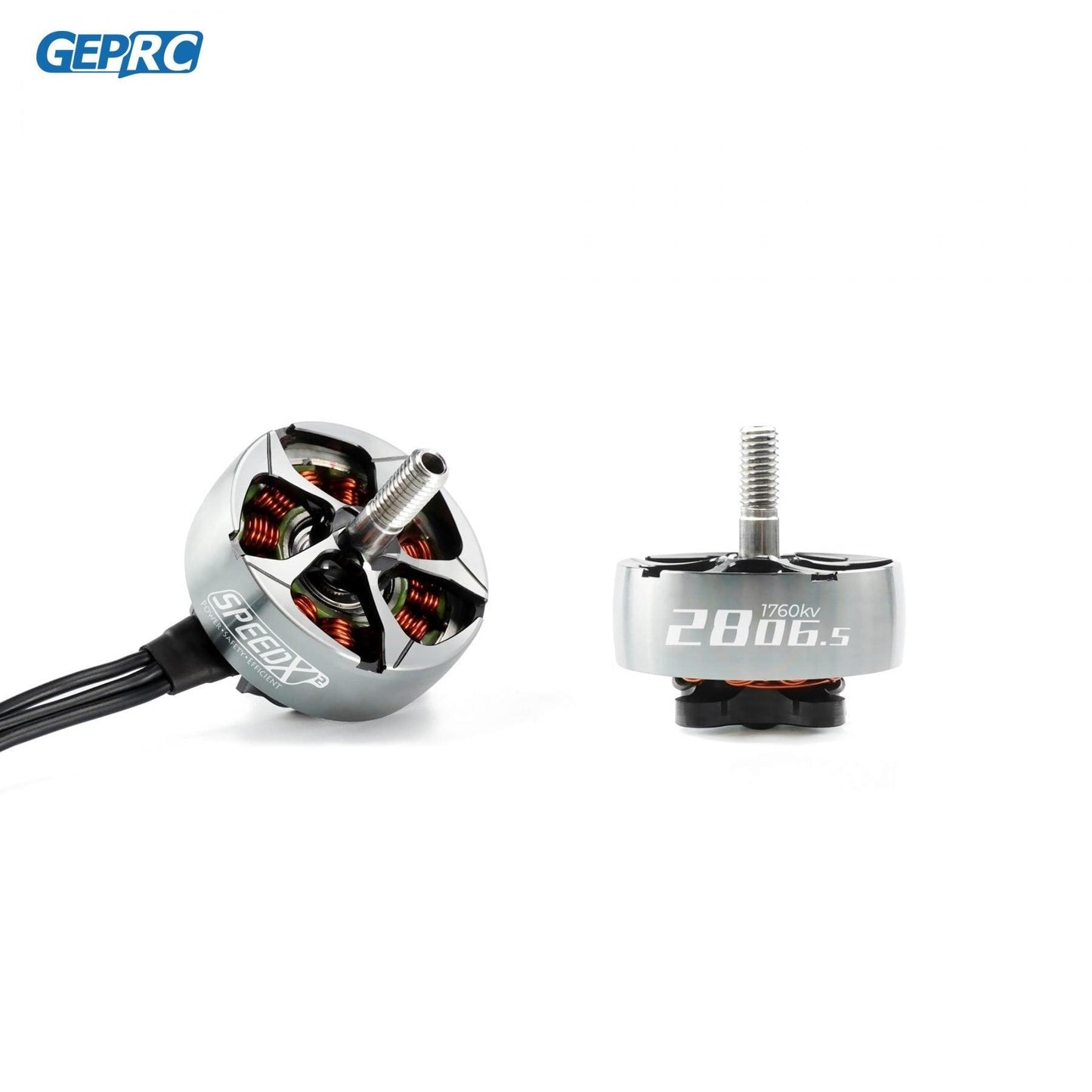

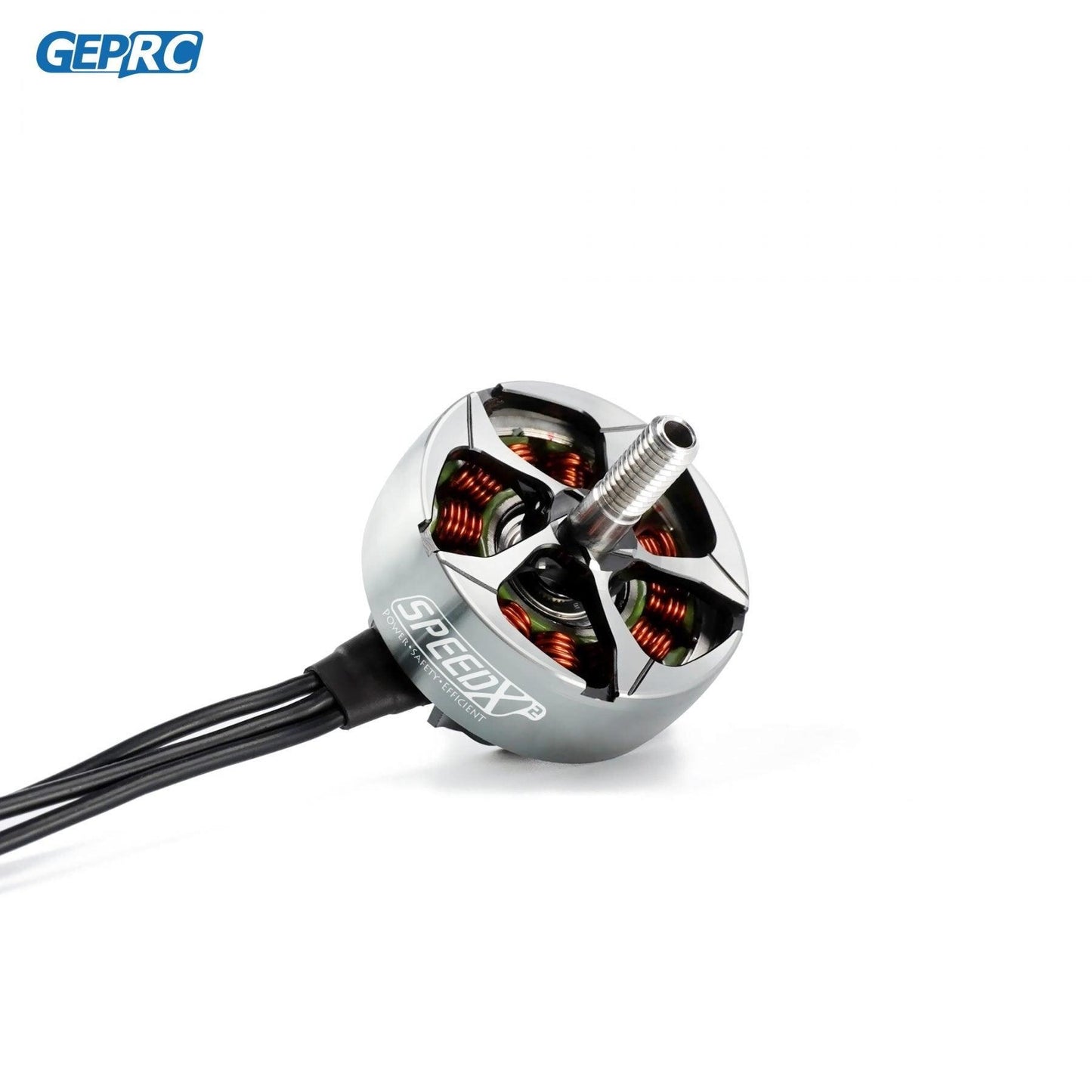

The SPEEDX2 2806.5 brushless motor is the second generation motor of GEPRC,featuring a new design elements and a lighter structure.

The SPEEDX2 2806.5 motor has good heat dissipation, light weight, enough power, good stability and is made of customized high-quality materials. With linear and delicate throttle control and excellent magnetic circuit design.SPEEDX2 2806.5 has a super smooth flying experience with superb power, high durability and crash resistance.

SPEEDX2 2806.5 motor is perfect for 6-7 inch long range and cinematic FPV.

We are pursuing lighter weight,  more responsive, more efficient and more powerful brushless motors.

Features:

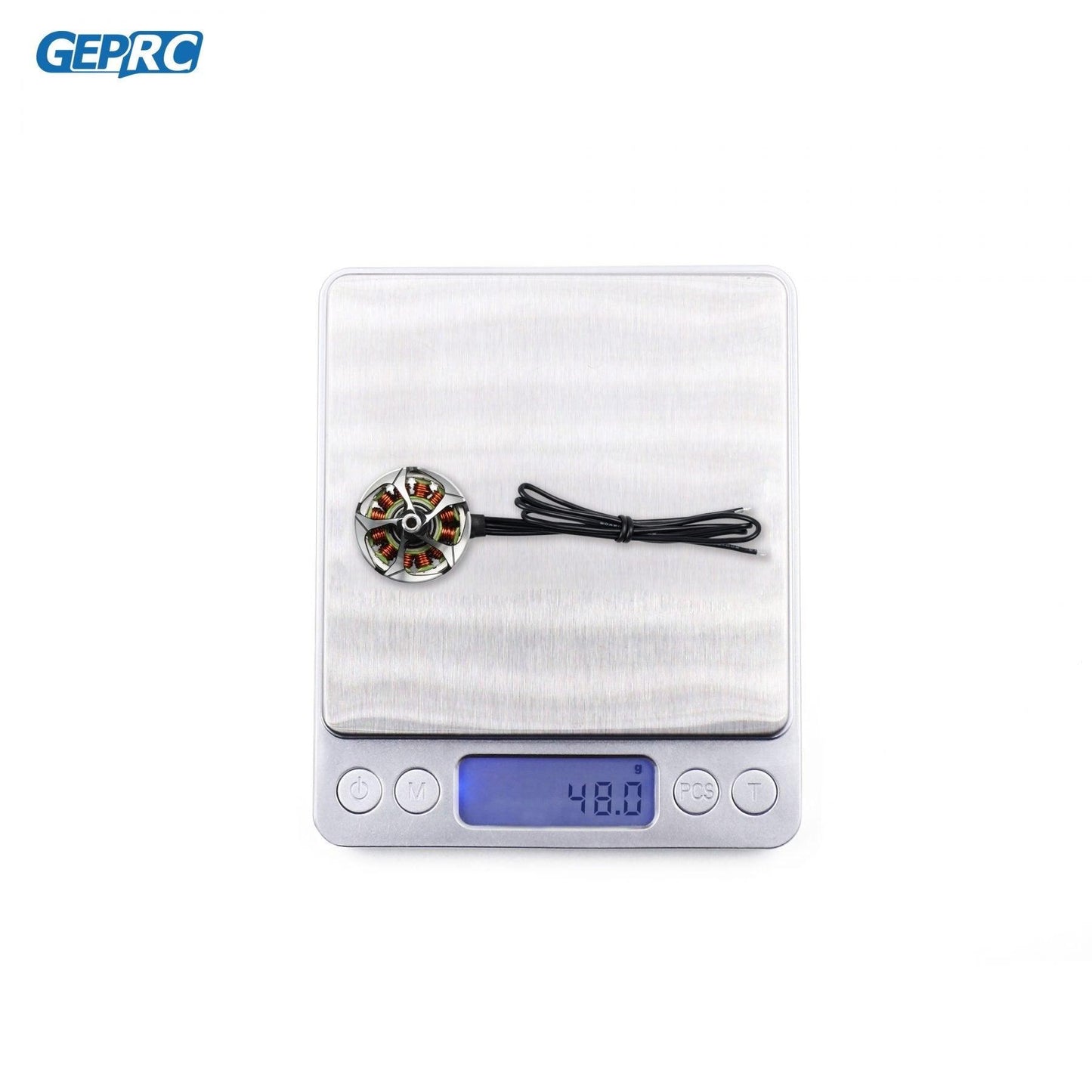

1. Ultra-light weight, only 48.0g.

2. Excellent magnetic design, stable power output.

3. Strong power and prompt response speed.

4. Delicate and precise throttle control, smooth flight experience.

5. Good structural design with high strength shell and excellent heat dissipation efficiency.

6. New optimized design for 6-7 inch propellers, perfectly suitable for 6-7 inch long range FPV models.

Specification

Model:SPEEDX2 2806.5-1350KV

• KV: 1350KV

• Configuration: 12N14P

• Magnet: N52H ARC

• Stator Diameter: 28mm

• Stator Length: 6.5mm

• Shaft Diameter: Φ4.0mm

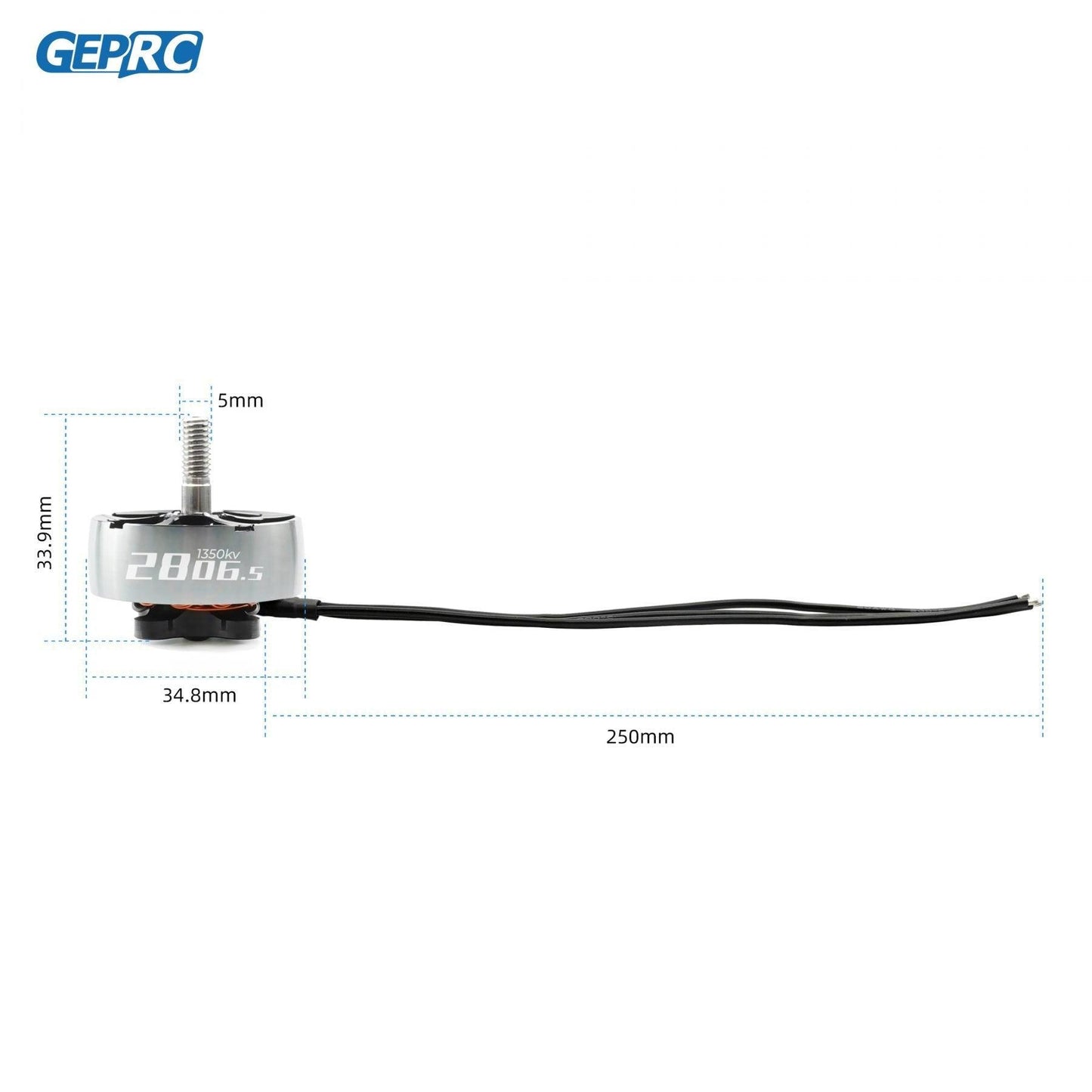

• Dimension: Φ34.8mm*33.9mm

• Lead wire size: 20#AWG 250mm

• Idle current (10V) : 1.25A

• No. of Cells (LiPo) : 4-6S

• Max Continuous Power(W) (5S): 960

• Max Current (5S) : 40A

• Internal Resistance: 58mΩ

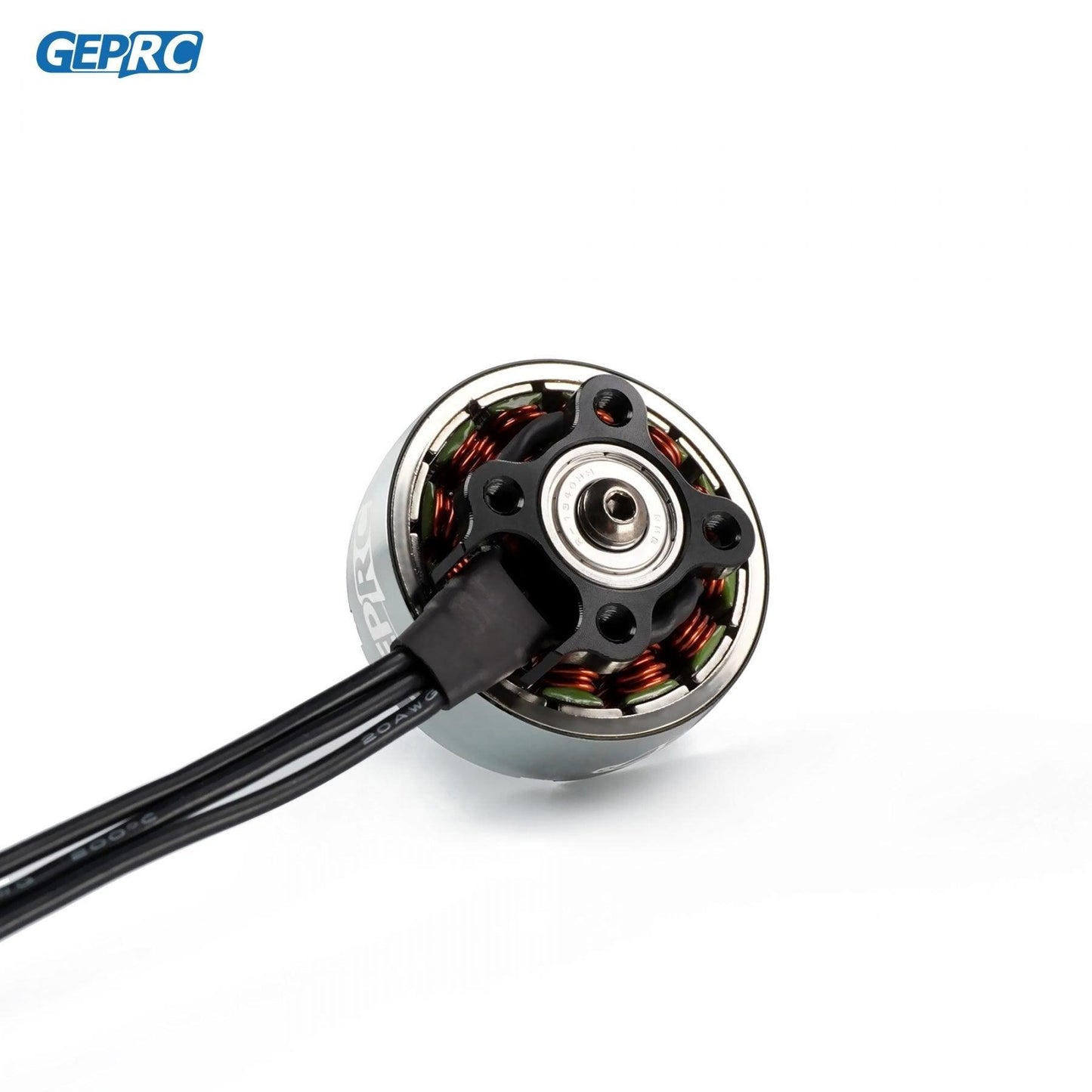

• Mounting Holes: 19x19mm

• Weight: 48.0g

• Suitable for: 6-7″ Long Range Quadcopter

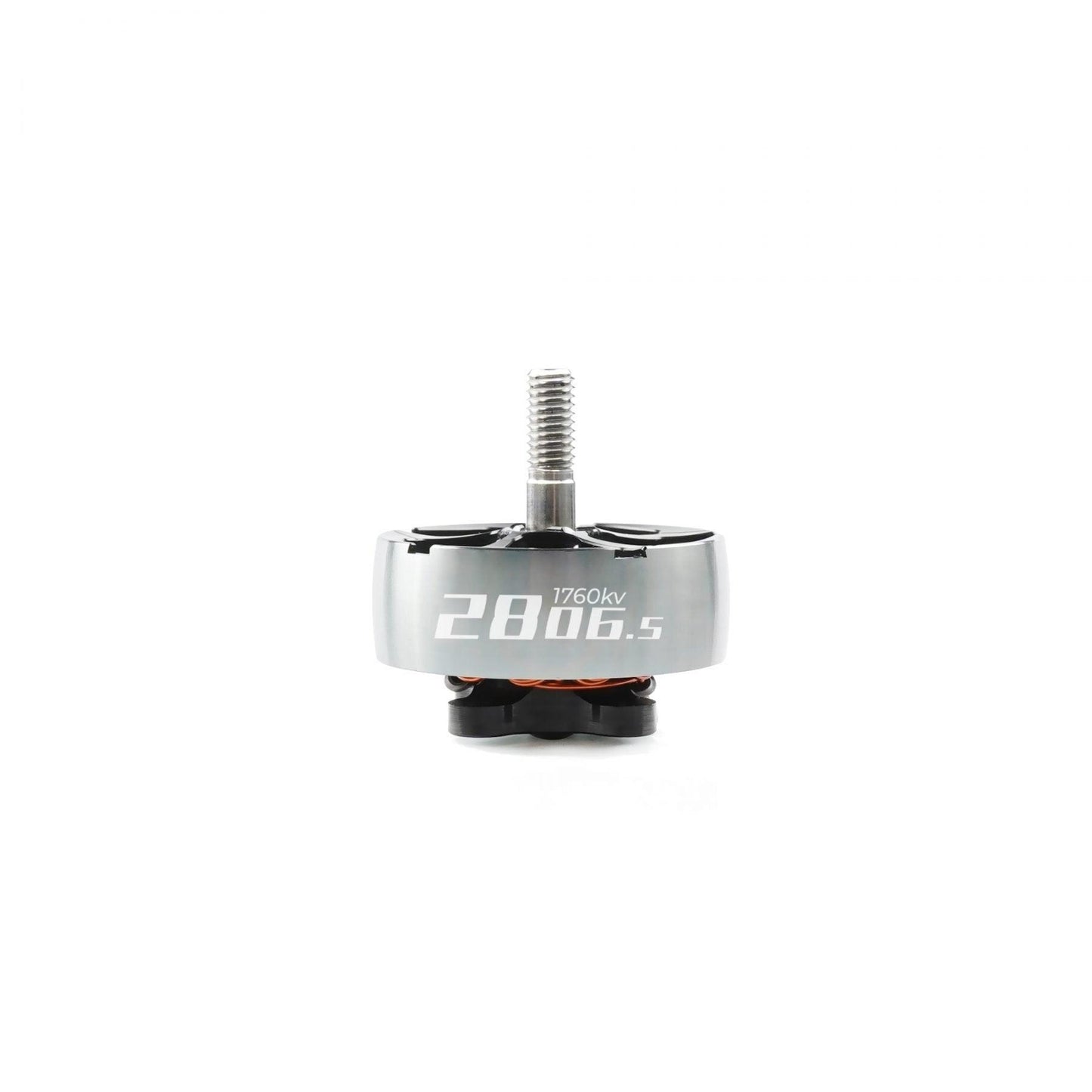

Model:SPEEDX2 2806.5-1760KV

• KV: 1760KV

• Configuration: 12N14P

• Magnet: N52H ARC

• Stator Diameter: 28mm

• Stator Lenght: 6.5mm

• Shaft Diameter: Φ4.0mm

• Dimension: Φ34.8mm*33.9mm

• Lead wire Size: 20#AWG 250mm

• Idle Current(10V): 1.7A

• No. of Cells (LiPo): 4-6S

• Max Continuous Power(W) (5S): 1200

• Max Current (5S):50A

• Internal Resistance: 47mΩ

• Mounting Holes: 19x19mm

• Weight: 48.0g

• Suitable Quadcopter: 6-7″ Long Range Quadcopter

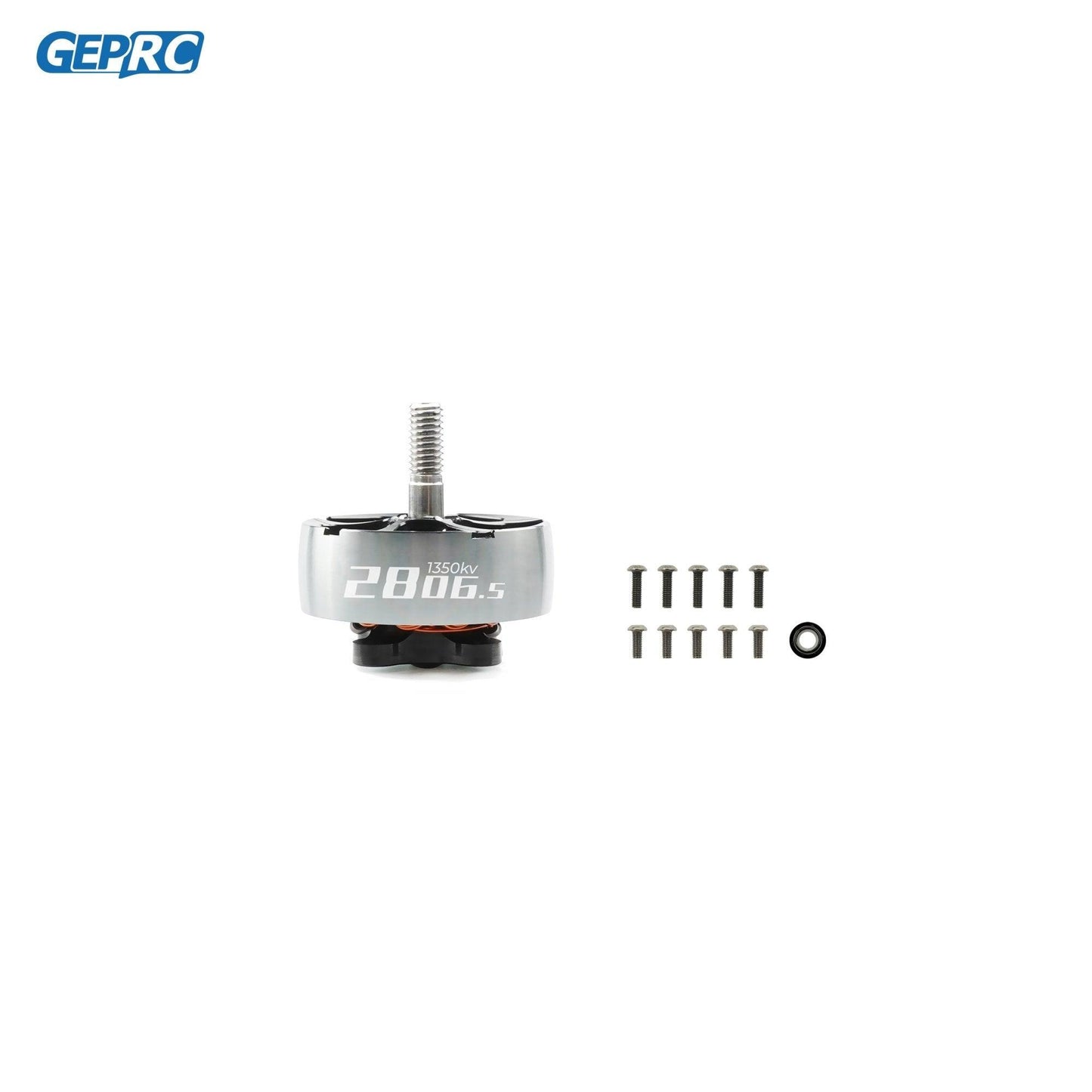

Include:

1  x  SPEEDX2 2806.5 Motor

5  x  M3*8mm Screws

5  x  M3*10mm Screws

1  x  M5 Flange Nut

GEPRC SpeedX2: A High-Power, Efficient, and Safe Motor Designed Specifically for 6-7 Inch Long Range/Cinematic FPV Drones.

This high-performance motor features a strong titanium alloy shaft, customized arc-shaped magnets, and high-quality bearings for optimal performance. The sleek and refined exterior design complements its impressive specifications: 1350KV at up to 4A.

This high-performance motor boasts exceptional power and maximum thrust of up to 2.7kg per motor, allowing for greater mount compatibility and an even more enjoyable flying experience.

This motor features high-efficiency and endurance design elements, including arc-shaped magnets, high-quality bearings, and a semi-hollow titanium alloy shaft weighing just 48g (including a 3cm cable). Additionally, it boasts excellent heat dissipation properties, ensuring high durability and efficiency.

This motor features NS2H arc-shaped magnets with strong magnetism, providing stable power output and high efficiency. Additionally, its energy-saving stator design enables low heat generation, leading to improved work efficiency and endurance.

GEPRC's SpeedX2 2806.5 motor offers powerful performance, precise control, and a lightweight design weighing just 48g, making it an ideal choice for 6-7 inch long range quads.

The custom nuts provide thread protection for the steel shaft, ensuring high structural strength and increased resistance to collisions up to 65°C.

Motor specifications: * Dimension: 34.8mm x 33.9mm * Internal Resistance: 58mΩ * Wire Size: 20 AWG (250mm) * Configuration: 12N14P * Shaft Diameter: 5.0mm * Rated Voltage: 4.65V * Idle Current: 1.25A * Maximum Current: 40A * Maximum Power: 960W * Item: SPEEDX2 2806.5 1760KV * Weight: 48g (including 3cm wire)
