GEPRC Triple Feed Patch-1 5.8G 9.4DBI Circular Polarized FPV Antenna for RHCP LHCP for RC Fatshark Skyzone FPV Goggle DIY
GEPRC Triple Feed Patch-1 5.8G 9.4DBI Circular Polarized FPV Antenna for RHCP LHCP for RC Fatshark Skyzone FPV Goggle DIY
GEPRC
114 orders in last 90 days
Couldn't load pickup availability
Warehouse: China/USA/Europe, can delivery to all countries;
Free Shipping: 9-15 days;
Express Shipping: 5-8 days;
Return&Refund: 30 Days.
Share

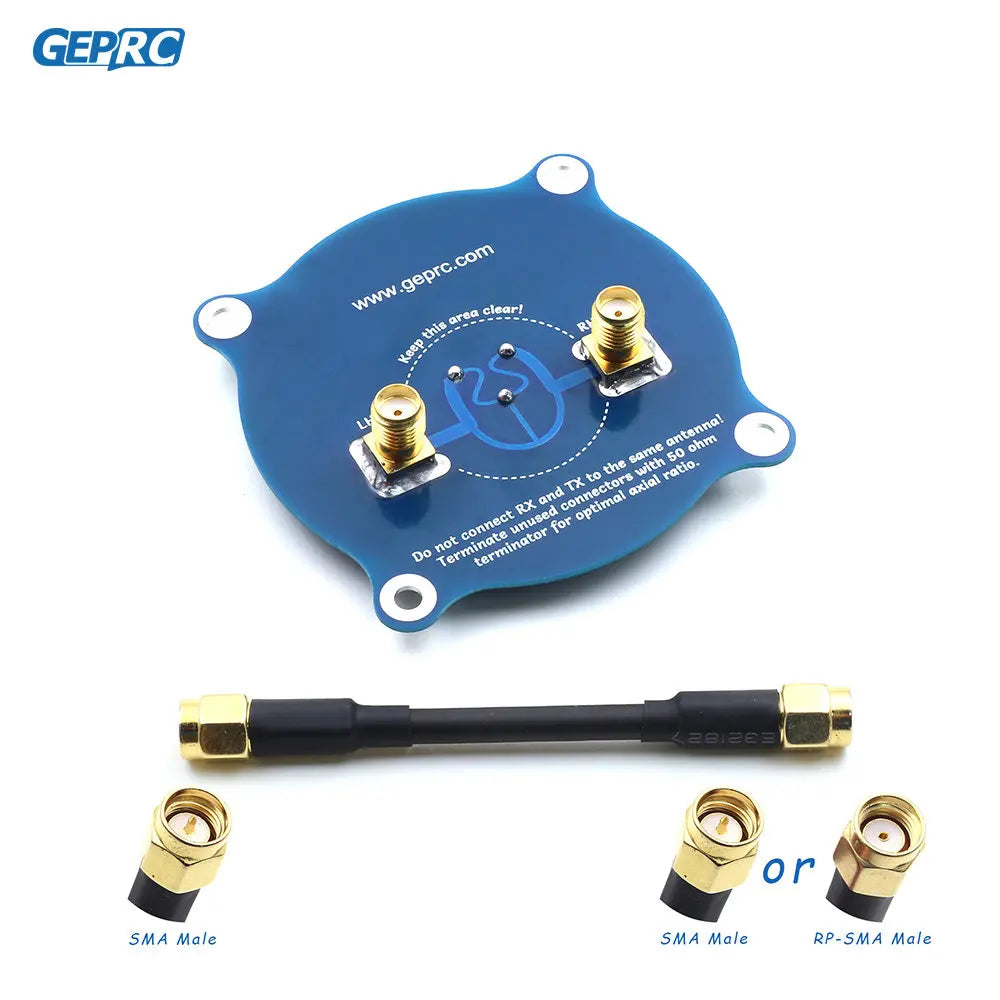

GEPRC Triple Feed Patch-1 5.8G 9.4DBI Circular Polarized FPV Antenna SPECIFICATIONS
Brand Name: GEPRC
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Board
Size: 1 inch
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Remote Control Peripherals/Devices: Board
Tool Supplies: Assembly Category
Quantity: 1 pcs
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
specification
Center frequency: 5.8 GHz
Bandwidth: 660 MHZ (5.47-6.13ghz)
Match: S11 < -20 dB, VSWR < 1.22 (at the center frequency)
Axial ratio: < 1.3
DBi antenna gain: 9.4

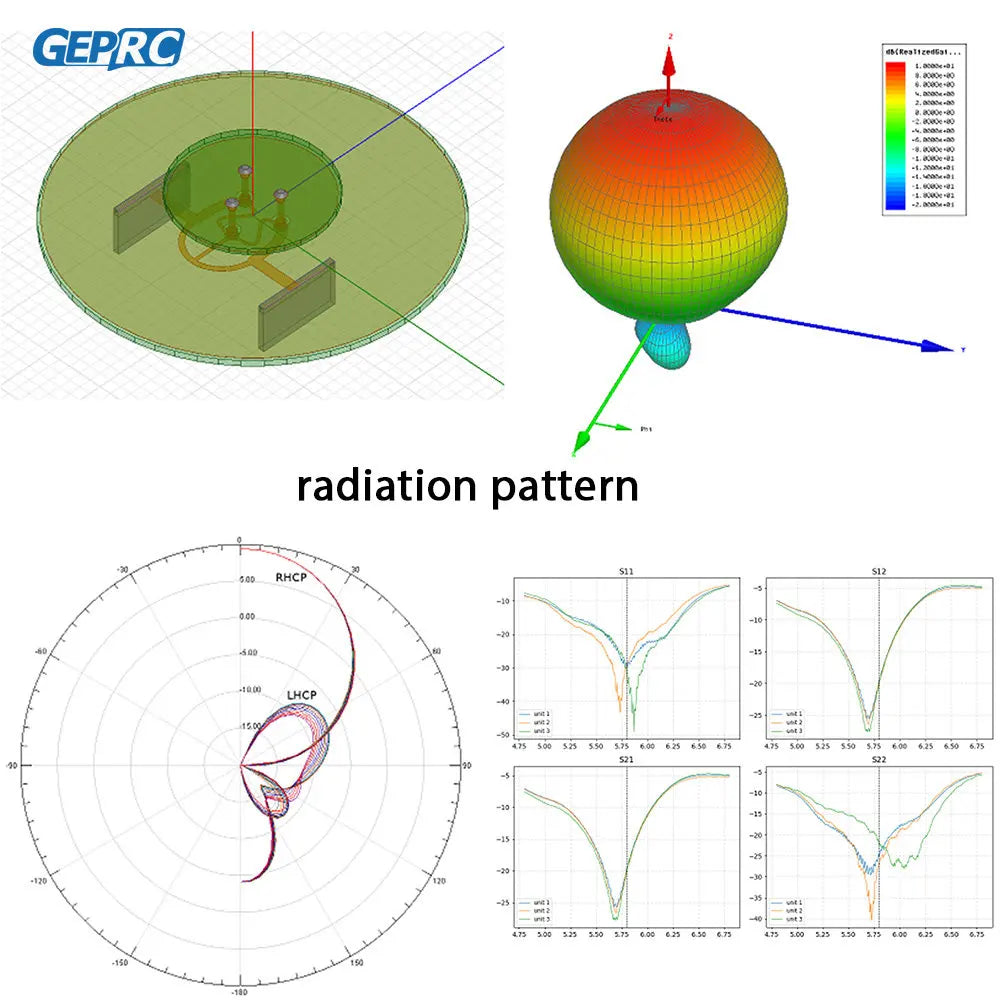

Half power beam width: 55 ° (horizontal and vertical)
Radiation efficiency: 83.5%
These values are based on simulation and the actual measurements are as follows (they are very similar).
Due to the change of the FR4 dielectric constant, the center frequency may be transferred between batches.
And not all FR4 brands have the same dielectric constant.
The frequency conversion to 100 MHz is normal.
![Designed by Maarten Baert and Robin Theunla Oshlv](http://rcdrone.top/cdn/shop/files/Se1a87641bc334bf69e77a6724cf12da9x.webp?v=1711810924&width=1445)
![connect RX and TX to the toma Antennol Tormn](http://rcdrone.top/cdn/shop/files/S26d567ca77474338bca15c0d29939678o.webp?v=1700356217&width=1445)
![GEPRC clcarl 80 the 2* for Do 4281363 or](http://rcdrone.top/cdn/shop/files/Saed6fecb3bbc41e9852ed8f42cb7d1bcK.webp?v=1700356216&width=1445)
![GEPRC Triple Feed Patch-1 5.8G 9.4DBI Circular Polarized FPV Antenna for RHCP LHCP for RC Fatshark Skyzone FPV Goggle DIY](http://rcdrone.top/cdn/shop/files/S40c8cf88af8143b38ae18300dedc1fbcn.webp?v=1700356217&width=1445)
![GEPRC Triple Feed Patch-1 5.8G 9.4DBI Circular Polarized FPV Antenna for RHCP LHCP for RC Fatshark Skyzone FPV Goggle DIY](http://rcdrone.top/cdn/shop/files/Sa8d36956ae1b4f69b1e11d9c5a953032p.webp?v=1700356217&width=1445)
![GEPRC 16 (Kenu1tc4ru radiation pattern RACP](http://rcdrone.top/cdn/shop/files/S527cdb5ca33e4638b736c8844ab3c7bfh.webp?v=1700356217&width=1445)
