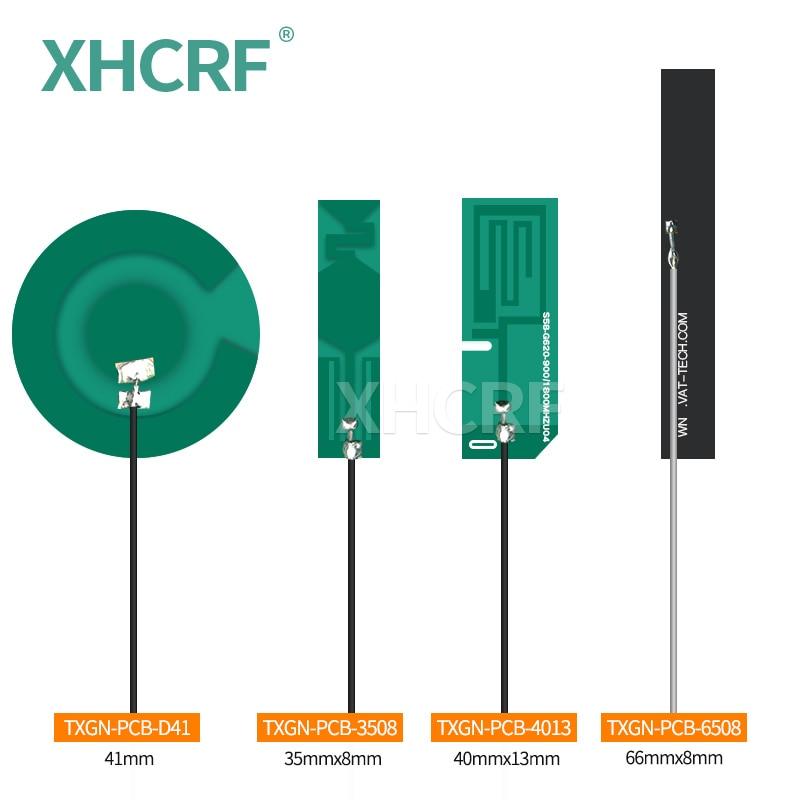

5pcs GSM 2G Internal Antenna NB IoT Antenna Narrow Band IPX IPEX Antena for DTU Wireless Module Built in Aerial TXGN-PCB-3508

5pcs GSM 2G Internal Antenna NB IoT Antenna Narrow Band IPX IPEX Antena for DTU Wireless Module Built in Aerial TXGN-PCB-3508

RCDrone

Regular price $12.68 USD
Regular price $25.37 USD Sale price $12.68 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

70 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

GSM 2G Internal Antenna SPECIFICATIONS

Origin: Mainland China

Gain(dB): 3dBi

Brand Name: XHCRF

5pcs GSM 2G Internal Antenna, Built-in PCB Patch Antenna 2GIGSMICPRSIN


Electrical Specification

Mechanical Specification

Frequency/ Band

2G/3G/GSM/GPRS/NB-IoT

Connector

IPEX-1

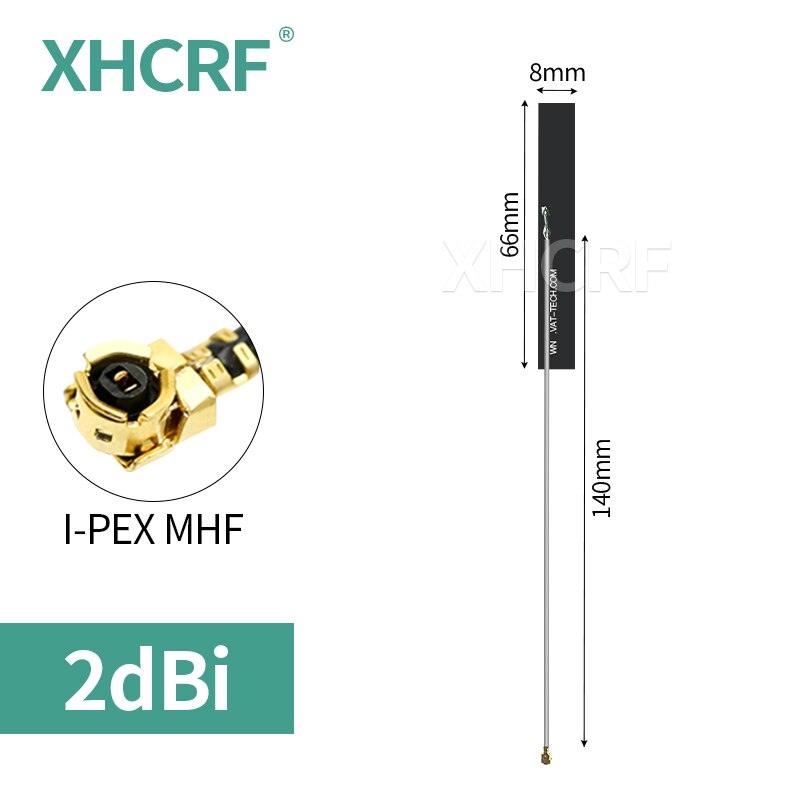

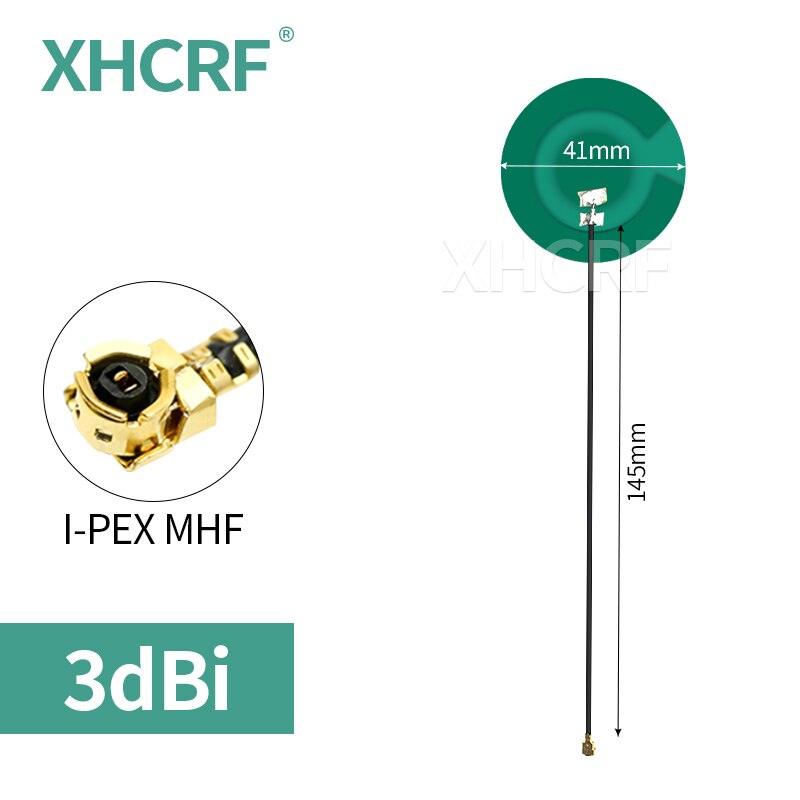

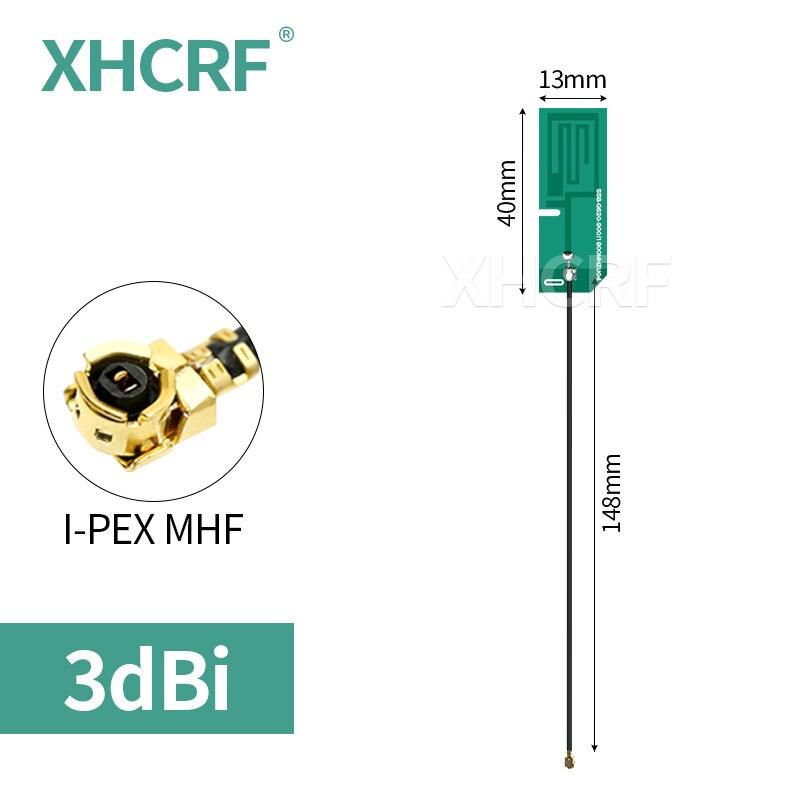

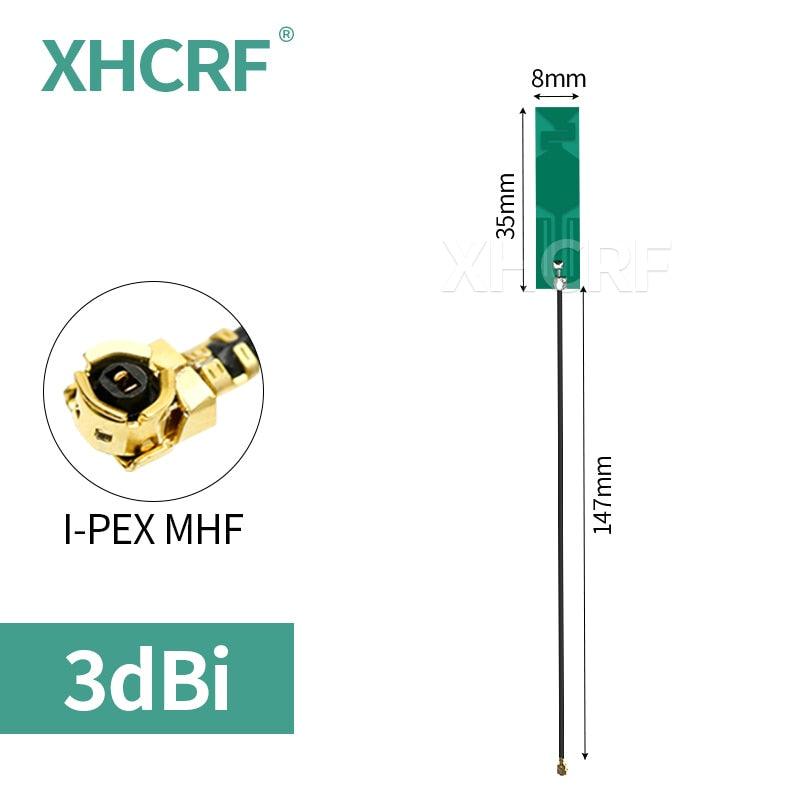

Gain

2dBi/3dBi

Net Weight

1~4g

VSWR

≤1.5

Antenna Material

FPC

Polarization

Vertical

Cable Type

RF1.13

Radiation Direction

Omnidirectional

Cable Length

140mm/147mm

Input Impedance

50Ω

Working Temperature

-30℃~+70℃

Power

2W/5W

Storage Temperature

-30℃~+70℃

5pcs GSM 2G Internal Antenna, GSM 2G Internal Antenna SPECIFICATIONS Origin : 5pcs GSM 2G Internal Antenna, Small and Lightweight lightweight; small size and easy5pcs GSM 2G Internal Antenna, Resonance Matching The working state of antenna and module at resonance is resonance matching .

Resonance Matching The working state of antenna and module at resonance is resonance matching . Reacance resonance doinc Device .

5pcs GSM 2G Internal Antenna, short-distance communication lower data loss and higher sending efficiency . excellent VSWR

Provides reliable short-distance communication with low data loss and high transmission efficiency, featuring a stable signal for both transmission and reception. Additionally, it boasts excellent VSWR (Voltage Standing Wave Ratio) performance, making it compatible with a wide range of devices.

5pcs GSM 2G Internal Antenna, higher impedance match would lower the power loss of wireless devices . 502 higher im

Offers a high-impedance match, which effectively reduces power loss in wireless devices, ensuring efficient communication. Additionally, its impedance characteristics closely match those of the TXGN-PCB-3508 antenna and associated equipment.

5pcs GSM 2G Internal Antenna, difference between FPC and PCB FPC Antenna flexiblel inflexible board

Key differences between Flexible Printed Circuit (FPC) and Printed Circuit Board (PCB) antennas include flexibility versus inflexibility, with our FPC antenna featuring a thickness of 0.22mm and being bendable to a radius of 0.88mm. This design enables applications on flat or cambered surfaces.

5pcs GSM 2G Internal Antenna, Customization is available for cable and connectors . Customizable interface types solder

Customization options are available for cable and connector configurations. Additionally, we can accommodate special requests for customized interface types to meet your specific needs.

5pcs GSM 2G Internal Antenna, RF1.13 Coaxial Cable Low loss, stable signal, durable Inner Conductor Copper with

Our RF coaxial cable features low-loss performance, ensuring a stable and reliable signal transmission. The FEP (Fluorinated Ethylene Propylene) jacket provides excellent insulation, while the conductor is made of copper with a tin-plated coating for added durability.

5pcs GSM 2G Internal Antenna, unreasonable installation result in poor communication and severe data loss Before custom After custom Client's Device An

Unproper installation can lead to suboptimal communication performance and significant data loss. In contrast, our customization process ensures optimal results, as seen in the Before/After comparison of the Client's Device Antenna VSWR (Voltage Standing Wave Ratio) testing, which shows an actual measurement of 1.5, matching industry standards for standard antennas.

5pcs GSM 2G Internal Antenna, Wireless module modem smart bracelet Commdifation 010 Ron 1 .

This wireless module is suitable for various applications, including modems, smart bracelets, and command interfaces (COMMDIFATION). With a resistance value of 010 Ron 1, it is widely applied to intelligent terminal devices, wireless LANs, routers, and other wireless communication modules.

5pcs GSM 2G Internal Antenna, Please write to support@ziisor com for antenna customization_ 1 Poor Communication Anten

Experience poor communication, data loss, or unmatched impedance due to limitations in installation location, connector size, or mismatched antenna categories? For customized antenna solutions, please contact our support team at [support@ziisor.com](mailto:support@ziisor.com).

5pcs GSM 2G Internal Antenna, Advanced Testing Equipment Agilent E5071C VNA Antenna Simulation Testing A

Advanced testing equipment, such as Agilent's E5071C Vector Network Analyzer (VNA), enables antenna simulation and testing. Our team utilizes this equipment to ensure accurate results, including actual Smith chart testing with a frequency range of 10.0 MHz to 60 MHz. This rigorous testing process allows us to guarantee the performance of our antennas.

5pcs GSM 2G Internal Antenna, ZIISOR Technology Co, Ltd is a high-tech company devoted to antenna

ZIISOR Technology Co., Ltd. is a cutting-edge technology company dedicated to the development and manufacturing of antennas. With a team of experienced antenna engineers, we excel in various aspects of antenna design, production, and innovation.
