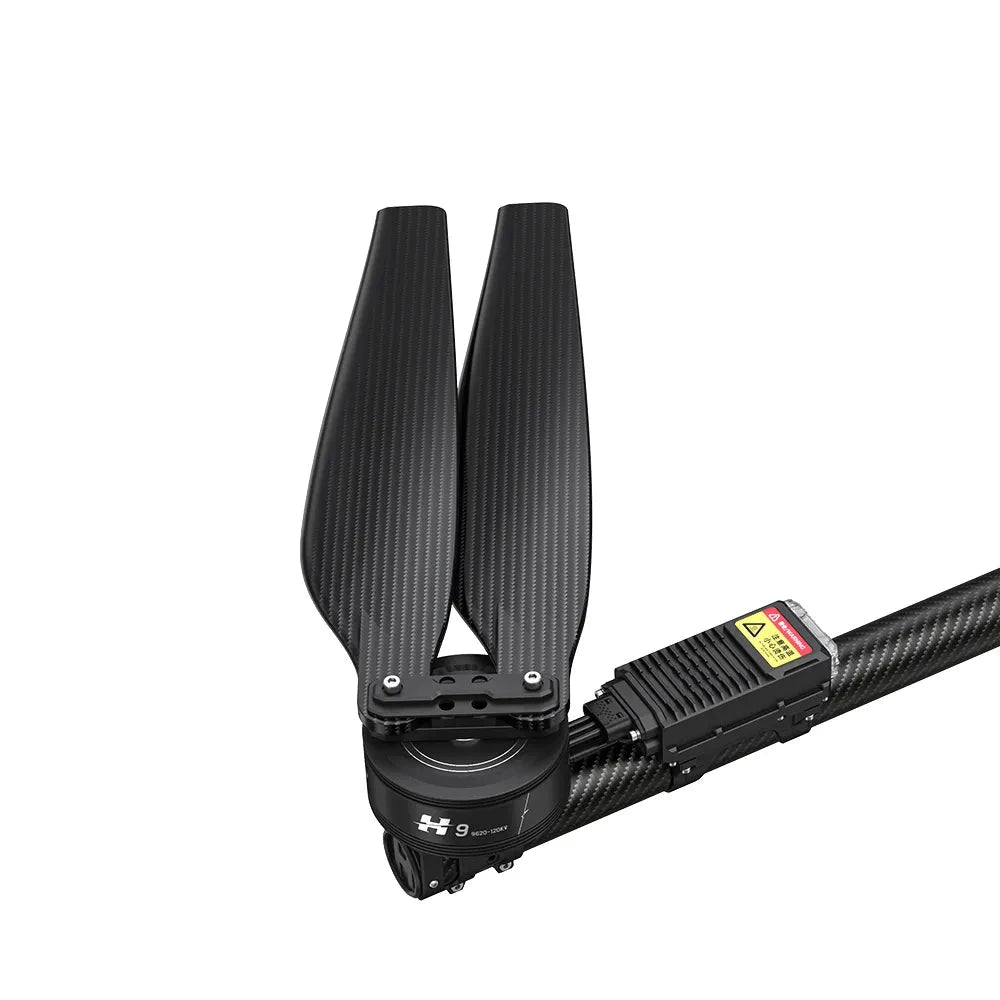

Hobbywing H9 Motor Specifications
Key Parameters
Parameter | Specification |
---|---|
Max Thrust | 27.5 kg |
Rated Thrust | 12 kg |
System Weight | 1.43 kg |
Recommended Battery | 14S LiPo |
Compatible Tube Diameter | 40 mm |
Additional Specifications
Parameter | Specification |
---|---|
Endurance Time | 20+ minutes |
Max Thrust | 27.5 kg |
Control System | Modular Design, Smart LED Light |
Operating Temperature | -40 to 65°C |
Protection Class | IP46 |
Recommended Propeller Size | 34.7 x 11 inches |
System Weight (including cables) | 1430 g |
Hobbywing H9 Motor Features

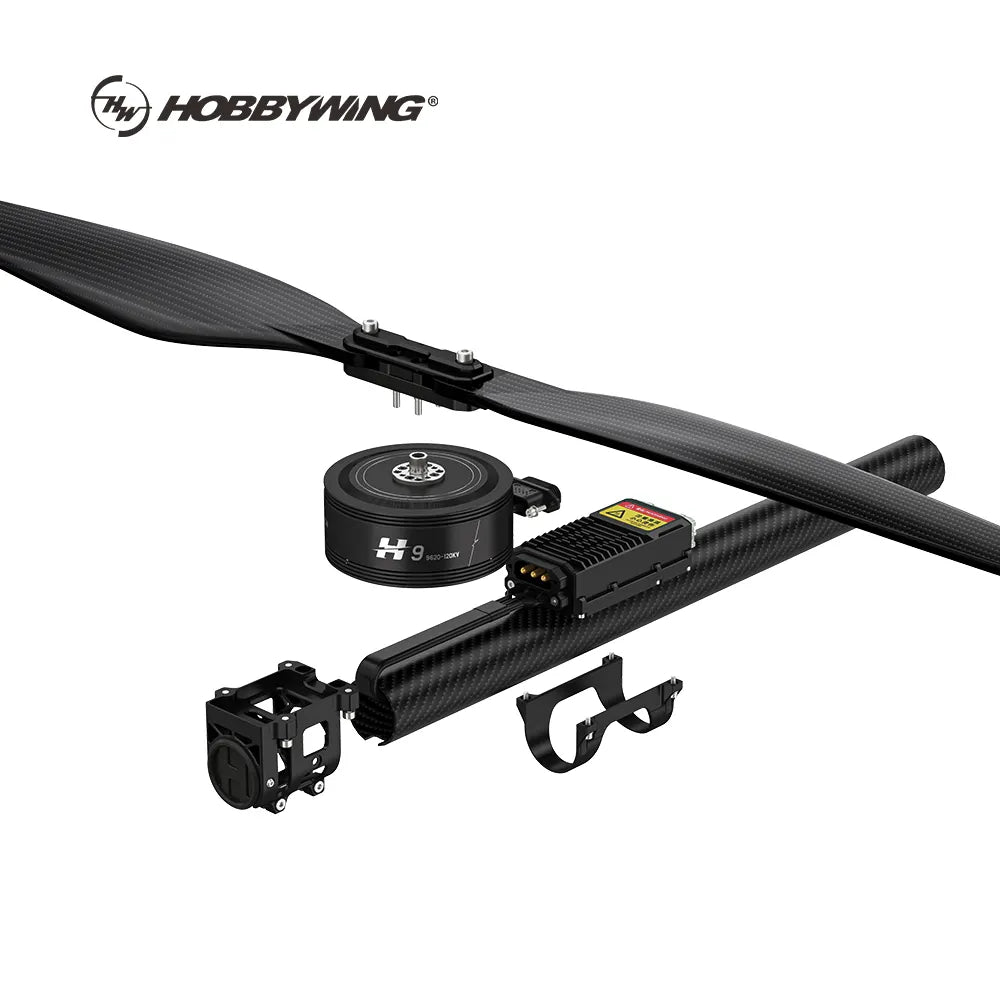

- Modular Design: The motor and ESC are designed in a modular fashion for easy maintenance and replacement.
- Smart LED Light: Integrated LED lights for enhanced visibility and status indication.
- High Efficiency: Optimized for high efficiency, providing reliable and sustained performance.

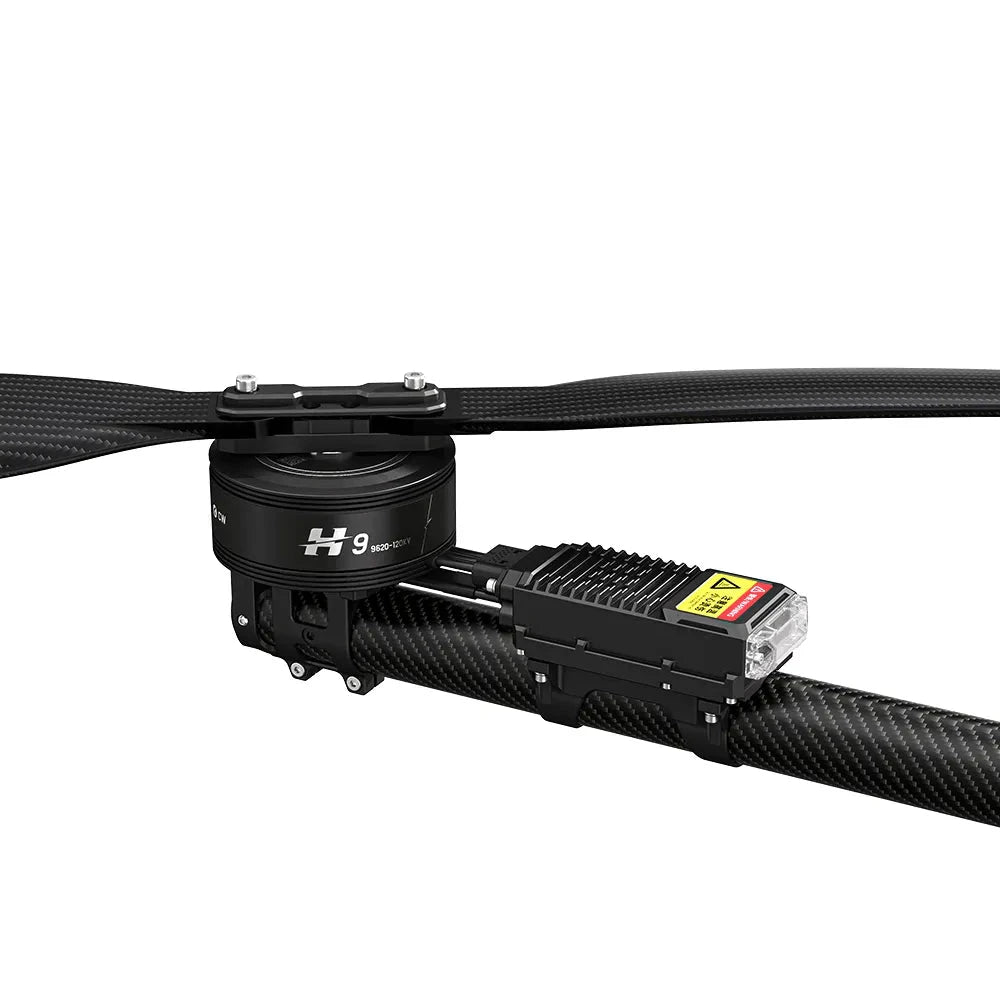

- Enhanced Durability: Designed with robust materials to withstand harsh conditions.
- CAN Communication Interface: Integrated CAN communication for intelligent management and compatibility with mainstream flight controllers including APM, Pixhawk, and DJI.
Applications
- Police Patrol: Ideal for aerial surveillance and monitoring.

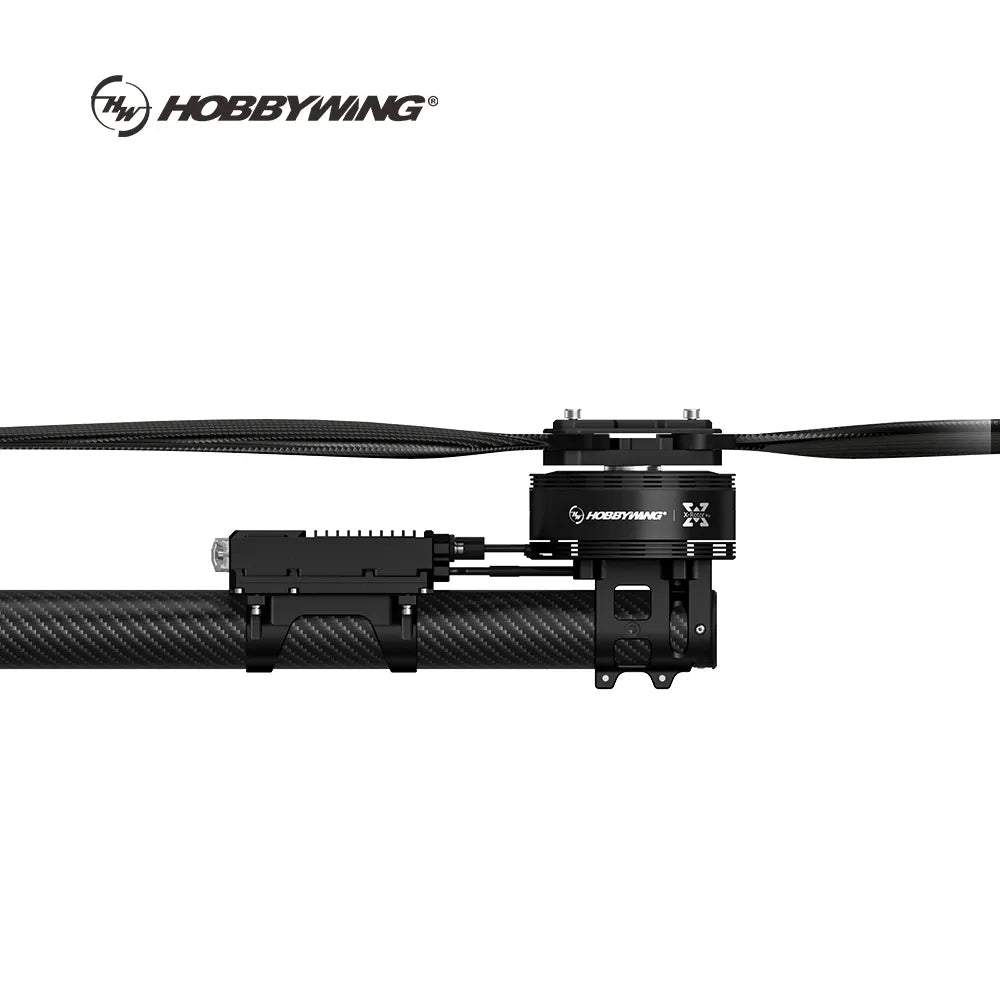

- Emergency Rescue: Capable of being deployed in emergency response operations.
- High-Altitude Operations: Suitable for tasks in high-altitude environments.
- Logistics and Transportation: Perfect for logistics applications requiring reliable and powerful thrust.
Hobbywing H9 motors are designed to meet the demanding needs of various industrial and commercial applications, offering exceptional performance, reliability, and versatility.
Note: This product is in the pre-sale stage, the price is not the actual price
If you need to purchase, please send us a message.
Hobbywing H9 Motor: Industry-integrated power combo with max thrust of 27.5KG, suitable for police, firefighting, high-altitude stationing applications.
Hobbywing H9 Motor - 27.5kg Maximum Thrust Industry-Integrated Power Combo: Suitable for Police, Firefighting, High-Altitude Stationing and other applications requiring high-performance propulsion. Key features include IP46 waterproof rating, operating temperature range -40°C to 65°C, and maximum thrust of 20 kg (90 N). Dimensions are 34.7 x 11 inches. The motor weighs approximately 1430g.
![Hobbywing H9 Motor, Hobbywing H9 motor with high-performance capabilities, suitable for police, firefighting, and high-altitude applications.](http://rcdrone.top/cdn/shop/files/20240526135314.jpg?v=1716703201&width=1445)
![Hobbywing H9 Motor, High-performance motor for high-altitude and emergency use, with robust specs and compact design.](http://rcdrone.top/cdn/shop/files/20240526135333.jpg?v=1716703201&width=1445)
