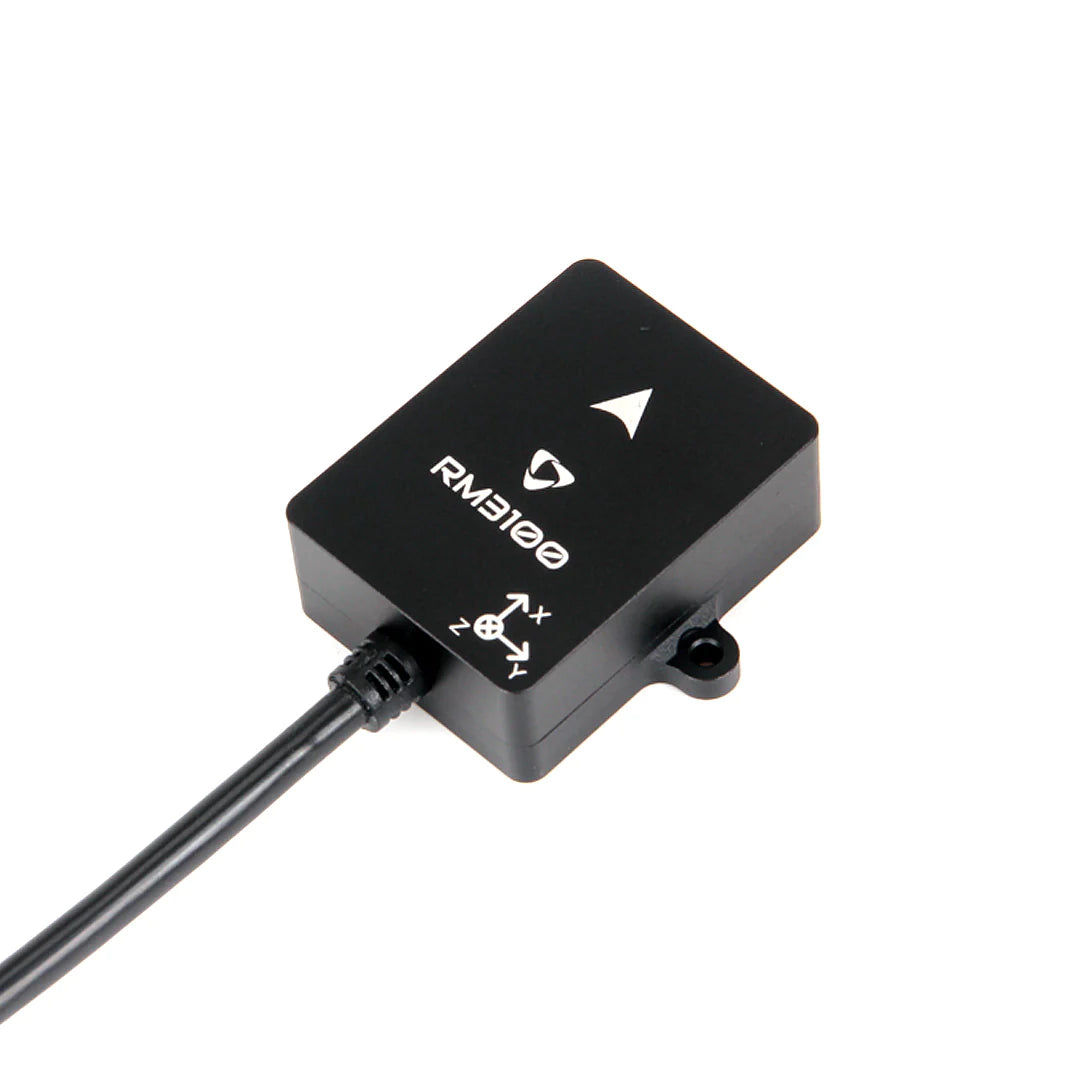

Holybro DroneCAN RM3100 Professional Grade Compass

Holybro DroneCAN RM3100 Professional Grade Compass

HolyBro

Regular price $81.00 USD
Regular price Sale price $81.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

182 orders in last 90 days

Cable Length

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Description:

This professional-grade RM3100 compass/magnetometer has impeccable signal-to-noise ratios, no drift, and precise magnetic field measurements. It can provide professional-grade heading accuracy and orientation calculations for your vehicle. With this compass, your vehicle can navigate through waypoints with little magnetic disturbance due to motor coils and metal parts. You can achieve the best result by placing this module far away from motor coils and other metal parts, getting rid of one of the largest points of failure on your unmanned vehicle.

This 3-axis magnetometer, based on PNI’s proprietary magneto-inductive technology, delivers high-performance resolution and repeatability. It has a very high level of resolution (10 nT) and ultra-low magnetic hysteresis, making it perfect for applications that require high heading accuracy.

With its DroneCAN output protocol, it can deliver robust and reliable connectivity over relatively large distances, and wiring is less complicated as you can have a single bus for connecting all your DroneCAN peripherals. It also does not occupy any serial ports on the flight controller.

Specification

Parameter Cycle Counts Units
50 100 200
Field Measurement Range -800 to +800 μT
Gain 20 38 75 LSB/μT
Sensitivity 50 26 13 nT
Noise 30 20 15 nT
Max Single-Axis Sample Rate
(Divide by 3 for Max. 3-Axis Sample Rate)
1600 850 440 Hz
Operating Temperature -40 to +85 C


Output connector: 4pin JST-GH1.25

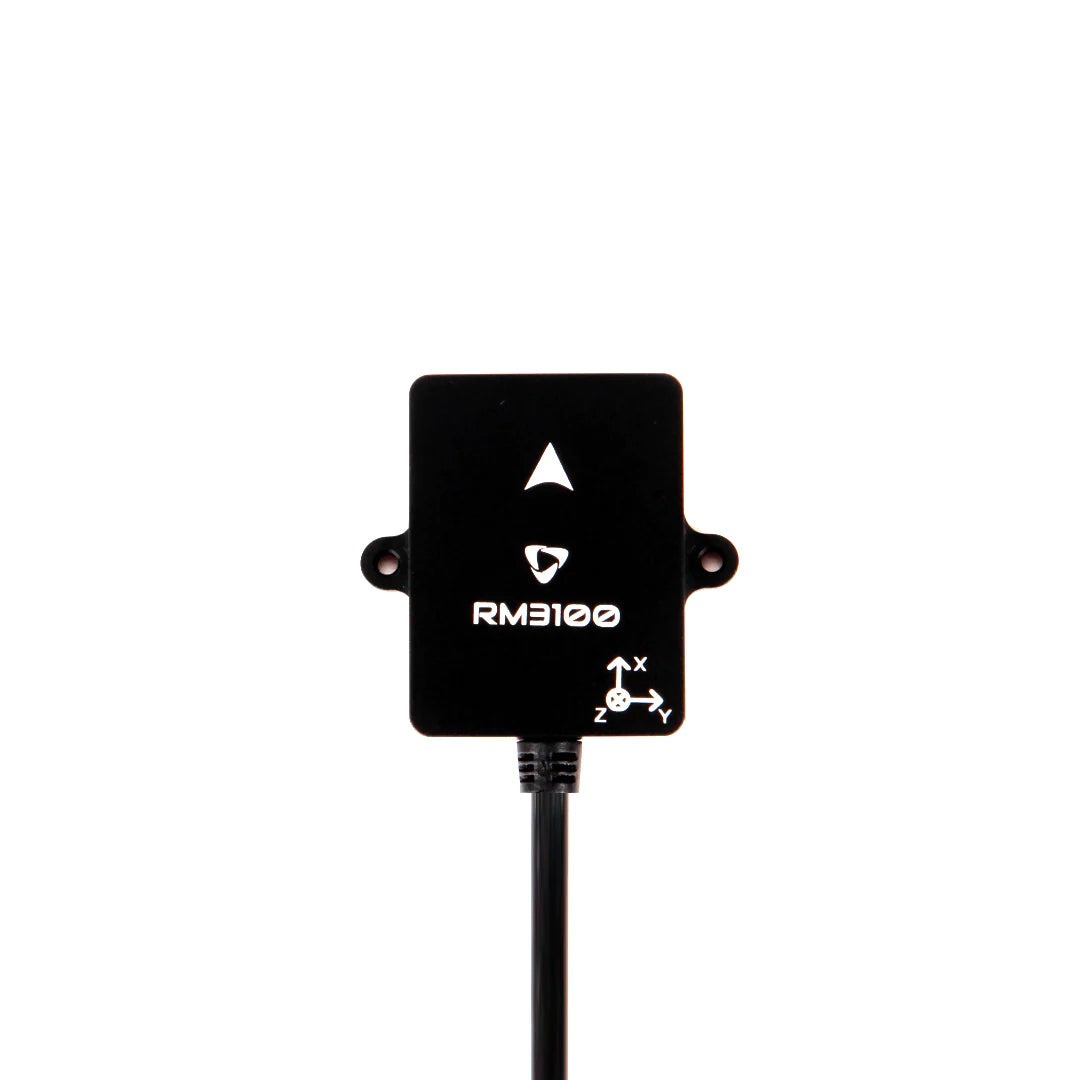

Mounting Orientation :
Holybro RM3100 Mounting Orientation

Dimension:

it has a very high level of resolution (10 nT) and ultra-low magnetic

Downloads

  • RM3100 Sensor Data
  • 3D CAD File

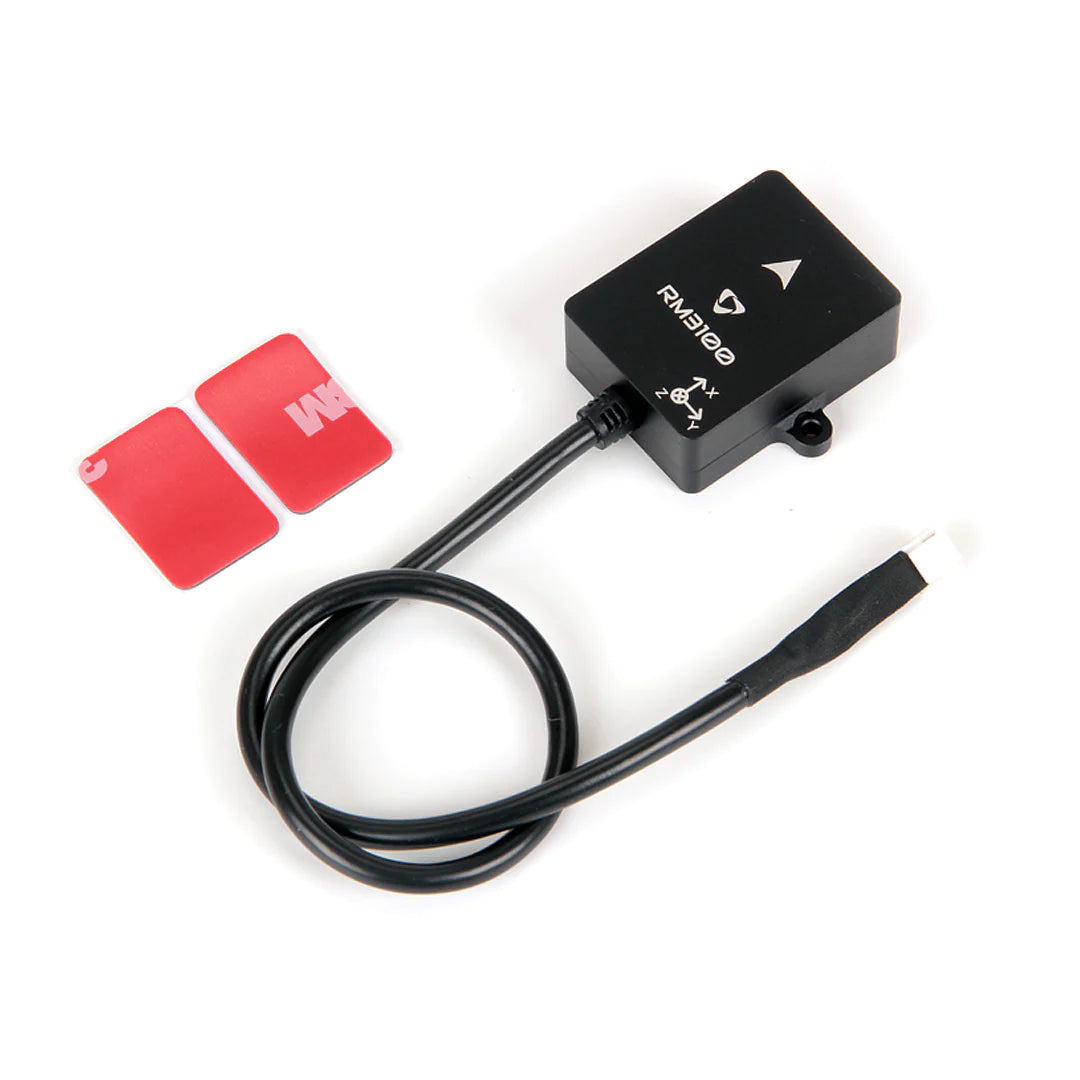

Package Includes

1x  DroneCAN RM3100 Compass
