IFlight BGC3.0 Gimbal Controller - 32bit Alexmos BaseCam BGC3.0 Gimbal Controller Simple BGC Board Encoder Version for DSLR Brushless Gimbal tabilizer

32bit  Alexmos BaseCam BGC3.0 Gimbal Controller Simple BGC Board Encoder Version for DSLR Brushless Gimbal tabilizer

Package included:

• - Main board x 1

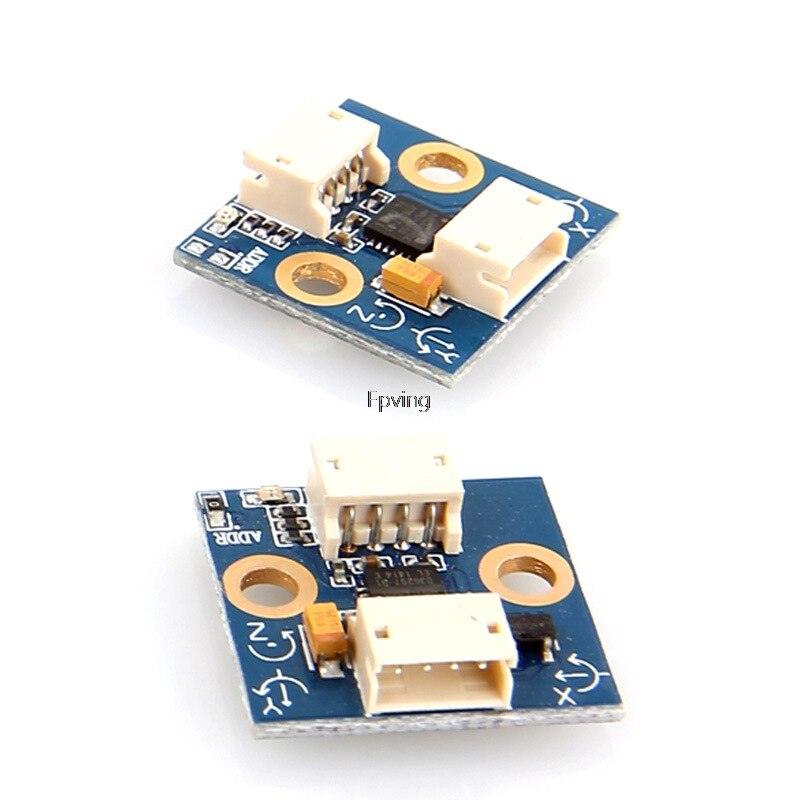

• - Frame IMU x 1

• - Camera IMU x 1

• - super soft cable x 2

Remark:We have two selection with Shell or without shell,will ship according your choose

Feature:

• The controller can be used for building high-quality 3-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers.

• This version of the controller is our new direction in the development of the stabilizing solutions. It will replace the previous 8-bit version of the SimpleBGC controller, keeping 100% back-compatibility, but adding the new fuctionality.

1. Encoders in the SimpleBGC project
Using encoders with SimpleBGC board gives the following advantages:
1. Prevents motors from loosing synchronization and skipping steps.
2. Provides the information about frame angle and angle of the camera relative to frame, that can be
important for some kind of applications.
3. Can significantly decrease power consumption by using field-oriented control strategy to drive
motors.
4. Increases instant torque the same way.
5. Provides possibility to get information about the camera balance and makes automatic balancing
(with help of extra DC servomotors and moving counterweights).
6. Option to adjust camera position by hands.
7. Increase the precision of stabilization by applying FOC-specific compensations.
Despite the implementation of some new features is still in progress, encoders now give completely new
feel of operating the system, and recommended to use in the professional-grade products.

Basic functions of the controller

• -32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axis stabilization.

• -Allows camera control with the RC or analog joystick.

• -Use several switchable profiles for different modes of operation

• -Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.

• - Battery voltage monitoring, compensating voltage drop in the PID-regulator.

• - Low battery alarm (output to 5V active buzzer).

• - Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.

• - Can supply up to 1A current for external devices on the 5V power line.

• - Dedicated UART-socket to connect optional Bluetooth module

• - Reverse-polarity protection, overheat and overcurrent protection

• - USB interface for the PC connection, to configure, control and upgrade firmware.

• -Graphical user interface to manage the settings. Windows / OS X / Linux versions.

• - Control through the Serial-protocol using dedicated API.

• - Improved attitude estimation algorythms

• -Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and will make stable work in any frame position.

Specifications

• -Size of the board: 50×50 mm

• -Distance between the mounting holes: 45 mm

• -Diameter of the mounting holes: 3 mm

• -Power supply voltage: 3S to 6S

• -Maximum motor current: 1,5 A

• -5V output current to power external devices: up to 1 A

•


General info on the Basecam site:

http://www.basecamelectronics.com/simplebgc32bit/

New firmware & GUI 2.4b8 for 32bitters is ready to go:

http://www.basecamelectronics.com/downloads/32bit/

New Basecam Configuration Guide:

http://www.basecamelectronics.com/co...how/?newsid=69

Note: about brushless gimbals & Controllers

• Brushless gimbals and controllers are very new to the market and is an emerging technology. You will need some patience and effort to get it to work as seen on youtube. THIS IS NOT A PLUG AND PLAY DEVICE!

•


• You will need some understanding of Microsoft windows drivers, software settings and tuning the gimbal software to your liking and to suit your multirotor.

•


• We will try our best to answer your questions and point you in the right direction but getting things to work the way it's supposed to will be YOUR RESPONSIBILITY. Please understand this before you purchase any Brushless Gimbal Related Item.
