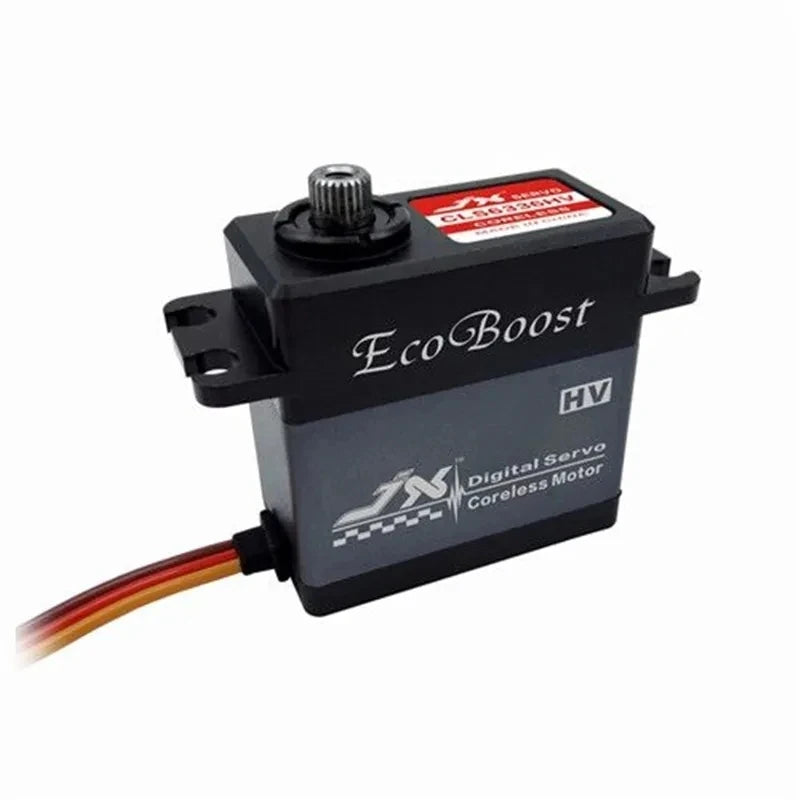

JX Servo CLS6336HV CLS6322HV 35kg 21KG SPECIFICATIONS
Brand Name: JX Servo
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Servos
Size: 40.5X20.5X40mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Certification: CE
Certification: FCC
Certification: RoHS
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Grinded
Quantity: 1 pcs
Technical parameters: KV1100
Model Number: 35KG digital servo
Four-wheel Drive Attributes: Motors
Wheelbase: Bottom Plate
Feature:
1.CNC metal on the cover in the shell.
2.High percision Taiwan-made aluminum gear with hard anodizing
3.High voltage coreless digital servo.
4.35kg Large torque
Brand:JX SERVO

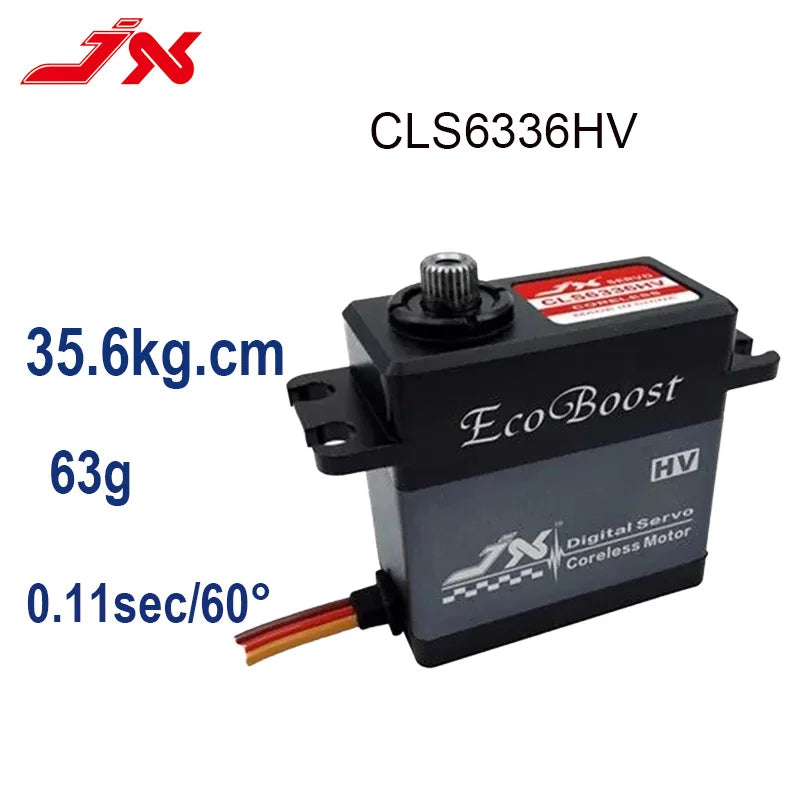

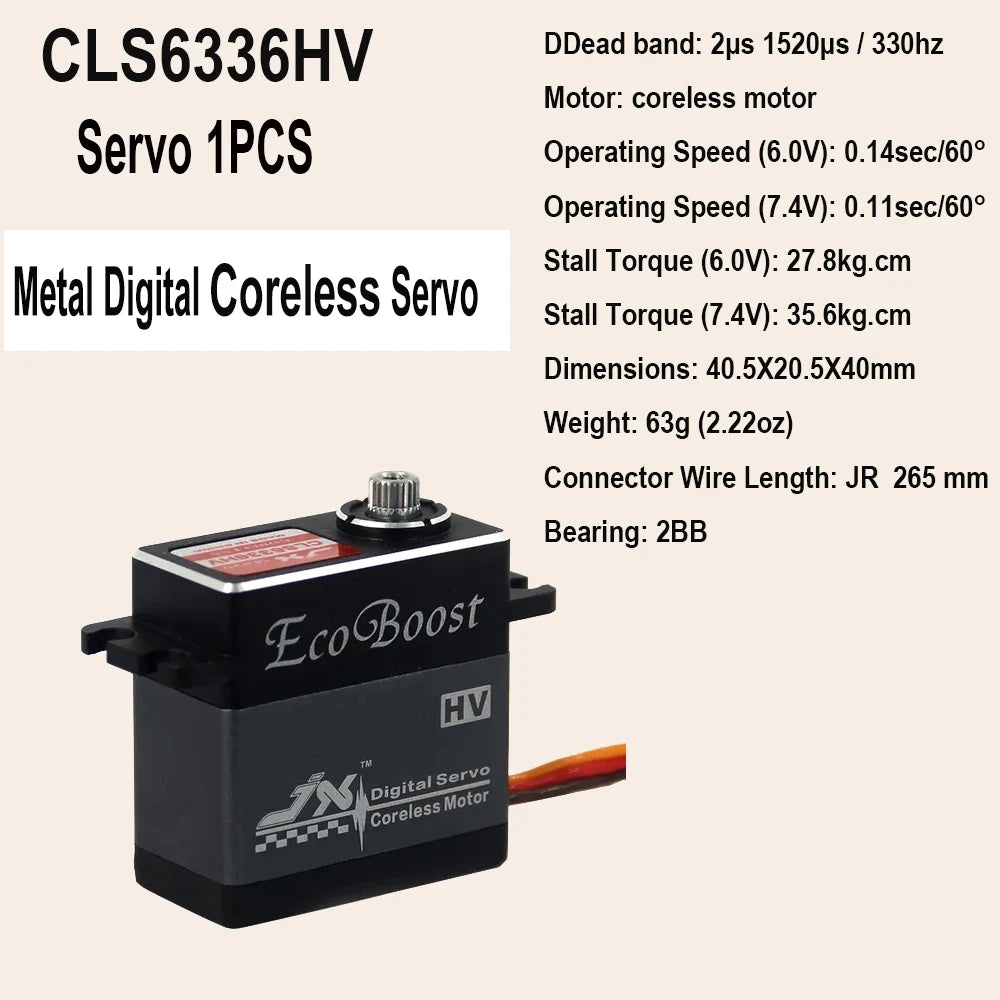

Model:CLS6336HV
Description:35kg Ecoboost Coreless Motor Serv
Dead band: 2μs 1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.14sec/60°
Operating Speed (7.4V): 0.11sec/60°
Stall Torque (6.0V): 27.8kg.cm (386.06oz/in)
Stall Torque (7.4V): 35.6kg.cm (494.37oz/in)

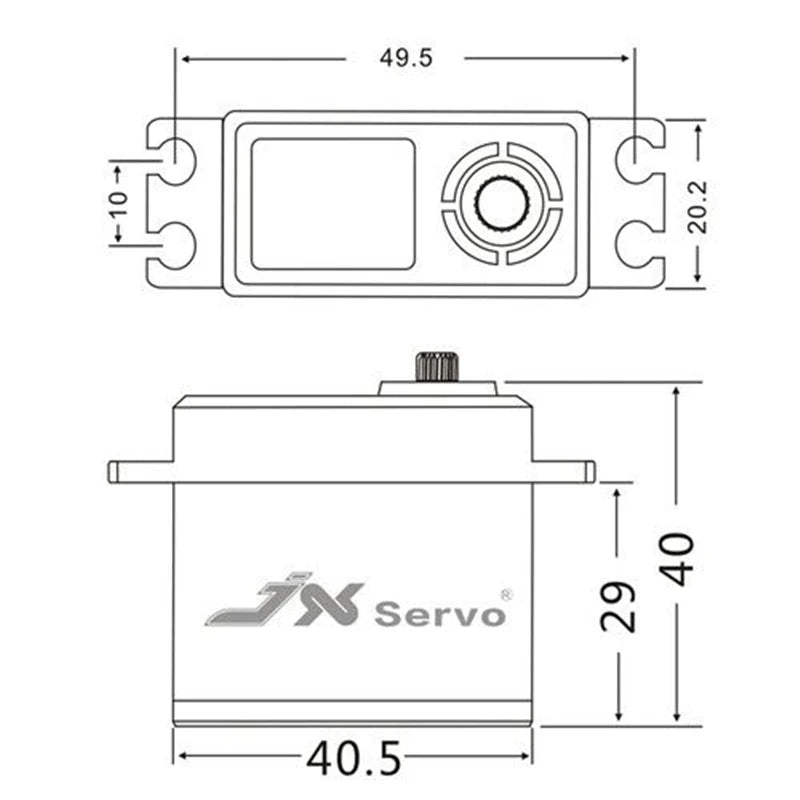

Dimensions: 40.5X20.5X40mm /1.59 X0.80X1.57in
Weight: 63g (2.22oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Brand: JX
Model:CLS6322HV
Dead band: 2μs 1520μs / 330hz
Motor: coreless motor
Operating Speed (6V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6V): 17.21 kg.cm (239.03oz/in)
Stall Torque (7.4V): 21.06kg.cm (292.46oz/in)
Dimensions: 40.5X20.5X40mm /1.59X0.80X1.57in
Weight: 63g (2.22oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Output gear: 25T

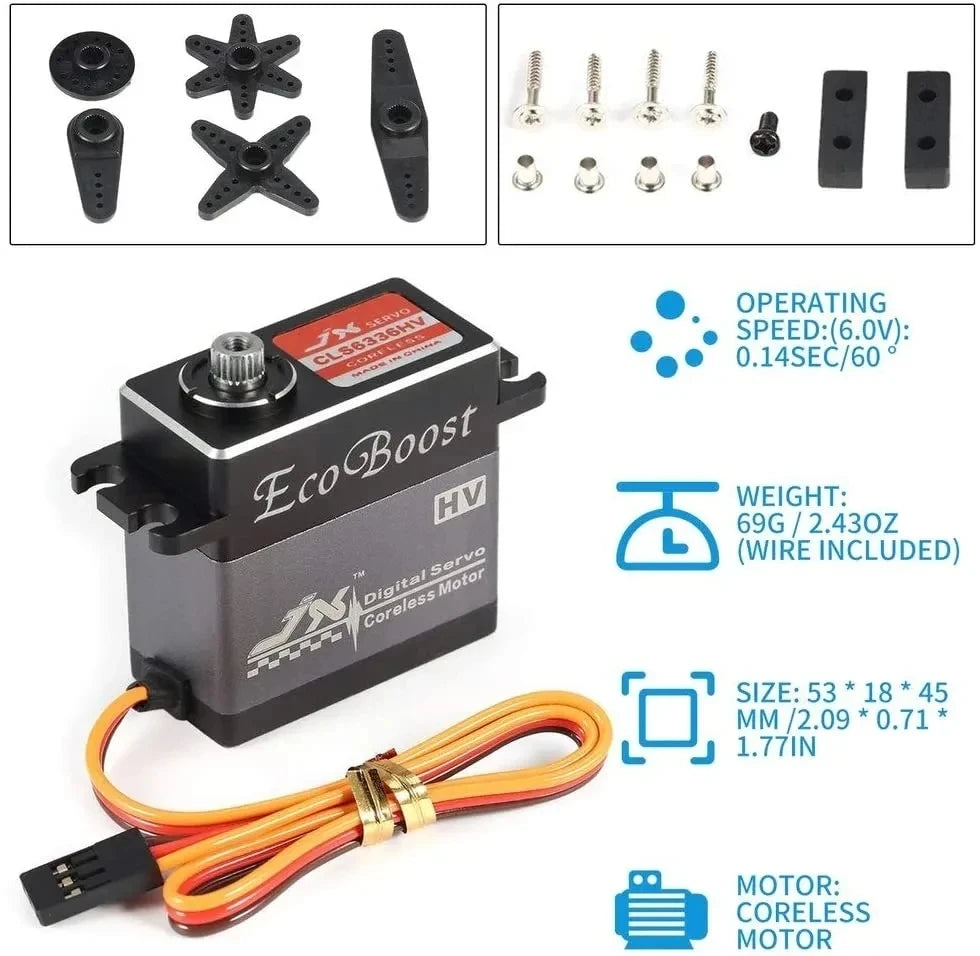

Package Included:
1xServo
1x Bag of Accessories
(included the servo Kit, servo plastic arm and screws)
JN CLS6336HV 7.4VI0.11sec 35KG Coreless Digital Servo For 1/10 RC Car/Helicopter EcoGBoost H servo Digital Motor Coreless
RC Helicopter Medical Equipment Airplane Diy Robotic Robot Boat RC Car Robotic RC U-boat Arm 25S 82 T EcoGBoost Dog Serve Dioitol Motor Coreless | Submarine
coreless motor This is JX CLS6336HV 6.0V-7.4V 0.11sec/6o? Digital Metal Gear Coreless Motor Servo 35 Torque E 0 IOp 6kg I .
JX CLS6322HV CLS6336HV,35KG Digital Servo,Ecoboost Aluminium,Shell Metal Gear HV Coreless Motor,For 1/8 RC Car Crawler Buggy
