KST DS113MG Servo - Digital Coreless Swashplate Servo Metal Gear For UAV 450 RC Helicopter Swashplate

Description:



Name: DS113MG Servo

Operating Voltage: 4.8V-6.0V

Size: 21*11.7*31.7mm

Torque:

2.2Kg cm 6.0V

1.8Kg cm 4.8V

Speed:

0.11sec/60° 6.0V

0.14sec/60° 4.8V

Working Frequence:

1520us/333Hz

800us-2200us

Ball Bearing: 2BB

Weight: 12g

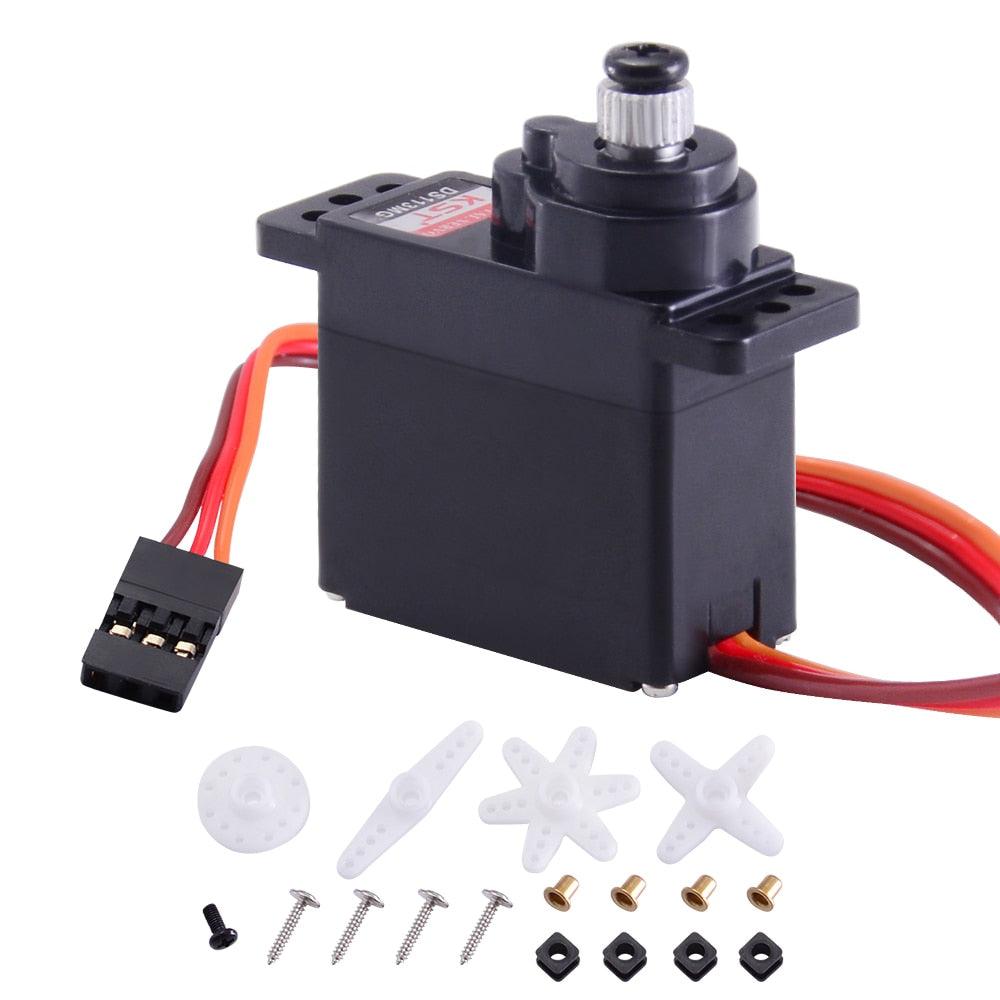

Packing:

1x DS113MG Servo

1x DS113MG Servo Set

Note: The light socket and the different screens can cause the color of the item in the image to be a little different from the actual one. The allowed measurement error is +/- 1-3 cm.





----------------

KST DS113MG Servo Review: Precision and Power for RC Helicopter Swashplate

The KST DS113MG servo is a high-quality digital servo designed specifically for use in RC helicopters, particularly for the swashplate mechanism. With its compact size, durable metal gears, and impressive performance specifications, the DS113MG servo offers precision and power to enhance the flight capabilities of your UAV 450 RC helicopter. Let's take a closer look at its features and specifications.

Compact and Efficient Design:
The DS113MG servo features a compact size, measuring 21mm x 11.7mm x 31.7mm, making it ideal for installations with limited space. Despite its small footprint, this servo doesn't compromise on power or performance. It utilizes a coreless motor design, which not only provides high efficiency but also ensures smoother and more precise movement.

Durable Metal Gears:
With its metal gear construction, the DS113MG servo offers excellent durability and reliability. The metal gears are designed to withstand the rigors of RC helicopter flying, providing robust performance and minimizing wear and tear. This ensures that the servo maintains its accuracy and responsiveness even during aggressive maneuvers.

Impressive Performance Specifications:
The DS113MG servo boasts impressive torque and speed ratings that are essential for smooth and precise control of the swashplate. It provides a torque of 2.2Kg cm at 6.0V and 1.8Kg cm at 4.8V, allowing it to handle the demanding requirements of helicopter flight. The servo's speed is equally remarkable, with a quick response time of 0.11sec/60° at 6.0V and 0.14sec/60° at 4.8V. This ensures rapid and accurate swashplate movement, contributing to overall flight stability and control.

Reliable Performance:
The DS113MG servo operates within an operating voltage range of 4.8V to 6.0V, providing flexibility in terms of power source compatibility. Its working frequency of 1520us/333Hz allows for precise control signals, ensuring smooth and accurate movements. The servo incorporates two ball bearings, which reduce friction and enhance overall durability.

Package Contents:
The DS113MG servo comes as a set, including one DS113MG servo and all the necessary components for installation.

In summary, the KST DS113MG servo is a reliable and powerful servo designed for RC helicopter swashplate applications. Its compact size, durable metal gears, and impressive torque and speed ratings make it a suitable choice for UAV 450 RC helicopters. Whether you're a hobbyist or a seasoned pilot, the DS113MG servo delivers precision and power to enhance the flight capabilities of your RC helicopter.
