MATEK  M10-L4-3100 - Mateksys AP_PERIPH GNSS SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,6-12y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

AP_PERIPH GNSS M10-L4-3100

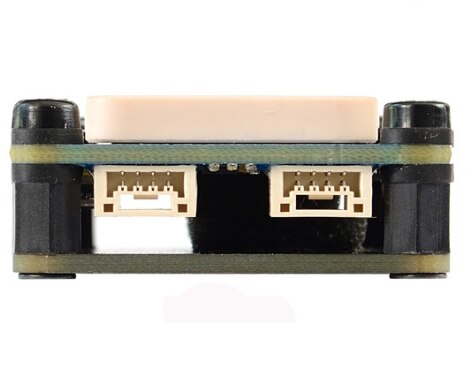

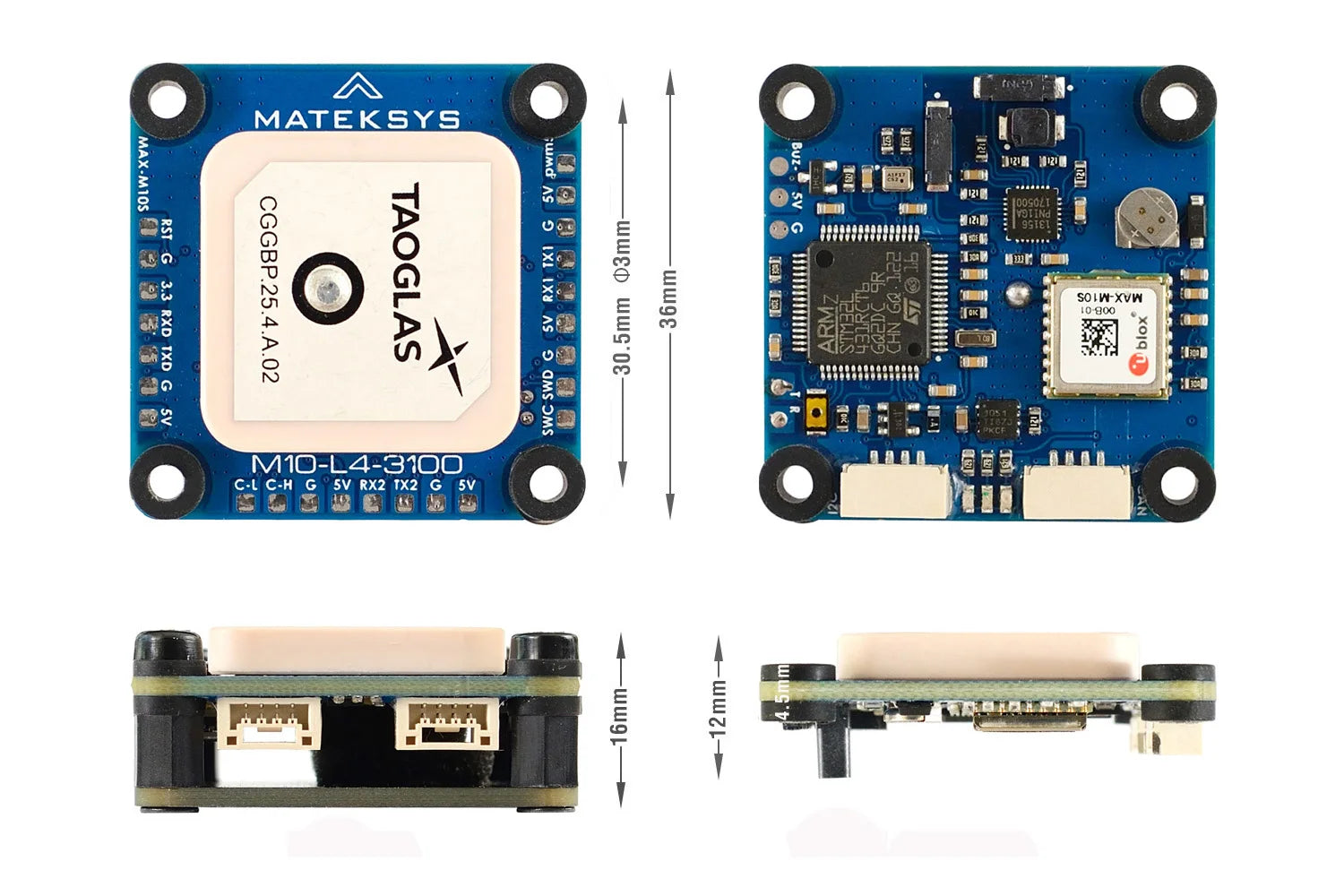

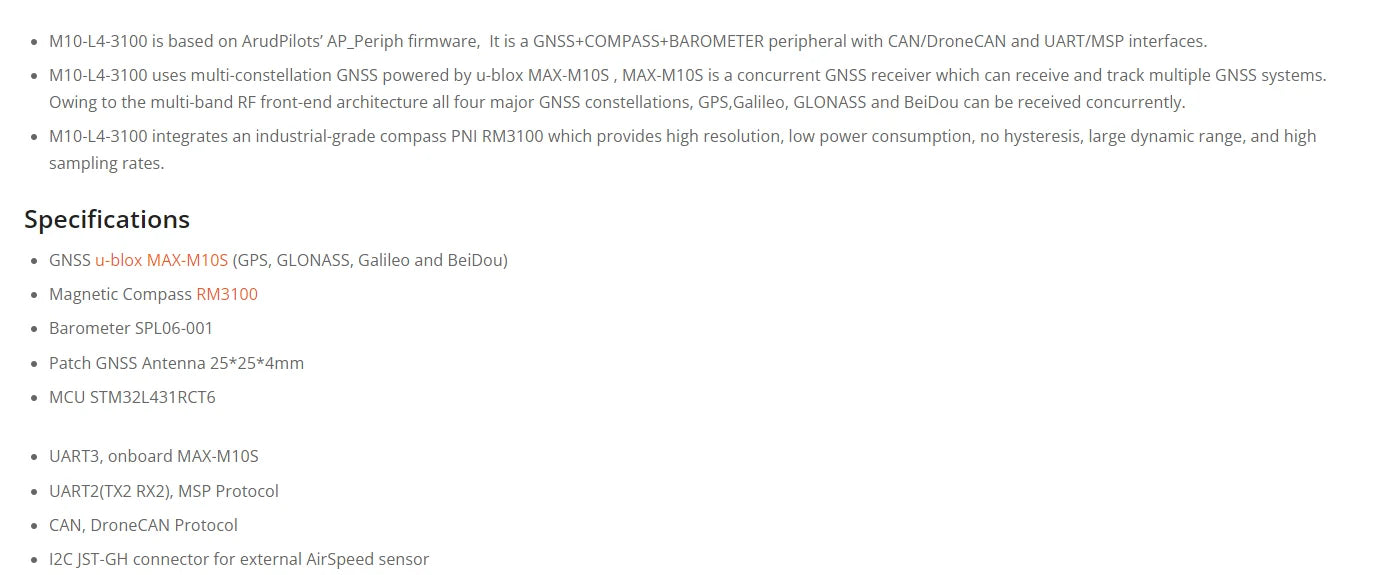

• M10-L4-3100 is based on ArudPilots’ AP_Periph firmware,  It is a GNSS+COMPASS+BAROMETER peripheral with CAN/DroneCAN and UART/MSP interfaces.

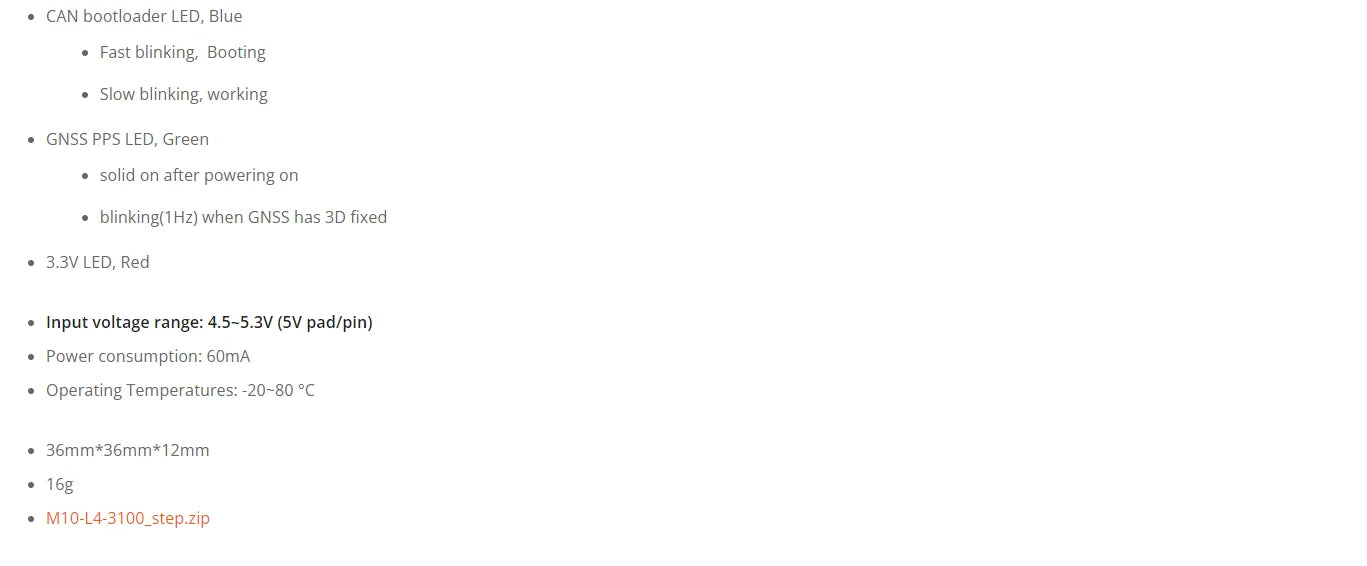

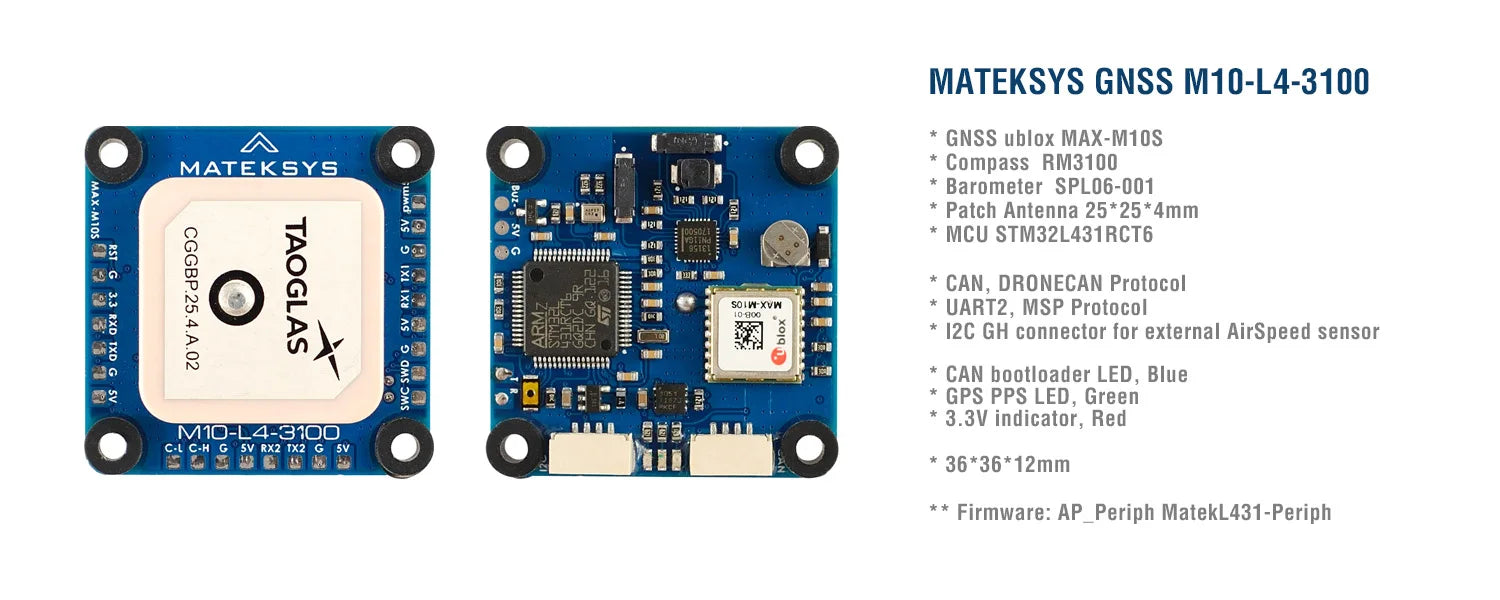

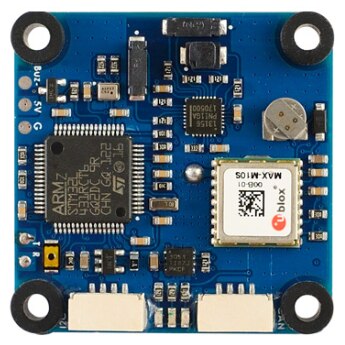

• M10-L4-3100 uses multi-constellation GNSS powered by u-blox MAX-M10S , MAX-M10S is a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

• M10-L4-3100 integrates an industrial-grade compass PNI RM3100 which provides high resolution, low power consumption, no hysteresis, large dynamic range, and high sampling rates.

the default configuration on MAX-M1OS with ublox FWS . is concurrent reception of GPS, Galileo, and BeiDou BI with QZSS and SBAS enabled . GLONASS is disabled by default Beidou B1I (1575.42 MHz) and cant be enabled at the same time .

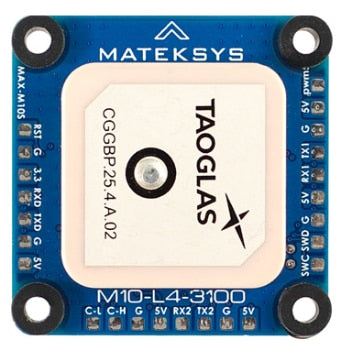

CAN (UAVCAN protocol) Connection

• M10-L4-3100 5V          — FC  4.5V ~ 5.3V

• M10-L4-3100 CAN-H  — FC  CAN High

• M10-L4-3100 CAN-L    — FC  CAN Low

• M10-L4-3100 G            — FC  G/GND

FC UAVCAN Parameters(ArduPilot)

• CAN_D1_PROTOCOL -> 1

• CAN_P1_DRIVER -> 1

• GPS_TYPE -> 9 (DroneCAN)

• COMPASS_TYPEMASK -> 0 (make sure DroneCAN Unchecked)

————————————————————————–

If you connect I2C airspeed sensor to I2C port of M10-L4-3100

• ARSPD_TYPE -> 8 (UAVCAN)

• ARSPD_USE -> 1

And you must set CAN Node parameters for airspeed sensor connected to I2C port of M10-L4-3100

Mission Planner > Initial Setup > Optional Hardware > UAVCAN >  SLCan Mode CAN1  > Parameters

• MS4525   ARSP_TYPE -> 1  (default in hwdef)

• MS5525   ARSP_TYPE -> 3    supports MS5525 with address 0x77 only

• SDP3X     ARSP_TYPE -> 6

• DLVR-L10D    ARSP_TYPE -> 9

• Write and reboot

————————————————————————–

If you connect 2812LED DIN to PWM5 pad

• NTF_LED_TYPES ->  (make sure DroneCAN is checked)

SLCan Mode CAN1  > Parameters

• OUT5_FUNCTION 120

• NTF_LED_TYPES 455

• AP_Periph fw must be  “MatekL431-Periph”,   MSP feature is disabled in “MatekL431-GPS”

UART (MSP protocol) Connection

• M10-L4-3100 5V    — FC 4.0V ~ 5.3V

• M10-L4-3100 TX2  — FC  spare UART_RX

• M10-L4-3100 RX2  — FC  spare UART_TX (not essential)

• M10-L4-3100 G      — FC  G/GND

ArduPilot (since 4.1.x) FC Parameters

• Serialx_PROTOCOL  = 32  (MSP) where x is the SERIAL port used for connection on autopilot.

• Serialx_BAUD = 115    where x is the SERIAL port used for connection on autopilot.

• GPS TYPE = 19 (MSP)

• BARO_PROBE_EXT  = 4096  (MSP Baro)

• BARO_PRIMARY = 1  (If you want to use MSP baro as primary baro, otherwise leave as default)

• COMPASS_TYPEMASK  0   (or make sure MSP bit is not checked)

INAV (since 2.6) FC Parameters

• M10-L4-3100 is compatible with any flight controller supported by INAV over a spare UART.

• In ports tab, Enable MSP on corresponding UART that M10-L4-3100 connected,  DO NOT enable “GPS” on that UART.   select Baudrate 115200.

• feature GPS

• set gps_provider = MSP

• set mag_hardware = MSP

• set baro_hardware = MSP

• set align_mag = CW90,   if compass is mounted flat with arrow facing forward, and flight controller arrow is facing forward also.
