T8FB 8-channel RC Transmitter and Receiver

8-Channel dual stick transmitter for airplane, drone, fixed wing, quadcopter, car, boat and more. FHSS pseudo random algorithm communication technology makes T8FB with stable signal and interference free.

Fast response for 8 channels, outstanding control distance up to 1.3miles (2km) in air. (actual control distance is according the local environment). Light weight, ergonomically designed for adult or teenager hands.

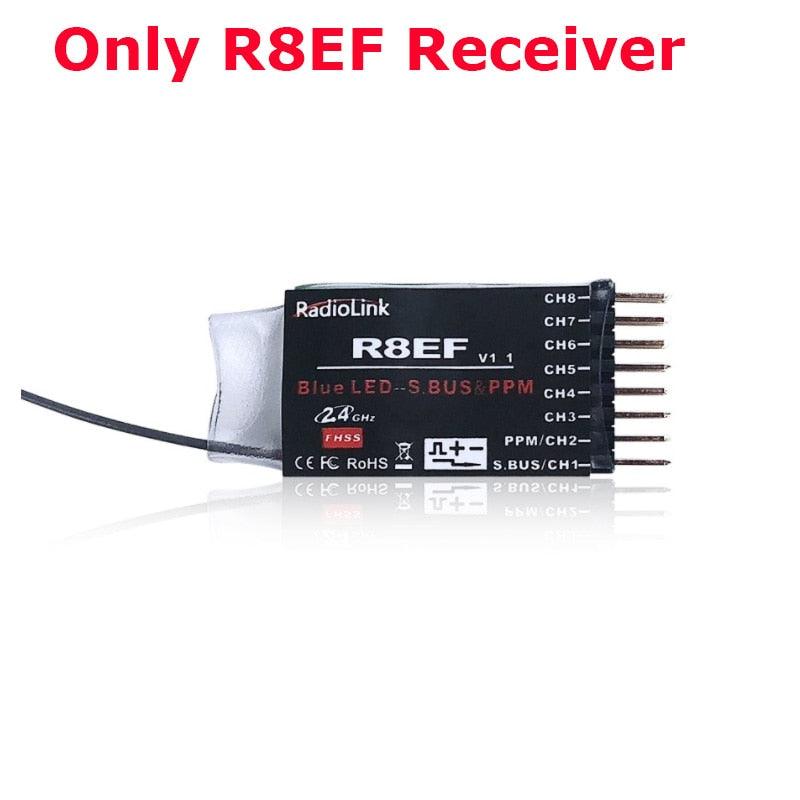

Package include R8EF 8 Chanels Receiver

2.4G 8 channels receiver support PWM/PPM/SBUS signal output, with 1.3 Miles long range control

• Bind Code: press the bind button 1 second and release.

• Signal Change: quick press the Bind Button twice within 1 second,

• The red LED indicates the PWM,blue/purpleLED indicates S-BUS&PPM.

• Sold separately mini receiver R8FM: B07FSG5HXR

TBFB(T8S) is a fixed-wing twin-engine vehicle . it can be programmed with any two channels and each channel can be customized . the t8S is compatible with a variety of mobile devices including smartphones and tablets .

The Radiolink T8FB radio controller is compatible with JST (2-pin) connectors featuring reverse polarity. It covers a wide range of aircraft applications, including fixed-wing airplanes, gliders, and quadcopters, and can easily be adapted for use with various batteries, such as 4x AA-powered trucks, tanks, boats, and more.

MINI APP Wide Operating Voltage Tolerance Mini Receiver APP Param_ Battery Polarity Control Operating current FHSS& 67 Channels Pseudo-Random 8CH Complete Functions SBUS/PPMPWM of 80mA Frequency Hopping Set

The T8FB (BT) has a control distance of approximately 2,000 meters (1.24 miles) in open air environments. It uses the same Frequency Hopping Spread Spectrum (FHSS) algorithm as the AT9S Pro, with a pseudo-random frequency sequence hopping across 67 channels.

The optimal design of the PCB layout ensures a maximum PWM jitter of 1.84 microseconds, which is significantly lower than the standard of just 0.5 microseconds. The same joysticks used in this product are identical to those found in the AT9S Pro.

The Radiolink T8FB 2.4GHz 8-channel RC radio transmitter and receiver, when paired with the R8EF dual stick remote controller for airplanes, boats, cars, or robots, offers advanced features such as real-time model data feedback, allowing users to receive information on the transmitter voltage and RSSI (Received Signal Strength Indicator). Additionally, this system supports basic and advanced servo control, as well as mixing and programming of up to 7 channels. Version V7.1 includes features like vibration channelization, master/slave mode, and more.

The RBEF standard receiver outputs SBUS, PPM, and PWM signals, featuring a super-lightweight design weighing only 2g (0.070 oz) and measuring 18 x 13mm (0.70

The Radiolink T8FB transmitter and receiver are adaptable to various models, including fixed-wing aircraft, gliders, multi-copters, cars, boats, and robots. The receiver also features an 21cm (8.27

The flight modes are set using the two 3-way switches on the R8EF dual stick remote controller by default. This makes it easy for beginners to use T8FB without needing a manual, as they can access basic, advanced, and system settings through the controller's menu options.

RadioLink's voltage protection software safeguards both the transmitter and receiver from damage caused by a reverse polarity connection.

The Radiolink T8FB radio transmitter and receiver set comes equipped with an included 3S 180mAh LiPo battery, which provides more than 20 hours of RC fun.

4.8V18V Universal JST connector allows T8FB(BT) easily adapted for various layouts: 4pcs AA batteries or a 2S-4S LiPo 8 battery: T8FD, 8 battery .

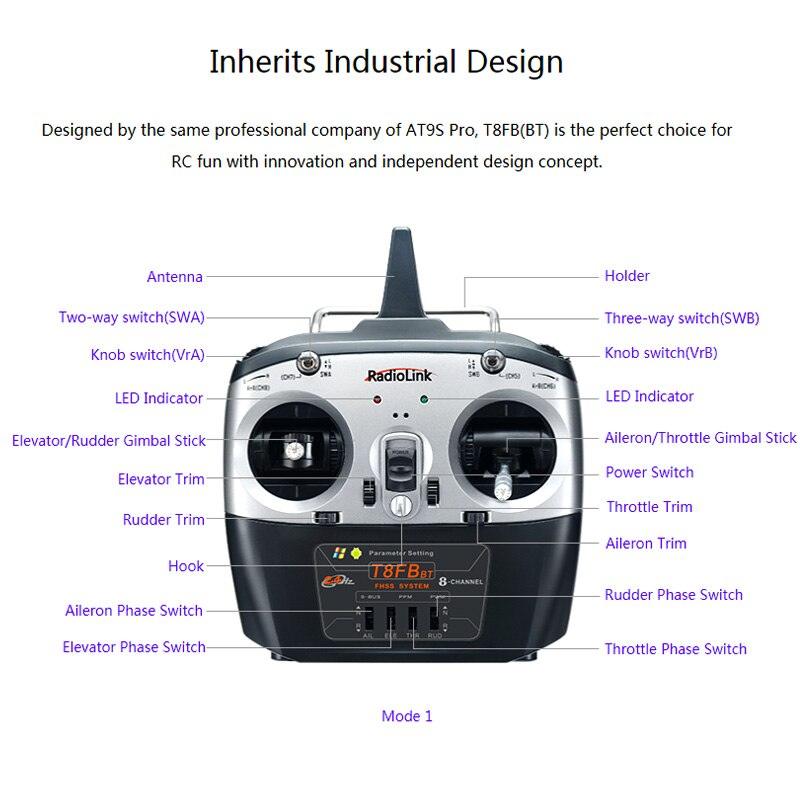

Inherits Industrial Design Designed by the same professional company of AT9S Pro, T8FB(BT) is the perfect choice for RC fun with innovation and independent design concept .

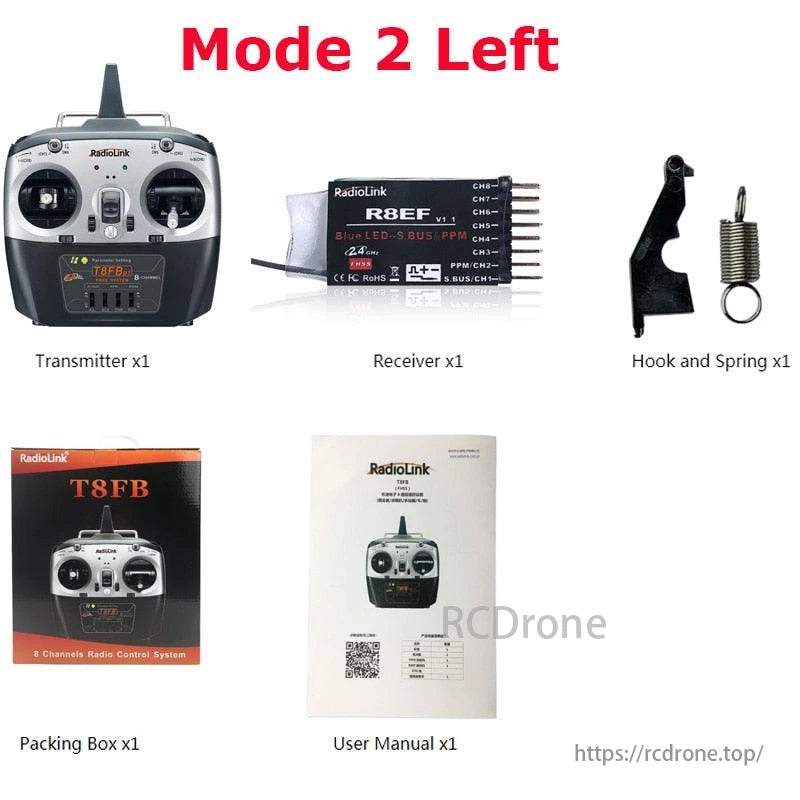

Package contents include: Radiolink T8FB Transmitter, Radiolink R8EF Receiver, Hook and Spring, Wende TSFB Packing Box, User Manual. Additionally, a separate package contains the Radiolink T8FB (Bluetooth) components.
