SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Origin: Mainland China

Model Number: T8FB

Material: Plastic

Certification: CE

Brand Name: abay

Brand Name: RadioLink

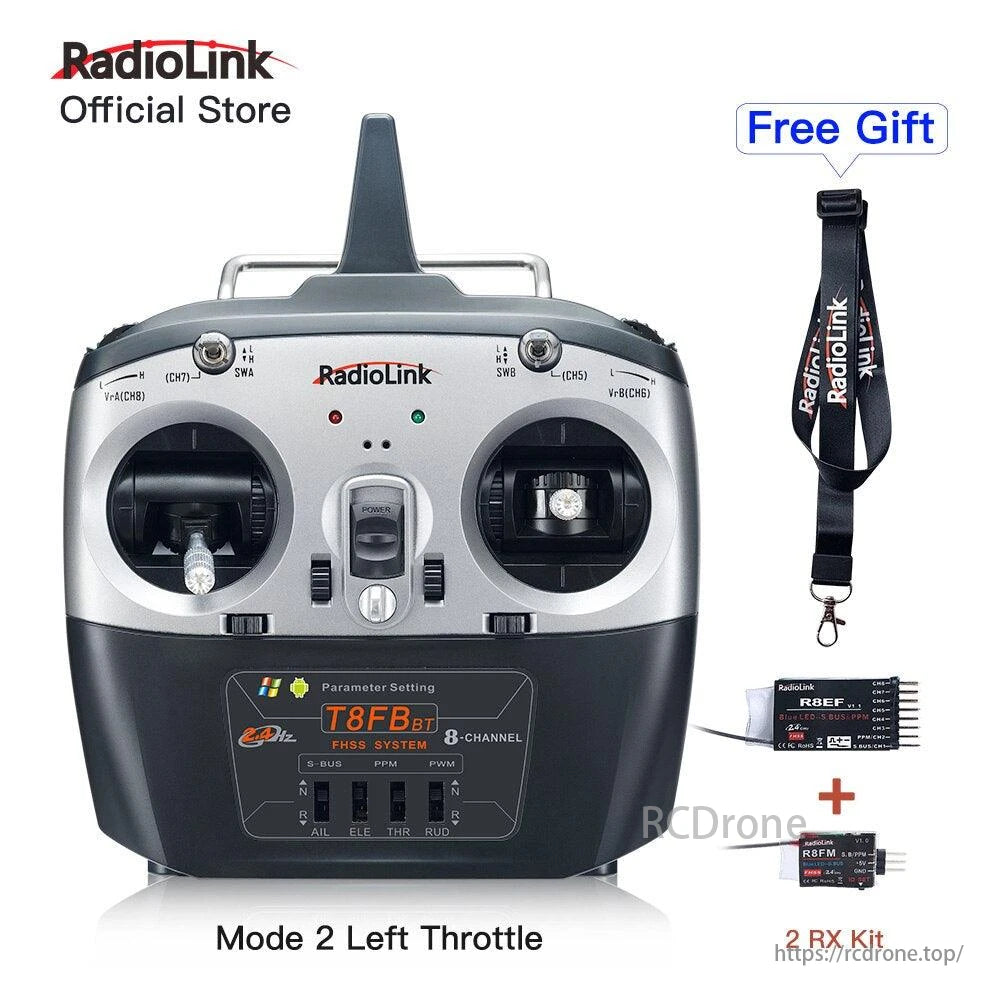

Radiolink T8FB 8CH RC Transmitter and Receiver R8EF 2.4GHz Radio Controller SBUS/PPM/PWM for Drone/Fixed Wing and More Radiolink is a high technology manufacturing company dedicated to researching, manufacturing and marketing of RC model radio transmitters. Our products included: RC transmitter, flight controller, receiver, GPS, drone etc. We are committed to providing customers with a high reliability and high performance product solution, as well as providing technical support and friendly after-sales service.

Please Note:

Please chooseMode 1orMode 2as you need!

The operation menu ONLY support English and Chinese. Please contact us when you need full user manual.

T8FB 8ch radio controller features:

• 【8 Channels】: fast response synchronously for 8CH, the FHSS spread spectrum to keep the excellent anti-interference, with programmable mix function that 5th-8th channels can be programmable mix control, it's a good choice for fixed wing.

• 【Newbie Choice】: support basic menu and advanced menu, easy to bind and set up. Only takes 2 second to bind and do not need complicated seting parameter with Android phone App.

• 【Anti-polarity Protection】: unique anti-polarity connect protection. Universal JST connector supports multiple batteries: 4 pcs AA or 2s-4s LiPo battery. (Not included batteries)

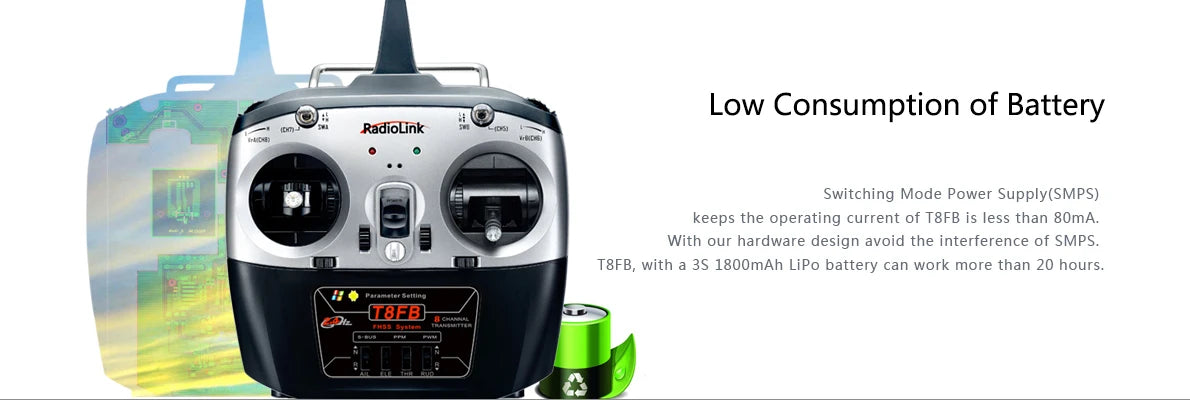

• 【Low Consumption of Battery】: Swithing mode power supply keeps the operating current of T8FB is less than 80mA. A 3s 1800mAh liPo battery can work more than 20 hours.

• 【Suit for Multiple Models】: T8FB rc controller suitable for racing drone, fixed-wing, quadcopter, multiple rotors, RC boat and car.

T8FB Rc Transmitter Specifications:

• Channels: 8ch

• Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

• Channel Bands width: 1200KHz

• Spread Spectrum: FHSS

• Adjacent Channel rejection: >38dbm

• Transmitter Power: <100mW (20dBM

• Operating Voltage: 4.8V~18V

• Sensitivity: -104dB

• Speed Rate:38kbps

• PWM Output: 1.0ms~2.0m

• Size: 17.3*10.2*20.6cm

• Weight: 0.74kg

R8EF Receiver Specifications

• Signal output: S-BUS & PPM & PWM

• Channel: 8ch

• Control Distance: 1000m on air

• Working Voltage: 4.8-10V

• Working Current: 19-25mA(input voltage 5V)

• Section precision: 4096

• Size: 4.8*2.1*1.1cm

• Weight: 11g

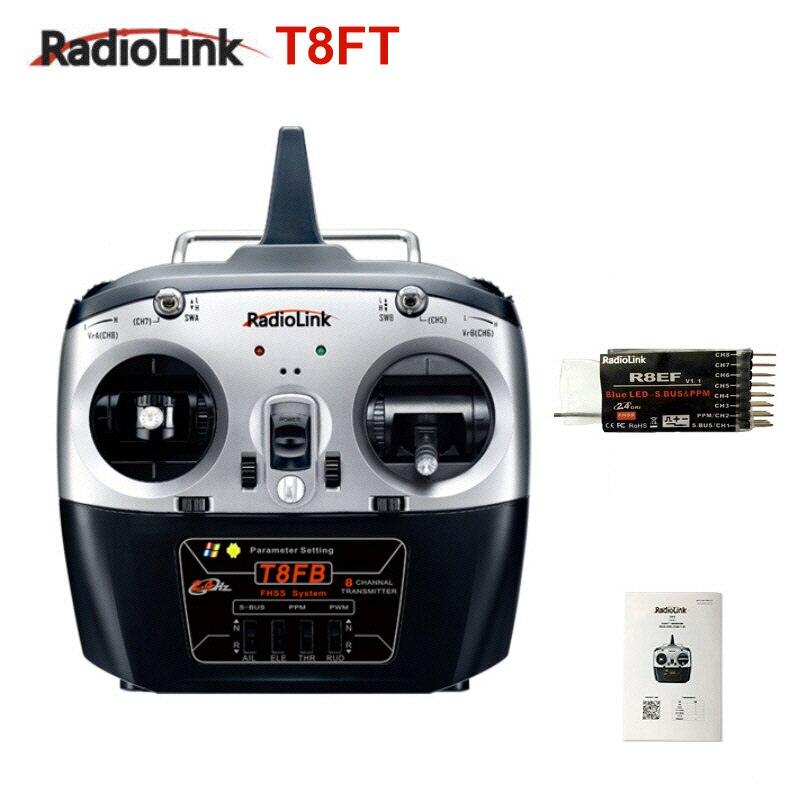

Package Included:

• T8FB  x 1

• R8EF receiver x 1

• OTG Cable x

• Spring Accessories x 1

• User Manual x 1

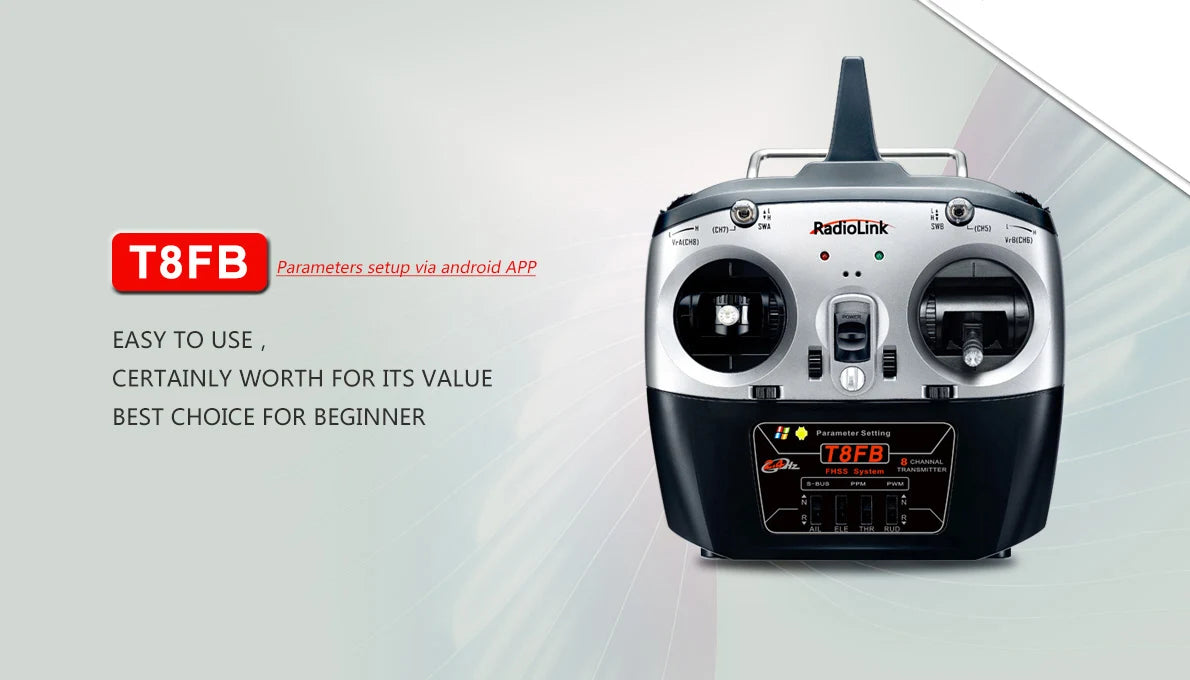

IcTI RadioLink = IcS) VerichO) VrB cHD T8FB Parameters setup via android APP EASY TO USE CERTAINLY WORTH FOR ITS VALUE .

4.8-18V wide range of operating voltage, mini receiver with USB upgrade, anti-plug protection, 8-channel full function FHSS (Frequency Hopping Spread Spectrum) module supports SBUS, PPM, and PWM protocols for drone or fixed-wing applications.

The Radiolink T8FB boasts superior anti-interference capabilities and control range, boasting a significant 14 times greater distance than other popular drone transmitters. Furthermore, its signal jitter is remarkably low at just 7us, outperforming many competing products in this regard.

This transmitter simultaneously supports S-BUS, PPM, and PWM signals, eliminating the need for multiple cables or signal converters. This design reduces aircraft weight and allows for simplified control, making it easier to operate the gimbal and landing gear.

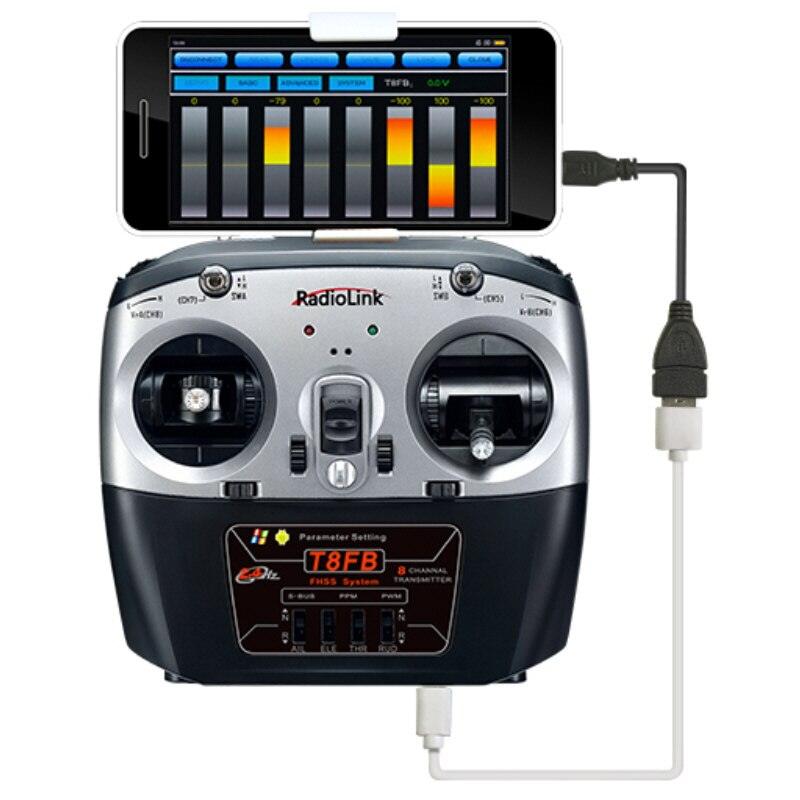

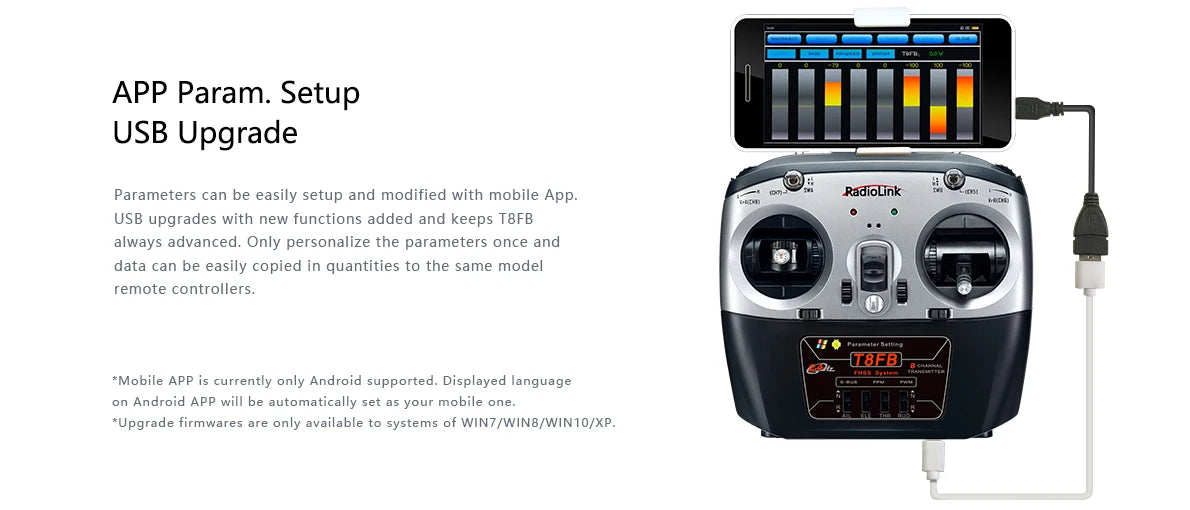

Setup your USB upgrade parameters using the Radiolink mobile app, which allows you to easily modify and customize new functions while keeping your T8FB always up-to-date. Once you've personalized your settings, you can copy the data in bulk quantities to the same model remote controllers.

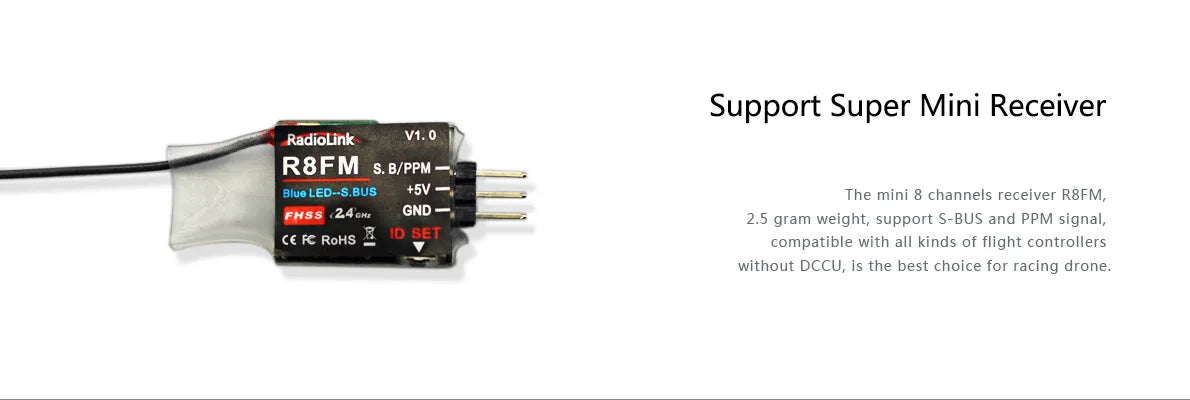

This ROHS-certified product (CE FC RoHS 2 ID SET) is fully compatible with various flight controllers and is an excellent choice for racing drones that do not require a dedicated CAN bus controller unit (DCCU).

The Radiolink T8FB transmitter and receiver are suitable for most fixed-wing aircraft, including those with two airfoils or three rear surfaces. The receiver's 21cm-long antenna makes it particularly well-suited for RC boat applications.

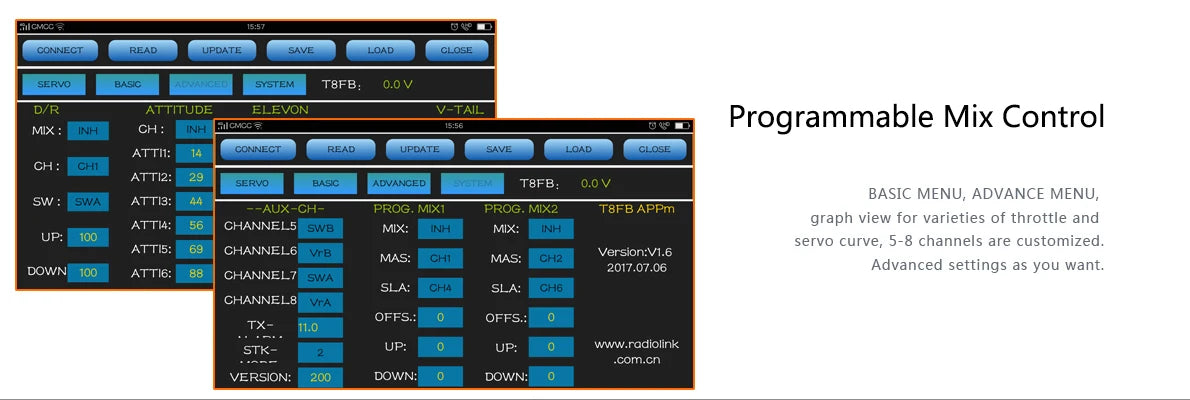

Easy to read, update, save, and close series. Radiolink T8FB: 0-100V D/R (Direction/Rate) attitude elevator tail.

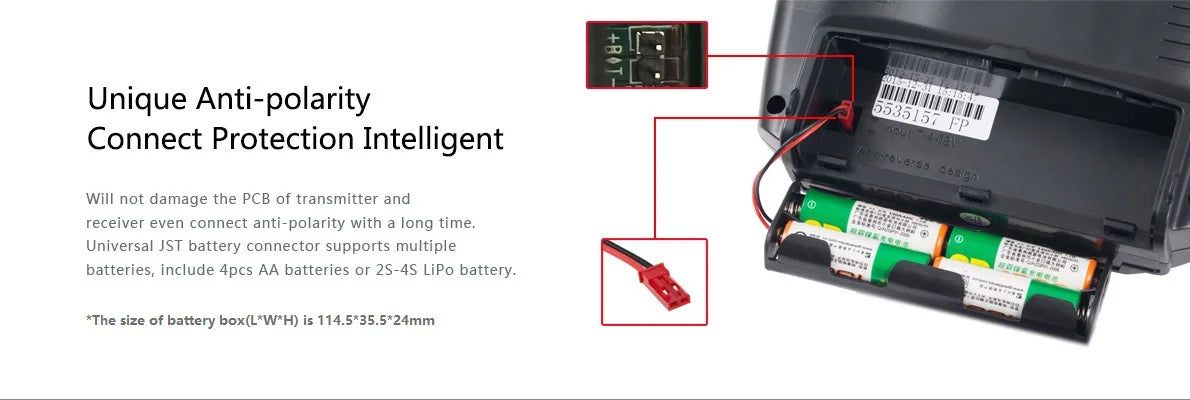

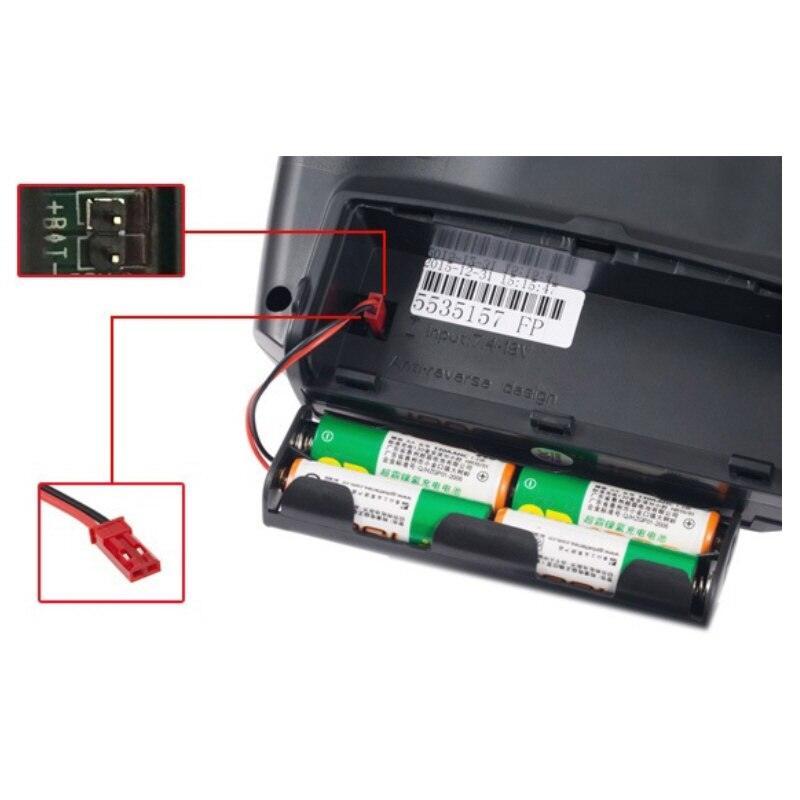

The universal JST battery connector supports multiple power sources, including 4 AA batteries or 25-4S LiPo batteries. Additionally, it features anti-polarity protection (053515), which prevents damage to the PCB of the transmitter and receiver even if the polarity is incorrectly connected for an extended period.

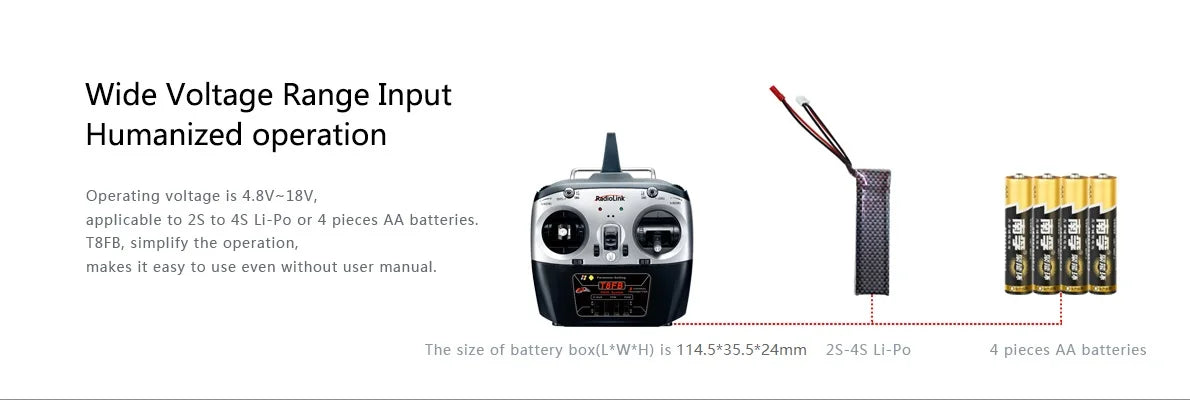

The Radiolink T8FB transmitter is powered by 4 x AA batteries or compatible with 2S to 4S Li-Po batteries. This simplifies operation, making it easy to use without requiring a user manual.

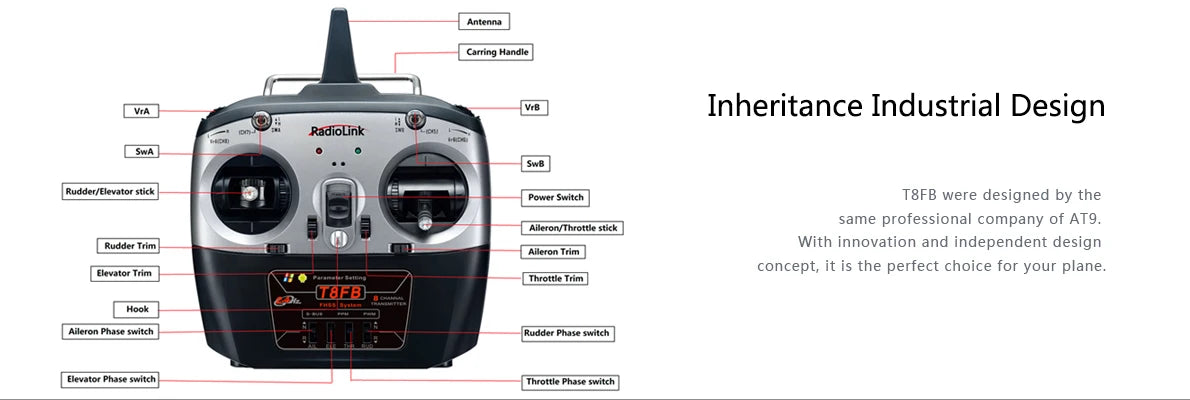

The Radiolink T8FB transmitter was designed by the same professional company that created the AT9, featuring innovative and independent design elements, including the Alcton Tune Elevator Trim concept. This makes it an excellent choice for your plane.

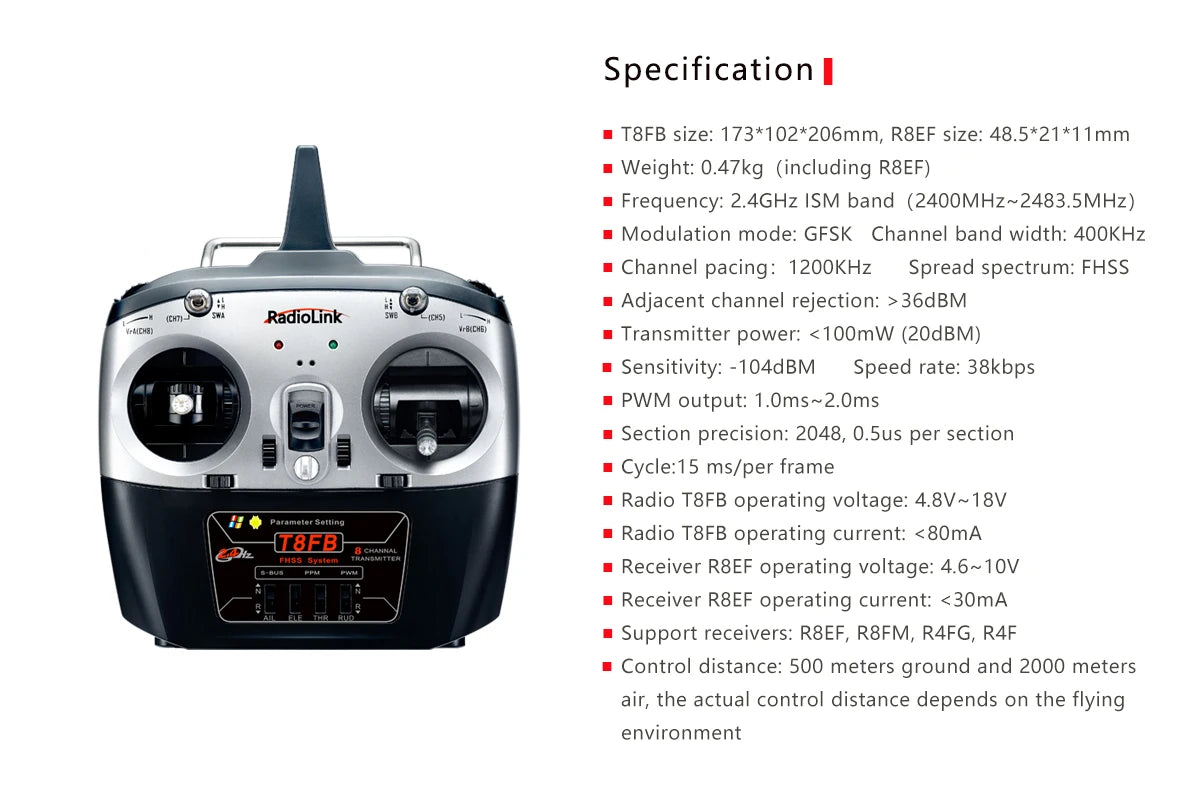

The Radiolink T8FB 8CH RC Transmitter and Receiver R8EF 2.4GHz Radio Controller features the following specifications: transmitter dimensions are 173mm x 102mm x 206mm, receiver dimensions are 48.5mm x 21mm x 11mm, with a total weight of 0.47kg including the receiver. The system operates on the 2.4GHz ISM band (2400MHz-2483.5MHz), using GFSK modulation mode and has a channel bandwidth of 400kHz, channel spacing of 1200kHz, transmitter power of 100mW (20dBm), sensitivity of -104dBM, and a transmission speed rate of 38kbps.
