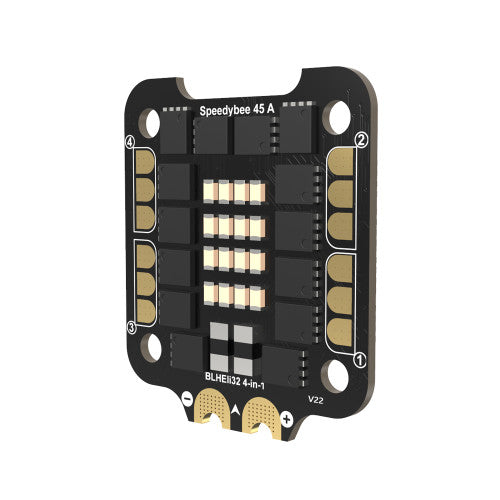

• SpeedyBee BLHeli32 45A 128KHz 4-in-1 ESC, Speedy Bee BLHeli32 45A 128KHz 4-in-1 ESC for drones and other applications.
  • SpeedyBee BLHeli32 45A 128KHz 4-in-1 ESC(V22)
  • SpeedyBee BLHeli32 45A 128KHz 4-in-1 ESC(V22)
1 4

SpeedyBee BLHeli32 45A 128KHz 4-in-1 ESC(V22)

SpeedyBee BLHeli32 45A 128KHz 4-in-1 ESC(V22)

SpeedyBee

$79.00 USD
$79.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

158 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SpeedyBee BLHeli32 45A 4 in 1 ESC Specifications

Firmware BLHeli32 SpeedyBee 4in1
Continuous Current 45A * 4
Burst Current 55A(10S)
ESC Protocol DSHOT300/600/1200
Power input 3-6S Note: Strongly recommended to solder the filtering capacitor between VBAT"+" and" -"
Power output VBAT
Current Sensor Support (Scale 168)
ESC Telemetry Support
Mounting 30.5 x 30.5mm, 4mm hole size
Dimension 41 * 45 * 6.5mm
Weight 12.5g
Supported Motor 1900KV or below should be needed for 6S





Details



NOTICE:
For earlier batches V2/V21 ESC, if you're running BLHeli32 Rev32.8 firmware, please don't enable bidirectional
DShot in Betaflight. To use the bidirectional DShot feature, make sure to upgrade to Rev32.9 firmware.
V22 ESC doesn't have the issue.
Learn more
SpeedyBee Stack

SpeedyBee Stack

Real Performance ESC: 45A continuous, 55A burst; 2-6S input; BLHeli_32; Dshot 600/1200; 21 filtering capacitors.

SpeedyBee Stack

When we say 45A, we mean it: built with the finest components, our latest flagship ESC is nothing but pure performance. It features real 45A output, making it ready for your most powerful 6S motors.

SpeedyBee Stack

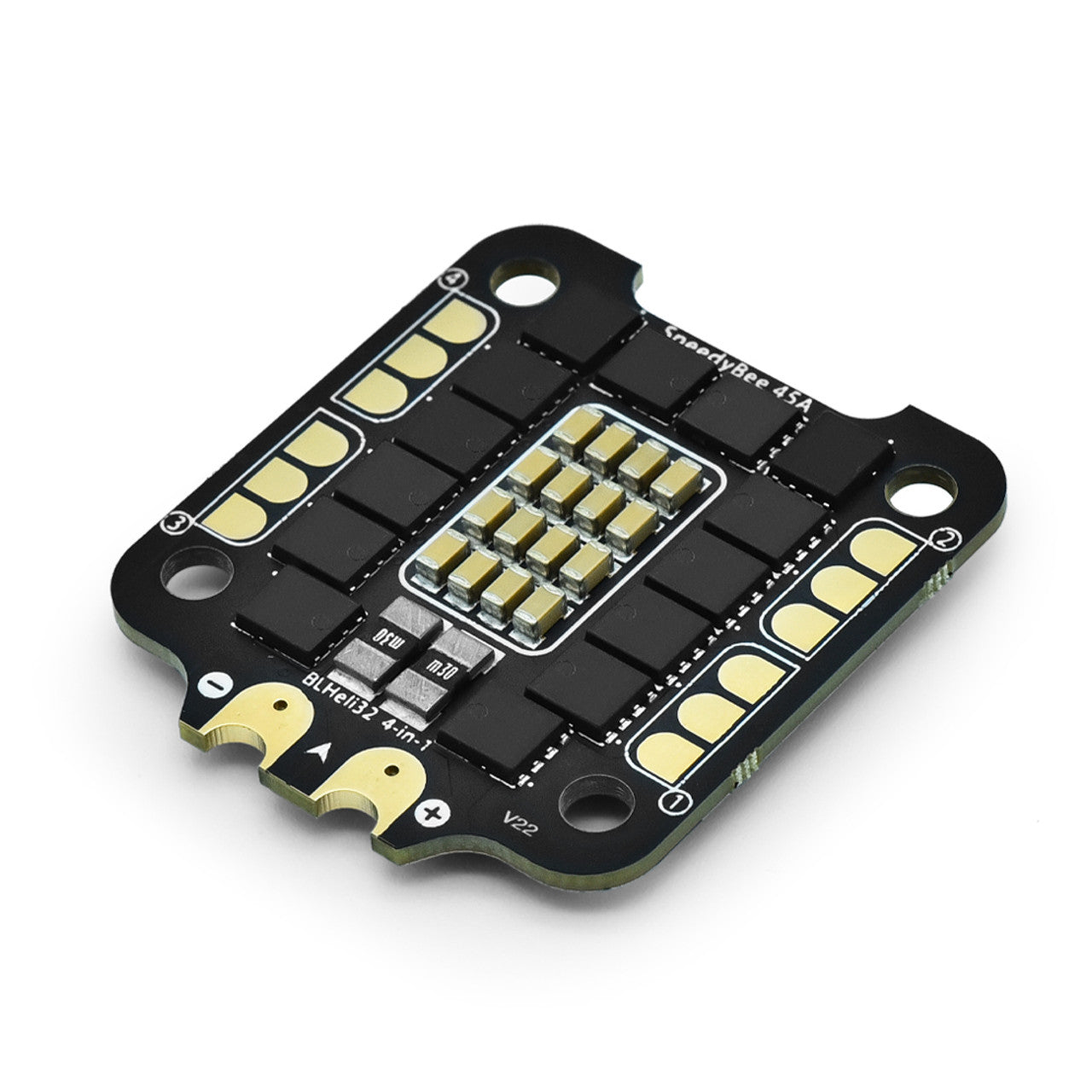

SpeedyBee BLHeli32 45A 128KHz 4-in-1 ESC (V22) features 811 via holes optimally positioned for fast current flow across the board.

SpeedyBee BLHeli32 45A 128KHz 4-in-1 ESC, SpeedyBee Stack

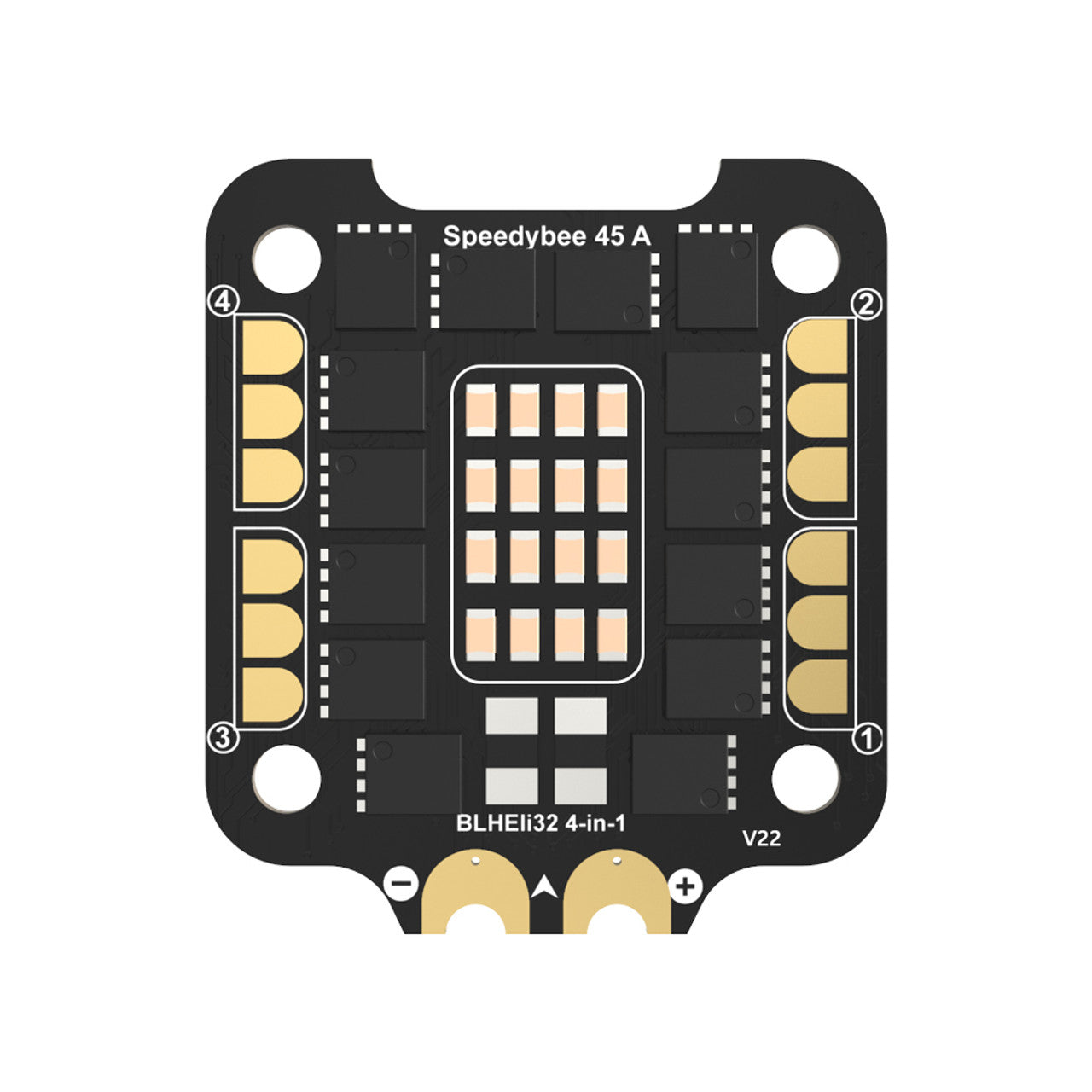

Layout
SpeedyBee Stack

SpeedyBee BLHeli32 45A 128KHz 4-in-1 ESC (V22): MOSFET: NTO43NL, Filtering Caps: 47uF x 16, Ammeter Input Voltage: 3~65V LiPo, Connector: 8P JST to FC, MCU Filtering Caps: 47uF x 5, Continuous Current: 45A, Burst Current: 55A (10s), Firmware Name: SpeedyBee 4in1 ESC Protocol: DSHOT300/600/1200

Package
SpeedyBee Stack

SpeedyBee BLHeli32 45A 128kHz 4-in-1 ESC (V22) features a 45A continuous current, 128kHz frequency, and supports 4-in-1 mode. It includes a capacitor, XT60 cable, JST 8PIN cable, M3 silicone rings, and anti-vibration grommets.
