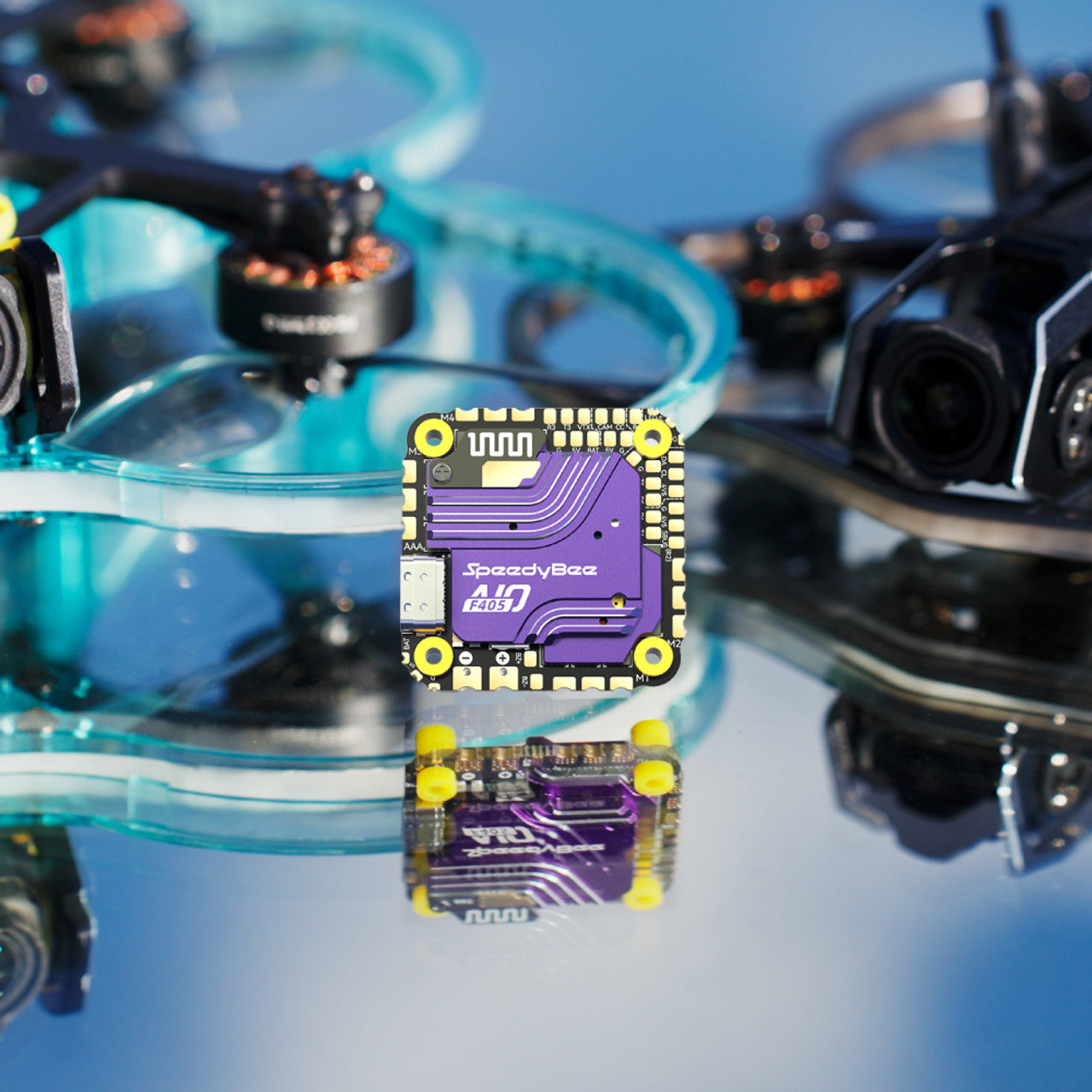

SpeedyBee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller

The Speedy Bee F4-40A BlueJay flight controller features a compact design, compatible with 3-6S batteries, and offers unmatched value for its performance and reliability in the skies.

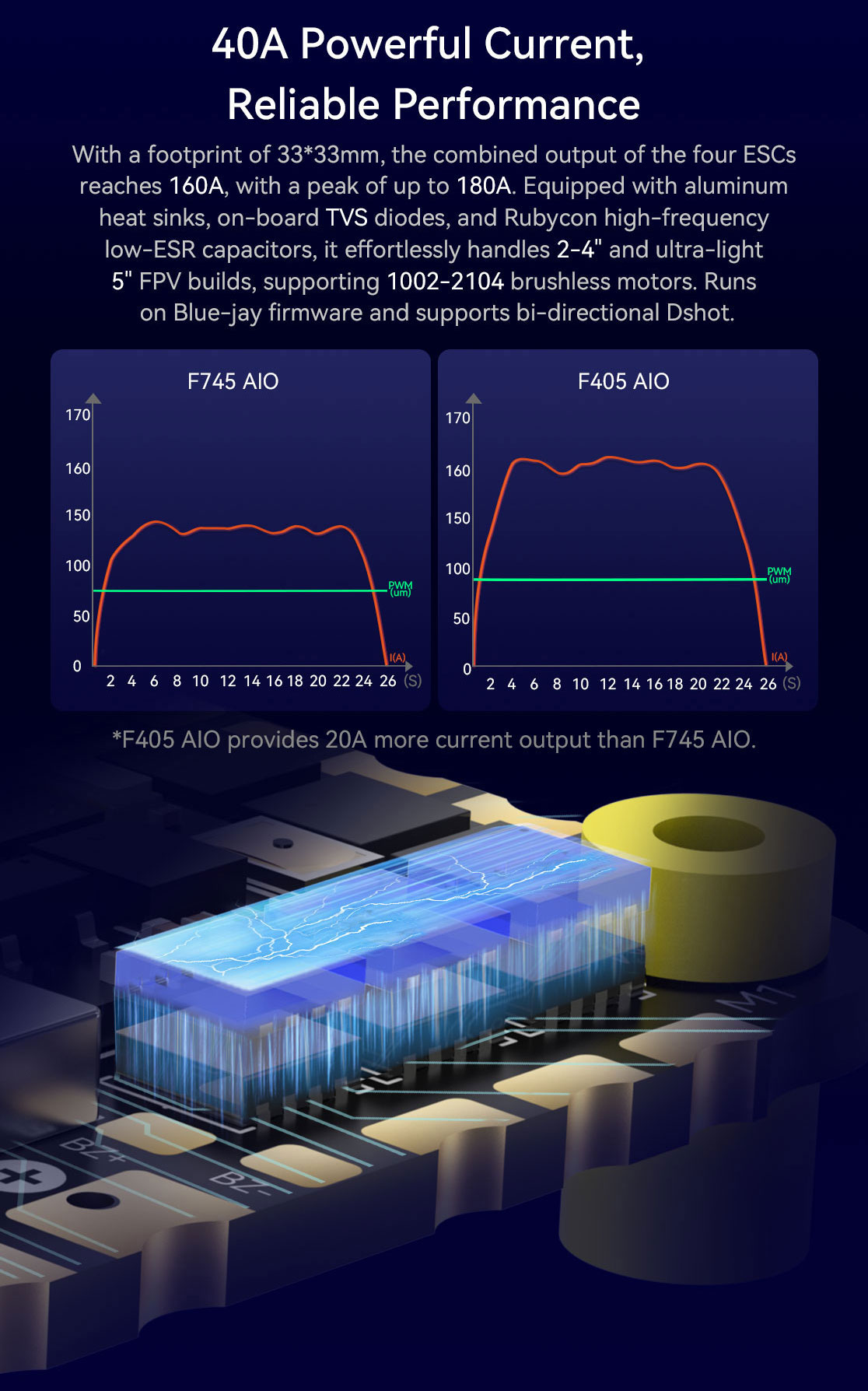

The SpeedyBee F405 AIO is a powerful flight controller designed for reliable performance. With a compact footprint of 25.5x25.5mm, it features four ESCs combined to deliver up to 40A of current output. Equipped with aluminum heat sinks and high-quality components like Rubycon capacitors, it handles 3-6S FPV builds effortlessly, supporting motors up to 1002-2104 brushless. The controller runs on Bluejay firmware and supports bi-directional Dshot.

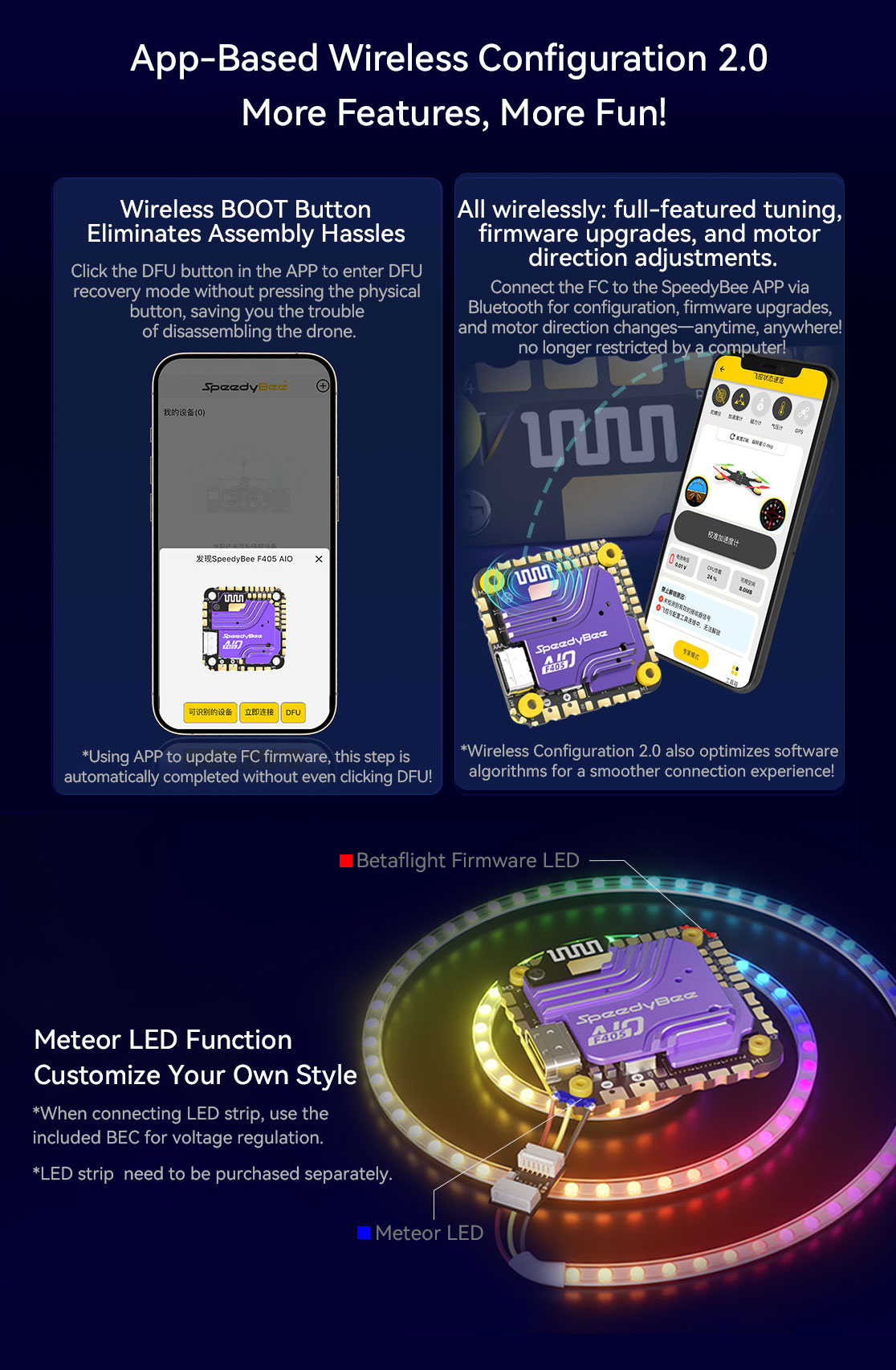

SpeedyBee F405 AIO 40A Bluejay Flight Controller: The App-Based Wireless Configuration 2.0 offers more features and fun. The wireless boot button enables full-featured tuning, eliminating assembly hassles. Firmware upgrades and motor direction adjustments can be made wirelessly using the APP, without pressing physical buttons. This feature saves you from disassembling the drone and frees you to make changes anywhere, anytime.

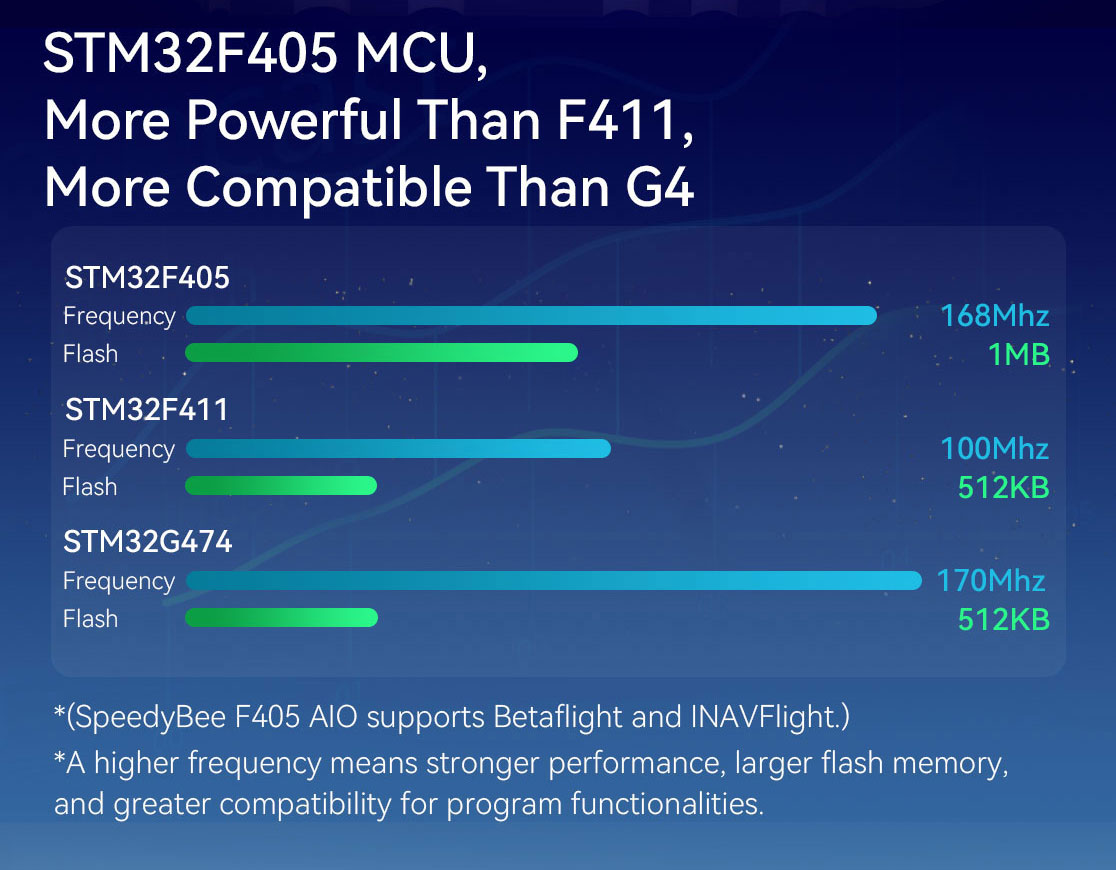

The SpeedyBee F405 AIO Flight Controller features an STM32F4OS MCU, offering more power than the F411 and greater compatibility than the G4. With a frequency of 168MHz and flash memory of 1MB, this controller outperforms its competitors. The device is compatible with both Betaflight and INAVFlight systems. A higher frequency means stronger performance, larger flash memory for program functionalities, and greater compatibility. This flight controller is designed to provide a seamless experience for pilots.

The SpeedyBee F405 AIO is equipped with an ICM-42688 Gyroscope, featuring enhanced hardware filtering and an independent LDO power supply. This results in a PSRR suppression ratio of up to 100 dB, reducing output ripple to just 1.3 mV, boosting gyroscope accuracy and enhancing flight stability.

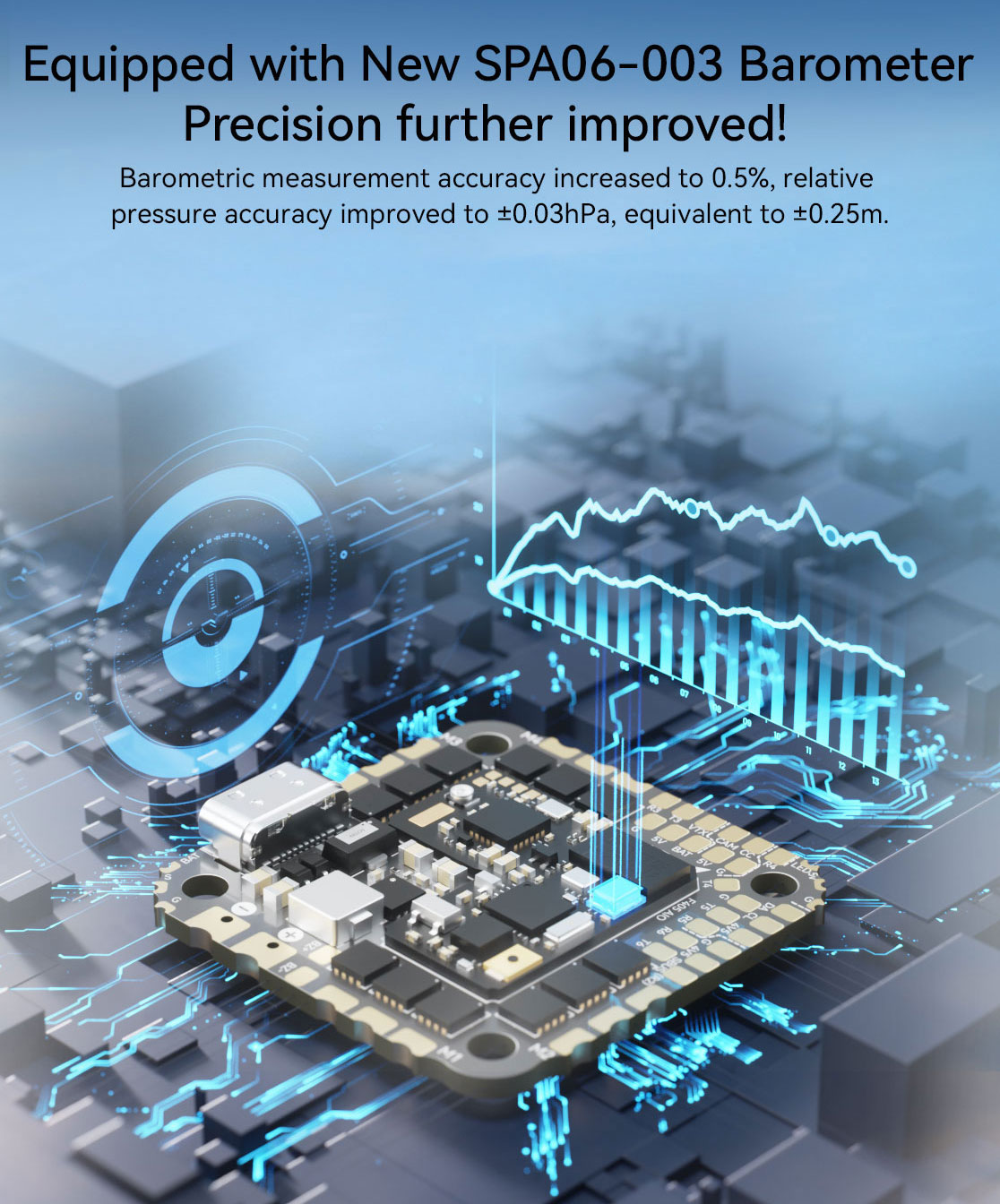

The SpeedyBee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller is equipped with a new SPA06-003 Barometer, offering improved barometric measurement accuracy to 0.5% and relative pressure accuracy of +/- 0.03hPa, equivalent to +0.25m.

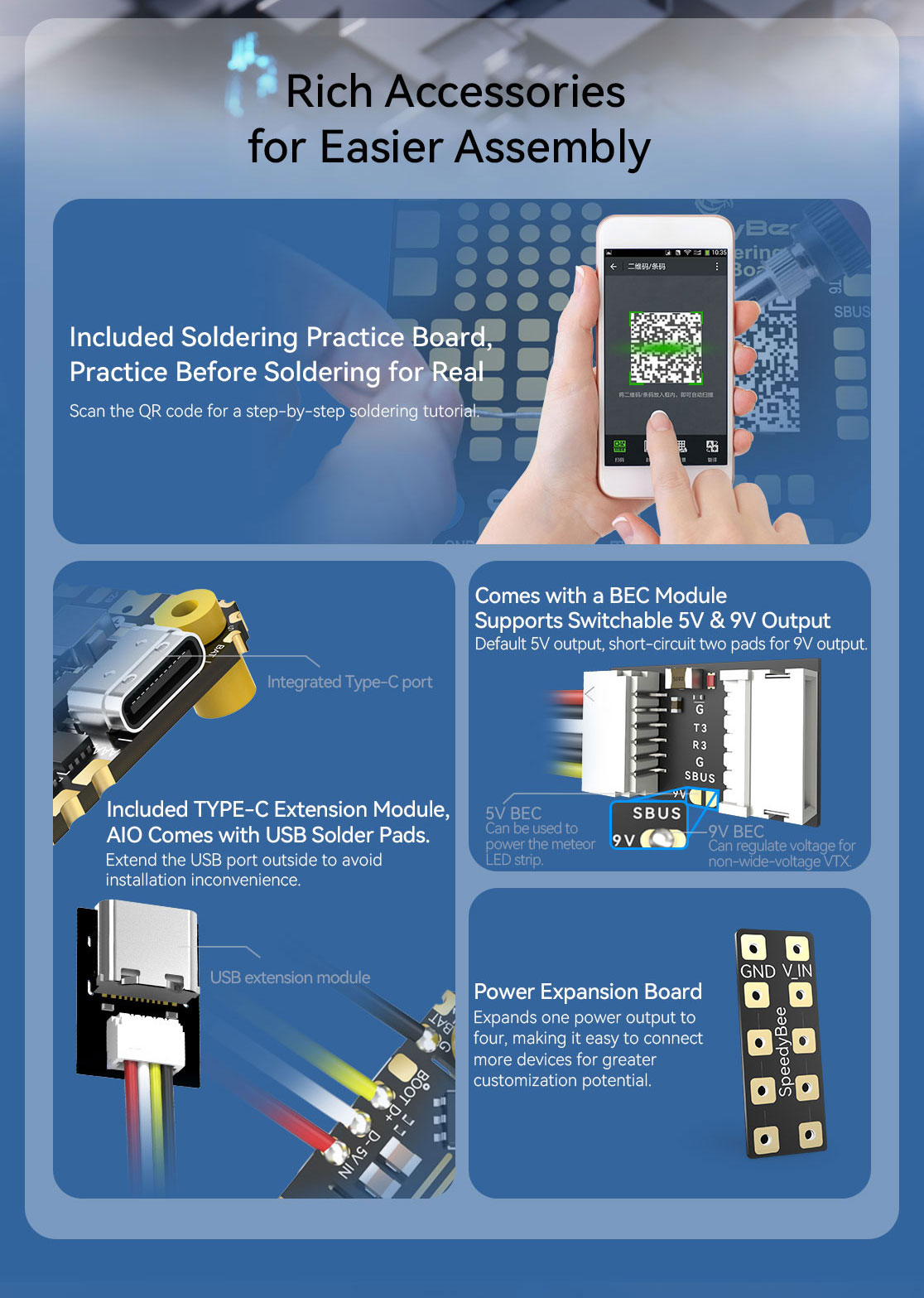

SpeedyBee F405 AIO 40A Bluejay Flight Controller - 25.5x25.5mm, 3-6S compatible. The product includes a BEC module that supports switchable SV and 9V output, with default SV output. It also features an integrated Type-C port and comes with a TYPE-C extension module. Additionally, it has USB solder pads for powering the VTX or LED strip.

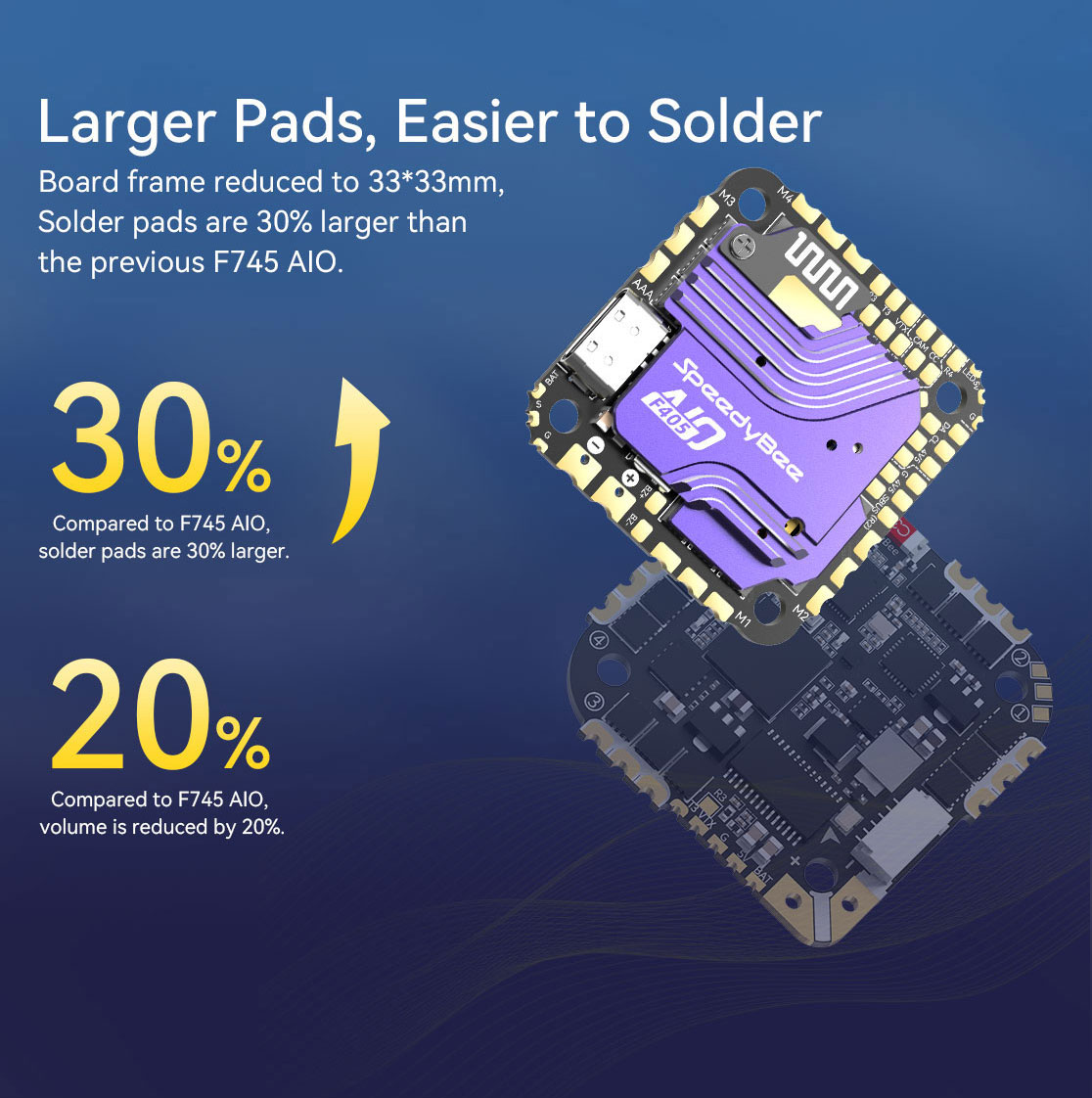

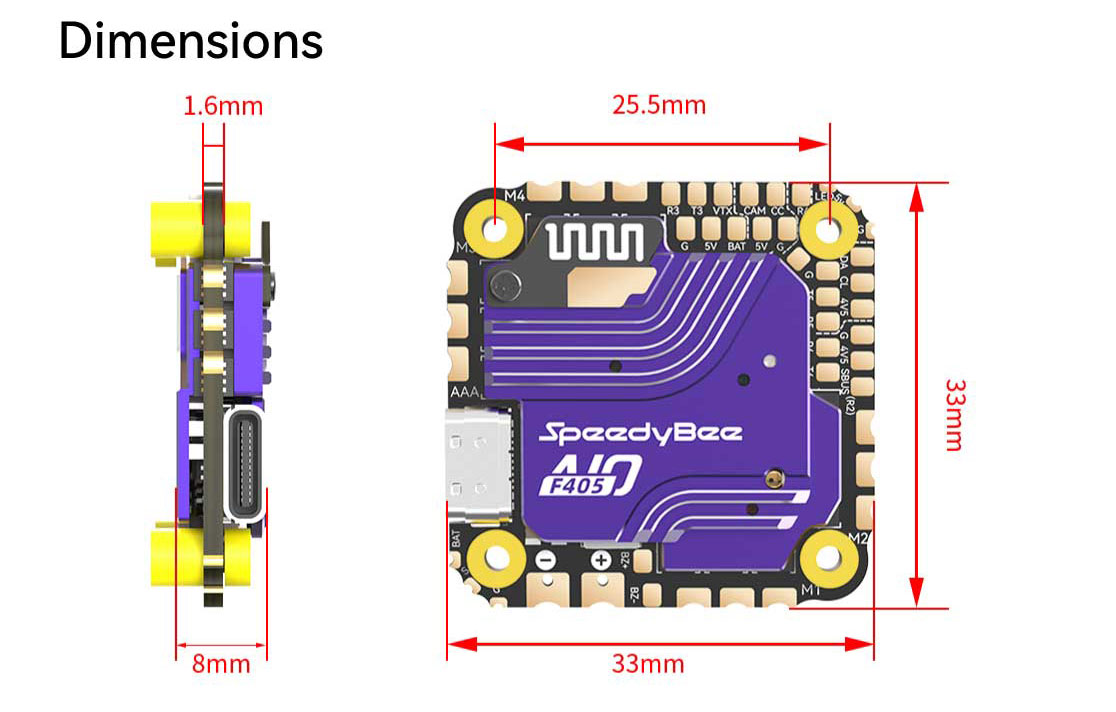

The SpeedyBee F405 AIO flight controller features a compact design with a board frame reduced to 33x33mm. Solder pads are now 30% larger than the previous F745 AIO, making it easier to solder. Compared to the F745 AIO, the volume has been reduced by 20%. This miniaturized design is perfect for small and lightweight builds.

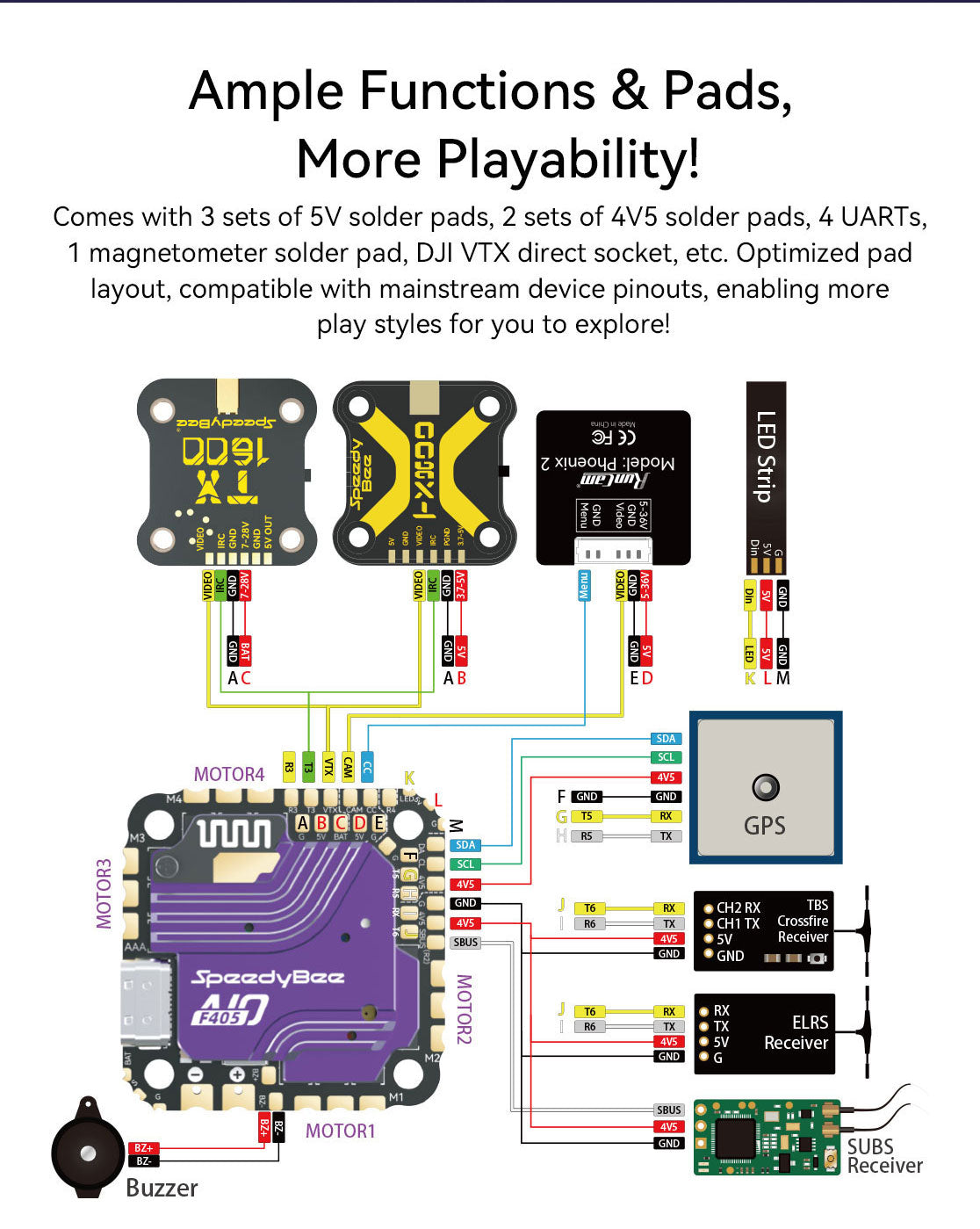

The SpeedyBee F405 AIO 40A Bluejay flight controller features an optimized layout, making it compatible with mainstream devices. It includes 3 sets of 5V solder pads, 2 sets of 4V5 solder pads, 4 UARTs, a magnetometer solder pad, and a DJI VTX direct socket. This allows for more playability and various flying styles.

F405 Speedy Bee All-In-One 40A flight controller for BlueJay quadcopters, compatible with 3-6S batteries, compact design at 25.5mm x 25.5mm dimensions.

SpeedyBee F405 AIO Flight Controller. This board features a high-performance 40A ESC, suitable for 3-6S LiPo batteries and capable of handling motors up to 25.5x25.5mm in size. The controller also includes an integrated BEC (Battery Eliminator Circuit) and supports various protocols, including UART, I2C, and SPI.
