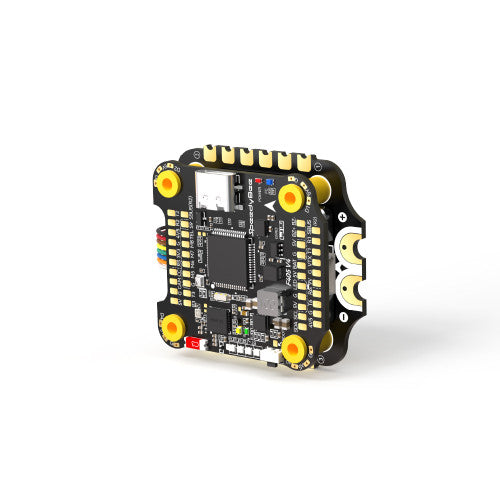

SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack

SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack

SpeedyBee

$79.00 USD
$79.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

179 orders in last 90 days

Type
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Specifications

Product Name SpeedyBee F405 V4 30x30 Flight Controller
MCU STM32F405
IMU(Gyro) ICM42688P
USB Port Type Type-C
Barometer Built-in
OSD Chip AT7456E chip
BLE Bluetooth Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
WIFI Not supported
DJI Air Unit Connection Way Two ways supported: 6-pin connector or direct soldering.
6-pin DJI Air Unit Plug Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Blackbox MicroSD Card Slot *Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.
Current Sensor Input Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.
Power Input 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.
9V Output 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.
3.3V Output Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal M1 - M4 on bottom side and M5-M8 on front side.
UART 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
ESC Telemetry UART R5(UART5)
I2C Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer BZ+ and BZ- pad used for 5V Buzzer
BOOT Button Supported.
[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input Supported. Named as RS on the front side.
Smart Port / F.Port Not supported
Supported Flight Controller Firmware BetaFlight(Default), INAV
Firmware Target Name SPEEDYBEEF405V4
Mounting 30.5 x 30.5mm( 4mm hole diameter)
Dimension 41.6(L) x 39.4(W) x 7.8(H)mm
Weight 10.5g
Product Name SpeedyBee BLS 55A 30x30 4-in-1 ESC
Firmware BLHeli_S J-H-40
PC Configurator Download Link https://esc-configurator.com/
Continuous Current 55A * 4
Burst Current 70(10 seconds)
TVS Protective diode Yes
External Capacitor 1000uF Low ESR Capacitor(In the package)
ESC Protocol DSHOT300/600
Power Input 3-6S LiPo
Power Output VBAT
Current Sensor Support (Scale=400 Offset=0)
ESC Telemetry Not supported
Mounting 30.5 x 30.5mm( 4mm hole diameter)
Dimension 45.6(L) * 44(W) *8mm(H)
Weight 23.5g

    Descriptions


    SpeedyBee F405 V4 FC&ESC Stack, Upgraded drone features dual gyroscope, heat sink power supply, and 5V/9V BECs, supporting 8 motors and LED strips with SD card soldering pads.
    $69.99 for a Bluetooth 55A Stack?
    That's ridiculous
    I know right? With only $69.99, you will get an STM32F405 FC (better than F411), onboard 4-level battery life indicator, 4GB Blackbox SD card slot for your flight logs, 4 groups of LED strip pads, complete with a DJI plug for your digital quad, and built-in Bluetooth for wireless configuration on the SpeedyBee app. Don't forget about the powerful 55A 4-in-1 ESC, built with aluminum alloy heat sink + TVS protective diode + Japan made TDK SMT capacitors + external 1000uF low ESR capacitor, everything is for durable build and smooth flight.
    All of that for only $69.99! Top-shelf spec at a crazy low price, what are you waiting for?
    * The DJI Air Unit plug is completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
    SpeedyBee F405 V4 FC&ESC Stack, The board features high-quality Japanese capacitors for filtering and energy storage.
    Configure your FC and ESC via Bluetooth!
    With SpeedyBee app, turn your phone into an all-in-one FC configurator and tune your quad anytime, anywhere. Enjoy wireless, fully configurable ESC experience with SpeedyBee app
    SpeedyBee F405 V4 FC&ESC Stack, SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack features BLHeli_ configurator and various sensors.

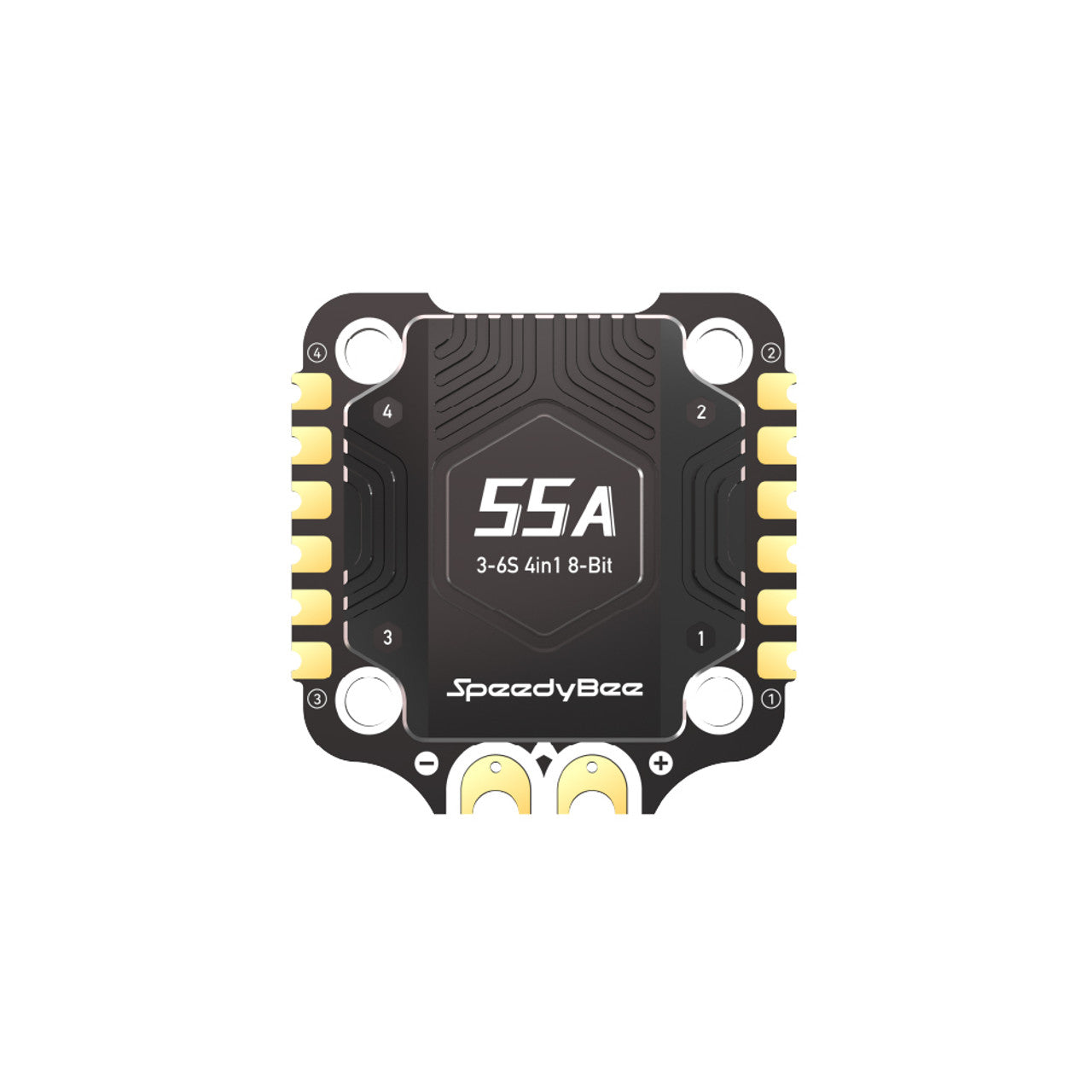

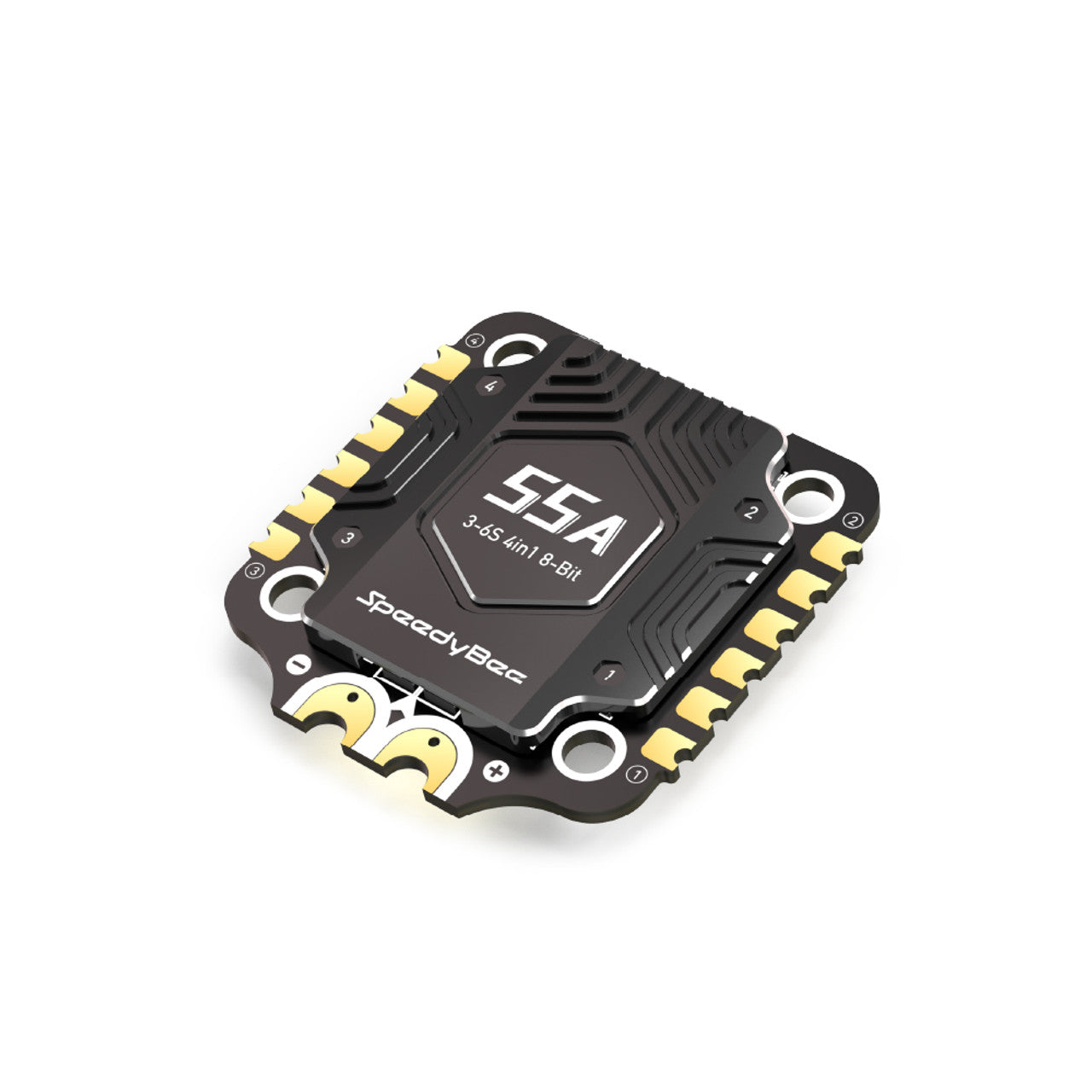

    ESC upgraded to 55A with heat sink.
    The PCB design has been refined, with copper thickness increased from 2 to 3 ounces and enhanced MOSFET specifications. Continuous current now reaches 220A across all channels, peaking at 280A for 10 seconds. An added aluminum alloy heat sink ensures efficient MOSFET heat dissipation for stable ESC output. It delivers a genuine 55A output, primed for your baddest high-powered 6S motors.
    SpeedyBee F405 V4 FC&ESC Stack, Product image for SpeedyBee F405 V4 BLS 55A 30x30 FC and ESC Stack.
    ICM42688P Gyro and clean
    power supply.
    Featuring MaxLinear's esteemed LDO power chip, the gyroscope gets dedicated power, enhancing surge protection by 320%. A 100uF filtering tantalum capacitor shields gyro data from power interferences. This ensures precise flight responsiveness, letting you truly savor the joy of flying!
    SpeedyBee F405 V4 FC&ESC Stack, Top-notch specs at an unbeatable price.
    Forgot your LiPo checker?
    Just look at the FC!
    On the side of the flight controller, you will find a 4-level battery capacity indicator. As soon as you connect the battery, you can instantly see the battery level, saving you the hassle of needing to put on glasses to check the battery status.
    SpeedyBee F405 V4 FC&ESC Stack, Product description for SpeedyBee F405 V4 BLS 55A 30x30 FC ESC Stack.
    SD card compatibility issue fixed!
    The F405 V3 FC faced compatibility issues with certain microSD cards, with a few even occasionally affecting the stable OSD display. The improved F405 V4 flight controller, however, addresses these challenges. It reliably supports C4, C6, C10, and higher cards at 2k/4k logging rates.
    BF/INAV can recognize up to 4GB of black box space. Once you clear the SD card, you can enjoy 1000+ flights. Experience black box freedom like never before!
    SpeedyBee F405 V4 FC&ESC Stack, Two 9V outputs, one on the front side +9V pad and another in a connector on the bottom side.
    Change motor directions wirelessly!
    Are you still using a computer to change motor directions? With this stack, when you finish your build, connect to the SpeedyBee app, change the motor directions just in a few simple steps*. Then take off.
    * To use this feature, please go to the App > Motors > Motor Direction Settings.
    SpeedyBee F405 V4 FC&ESC Stack, Summary of SpeedyBee F405 V4 drone features: high-performance CPU, GPS, gyro, accelerometer, and sonar for precise flight control.
    8 motors output for X8/Y6/fixed-wings.
    You could use this stack to build your X8 drones, Y6 drones or fixed wings. Forget about crawling through your massive build just to plug in that USB cable. Just take out your phone to configure everything in the SpeedyBee app.
    SpeedyBee F405 V4 FC&ESC Stack, Configure flight controller for MSP, enable baud rate 115200 on UART4, and support 2 connection methods for DJI Air Unit.
    4 sets of LED pads with simple switching.
    Need more visibility at night? Just solder up your LED strips* and blaze the darkest trail you can find. With just one tap on the BOOT button, you can cycle through all different LED presets** and pick the one you love!
    * LED strips could be purchased here
    **Or long press the boot button to switch to Betaflight LED mode.
    SpeedyBee F405 V4 FC&ESC Stack, LED strips can be bought and there an option to switch to Betaflight LED mode by pressing the boot button.
    TVS Protective Diode + 21 Onboard TDK Capacitors + 1000uF High-Capacity Electrolytic Capacitor = Upgraded ESC Protection
    We've included a TVS diode that effectively absorbs voltage spikes during power-up and crash events. The board features 21 high-quality Japanese TDK 35V 22uF SMD filtering and energy storage capacitors. These, along with the standard 1000uF high-frequency, low-ESR electrolytic capacitor, effectively filter out signal interference from the power supply to the flight controller's gyroscope, ensuring smoother flight performance.
    SpeedyBee F405 V4 FC&ESC Stack, The SpeedyBee F405 V4 features an O Filter, Energy Protection Surge Diode TVS MLCC, and TDK Capacitor rated at 35V for high-performance applications.
    And packaged with more useful features.
    ● Built-in barometer for accurate height calculation
    ● SD card slot can support up to 4GB Blackbox data*
    ● Dedicated DJI Air Unit connector for a quick digital build
    ● 5V & 9V Dual BECs now upgraded to both 3A output
    ● 4 x UARTs for your receiver + VTX + camera + GPS
    ● Power your GPS with a USB cable - no battery needed,
    No extra heat, no worries
    ● 22mm cutouts for FPV camera in your tight build
    *Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.
    SpeedyBee F405 V4 FC&ESC Stack, The BF/INAV can recognize up to 4GB of black box space.

    SpeedyBee F405 V4 FC&ESC Stack, The SpeedyBee F405 V4 has compact dimensions and requires careful installation for optimal performance.

    The SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack features a compact design with dimensions of 4mm x 4mm x 1.6mm and a total length of 44mm. This product requires careful installation to ensure optimal performance. The standard installation method involves placing the flight controller (FC) on top and the electronic controller (ESC) at the bottom. Improper installation may cause damage, which is not covered under warranty. To avoid this issue, please follow the 'Standard Installation Manner' guidelines.


    SpeedyBee F405 V4 FC&ESC Stack, The SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack has a wiring diagram with various components for GND, ELRS Receiver, and other receivers.

    SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack. The product image shows a wiring diagram with various components including GND, Spektrum 3v3 ELRS Receiver, NC Receiver RX/TX, 5V PPM Receiver, SBUS Receiver, and more.


    SpeedyBee F405 V4 FC&ESC Stack, The SpeedyBee F405 V4 BLS 55A 30x30 FC and ESC Stack connects flight controller to motors and power cable with Low ESR capacitor for voltage spike prevention.

    SpeedyBee F405 V4 BLS 55A 30x30 FC and ESC Stack. This product image shows a connection with the flight controller, motors, and power cable. The Low ESR capacitor is recommended to prevent voltage spikes on powering up. The FC and ESC can also be connected via direct soldering.


    SpeedyBee F405 V4 FC&ESC Stack, This product features a F4/405 V4 BLS 55A 30x30 FC&ESC Stack image, including a cable for DJI Air Unit V1 or compatible devices.

    SpeedyBee F4/405 V4 BLS 55A 30x30 FC&ESC Stack product image. This product comes with a cable for connection to DJI Air Unit V1 or other compatible devices. The accessory includes an 6-pin cable, suitable for use with the F4/405 V4 stack.


    SpeedyBee F405 V4 FC&ESC Stack, The SpeedyBee F405 V4 requires SBUS signal wire connection for proper recognition by the flight controller.

    The SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack. When using an SBUS receiver, the SBUS signal wire of the receiver must be connected to the SBUS on the front side of the flight controller (this internally uses UART2). If you are also using a DJI Air Unit (V1), you will need to disconnect the SBUS signal wire from the air unit harness. Failure to do so will prevent the SBUS receiver from being properly recognized by the flight controller.


    SpeedyBee F405 V4 FC&ESC Stack, SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC stack description

    SpeedyBee F405 V4 FC&ESC Stack, SpeedyBee F405 V4 flight controller with various sensors and modules for FPV racing and navigation.

    SpeedyBee F405 V4 BLS 55A 30x30 FC ESC Stack: Flight Controller FPV Camera, Second 4-in-1 ESC Receiver Barometer, Extra PWM Output, Antenna, 5V G CAMCC RSIV3, GPS, Compass, Betaflight LED, VTX Analog/DJI, 8-pin Connector to ESC, LED Indicator, Power Boot Button, Gyro (ICM42688P), Buzzer, USB Type-C Port, 4-Level Battery Indicator.


    SpeedyBee F405 V4 FC&ESC Stack, The SpeedyBee F405 V4 30x30mm FC and ESC Stack features a BLS 55A 4-in-1 ESC motor, SPCCO capacitor pin, and BLHeli TVS diodes for durability in quadcopter applications.

    SpeedyBee F405 V4 30x30mm FC and ESC Stack. It features a BLS 55A 4-in-1 ESC motor, with four motors: two S5A 3-65 motors and one 4in1 8-bit motor. The stack also includes a SPCCOyBzz capacitor pin, BAT- and BAT+ holes (GND) hole, an 8-pin connector to the FC, and a CT speed controller. The MCU is powered by BB2I driver chips. It also features BLHeli TVS diodes for overcurrent protection. This stack is designed for high-performance and durability in quadcopter applications.


    SpeedyBee F405 V4 FC&ESC Stack, The SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC stack includes a flight controller and ESC, along with various accessories.

    SpeedyBee F405 V4 BLS 55A 30x30 FC&ESC Stack Product Features: * SpeedyBee F405 V4 Flight Controller * SpeedyBee BLS 55A 4-in-1 ESC * 35V 1000uF Low ESR Capacitor * M3 Nylon Nut (5) * M3 Silicone O-Ring (5) * M3 x 8mm Silicone Grommets (2) for FC and ESC * SH 10mm 25mm-length 8pin Cable for FC-ESC connection * SH 10mm 75mm-length 8pin Cable for FC-ESC connection * 10x M3 x 30mm Inner-hexagon Screws


    SpeedyBee F405 V4 FC&ESC Stack, SpeedyBee F405 V4 BLS 55A 30x30 quadcopter with four motors, FC, and ESC components.

    SpeedyBee F405 V4 BLS 55A 30x30 Four-Motor Stack featuring FC and ESC components.


    SpeedyBee F405 V4 FC&ESC Stack, SpeedyBee F405 V4 BLS 55A 30x30 FC and ESC Stack product image.

    SpeedyBee F405 V4 BLS 55A 30x30 FC and ESC Stack product image. The package includes: SpeedyBee BLS 55A 4-in-1 ESC, Mengk 4000mAh low voltage battery, 3.5V 1000uF low ESR capacitor, M3 silicone ring, XT60 power cable (10cm), SH 1.0mm x 25mm-length 8-pin cable (for FC-ESC connection), and M3 x 8mm silicone grommets (for ESC) x2.


    Manual

    SpeedyBee F405 V4 FC&ESC Stack, The LED presets can be cycled through by pressing the BOOT button once.English SpeedyBee F405 V4 FC&ESC Stack, Experience freedom.中文
