SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN805-S

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

heavy load motor born for VTOL Take off weight.16-35KG MN805S 8 0 MADE IN 16 KG 16+ Thrust Stable & Reliable Safe Impact resistant IP45 MN8O5-S KV12O Ce3.

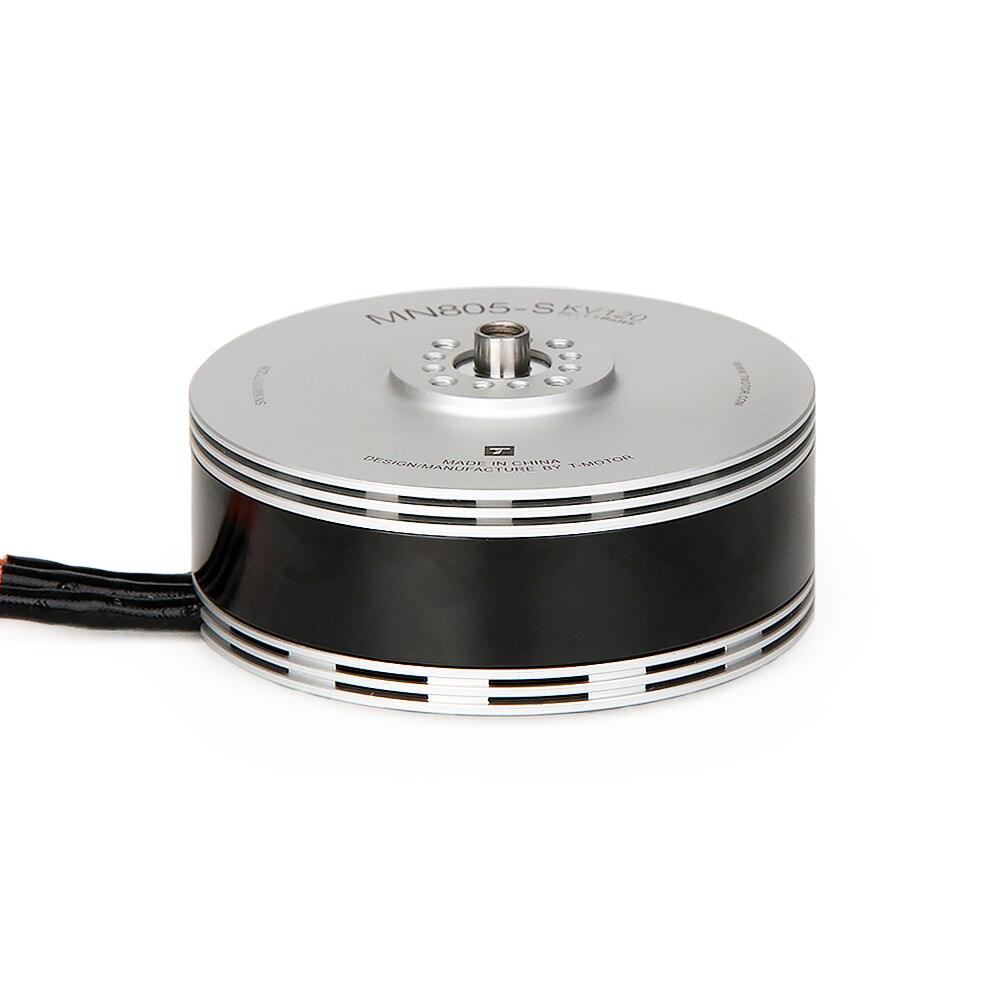

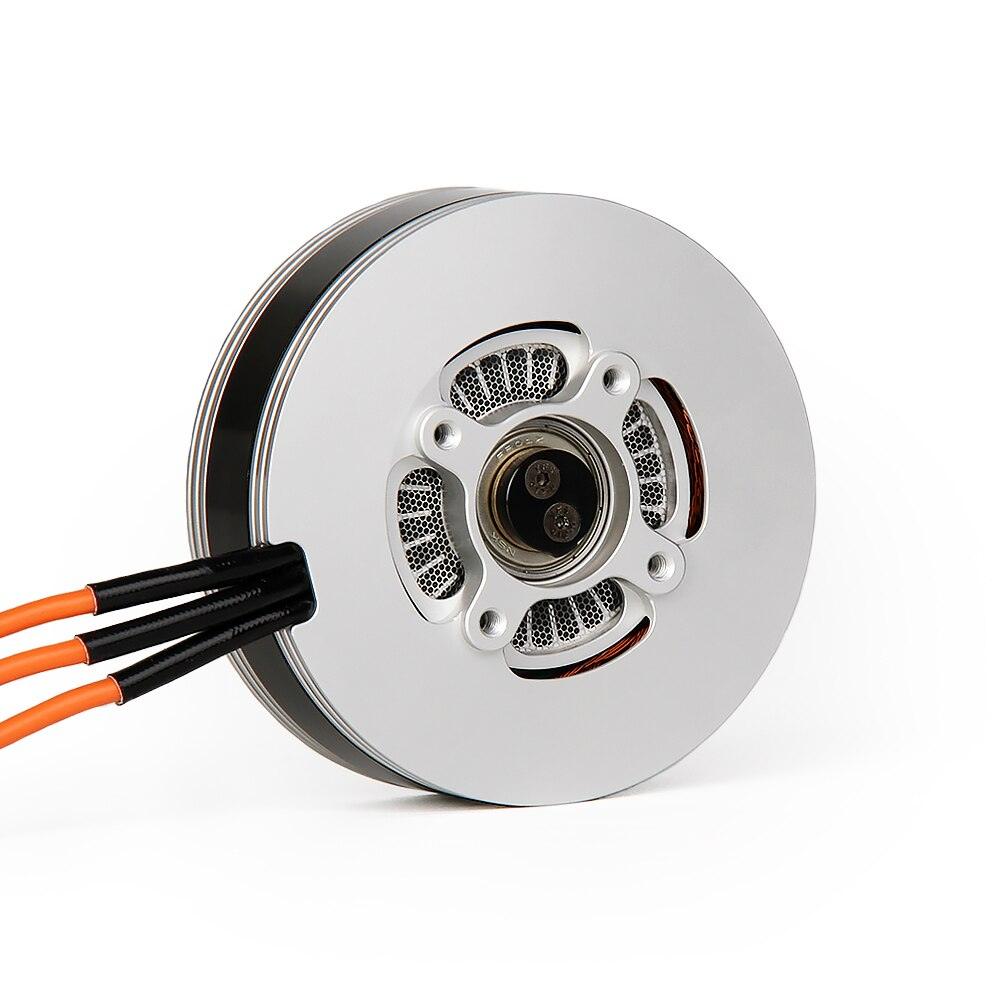

The bell-shaped design increases the heat dissipation area, resulting in a 15% enhancement to the cooling performance. Additionally, the motor features simulated airflow analyses to prevent overload and ensure efficient operation.

The motor features a shaft made from a special alloy, custom bearings, varnished wires, and a silicon steel sheet with magnets and bells that have been treated with the latest anti-rust and anti-corrosion technologies for enhanced protection. Additionally, it boasts waterproof and dust-resistant capabilities.

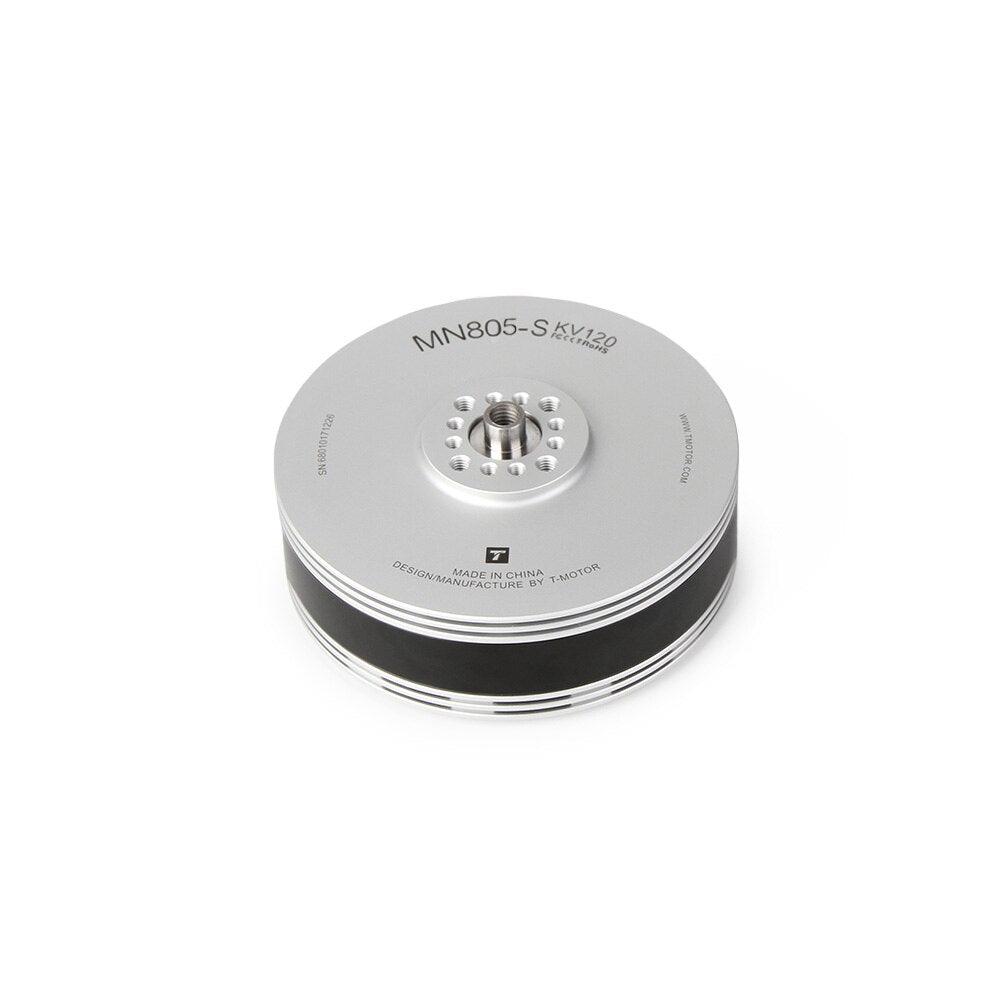

The MN805-S motor features a T-shaped shaft, secured with both a cir-clip and screw, ensuring safety and reliability even at high RPMs and power levels without risking rotor looseness. Furthermore, the long lifespan Zmm steel shaft and 24mm big bearings are designed to provide outstanding impact resistance.

The anti-high temperature curved magnets, precisely controlled to ensure optimal tolerance, and carefully positioned within the magnetic circuit, enable an ordinary magnet design to deliver improved motor performance by up to 5%.

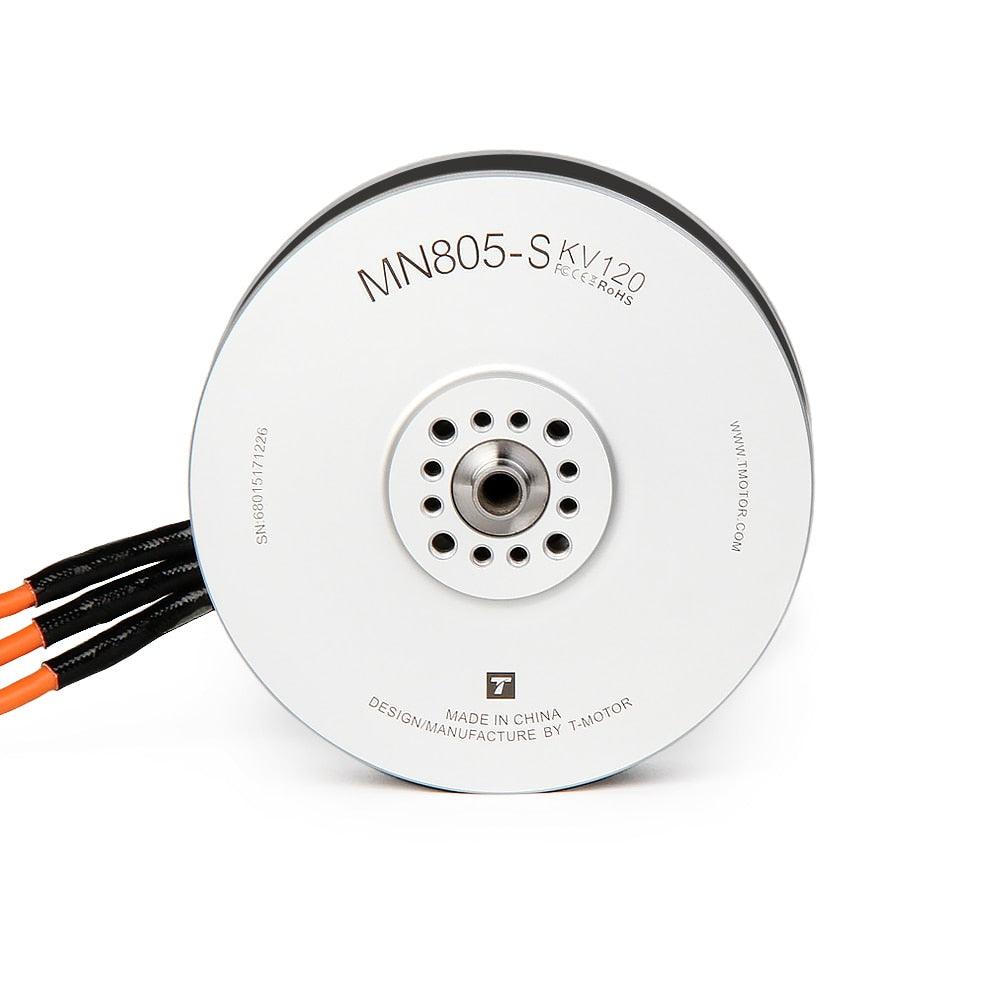

Specifications: Motor Size: 89mm x 44.4mm Material: Imported silicon steel sheet with anti-rust treatment Stator: High-temperature-resistant coating Configuration: 24N28P Shaft Diameter: In (12mm), Out (8mm) Bearing: Imported 6901ZZ Magnetic Level: 180°C high temperature resistance Lead Cable: 14AWG x 150mm, Copper Wire: 220FC with high-temperature coating Coil Insulation Test: S0Ov (standard test) Centrifugal Cooling Design: Yes Rotor Dynamic Balance: Standard

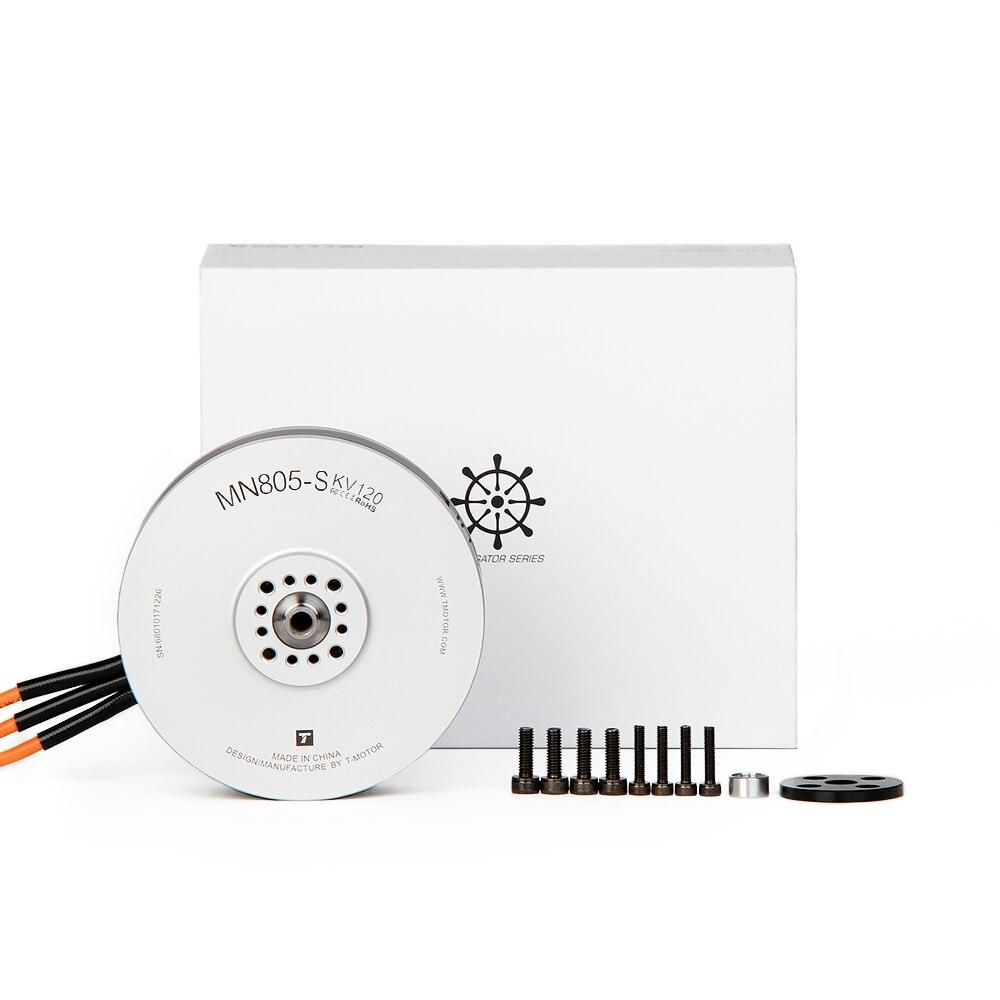

The product features a brushless motor (T-motor MN805-S KV120, KV150, or KV170) with a thrust of 16KG+ suitable for VTOL (vertical takeoff and landing) long endurance heavy load multi-copter drones. Additionally, the specifications include: a recommended ESC (electronic speed controller) of FLAME 80A or V2.0 with an idle current of 1S/V (1 second) at 2.6A; a peak current of 14S for 180 seconds; a motor weight (including cable) of 625g; internal resistance of 32mΩ; and package weight of 750g, with a rated power of 170.
