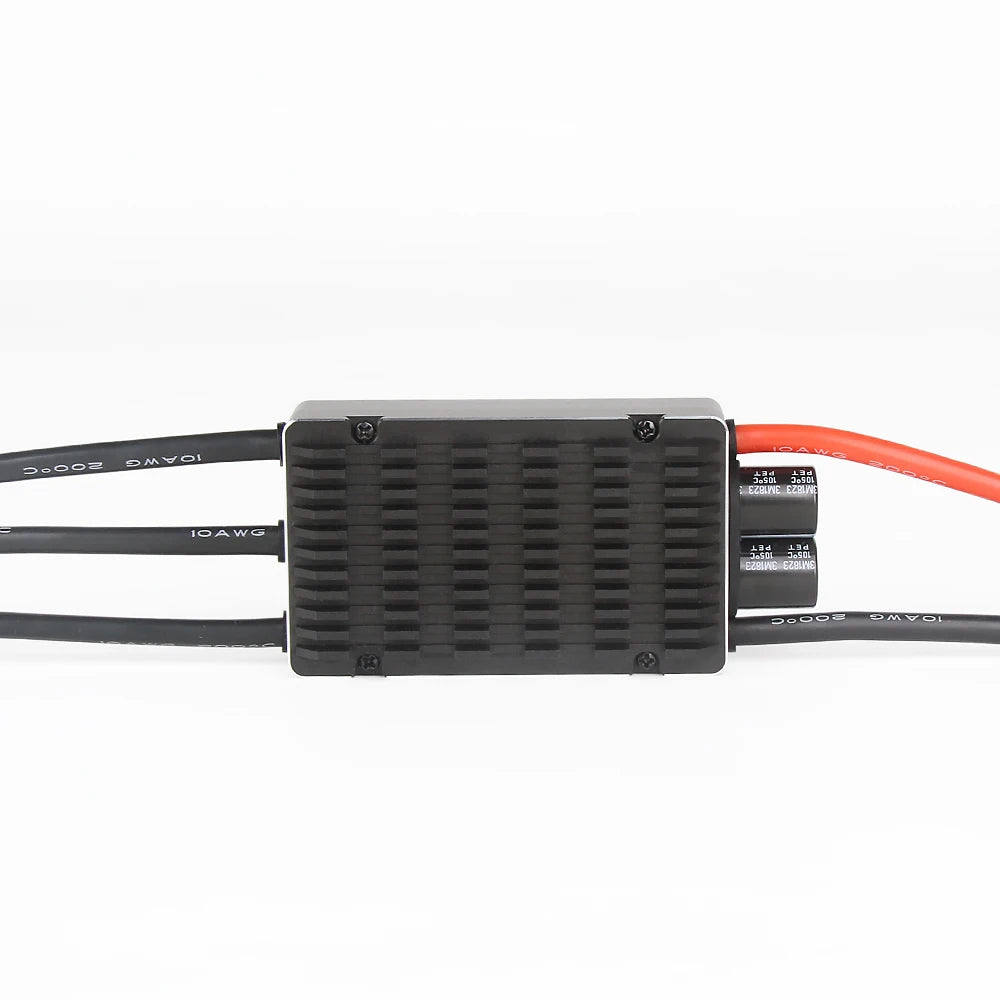

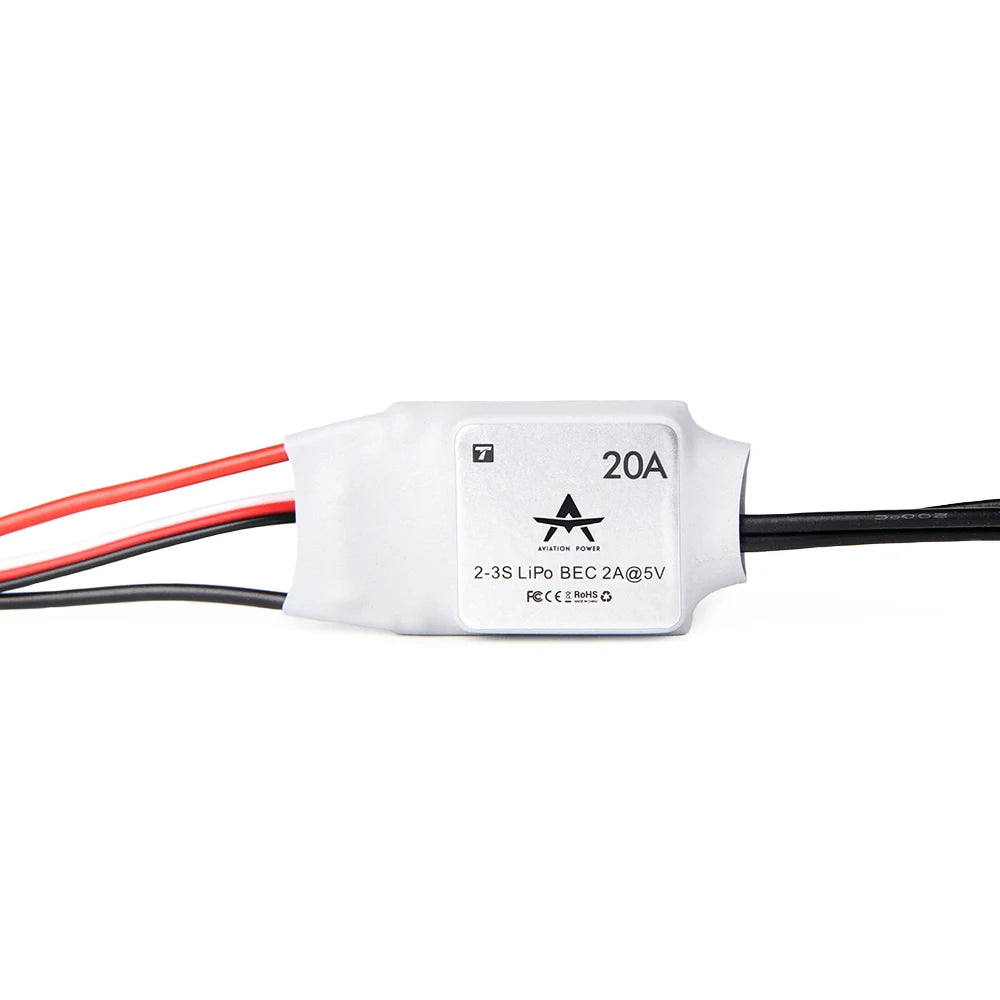

T-MOTOR AT series ESC SPECIFICATIONS
Brand Name: T-MOTOR
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: esc
Tool Supplies: Battery
Model Number: AT115A
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
The Fearless Challenge Fixed-wing ESCsupport 6S battery 3 105*0 405*C pet 3M1b23 3mi823 10se0 3M18z3 3m1823 -10520 .
Featuring a dedicated fixed-wing core algorithm, our AT series ESC optimizes its software structure for high-performance motor control. With original imported components and an innovative printed circuit board (PCB) layout, this ESC offers high-quality, reliable, and cost-effective performance.
The built-in Battery Elimination Circuit (BEC) module provides stable and high-efficiency output, ensuring the ESC operates safely in a variety of power supply environments.
Featuring advanced hardware filtering and synchronized current monitoring, this ESC ensures fast and reliable throttle control. Additionally, it includes multiple protection functions to safeguard against abnormal voltage, thermal overload, low battery voltage, lost throttle signals, and other potential issues.
Features Multiple Programmable Parameters: This ESC offers wide-ranging parameter settings, allowing it to be easily adapted to various applications and environments. It also supports LED programming cards, simplifying the setup process and making customization more convenient.
AT(Fixed Series) ESC manual DISCLAIMER Under strong power system;wrong operation for RC model will bring danger . AII devices are original made; ensuring that the ESC has high quality and high reliability .
When using a NiMH battery with this ESC, the low, medium, and high cutoff voltages are set at 9/50/65% of the startup voltage. A value of 0% disables the low cutoff function.
Different throttle ranges are found in servos, servometers, and electronic speed controllers (ESCs). Before flying, it's essential to calibrate the throttle range. To do this, emit a 'beep' tone through the transmitter, then connect the ESC and wait for 2 seconds.
In the event of a motor failure to start within 2 seconds, the ESC will automatically shut off the output power. Additionally, if the throttle signal is lost for one second, further loss of signal for an additional 2 seconds will trigger a complete shutdown of the output.
After powering on, the motor does not function properly and an alert tone is emitted. Furthermore, the throttle direction for channel
When operating the T-MOTOR AT series ESC, the motor will initially beep 'B-B-' before emitting the code '56712' approximately 5 seconds later to signal that the ESC has entered programming mode.
To adjust settings, select 'Parameter Items' and choose from six options. The motor will emit a series of beeps while you make these adjustments. Once you've set your desired parameter, move the throttle stick to its top position and wait until the motor emits a
This ESC beeps to indicate when it has detected the number of LiPo cells connected. If you're using multiple batteries, you'll need to reconnect them once they're fully recognized. Additionally, please ensure that your power supply is turned off if any battery levels fall below a certain threshold.
