T-MOTOR AT2317 Long Shaft Motor  SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: ESC

Tool Supplies: Battery

Technical parameters: KV1100

Size: KV880 / 1400KV / KV1250

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: AT2317 Long Shaft

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

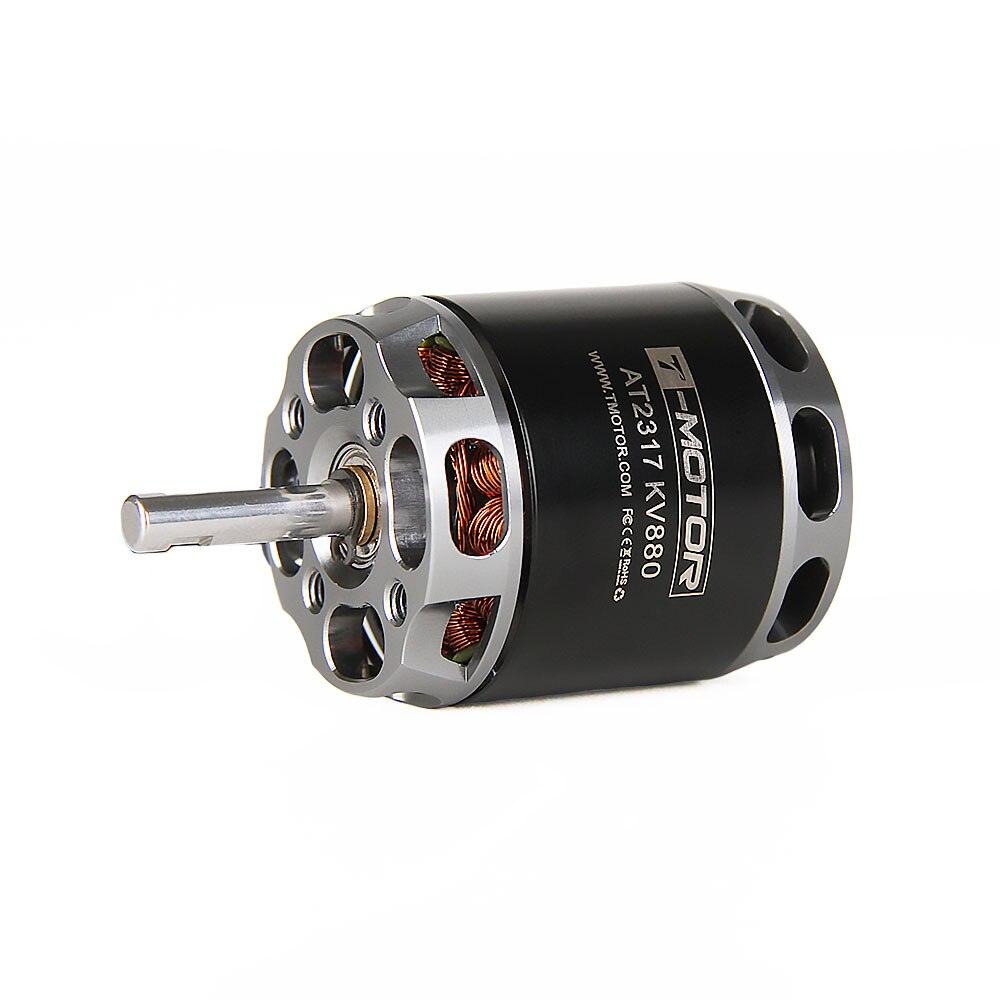

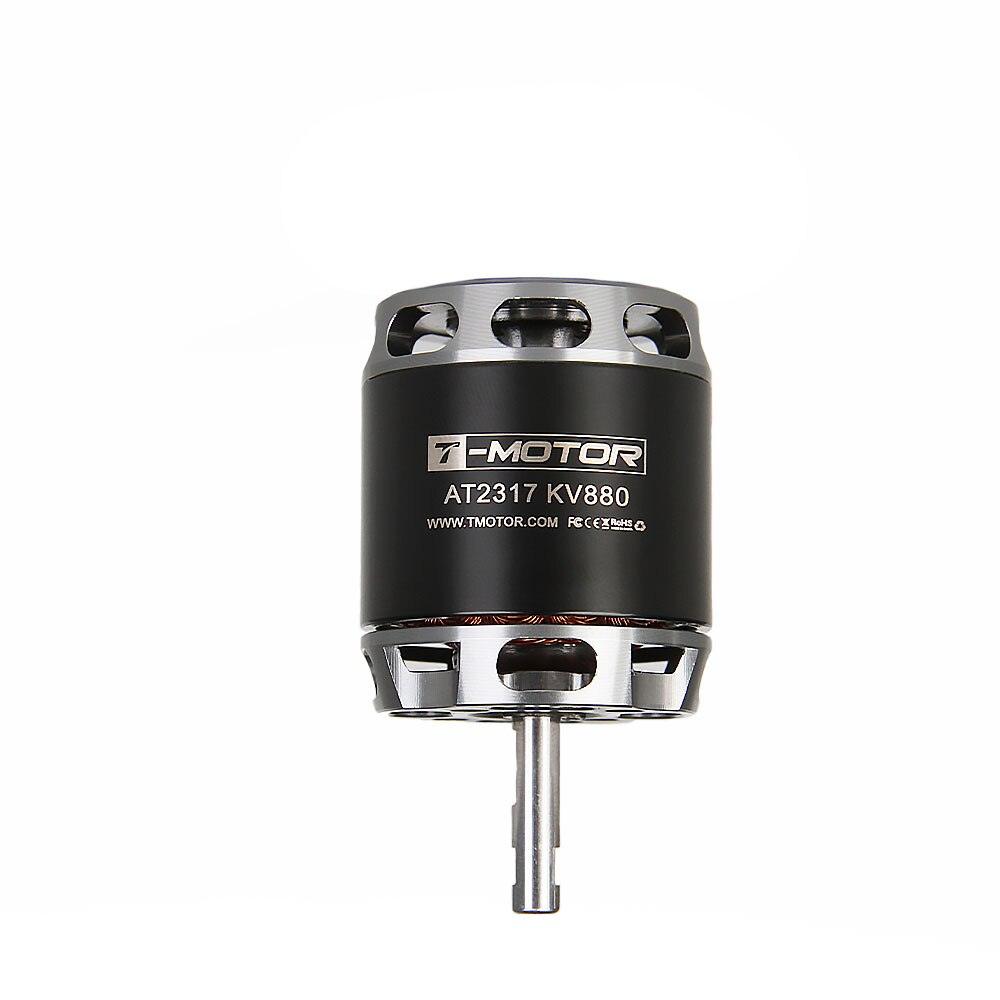

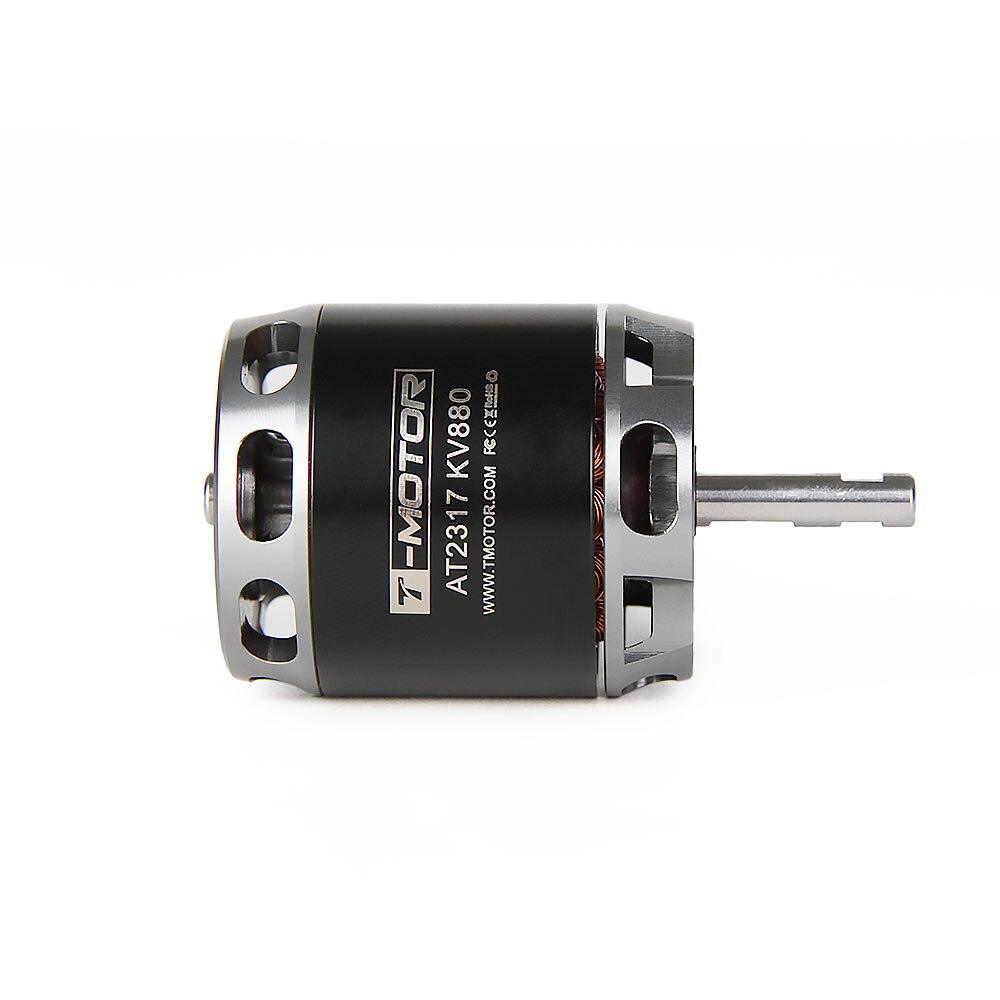

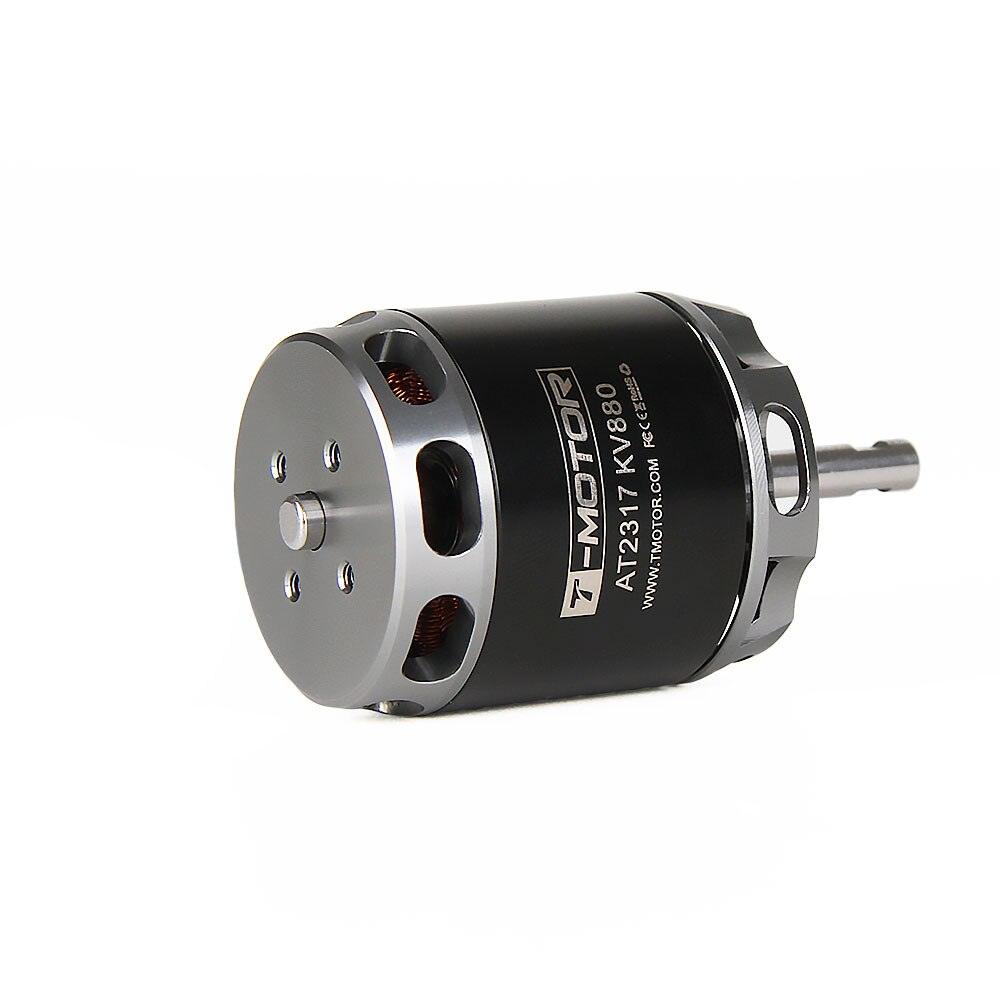

T-MOTOR AT2317 Long Shaft KV880 1400KV KV1250 brushless motor for Hybrid Vertical Take-off Landing UAV

the upgraded AT Series are designed for fixed-wing model; VTOL UAV . high efficiency and stable endurance, the balance between technique and power . improvements are reflected in everywhere: High Temperature Stable Safe Everywhere .

Designed with a lateral outlet hole for improved airflow and an internal heat dissipation structure, this motor features an efficient cooling system (SS) that helps to regulate temperature.

The use of military-grade wire, combined with a durable high-temperature enameled wire featuring a specialized insulation layer, enhances the motor's high-temperature resistance, thereby prolonging its lifespan and overall durability.

Featuring an anti-stripping design, our T-MOTOR AT2317 Long Shaft Motor ensures safety and reliability at high rotation speeds. The linear shaft design, combined with the C-Clip lock and shaft collar, prevents the rotor from loosening or stripping, providing a safe and worry-free flight experience.

Superior craftsmanship is evident throughout, showcasing meticulous attention to detail. High-quality materials were carefully chosen and expertly executed in every aspect.

The arc magnet and high torque design enables the propeller to generate high torque, while optimized motor circuitry increases motor performance by more than 5%.

Equipped with triple-bearing support, this motor offers exceptional durability and allows for extended flight times. Its robust design features three bearing sets that provide superior stability, efficiency, and load-carrying capacity.

The motor features an embossed design on its mounting adapter and propeller cover, ensuring a secure and stable connection that prevents slipping or movement.

The next-generation AT series will progressively introduce a comprehensive lineup of products, suitable for various applications such as 3D, trainer, glider, and larger-scale planes, as well as fixed-wing drones.

Specifications Test Item Long Shaft Kv880 Weight (Incl. Cable) 79g Motor Dimensions 028.8*52mm Interna Resistance 82mn Lead 20#AWG 10Omm Configuration 12N14P .
