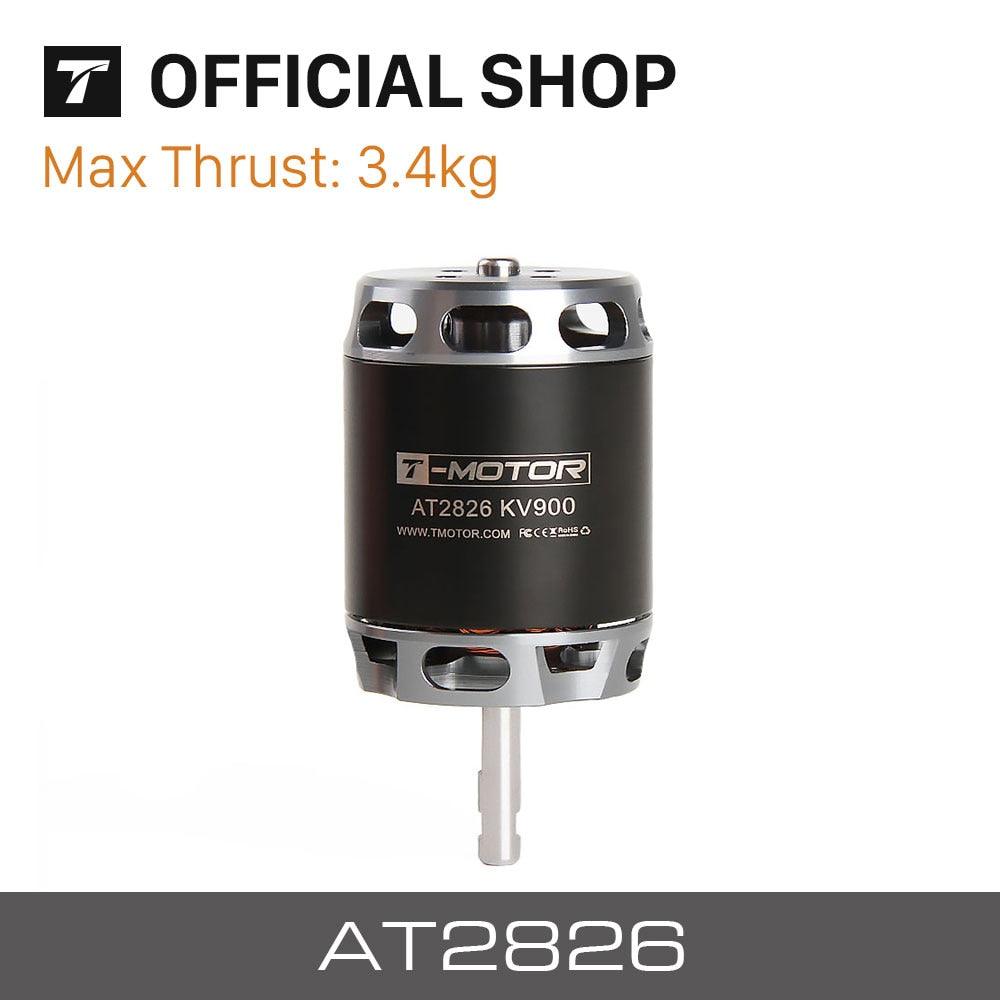

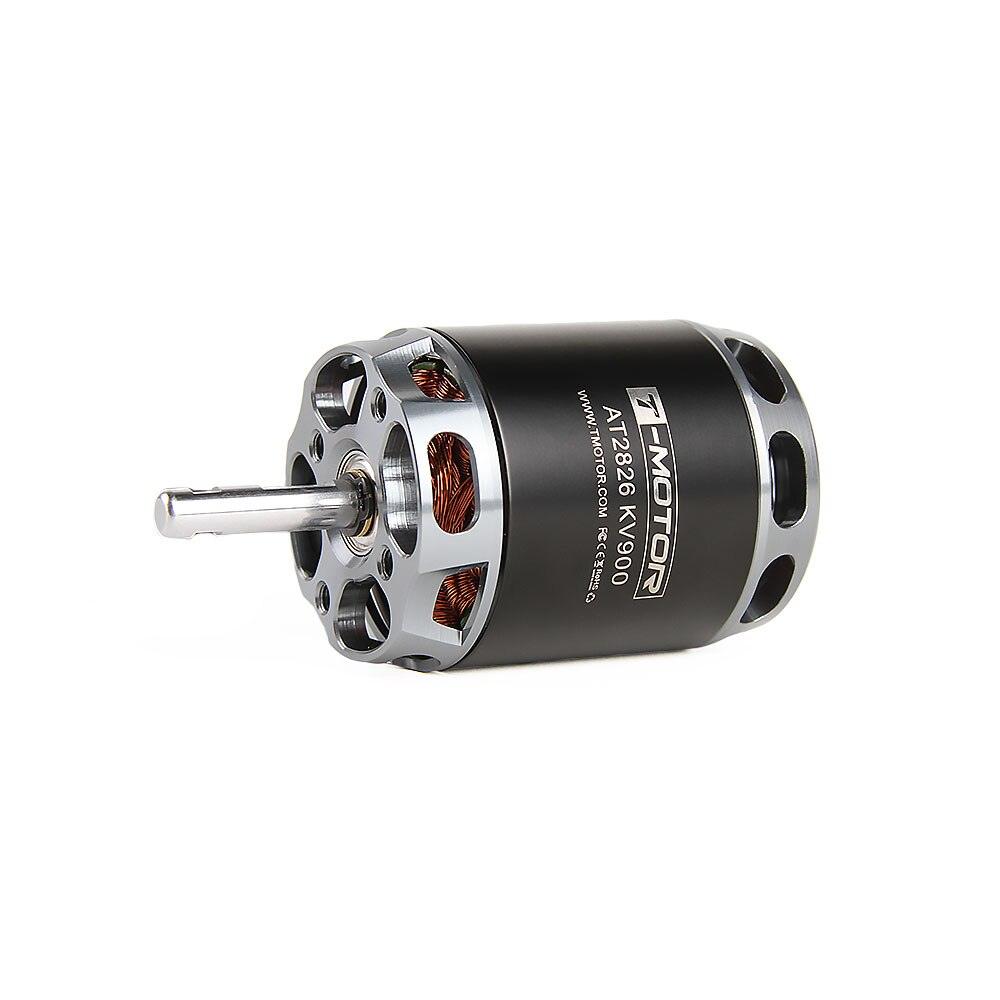

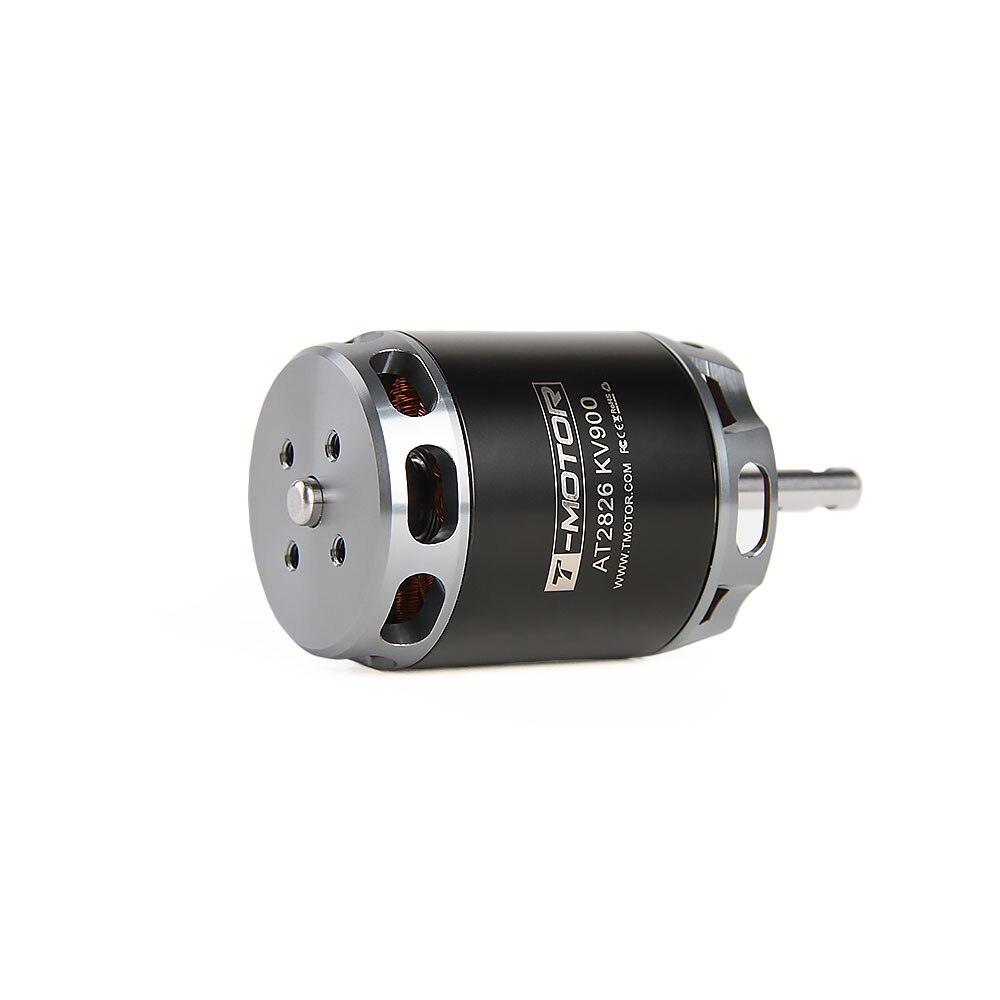

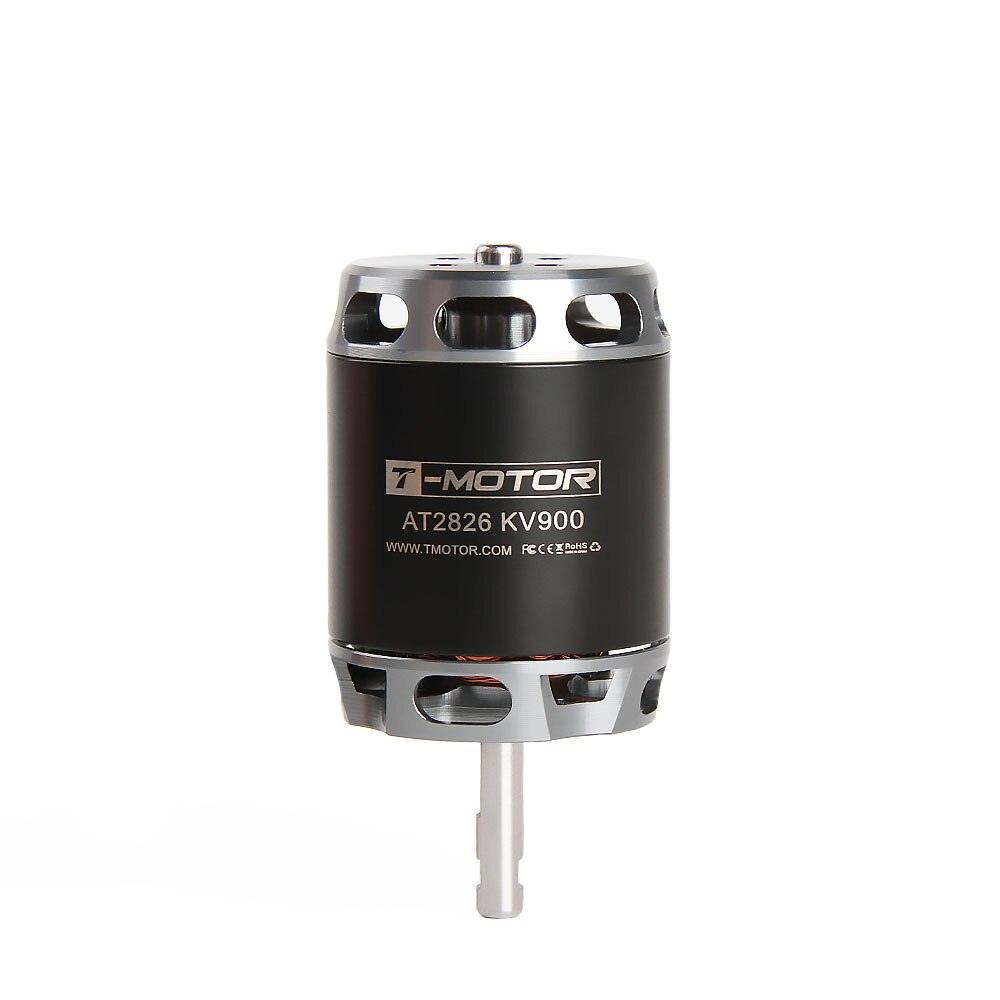

T-MOTOR AT2826 KV900 KV1100 3D F3A Fixed Wing Long Shaft Brushless Motor

T-MOTOR AT2826 KV900 KV1100 3D F3A Fixed Wing Long Shaft Brushless Motor

T-Motor

$102.02 USD
$102.02 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The T-MOTOR AT2826 Long Shaft Brushless Motor is designed for 3D, F3A, sailplane, and fixed-wing aircraft applications. With a lightweight 175g body, 3–4S LiPo support, and up to 3.4kg maximum thrust, it delivers strong torque, reliable power, and smooth throttle response for aircraft weighing approximately 1.4–2.2kg. The long-shaft design offers flexible installation options, while the durable construction, military-grade wires, and anti-stripping safety design help improve reliability during high-load flights. Available in KV900 and KV1100 versions, the AT2826 is recommended for use with a T-MOTOR T13×6.5 propeller and AT75A ESC for an optimized power setup.

Drawing




Specification

Test Item Long ShaftKV900 Weight (Incl. Cable) 175g
Motor Dimensions Φ35.2*69.5mm Internal Resistance 24mΩ
Lead Enameled Wire100mm Configuration 12N14P
Shaft Diameter IN：5mm
OUT：5mm		 Rated Voltage(Lipo) 3-4S
Idle Current(10V) 2.2A Peak Current(180s) 57A
Max Power (180S) 820W Recommendation /
Test Item Long Shaft KV1100 Weight (Incl. Cable) 175g
Motor Dimensions Φ35.2*69.5mm Internal Resistance 110mΩ
Lead Enameled Wire100mm Configuration 12N14P
Shaft Diameter IN：5mm
OUT：5mm		 Rated Voltage(Lipo) 3-4S
Idle Current(10V) 2.9A Peak Current(180s) 59A
Max Power (180S) 110W Recommendation /

Test Data

Type Propeller Throttle Voltage
(V)		 Current
(A)		 Power
(W)		 RPM Torque
(N*m)		 Thrust
(g)		 Efficiency
(g/W)

Operating

Temperature

(℃)
AT2826
Long Shaft
KV900		 APC
12*6		 40% 15.11 11.43 172.61 6258 0.188 1117 6.47 98
(Ambient

Temperature:

/)
45% 15.07 13.63 205.47 6634 0.213 1272 6.19
50% 15.03 15.68 235.81 6950 0.236 1406 5.96
55% 15.00 17.71 265.69 7263 0.256 1528 5.75
60% 14.97 19.84 296.86 7509 0.281 1670 5.63
65% 14.93 21.92 327.20 7782 0.300 1779 5.44
70% 14.88 24.53 365.16 8080 0.323 1933 5.29
75% 14.82 28.51 422.43 8468 0.370 2155 5.10
80% 14.74 33.36 491.67 8879 0.411 2397 4.87
90% 14.58 42.72 622.90 9556 0.489 2810 4.51
100% 14.50 47.28 685.84 9798 0.524 2992 4.36
APC
13*6.5		 40% 15.10 12.19 183.97 5611 0.216 1216 6.61 HOT
45% 15.05 14.84 223.29 6012 0.247 1388 6.22
50% 15.01 17.32 259.98 6345 0.276 1541 5.93
55% 14.97 19.81 296.47 6638 0.304 1698 5.73
60% 14.91 22.84 340.67 6948 0.338 1885 5.53
65% 14.85 26.58 394.75 7297 0.376 2091 5.30
70% 14.79 30.38 449.24 7656 0.415 2291 5.10
75% 14.71 34.95 514.23 8000 0.456 2513 4.89
80% 14.63 39.79 582.14 8325 0.510 2745 4.71
90% 14.44 51.45 743.02 8953 0.594 3212 4.32
100% 14.35 57.16 820.02 9183 0.637 3409 4.16
APC
14*7		 40% 11.36 8.96 101.76 4170 0.157 826 8.11 87
(Ambient

Temperature:

/)
45% 11.33 10.62 120.33 4435 0.179 943 7.84
50% 11.29 12.63 142.61 4709 0.202 1061 7.44
55% 11.26 14.76 166.16 4952 0.227 1189 7.16
60% 11.23 16.66 187.02 5173 0.249 1298 6.94
65% 11.18 19.33 216.15 5457 0.278 1444 6.68
70% 11.13 22.74 252.95 5738 0.313 1624 6.42
75% 11.06 26.62 294.42 6067 0.349 1798 6.11
80% 10.99 30.69 337.39 6338 0.385 1971 5.84
90% 10.82 41.07 444.58 6906 0.466 2350 5.29
100% 10.77 44.15 475.59 7048 0.488 2447 5.14
APC
15*8		 40% 11.34 8.92 101.10 3745 0.188 921 9.11 HOT
45% 11.31 10.56 119.50 3949 0.210 1030 8.62
50% 11.28 12.69 143.14 4182 0.239 1168 8.16
55% 11.23 15.35 172.38 4465 0.269 1328 7.70
60% 11.17 19.17 214.08 4805 0.312 1534 7.17
65% 11.10 23.09 256.38 5095 0.354 1730 6.75
70% 11.04 27.02 298.20 5372 0.393 1914 6.42
75% 10.95 32.45 355.28 5650 0.441 2140 6.02
80% 10.88 36.74 399.67 5879 0.476 2317 5.80
90% 10.71 46.75 500.90 6277 0.557 2680 5.35
100% 10.63 51.81 550.80 6424 0.592 2844 5.16
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT2826
Long Shaft
KV1100		 APC
12*6		 40% 11.28 13.27 149.72 5858 0.162 978 6.53 86
(Ambient

Temperature:

/)
45% 11.24 15.55 174.83 6211 0.182 1094 6.26
50% 11.20 18.01 201.81 6507 0.205 1228 6.09
55% 11.17 20.15 225.04 6799 0.224 1329 5.91
60% 11.13 22.60 251.45 7036 0.245 1457 5.79
65% 11.09 24.78 274.73 7242 0.262 1559 5.68
70% 11.05 27.21 300.54 7478 0.281 1663 5.53
75% 10.99 30.65 336.94 7806 0.308 1826 5.42
80% 10.91 35.65 388.97 8206 0.344 2028 5.21
90% 10.76 45.19 486.11 8837 0.406 2363 4.86
100% 10.67 50.12 535.03 9037 0.435 2531 4.73
APC
13*6.5		 40% 11.27 14.15 159.46 5279 0.188 1053 6.60 HOT
45% 11.22 16.89 189.50 5621 0.213 1197 6.32
50% 11.18 19.58 218.84 5915 0.238 1337 6.11
55% 11.13 22.69 252.39 6220 0.265 1482 5.87
60% 11.09 24.86 275.62 6409 0.284 1585 5.75
65% 11.03 28.58 315.17 6726 0.314 1751 5.55
70% 10.96 32.83 359.69 7051 0.346 1922 5.34
75% 10.89 37.14 404.41 7358 0.378 2095 5.18
80% 10.80 42.24 456.37 7672 0.413 2285 5.01
90% 10.61 53.95 572.57 8207 0.488 2675 4.67
100% 10.53 59.09 622.02 8415 0.511 2810 4.52
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging.

Details

T-MOTOR AT2826 Long Shaft Motor SPECIFICATIONS WheelbaseT-MOTOR, the upgraded AT Series are designed for fixed-wing model; VTOL UAV .

the upgraded AT Series are designed for fixed-wing model; VTOL UAV . high efficiency and stable endurance, the balance between technique and power . improvements are reflected in everywhere: High Temperature Stable Safe Everywhere .

T-MOTOR, design with lateral outlet hole and internal heat dissipation structure . SS

Equipped with a unique lateral outlet hole design and an internal heat dissipation structure, this motor features an efficient cooling system (SS) that helps to dissipate heat effectively.

T-MOTOR, Military-grade wire & more durable High temperature enameled wire (including special insul

Featuring military-grade wire and a durable, high-temperature enameled wire with a specialized insulation layer, this motor exhibits enhanced high-temperature resistance, thereby extending its lifespan and operational durability.

T-MOTOR, anti-stripping design Safety assurance A Linear shaft design, plus the C-C

Equipped with an anti-stripping design and a linear shaft design, the C-clip locking mechanism and shaft collar provide a secure and reliable solution, ensuring the motor's safety and performance even at high rotational speeds.

T-MOTOR, selected high quality materials and exquisite workmanship are shown everywhere .T-MOTOR, arc magnet & high torque provide high torque for the propeller: 6 5a 4

The arc-magnet design and high-torque capabilities provide increased propulsion for the propeller, while optimized motor circuits enhance performance by over 5%.

T-MOTOR, triple-bearing supported More durable & Flying longer Big motor (above 28

Featuring triple-bearing support, this durable motor (part of the above 28 series) boasts three bearing sets that ensure greater stability, efficiency, and robustness under heavy loads.
