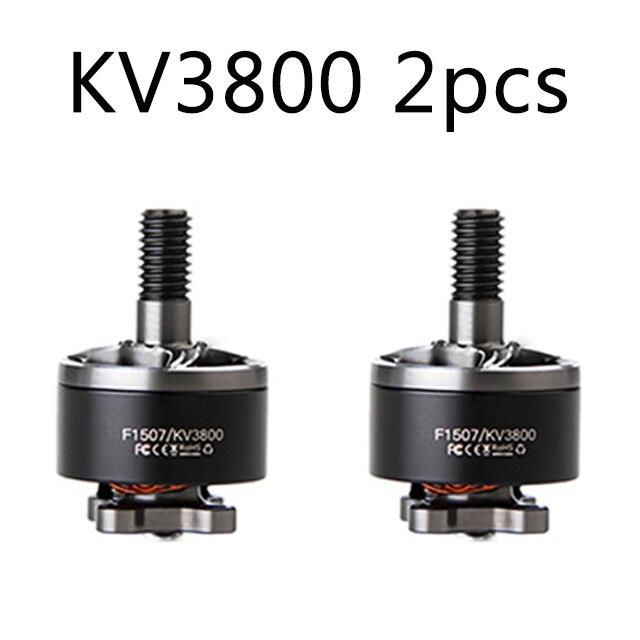

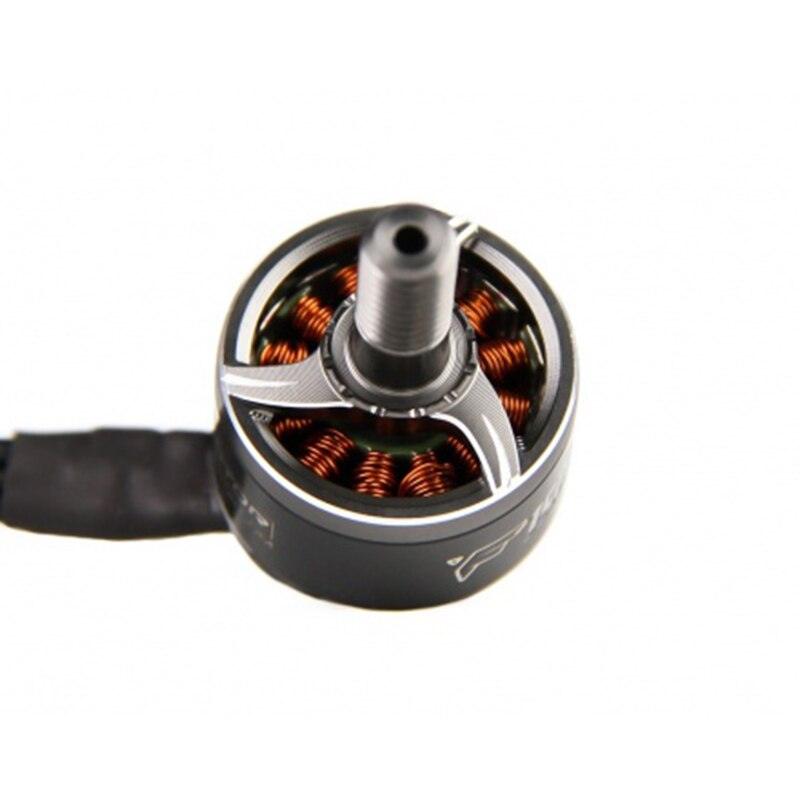

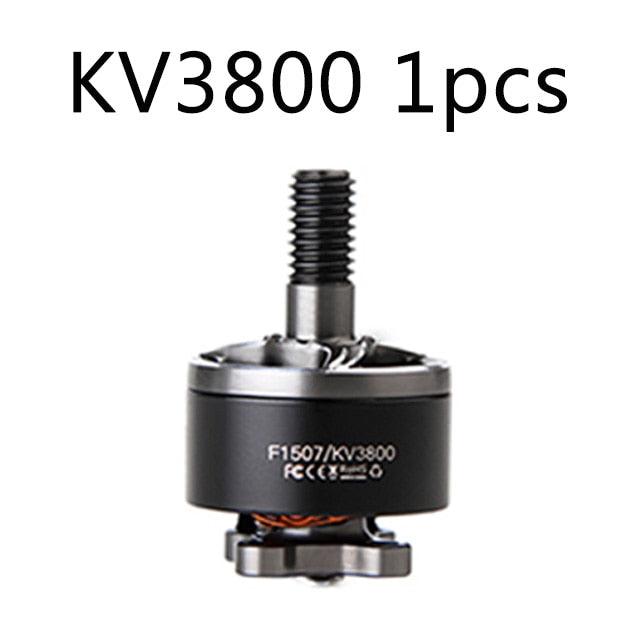

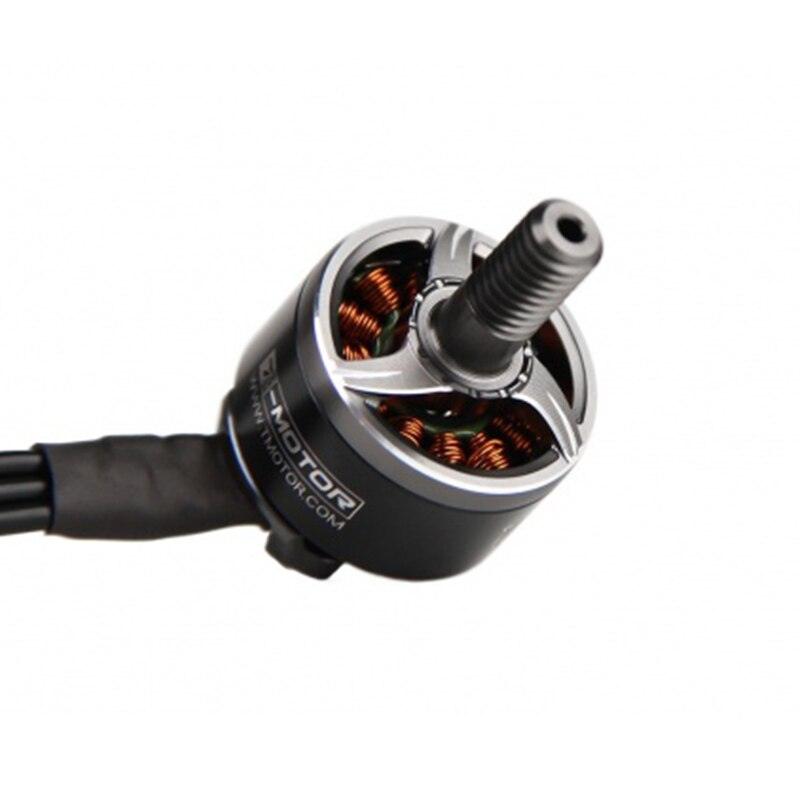

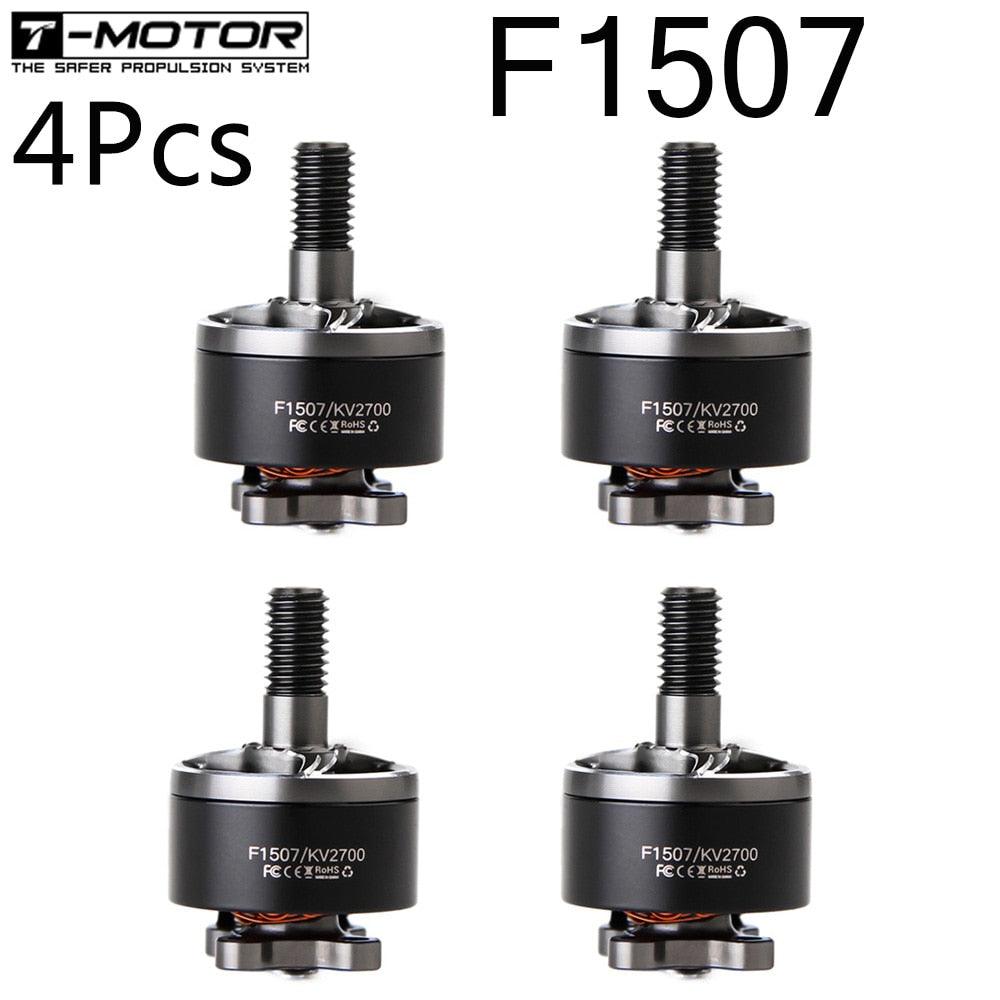

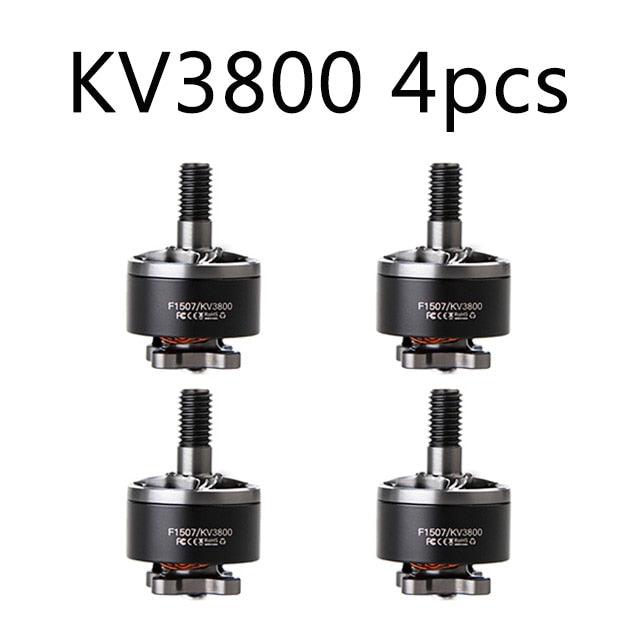

T-Motor F1507 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor for Cinewhoop RC Drone FPV Racing

Specification:

Brand Name: T-Motor
Model: F1507

Item Name: 1507 2700KV 3-6S / 3800KV 3-4S Brushless Motor

Pakcage Included:
1x T-Motor T1057 Motor

1x 1x Motor Nut
1x bag of Screws

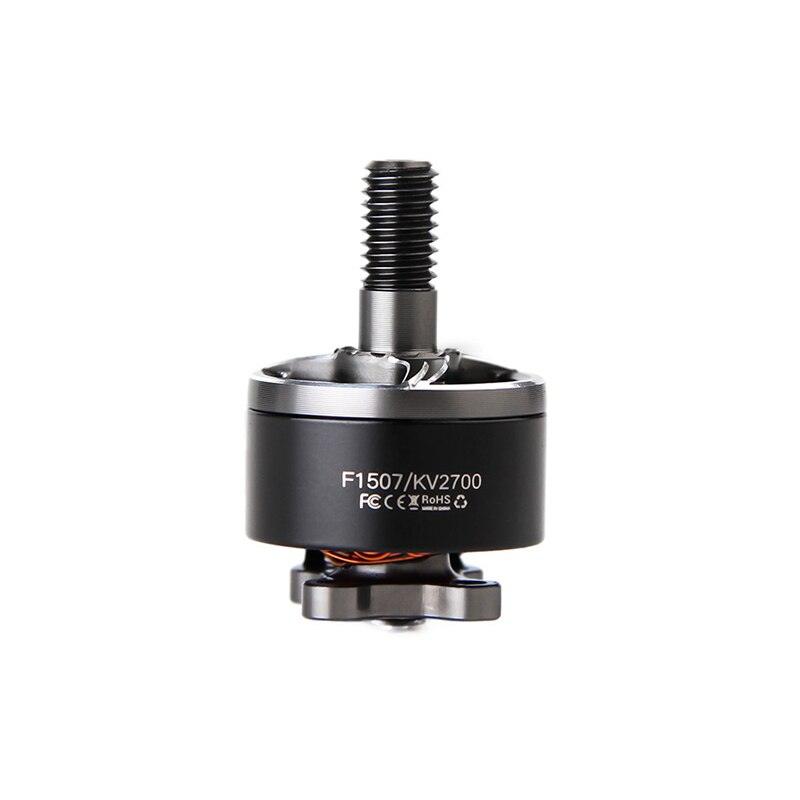

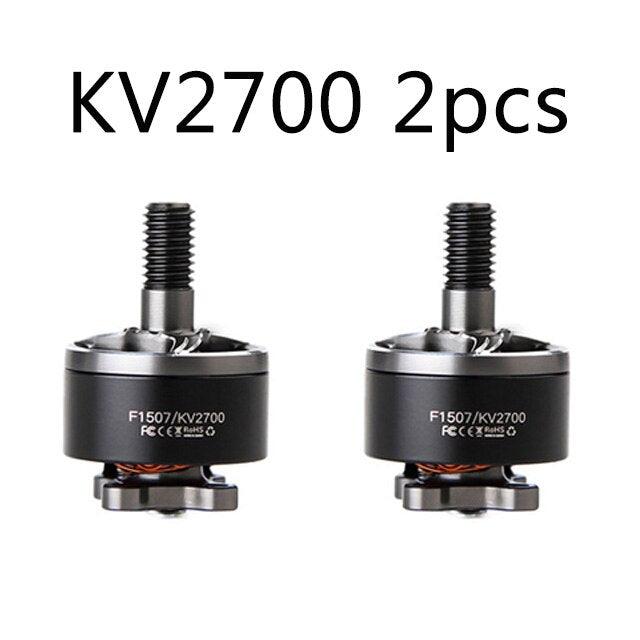

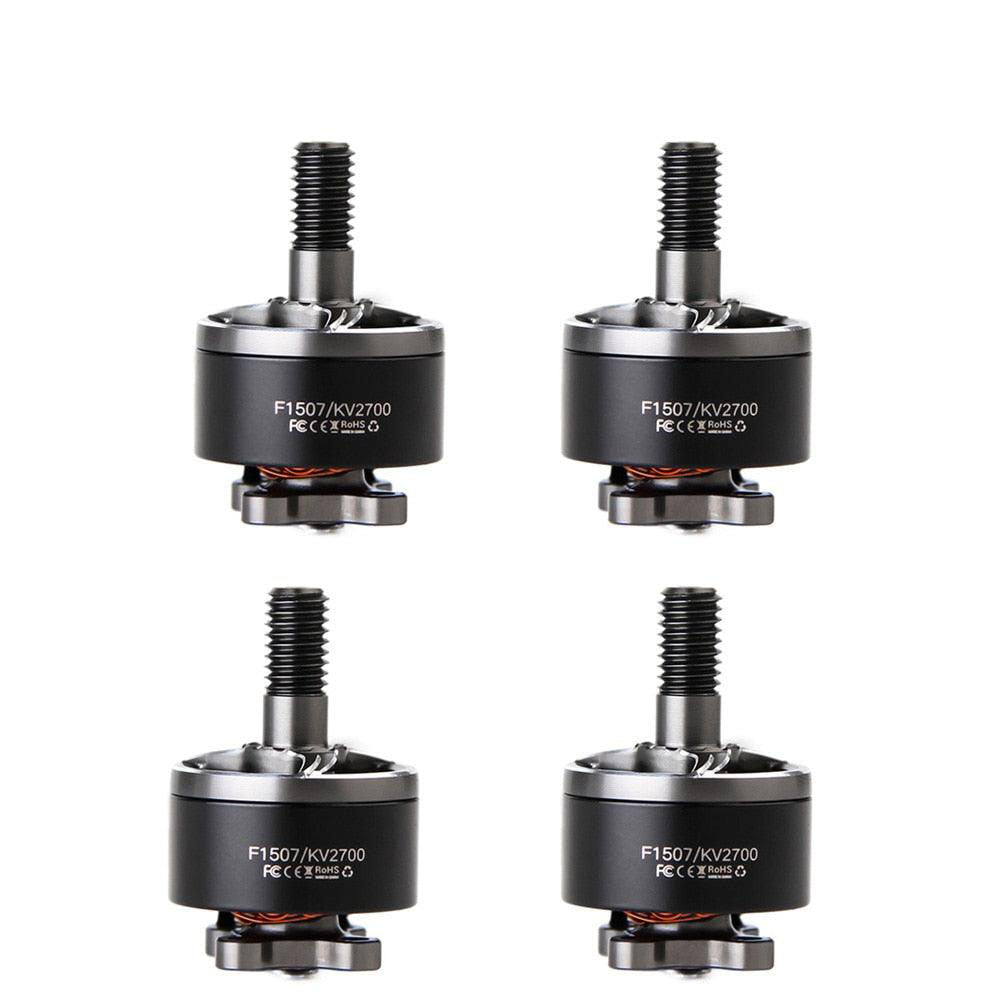

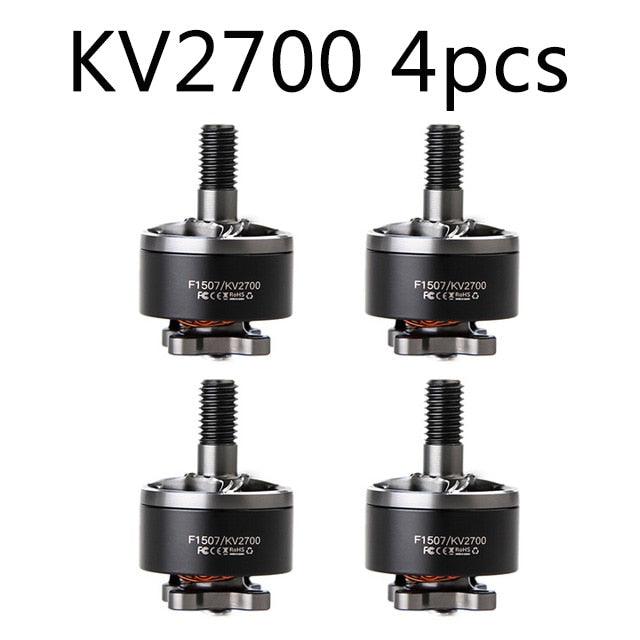

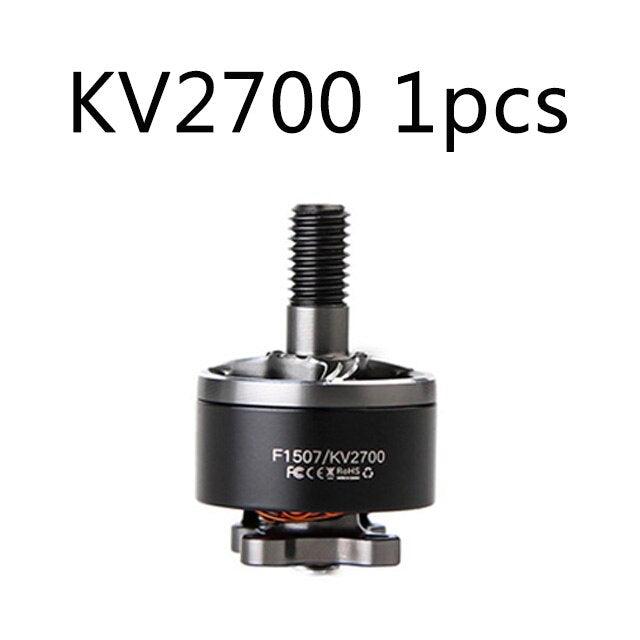

F1507/KV2700 High torque brings ultimate smoothness FccezRok 8 and control experience comparable to 20-class above large

The maximum thrust-to-weight ratio for this motor reaches up to 52.8, offering exceptional power efficiency.

The specifications for the T-Motor F1507 brushless motor include a KV value of 2700, throttle speed of 100%, voltage rating of 23.28V, current draw of 23.344A with a tri-blade design, RPM range of up to 45,119RPM, and a maximum thrust weight of 838g. The ESC power output is rated at 543.46W.

Capture life's moments whenever, wherever you are - take control of your story and enjoy the thrill of flight!

Specifications: KV rating - 2700, motor weight (including cable) - 15.2g. Dimensions: 18.9mm x 29.7mm. Internal resistance: 131mΩ. Lead wire: 24# AWG, length: 100mm. Configuration: 12N14P. Shaft diameter: 2mm. Rated voltage (Lipo): 3-6S. Idle current (amps): 0.6A. Peak current (amps): 22A. Maximum power (watts): 519W.

Upon receiving your package, please verify that it includes all the specified components before using the product. If any item is missing, kindly reach out to our online customer service team or leave a message for assistance.
