SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: ESC
Recommend Age: 18+
RC Parts & Accs: Motors
Origin: Mainland China
Model Number: F60 PRO IV
Material: Metal
For Vehicle Type: Airplanes
Brand Name: T-MOTOR
This is V2 version.
There are Grey,Blue and Red colors to choose,and we will send you color randomly.You can also leave us a message which color you want.

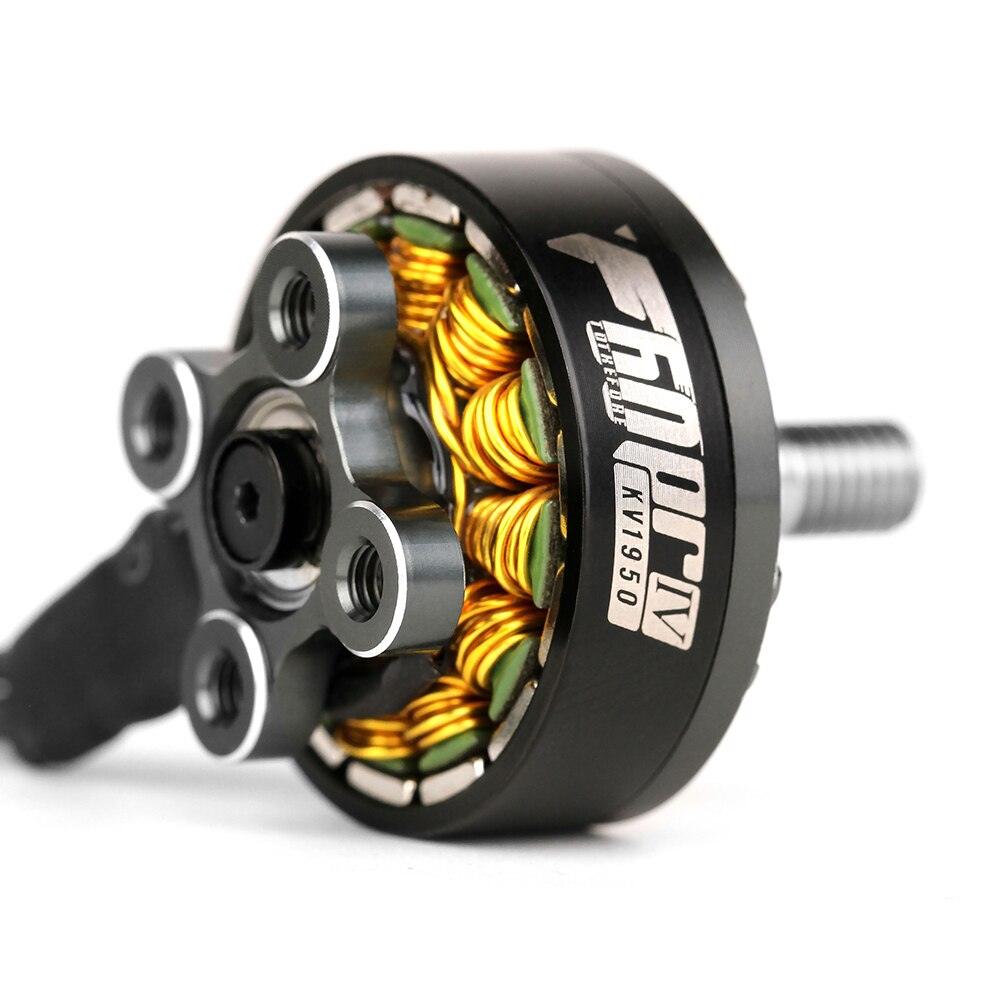

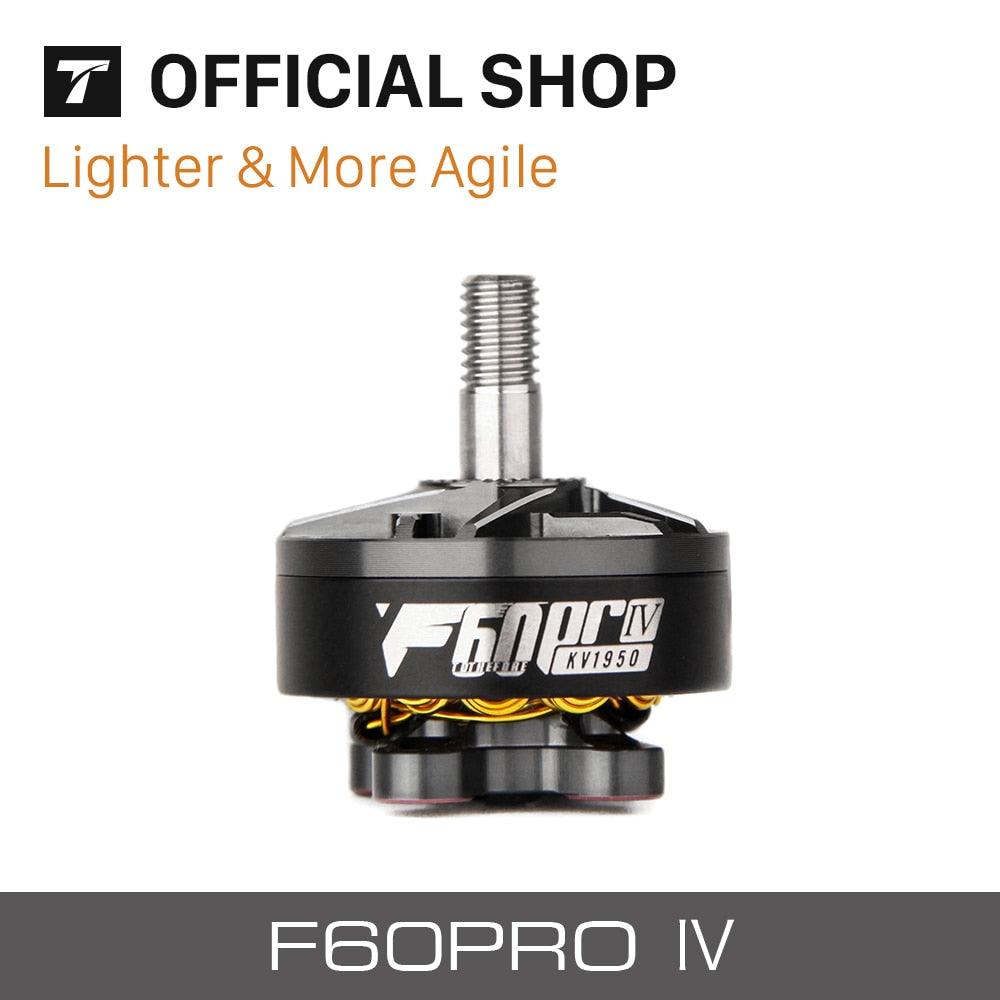

Kv1950 F6OPRO IV Three available KV (KV1750, KV1950, kv2550) Easy 3D Cornering More Durable Accurate Control Ah W Kv1750 F
T-Motor F60PRO IV Brushless Electrical Motor Specifications: * KV (Kilovolt): 1750 * Throttle: 100% * Voltage: 23.01V * Weight: 1820g * Propeller: Tri-Blade T5150 * Current: 40.68A * RPM: 29,822RPM * Max Thrust: [Not specified] * ESC Power: 9,361W * Power Ratio: 1.94 * Temperature after 100% throttle running: approximately 93°C
Enjoy a 9% reduction in weight compared to the F60PRO III, where every detail has been optimized to minimize excess weight.

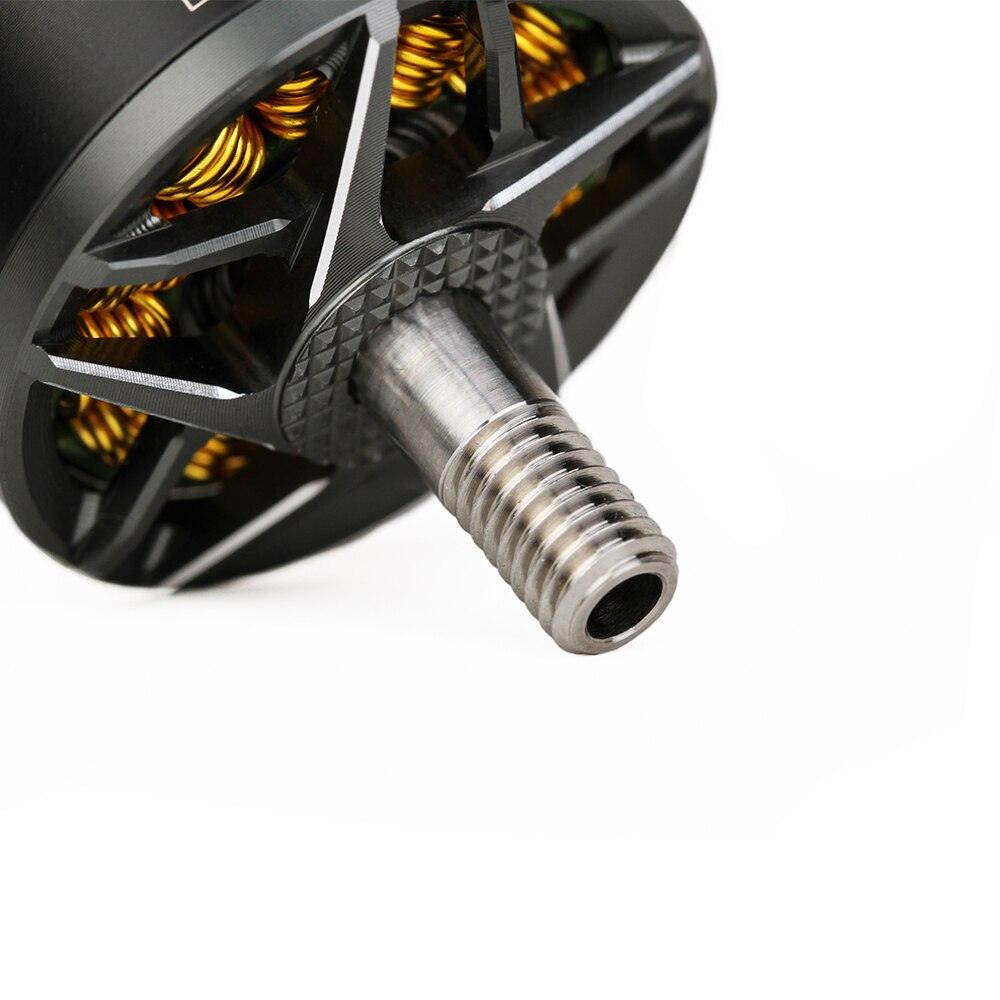

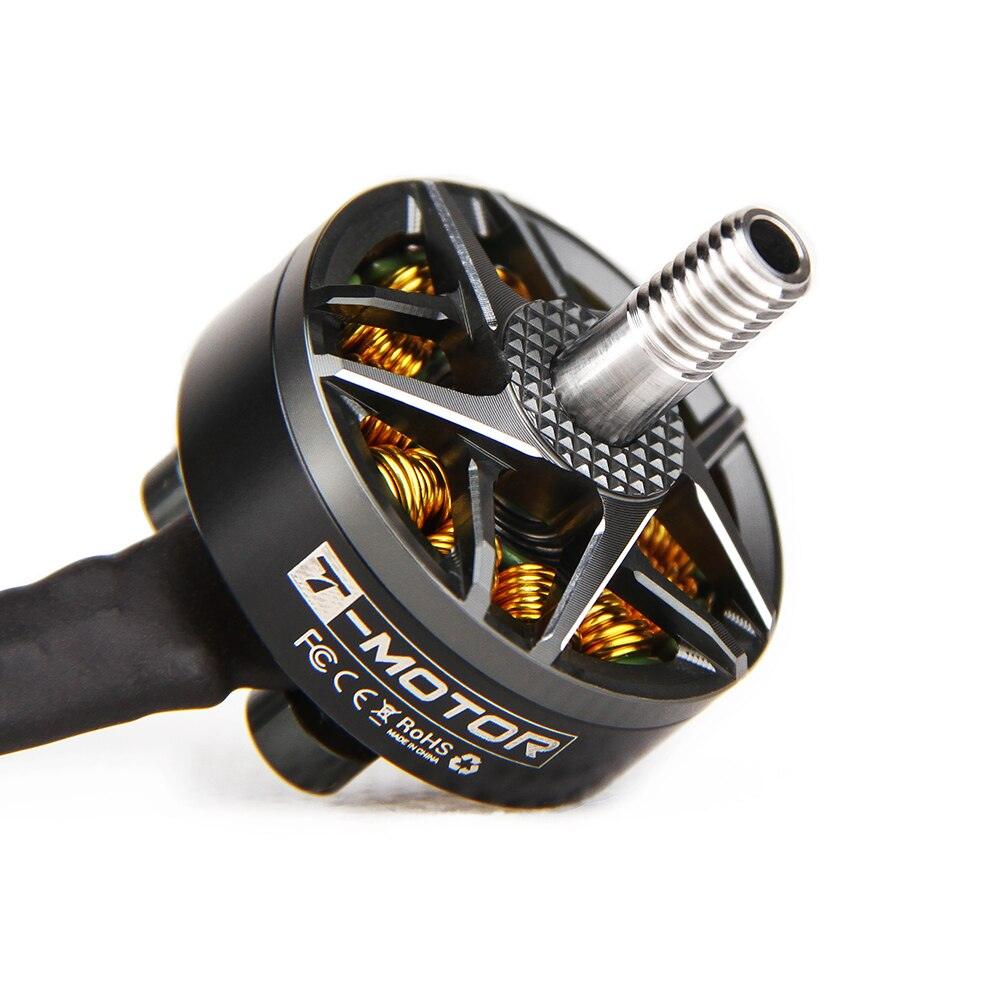

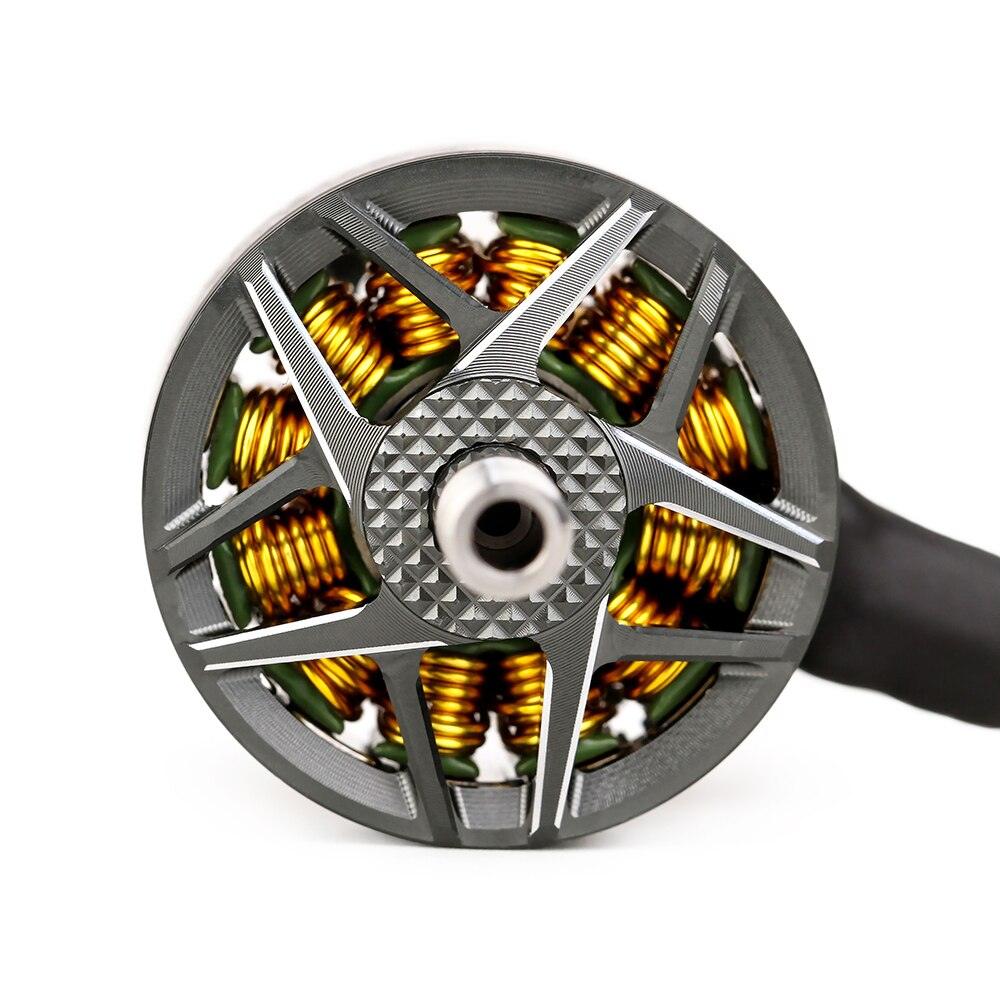

The F60PRO IV V2 motor features an innovative interlaced rib design, along with a special base design that reduces the shaft height to just 12mm. Additionally, our CAE-validated torque simulation helps to enhance the user experience.
The optimized mounting holes provide a perfect match for 5 frames/ar arms, with optional colors including blue and red.
Product Specifications: KV1750 Motor - Weight (including cable): 32.5 grams; Dimensions: 27.1mm x 31.1mm; Internal Resistance: 65mΩ; Lead Wire: 20AWG, 150mm long; Configuration: 12N14P; Shaft Diameter: 4mm; Rated Voltage (Lipo): 4-6.5V; Idle Current (1V): 1.2A; Peak Current (60s): 394A; Maximum Power (60s): 1190W. Test Item KV2550 - Weight: 32.4g.
