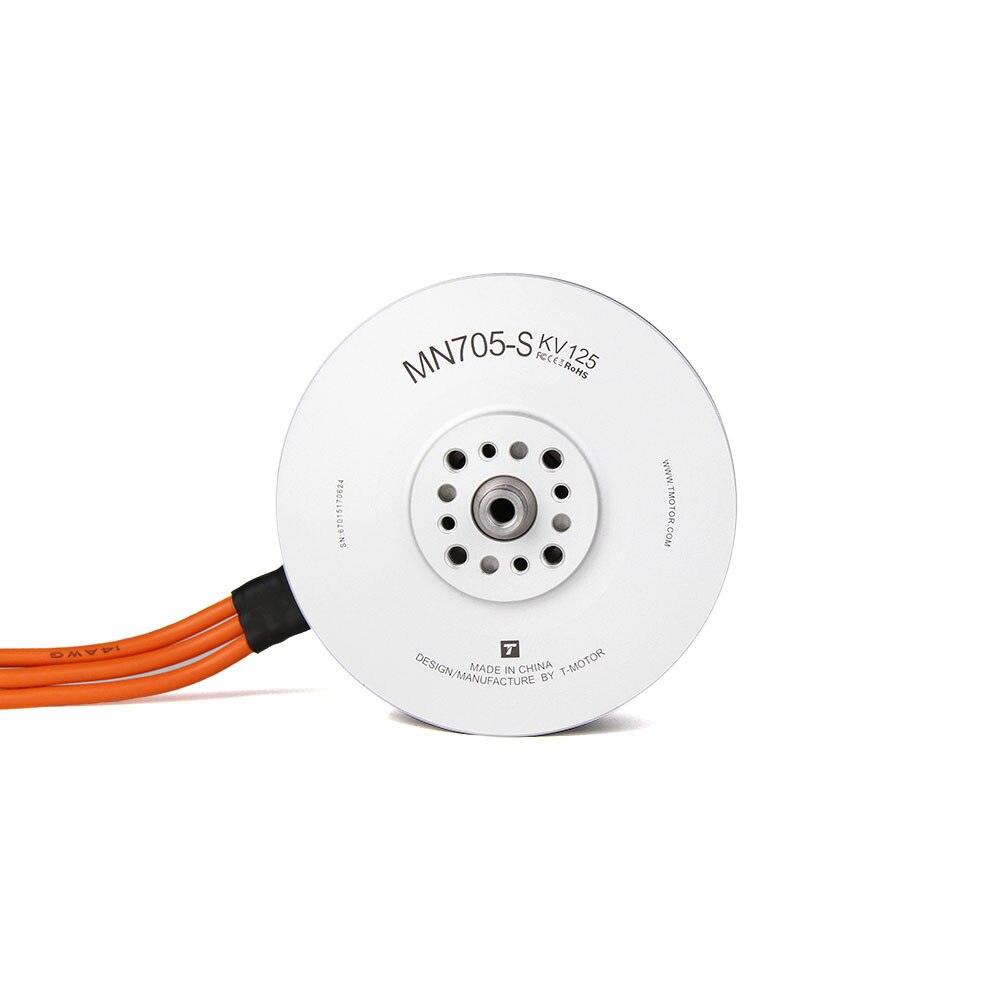

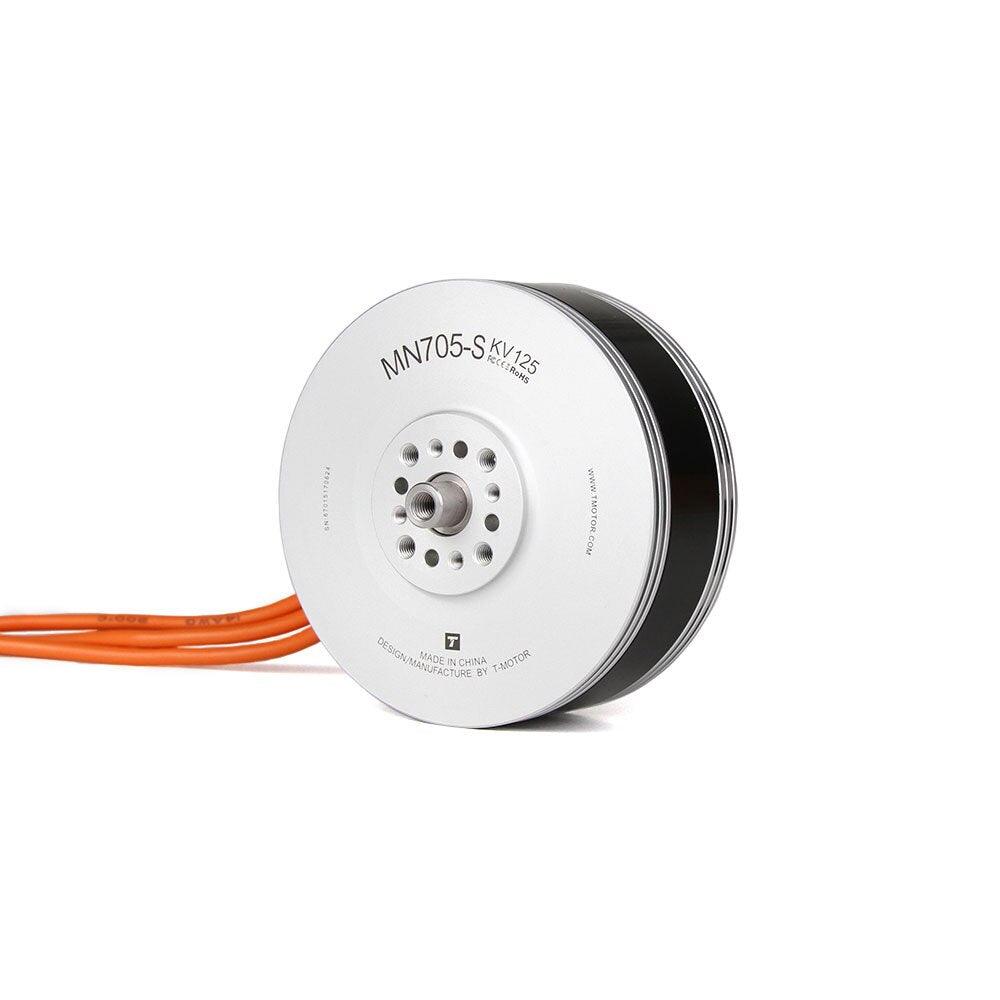

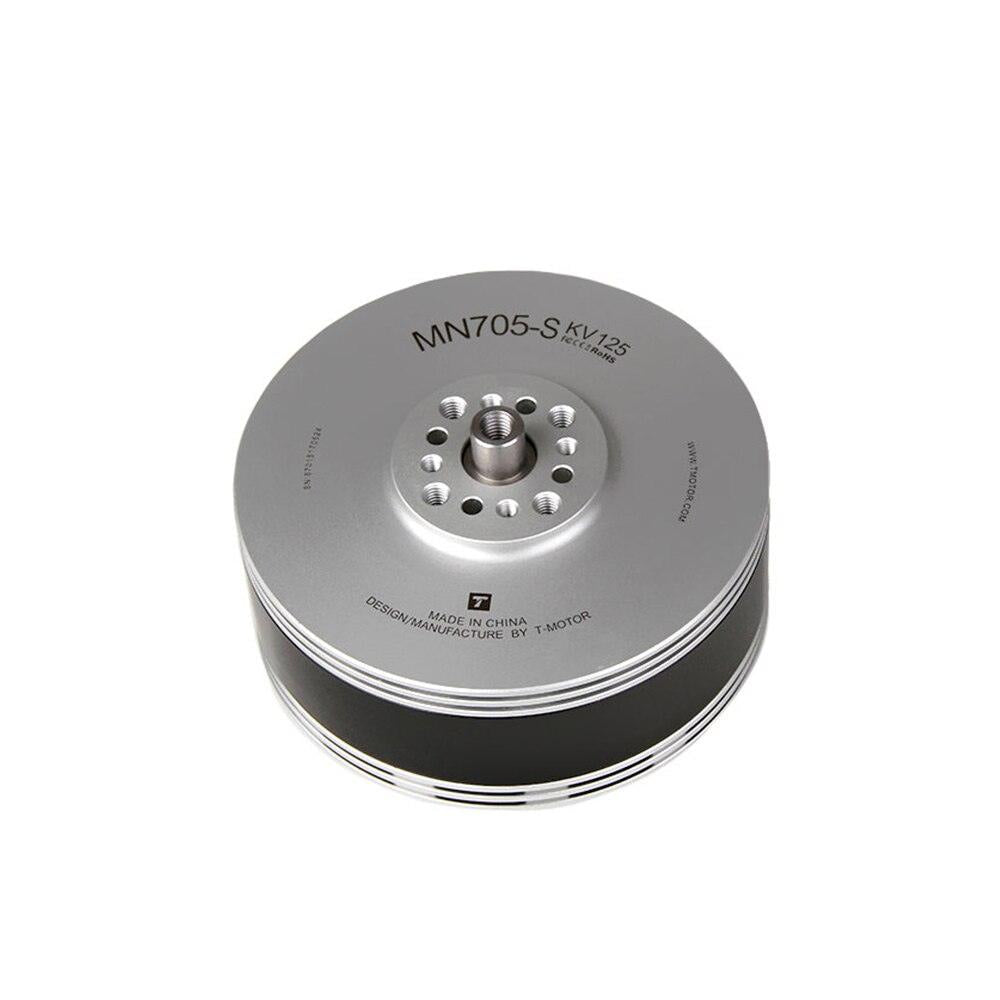

T-motor MN705-S KV125 KV260 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN705-S KV125

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

heat dissipation performs 15% better than ordinary motors . anti-overload motor air Flow Simulated Analyses 462.36 450_ 401.88 389_ 365_ 353_ 341_ 329_ 317.19 305.10 293.00

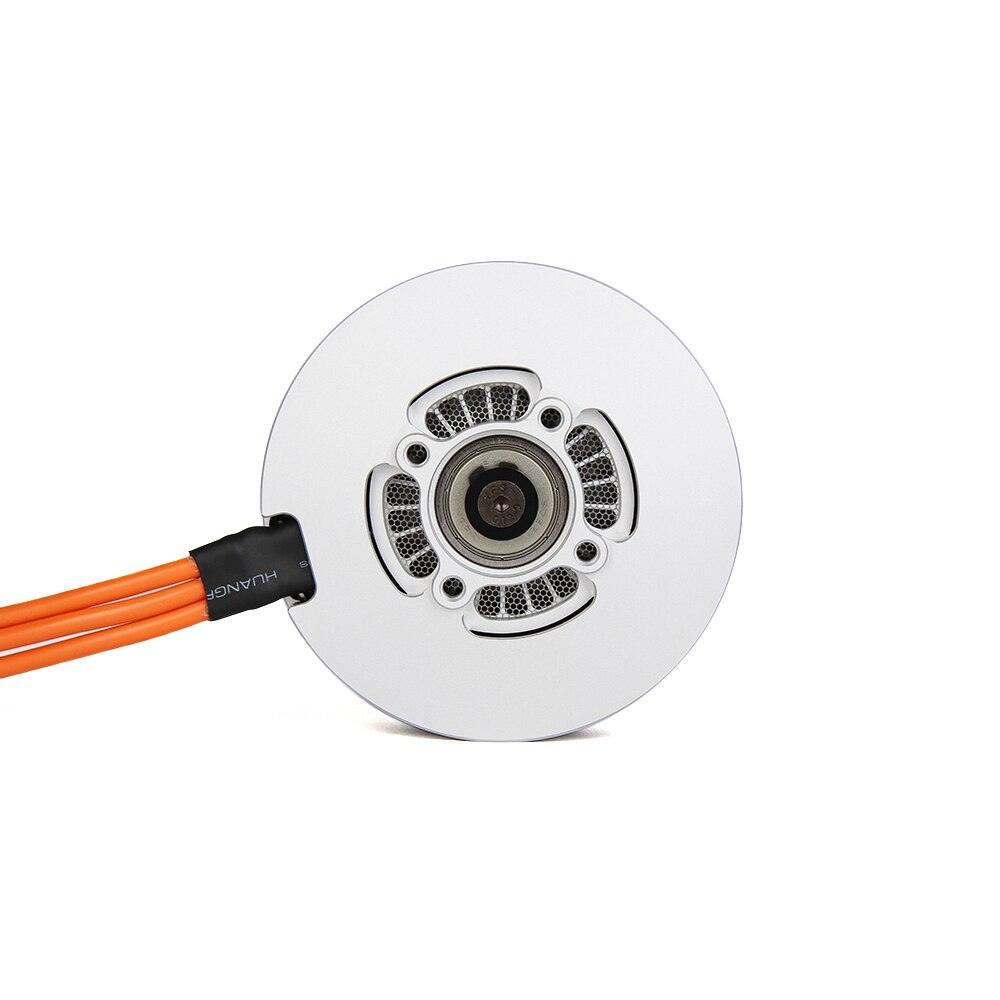

The grid-shaped structure of the bell cap and base allows for efficient ventilation, while also protecting the motors from dust and other debris. Additionally, the magnets and bell are treated with advanced anti-rust and anti-corrosion technologies to ensure optimal performance and longevity.

The MN705-S features an Ocrew Washer Circlip Double Security Operation System, which provides exceptional thrust, longevity, and durability. The motor's construction includes a robust 6mm steel shaft, large bearings, and optimized curved magnets, resulting in impressive impact resistance, stability, and lifespan.

The VS Anti-high temperature curved magnets feature precise tolerance control and a logical magnet layout, optimizing the motor's magnetic circuit to enhance overall performance by up to 5%. This results in improved motor efficiency and reliability.

Specifications: * Motor Size: 79.2 x 44.4mm * Imported silicon steel sheet with anti-rust treatment * Stator: 180-degree high-temperature-resisting coatings * Configuration: 24N28P * Shaft Diameter: In 8mm, Out 8mm * Bearing: Imported 608ZZ * Magnet Level: High temperature resistance up to 150°C * Lead Cable: 14AWG x 150mm Copper Wire with high temperature resistance up to 220°C * Coil Insulation Test: 500V Centrifugal Cooling Design: Yes Rotor Dynamics: [Note: This last part appears to be a feature label, rather than a specific specification]

Specifications: * ESC Recommendation: FLAME 60A (12S idle current at 22V, 2.8A) * Peak Current: FLAME 100A (6S, 180 seconds) * Internal Resistance: 16mΩ * Weight: 1250g (for a 2-piece set)

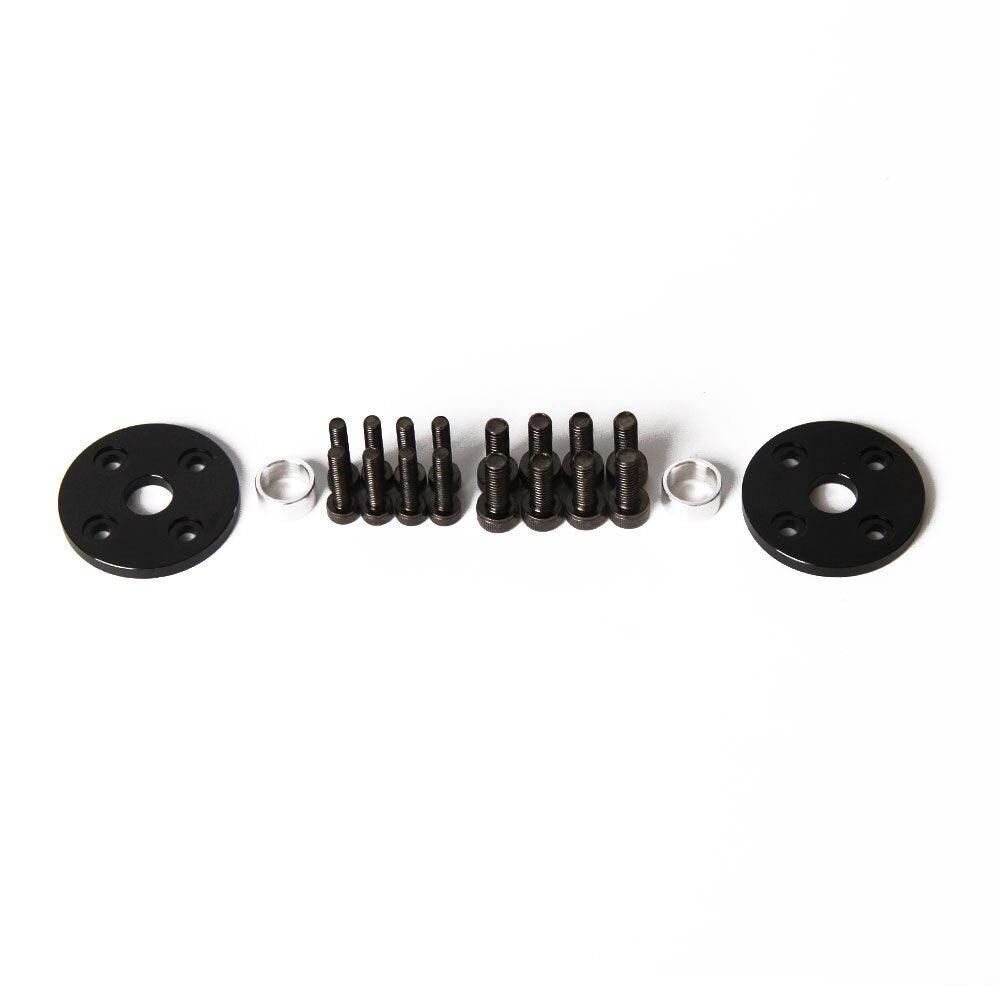

If you are missing any parts, please contact our online customer service. You can leave a message to [onlinesales@t-motor.com](mailto:onlinesales@t-motor.com) or reference order number MN705-S/5 KV260.
