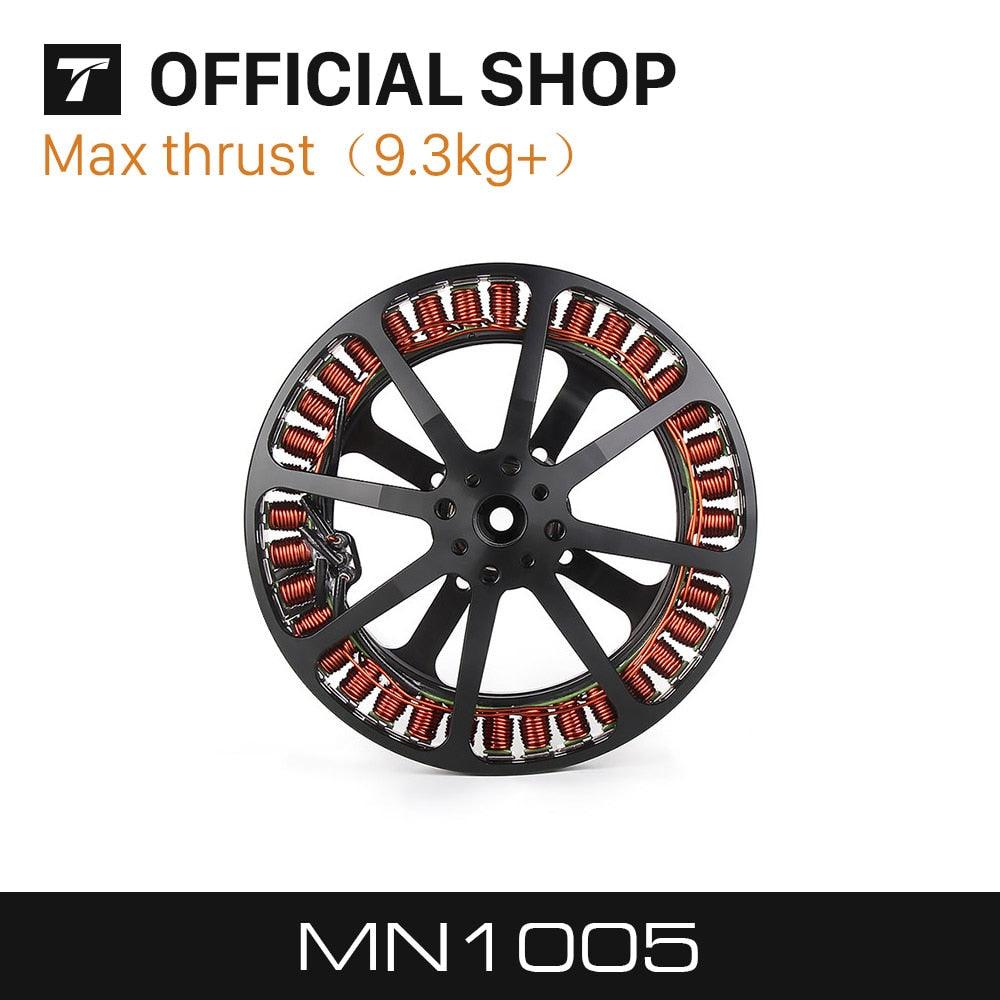

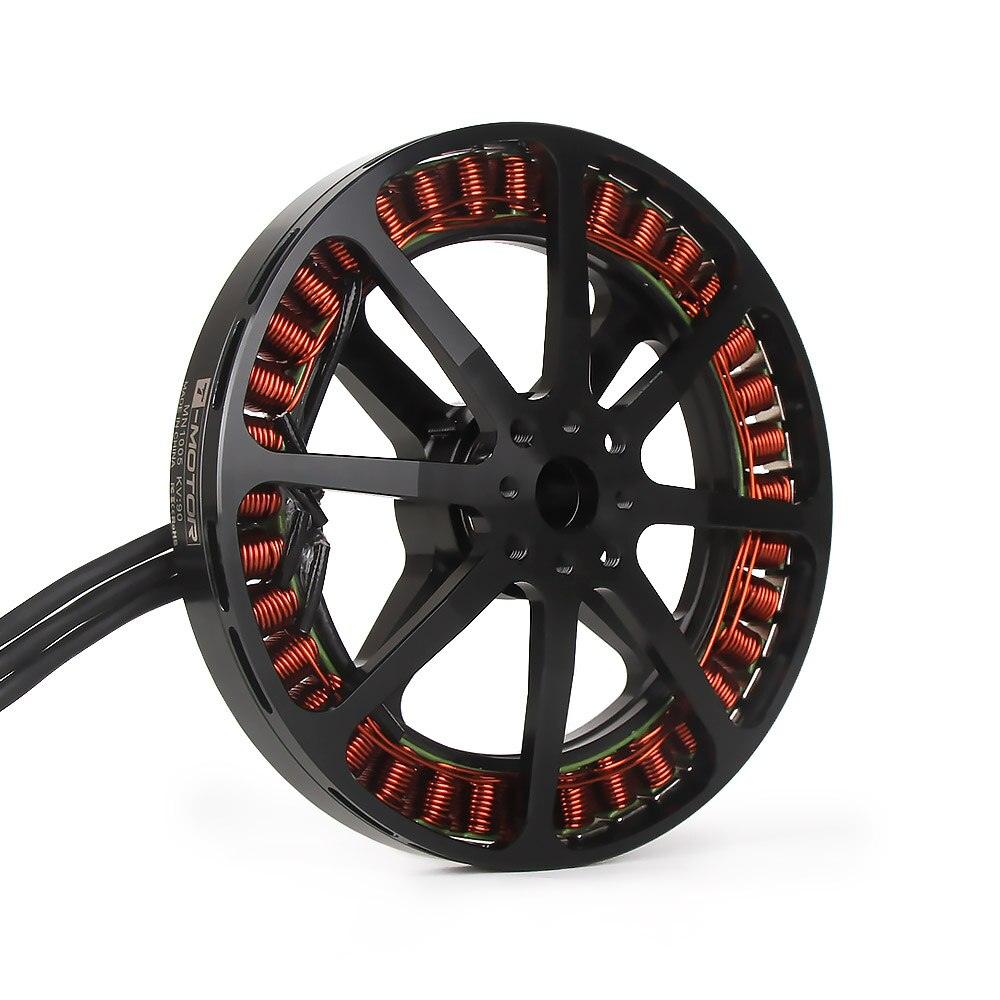

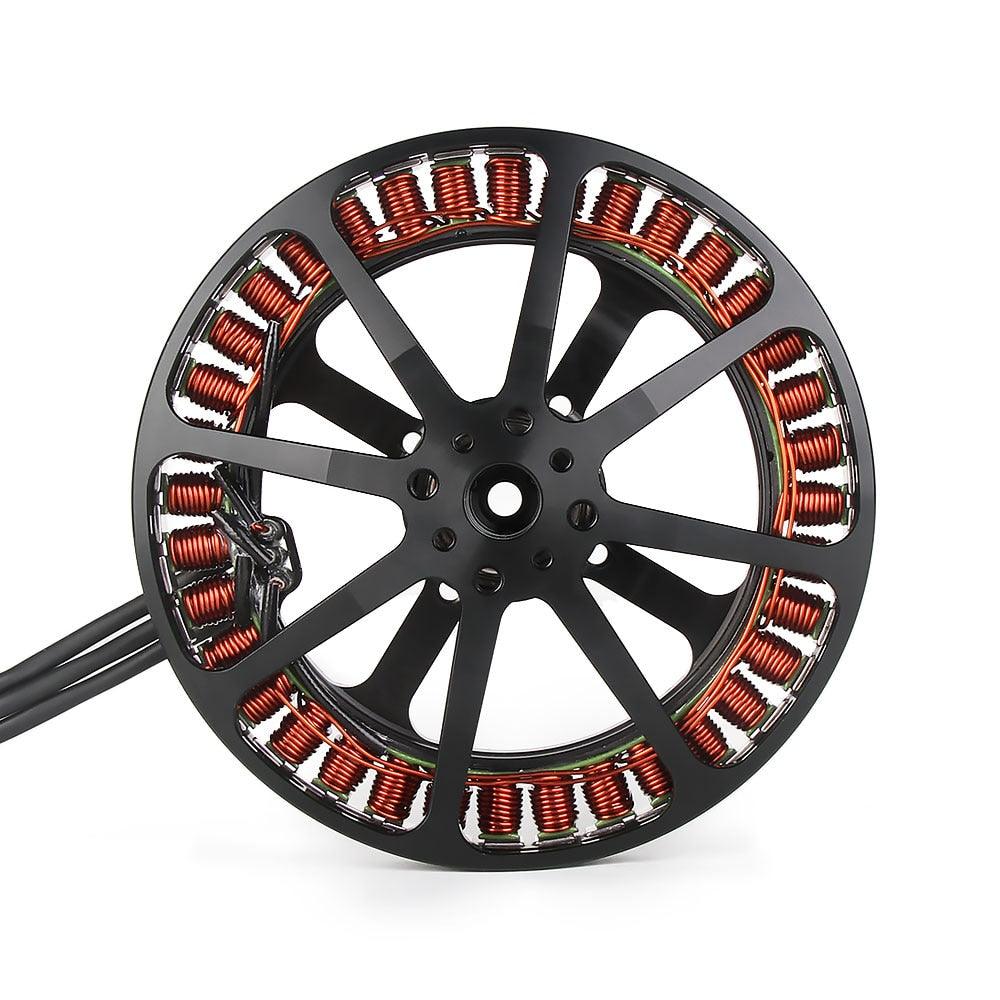

T-MOTOR MN1005 KV90 Motor - Antigravity 9.3KG Thrust 11.5g/W at 3kg Ultralight Aircraft Engine

T-MOTOR MN1005 KV90 Motor - Antigravity 9.3KG Thrust 11.5g/W at 3kg Ultralight Aircraft Engine

T-Motor

$322.70 USD
$451.78 USD $322.70 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

48 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

T-MOTOR MN1005 KV90 Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: esc

Tool Supplies: Battery

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN1005 KV90

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

T-MOTOR, MN1OOS Motor Size 0107*23mm Stator 80 C high temperature-

MN1OOS Motor Size 0107*23mm Stator 80 C high temperature-resisting coatings Configuration 36N42P Shaft Diameter 17mm Bearing Imported 6803ZZ Magnet Level 80'C high temperature resistance .

T-MOTOR, ead Cable Enamelled wire OOmm Copper Wire 220*

Cable, enamelled wire, Ø0.5mm copper wire, high-temperature resistant up to 220°C; coil insulation test S0Ov; centrifugal cooling design for optimal rotor dynamic balance standard. Specifications: nominal operating voltage (Lipo) 10V, idle current 0.9A, internal resistance 16.8mΩ, peak current (180s) 32.4A, weight (including cable) 255g, maximum power output (180W).

T-MOTOR MN1005 KV90 Motor SPECIFICATIONS WheelT-MOTOR MN1005 KV90 Motor SPECIFICATIONS Wheel

T-MOTOR, MNI0O5 KeOOons MADE INCHINA Classic antigravity design

MNI0O5 KeOOons MADE INCHINA Classic antigravity design . light weight design with imported german 7075 aviation aluminum alloy is adopted to motor cap aviation aluminum to enhance ruggedness .

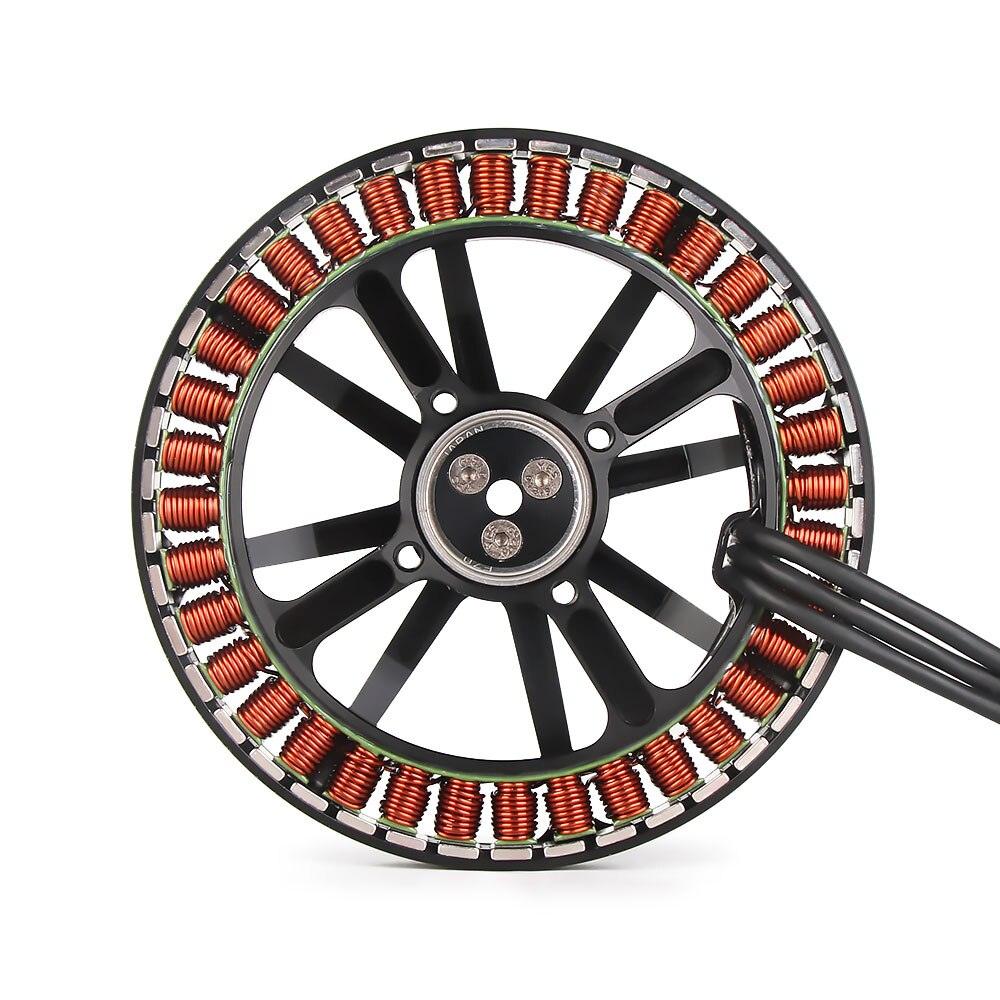

T-MOTOR, Single copper wires winding of low internal resistance and high temperature resistance for less current interference Motor

Featuring single-layer copper wiring with low internal resistance and high temperature tolerance, this motor minimizes current interference, resulting in a 5%+ increase in overall efficiency.

T-MOTOR, MNIOO5 working with 30" carbon fiber prop and FLAME6OA ESC is

The MN1005 motor, when paired with a 30-inch carbon fiber prop and FLAME6OA ESC, is capable of delivering efficient thrust at an impressive conversion rate of 11.5g/W, achieving up to 80%+ efficiency.

T-MOTOR, MOTOR Jh-ICIULSIJNSisuek antigreut

T-Motor MN1005 KV90 Motor requires proper installation and maintenance to ensure optimal performance and to prevent issues such as anti-gravity.
