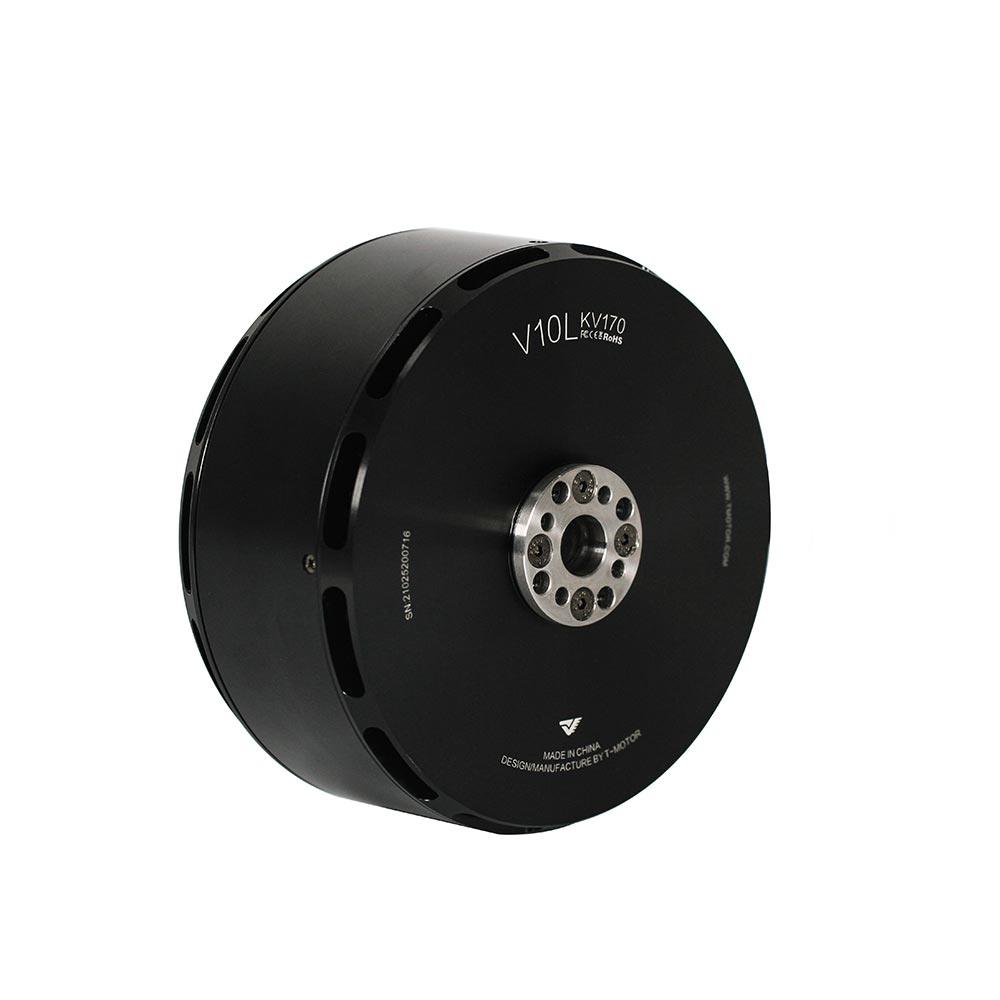

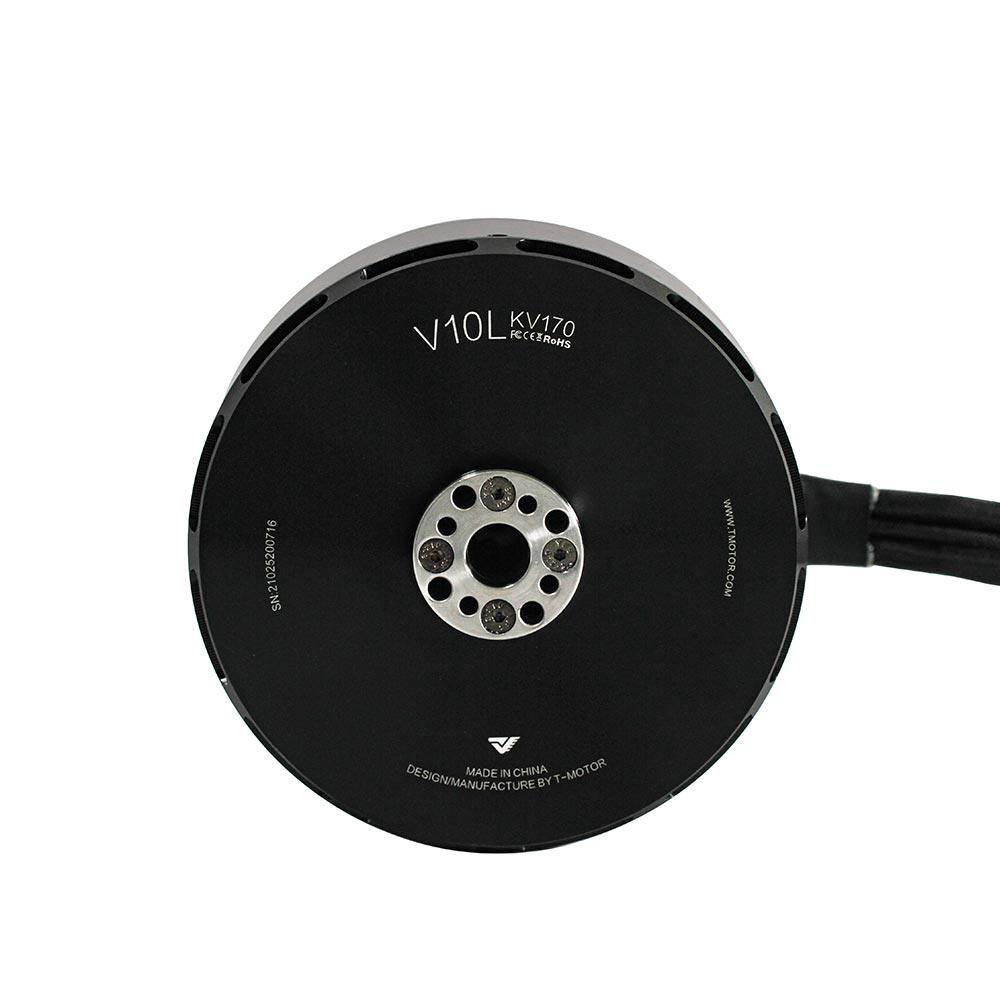

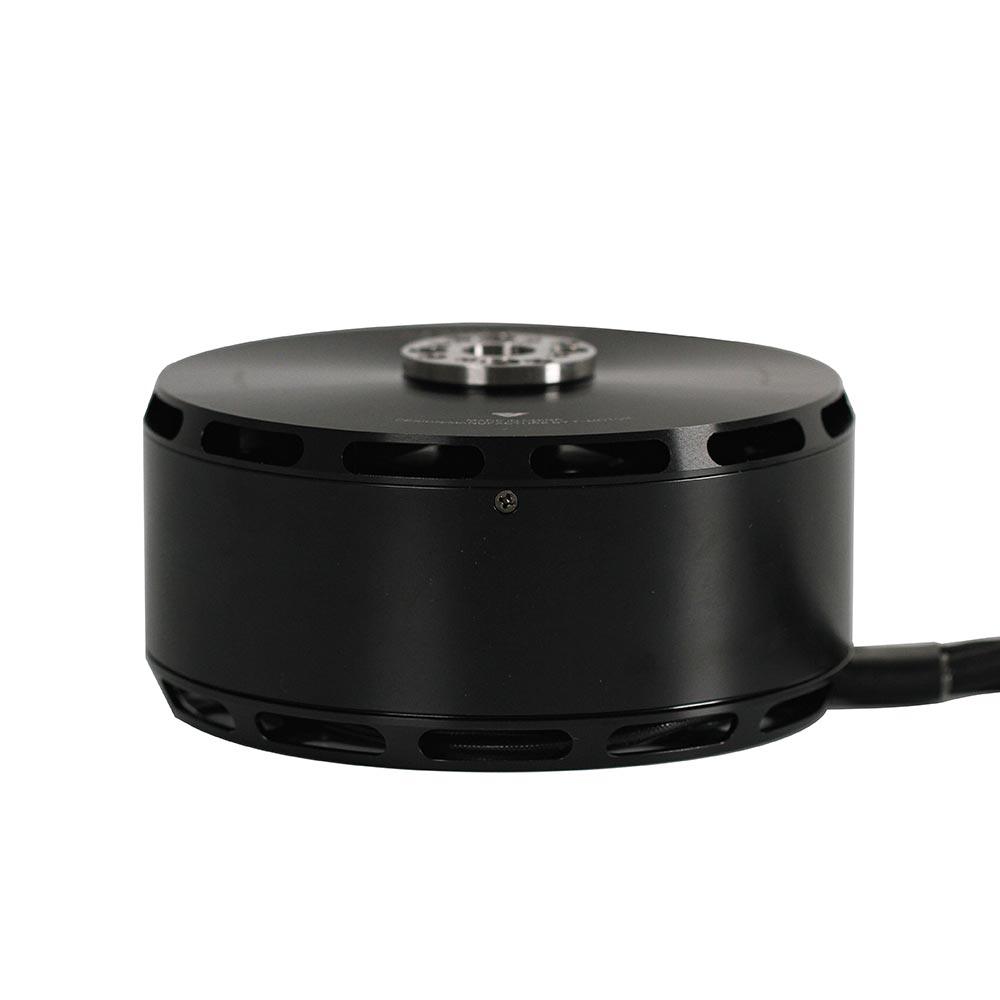

The Sharp Takeoff Steady Landing V10L KV170 motor is part of the V-series designed for VTOL power systems. It boasts a high pull-to-weight ratio, strong overload capabilities, and environmental adaptability features.

Note: When used in a coaxial configuration, a performance reduction of approximately 25.9% can be expected. Suitable propeller size for this motor is 120CC and 26-28 inches.

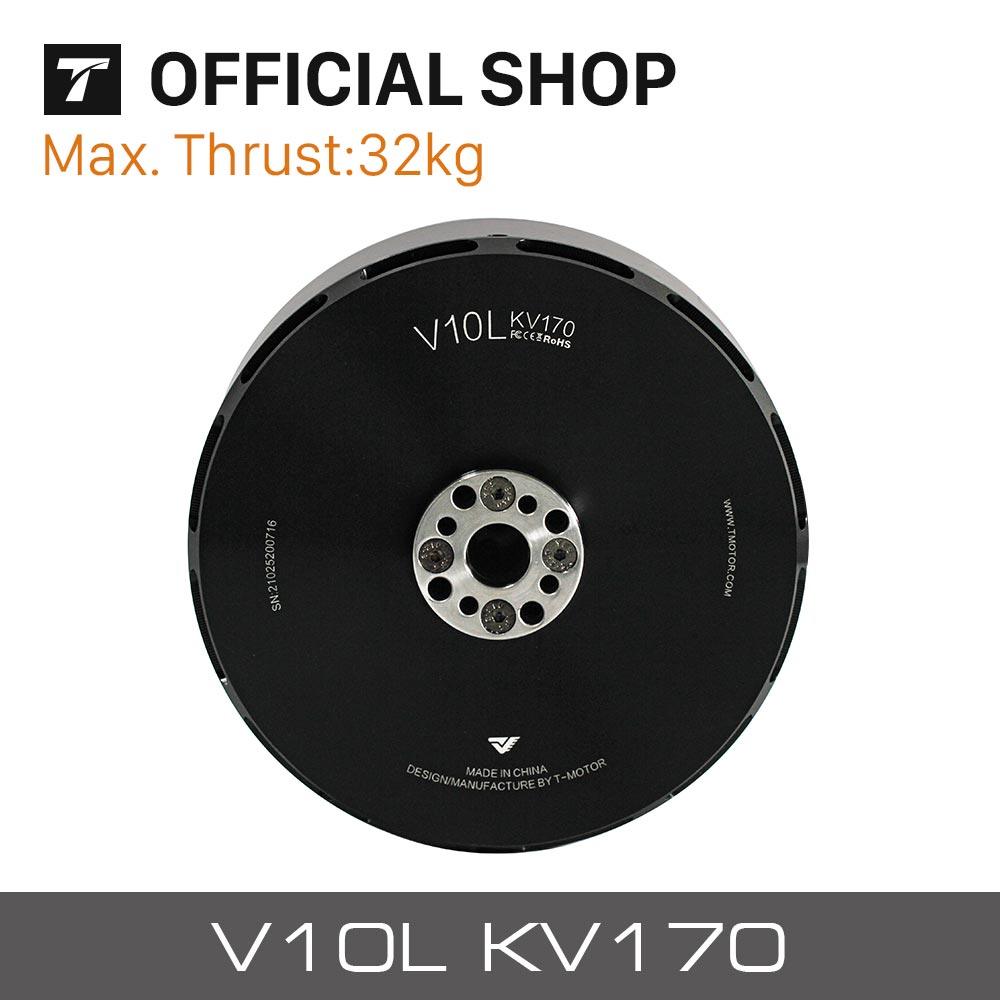

Maximum thrust: 32 kg. Adequate power reserve provides a safety margin, eliminating the need to replace or upgrade power settings at altitudes up to 3,000 meters.

Featuring special high-temperature resistant enameled wire and curved magnets, this motor's passive heat-resistant ability is significantly strengthened. Additionally, its centrifugal fan structure enhances the active heat dissipation capacity of the motor.

Technical Drawing Specifications for the T-Motor V10L KV170 Motor: Model Number: KV170; Motor Size: 106.6mm x 53mm; Bolt Hole Diameter: 20mm; Overall Length: 80mm.

This motor meets Class C standards with a V-12S rotor, featuring dynamic balance and an IP35 waterproof rating. It's compatible with lithium-polymer (Lipo) batteries and has a KV value of 170, capable of operating at up to 4.2V.

Note that T-Motor retains the sole discretion to interpret any disputes or issues arising from the product. Additionally, please note that the motor temperature refers to the surface temperature of the motor after continuous operation at 80% capacity for a duration of 10 minutes.
