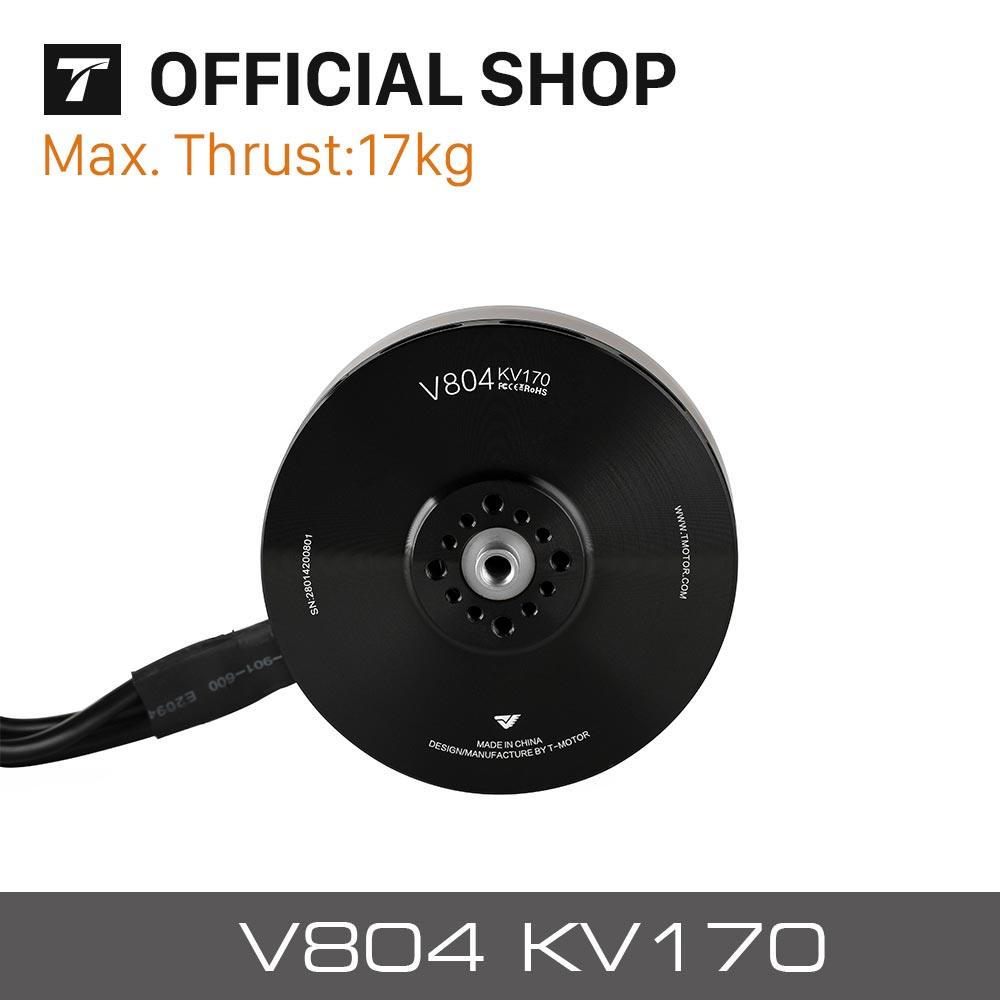

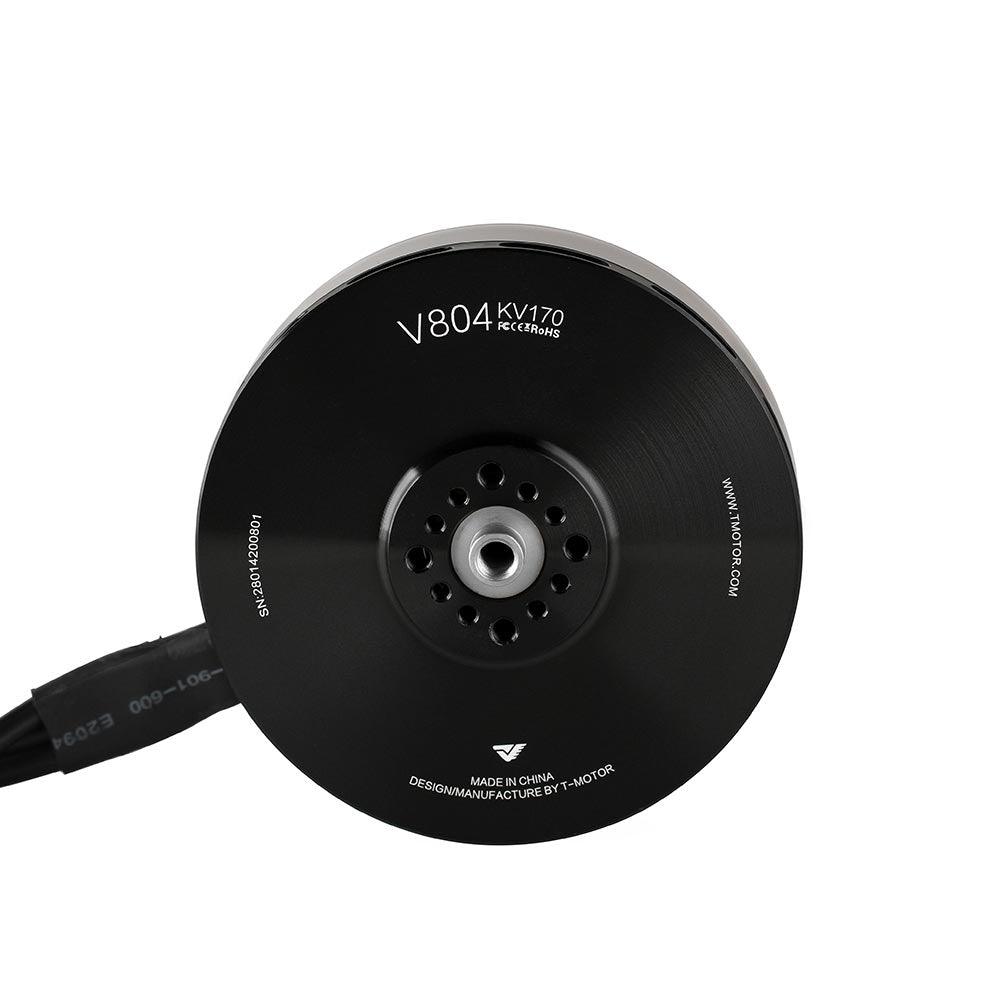

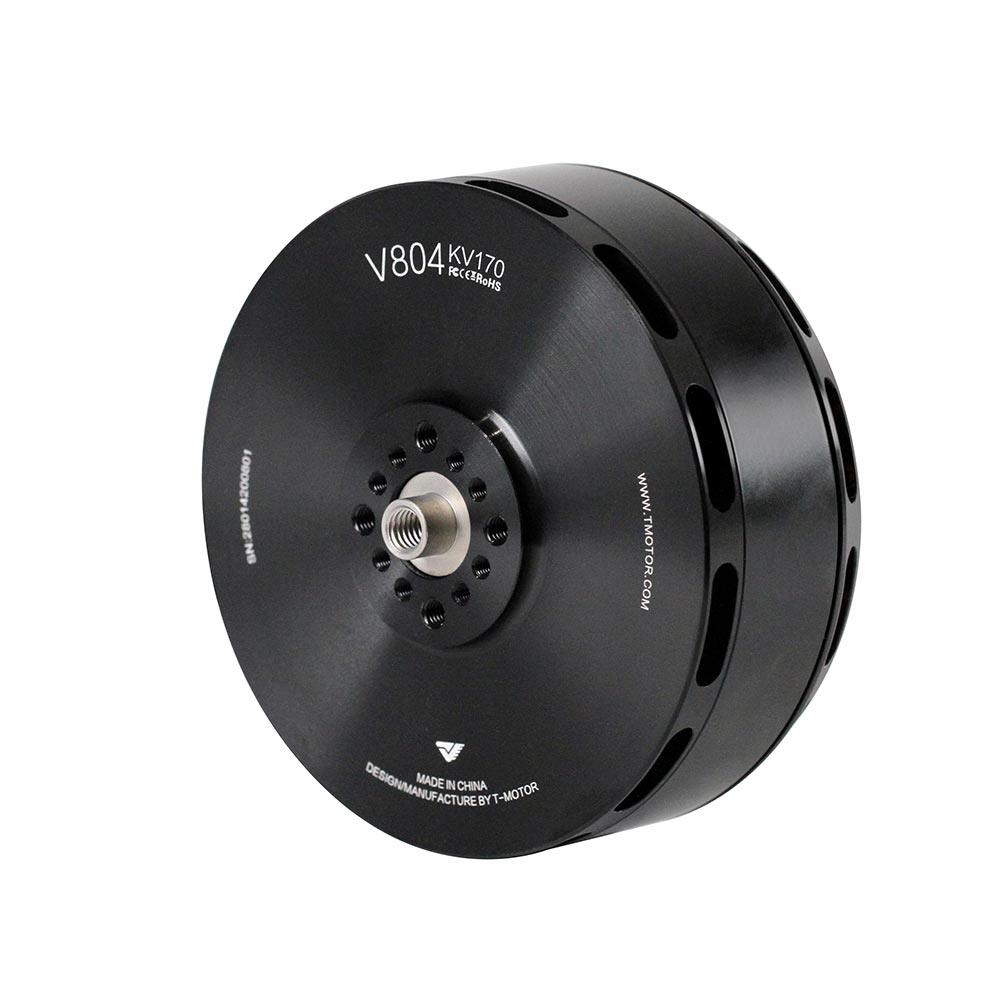

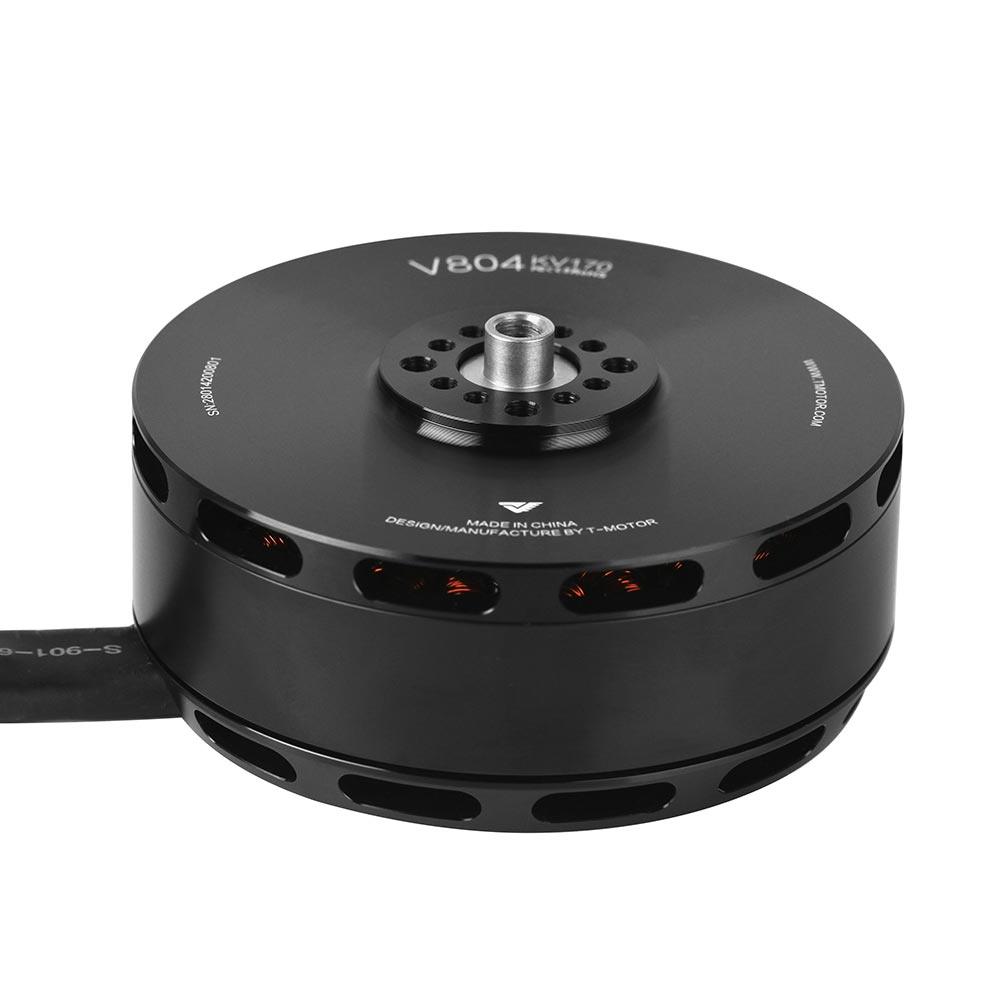

T-motor V804 KV170 Brushless Motor SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Remote Control Peripherals/Devices: Motor
Recommend Age: 18+
Quantity: 1 pcs
Origin: Mainland China
Model Number: V807
Material: Metal
For Vehicle Type: Airplanes
Brand Name: T-MOTOR
SHARP TAKEOFF STEADY LANDING KV17O Vseries is the motors designed for VTOL power system . big pull-to-weight ratio, strong overload ability & environment adaptiveness features .

Recommendation for T-motor V804 KV170 Brushless Motor: suitable for VTOL (Vertical Takeoff and Landing) composite wing solutions. Note that when used in coaxial configurations, there may be a performance loss of approximately 25.9% to consider.

Maximum thrust: 17 kg. Provides an adequate power margin, eliminating the need to replace the power setup at altitudes below 3,000 meters.

This motor features specially designed, high-temperature-resistant enameled wire and curved magnets that enhance its passive heat-resistance capabilities. Additionally, the centrifugal fan structure further reinforces this ability.


The T-motor V804 KV170 brushless motor features an imported silicon steel sheet with anti-rust treatment, a high-temperature-resistant stator bearing (6901ZZ), and a magnet level of 1808 degrees. The copper wire used is heat-resistant (Level E) and the coil insulation has undergone a test at 50ov. The centrifugal cooling design ensures effective heat dissipation. The motor weighs approximately 560g (710g including cable), measures 88.5mm x 43.4mm in dimensions, has an internal resistance of 3318 ohms, and uses a 12AWG lead wire with a length of 150mm. The configuration is 24N28P.
