ToolkitRC WM150 WattMeter - 150A 50V Power Analyzer LCD Display Power Voltage Current Tester PWM Output for RC FPV Drone Charger

ToolkitRC WM150 WattMeter - 150A 50V Power Analyzer LCD Display Power Voltage Current Tester PWM Output for RC FPV Drone Charger

ToolkitRC

$55.42 USD
$83.14 USD $55.42 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

77 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

ToolkitRC WM150  WattMeter SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Lithium Battery

Tool Supplies: Battery

Technical parameters: KV1100

Size: As description

Remote Control Peripherals/Devices: Battery

Recommend Age: 12+y

RC Parts & Accs: Batteries - LiPo

Quantity: 1 pcs

Origin: Mainland China

Model Number: ToolkitRC WM150

Material: Composite Material

Four-wheel Drive Attributes: Battery

For Vehicle Type: Helicopters

ToolkitRC WM150 150A 50V Watt Meter Power Analyzer LCD Display Power Voltage Current Tester PWM Output for RC FPV Drone





Package:
1* ToolkitRC WM150 Watt Meter
1* USB Wire
1* Manual







Description:
Brand: ToolkitRC
Item: WM150 Watt Meter
Input Voltage: 1-50V
Current(Max): 150A (precision:10mA)
USB: 5.0V@1A ( USB3.0 firmware update)
Output: PWM 1000-2000us@50Hz
Display: TFT 2.4" LCD Screen(320*240 resolution)
Product Size: 80*54*23mm Approx.
Packing Size: 87*87*28mm Approx.
Net Weight(Approx): 120g
Gross Weight(Approx): 140g
Using Steps:
① Connect 1-50V power supply, when the voltage is lower than 6V, need to use USB 5V to provide power;
② After power-on, the LCD screen displays the logo and continues 2 seconds, with the starting music;
③ Adjust the button if the data in the displaying screen are not in minimum data position.
Features:
- ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like servo, ESC, battery, etc.
- 1-50V power supply, the max current is up to 150A, the precision is accurate  to 10mA.
- Support PWM signal, 1us precision, the pulse width is changable by adjusting the button.
- Automaticly to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-dispaly is changed to A.
- The watt meter is also supporting to display working hours.
- USB firmware update, easy to operate.

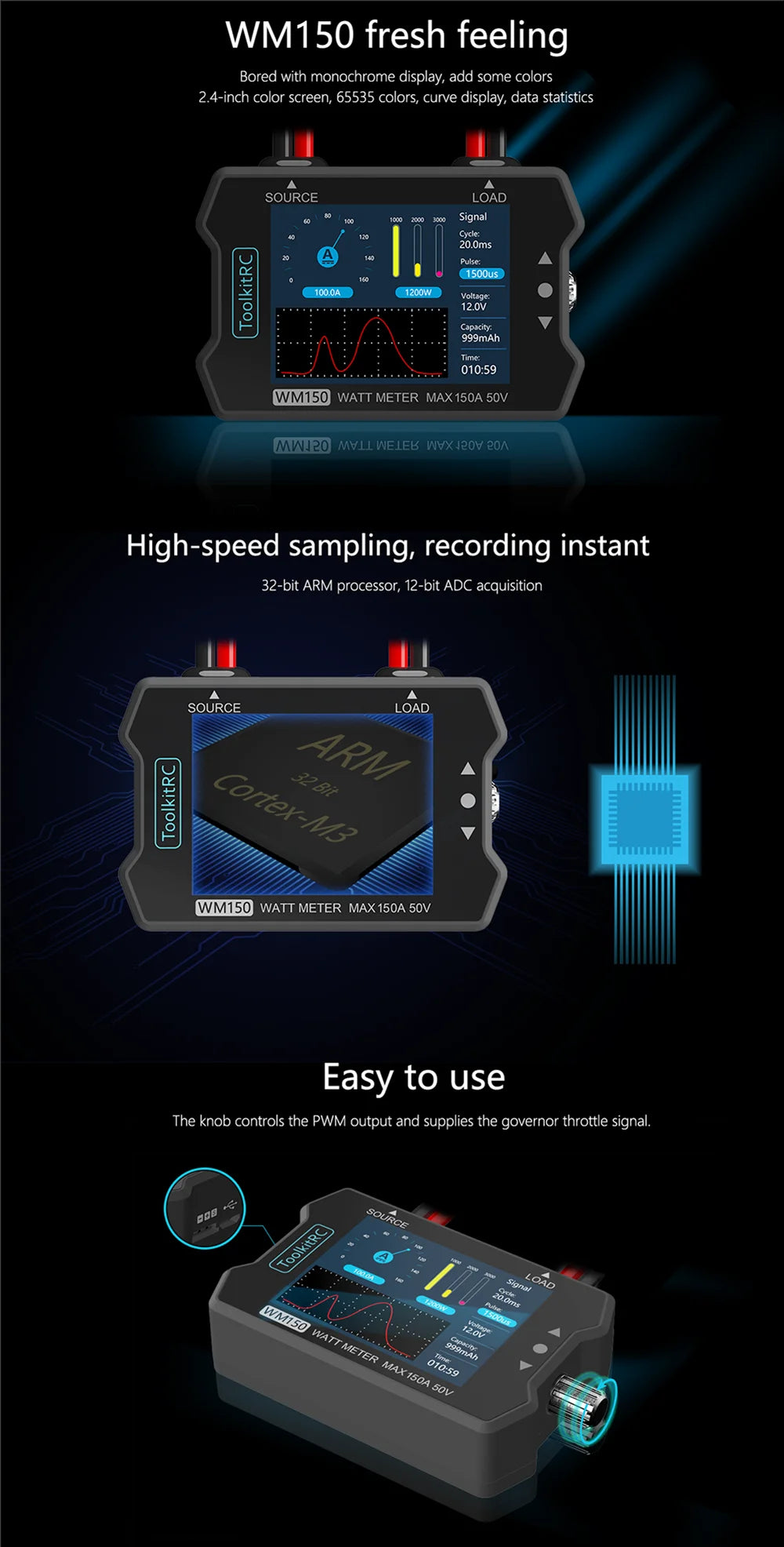

ToolkitRC WM150 WattMeter, WM150 fresh feeling Bored with monochrome display, add some colors 2.4-

The WM150 power analyzer features a fresh and vibrant 2.4-inch color LCD display with a wide range of 65,535 colors, providing a curved display and statistical data analysis capabilities. It also includes high-speed sampling and recording features utilizing a 32-bit ARM processor and 12-bit ADC acquisition. Additionally, the device comes equipped with a control knob for adjusting PWM output and throttle signal settings.

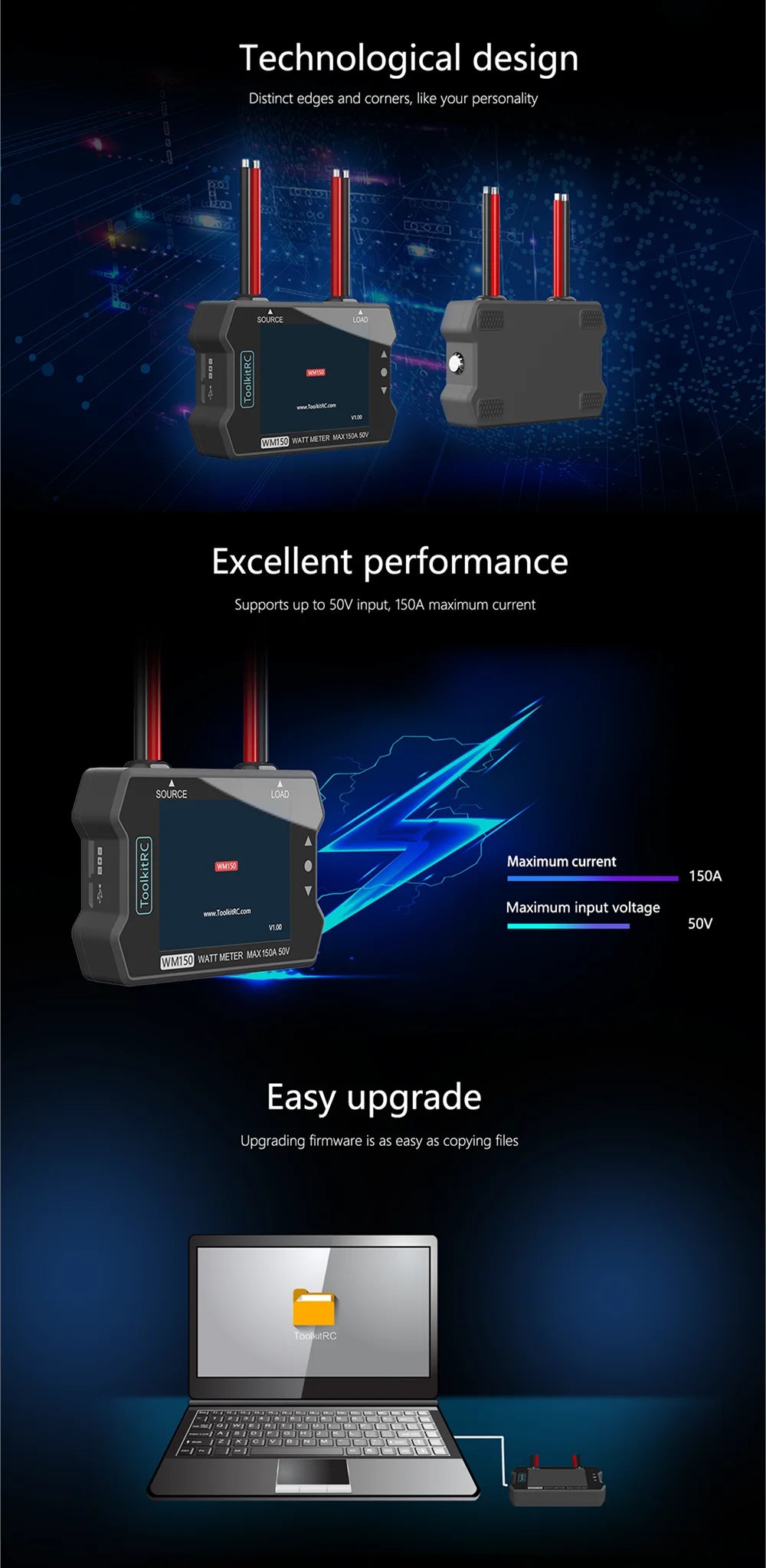

ToolkitRC WM150 WattMeter, WM5O WATT NETER WAX"SO4 %Y Excellent performance

WM150 Watt Meter: Excellent Performance Supports up to 50V Input, 150A Maximum Current. Upgrade firmware is as simple as copying files.

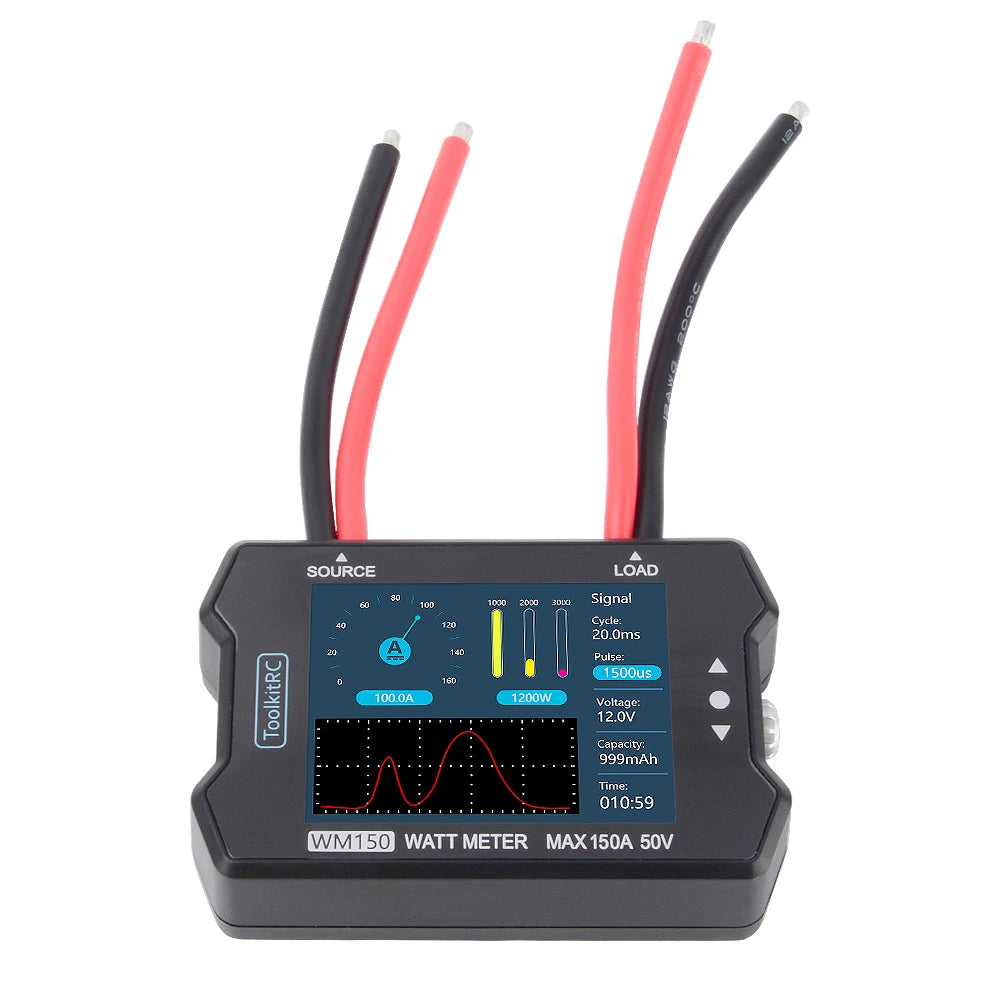

ToolkitRC WM150 WattMeter, SOURCE LOAD Signal Cycle: 20.Oms Pulse:

Source Load Signal Cycle: 20 ohms, Pulse Width Modulation (PWM) signal, frequency 50 Hz, Output Voltage: 12 V, Capacity: 999 mAh.

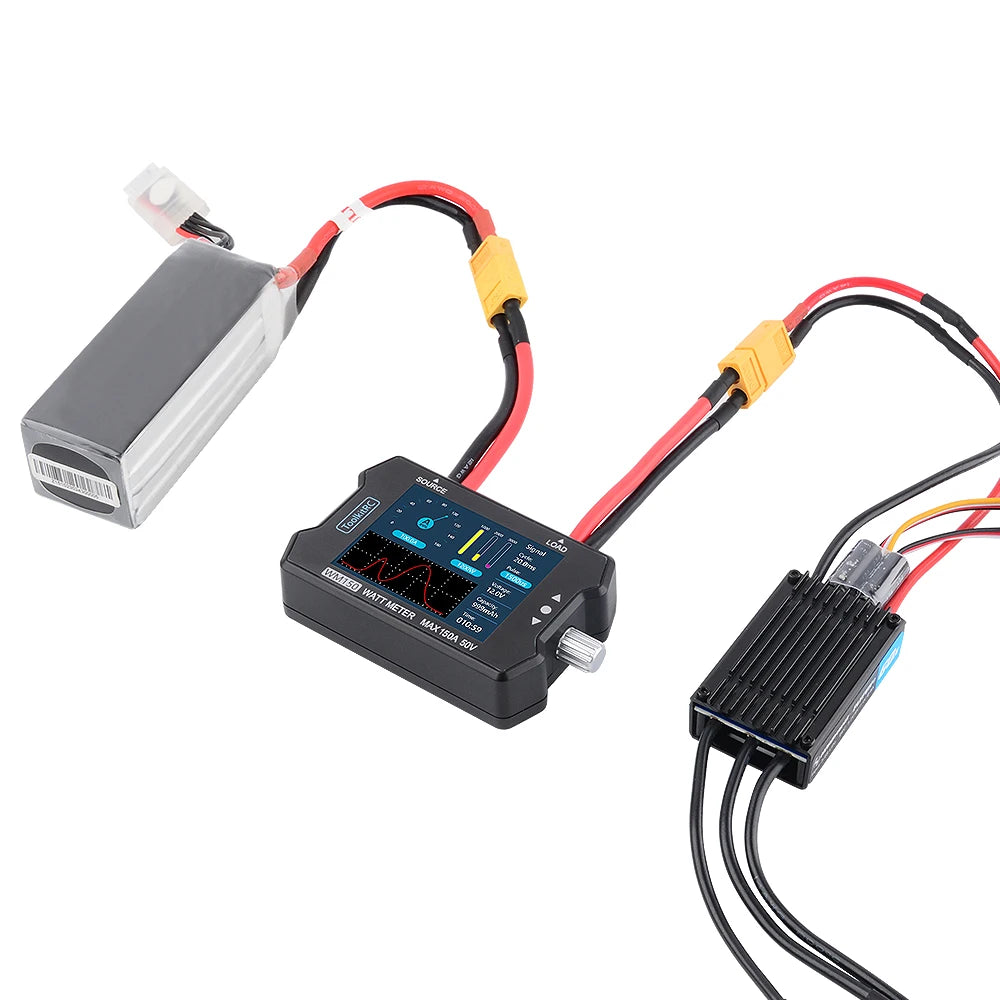

ToolkitRC WM150 WattMeter, '016 22 %1a$9 sourct Sonw

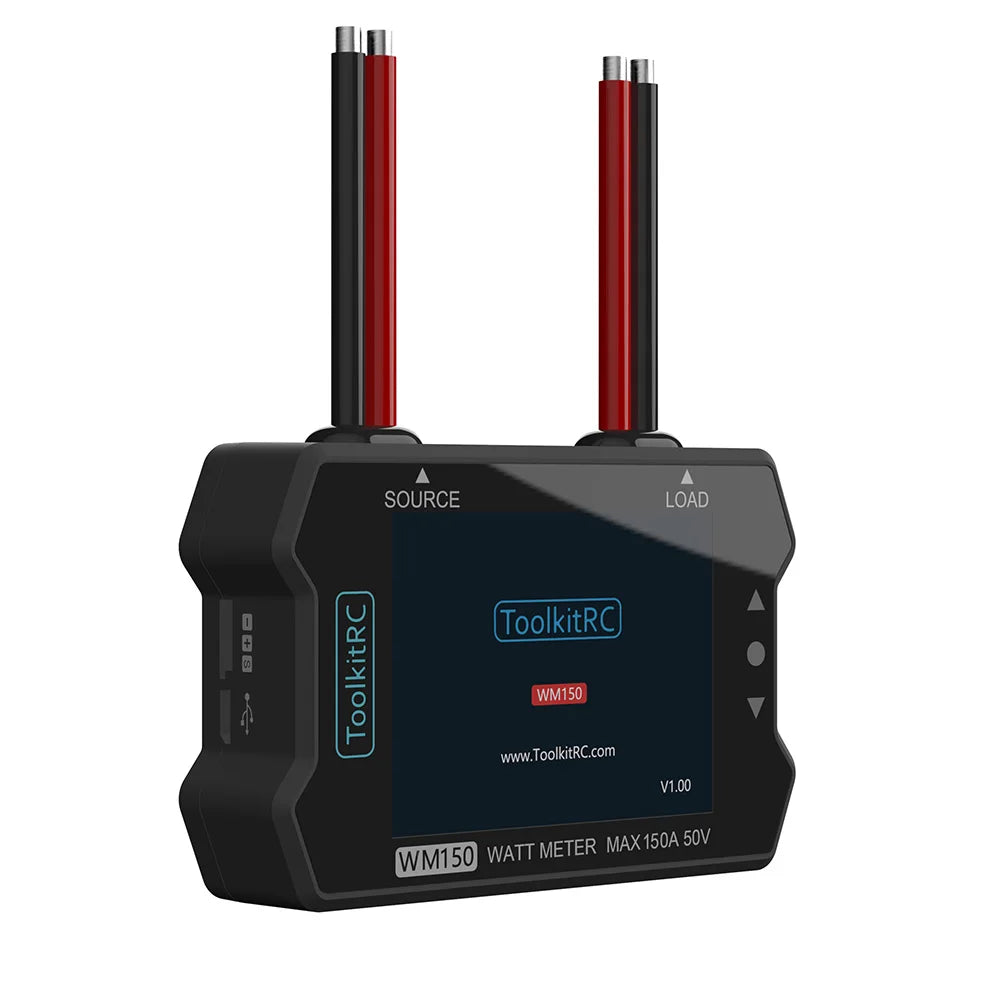

ToolkitRC WM150 WattMeter, WATT METER MAXISOA S0V WM15O V1.oo

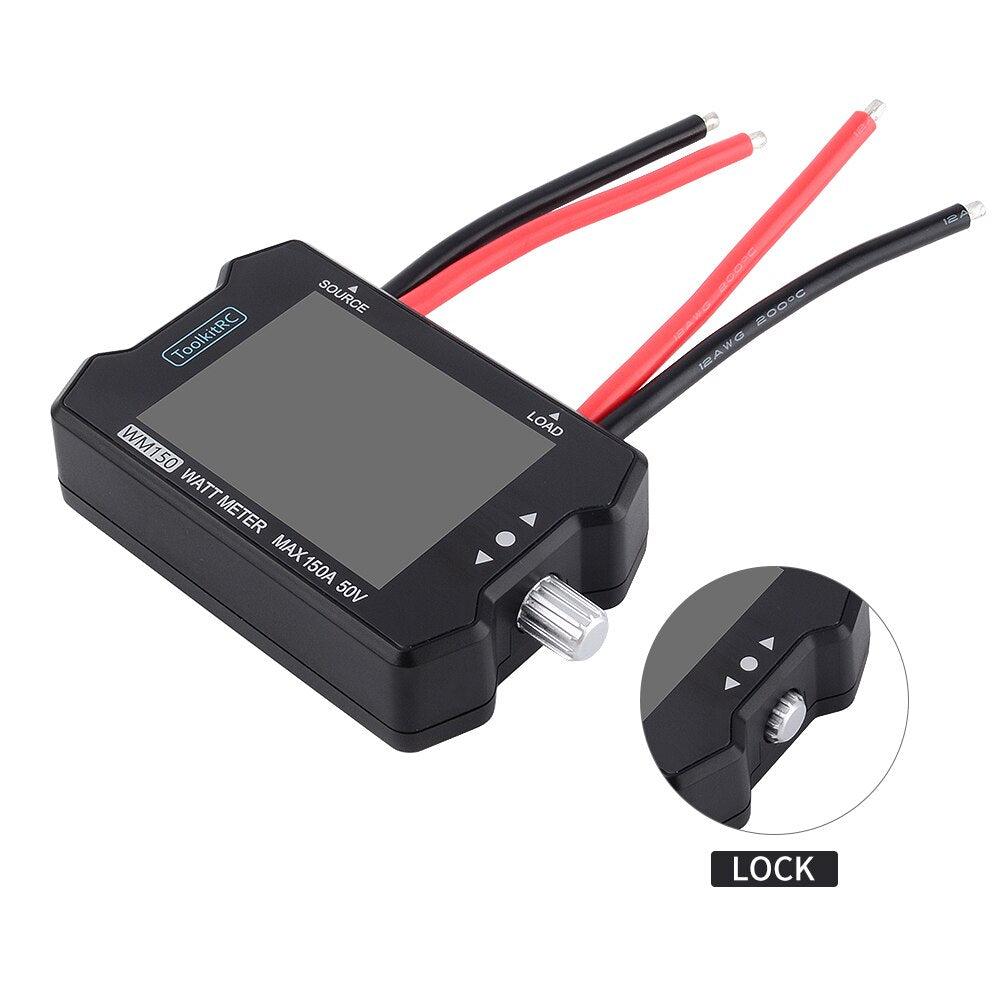

ToolkitRC WM150 WattMeter, LOCK SOURCE slkitRc LoAb WM5O

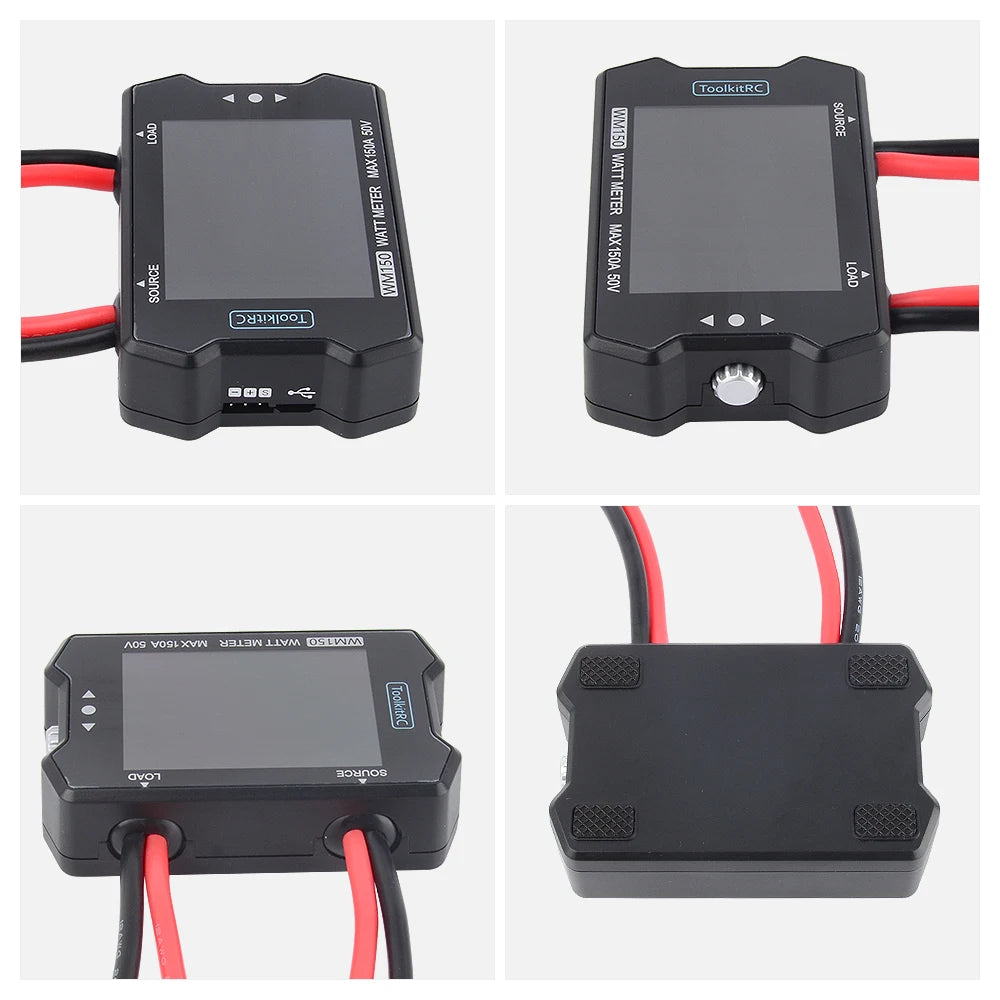

ToolkitRC WM150 WattMeter, support PWM signal, 1us precision, the pulse width is changable by

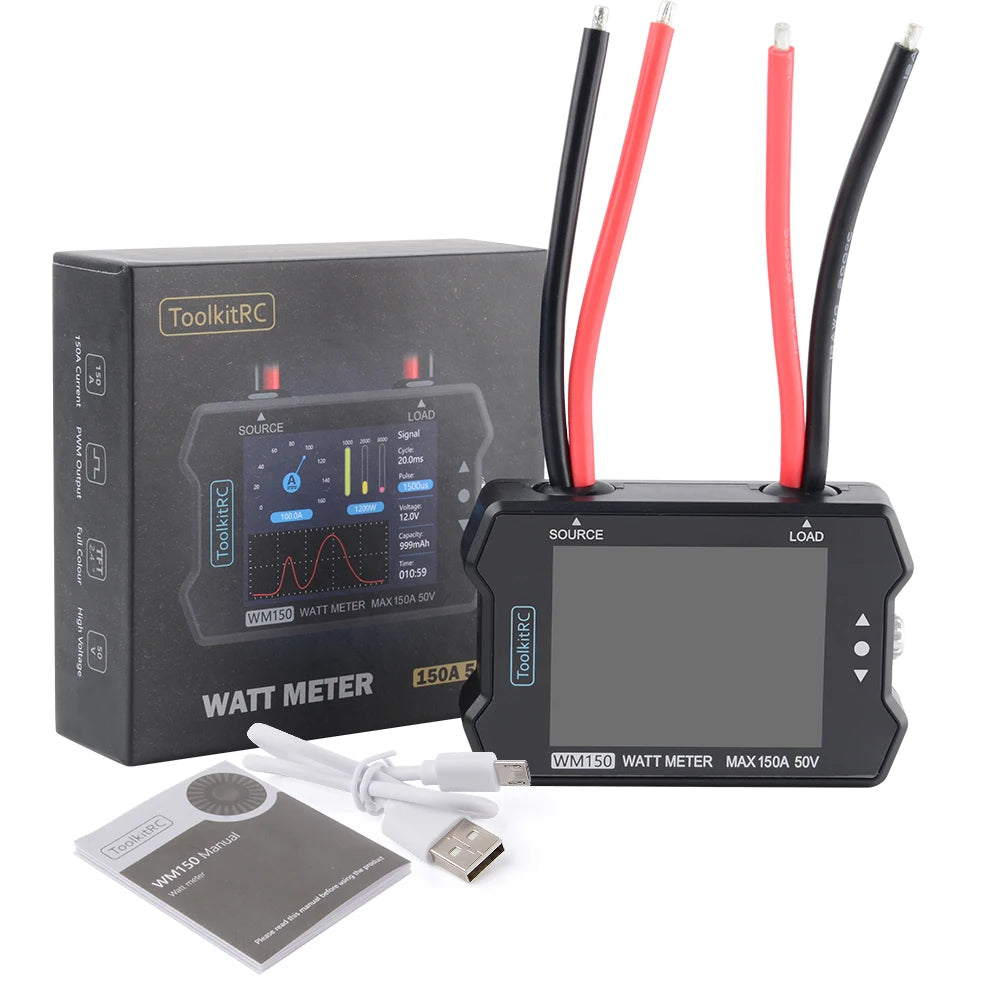

ToolkitRC WM150 WattMeter, the max current is up to 150A, the precision is accurate to 10mA .
