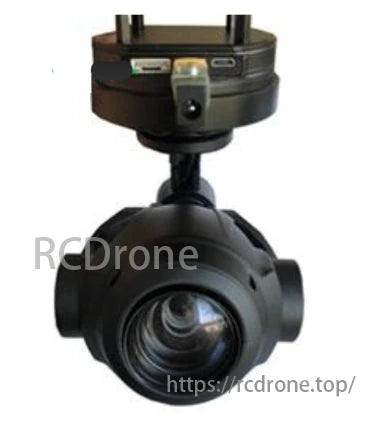

• TOPOTEK KIP20S78 Drone Camera Gimbal - 20x Optical Zoom+3-Axis Stabilized 4K Night Vision Gimbal Camera With IP Output
1 1

TOPOTEK KIP20S78 Drone Camera Gimbal - 20x Optical Zoom+3-Axis Stabilized 4K Night Vision Gimbal Camera With IP Output

TOPOTEK KIP20S78 Drone Camera Gimbal - 20x Optical Zoom+3-Axis Stabilized 4K Night Vision Gimbal Camera With IP Output

TOPOTEK

$4,129.00 USD
$4,129.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

4 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

TOPOTEK KIP20S78 Drone Camera Gimbalis a single optical gimbal camera featuring 4K star light night vision, 20x optical zoom, 3-axis stabilized PTZ, and IP output. The ground receiving end IP outputs RTSP code streams, and the ground end software supports PTZ control and zoom camera control. The PTZ uses a high-precision encoder FOC control scheme, offering high stability, small size, lightweight design, and low power consumption. The camera includes a low-light night vision capability with an 8-megapixel effective SONY STARVIS2 sensor, supporting 4K and 1080P local TF storage and wireless transmission.

Advantages

  • 4K Visible Light Camera: Captures ultra-high-definition video in visible light.
  • 20x Optical Zoom: Allows for detailed close-ups without losing image quality.
  • Standard RTSP Stream Output: Ensures compatibility with various streaming applications.
  • TF Card Storage: Provides convenient and expandable local storage.
  • HD Night Vision (0.29 lx): Enhances low-light performance for clear nighttime imaging.
  • 170ms Low Latency: Offers near-instantaneous feedback and control.
  • 9x Digital Zoom: Adds further flexibility in framing shots.
  • Image and Data Use the Same IP: Simplifies network configuration and reduces the need for additional hardware.
  • 3-Axis Stabilized Gimbal: Ensures smooth and stable footage, even in dynamic conditions.
  • Lightweight at 635g: Easy to integrate into various platforms without adding significant weight.

TOPOTEK KIP20S78 Drone Camera Gimbal Specifications

Parameter Specification
Voltage 3S-6S (11V-24V)
Power Dynamic 10W
Roll Angle -45°~+45°
Pitch Angle -45°~+120°
Yaw Angle 360° continuous rotation
Jitter Angle ±0.02°
Horizontal Jitter Angle ±0.03°
One-Click Restore One-click restore to the initial position
Adjustable Gimbal Speed When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera.
Control Mode Support network IP control and serial port control (SBUS and PWM control are optional)
CMOS Size 1/1.8 Inch 8 Mega Pixels Wide Dynamic CMOS SENSOR
Focal Distance 20x optical zoom lens, f=6.7±5%~125±5%mm
Digital Zoom 9x Digital Zoom
Low Illumination 0.29 SNR1s(lx)
AF Time Real-time fast focusing, focusing time < 1s
Video Output IP network output supports 4K, 1080P, and local TF storage
Field Angle (FOV) D: WIDE 66.6° ±5% TELE 4.0° ±5% H: WIDE 59.6° ±5% TELE 3.5° ±5% V: WIDE 35.7° ±5% TELE 2.0° ±5%
IP Output Mode 4K 30fps
Control Mode IP, Serial port
Gimbal Size 140mm×162mm×144mm
Working Condition -10°C to +50°C / 20% to 80% RH
Storage Environment -20°C to +60°C / 20% to 95% RH
Main Applications UAV aerial photography
Weight 635±10g



TOPOTEK KIP20S78 Drone Camera Gimbal, Stabilized drone camera with 20x zoom, night vision, and high-end video features for capturing exceptional footage.

Capture stunning 4K footage with TOPOTEK's KIP20S78 drone camera gimbal. Features include a 3-axis stabilized system, 20x optical zoom, and night vision capabilities for exceptional low-light performance. The gimbal also supports IP output, RTSP, and H.264/H.265 encoding. Additional features include a starlight sensor (1/1.8
