SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Large Torque Digital Coreless Servo

Tool Supplies: Grinded

Technical parameters: Value 6

Remote Control Peripherals/Devices: Servos

Recommend Age: 12+y,14+y

RC Parts & Accs: RC Car TRAXXAS Crawler TRX4 baja boat Robot

Origin: Mainland China

Model Number: 20KG / 25KG / 30KG /35KG / 60KG servo & 25T arm

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Readytosky

readytosky is a professional FPV RC Module accessories company . we will

readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .

Large Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm RC Car

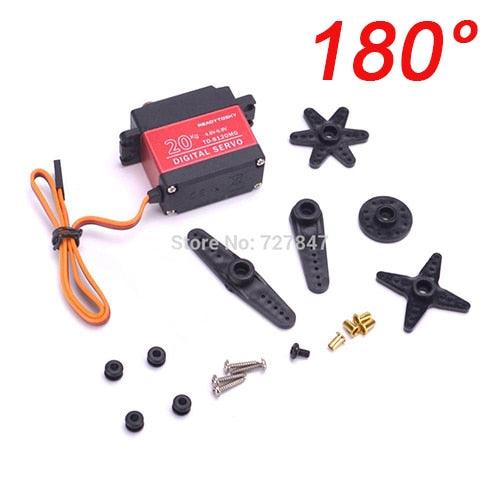

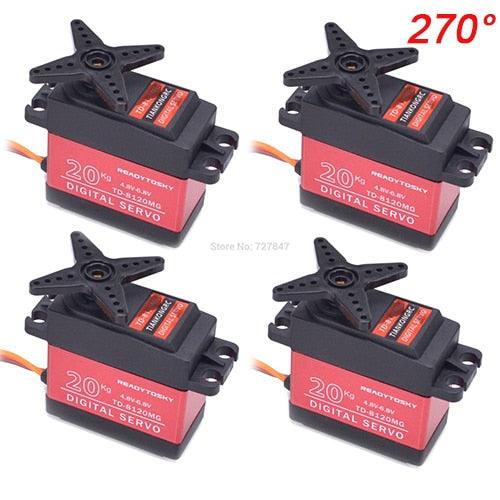

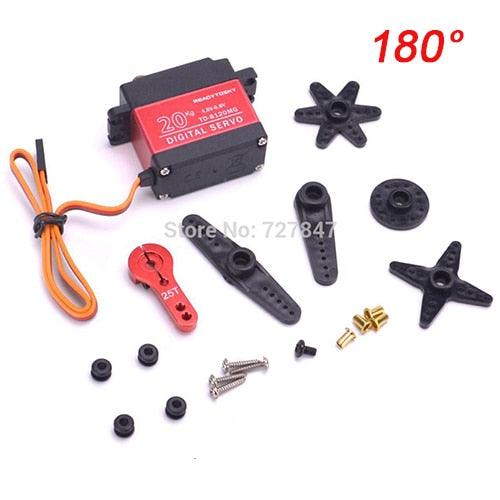

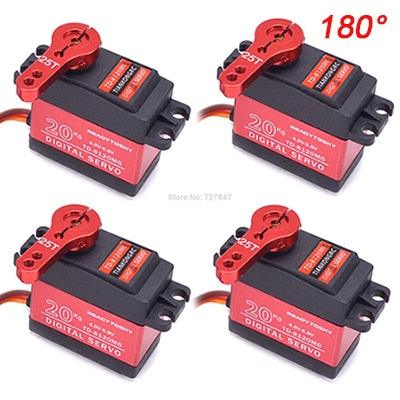

20KG Servo 180/270 Degree:


- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
1 1 1 20* Readytosky 4.8V-6.8v DIGITAL
High-precision imported metal gears Imported dual ball bearings CNC aluminium middle shell

Featuring high-precision imported metal gears, dual ball bearings for smooth operation, and a CNC aluminum mid-shell for reduced noise, this waterproof digital coreless servo boasts a robust design with less noise disturbance.

Top Cover Bearing Circle Waterproof Seal Top &Bottom Bearings High Precision Solid Brass

Aircraft-grade aluminum material with waterproof gaskets and CNC-machined aluminum middle shell for durable and reliable performance.

Servo from us Bearing Circle Waterproof Seal &Bottom Bearings High Precision

This servo features a waterproof design with a bearing circle sealed bottom and top bearings, precision solid brass gears, and an aviation-grade aluminum material construction.

Large Torque Digital Coreless Servo

The product features: dimensions - 23.5mm (0.93in), 19mm (0.75in), and 9mm; TD-8120MG model; compatible with TIANKONGRC; specifications include 20Kg torque, digital servo, and voltage range of 4.8V to 6.8V.

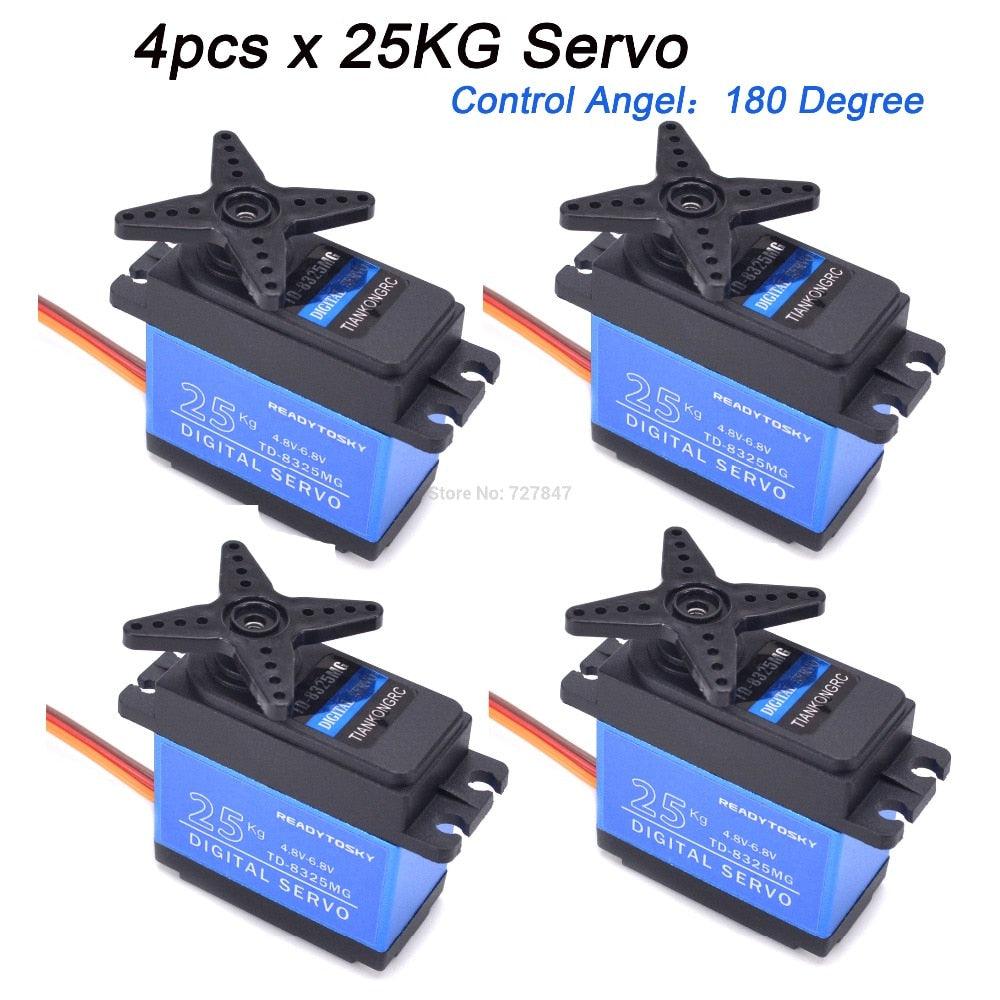

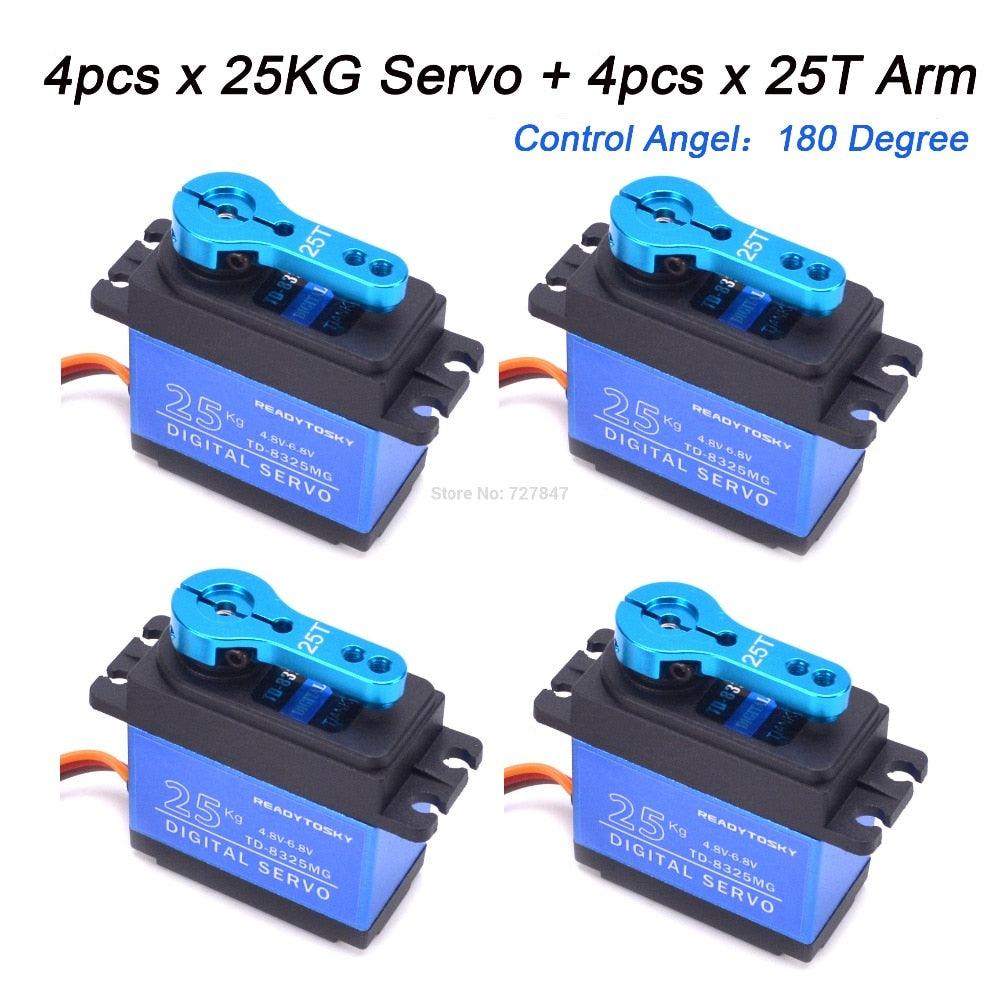

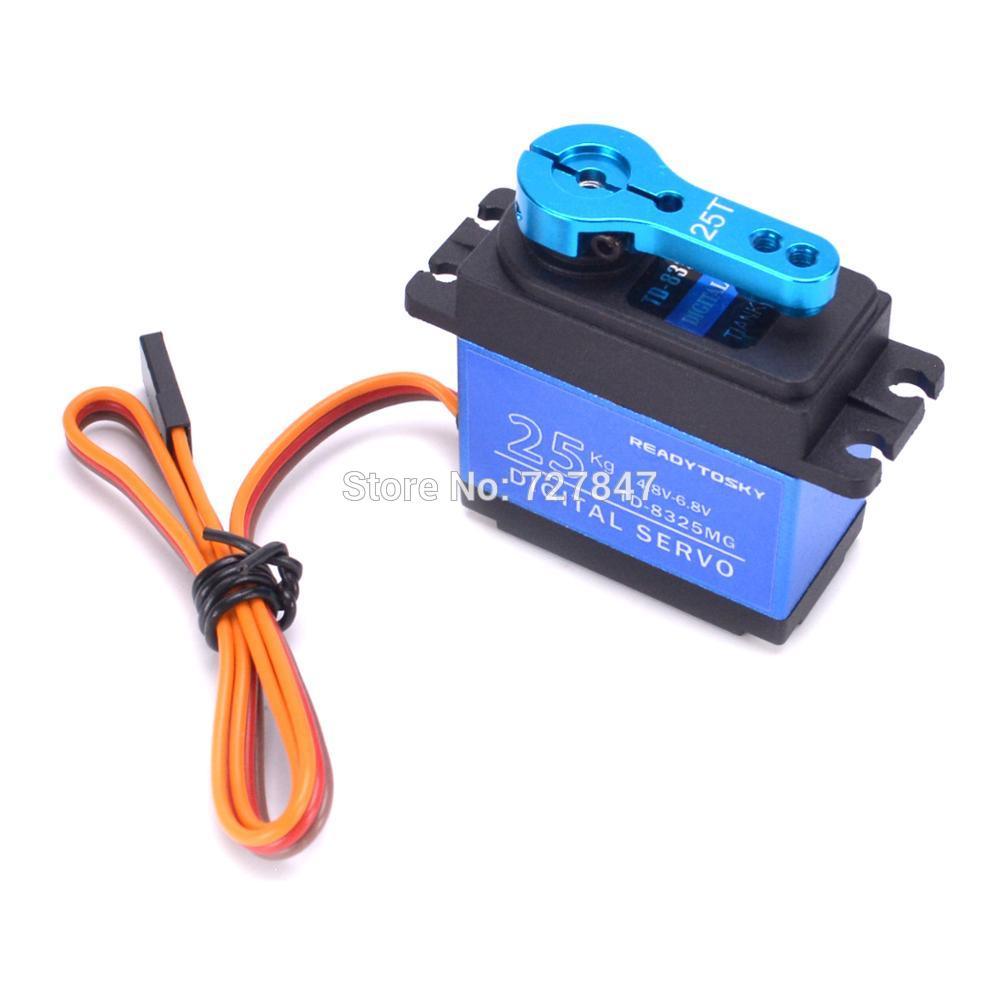

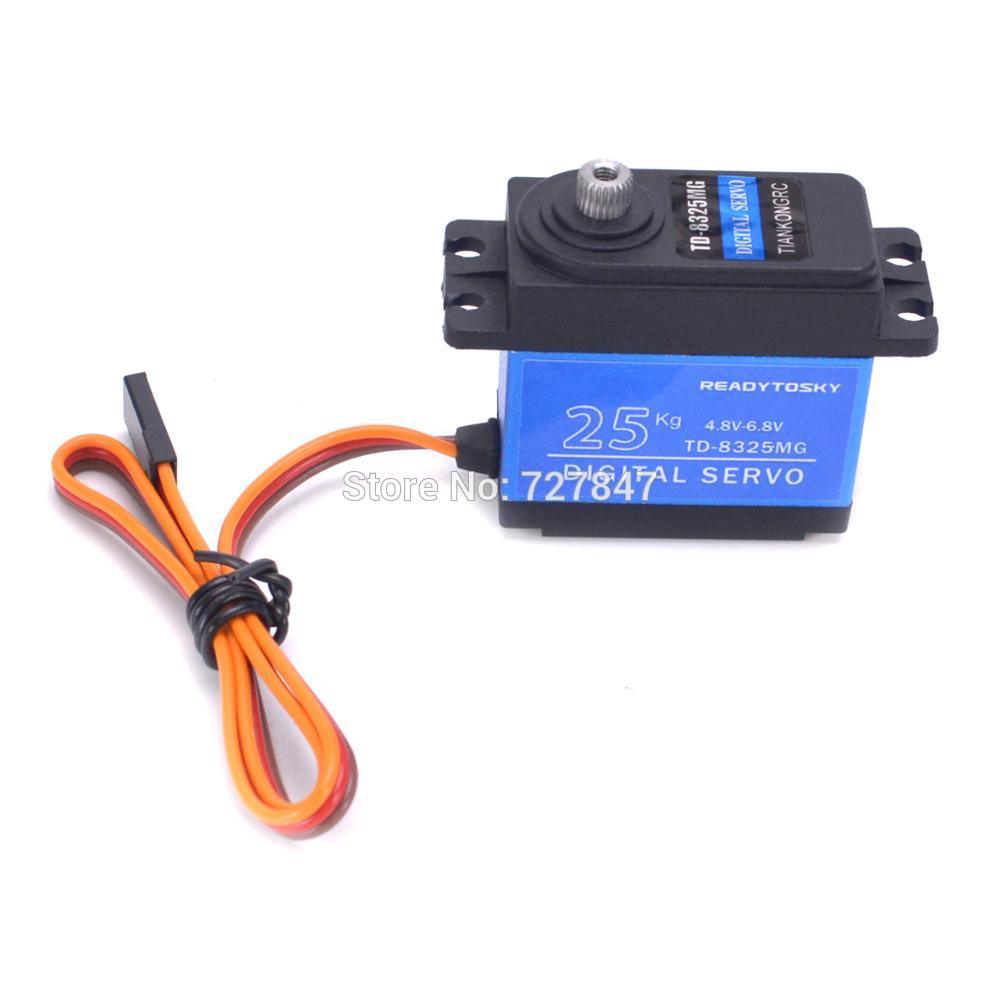

25KG Servo 180 Degree:


Apply Environmental Conditon:
1.Storage Temperature Range: -30°C～80°C
2.Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: -25°C～70°C
2.Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type:  5 Metal
4. Limit angle: 360°
5.Bearing: 2BB
6. Horn gear spline: 25T   Diameter:5.9mm
7. Horn type: Plastic, POM
8.Case : Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10.Motor: Carbon brush motor
Electrical Specification:
1.Operat voltage: 4.8V - 7.2V
2.No load speed: 0.18sec/60° -  0.14sec/60°
3.Running current: 140mA - 200mA
4.Peak stall torque: 23.5kg.cm-26.8kg.cm
5.Stall current: 2600mA±10% -  3400mA±10%
6.Working voltage range:  4.8 - 7.2V
Control Specification:
1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500～2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500～2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000～2000usec)
Td-RrcM6 SfmNQ READYtOs

TD-RRC M6 Servo, Ready-to-Sky Turmal, 4.8V/6.8V Digital Servo Model TD-8325MG.


Readytosky DIGITAL SERVO TIANKONGRC g 25 Kg 4

TD-8325MM6 3 7 0$ 278 Readytosky DIGITAL SERVO TIANKONGRC g 25 Kg 4 8V-6 8v 3 .Smm (1.58in) 2Omm(0.78in)

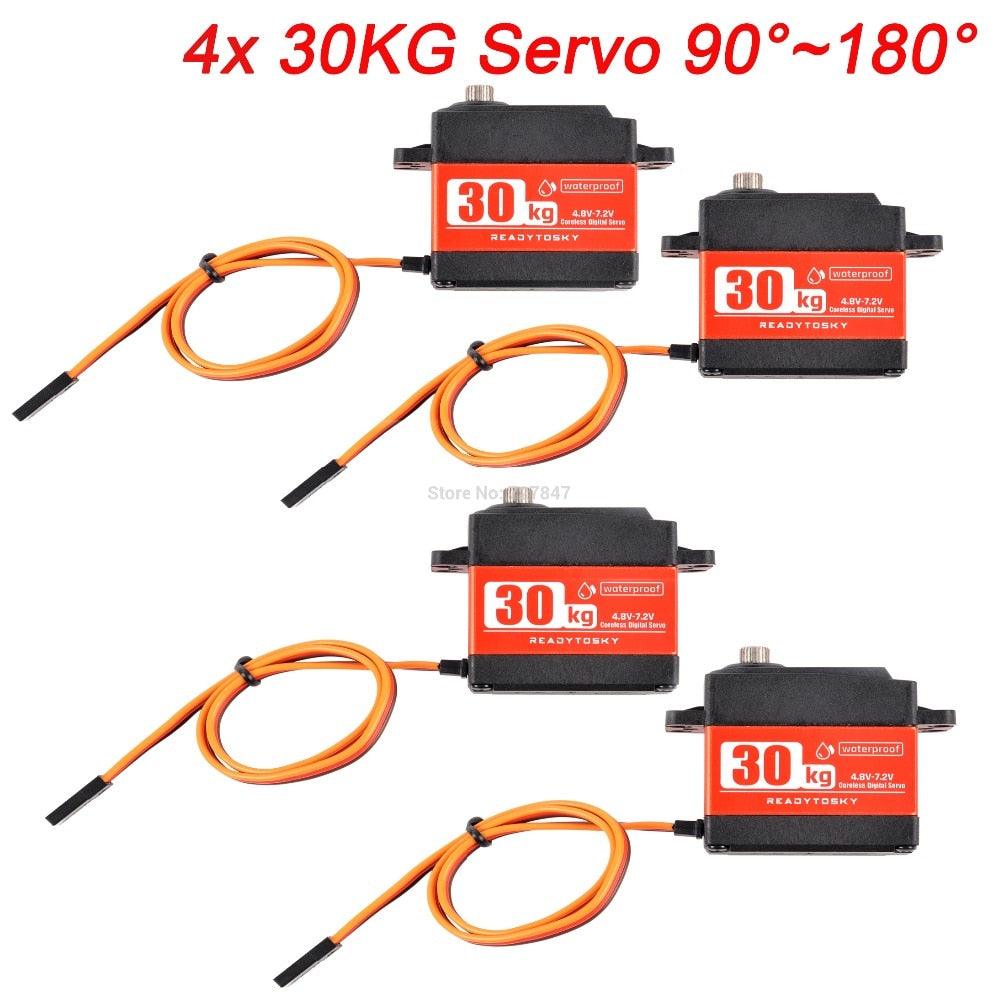

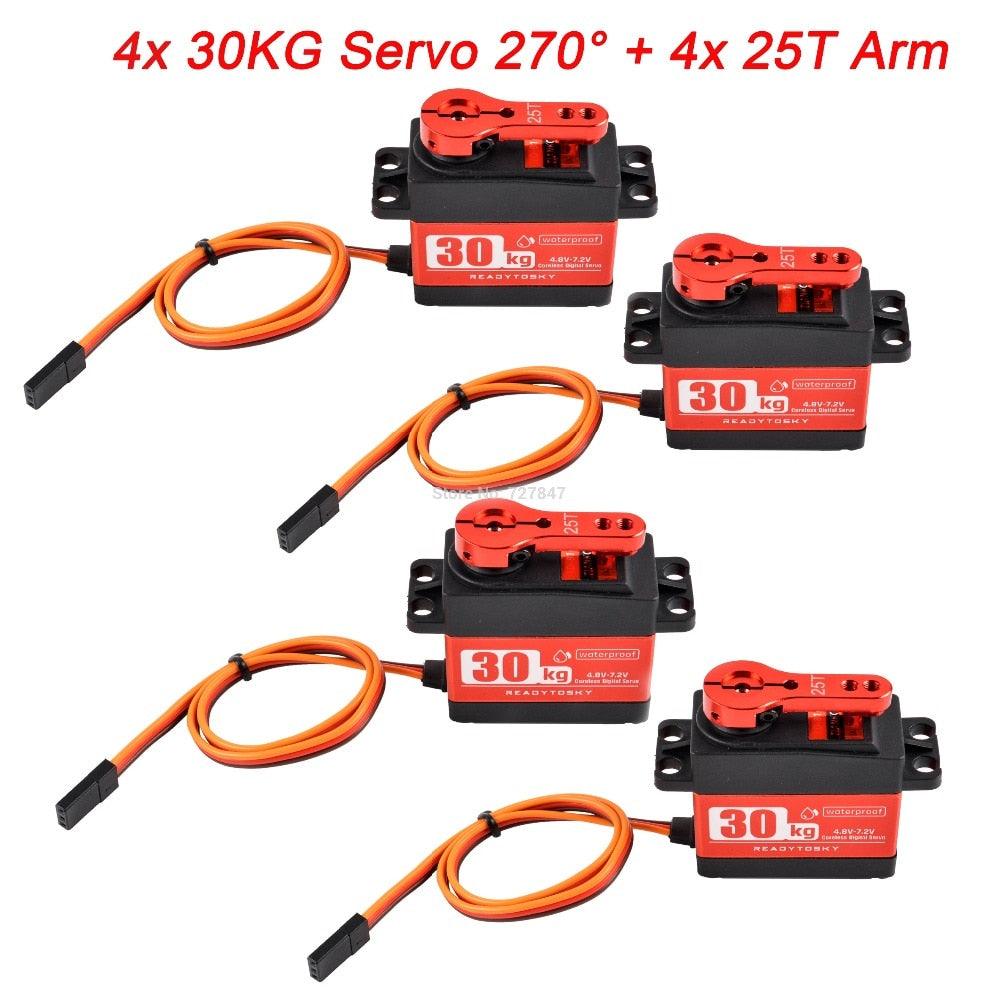

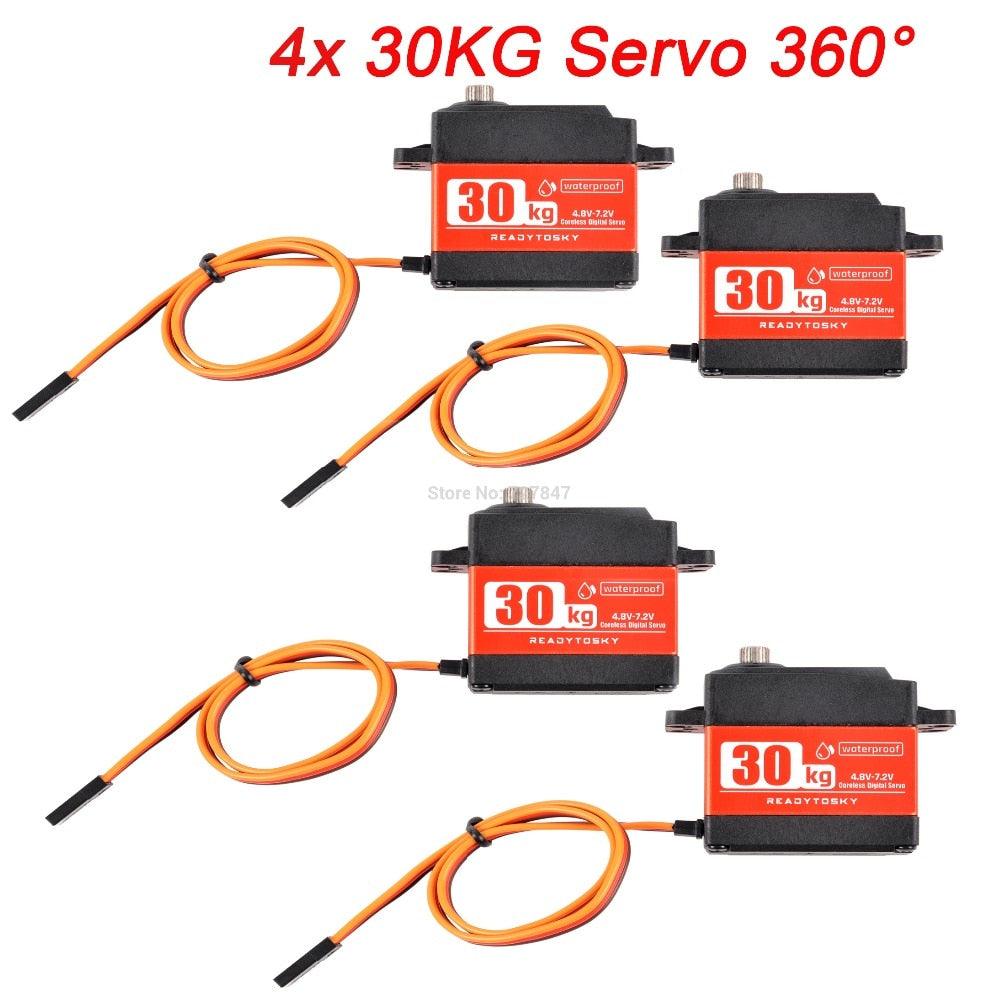

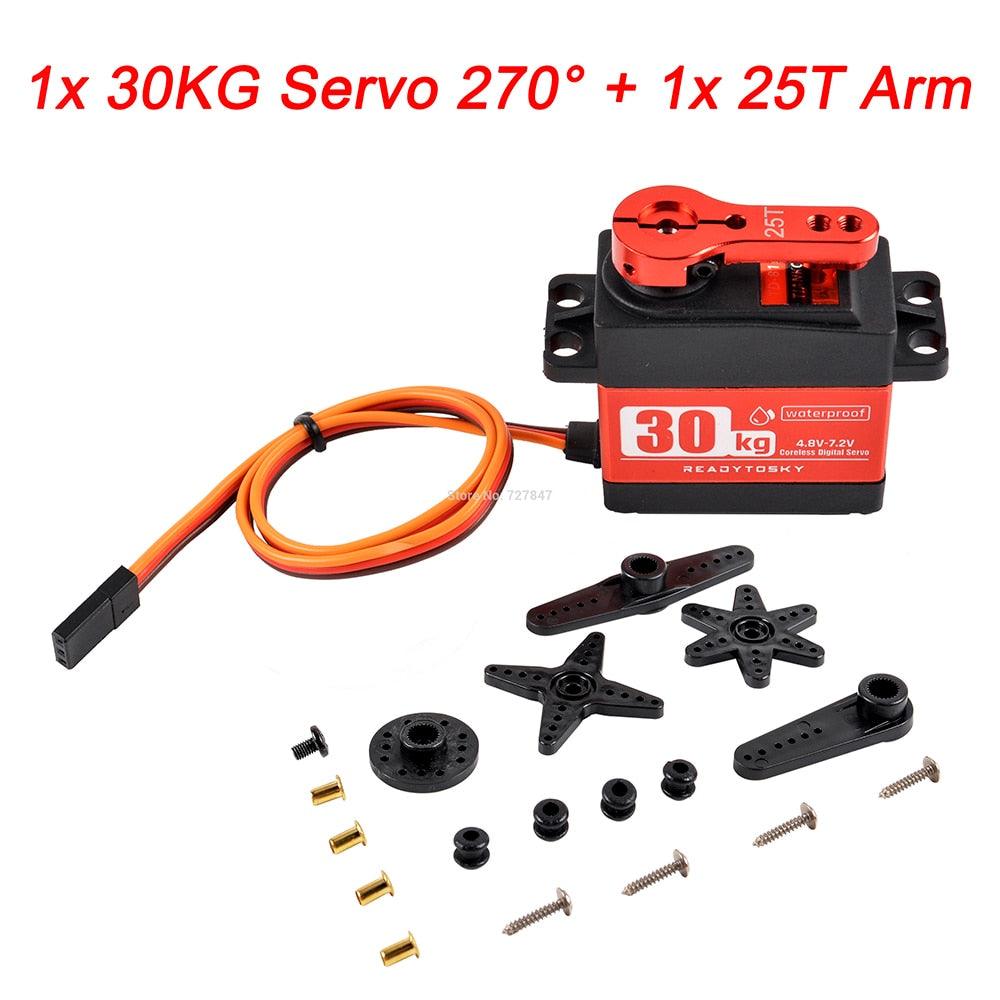

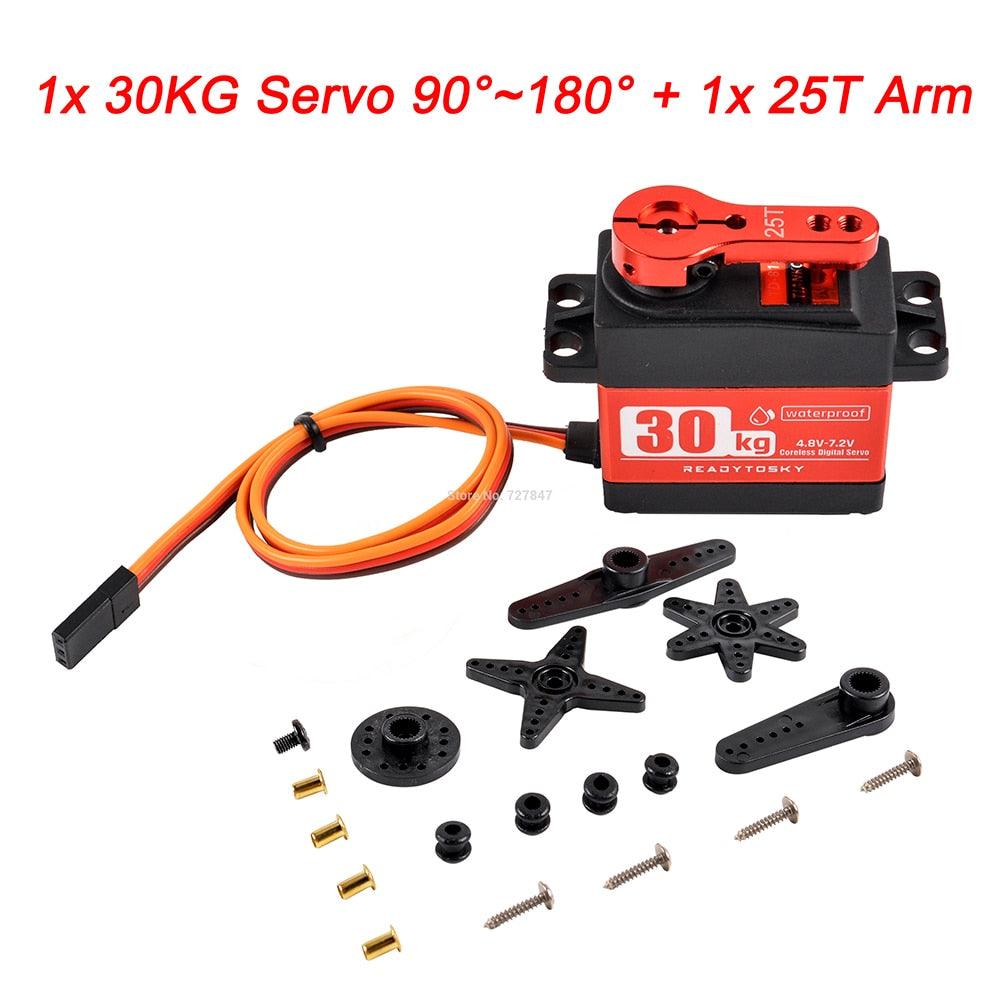

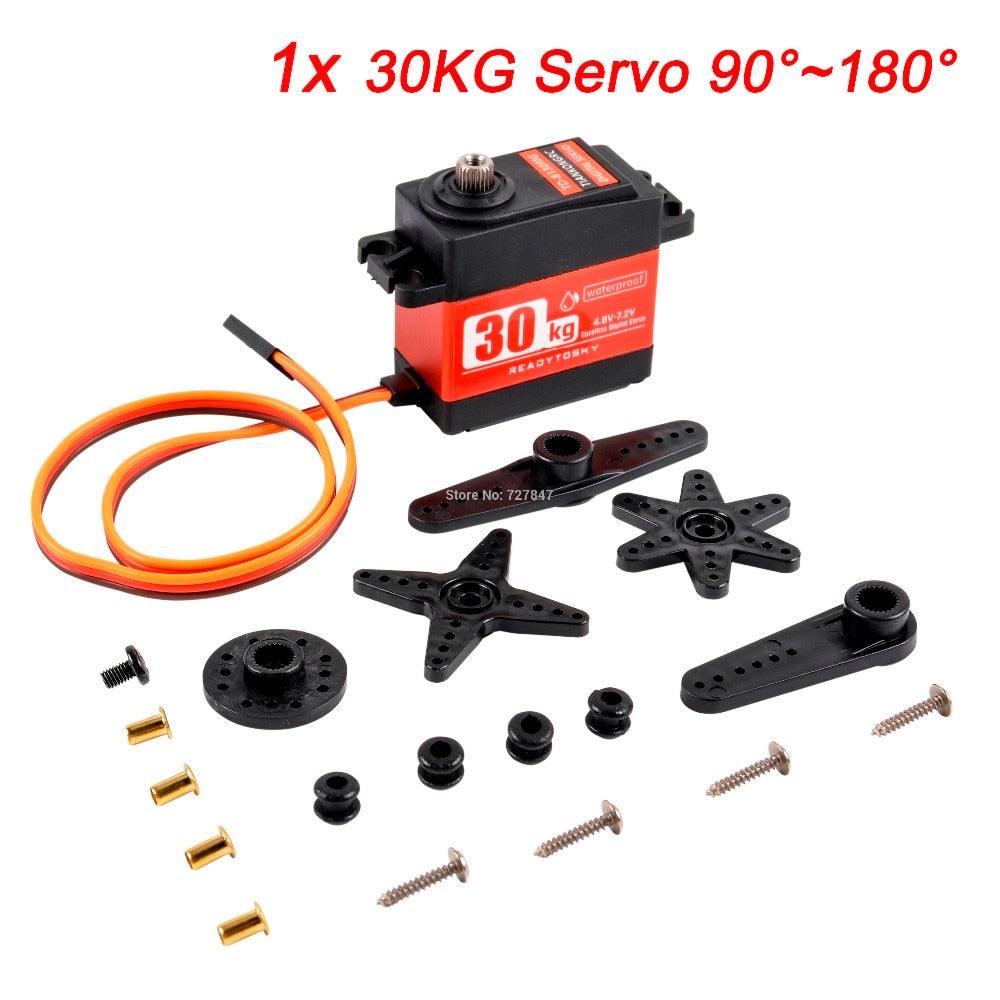

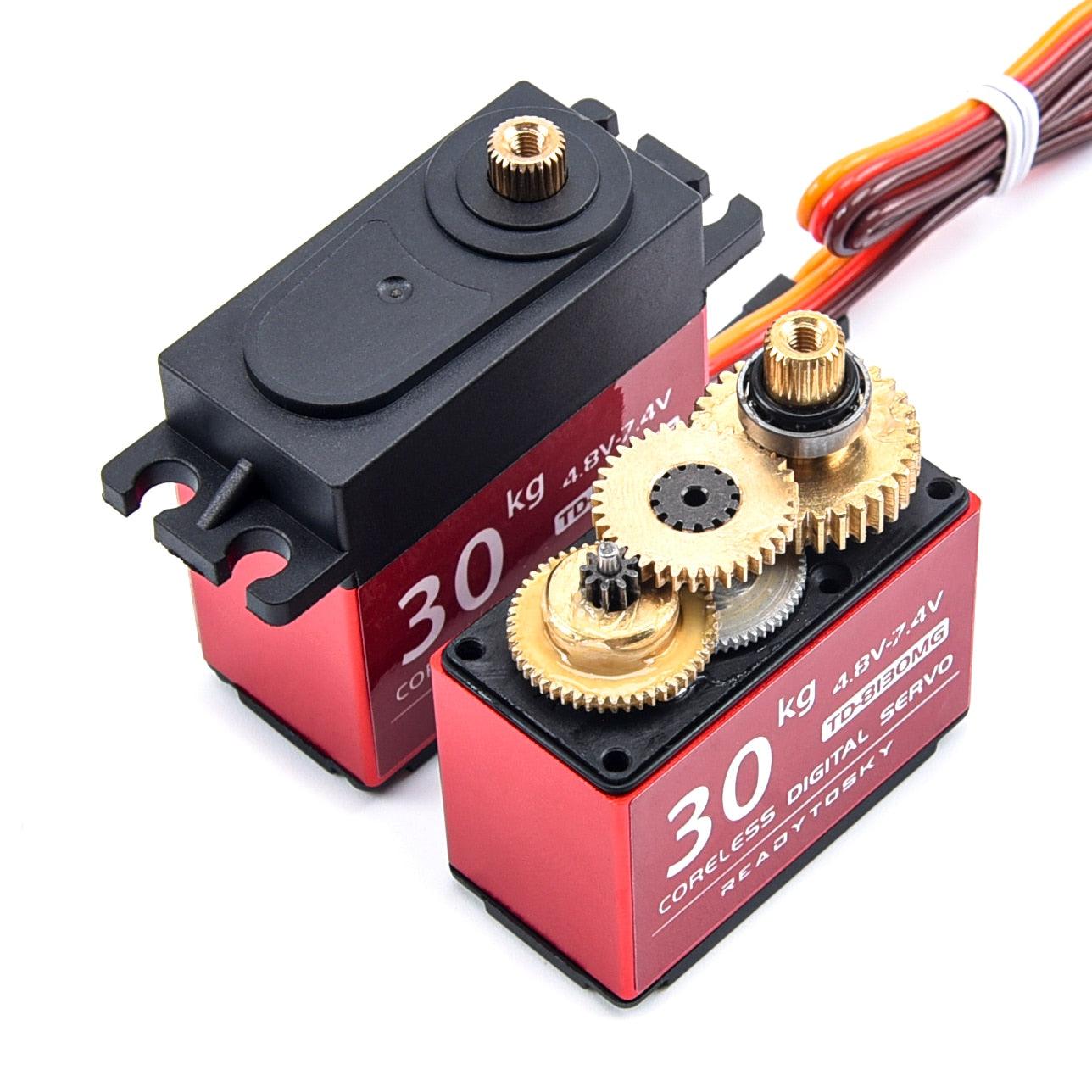

30KG Servo 180 /270 Degree:
Apply Environmental Conditon:
1. Storage Temperature Range: -30°C～80°C
2. Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: 25°C～70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle:360°
5. Bearing:2BB
6. Horn gear spline: 25T     Diameter: 5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire320mm±5mm
10. MotorCarbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.24sec/60° - 0.17sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque:29.5kg.cm - 32kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500～2500usec
4. Neutral position: 1500usec
5. Running degree: 180°±3°(when 500～2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000～2000usec)

Stall current: 2600mA10% - 3400mA

Large Torque Digital Coreless Servo

7 30k9 coreless 4.v-7Av T@roMs DIG


AL SERVO T0-8135mg TIANKONGRC SERvO DigiLarge Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm RC Car

Temperature Range: -25°C70°C Standard Test Environment: 1.transmitter only can generate 1000-2000us, it is half signal of the serv

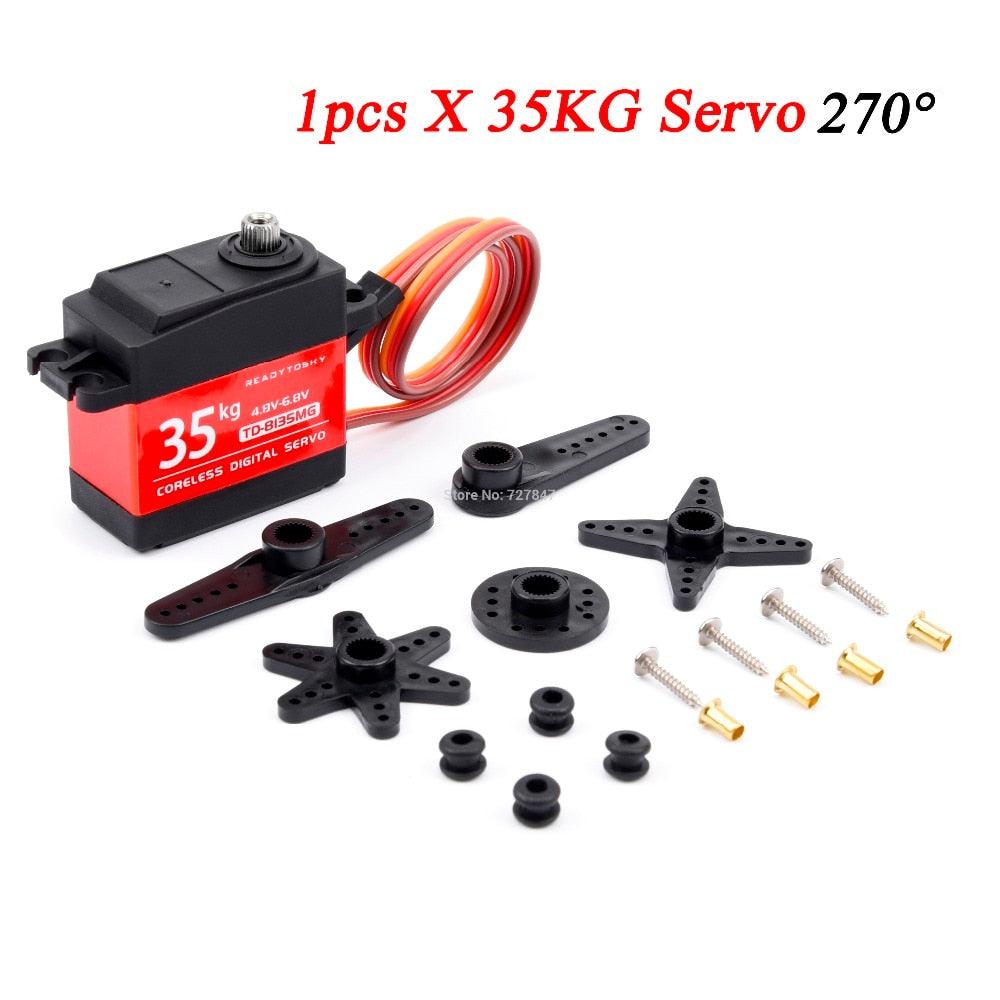

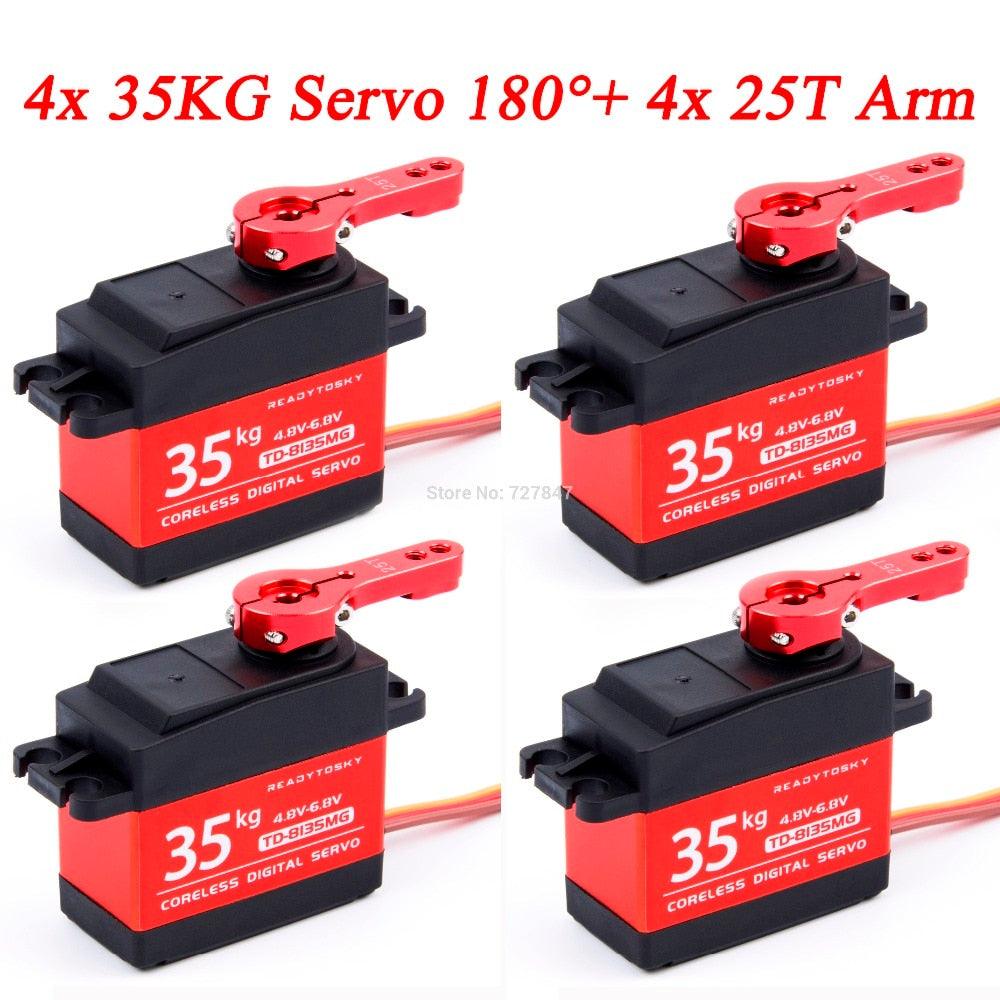

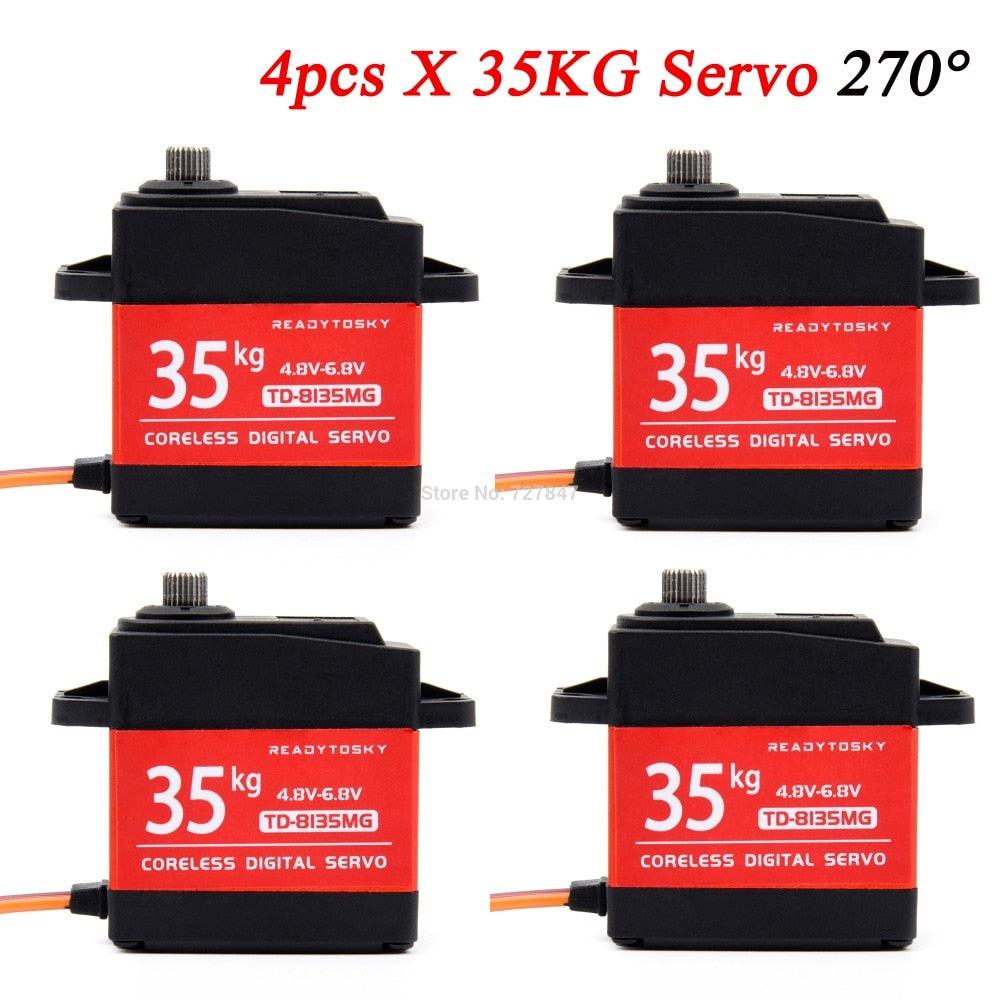

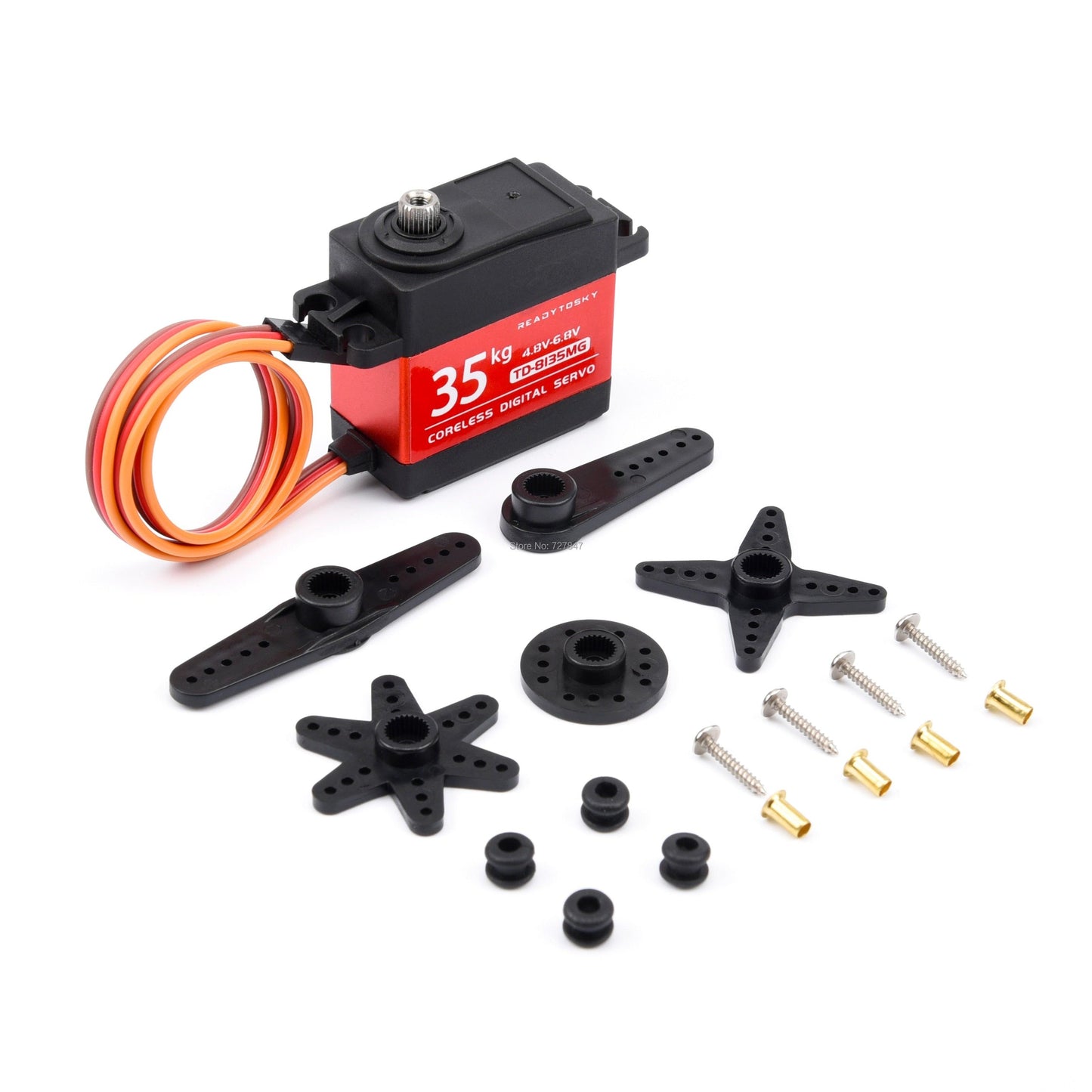

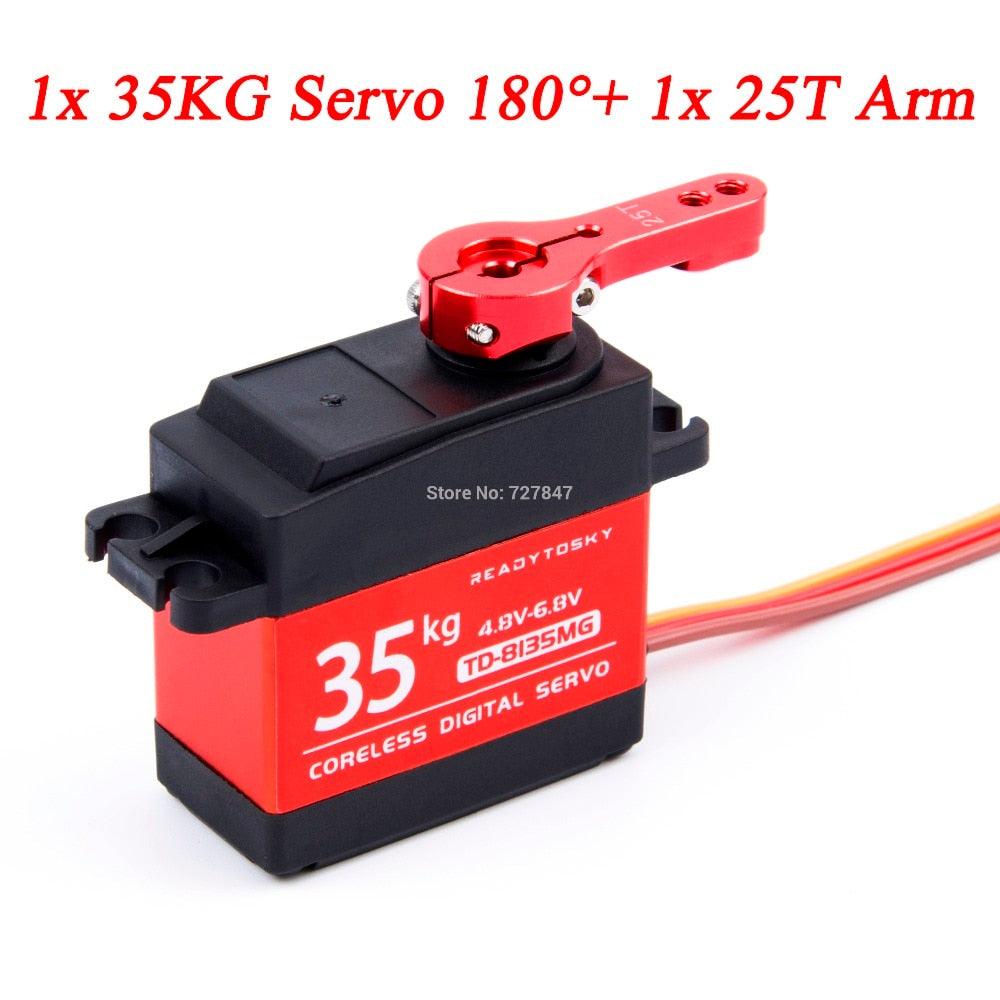

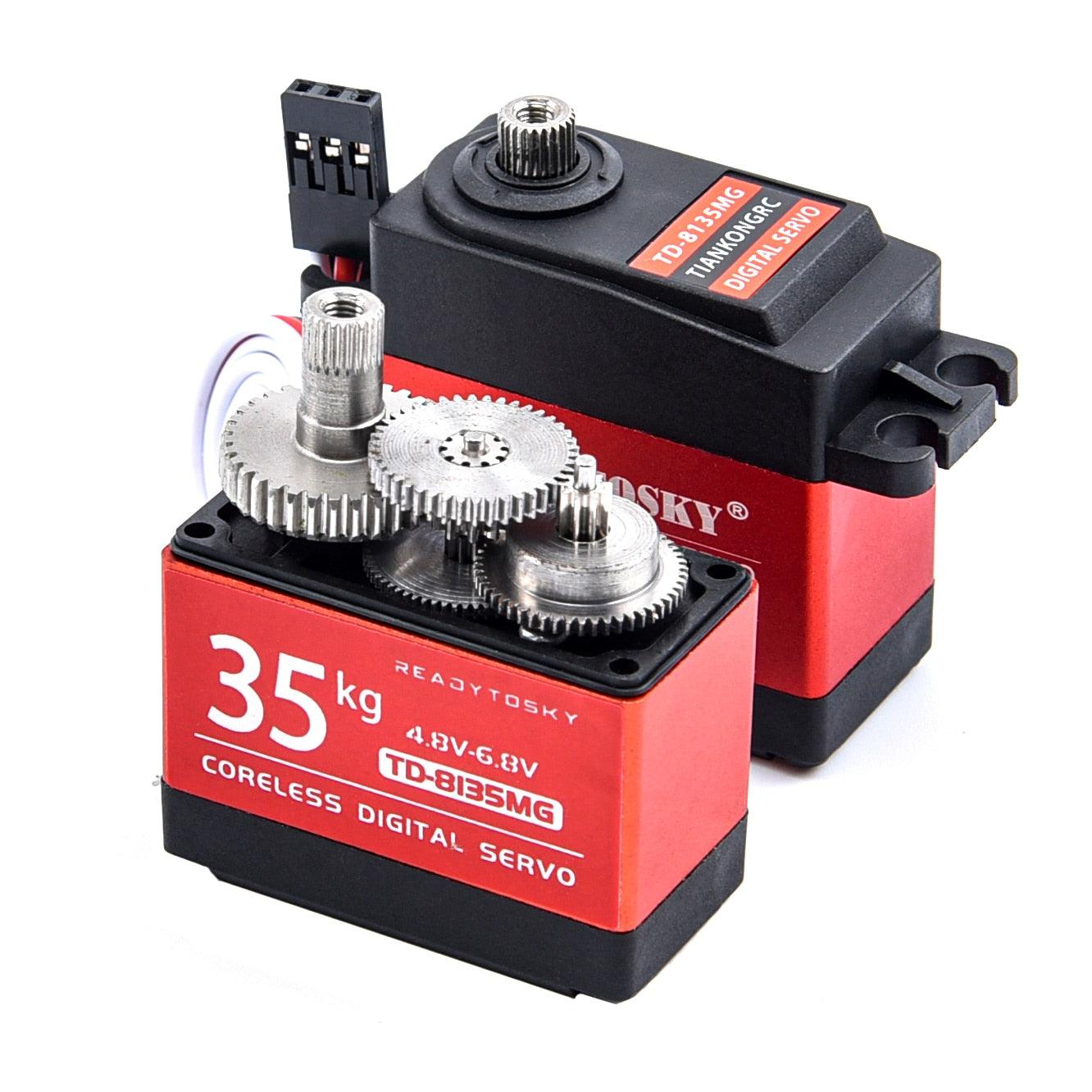

35KG Servo 180/ 270 Degree Products Specifcation:


Apply Environmental Conditon:
1. Storage Temperature Range: -30°C～80°C
2. Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1. Temperature Range: -25°C～70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle: 360°
5. Bearing: 2BB
6. Horn gear spline: 25T     Diameter :5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10. Motor: Carbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.32sec/60° - 0.22sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque: 32.7kg.cm - 35.2kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500～2500usec
4.Neutral position: 1500usec
5. Running degree: 180°±3°(when 500～2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000～2000usec)
Pulse width modification 2.

Large Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm RC Car
TiaNKONGRC DIGITAl Servo SKY 35*9 RE

TanKong RC Digital Servo, Sky Series, 35kg, 4.5V-6.0V, TDS-MG Coreless Digital Servo.

Note:The direction the servo rotates all depends on the signal the servo is receiving
Angel Signal Cycle High Time Direction 90 50HZ 0.5ms-2.5ms Counter

The servo has multiple operating modes, including: * High-torque mode with counterclockwise rotation at: + 90 degrees: 50 Hz, 1-2 ms + 180 degrees: 5 OHZ, 0.5-2.5 ms * And also includes modes for: + Counterclockwise rotation at 270 degrees: 50 Hz, 0.7-2.5 ms + Counterclockwise rotation at 360 degrees: 1 ms clockwise Note that the servo can operate in different modes and frequencies depending on the direction and angle of rotation.


Special Notice:


The RC Use-Angle 180/270 marked in selections to be shipped by Angle-180/270 servo, Cuz the below signal match with Angle-180/270 servo support PWM signal width 500-2500us.

Transmitter only can generate 1000-2000us, it is half signal of the servo, thus the feedback angle will be half at 90/135.

The Angle 180/270 which request pwm signal width 500-2500us, if you use a transmitter to control them, the angle will be 90/135.

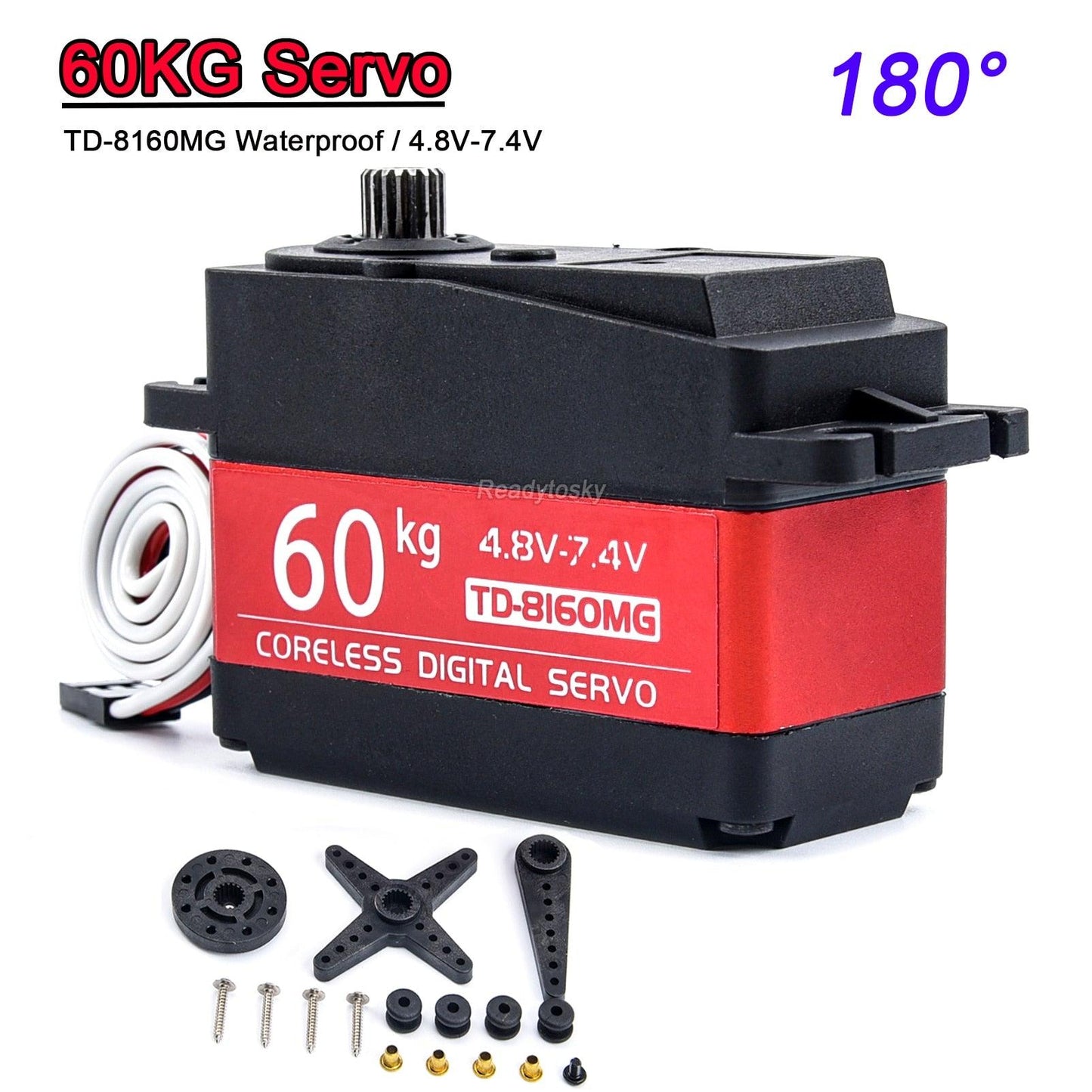

Products Name:60kg Digital Servo

1.Apply Environmental Conditon


No. Item Specifcation


1.1 Storage Temperature Range       -30°C～80°C

1.2 Operating Temperature Range -25°C～70°C


2. Standard Test Environment


2.1 Temperature Range -25°C～70°C

2.2 Humidity Range 65%±10%


3. Mechanical Specification


3.1 Size        65.0*30.0*48.0mm

3.2 Weight 158g±5%

3.3 Gear type "6 Metal"

3.4 Limit angle 360°

3.5   Bearing 2BB

3.6 Horn gear spline 18T diameter:8.1mm

3.7 Horn type Plastic, POM

3.8 Case "Engineering plastics(PBT)+Aluminum alloy"

3.9 Connector wire 320mm±5mm

3.10 Motor Carbon brush motor

3.11 Splash water resistance



4.Electrical Specification


No. Operat voltage 6V 8.4V

4.1 Idle current 5mA 5mA

4.2 No load speed 0.17sec/60° 0.13sec/60°

4.3 Runnig current 400mA 510mA

4.4 Peak stall torque 58.5kg.cm 70kg.cm

4.5 Stall current 8.5A±10% 10.4A±10%

4.6 Working voltage range

" 4.8-8.4V


5.Control Specification



5.1 Command signal Pulse width modification

5.2 Amplifier type Digital controller

5.3 Pulse width range 500～2500usec

5.4 Neutral position 1500usec

5.5 Running degree 180°±3°(when 500～2500usec)

5.6 Dead band width 5usec

5.7 Rotating direction Counterclockwise (when 1000～2000usec)


6.The Drawings: The Wire and plug:


Red (+) Brown (=) Orange Connector Conncotor 8 3 d1

The connector is red (+) and brown (=), orange, with 8 pins, 3D printed, and has a 'lint' or tad (#hknite ede-) Teleese Yire pin.


Running degree: 180°3°(when 5002500usec)

Temperature Range: -25°C70°C Standard Test Environment: 1.
GOKG Sen TD-816OMG Waterproof 4.8V-7.4V

TD-816OMG Waterproof Digital Servo, compatible with 4.8V-7.4V batteries, ideal for high-torque applications up to 60kg.

Working voltage range: 4.8 - 7.2V Control Specification:
Note :
1.The best use voltage is 7.4v.
2. It is recommended to use 2s battery for power supply (6v-8.4v)

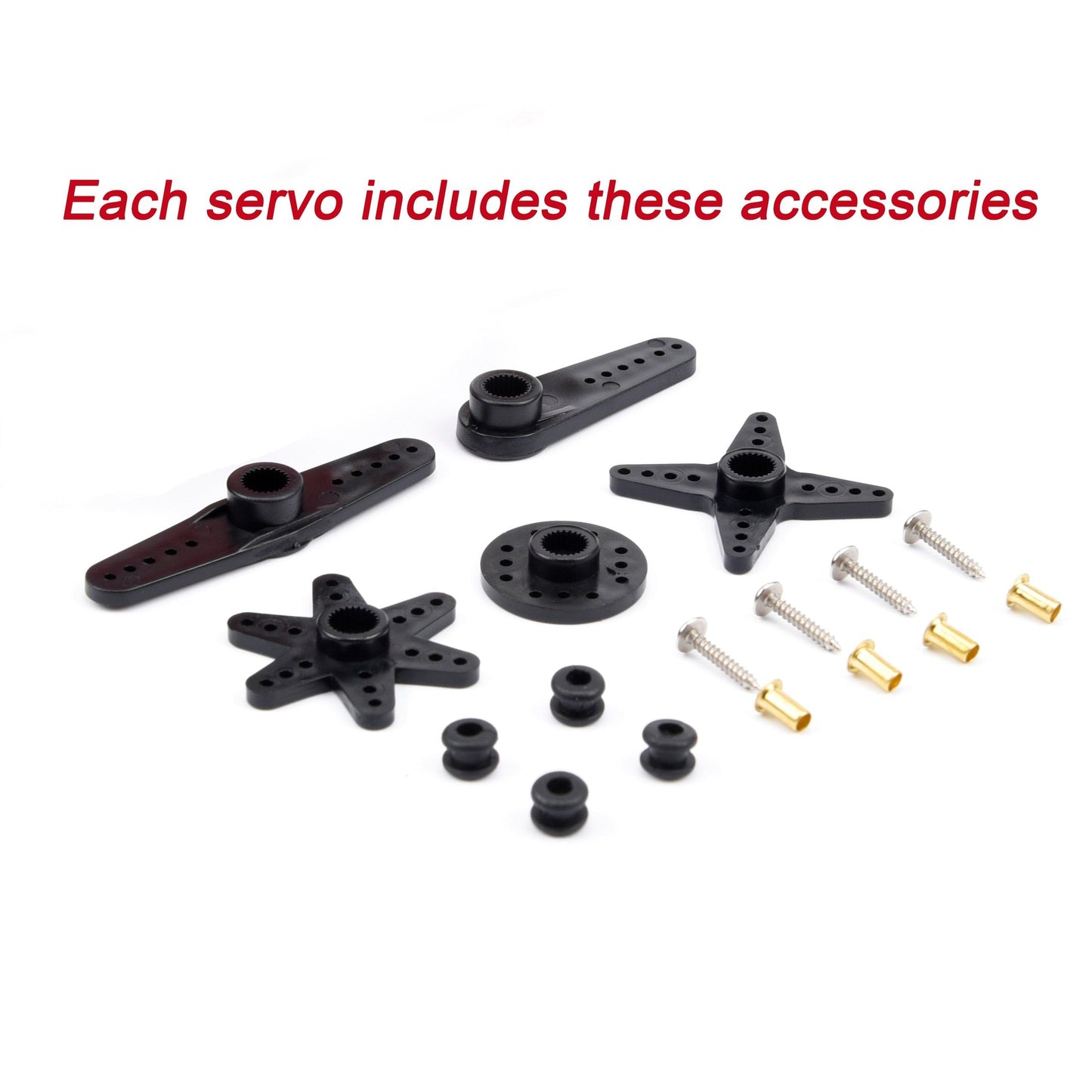

READYTSSKY |Package Included

( send as your choice of the picture showed)
1PCS or  4PCS 20kg / 25kg / 30kg / 35kg servo
1PCS or 4PCS 25T arm

Note :We have a remote controlled 20kg / 25kg servo that can reach 180 Degree. if you want to buy,  please open this link.


https://www.aliexpress.com/item/32298149426.html

Running degree: 180°3°(when 5002500usec)

Item Specifcation 1.1 Storage Temperature Range -30°C802s battery is recommended for power supply (6v-8.4v) 1PCS orHumidity Range: 65%10% Mechanical Specification:Large Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm RC CarEngineering plastics(PBT)+Aluminum alloy 9 .https://www.aliexpress.com/item/32298149426.TS58500 5.8G 50OmW 32CH 3 727847 '

'Bky Long Range Transmitter: 4OOOM TS58500 MINI 32CH 5G8 7-24V SoOMw Gnd Ju6o to,| Gnd .

Store No: 727847 TS58500 MiNI 32CH 5G8 7-245 Store No; 727847 TS58500 MIni 32CH 7-24vstore No: '27847 DEBPED bbbadi 66b

Waterproof Digital Coreless Servo with Aluminium Metal Gears for RC Cars - 20KG, 25KG, 30kg, 35kg, 60kg Torque (180/270/360 Degree)

Store TS58500 MINI 32CH 5G8 SOOMW 7-24V GndStore No: 727847 TS58500 7-24v Gnd Audio Video Mini 32TS58500 5.8G 50OmW 32CH 3 727847 '

Long Range Transmitter: 40OOm TS58500 MINI, 32-channel, 5-24V, with Ground (Gnd) Input and Output.

20KG/25K6/30K6/6OKG High Torque Coreless Motor

Product Name: Waterproof Digital Coreless Servo Specifications: * Torque Options: 20KG, 25KG, 30KG, 35KG, or 60KG * Rotation: 180 degrees, 270 degrees, or 360 degrees * Features: + Large torque digital coreless servo motor + Aluminium metal gears for durability and precision + Compatible with 4.8V-6.8V battery packs + Suitable for RC cars and other applications Model Numbers: * TD-8120MG (60kg) * TD-8325MG (25T arm) * TD-813514G





TS58500 5.8G 50OmW 32CH 3 727847 '

'Bky Long Range Transmitter: 4OOOM TS58500 MINI 32CH 5G8 7-24V SoOMw Gnd Ju6o to,| Gnd .

Store No: 727847 TS58500 MiNI 32CH 5G8 7-245 Store No; 727847 TS58500 MIni 32CH 7-24vstore No: '27847 DEBPED bbbadi 66b

store No: '27847 DEBPED bbbadi 66baeb HJ bbebaae DEDBBD 08pttol 4o DbbbBAp 49 Qrbttt ChJ 8a88 DbbeBAp 48 QrbettchJ 8bb

Store TS58500 MINI 32CH 5G8 SOOMW 7-24V GndStore No: 727847 TS58500 7-24v Gnd Audio Video Mini 32TS58500 5.8G 50OmW 32CH 3 727847 '

Backward Key Long Range Transmitter: 4000m TS58500, mini, 32-channel, 5GHz-24V, Some Ground Juices Included.

Store No: 727847 TS58500 MiNI 32CH 5G8 7-245 Store No; 727847 TS58500 MIni 32CH 7-24vstore No: '27847 DEBPED bbbadi 66b

store No: '27847 DEBPED bbbadi 66baeb HJ bbebaae DEDBBD 08pttol 4o DbbbBAp 49 Qrbttt ChJ 8a88 DbbeBAp 48 QrbettchJ 8bb

Store TS58500 MINI 32CH 5G8 SOOMW 7-24V GndStore No: 727847 TS58500 7-24v Gnd Audio Video Mini 32TS58500 5.8G 50OmW 32CH 3 727847 '

Backyard Long Range Transmitter: 40km (TS-58500) Mini, 32 Channel, 5GHz-8GHz, Supports voltage from 7V to 24V, Ground Jumper included.


20KG 180 / 270 Degree Servo:


Large Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm RC CarStore Mo: 727847 cenottoy Jnotn J0 8120moLarge Torque Digital Coreless ServoStoi 20 ReadytOSkY DIGITANSERVO 4.8v-6 811
25KG 180 Degree Servo:
Td-RrcM6 SfmNQ READYtOs

Td-RrcM6 SfmNQ READYtOsKY Turymal $ Readytosky 25k SERVO 4.8V 6.8v DIGITAL TD-8325mG SERVO

Readytosky 4.8v-6.8v DIGITAL TD-8325m
TD-8325MG [DIGITAL = READYTOSKY SERV

dGita 'dGIeal 25' 25 Readytorky Pe

TD TD Store Mo; 727847 Kg 28325676 9 1 1 dGita 'dGIeal 25' 25 Readytorky Peneytork DIGiTAL 4lev-GlBv 4l8v-6.

Servo Control Angel: 180 Degree kg TD Td Store No; 727847

Servo Control Angel: 180 Degree kg TD Td Store No; 727847 'kg TD 28325676 4 1 0 Dchtal dGItalf 25* 25* Rradytorhy Pradytotky DiGitaL DIGITAL Alev-G,Bv ABv0, 8325mG 832smG

30KG 90~180/ 270 / 360 Degree Servo:
Engineering plastics(PBT)+Aluminum alloy 9Horn gear spline: 25T Diameter :5.9mm
Operating Temperature Range: -25°C70°C Standard Test Environment:Store No: 727847 TD-8ibomg TIANKONGRC2s battery is recommended for power supply (6v-8.4v) 1PCS or5 waterproot 309 Corelt O Viiaz Servo REstore No: 727847 4,Bv kg It Jydnonnvil

store No: 727847 4,Bv kg It Jydnonnvil 91n0f18 "1iidiO waterproot 'J2v Latt 30 a Coralous = ReAoYtoske

kg 4 4.BV-7.1V TD-EiOMg SeRvo 30 DILarge Torque Digital Coreless ServoLarge Torque Digital Coreless Servo7 30k9 coreless 4.v-7Av T@roMs DIGkg 30 4.8V-74V TD-8130MG SeRvO DIGILarge Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm RC Car
35KG 90~180/ 270 Degree Servo:
Td-8135mg TiaNKONGRC Servo DIGITAL

TD-8135MG TiaNKONG RC Servo: Digital, Coreless, High-Torque Motor, Aluminum Metal Gears, 4.8V-6V Operation.

AL SERVO T0-8135mg TIANKONGRC SERvO DigiLarge Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm RC Car


Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Drone Categories
