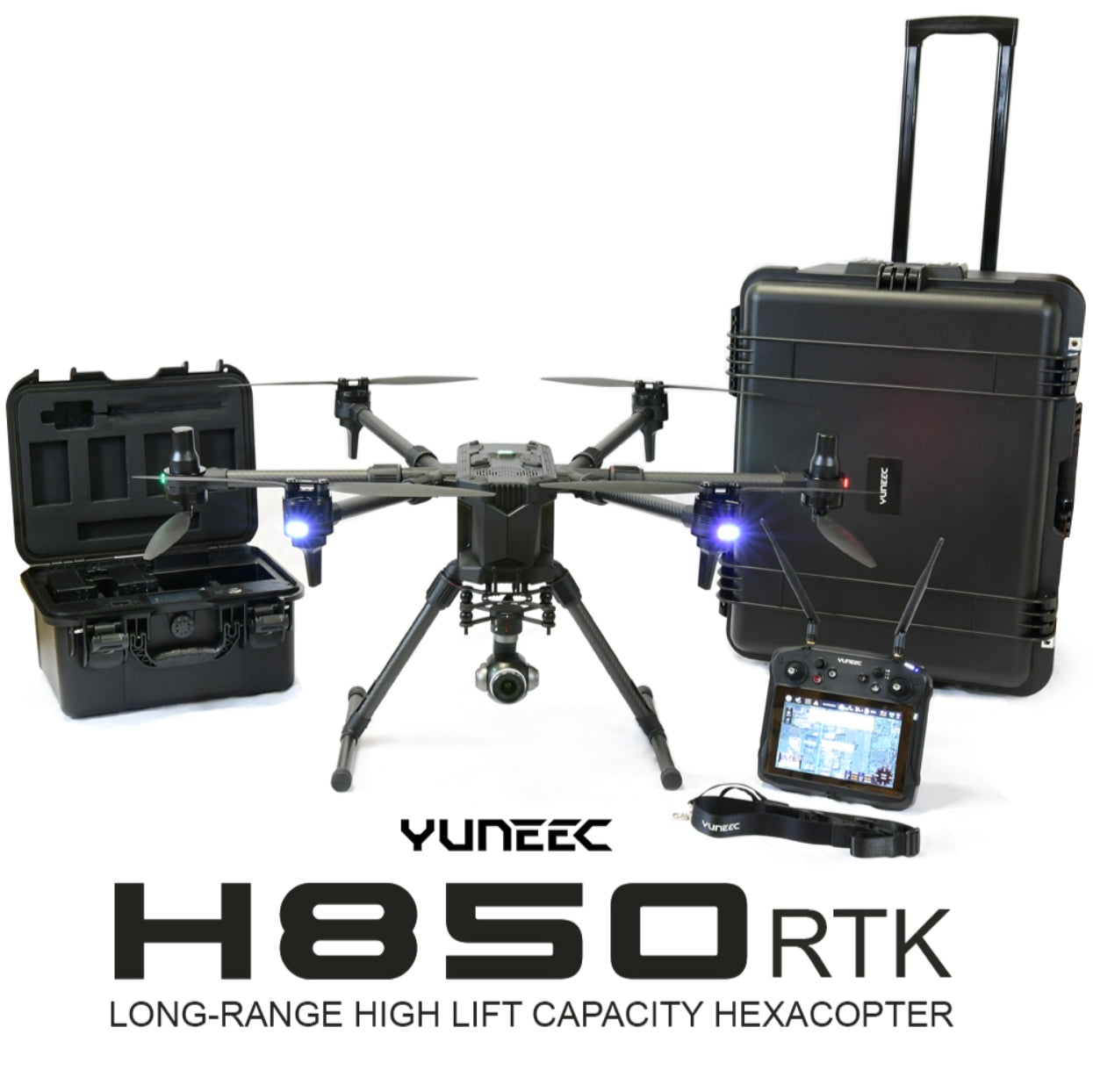

Yuneec H850 RTK Commercial Hexacopter - 3KG Payload 65 Minutes 15KM Range Industrial Drone for Professional Mapping, Surveying, Inspection, Rescue

Overview

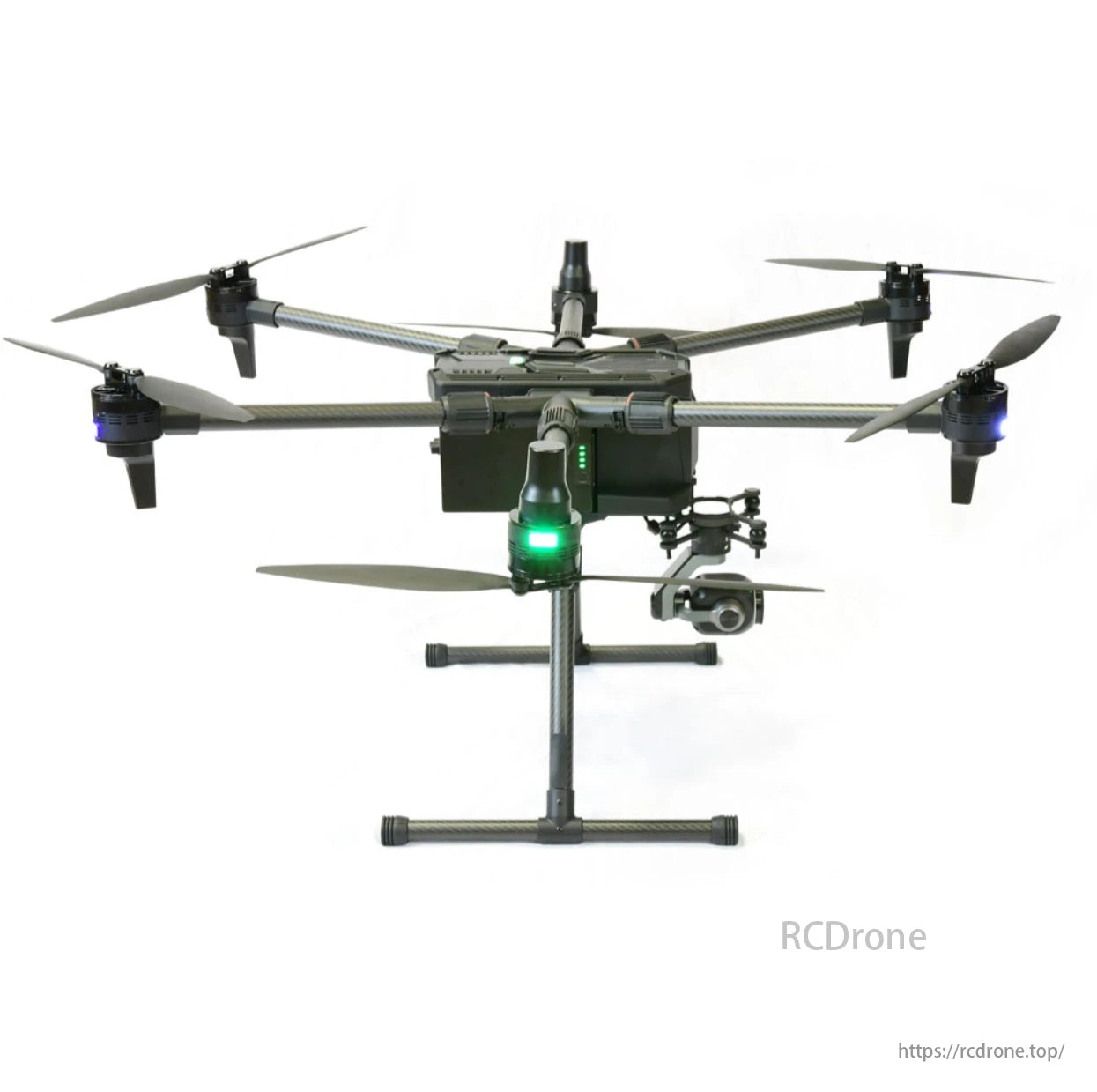

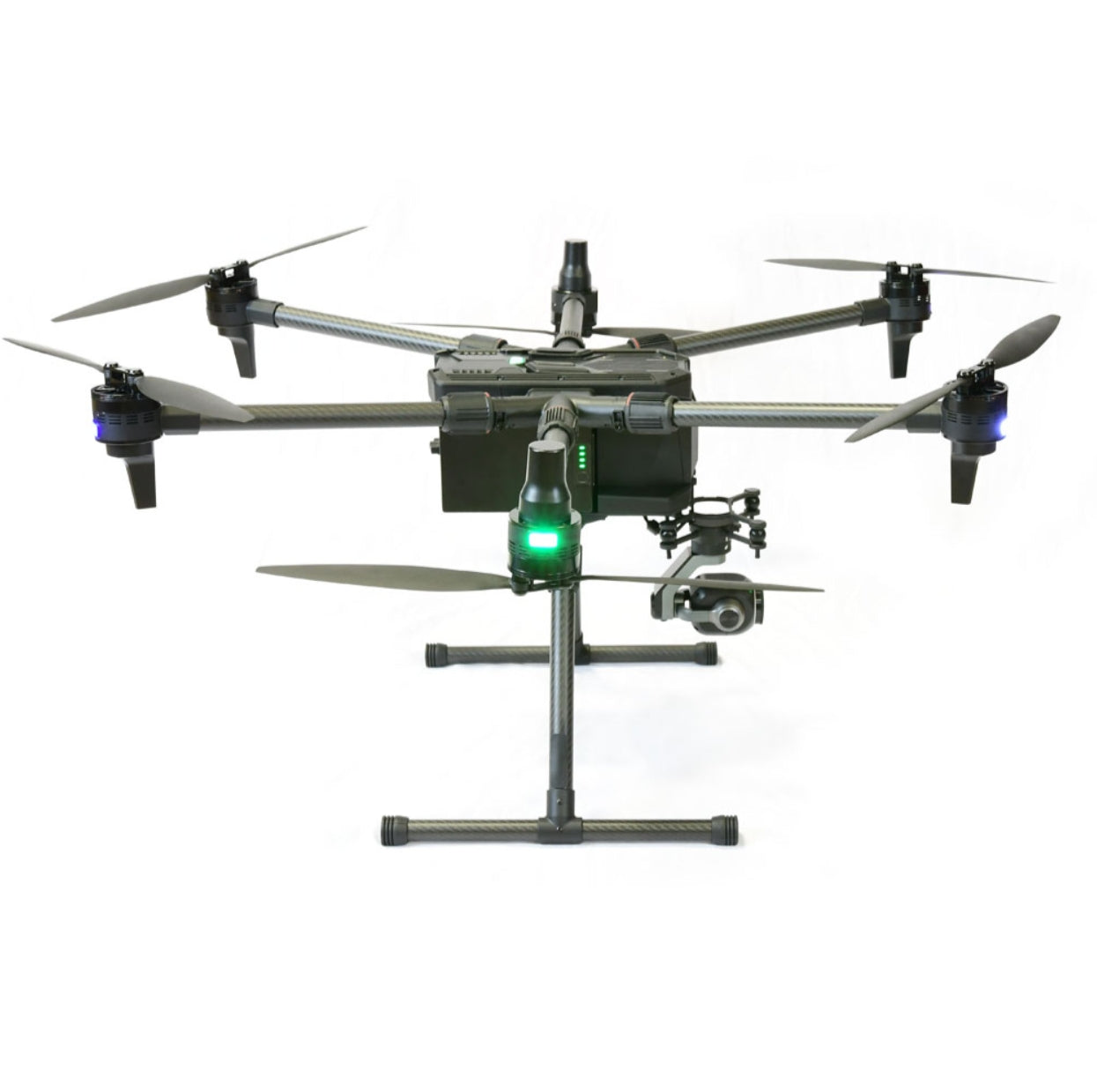

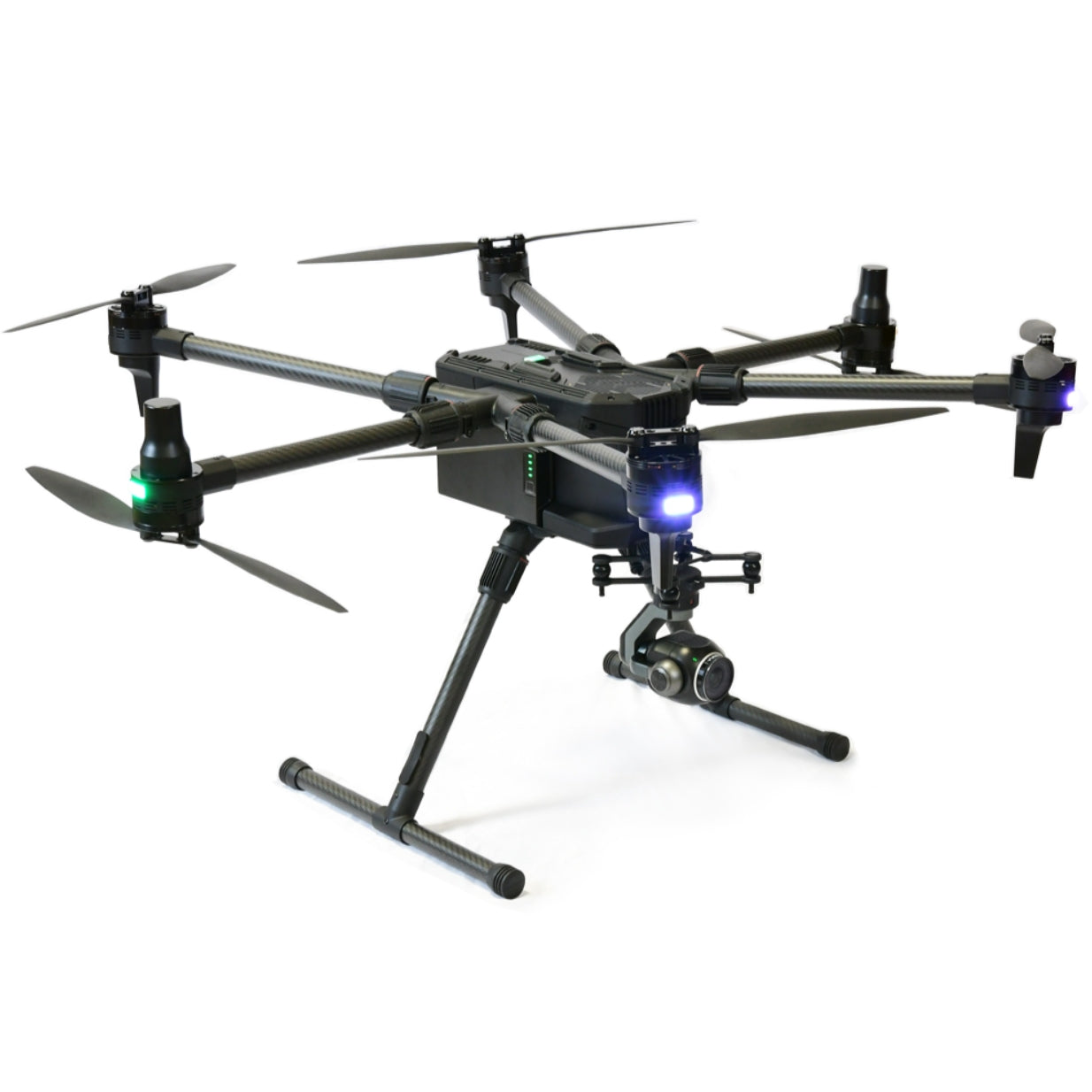

The Yuneec H850 RTK Commercial Hexacopter is a robust industrial drone designed to handle extended operations and challenging environments. It can achieve up to 65 minutes of flight time (depending on payload) and offers a 15 km communication range, making it ideal for mapping, surveying, inspection, and rescue. Its 5-rotor fail-safe, redundant IMUs, compasses, and barometers deliver enhanced reliability, while the 3-axis gimbal and hot-swappable payloads enable versatile image capture and data collection. The drone supports up to three payloads (3 kg total) simultaneously, with data stored locally on SD cards for optimal security. An integrated 7” touchscreen, remote camera settings, and DataPilot™ mission planner streamline operations, and future compatibility is ensured through external I/O ports.

Specifications

AIRFRAME

Number of Rotors: 6

Diagonal Distance: 850mm

Weight (Without Gimbal): 12.78lbs (5.8kg)

Maximum Takeoff Load Weight: 6.61lbs (3kg)

Batteries: Two Intelligent Flight Batteries

Maximum Flight Time: 62 Minutes

Maximum Transmitting Distance (Unobstructed, Free of Interference):

FCC: 9.32mi (15km)

CE: 4.97mi (8km)

Obstacle Sensory Range (Not Included in Base Bundle):

Forward Radar: 0.2~40m

Downward Radar: 0.2~100m

Landing Gear: Non-Retractable Landing Gear

IP Rating: IPX4 (Protects from splashing water, no matter the direction)

Supported Gimbal Configurations:

- Single Downward

- Single Upward

- Single Downward

- Single Upward

GNSS: GPS+GLONASS+BeiDou+Galileo

IMU Redundancy: Dual IMU

Hovering Accuracy:

Vertical:±0.5m (GPS), ±0.1m (RTK)

Horizontal:±1.5m (GPS ), ±0.1m (RTK)

RTK Positional Accuracy:

- 1cm+1ppm (Horizontal)

- 1.5cm+1ppm(Vertical)

Max Horizontal Speed:

S-Mode: 44.7mph (20m/s)

P-Mode: 22.36mph (10m/s)

Max Service Ceiling Above Sea Level: 16,404ft (5,000m with Payloads =2.2lbs)

H850 CORE BOARD

CPU: Quad-core Cortex-A55 up to 2.0GHz

GPU:

ARM Mali-G52 GPU

Embedded High-Performance 2D Acceleration Hardware

Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

NPU: Support 0.8T Computing Power

Multimedia:

4KP60 H.265/H.264/VP9 video decoder

1080P60 H.264/H.265 video encoder

8M ISP with HDR

Video Streaming: Dual display, LVDS/MIPI-DSI/RGB/eDp/RGB/HDMI2.0/T-CON

Port: USB2.0, USB3.0, PCIE3.0, PCIE2.1, SATA3.0, QSGMII

T-ONE REMOTE CONTROLLER

Screen Size: 7''

Screen Resolution: 1080p 1920×1200p

Max Screen Luminance: 1000nit

Hardware Parameter:

Cortex-A72+Cortex-A53 ROM 32GB +

RAM 4GB GPS+GLONASS

Max Transmitting Distance (Unobstructed, Free of Interference)

FCC: 9.32mi (15km), CE: 4.97mi (8km)

Battery: 10000mAh @ 7.6V (21700)

Working Time:

100% Luminance: 5.5 hours

=80% Luminance: =7.5 hours

Weight: = 2.64lbs (1.2kg)

Dustproof and Waterproof Grade: IPx4

Operating System: Android 10.0

External Interface:

USB2.0 / USB 3.0/ HDMI / Micro SD / Type- C

Operation Temperature: -4°F ~ 122°F (-20°C ~ 50°C)

Charge Operation Temperature: 41°F ~ 104°F (5°C ~ 40°C)

Power: ~15W

Size (LxWxH): 8.25x7.94x4.3 in (209.6×201.6×109mm)

C-BOX INTELLIGENT CHARGING STATION

Overall Size (LxWxH): 14.5x10.6x8.7in (370×270×220mm)

Charging Quantity: 4 Aircraft Batteries, 2 Controller Batteries Simultaneously

Display: 3.5'' Color LCD Display

Input:

100-120 Vac, 50-60Hz, 1050W

200-250 Vac, 50-60Hz, 1300W

Output:

100~120Vac: 26.4Vdc,8A×4Channels

8.4Vdc,4A×2Channels

200~250Vac: 26.4Vdc,10A×4Channels

8.4Vdc,5A×2Channels

Operating Temperature: -4°F ~ 104°F (-20°C ~ 40°C)

H850 INTELLIGENT FLIGHT BATTERY

Size (LxWxH): 3.8x2.9x5.9in (98×58×149mm)

Nominal Capacity: 12800mAh

Minimum Capacity: 12160mAh

Battery Energy: 295.68Wh

Standard Voltage: 23.1V 3.85V/Cell

Charging Voltage: 26.4V 4.4V/Cell

End-off Voltage: 18V

Battery Type: Li-ion

Cycle Life: =200 Cycle, Nominal Capacity =80%

Charge Current:

Standard Charge - 0.5C (6.4A

Fast Charge - 1C (12.8A)

Full Charge Time:

1.5h (10A Charge, CC-CV)

Discharge Current:

Standard Discharge - 0.5C (6.4A)

Maximum Continuous Discharge Current - 64A

Instantaneous Maximum Discharge Current - 128A

Weight: 3lbs (1380±10g)

Operating Temperature:

Charge: 32°F ~ 113°F (0°C ~ 45°C)

Discharge: 14°F ~ 140°F (-10°C ~ 60°C)

Storage Temperature: 32°F ~ 113°F (0°C ~ 45°C)



Package Includes:

1 - Yuneec H850 Aircraft

1 - Single Downward Gimbal Bracket

1 - T-One Ground Station Controller

1 - T-One Ground Station Battery

1 - T-One Ground Station Lanyard

1 - USB Charging Cable with Wall Outlet Adapter

1 - C-Box Intelligent Charging Station

1 - Repair Toolkit

2 - Intelligent Flight Batteries

2 - Landing Gear Assemblies

3 - Clockwise A Propellers

3 - Counter-Clockwise B Propellers

1 - Manual



Features

Yuneec H850 - Raising the Bar

The Yuneec H850 series was designed with professionals in mind. It features the following capabilities that make it a force to be reckoned with in the drone community:

- Redundant design with dual GPS+RTK modules, dual IMU and dual batteries

- Supports customizable FPV camera, FlightAware ADS-B and more

- Features Yuneec's signature 6-rotor design for safety with 5-rotor failsafe

- Modular and foldable design for portability

- Open-source software for flight control and mission planning

- Added data security

- Support user interface customization

- Ingress Protection Rating of IPx4~IPx5 for strong weather resistance and reliability

- Features a new generation of digital transmission technology with a stable transmission up to 9.3-miles (15km)

- T-One Ground Station supports 5-6 hours of battery with custom high-gain antennas (>5dBi) for longer transmission range

- Maximum flight time of 60~65 minutes (without payload)

- Higher lift-capacity

- Multi-payload compatibility

All-New Image Transmission Technology

The H850 series uses updated technology to achieve a transmission range of up to 9.3-miles:

- The T-One remote controller and H850 detect signal interference in real-time, allowing for a switch to a clean frequency

- Features a 2.4GHz & 5.8GHz high bandwidth wireless data transmission module based on TDD principle using key technologies such as OFDM and MIMO to Improve band utilization.

- Supports 64QAM, 16QAM, QPSK, BPSK modulation mode and code rate independent dynamic adjustment.

- Dual-band intelligent frequency hopping technology

- Uplink frequency hopping

- Real-time monitoring of in-band interference

- Access to 68 frequency hopping sequences where the downlink automatically and quickly changes frequency points in the band according to channel interference

- Adjustable modulation and encoding strategies

- Two channels 1080p/720p HD image transmission

- Built-in H264. Encoder docking link up MCS.

Upward Expandable Interface

The top and bottom portion of the H850 features multiple ports for a wide variety of accessories and payload configurations:

- AUX Output

- MicroSD Slot

- USB-3.0 Type-A Port

- GMAC 1000MB Port

- Pairing Button

- Core-Board Update Button

- Pairing Indicator Light

- X-Connector Custom USB-C Port (Upward Gimbal)

- Four Threaded Mounting Holes for Added Accessories/User-Modification

Downward Expandable Interface

- X-Connector Custom Type-C (Downward Gimbal 1 of 2)

- Power (5V+GND) x 2 (1 of 4)

- PMW x 2 (1 of 3)

- GPIO x 2 (1 of 2)

- Power (5V+GND) x 2 (2 of 4)

- UART x 1 (1 of 2)

- GMAC 1000MB

- USB 3.0 Type-A

- X-Connector Custom Type-C (Downward Gimbal 2 of 2)

- Power (5V+GND) x 2 (3 of 4)

- PMW x 2 (2 of 3)

- GPIO x 2 (2 of 2)

- Power (5V+GND) x 2 (4 of 4)

- PMW x 1 (3 of 3)

- UART x 1 (1 of 2)

- XT30 (Power x 1 6S VCC: 19.8V~26.4V)

Updated Remote Controller

The new T-One remote controller features a 7'' built-in 1920x1200 ultra high-definition touchscreen with 1000nit brightness. The T-One comes equipped with a Cortex-A72 & Cortex-A53 processor with an Android 10.0 operating system. The battery life of 5-6 hours and cold start time of <30 seconds make the T-One a major upgrade from the older ST16E. Additionally, the 40Mbps dual-band intelligent dynamic frequency hopping capability and transmission distance of up to 9.3-miles (15km) makes the T-One one of the better controllers on the market.

More Battery Power

The H850 series features an all-new intelligent battery design. Each battery includes an onboard intelligent battery management system (BMS) to do the following:

- Provide accurate charge display

- Regulate storage and self-discharge

- Balanced charging protection

- Charging over voltage protection

- Temperature protection

- Charging overcurrent protection

- Over discharge protection

- Short circuit protection

Optional Millimeter Wave Radar Obstacle Avoidance (Not Included)

Featuring ground detection capability allowing the H850 to follow terrain and maintain a consistent altitude.

- 24GHz ISM Frequency Range

- MMIC Millimeter Wave Radar

- High Complexity FMCW Modulation Mode

- Distance Measuring Range: 0.2~100m

- Pitch Beam-Wave: ±37°

- Horizontal Beam-Wave: ±41°

- Measurement Accuracy: 0.1~30m: ±0.2m; 30~100m:±1m

Obstacle avoidance in the forward facing direction

- 77GHz Millimeter Wave Radar

- Double Beam-Wave Design

- Distance Measuring Range: 0.2~40m

- Pitch Beam-Wave: ±14°

- Horizontal Beam-Wave: ±56°

- Measurement Accuracy: ±0.1m,±2°

*Increased weight will diminish flight time by 10%~20%.



High-performance CH850 hexacopter designed specifically for commercial and professional aerial photography applications.

The Yuneec H850 RTK Commercial Hexacopter features a 5 rotor fail-safe design, 3 axis gimbal, and up to 65 minutes of flight.

The Yuneec H850 RTK Commercial Hexacopter is designed for professional use in mapping, surveying, inspection, safety and rescue applications. Its hexacopter design and up to 65-minute flight time enable extended operations, even in high-wind environments. It easily handles horizontal or vertical flight paths, inspecting hard-to-reach areas.

The Yuneec H850 RTK Commercial Hexacopter offers secure storage for your flight data, images, and videos. All data remains on the local SD card, ensuring optimal protection and no involuntary transfer to external servers. The hexacopter redundant systems, including IMUs, compasses, and barometers, ensure reliable data delivery even in the event of engine failure.

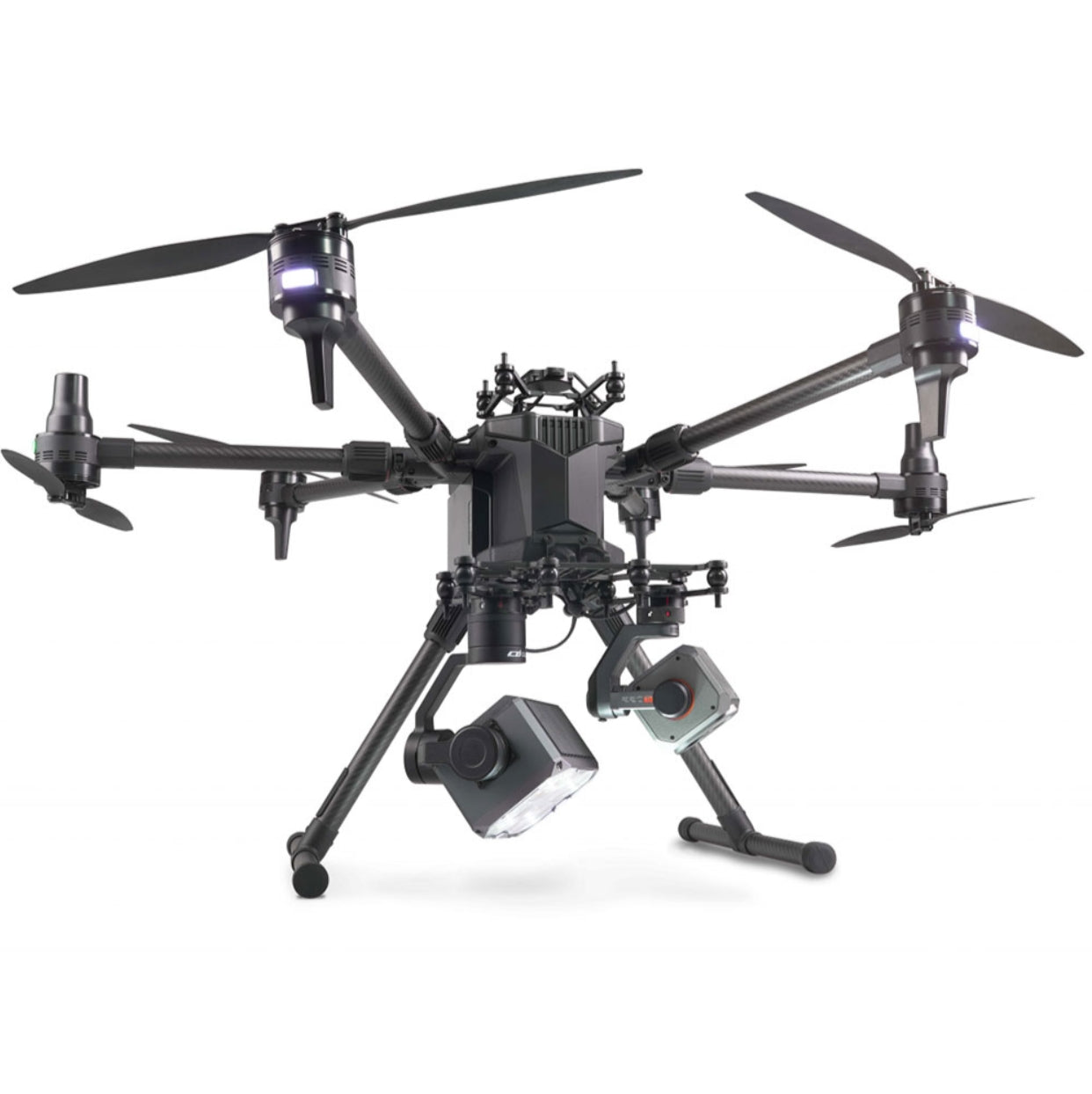

The Yuneec H850 RTK Commercial Hexacopter features flexible payload options. All payloads are hot-swappable for efficient operations and maximize flight time. The hexcopter can carry up to three payloads simultaneously, with individual control via transmitter. Payloads use SD cards for data storage, ensuring seamless compatibility and future-proofing.

Yuneec H850 RTK Commercial Hexacopter offers several solutions for various industries. It provides LiDAR, oblique and high-resolution cameras for mapping and surveying, including buildings and terrains. Additionally, it features a multispectral camera for precision agriculture, SAR device for transport and delivery of items, spotlight, speaker, and thermal cameras for rescue missions.
